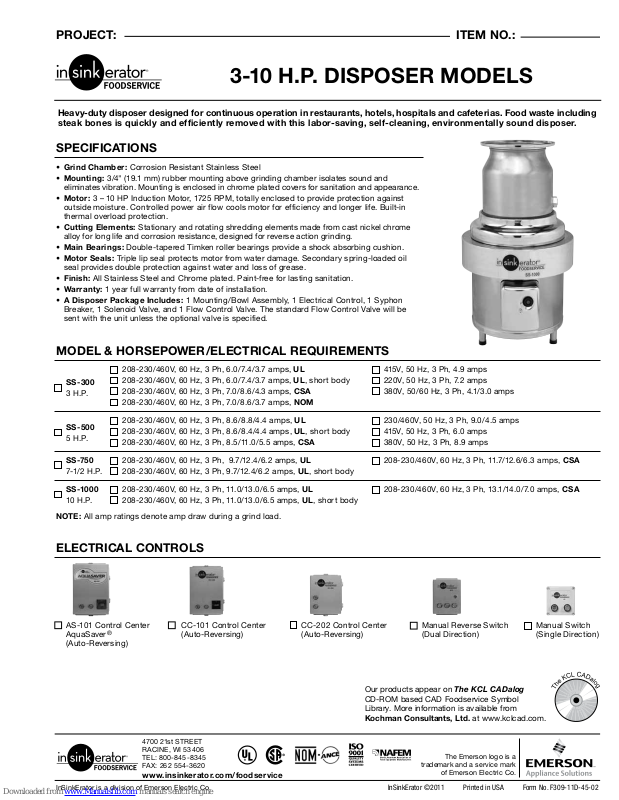

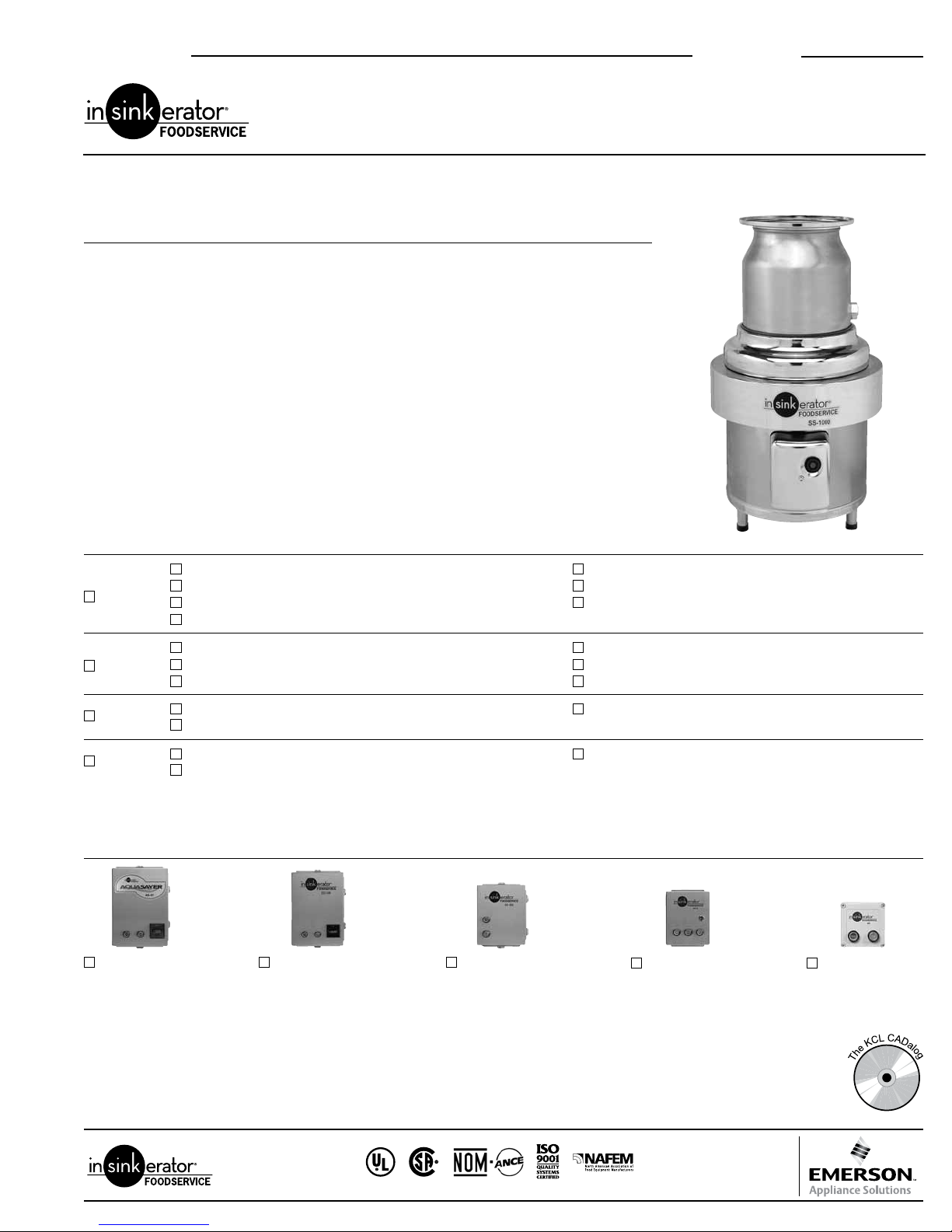

PROJECT: ITEM NO.:
3-10 H.P. DISPOSER MODELS
Heavy-duty disposer designed for continuous operation in restaurants, hotels, hospitals and cafeterias. Food waste including
steak bones is quickly and efficiently removed with this labor-saving, self-cleaning, environmentally sound disposer.
SPECIFICATIONS
• Grind Chamber: Corrosion Resistant Stainless Steel
• Mounting: 3/4" (19.1 mm) rubber mounting above grinding chamber isolates sound and
eliminates vibration. Mounting is enclosed in chrome plated covers for sanitation and appearance.
• Motor: 3 – 10 HP Induction Motor, 1725 RPM, totally enclosed to provide protection against
outside moisture. Controlled power air flow cools motor for efficiency and longer life. Built-in
thermal overload protection.
• Cutting Elements: Stationar y and rotating shredding elements made from cast nickel chrome
alloy for long life and corrosion resistance, designed for reverse action grinding.
• Main Bearings: Double-tapered Timken roller bearings provide a shock absorbing cushion.
• Motor Seals: Triple lip seal protects motor from water damage. Secondary spring-loaded oil
seal provides double protection against water and loss of grease.
• Finish : All Stainless Steel and Chrome plated. Paint-free for lasting sanitation.
• Warranty: 1 year full warranty from date of installation.
• A Disposer Package Includes: 1 Mounting/Bowl Assembly, 1 Electrical Control, 1 Syphon
Breaker, 1 Solenoid Valve, and 1 Flow Control Valve. The standard Flow Control Valve will be
sent with the unit unless the optional valve is specified.
MODEL & HORSEPOWER/ELECTRICAL REQUIREMENTS
208-230/460V, 60 Hz, 3 Ph, 6.0 /7.4/3.7 amps, UL
SS-300
3 H.P.
SS-500
5 H.P.
SS-750
7-1/2 H.P.
SS-1000
10 H.P.
NOTE: All amp ratings denote amp draw during a grind load.
208-230/460V, 60 Hz, 3 Ph, 6.0 /7.4/3.7 amps, UL, short body
208-230/460V, 60 Hz, 3 Ph, 7.0/8.6/4.3 amps, CSA
208-230/460V, 60 Hz, 3 Ph, 7.0/8.6/3.7 amps, NOM
208-230/460V, 60 Hz, 3 Ph, 8.6/8.8/4.4 amps, UL
208-230/460V, 60 Hz, 3 Ph, 8.6/8.4/4.4 amps, UL, short body
208-230/460V, 60 Hz, 3 Ph, 8.5/11.0/5.5 amps, CSA
208-230/460V, 60 Hz, 3 Ph, 9.7/12.4/6.2 amps, UL
208-230/460V, 60 Hz, 3 Ph, 9.7/12.4/6.2 amps, UL, short body
208-230/460V, 60 Hz, 3 Ph, 11.0/13.0/6.5 amps, UL
208-230/460V, 60 Hz, 3 Ph, 11.0/13.0/6.5 amps, UL, shor t body
ELECTRICAL CONTROLS
AS-101 Control Center
AquaSaver®
(Auto-Reversing)
CC-101 Control Center
(Auto-Reversing)
CC-202 Control Center
(Auto-Reversing)
415V, 50 Hz, 3 Ph, 4.9 amps
220V, 50 Hz, 3 Ph, 7.2 amps
380V, 50/60 Hz, 3 Ph, 4.1/3.0 amps
230/460V, 50 Hz, 3 Ph, 9.0/4.5 amps
415V, 50 Hz, 3 Ph, 6.0 amps
380V, 50 Hz, 3 Ph, 8.9 amps
208-230/460V, 60 Hz, 3 Ph, 11.7/12.6/6.3 amps, CSA
208-230/460V, 60 Hz, 3 Ph, 13.1/14.0/7.0 amps, CSA
Manual Reverse Switch
(Dual Direction)
Manual Switch
(Single Direction)
4700 21st STREE T
RACINE, WI 53406
TEL: 80 0-845-8345
FAX: 262 554-3620
www.insinkerator.com/foodservice
InSinkErator is a division of Emerson Electric Co.
Our products appear on The KCL CADalog
CD-ROM based CAD Foodservice Symbol
Library. More information is available from
Kochman Consultants, Ltd. at www.kclcad.com.
The Emerson logo is a
trademark and a service mark
of Emerson Electric Co.
InSinkErator ©2011 Printed in USA Form No. F309-11D-45-02

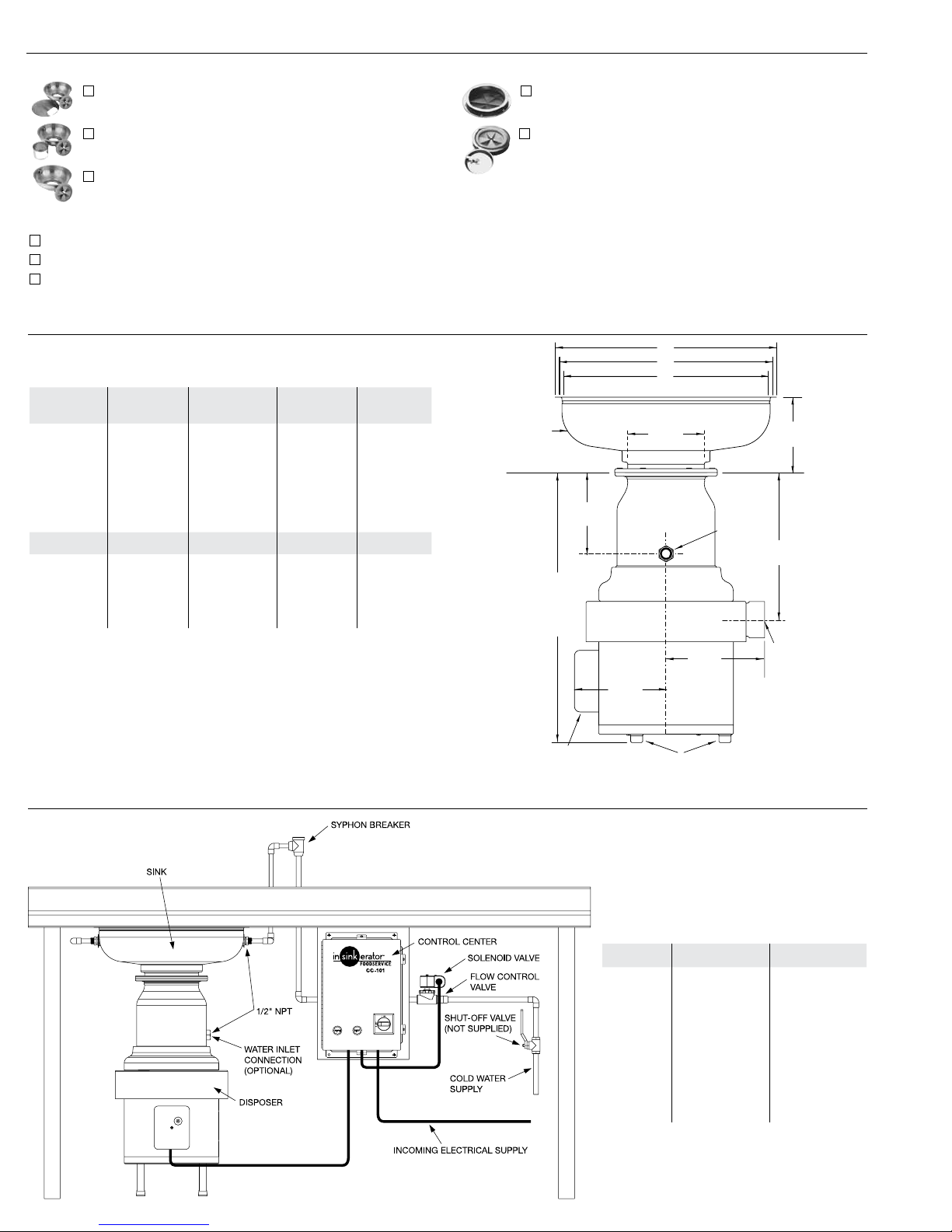

DISPOSER MOUNTING ASSEMBLIES (choose one)
Collar MountsBowl Mounts
Type A Sink Bowl Assembly: Includes bowl, water
nozzle(s), bowl cover, splash baffle
#6 Collar Adaptor for welding into trough, provides
6-5/8" (168.3 mm) opening, includes splash baffle
Type B Sink Bowl Assembly: Includes bowl, water
nozzle(s), silver guard, splash baffle
Type C Sink Bowl Assembly: Includes bowl, water
nozzle(s), splash baffle
Sink Bowl Assembly Size
12" (304.8 mm) with one adjustable water nozzle
15" (381.0 mm) with one adjustable water nozzle
18" (457.2 mm) with two adjustable water nozzles
DIMENSIONS
IMPORTANT: Use dimension chart below for adaptor height in place
of InSinkErator bowl sink height when mounting directly to a sink.
Bowl
Sinks
12"
(304.8 mm)
15"
(381 mm)
18"
(457.2 mm)
Flange O.D.
X
13-1/2"
(342.9 mm)
16-1/2"
(419.1 mm)
19-1/2"
(495.3 mm)
Adaptors X Y Z Height
No. 6
No. 7
7-13/16"
(198.4 mm)
9-1/8"
(231.8 mm)
NOTE:
• Adaptors are available upon request for all competitor
sink bowls or cones.
• Please have sink bowl/cone type with the necessary
dimensions when ordering adaptors.
• Also available as a short body model. Reduces overall
height of disposer by 3" (76.2 mm).
Work Table Hol e
Y
12-1/4"
(311.2 mm)
15-1/4"
(387.4 mm)
18-1/4"
(463.6 mm)
6-7/8"
(174.6 mm)
7-7/8"
(200.0 mm)
Flange I.D.
Z
12"
(304.8 mm)
15"
(381.0 mm)
18"
(457.2 mm)
6-5/8"
(168.3 mm)
7-5/8"
(193.7 mm)
Height
6-1/2"
(165.1 mm)
6-1/2"
(165.1 mm)
6-1/2"
(165.1 mm)
1-3/16"
(30.2 mm)
2-1/16"
(52.4 mm)
#7 Collar Adaptor for welding into sink, provides
6-5/8" (168.3 mm) opening, includes splash baffle
and stopper
X
Y
Z
InSinkErator
BOWL SINK
(181.0 mm)
23-3/4"
TO
31-1/8"
(603.3 mm
TO
790.6 mm)
EXTERNAL ELECTRICAL
CONNECTIONS
7-1/8"
(222.3 mm)
8-3/4"
6-5/8"
(168.3 mm)
ADJUSTABLE
LEGS
8-3/4"
(222.3 mm)
1/2-14 N.P.T.
WATER INLET
(330.2 mm)
(165.1 mm)
13"
6-1/2"
3" (76.2 mm)
N.P.T.
WASTE
OUTLET
RECOMMENDED INSTALLATION
RECOMMENDED WATER USAGE
Standard Optional
SS-300
SS-500
SS-750
SS-1000
8 GPM
(30.3 LPM)
8 GPM
(30.3 LPM)
10 GPM
(37.9 LPM)
10 GPM
(37.9 LPM)
7 GPM
(26.5 LPM)
7 GPM
(26.5 LPM)
N/A
N/A
For additional information, see
Foodservice Product Information Binder.
