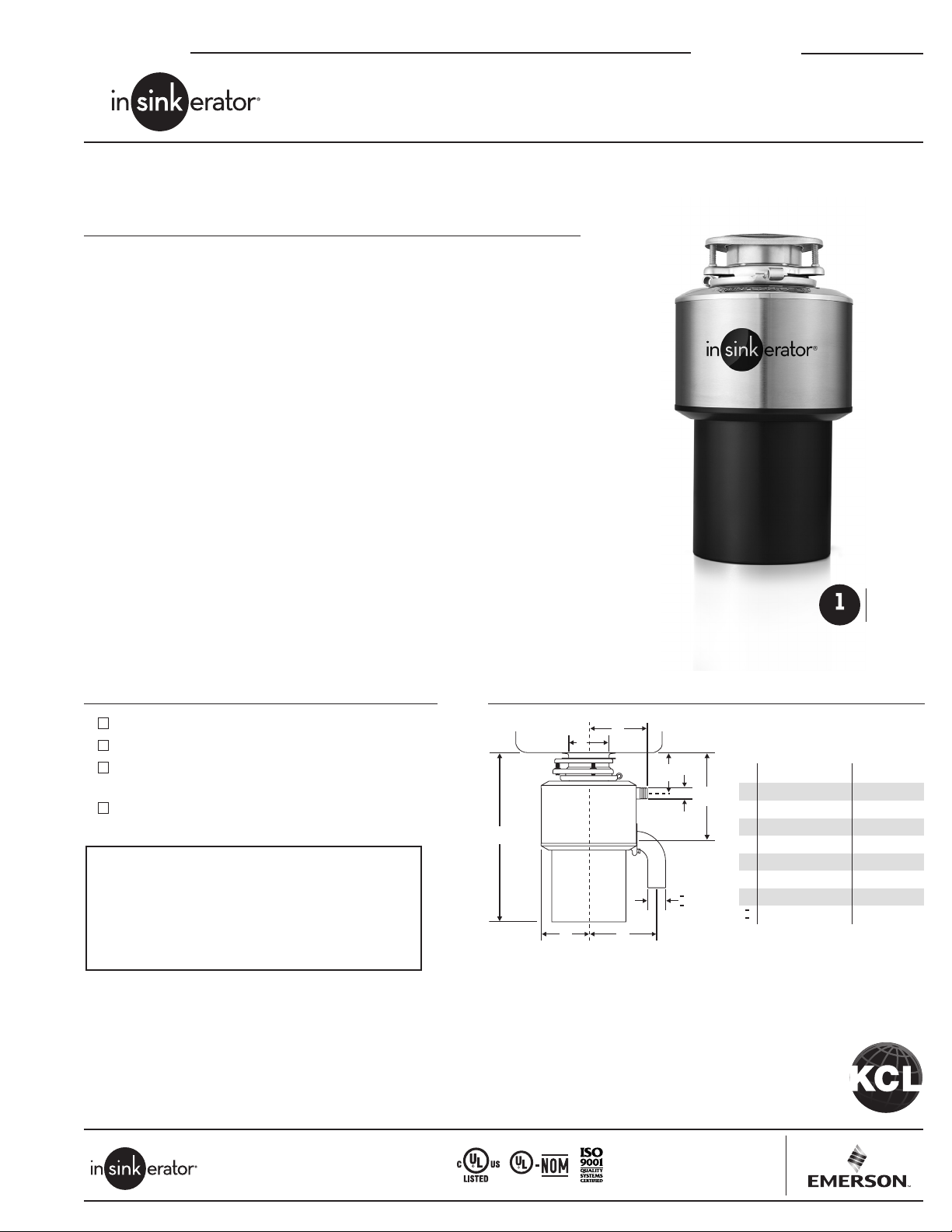

Page 1
PROJECT: ITEM NO.:
C
G
H
MX
E
R
TY

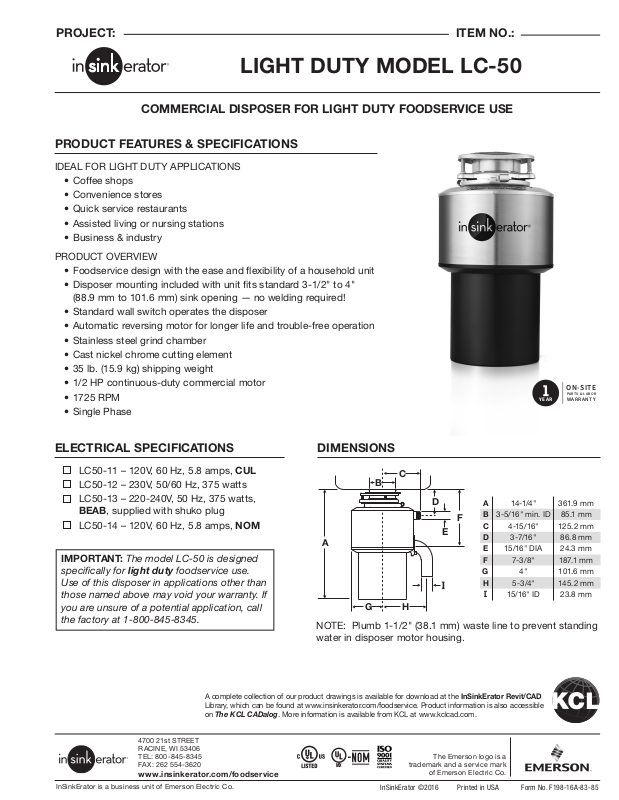

LIGHT DUTY MODEL LC-50
COMMERCIAL DISPOSER FOR LIGHT DUTY FOODSERVICE USE
PRODUCT FEATURES & SPECIFICATIONS
IDEAL FOR LIGHT DUTY APPLICATIONS
• Coffee shops
• Convenience stores
• Quick service restaurants
• Assisted living or nursing stations
• Business & industry
PRODUCT OVERVIEW
• Foodservice design with the ease and flexibility of a household unit
• Disposer mounting included with unit fits standard 3-1/2" to 4"
(88.9 mm to 101.6 mm) sink opening — no welding required!
• Standard wall switch operates the disposer
• Automatic reversing motor for longer life and trouble-free operation
• Stainless steel grind chamber
• Cast nickel chrome cutting element
• 35 lb. (15.9 kg) shipping weight
• 1/2 HP continuous-duty commercial motor
• 1725 RPM
• Single Phase
YEAR
ON-SIT
PARTS & LABO
WARRAN
ELECTRICAL SPECIFICATIONS
DIMENSIONS
LC50-11 – 120V, 60 Hz, 5.8 amps, CUL
LC50-12 – 230V, 50/60 Hz, 375 watts
LC50-13 – 220-240V, 50 Hz, 375 watts,
BEAB, supplied with shuko plug
LC50-14 – 120V, 60 Hz, 5.8 amps, NOM
A
IMPORTANT: The model LC-50 is designed
specifically for light duty foodservice use.
Use of this disposer in applications other than
those named above may void your warranty. If
B
D
E
I
A
14-1/4"
B
F
3-5/16" min. ID
C
4-15/16"
D
3-7/16"
E
15/16" DIA
F
7-3/8"
G
H
5-3/4"
I
15/16" ID
4"
361.9 mm
85.1 mm
125.2 mm
86.8 mm
24.3 mm
187.1 mm
101.6 mm
145.2 mm
23.8 mm
you are unsure of a potential application, call
the factory at 1-800-845-8345.
NOTE: Plumb 1-1/2" (38.1 mm) waste line to prevent standing
water in disposer motor housing.
A complete collection of our product drawings is available for download at the InSinkErator Revit/CAD
Library, which can be found at www.insinkerator.com/foodservice. Product information is also accessible
on The KCL CADalog. More information is available from KCL at www.kclcad.com.
4700 21st STREET
RACINE, WI 53406
TEL: 800-845-8345
FAX: 262 554-3620
InSinkErator is a business unit of Emerson Electric Co.
www.insinkerator.com/foodservice
InSink Erator ©2016 Printed in U SA
The Emerson logo is a
trademark and a service mark
of Emerson Electric Co.
Form No. F198-16A-83-85
Page 2

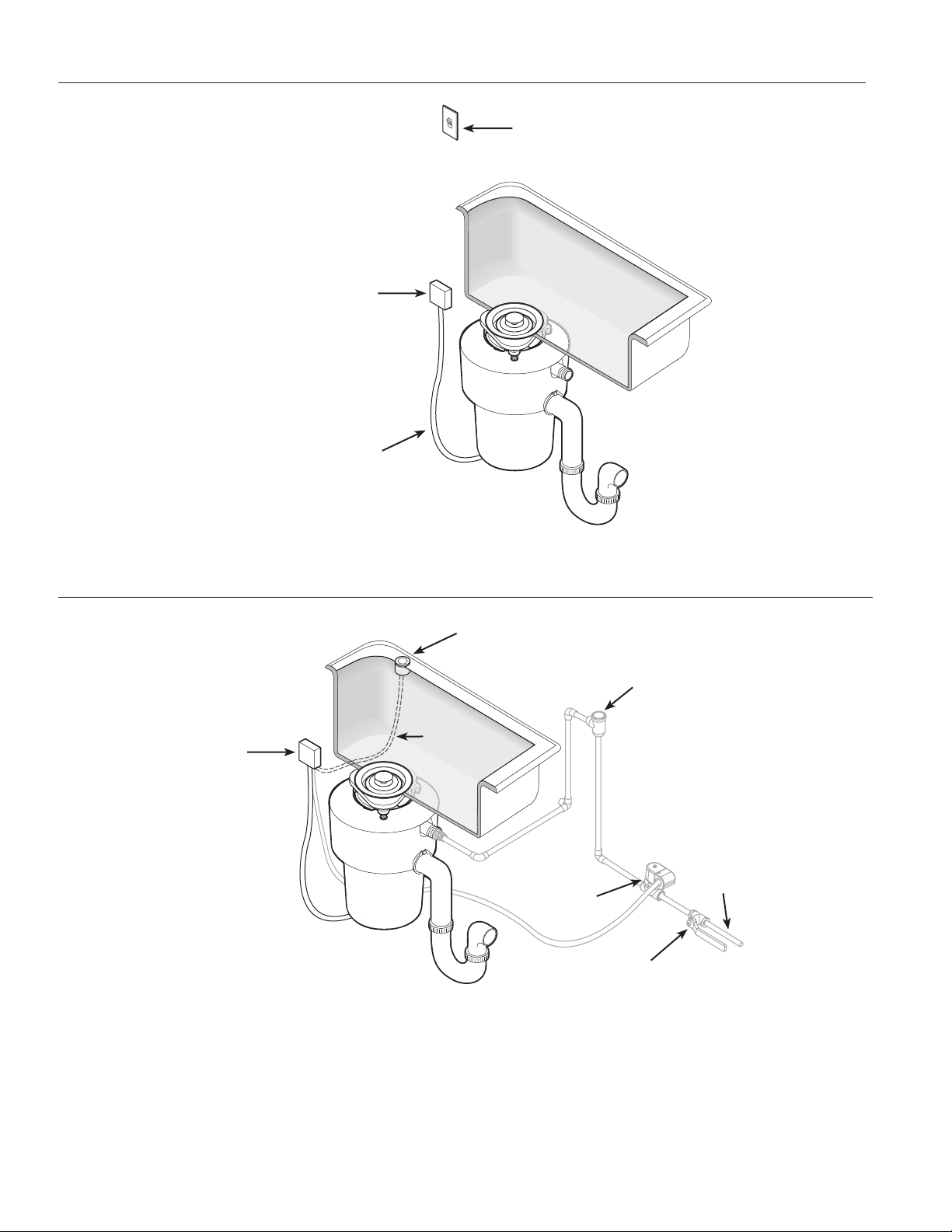

INSTALLATION WITH WALL SWITCH
A
Powe
Supply
Push Button
El
ectrical Junction Box
Electric Supply
Wall Switch
INSTALLATION WITH REMOTE AIR SWITCH AND OPTIONAL DIRECT WATER CONNECTION
Syphon Breaker
ir Switch
r Junction
NOTE: InSinkErator Commercial Air Switch (Part No. 13754) is available for 120V model only.
Air Hose
Solenoid Valve
Water Shutoff Valve
OPTIONAL
DIRECT WATER
CONNECTION
Cold Water
