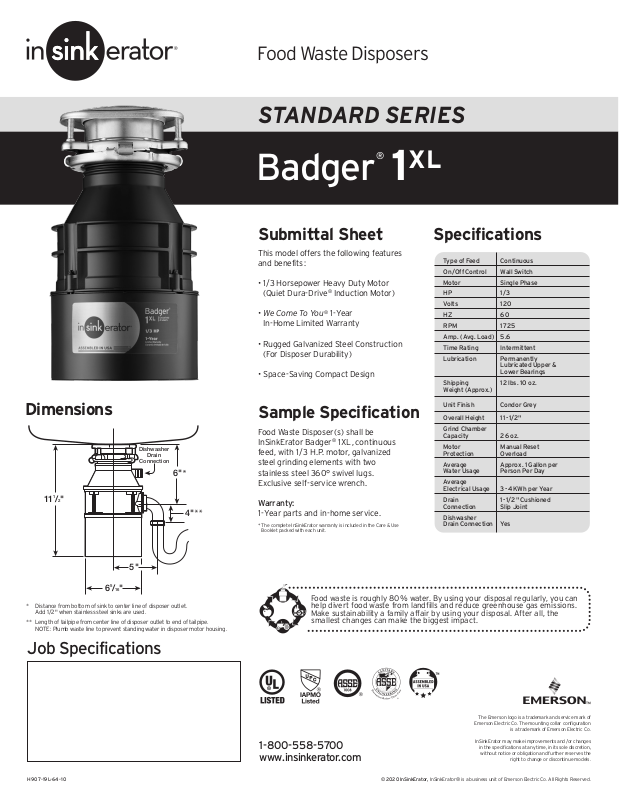

Food Waste Disposers
STANDARD SERIES
Dimensions
111/2"
Dishwasher
Drain
Connection
6"
4"
®
Badger
1
Submittal Sheet
This model offers the following features
and benefits:
• 1/3 Horsepower Heavy Duty Motor
(Quiet Dura-Drive
• We Come To You
In-Home Limited Warranty
• Rugged Galvanized Steel Construction
(For Disposer Durability)
• Space-Saving Compact Design
®
Induction Motor)
®
1-Year
Sample Specification
Food Waste Disposer(s) shall be
InSinkErator Badger
feed, with 1/3 H.P. motor, galvanized
steel grinding elements with two
stainless steel 360° swivel lugs.
Exclusive self-service wrench.
Warranty:
1-Year parts and in-home service.
The complete InSinkErator warranty is included in the Care & Use
*
Booklet packed with each unit.
®
1XL, continuous
XL
Specifications
Type of Feed Continuous
On/Off Control Wall Switch
Motor Single Phase
HP 1/3
Volts 120
HZ 60
RPM 1725
Amp. (Avg. Load) 5.6
Time Rating Intermittent
Lubrication Permanently
Lubricated Upper &
Lower Bearings
Shipping
Weight (Approx.)
Unit Finish Condor Grey
Overall Height 11 -1 /2"
Grind Chamber
Capacity 26 oz.
Motor Manual Reset
Protection Overload
Average Approx. 1 Gallon per
Water Usage Person Per Day
Average
Electrical Usage 3-4 KWh per Year
Drain 1-1/2" Cushioned
Connection Slip Joint
Dishwasher
Drain Connection Yes
12 lbs. 10 oz.
5"
5
/16"
6
* Distance from bottom of sink to center line of disposer outlet.
Add 1/2" when stainless steel sinks are used.
** Length of tailpipe from center line of disposer outlet to end of tailpipe.
NOTE: Plumb waste line to prevent standing water in disposer motor housing.
Food waste is roughly 80% water. By using your disposal regularly, you can
help divert food waste from landfills and reduce greenhouse gas emissions.
Make sustainability a family affair by using your disposal. After all, the
smallest changes can make the biggest impact.
Job Specifications
The Emerson logo is a trademark and service mark of
Emerson Electric Co. The mounting collar configuration
1-800-558-5700
InSinkErator may make improvements and/or changes
in the specifications at any time, in its sole discretion,
www.insinkerator.com
H907-19L-64-1 0 © 2020 InSinkErator, InSinkErator® is a business unit of Emerson Electric Co. All Rights Reserved.
is a trademark of Emerson Electric Co.
without notice or obligation and further reserves the
right to change or discontinue models.
™
