Dimensions
Cold Side Water Supply
1/4" Incoming
Water Supply
12-1 /2 "

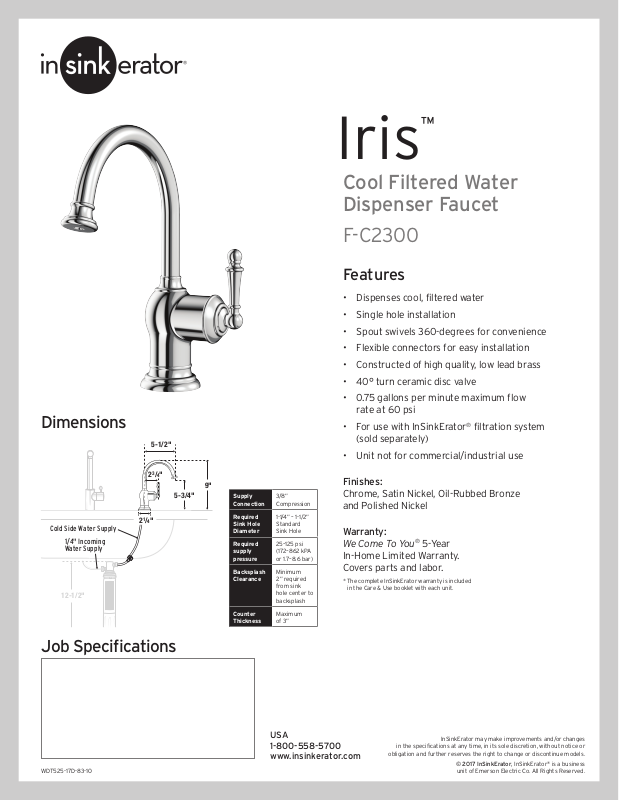

Iris
Cool Filtered Water
Dispenser Faucet
F-C2300
Features
• Dispenses cool, filtered water
• Single hole installation
• Spout swivels 360-degrees for convenience
• Flexible connectors for easy installation
• Constructed of high quality, low lead brass
• 40° turn ceramic disc valve
• 0.75 gallons per minute maximum flow
rate at 60 psi
• For use with InSinkErator® filtration system
5-1 /2"
3
/4"
2
5-3/4"
1
2
/4"
9"
Supply
Connection
Required
Sink Hole
Diameter
Required
supply
pressure
Backsplash
Clearance
Counter
Thickness
3/8”
Compression
1-1/4” – 1-1/2”
Standard
Sink Hole
25–125 psi
(172–862 kPA
or 1.7–8.6 bar)
Minimum
2” required
from sink
hole center to
backsplash
Maximum
of 3”
(sold separately)
• Unit not for commercial/industrial use
Finishes:
Chrome, Satin Nickel, Oil-Rubbed Bronze
and Polished Nickel
Warranty:
We Come To You® 5-Year
In-Home Limited Warranty.
Covers parts and labor.
* The complete InSinkErator warranty is included
in the Care & Use booklet with each unit.
Job Specifications
WDT525-17D-83-10
USA
1-800-558-5700
www.insinkerator.com
in the specifications at any time, in its sole discretion, without notice or
obligation and further reserves the right to change or discontinue models.
InSinkErator may make improvements and/or changes
© 2017 InSinkErator, InSinkErator® is a business
unit of Emerson Electric Co. All Rights Reserved.
