5-1/4"
5-1/2"
3-3/4"
6-1/8"
8-3/4"
6-3/4"
11"
NOTE: Max counter thickness is 3".
Water
Supply
Inl et Tube
Flexible
Outlet Tube
Flexible
Ven t Tube
1/4" Incoming
Water Supply
9-1/4"

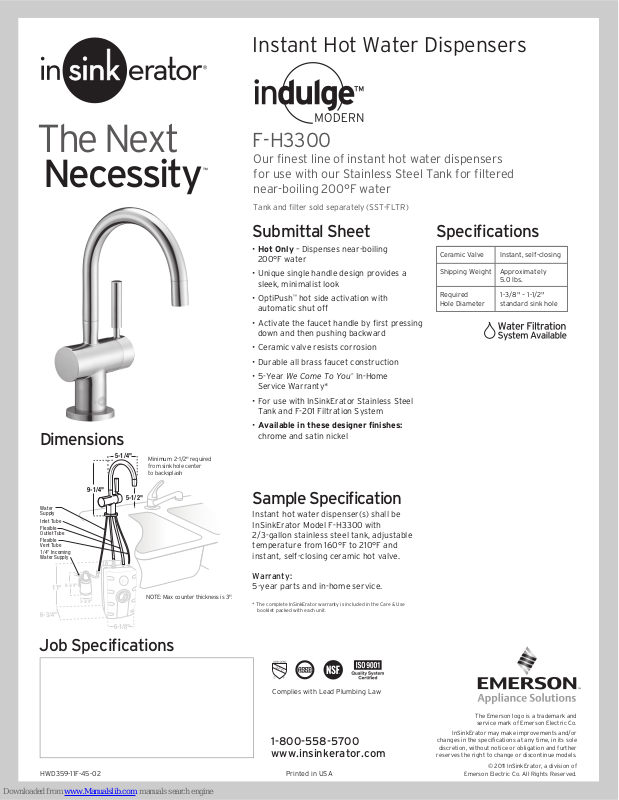

Submittal Sheet
Job Specifications
Specifications
Instant Hot Water Dispensers
Sample Specification
Printed in USA
1-800-558-5700
www.insinkerator.com
• Hot Only – Dispenses near-boiling
200°F water
• Unique single handle design provides a
sleek, minimalist look
• OptiPush
™
hot side activation with
automatic shut off
• Activate the faucet handle by first pressing
down and then pushing backward
• Ceramic valve resists corrosion
• Durable all brass faucet construction
• 5-Year We Come To You
®
In-Home
Service Warranty*
• For use with InSinkErator Stainless Steel
Tank and F-201 Filtration System
• Available in these designer finishes:
chrome and satin nickel
Instant hot water dispenser(s) shall be
InSinkErator Model F-H3300 with
2/3-gallon stainless steel tank, adjustable
temperature from 160°F to 210°F and
instant, self-closing ceramic hot valve.
Warranty:
5-year parts and in-home service.
* The complete InSinkErator warranty is included in the Care & Use
booklet packed with each unit.
Ceramic Valve
Shipping Weight
Instant, self-closing
Required
Hole Diameter
Approximately
1 -3/8" – 1 -1/2"
standard sink hole
5.0 lbs.
Minimum 2-1/2" required
from sink hole center
to backsplash
HWD359-11F-45-02
The Emerson logo is a trademark and
service mark of Emerson Electric Co.
InSinkErator may make improvements and/or
changes in the specifications at any time, in its sole
discretion, without notice or obligation and further
reserves the right to change or discontinue models.
© 2011 InSinkErator, a division of
Emerson Electric Co. All Rights Reserved.
Our finest line of instant hot water dispensers
for use with our Stainless Steel Tank for filtered
near-boiling 200°F water
Tank and filter sold separately (SST-FLTR)
F-H3300
The Next
Necessity
™
Complies with Lead Plumbing Law
Dimensions
