Insinkerator HWAVESNSS, HCWAVECSS Installation

Instant Hot Water Dispenser

Owner’s Manual

Installation, Care & Use

Instalacion, Cuidado & Uso

Installation, Sion & Utilisation

We are delighted that you have chosen the InSinkErator

®

Instant Hot Water Dispenser to be a part of your home. This unique
appliance will save you time and effort in the kitchen, and you’ll enjoy
discovering new uses for it each day. That’s exactly why millions of people
are now using an InSinkErator Instant Hot Water Dispenser.

We are confident that by following our step-by-step instructions, you’ll
soon be enjoying the convenience of instant hot water.

®

WHAT YOU SHOULD KNOW BEFORE YOU BEGIN

For your satisfaction and safety, read all instructions, cautions, warnings and dangers before installing

nn

or using this instant hot water dispenser.

nn

This particular unit is not intended for commercial use.
Make sure that all electrical wiring and connections conform to local codes.

nn

nn

A standard 120-volt grounded electrical outlet is required under the sink for the dispenser’s electrical power.
The wall outlet powering your dispenser must have power supplied to it continuously.

nn

This outlet must be fused and should not be controlled by the same wall switch that operates the

nn

disposer, unless you have a SinkTop Switch

nn

If you suspect elevated levels of chlorine in your water, it is recommended to use our water
filtration system.

The use of a water filter should NOT result in the water pressure to drop below 30 psi (207kPa).

nn

If it does, this will prevent your unit from operating properly.

nn

Moving parts inside the tank causing a rattling noise is normal.

™

from InSinkErator®.

WHAT YOU NEED TO GET STARTED

Equipment Required:

n Drill
n Compression fitting,

T-fitting or saddle valve

n Adjustable wrench

Equipment You May Need:

nn

Anchors for drywall

nn

Hole saw

If you intend to use the sprayer hole in your sink for your dispenser, you may need a basin wrench and a
1/8" plug or a 1/4" cap (

If you need to cut a mounting hole in your stainless steel sink, you may need a 11⁄4" - 11⁄2" hole saw made
for cutting stainless steel or a hole punch. Consult a professional if you are drilling into a surface other
than stainless steel.

2

not supplied) for the faucet spray hose line. See Step 1-B.

n Phillips and flat blade screwdrivers
n Pencil
n Tape Measure
n Level

nn

Basin wrench

nn

Hole punch

HC1100 GN1100 HC GN H990 H770HC-View H-ViewHC-Wave H-Wave

Identify the model of your instant hot water dispenser and record it here:________________

A

nn

At tank top, depress release ring into
quick-connect fitting securing blue 1/4"
tube and gently pull line out of fitting.
Pull white 7/16" tube and clear 5/16"
tube off fittings.

nn

Remove existing faucet.

Release

Ring

1/4"

blue

7/16"

white

5/16"

clear

Property Damage: Do not pinch or break copper

tubing. Do not distort the last 1 inch of tubing.

IF INSTALLING ONLY NEW FAUCET

HOW TO USE THIS INSTRUCTION MANUAL

These instructions are separated into main sections, indicated by numbers, and subsections,
indicated by capital letters. The manual is setup this way to allow you to take a break at any
point after completing a section or subsection without affecting the installation process.

What you’ll see in the
instruction manual:

2

3

Provides a step-by-step narrative describing the installation step, with check boxes that

1

can be marked as you progress through the installation.

2

Contains simple illustrations that provide visual instruction to support the narrative.

1

3

CAUTIONS, WARNINGS and DANGERS that will require your attention during the step.

An imminently hazardous situation, which, if not avoided, will result in death or serious injury.

A potentially hazardous situation, which, if not avoided, could result in death or serious injury.

A potentially hazardous situation, which, if not avoided, may result in minor or moderate injury.

OVERVIEW OF A

COMPLETED SETUP

3

COMPONENTS IN THIS PACKAGE

Semi-circular

Mounting Plate

Hex To olRubber O-Ring

HC1100 GN1100

SST-FLTR

Filter Head

3/8" Tubes (2)

Filter

Discharge Tube

Filter Cartridge

3/4" Screws (4)

Hex Nut

Brass Nut /Ferrule /

Tub e Insert

Metal

Mounting Plate

Fiber Gasket Mounting Screw

H770

Ta nk

Snap-Connect

Fitting (3 pieces)

3/4" Screws (2)

Semi-Circular

Mounting Plate

Rubber Gasket

H990

Wing Nut

Ta nk

3/4" Screws (2)

Snap-Connect

Fitting (3 pieces)

3/8" Tube
(HC only)

HC GN

Brass Nut /Ferrule /

Tub e Insert

(HC only)

H-ViewHC-View

H-WaveHC-Wave

Stainless Steel FiberRubber Colored Steel

Washers

2-1/4"

1-5/8" 1-5/8"

2-1/4"

Wing Nut

Ta nk

Quick Connector

(HC only)

Plug (1)

Quick Connector

Plug (1)

3/4" Screws (2)

Snap-Connect

Fitting (3 pieces)

Snap-Connect

Fitting (3 pieces)

4

Blue Tube

Blue Tube

Blue Tube

Blue Tube

Blue Tube

Blue Tube

Blue Tube

Blue Tube

Release

Ring

1/4"

blue

7/16"

white

5/16"

clear

IF INSTALLING ONLY NEW FAUCET

A

Property Damage: Do not pinch or break copper

tubing. Do not distort the last 1 inch of tubing.

At tank top, depress release ring into

nn

quick-connect fitting securing
tube and gently pull line out of fitting.
Pull

white 7/16" tube and clear 5/16"

tube off fittings.

Remove existing faucet.

nn

blue 1/4"

B

Property Damage:

Turn off water & unplug tank.

IF INSTALLING ONLY NEW TANK

A

Unplug tank before connecting faucet.

B

Property Damage:

Property Damage:

Do not over tighten brass nut.

Locate the snap-connect fitting at the

nn

end of the
be removed.

Unscrew the brass mounting nut and

nn

remove snap-connect fitting, brass
ferrule and nut.

Skip to Step 2 (pages 7-11) for

nn

complete installation instructions.

nn

At tank top, depress release ring into
quick-connect fitting securing
tube and gently pull line out of fitting.
Pull
tube off fittings.

nn

Locate the snap-connect fitting
included in the tank package.

Unscrew the brass mounting nut and

nn

remove snap-connect fitting, brass
ferrule and nut.

nn

Slide brass nut and ferrule on to the
blue tube running from the faucet.

Insert blue 1/4" tube into snap-connect

nn

fitting and tighten brass nut with a
wrench, 1/4 to 1/2 turn clockwise.

You may elect to use existing tank

nn

mounting bracket.

nn

Skip to Steps 3-4 (page 11) for
complete installation instructions.

blue 1/4" tube, which must

blue 1/4"

white 7/16" tube and clear 5/16"

5

START HERE

PREPARATION

1

Required minimum from

center of hole to wall

A

HC1100 ............ 4" ............................3"

GN1100 ............ 4

HC .................... 3

GN .................... 3

HC-View............ 4" ............................

H-View .............. 4

HC-Wave .......... 3

H-Wave ............ 3

H990 / H770 ...... 2" ............................3"

2"extension is available for oversized counters

*

3

⁄8" ..........................3"

1

⁄8" ..........................3⁄4"*

3

⁄8" ..........................3⁄4"*

3

⁄8" ..........................3⁄4"*

1

⁄8" ..........................3⁄4"*

3

⁄8" ..........................3⁄4"*

The wall outlet for your dispenser must have power supplied to it continuously

and must be fused. It should not be controlled by the same wall switch

B

If you have to drill through sink or

countertop, you may need to rent or purchase

the appropriate tools.

PROPER INSTALLATION SHOULD TAKE ABOUT 2-4 HOURS

Maximum counter

thickness (depth)

3

⁄4"*

Identify locations for the dispenser

nn

faucet, tank and filter (if applicable).

Check to make sure there is proper

nn

clearance (see chart at left) for
dispenser handles to be fully opened.

nn

Check to make sure counter is not
too thick (see chart at left).

nn

Make sure there is a grounded
electrical outlet under the sink.

that operates your disposer.

Turn off water supply.

nn

If using the sink sprayer hose hole,

nn

remove nut that connects sprayer
hose at bottom of faucet.

Using adjustable wrench, remove nut

nn

connecting sprayer washer flange in
sprayer hole.

Plug hose opening with either a 1/8"

nn

plug or a 1/4" cap (not supplied).

C

What if you don’t have a sprayer hole or
don’t want to use it?

Model Required Hole Size

HC1100 13⁄8" - 11⁄2"
All others 1

Consult a professional before drilling into

a surface other than stainless steel.

1

⁄4" - 11⁄2"

Many homeowners replace the soap

nn

dispenser in their sink with an instant
hot water dispenser.

If drilling a hole into a stainless steel

nn

sink or counter top, you can cut a
mounting hole for the dispenser with a
hole saw for stainless steel, or you can
use a hole punch.

6

2

1

2

1

2

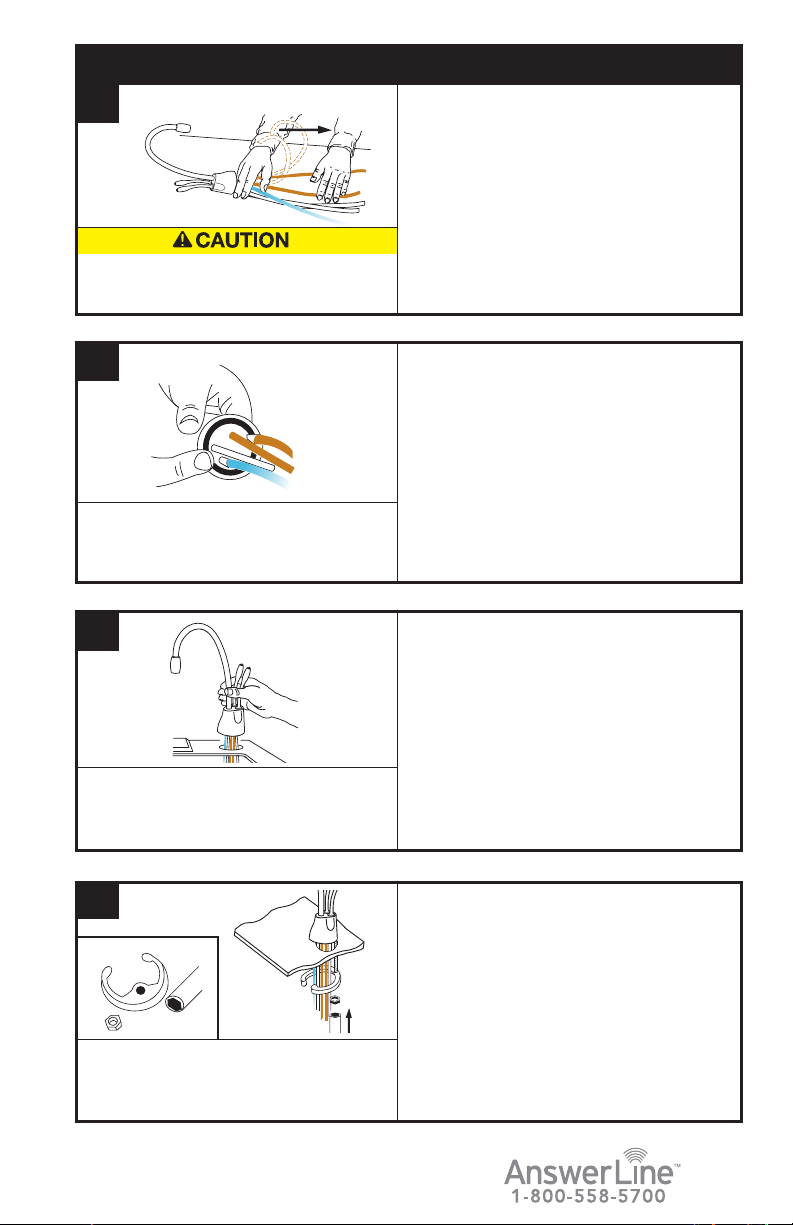

INSTALLING THE FAUCET - SERIES 1100

A

Property Damage: Do not pinch or break copper

tubing. Do not distort the last 1 inch of tubing.

HC1100 / GN1100

nn

Unpack dispenser components.

nn

On a firm, flat surface, carefully
straighten the copper tubing.

B

Make sure to use rubber O-ring

to ensure proper seal.

C

An assistant may be needed to hold

the dispenser head in place

while securing the dispenser.

D

HC1100 / GN1100

nn

Ensure that the black O-ring is
properly seated in the base of the
dispenser head (the groove on the
underside of the dispenser).

HC1100 / GN1100

nn

Feed tubes down through the hole
in the sink or countertop until the
base is at rest on the sink or
countertop surface.

HC1100 / GN1100

From under the sink, place the

nn

semi-circular mounting plate onto
the threaded stud.

Semi-circular mounting plate should

encircle all descending tubes and

extend beyond sink hole when tight.

Place hex nut onto the threaded stud.

nn

Ensure faucet head is at desired angle.

Insert screwdriver into hole on side of

nn

hex tool (creating a “T”), and use tool
to tighten nut and secure faucet.

7

1

1

Wing Nut

Fiber

Washer

2

Wing Nut

Fiber

Washer

3

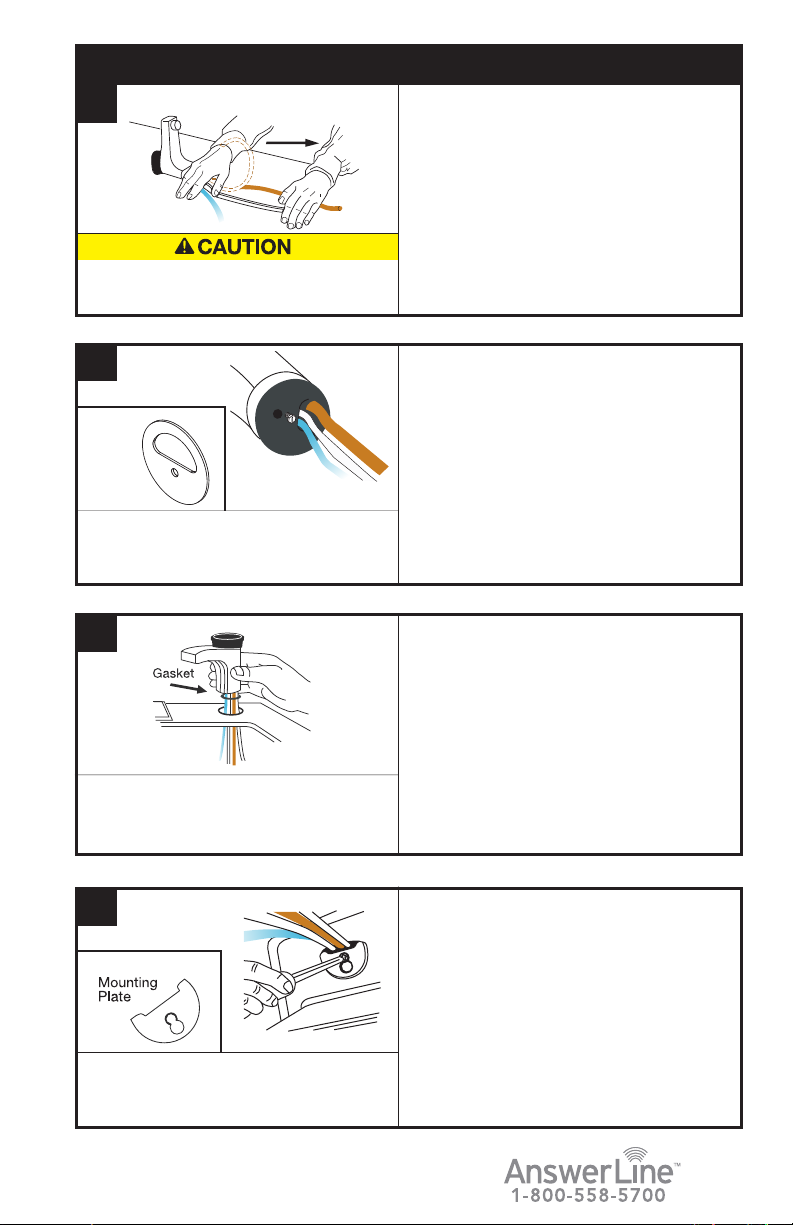

INSTALLING THE FAUCET - HC/GN

A

Property Damage: Do not pinch or break copper

tubing. Do not distort the last 1 inch of tubing.

HC /GN

nn

Unpack dispenser components.

nn

On a firm, flat surface, carefully
straighten the copper tubing.

nn

Remove the wing nut from
the valve body.

B

11⁄4" Hole

Make sure to use rubber washer

to ensure proper seal.

Cast Iron or
Hole larger than 11⁄4"

C

HC only

An assistant may be needed to hold

the dispenser head in place

while securing the dispenser.

D

HC /GN

For a 11⁄4" sink hole, stack the

nn

washers in this order:

5

1) 1

⁄8" rubber washer

5

2) 1

⁄8" stainless washer or the

1

2

⁄4" colored steel washer.

For a cast iron sink, or a hole larger

1

than 1

⁄4", stack the 15⁄8" rubber
washer with the 2
steel washer.

HC /GN

nn

Feed tubes down through the hole
in the sink or countertop until the
base is at rest.

HC ONLY

nn

Remove plug from the Y-shaped
quick-connector by depressing
release ring. Attach the quick
connector to the ends of the copper
tubes running from the dispenser.

HC /GN

Make sure faucet head is at the

nn

desired angle.

1

⁄4" colored

8

Property Damage: Do not over tighten

the plastic wing nut.

Slide the 21⁄4" fiber washer over the

nn

faucet threads under the sink and
then tighten the assembly using the
plastic wing nut.

Wing Nut

Fiber

Washer

2

3

3

Plug

Wing Nut

Fiber

Washer

INSTALLING THE FAUCET - VIEW/ WAVE

A

Property Damage: Do not pinch or break copper

tubing. Do not distort the last 1 inch of tubing.

View /Wave

nn

Unpack dispenser components.

nn

On a firm, flat surface, carefully
straighten the copper tubing.

nn

Remove the wing nut from
the valve body.

B

11⁄4" Hole

Make sure to use rubber washer

to ensure proper seal.

Cast Iron or
Hole larger than 11⁄4"

C

HC models only

An assistant may be needed to hold

the dispenser head in place

while securing the dispenser.

D

View /Wave

For a 11⁄4" sink hole, stack the

nn

washers in this order:

5

1) 1

⁄8" rubber washer

5

2) 1

⁄8" stainless washer or the

1

2

⁄4" colored steel washer.

For a cast iron sink, or a hole larger

1

than 1

⁄4", stack the 15⁄8" rubber
washer with the 2
steel washer.

View /Wave

nn

Feed tubes down through the hole
in the sink or countertop until the
base is at rest.

HC MODELS ONLY

nn

Remove plug from the Y-shaped
quick-connector by depressing
release ring. Attach the quick
connector to the ends of the copper
tubes running from the dispenser.

View /Wave

Make sure faucet head is at the

nn

desired angle.

1

⁄4" colored

Property Damage: Do not over tighten

the plastic wing nut.

Slide the 21⁄4" fiber washer over the

nn

faucet threads under the sink and
then tighten the assembly using the
plastic wing nut.

9

2

1

2

3

1

2

3

1

2

3

Brass Nut

Ferrule

Brass Insert

INSTALLING THE FAUCET - H990

A

Property Damage: Do not pinch or break copper

tubing. Do not distort the last 1 inch of tubing.

H990

nn

Unpack dispenser components.

nn

On a firm, flat surface, carefully
straighten the copper tubing.

B

Make sure to use rubber gasket

to ensure proper seal.

C

An assistant may be needed to hold

the dispenser head in place

while securing the dispenser.

H990

Ensure that the black rubber gasket

nn

is properly seated into the base of
the dispenser head and will
surround the sink mount.

Feed tubes down the hole in the

nn

sink or countertop until the base is
at rest on the sink or countertop
surface.

H990

nn

From under the sink, place the
semi-circular mounting plate onto
the threaded stud.

nn

Place wing nut onto the threaded
stud. Make sure faucet head is at the
desired angle. Tighten the wing nut
until snug, while ensuring the semi­circular mounting plate extends
beyond the sink hole.

10

1

2

3

2

1

2

3

1

1

2

3

INSTALLING THE FAUCET - H770

A

Property Damage: Do not pinch or break copper

tubing. Do not distort the last 1 inch of tubing.

H770

nn

Unpack dispenser components.

nn

On a firm, flat surface, carefully
straighten the copper tubing.

B

Fiber
Gasket

Make sure to use fiber gasket

to ensure proper seal.

C

An assistant may be needed to hold

the dispenser head in place

while securing the dispenser.

D

H770

nn

Ensure that the fiber gasket is
properly seated against the base of
the dispenser head.

DO NOT remove mounting screw or
fiber gasket from base of dispenser.

H770

nn

Feed tubes down the hole in the sink
or countertop until the base is at rest
on the sink or countertop surface.

nn

Position faucet head at the desired
angle.

H770

nn

From below the sink, place semi­circular metal mounting plate over
the mounting screw, ensuring the
mounting plate covers the sink hole.

Half moon shaped metal mounting plate

should cradle all descending tubes.

nn

Slide washer over so that the screw
is now inside the smaller hole.
Tighten the screw until snug.

11

3

1

2

Brass Nut

Ferrule

Brass Insert

2

3

Brass Nut

Ferrule

Brass Insert

Brass Nut

Ferrule

Brass Insert

Brass Nut

Ferrule

Brass Nut

Ferrule

Brass Insert

MOUNTING THE TANK

A

Tank must be

mounted level

to ensure

proper operation.

Property Damage: Tank must be located within 16" of
faucet and within 30" or less of a standard grounded

outlet. DO NOT extend plumbing or electrical lines.

Select a spot under the sink to mount

nn

tank vertically within reach of both
plumbing and electrical connections.
The tank should be within 16" or less
of faucet water lines and within 30"
or less of a standard grounded outlet.

nn

While holding tank in place on

the spot selected for installation,
use a pencil to mark locations for
2 hanging screws.

4

B

Leave 1/4" for

hanging tank.

Mount tank vertically in an area that

allows clearance on the underside of the

tank for drainage, if necessary.

DO NOT over tighten screws.

Screws provided are for use in wood
studs or cabinets only. Use wall anchors
(not supplied) for installation into drywall.

Pre-drill 1/8" pilot holes at marks.

nn
nn

Turn screws into pre-drilled holes,
leaving 1/4" exposed.

nn

Hang the tank on the screws.

Tighten the screws with only 1/2 turn

nn

clockwise.

CONNECTING FAUCET TO TANK

Without depressing the gray button,

A

Property Damage: Pinched or blocked water lines

may cause damage to the dispenser tank.

B

nn

place the snap-connect fitting at
the end of the
the left fitting on the tank, pushing
until it clicks into place. (1)

Slip the flexible white 7/16" tube

nn

over barbed middle fitting and slide
down approximately 1/2". (2)

Slip the clear 5/16" tube over the

nn

far right smooth fitting and slide
down approximately 1/2". (3)

blue 1/4" tube onto

12

Visually check for pinched or

nn

Property Damage: Check to make sure

tubes are connected properly and are

pushed in as far as possible.

crimped tubes.

Hose clamps are not needed for any of the connections.

1

2

3

Brass Nut

Ferrule

Brass Insert

Brass Nut

Ferrule

Brass Insert

Brass Nut

Ferrule

2

3

Brass Nut

Ferrule

Brass Insert

Brass Nut

Ferrule

2

3

Brass Nut

Ferrule

Brass Insert

Brass Nut

Ferrule

1

2

3

Brass Nut

Ferrule

Brass Insert

Discharge

tube

From water

supply line

To faucet

1

2

3

Plug

Wing Nut

Fiber

Washer

2

3

Ferrule

Brass Insert

INSTALLING FILTRATION

A

nn

Filtration standard with HC1100 & GN1100

Available as an option for all other models

Mark hole locations for filter head
and bracket in a spot that allows for
filter replacement.

nn

Drill 1/8" starter holes and attach
bracket to wall with wood screws,
turning until snug.

nn

Remove red filter cap, insert filter

Personal Injury: Do not locate filter above an outlet or other

electrical device. Install head and bracket so that connections

require no stretching, kinking or pinching of tubing.

cartridge into filter head and twist
clockwise until “LOCK” arrow on the
filter aligns with arrow on bracket.

B

nn

Determine length of tubing required,
then cut to length making sure the
cut is perpendicular and burr-free.

Insert a white 3/8" tube into inlet

nn

side of filter head

Press in again to ensure a secure fit.

nn

Insert the other white 3/8" tube
into outlet side of filter head
until it stops.

ensure a secure fit.

nn

Insert the copper tube(s) from the
dispenser into the 3/8" to 1/4"
quick-connect fitting.

Connect the white 3/8" tube

nn

from the right outlet on the filter
head into the quick-connect fitting
until it stops.

ensure a secure fit.

To remove tube(s) or plug from quick-connector,

depress the release ring and gently pull away.

To redirect filter replacement water

nn

until it stops.

Press in again to

Press in again to

from water
supply line

Property Damage: Tube runs need to form to the cabinet’s
contours to allow storage space with no sharp bends. Tubes
need clean, perpendicular, burr-free cuts to ensure a true fit.

C

Property Damage: Do not extend the copper

GN1100/GN
H-Wave/H-View
H990/H770

From filter or

water supply line

to dispenser

HC1100/HC
HC-Wave/HC-View

From filter or

water supply line

lines farther than the 16" provided.

D

discharge, place 6" clear tube over
vent hole on the left side of filter head.

It is normal for approximately 2 oz. of water to

discharge when filter is removed.

13

Brass Nut

Ferrule

Brass Nut

Ferrule

Brass Insert

Brass Nut

Ferrule

5

Brass Nut

Ferrule

Brass Insert

Brass Nut

Ferrule

Brass Nut

Ferrule

FINAL WATER CONNECTION

A

Property Damage: Join remaining tube

to cold water supply only.

HC1100 / GN1100 / HC / HC-Wave/HC-View

nn

At the end of the white 3/8" tube from the
filter or quick-connector, slide the supplied
brass nut and ferrule over the tube and
then push in the brass tube insert.

Install a compression fitting, T-fitting or

nn

saddle valve
cold water supply line.

nn

Insert the white 3/8" tube into the 3/8"
compression fitting and tighten.

(not included) onto the

A

Property Damage: Join remaining tube

to cold water supply only.

FILL TANK & THEN CONNECT POWER

6

A

Scalding Hazard: The faucet dispenses water up

to 210ºF, which can instantly cause scalds or burns.

Use care when operating this appliance.

B

Property Damage: A standard grounded outlet within

30" of the dispenser is required under the sink. Do

not use an extension cord set with the dispenser.

GN / H990/ H770 / H-Wave /H-View

nn

Install a compression fitting, T-fitting or
saddle valve
cold water supply line.

At the end of the copper 1/4" tube,

nn

slide the fitting’s brass nut and ferrule
over the tube.

nn

Insert the copper tube into the 1/4"
compression fitting and tighten.

nn

Turn on the cold water supply.

nn

Depress
handle and hold it until water flows from
the spout.

nn

Run the water for at least 2 minutes to
flush lines (both the hot and cold handles
independently if applicable).

nn

Check all connections to ensure they are
tight

Plug in instant hot water tank.

nn

(not included) onto the

or twist the dispenser’s HOT

and that there are no leaks.

Water will be cold at first.

Allow 12-15 minutes for water to reach
target temperature.

Gurgling or hissing is normal during the
initial heating cycle.

14

Electric Shock Hazard: Using an ungrounded or improperly connected
appliance can result in serious injury or death from electrical shock.

This appliance must be grounded. This instant hot water dispenser is equipped with a cord that

has a grounding conductor and a grounding pin. The plug must be connected to an appropriate
outlet that is properly installed and grounded in accordance with all local codes and ordinances.
Do not modify the plug provided with the appliance – if it will not fit the outlet, have a proper outlet
installed by a qualified electrician. Check with a qualified electrician or serviceman if you are in
doubt as to whether the instant hot water dispenser is properly grounded.

Personal Injury: This tank is a non-pressurized tank. DO NOT modify this system.
DO NOT close vent tube or connect other type dispensers or valves to the tank. Use only
the InSinkErator dispenser faucet supplied. Use only parts provided. Contact an
authorized InSinkErator Service agent for repairs or replacement components.

Fire Hazard: To minimize possibility of fire, DO NOT store flammable items such as
rags, paper or aerosol cans near the tank. DO NOT store or use gasoline or other
flammable vapors and liquids in the vicinity of this or any other appliance.

Property Damage: To avoid water damage, replace any loose or split tubing.
Periodically inspect the unit for any signs of leakage and immediately remove from
service any unit suspected of leaking.

An instant hot water dispenser, like any water heater, has a limited life and will eventually
fail. To avoid possible property damage, this instant hot water dispenser should be
regularly examined for leakage and replaced when necessary. A drain pan, plumbed to
an appropriate drain or outfitted with a leak detector, should be used in those
applications where any leakage could cause property damage.

WARRANTY INFORMATION

Dispenser: Series 1100, 5-year warranty

All others, 3-year warranty

Tank: 3-year warranty on stainless steel tank

Filtration System: 1-year warranty (excluding replaceable filter cartridge)

Covers all replacement parts and labor to correct defects in material or workmanship in the
dispenser system, excluding the replaceable filter cartridge, for the full warranty period from
the date of installation in your home. If warranty service is required during the warranty period,
contact an authorized InSinkErator service agent to replace or repair the unit in your home at
no cost to you. If your dispenser is replaced rather than repaired, the warranty on the new unit
shall be for the duration of the remaining portion of the original dispenser’s warranty.

Warranty is determined by unit serial number and/or date of installation. Purchase or
installation receipt may be required to verify warranty status. When service is required, and for
the location of your nearest factory authorized service center, call toll free 1-800-558-5700.

The foregoing warranty does not apply to damage or inoperation resulting from accident,
alteration, misuse, abuse, improper installation, installation not in accordance with these
instructions or local electrical and/or plumbing codes. We do not assume any responsibility for
consequential damage. Install using genuine InSinkErator

®

manufactured components only.

Use of non InSinkErator components will void your warranty.

Some states do not allow limitations on how long an implied warranty lasts, or the
exclusion or limitations of incidental or consequential damages, so the above limitations or
exclusion may not apply to you. This warranty gives you specific legal rights, and you may
also have other rights which vary from state to state.

Note:

15

CARE AND USE

Electric Shock Hazard: To prevent electrical shock, disconnect power before
servicing unit. Use only a properly grounded and polarized electric outlet.

ADJUSTING THE THERMOSTAT

Factory temperature pre-set is 200˚F.

To reset the thermostat to 200°,
turn the indicator one notch to the
right of vertical.

depress or twist the dispenser handle
for 20 seconds for water to re-heat to
the new setting.

To adjust water temperature, turn thermostat

nn

dial on the front of the tank clockwise to
increase temperature or turn counter clockwise
to decrease temperature. Repeat if necessary.
All changes should be minimal.

SEASONAL STORAGE/DRAINAGE

Anytime the steaming hot water tap is not used for
extended periods of time, unplug and drain unit.
If it is below freezing you will need to unplug the
unit and drain it.

nn

Disconnect power from unit.

nn

Push hot water dispenser faucet lever
and allow water to flow until it is cool.

nn

Shut the cold water faucet off at the valve.

nn

Remove drain screw located on bottom
center of water tank and drain the water
into empty pail.

Empty the tank and then reinstall drain

nn

screw onto the bottom of tank, turning
until snug. Do NOT over tighten.

Remove and drain filter cartridge. Reinstall.

nn

To place back in working order, fill tank

nn

with water and re-connect the plug.

CLEANING THE FAUCET AND TANK

Only use mild cleaners to clean the faucet

nn

and plastic components.
Cleaners with acids, abrasives, alkaline or

nn

organic solvents will result in deterioration
of the plastic components and void the
warranty.

After adjusting,

Scalding Hazard: Do not allow
water to boil. May result in
severe burns.

approx. 200°

FILTER GUIDE AND REPLACEMENT

Replace filter cartridge when there is an obvious
decrease in water flow to the faucet or if there is an
objectionable taste or odor to the water.

When the inlet and outlet ports have been closed
and the filter’s internal pressure has been relieved,
water (about 2 oz) will discharge from vent line.

If the new filter cartridge cannot be inserted,
insert the old one and turn until it stops, remove it
and then retry the new cartridge.

It is recommended that carbon filters be replaced
within 12 months.

Filter replacement instructions:

nn

Replace with an InSinkErator®filter.

nn

Place pan or dish towel under the filter to

catch water drainage during change.

nn

Slowly turn the cartridge counter-clockwise

completely until it stops (1/4 turn).

Pull cartridge straight down and discard.

nn

Insert new cartridge into filter head.

nn

nn

Top surface of cartridge will become flush

with the bottom of the filter head when

fully engaged.

nn

Turn the cartridge clockwise until it stops

(1/4 turn).

Align the in/out arrow on the head and

nn

bracket assembly to the in/out arrow on

the cartridge.

nn

Open faucet to expel trapped air.

n

n

Run water for 3 minutes before usage.

PROPERTY DAMAGE

Regularly inspect the unit for any signs of

nn

leakage. If there are signs of water damage,
immediately remove the unit from service.

To avoid water damage from leakage,

nn

replace all cut, loose or split tubing

nn

A drain pan, plumbed to an appropriate
drain or outfitted with a leak detector,
should be used in those applications where
any leakage could cause property damage.

.

16

Please read Troubleshooting Guide and/or visit
www.insinkerator.com before calling AnswerLine

TROUBLESHOOTING

™

PROBLEM POSSIBLE CAUSE

Water and steam spits
forcefully from spout
without turning on the
dispenser faucet.

Water is not hot

Water is too hot
or not hot enough

Water comes out the
vent instead of spout

Water is dripping from
the spout/vent
intermittently

• Unit is boiling.

May be normal during initial setup.

• The unit is unplugged.

• The electric outlet is inoperative.

• Thermostat is not adjusted to
your needs.

• Outlet tube is blocked. •

• The expansion chamber isn’t draining
properly due to low water pressure.

• The spout is blocked.

WHAT TO DO

Depress faucet lever to release some water from

•
the tank.

• Adjust water temperature using dial on tank front.

Remember that at higher altitudes, water boils
at lower temperatures.

•

Make sure the unit is connected to a properly grounded
electric outlet.

• Make sure the circuit breaker or fuses are
functioning properly.

• Check that the outlet is not switched off.

•

Adjust the thermostat slowly, then depress or twist faucet handle
for 20 seconds to bring in fresh water to be heated at the new
setting. Allow 5-7 minutes for water to reach new temperature.

Check that outlet tube is not kinked, twisted or pinched.

•

Unscrew spout end piece and clean out any debris.

• Unplug the unit. If the dripping doesn’t stop after a few
minutes, check the supply valve to ensure that is fully
open and there are no obstructions in the water line
reducing the pressure below 30 psi (

saddle valve, a clogged water filter, or a partially opened
shut-off valve).

•

Unscrew spout end piece and clean out any debris.

i.e., a poorly mounted

Water is dripping
from the spout/vent
constantly

Divided stream

• Debris in the water line may be
in the faucet valve seat causing a
slow water leak.

• Debris in the end piece. •

•

Unscrew spout end piece and clean out any debris.

•

Depress or twist lever 7-10 times to flush faucet & lines.

Unscrew spout end piece and clean out any debris.

FILTRATION ISSUES

Water taste or odor

New filter leaks or
doesn’t fit

No water flow or
low water flow

• Filter needs to be flushed out

• Life of filter has expired

• Head and bracket not fully rotated

• Filter O-ring breach

• Life of filter has expired

• Depress or twist the faucet and run until the water is cold.
If there is no change, replace filter cartridge.

• Remove, inspect, reinstall filter cartridge.

• Remove new filter, replace with old filter. Check operation.
If OK, reinstall new filter and recheck operation.

• Replace filter cartridge.

See page 16.

If you are still experiencing trouble call the AnswerLine™1-800-558-5700.

17

43666 0706

Instant Hot Water Dispensers. The Next Necessity.

InSinkErator Division

Emerson Electric Co.

4700 21st Street

Racine, WI 53406-5093

www.insinkerator.com
