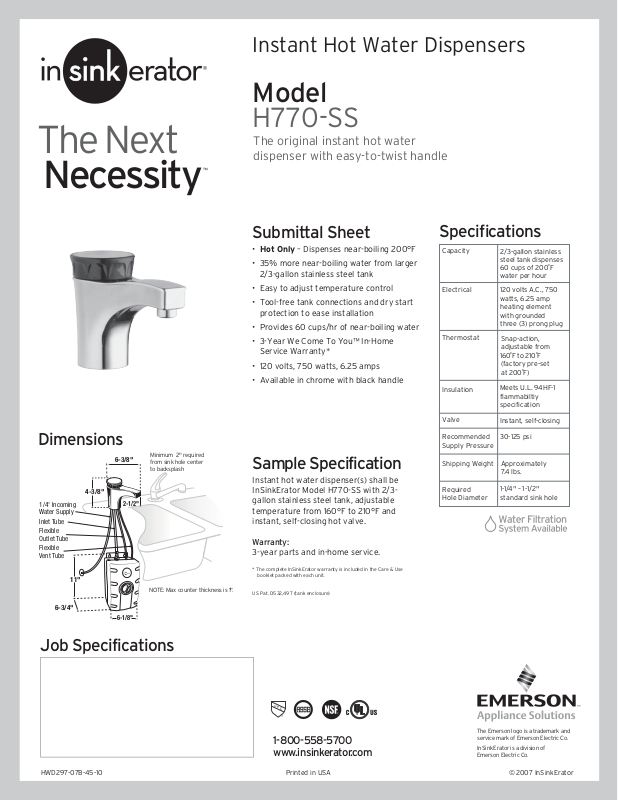

InSinkErator H770-SS User Manual

Instant Hot Water Dispensers

Model

H770-SS

The Next

Necessity

Dimensions

Minimum 2" required

"

from sink hole center
to backsplash

2-1/2"

NOTE: Max counter thickness is 1".

1/4" Incoming
Water Supply

Inlet Tube
Flexible

Outlet Tube
Flexible

Vent Tube

6-3/4"

6-3/8

4-3/8"

11"

6-1/8"

The original instant hot water
dispenser with easy-to-twist handle

™

Submittal Sheet

• Hot Only – Dispenses near-boiling 200°F

• 35% more near-boiling water from larger
2/3-gallon stainless steel tank

• Easy to adjust temperature control

• Tool-free tank connections and dry start
protection to ease installation

• Provides 60 cups/hr of near-boiling water

• 3-Year We Come To You™ In-Home
Service Warranty*

• 120 volts, 750 watts, 6.25 amps

• Available in chrome with black handle

Sample Specification

Instant hot water dispenser(s) shall be
InSinkErator Model H770-SS with 2/3­gallon stainless steel tank, adjustable
temperature from 160°F to 210°F and
instant, self-closing hot valve.

Warranty:

3-year parts and in-home service.

* The complete InSinkErator warranty is included in the Care & Use
booklet packed with each unit.

US Pat. D532,497 (tank enclosure)

Specifications

Capacity

Electrical

Thermostat

Insulation

Valve

Recommended
Supply Pressure

Shipping Weight

Required
Hole Diameter

2/3-gallon stainless
steel tank dispenses
60 cups of 200˚F
water per hour

120 volts A.C., 750
watts, 6.25 amp
heating element
with grounded
three (3) prong plug

Snap-action,
adjustable from

160˚F to 210˚F

(factory pre-set
at 200˚F)

Meets U.L. 94HF-1
flammabiltiy
specification

Instant, self-closing

30-125 psi

Approximately

7.4 lbs.

1-1/4" – 1-1/2"

standard sink hole

Job Specifications

1-800-558-5700
www.insinkerator.com

Printed in USA HWD297-07B-45-10

The Emerson logo is a trademark and
service mark of Emerson Electric Co.

InSi nkErator is a division of
Emerson Electric Co.

© 2007 InSinkErator
