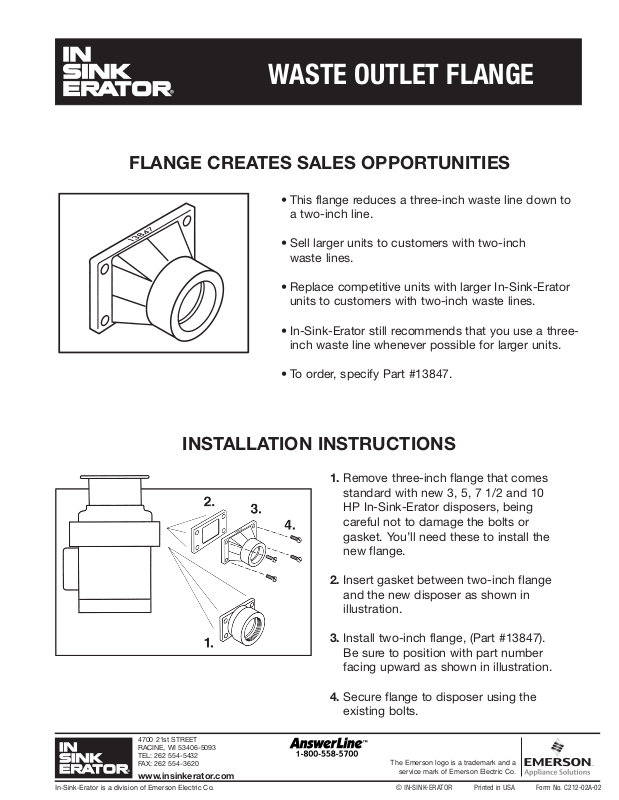

In-Sink-Erator FLANGE Installation Manual

WASTE OUTLET FLANGE

• This flange reduces a three-inch waste line down to
a two-inch line.

• Sell larger units to customers with two-inch
waste lines.

• Replace competitive units with larger In-Sink-Erator
units to customers with two-inch waste lines.

• In-Sink-Erator still recommends that you use a three­inch waste line whenever possible for larger units.

•To order, specify Part #13847.

FLANGE CREATES SALES OPPORTUNITIES

1. Remove three-inch flange that comes

standard with new 3, 5, 7 1/2 and 10
HP In-Sink-Erator disposers, being
careful not to damage the bolts or
gasket. You’ll need these to install the
new flange.

2. Insert gasket between two-inch flange
and the new disposer as shown in
illustration.

3. Install two-inch flange, (Part #13847).
Be sure to position with part number
facing upward as shown in illustration.

4. Secure flange to disposer using the
existing bolts.

INSTALLATION INSTRUCTIONS
