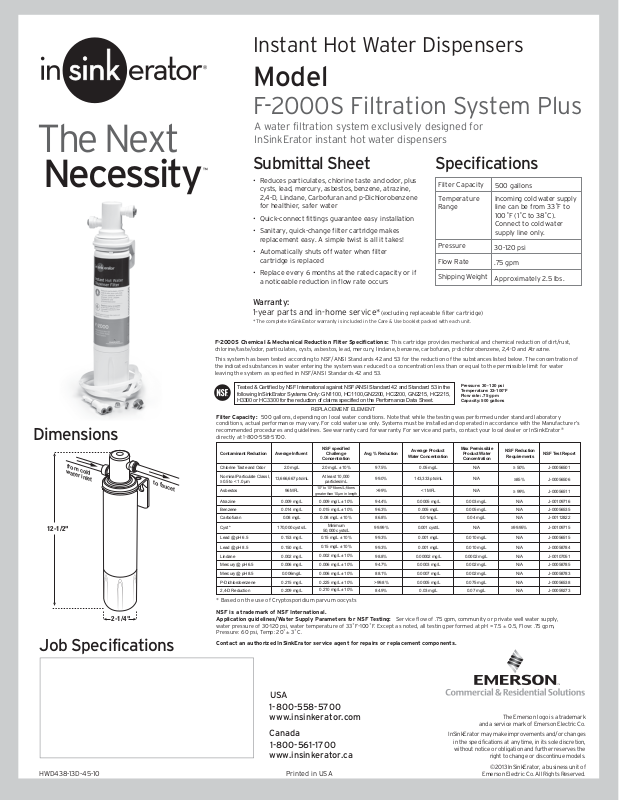

Insinkerator F-2000S User Manual

The Next

Necessity

Instant Hot Water Dispensers

Model

F-2000S Filtration System Plus

A water filtration system exclusively designed for InSinkErator instant hot water dispensers

™

Submittal Sheet Specifications

• Reduces particulates, chlorine taste and odor, plus cysts, lead, mercury, asbestos, benzene, atrazine, 2,4-D, Lindane, Carbofuran and p-Dichlorobenzene for healthier, safer water

• Quick-connect fittings guarantee easy installation

• Sanitary, quick-change filter cartridge makes replacement easy. A simple twist is all it takes!

• Automatically shuts off water when filter cartridge is replaced

• Replace every 6 months at the rated capacity or if a noticeable reduction in flow rate occurs

Filter Capacity

Temperature Range

Pressure

Flow Rate

Shipping Weight

500 gallons

Incoming cold water supply line can be from 33˚F to 100˚F (1˚C to 38˚C). Connect to cold water supply line only.

30-120 psi

.75 gpm

Approximately 2.5 lbs.

Dimensions

rf mo dloc

retaw telni

12-1/2

2-1/4

Job Specifications

Warranty:

1-year parts and in-home service

* The complete InSinkErator warranty is included in the Care & Use booklet packed with each unit.

F-2000S Chemical & Mechanical Reduction Filter Specifications: This cartridge provides mechanical and chemical reduction of dirt/rust, chlorine/taste/odor, particulates, cysts, asbestos, lead, mercury, lindane, benzene, carbofuran, p-dichlorobenzene, 2,4-D and Atrazine.

This system has been tested according to NSF/ANSI Standards 42 and 53 for the reduction of the substances listed below. The concentration of the indicated substances in water entering the system was reduced to a concentration less than or equal to the permissible limit for water leaving the system as specified in NSF/ANSI Standards 42 and 53.

Tested & Certified by NSF International against NSF/ANSI Standard 42 and Standard 53 in the following InSinkErator Systems Only: GN1100, HC1100,GN2200, HC2200, GN2215, HC2215, H3300 or HC3300 for the reduction of claims specified on the Performance Data Sheet.

Filter Capacity: 500 gallons, depending on local water conditions. Note that while the testing was performed under standard laboratory conditions, actual performance may vary. For cold water use only. Systems must be installed and operated in accordance with the Manufacturer’s recommended procedures and guidelines. See warranty card for warranty. For service and parts, contact your local dealer or InSinkErator directly at 1-800-558-5700.

Contaminant Reduction

Chlorine Taste and Odor

Nominal Particulate Class I,

ot tecuaf

≥0.5 to < 1.0 μm

Asbestos 96 MFL

Atrazine 0.009 mg/L 0.009 mg/L ± 10% 94.4% 0.0005 mg/L 0.003 mg/L N/A J-00109716

Benzene 0.014 mg/L 0.015 mg/L ± 10% 96.3% 0.005 mg/L 0.005 mg/L N/A J-00056535

Carbofuran 0.08 mg/L 0.08 mg/L ± 10% 86.8% 0.01mg/L 0.04 mg/L N/A J-00112822

Cyst* 170,000 cysts/L

Lead @ pH 6.5 0.153 mg/L

Lead @ pH 8.5 0.150 mg/L

Lindane 0.002 mg/L

Mercury @ pH 6.5 0.006 mg/L

Mercury @ pH 8.5 0.006mg/L

P-Dichlorobenzene 0.215 mg/L

2,4-D Reduction 0.209 mg/L

* Based on the use of Cryptosporidium parvum oocysts

NSF is a trademark of NSF International. Application guidelines/Water Supply Parameters for NSF Testing: Service flow of .75 gpm, community or private well water supply,

water pressure of 30-120 psi, water temperature of 33˚F–100˚F. Except as noted, all testing performed at pH = 7.5 ± 0.5, Flow: .75 gpm, Pressure: 60 psi, Temp: 20˚± 3˚C.

Contact an authorized InSinkErator service agent for repairs or replacement components.

Average Influent

13,666,667 pts/mL

REPLACEMENT ELEMENT

2.0 mg/L

NSF specified

Challenge

Concentration

2.0 mg/L ± 10%

At least 10,000

particles/mL

107 to 108 fibers/L; fibers

greater than 10μm in length

Minimum

50,000 cysts/L

0.15 mg/L ± 10%

0.002 mg/L ± 10%

0.006 mg/L ± 10%

0.225 mg/L ± 10%

0.210 mg/L ± 10%

(excluding replaceable filter cartridge)

Pressure: 30 -120 psi Temperature: 33-100°F Flow rate: .75 gpm Capacity: 500 gallons

Average Product

Water Concentration

97.5%

99.0%

>99%

99.99% 0.001 cyst/L N/A ≥99.95% J-00109715

99.3% 0.001 mg/L 0.010 mg/L N/A J-00056515

99.3% 0.001 mg/L 0.010 mg/L N/A J-00058784

98.8% 0.00002 mg/L 0.0002 mg/L N/A J-00107051

94.7% 0.0003 mg/L 0.002 mg/L N/A J-00058785

88.1% 0.0007 mg/L 0.002 mg/L N/A J-00058783

>99.8% 0.0005 mg/L 0.075 mg/L N/A J-00056538

84.9% 0.03 mg/L 0.07 mg/L N/A J-00059273

0.05 mg/L

143,333 pts/mL

<1 MFL N/A

Max Permissible

Product Water Concentration

N/A

NSF Reduction

Requirements

NSF Test ReportAvg % Reduction

≥ 50%

≥85%

≥ 99% J-00056511

J-00056501

J-00056506

USA 1-800-558-5700

www.insinkerator.com

Canada

1-800-561-1700

www.insinkerator.ca

HWD438-13D-45-10 Printed in USA

The Emerson logo is a trademark

and a service mark of Emerson Electric Co.

InSinkErator may make improvements and/or changes

in the specifications at any time, in its sole discretion,

without notice or obligation and further reserves the

right to change or discontinue models.
