InSinkErator CWT-00, F-C1100 User Manual
CWT-00
C1100
Chilled Water Tank & Cold Only Faucet
Owner’s Manual
Installation, Care & Use
Instalacion, cuidado & uso
Equipment You May Need:
IMPORTANT: After unpacking chilled water tank, place the unit upright for 1 hour before
connecting power.
For best results, the cold water faucet should be installed prior to installing the chilled water tank.
For your satisfaction and safety, read all instructions, cautions, warnings and dangers before installing or
using this chilled water tank.
This particular unit is not intended for commercial use.
Make sure that all electrical wiring and connections conform to local codes.
A standard 120-volt grounded electrical outlet is required under the sink for the chilled water tank’s electrical power.
It is recommended that a separate circuit providing power only to the chilled water tank be used.
The wall outlet powering the chilled water tank must be fused and should not be controlled by the same wall
switch used by the food waste disposer.
It is recommended that a dedicated control valve be installed on the cold water line supplying water to this
system. Make sure all water supply control valves do not have a backflow preventer in them.
If you suspect elevated levels of chlorine in your water, it is recommended to use our water filtration system.
The water pressure to the chilled water tank should be between a minimum of 30 psi (207kPa) and
a maximum of 100 psi (689kPa).
The chilled water tank may cause an increase in temperature in your cabinet when running.
The chilled water tank has a refrigeration compressor, which may generate noise while running.
The chilled water tank should only be installed in an upright position.
The chilled water tank is intended only for chilling water.
WHAT YOU SHOULD KNOW BEFORE YOU BEGIN
Equipment Required: (sold separately)
Cold water faucet
T-fitting
Dedicated control valve
Adjustable wrench
Utility knife
Tape measure / ruler
If you will be installing a dedicated cold only water faucet and intend to use the sprayer hole in your sink
for that faucet, you may need a basin wrench and a 1/8" plug or a 1/4" hose line cap (not supplied).
If you need to cut a mounting hole in your stainless steel sink, you may need a 1
1
⁄4" - 11⁄2" hole saw made
for cutting stainless steel or a hole punch. Consult a professional if you are drilling into a surface other
than stainless steel.
WHAT YOU NEED TO GET STARTED
Hole saw / hole punch
Basin wrench
Congratulations on your purchase of this quality InSinkErator
®
water product. In addition
to complete operating and care instructions, in this Owner’s Manual you will find instructions
for installing both:
• CWT-00 Chilled Water Tank with an existing hot/cool water dispenser – See pages 4-6
• CWT-00 Chilled Water Tank with a C1100 Cold Only Faucet – See pages 7-9
2

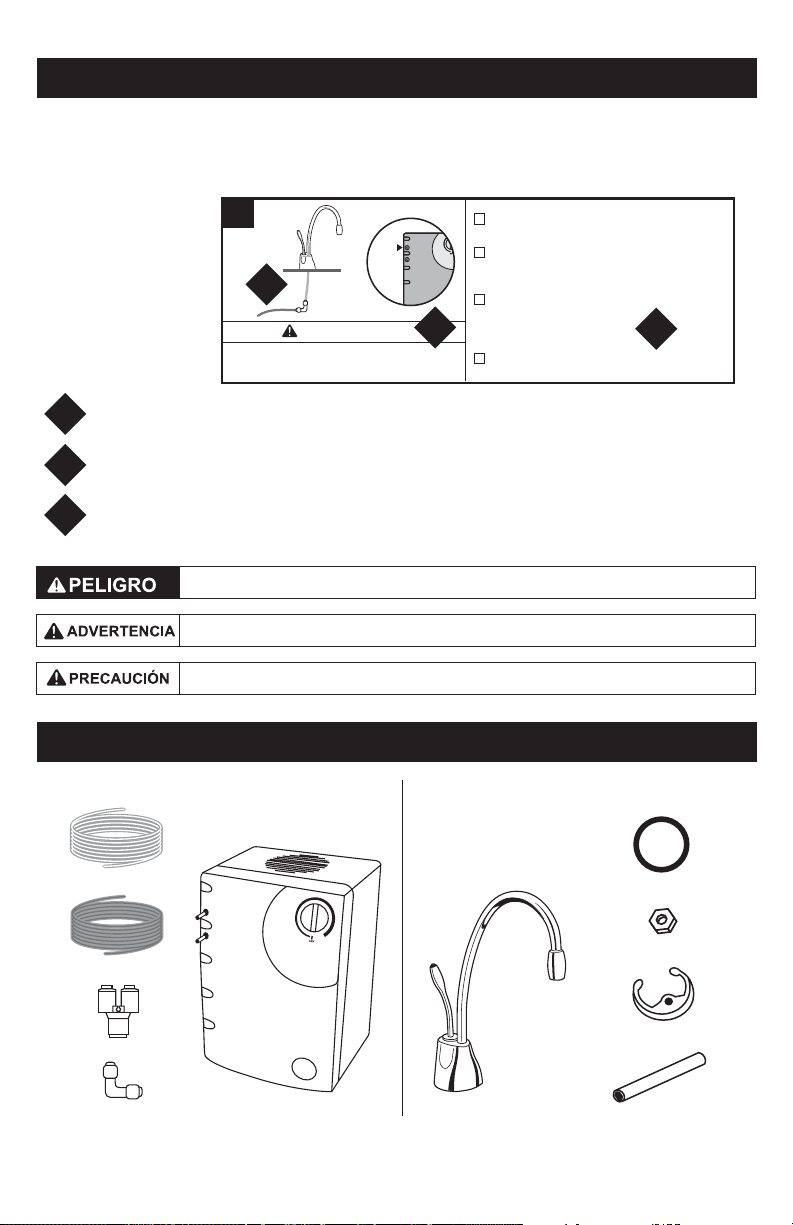

HOW TO USE THIS INSTRUCTION MANUAL
These instructions are separated into main sections, indicated by numbers, and subsections,
indicated by capital letters. The manual is setup this way to allow you to take a break at any
point after completing a section or subsection without affecting the installation process.
What you’ll see in the
instruction manual:
Outlet
1
2
3
Provides a step-by-step narrative describing the installation step, with check boxes that
can be marked as you progress through the installation.
Contains simple illustrations that provide visual instruction to support the narrative.
CAUTIONS, WARNINGS and DANGERS that will require your attention during the step.
1
2
3
An imminently hazardous situation, which, if not avoided, will result in death or serious injury.
A potentially hazardous situation, which, if not avoided, could result in death or serious injury.
A potentially hazardous situation, which, if not avoided, may result in minor or moderate injury.
PACKAGE COMPONENTS
Chilled Water TankQuick Connect Elbows (3)
White Tubing - 4'
Blue Tubing - 4'
Cold Only Faucet
Rubber O-Ring
Hex Nut
Semi-circular Mounting Plate
Hex Tool
CWT-00 C1100
“Y” Quick Connector
3
B
Property Damage: Do not pinch or break tubing.
Do not distort the last 1 inch of tubing.
Attach supplied quick connect elbow to
end of supplied blue 1/4" tube.
Attach
quick connect elbow with
blue tube
to water Outlet on front
of chilled water tank.
Measure distance from tank outlet to
water supply line on faucet
trim blue tube to correct length.
Using quick connect elbow, connect
blue tube to faucet water supply.
. Carefully
Property Damage: Do not place objects
on top of chilled water tank which
could obstruct the fan.
PREPARATION
Unplug instant hot water tank and
hold handle in open position until
cool water flows from spout.
Turn off water supply.
Identify the undersink location for the
chilled water tank.
For best performance, allow for a
minimum 2
"
space around the sides
and top of the chilled water tank.
The chilled water tank will require
a minimum footprint of 15
"
wide
by 11
"
deep.
Ensure that there is a minimum of 18
"
vertical clearance for the chilled water tank.
1
A
< 18"
< 11"
< 15"
Follow these steps for installing chilled water tank with instant hot/cool water dispenser.
Blue Tubing
White Tubing
Instant Hot/Cool
Water Dispenser Faucet
Filter
Instant
Hot Water
Ta nk
Food
Waste
Disposer
Chilled
Water
Ta nk
Air-Activated
SinkTop Switch
™
Copper Tubing
Shown with optional filtration
OVERVIEW OF A TYPICAL INSTALLATION with Instant Hot Water Dispenser
These instructions assume hot/cool faucet has already been installed. Refer
to Installation, Care & Use manual included with hot/cool water dispenser.
4
Note: Chilled water tank must be plugged
directly into open wall outlet.
A
B
A
B
Property Damage: Join remaining tube
to cold water supply only. Water supply
valves must not prevent backward flow.
3
Install a T-fitting (not included)
onto the cold water supply line.
Install dedicated water control valve
with 3/8" compression fitting.
Install brass nut, ferrule and tube insert
on to white 3/8" tube which runs from
filter or “Y” quick-connect fitting.
Insert the white 3/8" tube into the 3/8"
compression fitting and tighten.
WATER CONNECTION
Brass Nut
Ferrule
Brass Insert
From filter or
water supply
White Tape
From filter or
water supply
To chilled water
tank “Inlet”
To hot water
dispenser
To remove tube(s) or plug from quick-connector,
depress the release ring and gently pull away.
Follow these steps for installing chilled water tank with instant hot/cool water dispenser.
Property Damage: All tubes must be cut
squarely with no burrs.
2
Attach
s
upplied quick connect elbow to
end of supplied white 1/4" tube.
Attach
quick connect elbow
to water
Inlet on front of chilled water tank.
Measure distance from water inlet on
chilled water tank to water supply valve
(See Step 3)
. Carefully trim white 1/4"
tube, allowing ample slack in tubing.
INSTALLING THE WATER TANK
Attach
s
upplied quick connect elbow to
end of supplied blue 1/4" tube.
Attach
quick connect elbow with blue
tube
to water Outlet on front of chilled
water tank.
Measure distance from the chilled
water tank outlet to water supply line
on faucet. Carefully trim blue tube to
correct length.
Using quick connect elbow, connect
remaining end of blue tube to unmarked
copper tube coming from faucet.
White Tape
Inlet
Property Damage: Do not pinch or break tubing.
Do not distort the last 1 inch of tubing.
Pull on connection to ensure fully engaged.
Remove existing “Y” quick-connect
fitting and discard.
Connect white 3/8" tube from the
filter or water supply into the supplied
“Y” quick-connect fitting until it stops.
Insert 1/4" white tube from tank inlet
into the 3/8" to 1/4" quick-connect fitting.
Identify copper HOT water tube,
which is marked with white tape.
Install that tube into the 3/8" to 1/4"
quick-connect fitting.
5
Outlet
A
B
Follow these steps for installing chilled water tank with instant hot/cool water dispenser.
Property Damage: Before plugging in
chilled water tank, check for leaks in all
water supply connections.
Turn on the cold water supply.
Depress the cold faucet handle
and hold it until water flows from
the spout.
Allow water to run for at least
60 seconds after water begins to
flow from faucet.
Depress the hot water handle until
water flows smoothly.
4
FILL TANK & CONNECT POWER
Check all connections to ensure they
are tight and that there are no leaks.
Plug in chilled water tank
and hot water dipenser tank.
Prior to drinking water from the chilled
water tank, run the water for at least 5
minutes to flush lines.
Allow up to 60 minutes for
water to reach target temperature.
Property Damage: A standard grounded
outlet is required under the sink.
Do not use an extension cord set with
the chilled water tank.
6
Gurgling or hissing is normal
during the initial heating cycle.
The SinkTop Switch™ from InSinkErator
electrical outlets, which allows the chilled water tank, hot water dis penser and food
waste disposer to be connected to the same electrical outlet. The chilled water tank
should not be plugged into the SinkTop Switch. The chilled water tank must be connected
directly into the open wall outlet. For more information visit www.insinkerator.com.
®
conveniently switches power between two
A
Property Damage: Do not place objects
on top of chilled water tank which
could obstruct the fan.
PREPARATION
Turn off water supply.
Identify the undersink location for the
chilled water tank.
For best performance, allow for a
minimum 2
"
space around the sides
and top of the chilled water tank.
The chilled water tank will require
a minimum footprint of 15
"
wide
by 11
"
deep.
Ensure that there is a minimum of 18
"
vertical clearance for the chilled water tank.
1
Filter
Copper Tubing
Blue Tubing
White Tubing
Cold Only Faucet
Food
Waste
Disposer
Air-Activated
SinkTop Switch
™
Chilled
Water
Ta nk
Shown with optional filtration
OVERVIEW OF A TYPICAL INSTALLATION with Cold Only Faucet
Follow these steps for installing chilled water tank with a cold only faucet.
InSinkErator C1100
Cold Only Faucet
The instructions on pages 7-9 will guide you through the
installation of the InSinkErator C1100 Cold Only Faucet
and your Chilled Water Tank.
7
< 18"
< 11"
< 15"
A
B
B
A
Property Damage: Do not pinch or break copper
tubing. Do not distort the last 1 inch of tubing.
2
An assistant may be needed to hold
the faucet in place
while securing the base.
INSTALLING THE COLD ONLY FAUCET
Follow these steps for installing chilled water tank with a cold only faucet.
Feed tube down through sink hole
until the base is at rest.
From under the sink, place the
semi-circular mounting plate onto
the threaded stud.
Place hex nut onto the threaded stud.
Ensure faucet is at desired angle.
Insert screwdriver into hole on side of
hex tool (creating a “T”), and use tool
to tighten nut and secure faucet.
Unpack faucet components.
On a firm, flat surface, carefully
straighten the copper tubing.
Ensure that the black O-ring is
properly seated in the base of the
faucet (the groove on the underside
of the faucet base).
Property Damage: Do not pinch or break tubing.
Do not distort the last 1 inch of tubing.
Pull on connection to ensure fully engaged.
Attach
s
upplied quick connect elbow to
end of supplied blue 1/4" tube.
Attach
quick connect elbow with blue
tube
to water Outlet on front of chilled
water tank.
Measure distance from chilled water tank
outlet to water supply line on faucet
.
Carefully trim blue tube to correct length.
Using quick connect elbow, connect
blue tube to faucet water supply.
Property Damage: All tubes must be cut
squarely with no burrs.
3
Attach
s
upplied quick connect elbow to
end of supplied white 1/4" tube.
Attach
quick connect elbow
to water
Inlet on front of chilled water tank.
Measure distance from water inlet on
chilled water tank to water supply
valve (See Step 3)
. Carefully trim white
1/4" tube, allowing ample slack in tubing.
INSTALLING THE WATER TANK
8
Inlet
Inlet
Loading...
