Insinkerator CC-202D-5 Installation Manual

DISPOSER CONTROL CENTER

Installation Manual

Model CC-202D

www.insinkerator.com/foodservice

WARNING indicates a hazardous situation which, if not avoided, could result in
death or serious injury.

CAUTION indicates a hazardous situation which, if not avoided, could result in
minor or moderate injury.

NOTICE is used to address practices not related to physical injury.

Please be certain that the person who installs or uses this appliance carefully reads
and understands the Safety Instructions contained in this manual.

Part No. 15332 Rev. B

Table of Contents

Introduction/Features/Mounting Control Center

Introduction ......................................................................................4

Features ...........................................................................................4

Mounting the Control Center............................................................4

Plumbing Connections ...................................................................................5

Electrical Connections

Electrical Connections .................................................................... 6

Time Delay Relay ..............................................................................6

Operating Instructions/Troubleshooting

Operating Instructions ......................................................................7

Troubleshooting ................................................................................7

Wiring Diagrams

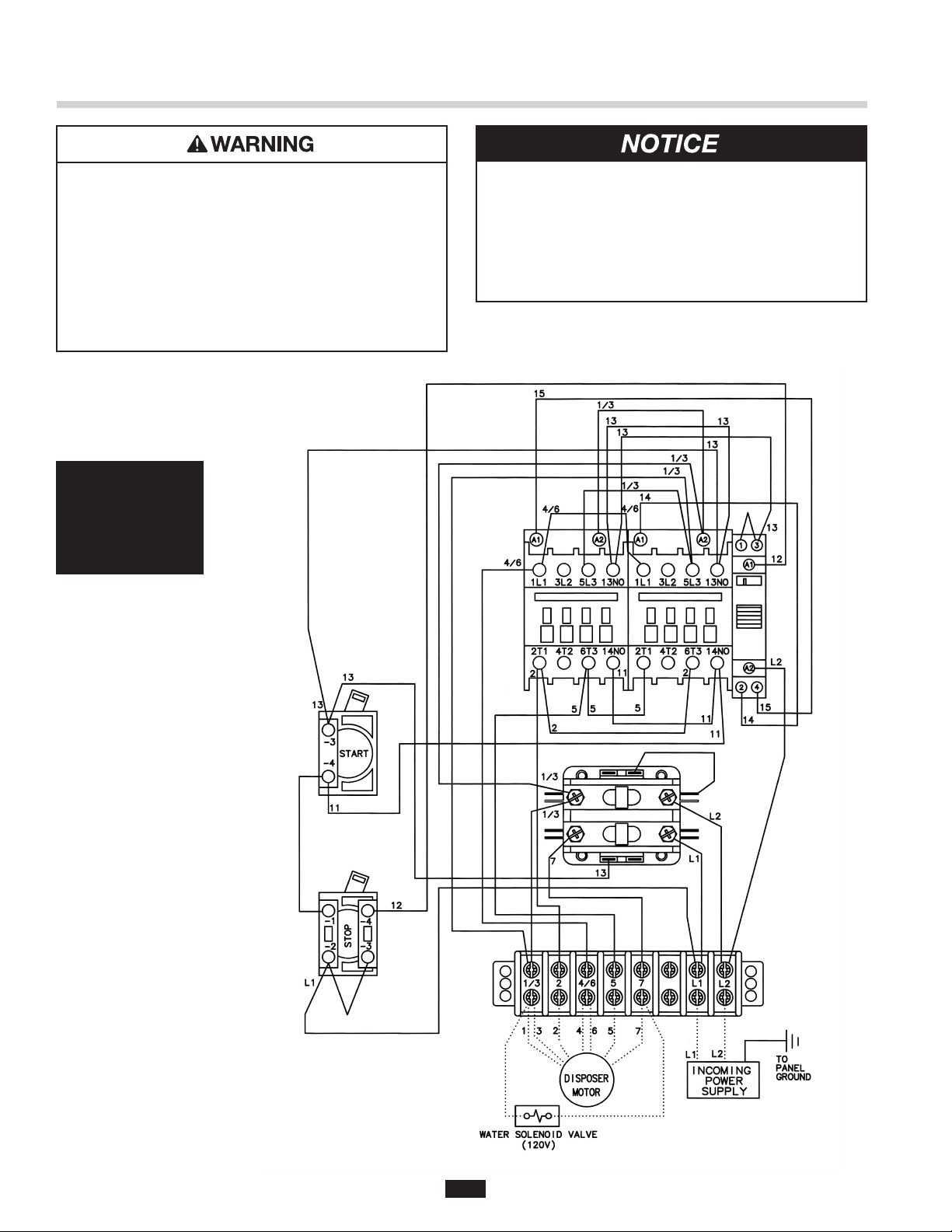

Model No. CC-202D-5 (120V, 1 phase, 1/2 - 2 HP) .........................8

Model No. CC-202D-6 (208/240V, 1 phase, 1/2 - 2 HP) ..................9

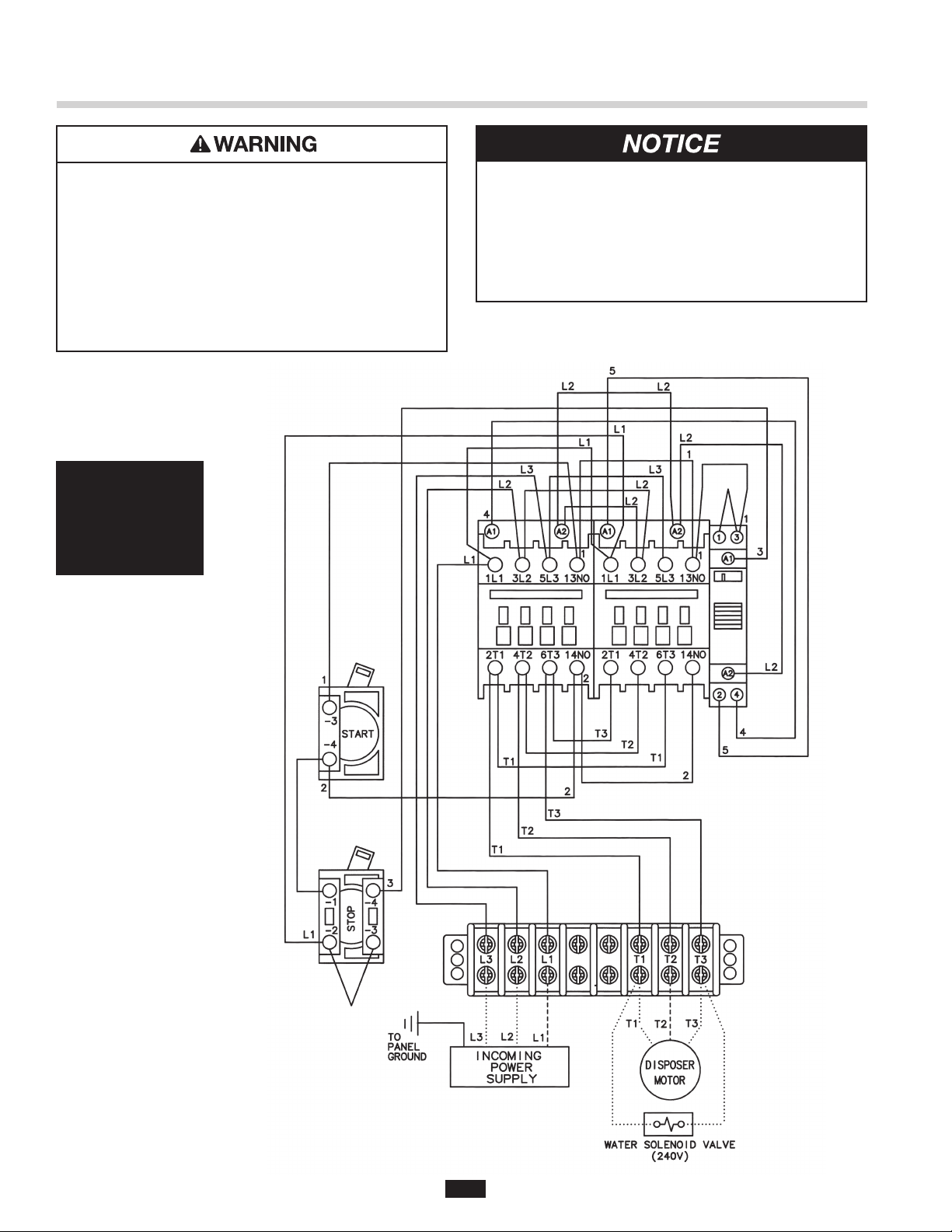

Model No. CC-202D-7 (208/240V, 3 phase, 1/2 - 10 HP) ..............10

Model No. CC-202D-8 (380/460V, 3 phase, 1/2 - 10 HP) ..............11

Warranty

FOODSERVICE DISPOSER CONTROL CENTER LIMITED WARRANTY

InSinkErator Foodservice Disposer Control Centers are warranted against defects in material and workmanship for
one year from the date of installation. The warranty includes parts and labor, provided the service is performed by an
InSinkErator Factory Authorized Service Center. This warranty does not apply if failure is due to: faulty or improper

electrical installation, faulty or improper plumbing installation, product abuse or misuse, or accidental damage.

Foodservice disposer accessories are included in this warranty only if they are included in the original disposer
purchase package.

3

Introduction/Features/Mounting the Control Center

INTRODUCTION

The CC-202D Control Center is CUL® US listed for use
with InSinkErator Foodservice Disposers. See Table 1
for approved disposer and control center combinations
and Table 2 for electrical specifications. The control
center operates the disposer. Its main functions are:

• To start and stop the disposer.

• To reverse the direction of the disposer motor
automatically upon restart.

• To start the water flow to the disposer.

Table 1. Approved Disposer and Control Center Combinations

Model Waste Disposer Model

CC-202D-5
CC-202D-6

CC-202D-7
CC-202D-8

Table 2. Electrical Specifications

Model Part No. Voltage Phase HP

CC-202D-5 15257 120V 1 1/2-2

CC-202D-6 15257A 208/240V 1 1/2-2

CC-202D-7 15257B 208/240V 3 1/2-10

CC-202D-8 15257C 380/460V 3 1/2-10

SS50-26, SS75-27, SS100-28, SS125-25,

SS150-34, SS150-38, SS200-27, SS200-31

SS50-27, SS75-28, SS100-29, SS125-26,

SS150-36, SS150-39, SS200-29,
SS200-32, SS300-25, SS300-27,
SS500-28, SS500-30, SS750-13,

SS750-15, SS1000-10, SS1000-12

MOUNTING THE CONTROL CENTER

Use the flanges at the back of the control center
enclosure and only mount panel in the upright vertical
position (door hinge is on the left). See Figure 1.

Locate control center within sight of disposer
per local codes.

If box is mounted to the sink table, recess the box so
that the buttons do not extend beyond the table's edge.

Figure 1. Control Center Dimensions

FEATURES

AUTOMATIC REVERSE

The disposer motor will reverse its direction of rotation
automatically upon restart. To avoid motor damage,
a five second delay feature prevents reversing while
motor is coasting.

ENCLOSURE

Stainless steel NEMA 4 construction.

PUSH BUTTON OPERATION

Push Black button to start disposer.
Push Red button to stop disposer.

PROPERTY DAMAGE

The Control Center should only be used with an
InSinkErator Foodservice Disposer. The Control
Center voltage and phase should match the disposer.
The disposer current and horsepower should be
equal to or less than the Control Center rating.
