CONTROL CENTER - COMMERCIAL DISPOSERS
MODEL No. CC101K
1 YR FULL WRNTY
(14155 CC101K-1 = 120Volt / 1/2-2 H.P. / 1 phase) (14155B CC101K-3 = 208-240 Volt / 1/2-10 H.P. / 3 phase)
(14155A CC101K-2 = 208-240 Volt / 1/2-2 H.P. / 1 phase)
14155 Series
(14155C CC101K-4 = 380-460 Volt / 1/2-10 H.P. / 3 phase)
Start Date:
3/99
Engineer Number:
14155
9
5
6
10
7
11
8
2
3
12
1
4
13 14
See Back Sheet For General Information
ORDER BY PART NUMBER, NOT CODE NUMBER
CODE PART NO.
NO. NO. REQ. DESCRIPTION
1 N/A 1 Stainless Steel Enclosure
2 14164 1 DoorDisconnect Knob
3 14158 1 Pushbutton- Stop
(N.C. Red)
4 14159 1 Pushbutton- Start
(N.O. - Black)
5 14160 1 ReversingContactor -
(3 PH)
14162 1 Reversing Contactor -
(1 PH - Incl. code 6)
6 14163 2 Auxilarycontactblock
(1 Phase ONLY)
7 14168 1 Circuitboard, printed
8 13498 1 Auto/Manualjumper plug
9 14169 1 MechanicalInterlock
10 14185 1 Transformer - 3 phase
(Secondary voltage - 24 volts)
CODE PART NO.
NO. NO. REQ. DESCRIPTION
14161 1 Transformer - 1 phase
(Secondary voltage - 24 volts)
11 14165 2 Fuse Holder
12 13466 1 Fuse (2 amp - 125 volts)
(FNA-2 or FNM-2)
13 14166 3 Terminal block - 3 phase
4 Terminal block - 1 phase
14 14167 1 Door Disconnect Switch&
Shaft
13625 4 Tamperproof Screw
(Not Shown)
13935 4 Top Cover Retainer
(Not Shown)
13942 4 Screw (Not Shown)
13236-B 1 Solenoid Valve - 24 V Coil
(Not shown)
CONTROL CENTER - COMMERCIAL DISPOSERS
MODEL No. CC101J
1 YR FULL WRNTY 13839 Series
(13839 CC101J-1 = 120Volt / 1/2-2 H.P. / 1 phase) (13839-C CC101J-4 = 380-460 Volt / 1/2-5 H.P. / 3 phase)
(13839-A CC101J-2 = 208-248 Volt / 1/2-2 H.P. / 1 phase) (13839-D CC101J-5 = 208-240 Volt / 7-1/2-10 H.P. / 3 phase)
(13839-B CC101J-3 = 208-248 Volt / 1/2-5 H.P. / 3 phase) (13839-E CC101J-6 = 308-460 Volt / 7-1/2-10 H.P. / 3 phase)
5
6
Rev. 10/96
Start Date:
05-26-95
Engineer Number:
13839
1
234
See Back Sheet For General Information
ORDER BY PART NUMBER, NOT CODE NUMBER
CODE PART NO.
NO. NO. REQ. DESCRIPTION
7
8
1211
CODE PART NO.
NO. NO. REQ. DESCRIPTION
9
13 14
10
1 N/A 1 Stainless Steel Enclosure
2 13863 1 Door Disconnect Knob
3 13864 1 Pushbutton - Stop
(N.C. Red)
4 13865 1 Pushbutton - Start
(N.O. - Black)
5 13867 1 Reversing Contactor -
CC101J-3&4(3PH/1/2-5 hp)
13868 1 Reversing Contactor -
CC101J-5&6(3PH/7-1/2-10 hp)
13869 1 Reversing Contactor -
(1 PH - Incl. code 6)
6 13866 2 Auxilary contact block
(1 Phase ONLY)
7 13467 1 Circuit board, printed
8 13498 1 Auto/Manual jumper plug
9 13873 1 Mechanical Interlock
10 13870 1 Transformer - 3 phase
(Secondary voltage - 24 volts)
13871 1 Transformer - 1phase
(Secondary voltage - 24 volts)
11 13463 1 Fuse Holder
12 13466 1 Fuse (2 amp - 125 volts)
(FNA-2 or FNM-2)
13 13465 5 Terminal block - 3 phase
13465 6 Terminal block - 1 phase
14 13872 1 Door Disconnect Switch&
Shaft
13625 4 Tamperproof Screw
(Not Shown)
13935 4 Top Cover Retainer
(Not Shown)
13942 4 Screw (Not Shown)
13236-B 1 Solenoid Valve - 24 V Coil
(Not shown)
Start Date: 11-01-89
1 13560
1
Door Disconnect Knob
10
13461
1
Trans
former
-
for 1 phase units
12
13
1
15
16
6
1
1
8
1
IN-SINK ERATOR DIVISION
MODEL CC-101 H
CONTROL CENTER
SERIES 13521
VOLTAGES-120-208-240-380-460
ALL HORSEPOWER 3 Ph. & 1 Ph.
Code
No.
2 13469 1 Push-Button operator - STOP 11 13463 1 Fuse holder
3 13468 1 Push-Button operator - START
4 13497 4 Auxiliary contact block 14 13465 6 Terminal block - 1 phase
5
7
9 13460 1 Transformer - (for 3 phase units)
EMERSON ELECTRIC CO.
4700 21st STREET, RACINE, WIS, 53406
Pan No.
13458
13459
13467
13498
No.
Req.
(includes code no. 16)
(N.C. - RED)
(N.O. - BLACK)
Contactor, reversing - 3 phase
(with 13497 - aux. contacts)
Contactor, reversing - 1 phase
(with 13497 - aux. contacts)
Circuit board, printed
Auto/Manual jumper plug
(Secondary voltage - 24 volts)
Description
Code
No.
Part No.
13466 1
13465 5
13535 1
No.
Req.
(Secondary voltage - 24 volts )
Fuse (2 amp - 125 volts)
FNA -2 or FNM -2
Terminal block - 3 phase
Door Disconnect Switch
1
Door Disconnect Operating Rod
(not available - See code no. 1)
Description
ORDER BY PART NUMBER, NOT CODE NUMBER
(All Parts F.O.B. Agency/Depot) (Include Engr. and Model Number of Control Center when ordering)
START MFG. 9-86
IN-SINK-ERATOR DIVISION
(REV. 5-01-90)

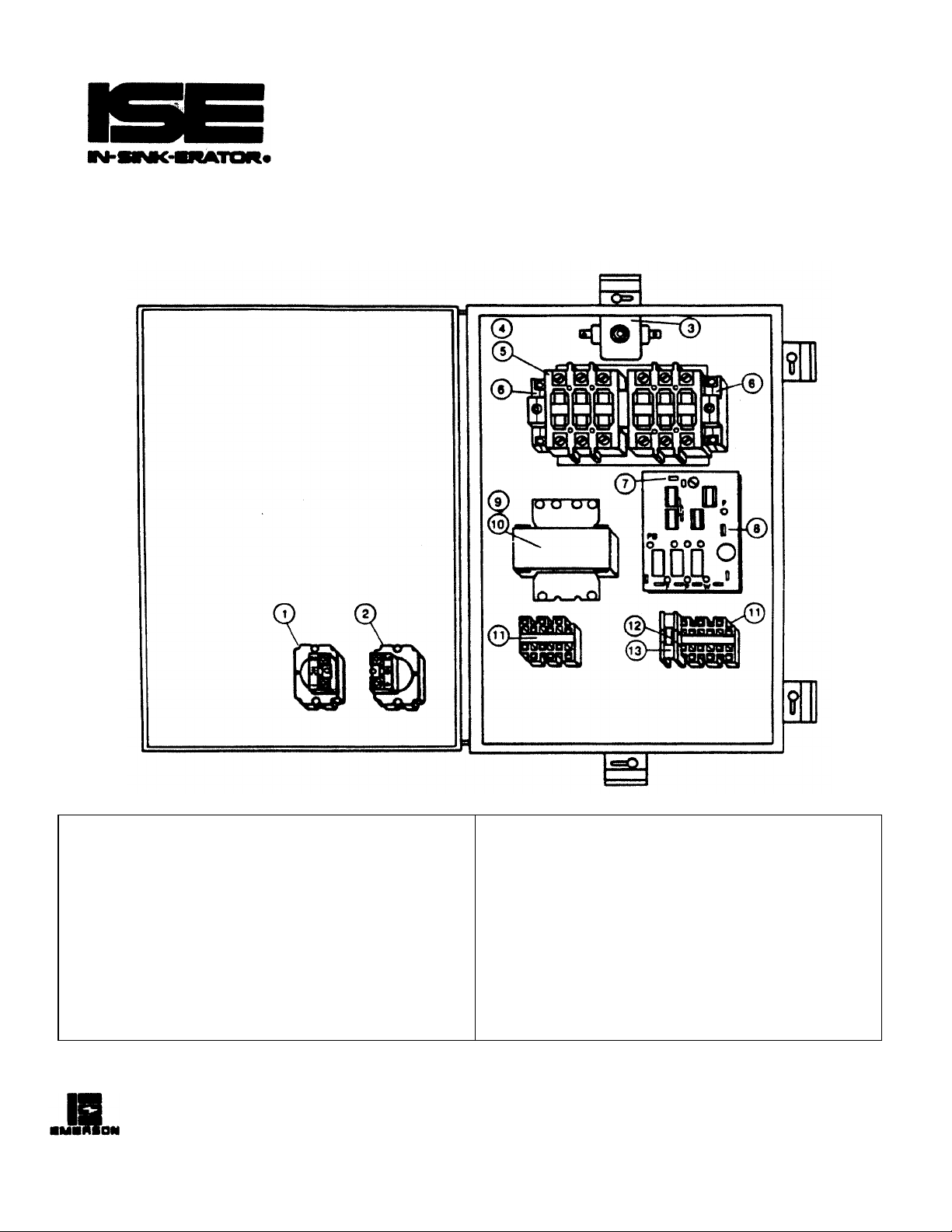

MODEL CC-101G
CONTROL CENTER
SERIES 13436
VOLTAGES-120-208-240-380-460
ALL HORSEPOWER 3 Ph. & 1 Ph.
SEE BACK SHEET FOR GENERAL INFORMATION
Code
No.
1 13468 1 Push-Button operator - STOP 8 13467 1 Circuit board, printed
2 13468 1 Push-Button operator - START (Secondary voltage - 24 volts)
3 13462 1 Door interlock switch
4 13458 1 Contactor, reversing - 3 Ø 11 13465 6 Terminal block - 3 Ø
5 13459 1 Contactor, reversing –1 Ø 12 13466 1 Fuse (2 amp -125 volt) FNA-2 or FNM-2
6 13487 2 Auxiliary contact block
7 13498 1 Auto/Manual jumper plug
Part
No.
No.
Req.
(N.C. - RED) 9 13460 1 Transformer - (for 3 Ø units)
(N.O. - BLACK) 10 13481 1 Transformer - (tor 1 Ø units)
(with 13497 - aux. contacts)
(with 13497 - aux. contacts) 13 13463 1 Fuse holder
EMERSON ELECTRIC CO.
4700 21st STREET. RACINE, WIS, 53406
Description
Code
No.
Part
No.
No.
Req.
(Secondary voltage - 24 volts)
8 Terminal block - 1 Ø
13235A 1 Solenoid Valve (not shown)
(1/2" N.P.T. - 24 volt coil)
Description
ORDER BY PART NUMBER, HOT CODE NUMBER
(All Parts F.O.B. Agency/Depot) (Include Engr. and Model Number of Control Center when
ordering)
