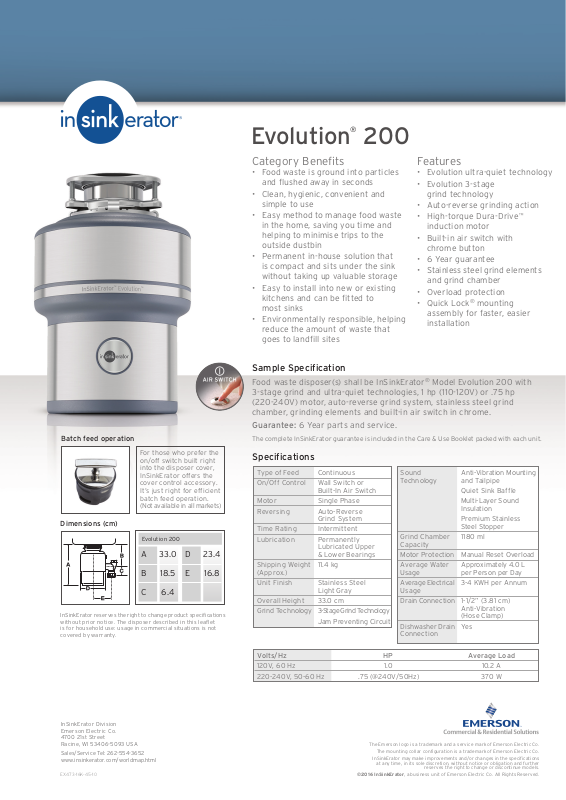

Insinkerator 200 Specifications Sheet
Evolution® 200
Batch feed operation
For those who prefer the
on/off switch built right
into the disposer cover,
InSinkErator offers the
cover control accessory.
It’s just right for efficient
batch feed operation.
(Not available in all markets)
Dimensions (cm)
Evolution 200
33.0
A
18.5
B
6.4
C
InSinkErator reserves the right to change product specifications
withou t prio r notice. The disposer described in th is leaflet
is for household use: usage in commercial situations is not
covered by warra nty.
D
E
23.4
16.8
Category Benefits
• Food waste is ground into particles
and flushed away in seconds
• Clean, hygienic, convenient and
simple to use
• Easy method to manage food waste
in the home, saving you time and
helping to minimise trips to the
outside dustbin
• Permanent in-house solution that
is compact and sits under the sink
without taking up valuable storage
• Easy to install into new or existing
kitchens and can be fitted to
most sinks
• Environmentally responsible, helping
reduce the amount of waste that
Features
• Evolution ultra-quiet technology
• Evolution 3-stage
grind technology
• Auto-reverse grinding action
• High-torque Dura-Drive™
induction motor
• Built-in air switch with
chrome button
• 6 Year guarantee
• Stainless steel grind elements
and grind chamber
• Overload protection
• Quick Lock
assembly for faster, easier
installation
®
mounting
goes to landfill sites
Sample Specification
Food waste disposer(s) shall be InSinkErator® Model Evolution 200 with
3-stage grind and ultra-quiet technologies, 1 hp (110-120V) or .75 hp
(220-240V) motor, auto-reverse grind system, stainless steel grind
chamber, grinding elements and built-in air switch in chrome.
Guarantee: 6 Year parts and service.
The complete InSinkErator guarantee is included in the Care & Use Booklet packed with each unit.
Specifications
Type of Feed Continuous
On/Off Control Wall Switch or
Built-In Air Switch
Motor Single Phase
Reversing Auto-Reverse
Grind System
Time Rating Intermittent
Lubrication Permanently
Lubricated Upper
& Lower Bearings
Shipping Weight 11.4 kg
(Approx.)
Unit Finish Stainless Steel
Light Gray
Overall Height 33.0 cm
Gr i nd Te chn o log y 3-Stage Grind Technology
Jam Preventing Circuit
Sound Anti-Vibration Mounting
Technology and Tailpipe
Quiet Sink Baffle
Multi-Layer Sound
Insulation
Premium Stainless
Steel Stopper
Grind Chamber 1180 ml
Capacity
Motor Protection Manual Reset Overload
Average Water Approximately 4.0 L
Usage per Person per Day
Average Electrical 3-4 KWH per Annum
Usage
Drain Connection 1-1/2” (3.81 cm)
Anti-Vibration
(Ho se Clamp)
Dishwasher Drain Yes
Connection
InSinkErator Division
Emerson Electric Co.
4700 21st Stre et
Racine , WI 53 406 -5093 USA
Sales/Service Tel: 262-554-3652
www.insinkerator.com/worldmap.html
EX473-16K-45-10
Volts/Hz HP Average Load
120V, 60 Hz 1.0 10.2 A
220-240V, 50-60 Hz .75 (@240V/50Hz) 370 W
The Eme rson logo is a trademark a nd a service mark of Emers on Electric C o.
The mounting collar configuration is a trademark of Emerson Electric Co.
InSinkErator may make improvements and/or changes in the specifications
at any time, in its sole discretion, without notice or obligation and further
©2016 InSinkErator, a business unit of Emerson Electric Co. All Rights Reserved.
reserves the right to change or discontinue models.
