User Guide
5 MP Digital Camcorder with 2.4" LCD Moniotr SD-Blue
NS-DCC5SR09
Insignia NS-DCC5SR09
5 MP Digital Camcorder with 2.4" LCD
Monitor Standard Definition-Blue
Contents
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Safety information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Package contents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Front . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Back . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Side . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Using the LCD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Setting up your camcorder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Installing the batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Inserting or removing a memory card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Getting started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Turning your camcorder on or off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Taking a picture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Recording a movie . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Recording sound . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Working with movies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Selecting the resolution for movies. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Using digital zoom . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Selecting the exposure for movies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Using the LED as a light source . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Using Night Mode for low-light movies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Adjusting the sharpness for movies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Adjusting the white balance for movies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Using motion stabilization for movies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Using motion detection to record movies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Selecting an effect for movies. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Watching a movie. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Deleting movies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Using movie thumbnails . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Locking or unlocking movies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Repeating movies. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Watching movies on a PC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Viewing pictures or movies on a TV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Working with pictures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Taking close up pictures. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Using digital zoom . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Selecting the resolution for pictures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Selecting the exposure for pictures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Using Night Mode for low-light pictures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Adjusting the sharpness for pictures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Adjusting the white balance for pictures. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Combining two pictures into one . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Adding photo frames to pictures. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Selecting the flash setting for pictures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Using the self-timer for pictures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Taking a sequence of pictures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Taking pictures with bright backgrounds. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Adding the date to pictures. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Selecting an effect for pictures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Viewing pictures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Deleting pictures. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Using picture thumbnails . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Locking or unlocking pictures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Viewing pictures in a slideshow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Working with voice recordings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Playing voice recordings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Deleting voice recordings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Repeating voice recordings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Transferring MP3s to your camcorder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Listening to MP3s. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Repeating MP3s. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Using an earphone. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Configuring your camcorder. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Default camcorder settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Setting the time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
www.insignia-products.com
1
Insignia NS-DCC5SR09 5 MP Digital Camcorder with 2.4" LCD Monitor Standard Definition-Blue
Displaying or hiding camcorder status information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Turning sound effects on or off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Customizing the startup screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Formatting the built-in memory or a memory card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Selecting the TV system type. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Selecting the on-screen menu language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Restoring default settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Transferring files to a PC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Maintaining. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Installing the device driver software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Accessing the User Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
One-Year Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Introduction
Congratulations on your purchase of a high-quality Insignia product. Your NS-DCC5SR09 represents the
state of the art in digital camcorder design and is designed for reliable and trouble-free performance.
2
www.insignia-products.com
Insignia NS-DCC5SR09 5 MP Digital Camcorder with 2.4" LCD Monitor Standard Definition-Blue
Safety information
• Do not drop, puncture, or disassemble your
camcorder. This voids your warranty.
• Avoid contact with water, and make sure that
your hands are dry before using your
camcorder.
• Do not expose your camcorder to high
temperature or leave it in direct sunlight. High
temperature or the heat from direct sunlight
may damage your camcorder.
• For your protection, do not use your
camcorder during a storm or when lightning
is present.
• Do not use your camcorder while driving or
riding a vehicle (such as a bicycle). An
accident may occur.
• Do not use the flash close to eyes. Damage
to vision may result.
• Keep your camcorder out the reach of small
children or infants.
• Do not use the battery if it shows signs of
leakage or distortion.
• Make sure that you replace the battery with
one of the same type. Using a different type
battery can lead to an explosion.
• Dispose of used batteries according to local
hazardous waste regulations.
Features
• 5 mega-pixel sensor
• MPEG-4 technology that compresses video
to let you store more movies than traditional
camcorders
• Up to 11 mega-pixel quality pictures
• AV OUT port for connecting a TV or
earphone
• High-speed mini-USB 2.0 port for connecting
a PC
• Automatic and manual exposure and color
balance controls
• 8× digital zoom for enlarging pictures and
movies
• Built-in 64 MB memory that lets you store
pictures and movies without using a memory
card
• Memory card slot that lets you increase
storage capacity to 4 GB
Package contents
• Camcorder
•USB cable
•AV cable
• AA alkaline batteries (2)
• Quick Start Guide
• CD with device driver and User Guide
•Wrist strap
•Pouch
Front
1
2
3
# Component Description
1 Lens Focuses the image when taking
2 LED Lights green in PC camera mode.
3
Power button
pictures or movies.
Lights red when connected to a PC in
mass storage mode.
Blinks during self-timer mode.
Press down for one second to turn
your camcorder on or off.
Back
5
1
2
3
4
# Component Description
1 LCD panel Lets you view pictures and movies
2
TV/ port
3 Mini-USB 2.0 port Connect the USB cable to this port and
while you are capturing them. Lets you
view stored pictures and movies.
Displays camcorder status
information.
Connect the earphone or a TV to this
port. For more information, see
“Viewing pictures or movies on a TV”
on page 13 or “Using an earphone” on
page 23.
a USB port on a PC. For more
information, see “Watching movies on
a PC” on page 13.
6
7
8
9
10
11
12
www.insignia-products.com
3
Insignia NS-DCC5SR09 5 MP Digital Camcorder with 2.4" LCD Monitor Standard Definition-Blue
# Component Description
4 Strap hole Attach the carrying strap through this
5 LED Lights green in PC camera mode.
6
7
8 OK button Press to open the Record menu.
9 T (up) and W (down)
10
11
12
Movie shutter
button
Picture shutter
button
buttons
(right) button
(left) button
Record/Play button
hole.
Lights red when connected to a PC in
mass storage mode.
Blinks during self-timer mode.
Press to record a movie. For more
information, see “Recording a movie”
on page 6.
Press to take a picture. For more
information, see “Taking a picture” on
page 6.
In record mode, press to zoom in (T)
or to zoom out (W).
Press to move up or down in menus or
to make selections.
Press to move right in menus or to
make selections.
Press to move left in menus or to make
selections.
Press to toggle between Record mode
and Playback mode.
When a menu is open, press to return
to close the menu and return to Record
mode.
In Playback mode, press to return to
the previous page.
Side
1
2
3
# Component Description
1 Speaker Plays recorded sound.
2 Macro switch In record mode, press to select Macro
mode or Normal mode. For more
information, see “Taking close up
pictures” on page 13.
3 Battery cover Remove this cover to insert the battery
or a memory card. For more
information, see “Installing the
batteries” on page 6 or “Inserting or
removing a memory card” on page 6.
1
# Component Description
1 Microphone Records voice and sound.
4
www.insignia-products.com
Insignia NS-DCC5SR09 5 MP Digital Camcorder with 2.4" LCD Monitor Standard Definition-Blue
Using the LCD
LCD icons in record mode
#Icon
1 Number of images or recording time that can still be taken
at the current resolution.
2
3 Resolution (picture):
4
5
6
7
8
9 Date and Time in YYYY/MM/DD HH:MM format
10
11
12
13
14
15
16 Resolution (Movie):
Picture Record mode
(High)
(Standard)
(Low)
A (Auto flash on)
(Flash on)
(Flash off)
(Red-eye reduction on)
(Light on)
(Night mode on)
(Self-timer on)
(Motion detect on)
(Motion detect meter)
WB (White balance on)
(Macro mode on)
(Backlight on)
(Multi-snap)
(Motion stabilization on)
(Movie Record mode)
(High)
(Standard)
(Low)
19
#Icon
17 8× digital zoom
18 Battery indicator:
(Battery charge full)
(Medium charge)
(Battery charge low)
(Battery charge depleted)
19
(Memory card inserted)
Playback mode icons
2
1
#Icon
1 Current number for the movie and picture and total number
of movies and pictures.
2
3 Resolution (movie and picture):
4 Playback mode icons:
5 Magnification indicator
(Lock) Indicates the selected movie or picture is
locked (protected).
(High)
(Standard)
(Low)
(Movie Playback mode)
(Picture Playback mode)
(Voice Playback mode)
3
4
5
www.insignia-products.com
5
Insignia NS-DCC5SR09 5 MP Digital Camcorder with 2.4" LCD Monitor Standard Definition-Blue
Setting up your camcorder
Installing the batteries
To install the batteries:
1 Slide the battery cover off your camcorder.
2 Insert the batteries into the battery
compartment. Make sure that the + and –
symbols on the batteries match the + and –
symbols in the battery compartment.
3 Replace the battery cover.
Inserting or removing a memory card
Your camcorder has built-in memory for storing
pictures and movies. You can increase the
memory storage by using an SD memory card.
Note
When a memory card is inserted, your camcorder
stores pictures and movies on the memory card
instead of storing them in the built-in memory.
To insert or remove a memory card:
1 Slide the battery cover off of your camcorder.
Protecting an SD memory card
You can “protect” an SD memory card to prevent
the recording or deletion of pictures or movies.
To protect an SD memory card:
• Slide the protection tab into the protected
position.
Protected Unprotected
Getting started
Turning your camcorder on or off
To turn your camcorder on or off:
• Press down and hold (Power) for one
second.
Or
Open the LCD panel.
To turn off your camcorder:
• Press down and hold (Power) for one
second.
Or
Close the LCD panel.
Taking a picture
To take a picture:
1 Turn on your camcorder.
2 Aim the camera lens, then press (Picture
Shutter).
3 Press (Record/Play) once to view the
picture.
4 Press (Record/Play) again to return to
record mode.
2 Insert an SD memory card into the memory
card slot.
3 Replace the battery cover.
To remove a memory card:
1 Slide the battery cover off of your camcorder.
2 Push in on the memory card. The card pops
out slightly.
3 Pull the card out of the slot.
4 Replace the battery cover.
6
Recording a movie
To record a movie:
1 Turn on your camcorder.
2 Aim the camera lens, then press (Movie
Shutter) to start recording. While a movie is
recording, a time indicator appears on the
LCD panel.
3 Press (Movie Shutter) to stop recording.
4 Press (Record/Play) once to view the
movie.
5 Press (Record/Play) again to return to
record mode.
www.insignia-products.com
Insignia NS-DCC5SR09 5 MP Digital Camcorder with 2.4" LCD Monitor Standard Definition-Blue
Recording sound
To record sound:
1 Press OK to open the record menu.
2 Press or to select Voice Recording
then press OK.
4 Press T (up) or W (down) to select
Resolution, then press OK.
5 Press T (up) or W (down) to select High, Std
(standard), or Low, then press OK to save
your selection and close the menu. To exit
without changing the resolution, select Exit.
Using digital zoom
You can zoom on scenes to get close up when
recording movies movies.The zoom selections
are from 1× to 8×.
To use digital zoom:
• Press T to zoom in or press W to zoom out.
3 Press T (up) or W (down) to select Enter,
then press OK.
4 Press (Movie Shutter) to start recording.
5 Press (Movie Shutter) again to stop
recording.
6 Press (Record/Play) to playback the
recording.
Working with movies
Selecting the resolution for movies
You can record movies in any of four resolutions.
To select the resolution for movies:
1 Press (Record/Play) to switch to record
mode.
2 Press OK. The record menu opens.
3 Press or to select Movie Mode.
Selecting the exposure for movies
Your camcorder adjusts the image exposure
automatically. You can manually adjust the
exposure for special pictures.
To select the exposure for movies:
1 Press (Record/Play) to switch to record
mode.
2 Press OK. The record menu opens.
3 Press or to select Movie Mode.
4 Press T (up) or W (down) to select
Exposure, then press OK.
www.insignia-products.com
7
Insignia NS-DCC5SR09 5 MP Digital Camcorder with 2.4" LCD Monitor Standard Definition-Blue
5 Press T (up) or W (down) to select an
exposure setting. The new exposure setting
is previewed.
6 Press OK to save your selection and close
the menu.
Using the LED as a light source
You can use the LED light to increase the light
level in low-light settings.
To use the LED as a light source:
1 Press (Record/Play) to switch to record
mode.
2 Press OK. The record menu opens.
3 Press or to select Movie Mode.
3 Press or to select Movie Mode.
4 Press T (up) or W (down) to select Night
Mode, then press OK.
4 Press T (up) or W (down) to select Light,
then press OK.
5 Press T (up) or W (down) to select on or off,
then press OK to save your selection and
close the menu.
Notes
You can also press to turn the LED light on and
off.
The LED light is turned off automatically if the
battery power is low ( ).
Using Night Mode for low-light movies
The Night Mode option uses a longer exposure
to capture more detail of the movie background.
5 Press T (up) or W (down) to select On or Off,
then press OK to save your selection and
close the menu.
Adjusting the sharpness for movies
You can use the sharpness to soften or sharpen
images to achieve different effects.
To adjust the sharpness for movies:
1 Press (Record/Play) to switch to record
mode.
2 Press OK. The record menu opens.
3 Press or to select Movie Mode.
To use Night Mode for low-light movies:
1 Press (Record/Play) to switch to record
mode.
2 Press OK. The record menu opens.
8
www.insignia-products.com
Insignia NS-DCC5SR09 5 MP Digital Camcorder with 2.4" LCD Monitor Standard Definition-Blue
4 Press T (up) or W (down) to select
Sharpness, then press OK.
5 Press T (up) or W (down) to select a
sharpness level. The new sharpness setting
is previewed.
6 Press OK to save your selection and close
the menu.
Adjusting the white balance for movies
You camcorder adjusts the color balance
automatically. You can manually adjust the color
balance for special movie effects.
To adjust the white balance for movies:
1 Press (Record/Play) to switch to record
mode.
2 Press OK. The record menu opens.
3 Press or to select Movie Mode.
Using motion stabilization for movies
Motion stabilization increases stability and helps
avoid blurry movies.
Notes
• The captured screen will be smaller when
motion stabilization is turned on.
• Digital Zoom is disabled when motion
stabilization is turned on.
To use motion stabilization for movies:
1 Press (Record/Play) to switch to record
mode.
2 Press OK. The record menu opens.
3 Press or to select Movie Mode.
4 Press T (up) or W (down) to select
Stabilization, then press OK.
4 Press T (up) or W (down) to select Auto,
Daylight, Fluorescent, or Tungsten. The
new white balance setting is previewed.
5 Press OK to save your selection and close
the menu.
www.insignia-products.com
5 Press T (up) or W (down) to select On or Off,
then press OK to save your selection and
close the menu.
Using motion detection to record movies
When the Motion Detect option is turned on,
your camcorder starts recording after it detects
three seconds of motion (movement). It stops
recording after three seconds of no motion.
To use motion detection to record movies:
1 Press (Record/Play) to switch to record
mode.
2 Press OK. The record menu opens.
9
Insignia NS-DCC5SR09 5 MP Digital Camcorder with 2.4" LCD Monitor Standard Definition-Blue
3 Press or to select Movie Mode.
4 Press T (up) or W (down) to select Motion
Detect, then press OK.
Watching a movie
To watch a movie:
1 Press (Record/Play) to switch to
playback mode.
2 Press or to select MOVIE.
3 Press OK.
5 Press T (up) or W (down) to select On or Off,
then press OK to save your selection and
close the menu.
Selecting an effect for movies
You can select a visual effect for movies.
To select an effect for movies:
1 Press (Record/Play) to switch to record
mode.
2 Press OK. The record menu opens.
3 Press or to select Effect.
4 Press T (up) or W (down) to select Normal,
B/W (black and white), Classic, or Negative.
The new effect setting is previewed. To exit
without selecting an effect, select Exit.
5 Press OK to save your selection and close
the menu.
4 Press or to select the previous or next
movie.
5 Press (Movie Shutter) to start playback.
Press this button again to pause playback.
6 To control movie playback:
• Press and hold or to fast-reverse or
fast-forward. Release the button to
resume normal playback.
• Press T (up) or W (down) to increase or
decrease the volume.
7 Press (Movie Shutter) to stop playback.
Deleting movies
Note
If a memory card is in your camcorder, you can
only delete movies on the card. To delete movies
stored in built-in memory, remove the card. For
instructions for removing a card, see “Inserting or
removing a memory card” on page 6.
If a memory card is protected, you cannot delete
movies from the card. For instructions for
unprotecting a card, see “Protecting an SD
memory card” on page 6.
You cannot delete a locked (protected) movie. You
must unlock the movie. For instructions for
unlocking a movie, see “Locking or unlocking
movies” on page 12.
10
www.insignia-products.com
Insignia NS-DCC5SR09 5 MP Digital Camcorder with 2.4" LCD Monitor Standard Definition-Blue
To delete a movie:
1 Press (Record/Play) to switch to
playback mode.
2 Press or to select MOVIE.
3 Press OK twice to open the movie option
menu.
4 Press or to select Delete.
Using movie thumbnails
To use movie thumbnails:
1 Press (Record/Play) to switch to
playback mode.
2 Press or to select MOVIE.
3 Press OK twice to open the movie option
menu.
5 Press OK to open the delete menu.
6 Press or to select the movie you want to
delete.
7 Press W (down) to delete the movie. If you
want to delete all movies, press T (up). A
confirmation message appears.
8 Press T (up) or W (down) to select Yes. If you
want to cancel the deletion, select No.
9 Press OK to confirm your selection and close
the menu.
4 Press or to select Thumbnail, then
press OK to view the thumbnails.
5 To play a movie, press or to select a
thumbnail, press OK, then press (Movie
Shutter).
www.insignia-products.com
11
Insignia NS-DCC5SR09 5 MP Digital Camcorder with 2.4" LCD Monitor Standard Definition-Blue
Locking or unlocking movies
You can lock movies to prevent them from being
deleted.
To lock or unlock movies:
1 Press (Record/Play) to switch to
playback mode.
2 Press or to select Movie.
3 Press OK twice to open the movie option
menu.
4 Press or to select Lock.
Repeating movies
You can play a single movie or all movies
repeatedly.
To repeat movies:
1 Press (Record/Play) to switch to
playback mode.
2 Press or to select MOVIE.
3 Press OK twice to open the movie option
menu.
4 Press or to select Repeat One or
Repeat All.
5 Press OK to open the lock menu.
6 Press or to select the movie you want to
lock or unlock.
7 Press W (down) to lock or unlock the movie.
If you want to lock or unlock all movies, press
T (up). A confirmation message appears.
8 Press T (up) or W (down) to select Yes. If you
want to cancel your selection, select No.
9 Press OK to lock or unlock the movie and
close the menu.
5 Press OK to start repeat playback.
12
www.insignia-products.com
Insignia NS-DCC5SR09 5 MP Digital Camcorder with 2.4" LCD Monitor Standard Definition-Blue
Watching movies on a PC
To watch movies on a PC:
1 Connect the mini-USB cable to the USB port
on your camcorder, then connect the other
end to a USB port on a PC.
2 Start the computer’s video player, such as
Windows Media Player.
3 Use the Windows Media Player controls to
locate and play movies. Movies on a memory
card are located at My Computer\Removable
Disk\DCIM\200MOVIE.
Viewing pictures or movies on a TV
You can view pictures or movies on a TV with a
standard 4:3 aspect ratio or wide 16:9 aspect
ratio.
Note
The LCD panel does not work when your
camcorder is connected to a TV.
To view pictures or movies on a TV:
1 Connect one end of the AV cable to the
AV OUT port on your camcorder, then
connect the other end to the AV IN ports on
the TV.
2 When the earphone/TV screen opens, press
T (up) or W (down) to select TV, then press
OK.
Working with pictures
Taking close up pictures
Your camcorder has a Macro mode taking
pictures at close range. Use this mode for
objects located about 7.8 inches (20 cm) away.
When Macro mode is active, the icon appears
on the LCD.
To take close up pictures:
1 Slide the Macro switch to the Macro position.
2 Press (Picture Shutter) to take the picture.
Note
Make sure that you set the Macro switch to
(Normal) when you finish taking close-up pictures.
Using digital zoom
You can zoom on objects to get close up
pictures.The zoom selection are from 1× to 8×.
To use digital zoom:
• Press T to zoom in or press W to zoom out.
Selecting the resolution for pictures
To select the resolution for pictures:
1 Press (Record/Play) to switch to record
mode.
2 Press OK. The record menu opens.
3 Press or to select Camera Mode.
3 Set the video input on the TV to the correct
input mode.
4 Follow the steps for playing movies or
viewing pictures in “Watching a movie” on
page 10 or “Viewing pictures” on page 18.
4 Press T (up) or W (down) to select
Resolution, then press OK.
5 Press T (up) or W (down) to select High, Std
(standard), or Low, then press OK to save
your selection and close the menu. To exit
without changing the resolution, select Exit.
www.insignia-products.com
13
Insignia NS-DCC5SR09 5 MP Digital Camcorder with 2.4" LCD Monitor Standard Definition-Blue
Selecting the exposure for pictures
Your camcorder adjusts the image exposure
automatically. You can manually adjust the
exposure for special pictures.
To select the exposure for pictures:
1 Press (Record/Play) to switch to record
mode.
2 Press OK. The record menu opens.
3 Press or to select Camera Mode.
4 Press T (up) or W (down) to select
Exposure, then press OK.
3 Press or to select Camera Mode.
4 Press T (up) or W (down) to select Night
Mode, then press OK.
5 Press T (up) or W (down) to select an
exposure setting. The new exposure setting
is previewed.
6 Press OK to save your selection and close
the menu.
Using Night Mode for low-light pictures
The Night Mode option uses a longer exposure
to capture more detail of the picture background.
Note
To avoid blurry pictures, place the camera on a
flat, steady surface or use a tripod.
To use Night Mode for low-light pictures:
1 Press (Record/Play) to switch to record
mode.
2 Press OK. The record menu opens.
5 Press T (up) or W (down) to select On or Off,
then press OK to save your selection and
close the menu.
Adjusting the sharpness for pictures
You can adjust the sharpness to soften or
sharpen images to achieve different effects.
To adjust the sharpness for pictures:
1 Press (Record/Play) to switch to record
mode.
2 Press OK. The record menu opens.
3 Press or to select Camera Mode.
14
www.insignia-products.com
Insignia NS-DCC5SR09 5 MP Digital Camcorder with 2.4" LCD Monitor Standard Definition-Blue
4 Press T (up) or W (down) to select
Sharpness, then press OK.
5 Press T (up) or W (down) to select a
sharpness level. The new sharpness setting
is previewed.
6 Press OK to save your selection and close
the menu.
Adjusting the white balance for pictures
You camcorder adjusts the color balance
automatically. You can manually adjust the color
balance for special picture effects.
To adjust the white balance for pictures:
1 Press (Record/Play) to switch to record
mode.
2 Press OK. The record menu opens.
3 Press or to select Camera Mode.
Combining two pictures into one
You can combine two pictures into one picture.
To combine two pictures into one:
1 Press (Record/Play) to switch to record
mode.
2 Press OK. The record menu opens.
3 Press or to select Camera Mode.
4 Press T (up) or W (down) to select Two in
One, then press OK.
4 Press T (up) or W (down) to select White
Balance, then press OK.
5 Press T (up) or W (down) to select Auto,
Daylight, Fluorescent, or Tungsten. The
new white balance setting is previewed.
6 Press OK to save your selection and close
the menu.
5 Press T (up) or W (down) to select On, then
press OK to save your selection and close
the menu.
6 Press (Picture Shutter) to take the first
picture.
7 Press (Picture Shutter) to take the second
picture.
www.insignia-products.com
15
Insignia NS-DCC5SR09 5 MP Digital Camcorder with 2.4" LCD Monitor Standard Definition-Blue
8 Press (Record/Play) to view the
two-in-one picture.
Adding photo frames to pictures
1 Press (Record/Play) to switch to record
mode.
2 Press OK. The record menu opens.
3 Press or to select Camera Mode.

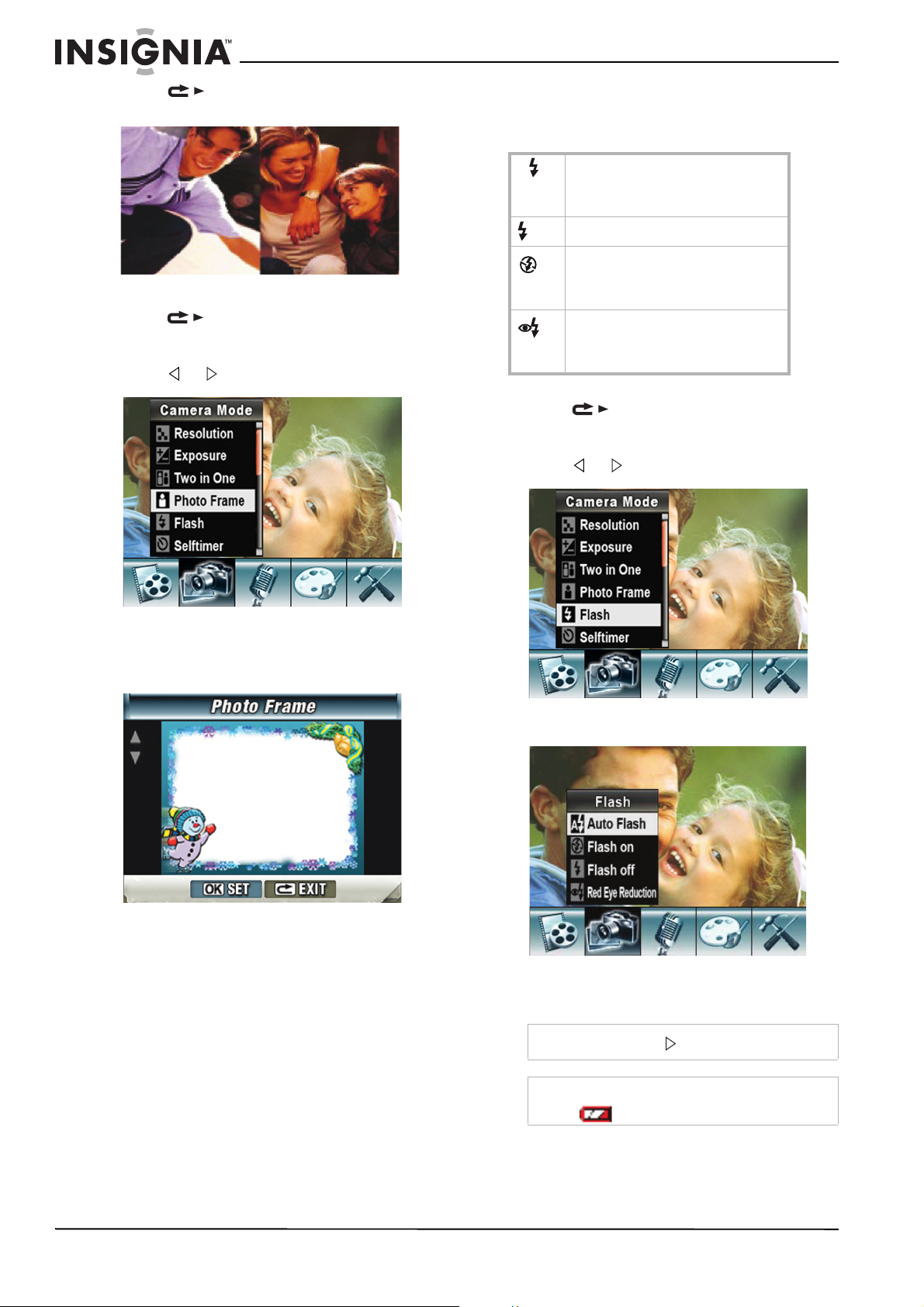

Selecting the flash setting for pictures
Your camcorder has four flash settings. The flash
setting icon appears on the LCD.
A
To select the flash setting for pictures:
1 Press (Record/Play) to switch to record
2 Press OK. The record menu opens.
3 Press or to select Camera Mode.
Auto-flash—The flash fires
automatically depending on the light
conditions. Use this mode for general
photography.
On—The flash fires for every picture.
Off—Use this mode when flash
photography is prohibited or when the
subject is beyond the range of the
flash.
Red-eye reduction—The flash fires
twice right before you take the picture.
Use this mode to help eliminate red
reflection in eyes.
mode.
4 Press T (up) or W (down) to select Photo
Frame, then press OK.
5 Press T (up) or W (down) to select a photo
frame, then press OK to select Set.
6 Press OK to save your selection and close
the menu.
4 Press T (up) or W (down) to select Flash,
then press OK.
5 Press T (up) or W (down) to select a flash
option, then press OK to save your selection
and close the menu.
Note
You can also press to change the flash setting.
16
Note
www.insignia-products.com
The flash is disabled when the battery power is
low .
Insignia NS-DCC5SR09 5 MP Digital Camcorder with 2.4" LCD Monitor Standard Definition-Blue
Using the self-timer for pictures
When the self-timer is turned on, your
camcorder waits 10 seconds after you press
(Picture Shutter) before it takes the picture.
To use the self-timer for pictures:
1 Press (Record/Play) to switch to record
mode.
2 Press OK. The record menu opens.
3 Press or to select Camera Mode.
4 Press T (up) or W (down) to select Selftimer,
then press OK.
4 Press T (up) or W (down) to select
Multi-snap, then press OK.
5 Press T (up) or W (down) to select On or Off,
then press OK to save your selection and
close the menu.
Taking pictures with bright backgrounds
When the Backlight option is turned on, you
improve the foreground clarity of pictures when
the background is bright.
To take pictures with bright backgrounds:
1 Press (Record/Play) to switch to record
mode.
2 Press OK. The record menu opens.
3 Press or to select Camera Mode.
5 Press T (up) or W (down) to select On or Off,
then press OK to save your selection and
close the menu.
Taking a sequence of pictures
When the Multi-snap option is turned on, your
camcorder takes five pictures in rapid sequence.
To take a sequence of pictures:
1 Press (Record/Play) to switch to record
mode.
2 Press OK. The record menu opens.
3 Press or to select Camera Mode.
4 Press T (up) or W (down) to select
Backlight, then press OK.
5 Press T (up) or W (down) to select On or Off,
then press OK to save your selection and
close the menu.
www.insignia-products.com
17
Insignia NS-DCC5SR09 5 MP Digital Camcorder with 2.4" LCD Monitor Standard Definition-Blue
Adding the date to pictures
When the Date Printing option is turned on, your
camcorder adds the date to each picture you
take. The date appears on pictures when you
print them.
1 Press (Record/Play) to switch to record
mode.
2 Press OK. The record menu opens.
3 Press or to select Camera Mode.
4 Press T (up) or W (down) to select Date
Printing, then press OK.
4 Press T (up) or W (down) to select Normal,
B/W (black and white), Classic, or Negative.
The new effect setting is previewed. To exit
without selecting an effect, select Exit.
5 Press OK to save your selection and close
the menu.
Viewing pictures
To view pictures:
1 Press (Record/Play) to switch to
playback mode.
2 Press or to select PICTURE.
3 Press OK.
5 Press T (up) or W (down) to select On or Off,
then press OK to save your selection and
close the menu.
Selecting an effect for pictures
You can select a visual effect for pictures.
To select an effect for pictures:
1 Press (Record/Play) to switch to record
mode.
2 Press OK. The record menu opens.
3 Press or to select Effect.
4 Press or to select the previous or next
picture.
5 To control picture playback:
• Press T (up) or W (down) to enlarge the
picture.
• To navigate around the enlarged picture,
press OK to enter navigation mode, then
press , , T (up), or W (down). To exit
navigation mode, press OK again.
Deleting pictures
Note
If a memory card is in your camcorder, you can
only delete pictures on the card. To delete pictures
stored in built-in memory, remove the card. For
instructions for removing a card, see “Inserting or
removing a memory card” on page 6.
If a memory card is protected, you cannot delete
pictures from the card. For instructions for
unprotecting a card, see “Protecting an SD
memory card” on page 6.
You cannot delete a locked (protected) picture.
You must unlock the picture. For instructions for
unlocking a picture, see “Locking or unlocking
pictures” on page 20.
18
www.insignia-products.com
Insignia NS-DCC5SR09 5 MP Digital Camcorder with 2.4" LCD Monitor Standard Definition-Blue
To delete pictures:
1 Press (Record/Play) to switch to
playback mode.
2 Press or to select PICTURE.
3 Press OK twice to open the picture option
menu.
Using picture thumbnails
To use movie thumbnails:
1 Press (Record/Play) to switch to
playback mode.
2 Press or to select PICTURE.
3 Press OK twice to open the picture option
menu.
4 Press or to select Delete, then press
OK.
5 Press or to select the picture you want
to delete.
6 Press W (down) to delete the picture. If you
want to delete all pictures, press T (up). A
confirmation message appears.
7 Press T (up) or W (down) to select Yes. If you
want to cancel the deletion, select No.
8 Press OK to confirm your selection and close
the menu.
4 Press or to select Thumbnail.
5 Press OK to view the thumbnails.
6 To view a picture, press or to select its
thumbnail, then press OK.
www.insignia-products.com
19
Insignia NS-DCC5SR09 5 MP Digital Camcorder with 2.4" LCD Monitor Standard Definition-Blue
Locking or unlocking pictures
You can lock movies to prevent them from being
deleted.
To lock or unlock pictures:
1 Press (Record/Play) to switch to
playback mode.
2 Press or to select PICTURE.
3 Press OK twice to open the picture option
menu.
4 Press or to select Lock.
Viewing pictures in a slideshow
To view pictures in a slideshow:
1 Press (Record/Play) to switch to
playback mode.
2 Press or to select PICTURE.
3 Press OK twice to open the picture option
menu.
4 Press or to select Slideshow.
5 Press OK to open the lock menu.
6 Press or to select the picture you want
to lock or unlock.
7 Press W (down) to lock or unlock the picture.
If you want to lock or unlock all movies, press
T (up). A confirmation message appears.
8 Press T (up) or W (down) to select Yes. If you
want to cancel your selection, select No.
9 Press OK to lock or unlock the picture and
close the menu.
5 Press OK to start the slideshow. Press OK
again to stop the slideshow.
Working with voice recordings
Playing voice recordings
To play voice recordings:
1 Press (Record/Play) to switch to
playback mode.
2 Press or to select VOICE.
20
www.insignia-products.com
Insignia NS-DCC5SR09 5 MP Digital Camcorder with 2.4" LCD Monitor Standard Definition-Blue
3 Press OK to go to voice playback mode.
4 Press or to go to the previous or next
voice recording.
5 Press (Movie Shutter) to play the
recording. Press this button again to stop
playback.
6 Press T (up) or W (down) to adjust the
volume.
Deleting voice recordings
To delete voice recordings:
1 Press (Record/Play) to switch to
playback mode.
2 Press or to select VOICE.
5 Press OK to go to the voice playback menu.
6 Press T (up) to select the Delete option.
7 Press W (down) to delete the recording you
selected or press T (up) to delete all
recordings. A confirmation message
appears.
8 Press T (up) or W (down) to select Yes. If you
want to cancel the deletion, select No.
9 Press OK to complete the deletion and close
the menu.
Repeating voice recordings
To repeat voice recordings:
1 Press (Record/Play) to switch to
playback mode.
2 Press or to select VOICE.
3 Press OK to go to voice playback mode.
4 Press or to select the recording you
want to delete.
www.insignia-products.com
3 Press OK to go to voice playback mode.
4 Press or to go to select the recording
you want to repeat.
21
Insignia NS-DCC5SR09 5 MP Digital Camcorder with 2.4" LCD Monitor Standard Definition-Blue
5 Press OK to go to the voice playback menu.
6 Press W (down) once to repeat the recording
you selected or press W (down) twice to
repeat all recordings.
7 To cancel repeat play, press W (down) again.
8 Press OK to save your selection and close
the menu.
Transferring MP3s to your camcorder
To transfer MP3s to your camcorder:
1 Connect the mini-USB cable to the USB port
on your camcorder, then connect the other
end to a USB port on a PC. The red LED
lights when your camcorder is connected to
the PC, and your camcorder is in Mass
Storage mode.
2 Make sure that you have a memory card with
enough memory inserted into your
camcorder.
3 Open My Computer, click and drag the
MP3s you want to transfer to the Removable
Disk\DCIM drive icon.
4 After you transfer all MP3s, disconnect the
USB cable from the PC.
2 Press OK, then press T (up) or W (down) to
select the MP3 you want to listen to or press
or to go to the previous or next page in
the list of MP3s.
3 Press (Movie Shutter) to start playback.
Press this button again to stop playback.
4 Press T (up) or W (down) to adjust the
volume.
Repeating MP3s
To repeat MP3s:
1 In playback mode, press or to select
MUSIC.
Listening to MP3s
To listen to MP3s:
1 In playback mode, press or to select
MUSIC.
2 Press OK, then press T (up) or W (down) to
select the MP3 you want to listen to or press
or to go to the previous or next page in
the MP3 list.
22
www.insignia-products.com
Insignia NS-DCC5SR09 5 MP Digital Camcorder with 2.4" LCD Monitor Standard Definition-Blue
3 Press OK twice to go to the repeat menu.
4 Press W (down) once to repeat the selected
MP3. Press W (down) again to repeat all
MP3s.
5 To cancel repeat play, press W (down) again.
6 Press OK to save your selection and close
the menu.
Using an earphone
You can use an earphone to listen to MP3s.
To use an earphone:
1 Plug the earphone into the earphone jack on
your camcorder. A menu pops up.
2 When the earphone/TV menu opens, press T
or W to select .
Setting Valid Default Setting
Flash Always Off
Self-Timer One Time Off
Multi-Snap One Time Off
Backlight Mode One Time Off
Date Printing Always Off
Effect One Time Normal
Sound Always On
Format Card One Time Off
TV System Always Depends on the
shipping area
Language Always Depends on the
shipping area
Volume Always Level 8
Setting the time
To set the time:
1 In record mode, press OK to open the record
menu.
2 Press or to select Setting. The
menu opens.
Setting
3 Press OK to close the menu.

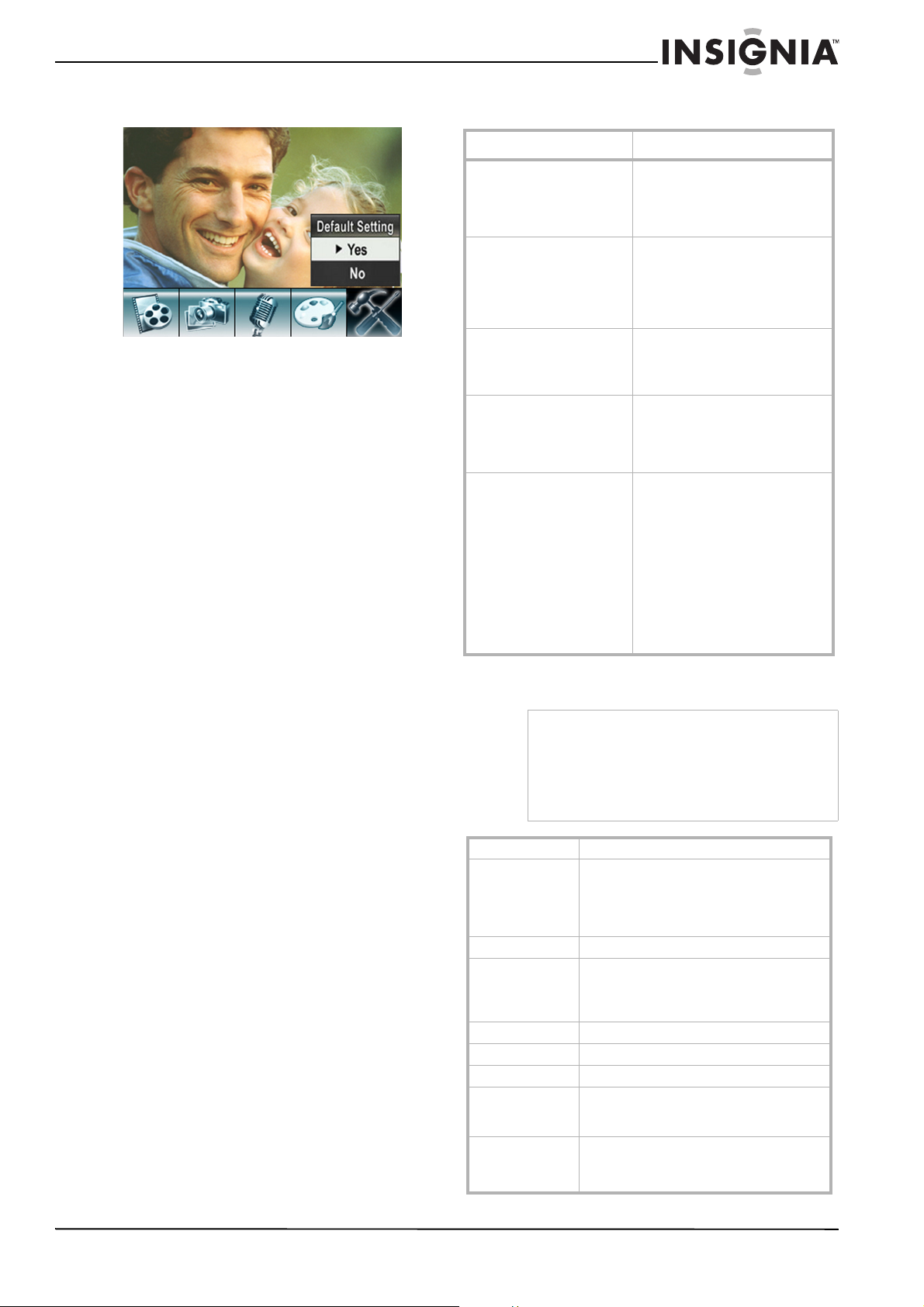

Configuring your camcorder
Default camcorder settings
The following table list the default settings for
your camcorder.
Always means the setting is always valid (on).
One Time means the setting is only valid (on) for
one picture or movie or until you turn off your
camcorder.
Setting Valid Default Setting
Resolution Always VGA for movies
Standard for pictures.
Exposure One Time 0EV
Sharpness One Time Level 5
White Balance One Time Auto
Motion
Stabilization
Motion Detect One Time Off
Two in One One Time Off
Photo Frame One Time Off
Always Off
3 Press T (up) or W (down) to select Time
Setting, then press OK. The
Time Setting
screen opens.
4 Press or to move between Date and
Time.
5 Press T (up) or W (down) to change the Date
or Time.
6 Press or to select Set, then press OK to
close the menu.
7 Press or to select Exit, then press OK
to close the menu.
www.insignia-products.com
23
Insignia NS-DCC5SR09 5 MP Digital Camcorder with 2.4" LCD Monitor Standard Definition-Blue

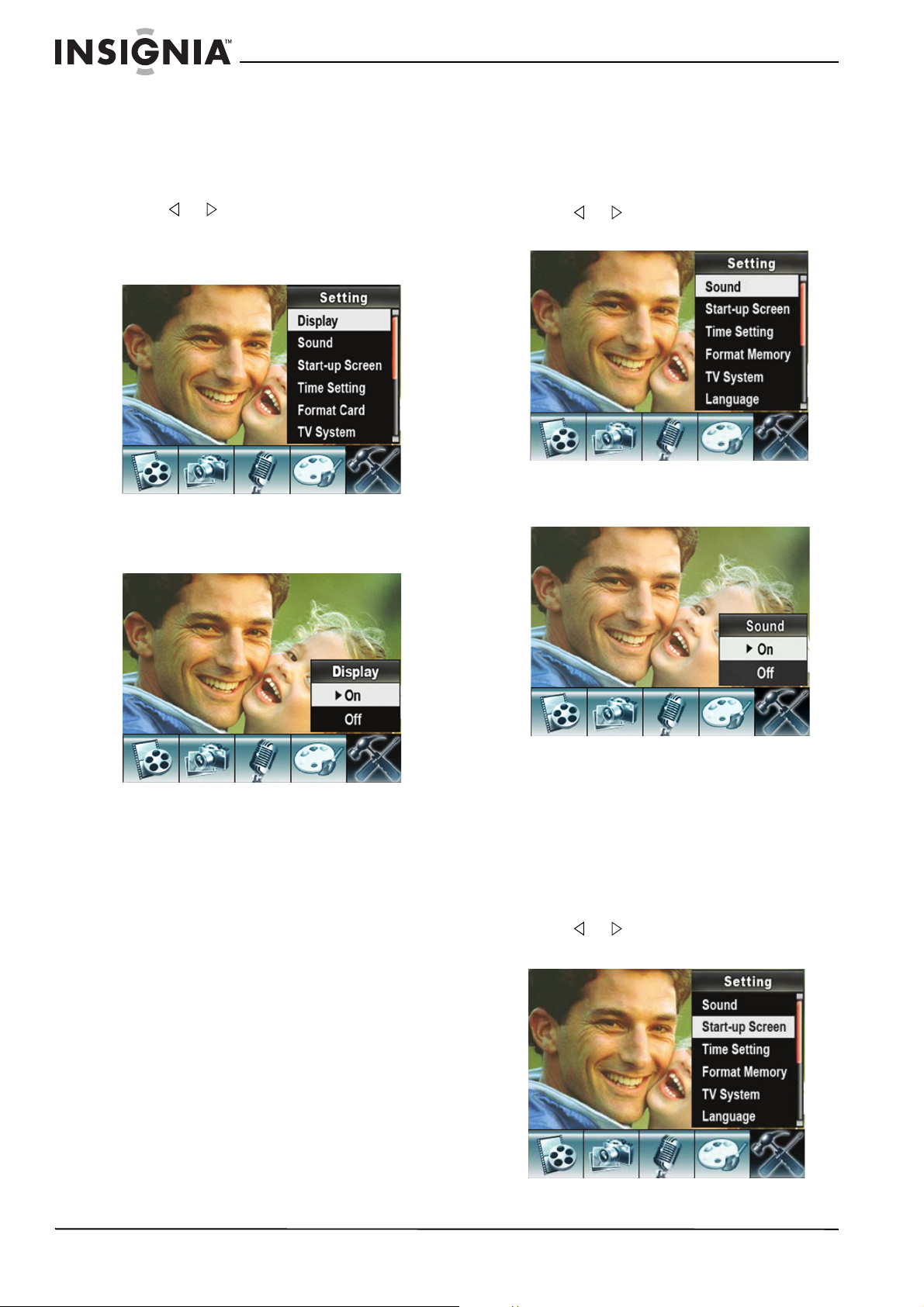

Displaying or hiding camcorder status information
To display or hide camcorder status
information:
1 In record mode, press OK to open the record
menu.
2 Press or to select Setting. The
menu opens.
3 Press T (up) or W (down) to select Display,
then press OK. The
4 Press T (up) or W (down) to select On if you
want the indicators to appear on the LCD or
No if you do not want the indicators to appear
on the LCD.
Display
menu opens.
Setting
Turning sound effects on or off
Your camcorder plays a tone when you press a
button. You can turn sound effects on or off.
To turn sound effects on or off:
1 In record mode, press OK to open the record
menu.
2 Press or to select Setting. The
menu opens.
3 Press T (up) or W (down) to select Sound,
then press OK. The sound setting menu
opens.
Setting
5 Press OK to save your setting and close the
menu.
4 Press T (up) or W (down) to select On or Off,
then press OK to save your selection and
close the menu.

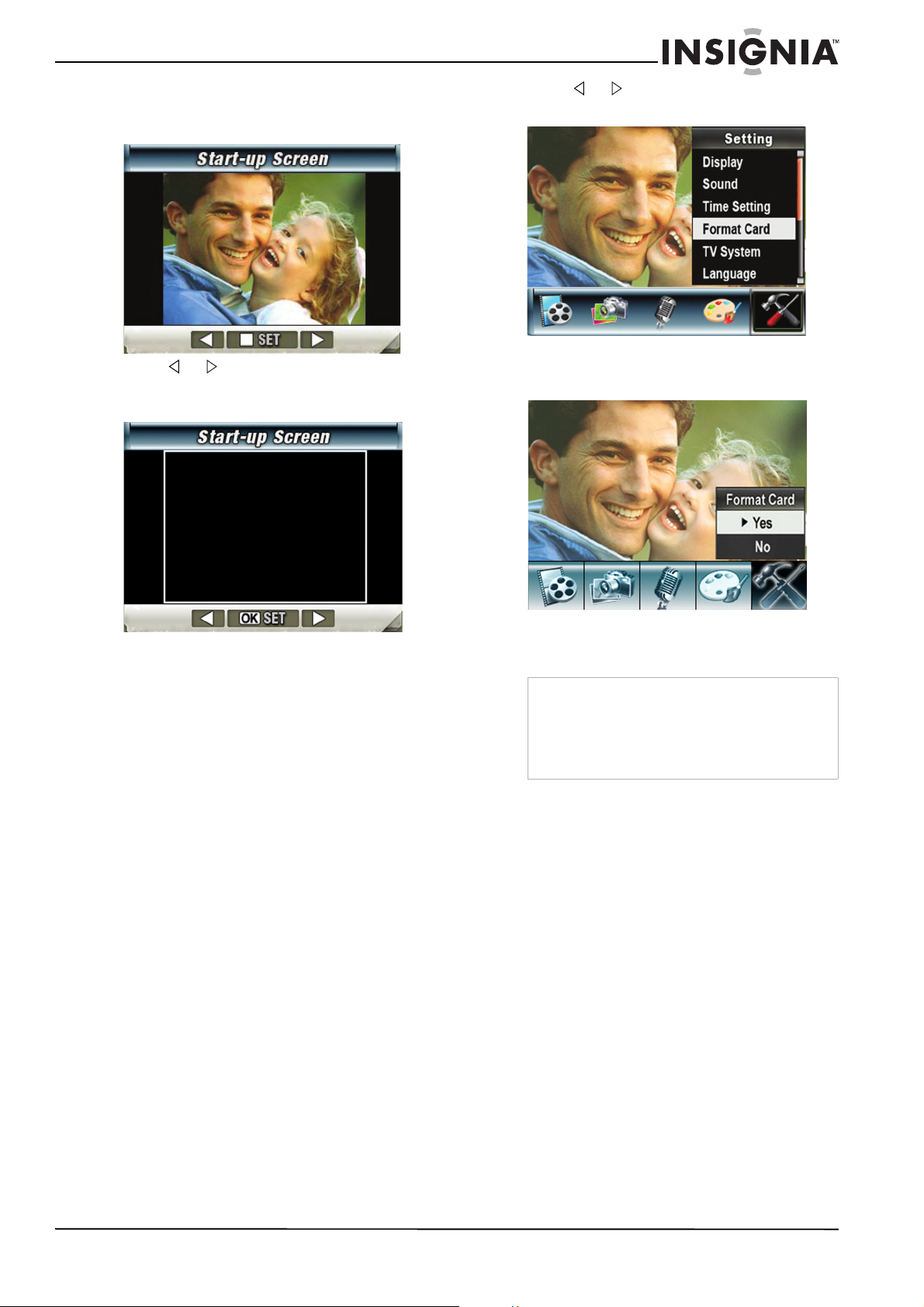

Customizing the startup screen
You can use your favorite picture as the startup
screen graphic.
To customize the startup screen:
1 In record mode, press OK to open the record
menu.
2 Press or to select Setting. The
menu opens.
Setting
24
www.insignia-products.com
Insignia NS-DCC5SR09 5 MP Digital Camcorder with 2.4" LCD Monitor Standard Definition-Blue
3 Press T (up) or W (down) to select Start-up
Screen, then press OK. The
Start-up Screen
setting menu opens.
4 Press or to select the picture you want
to use. If you do not want to use a startup
screen, select No Start-Up Screen.
menu opens.
3 Press or to select Setting. The
Setting
4 Press T (up) or W (down) to select Format
Memory or Format Card. The format
memory or format card menu opens.
5 Press OK to save your selection and close
the menu.
Formatting the built-in memory or a memory card
When a memory card is inserted, you can format
the card. When a memory card is not inserted,
you can format the built-in memory.
To format the built-in memory or a memory
card:
1 If you want to format the built-in memory,
make sure that a memory card is not inserted
in your camcorder.
Or
If you want to format a memory card, insert
the memory card into your camcorder.
2 In record mode, press OK to open the record
menu.
5 Press T or W to select On or Off, then press
OK to save your selection and close the
menu.
Caution
Formatting a memory card will permanently delete
all files from the card. Make sure that you copy
any files you want to save to a computer before
you format the card.
Do not remove the memory card while it is
formatting.
www.insignia-products.com
25
Insignia NS-DCC5SR09 5 MP Digital Camcorder with 2.4" LCD Monitor Standard Definition-Blue
Selecting the TV system type
When you connect a TV, make sure that the
correct TV system type is selected. If you select
the wrong TV system type, the image may
flicker.
NTSC is the system type for U.S.A., Canada,
and Mexico.
To select the TV system type:
1 In record mode, press OK to open the record
menu.
2 Press or to select Setting. The
menu opens.
3 Press T (up) or W (down) to select TV
System. The
TV System
menu opens.
Setting
Selecting the on-screen menu language
To select the on-screen menu language:
1 In record mode, press OK to open the record
menu.
2 Press or to select Setting. The
menu opens.
3 Press T (up) or W (down) to select
Language. The
Language
menu opens.
Setting
4 Press T (up) or W (down) to select your TV
system type, then press OK to save your
selection, close the menu and go back to the
record mode screen.
Note
If you want to close the menu without changing the
TV system type, press T (up) or W (down) to
select Exit, then press OK to close the menu.
4 Press T or W to select a language, then
press OK to save your selection and close
the menu.
Restoring default settings
To restore default settings:
1 In record mode, press OK to open the record
menu.
2 Press or to select Setting. The
menu opens.
Setting
26
www.insignia-products.com
Insignia NS-DCC5SR09 5 MP Digital Camcorder with 2.4" LCD Monitor Standard Definition-Blue
3 Press T (up) or W (down) to select Default
Setting. The
Default Setting
menu opens.
4 Press T (up) or W (down) to select Yes. If you
want to cancel the restoration, select No.
5 Press OK to close the menu.
Transferring files to a PC
The PC you connect your camcorder to must
meet the following requirements:
•Windows
Vista
•Pentium
®
2000, Windows® XP, or Windows
®
operating system
®
III processor with 800 MHz or
above
• 256 MB of memory
• CD drive
• 1 GB free hard drive space
• Available USB port
• 16-bit color display
To transfer files to a PC:
1 Connect the mini-USB cable to the USB port
on your camcorder, then connect the other
end to a USB port on a PC. The red LED
lights when your camcorder is connected to
the PC, and your camcorder is in Mass
Storage mode.
2 Open My Computer, then double-click
Removable Disk\DCIM (if there is a memory
card in your camcorder) or DV(x:)\DCIM (if
there is not a memory card in your
camcorder.
The files on your camcorder are displayed.
From My Computer, you can read, delete,
move, and copy any movies, pictures, or
voice recordings on your camcorder.
Maintaining
• Avoid pressing hard on the camcorder body.
• Do not subject the LCD to impact because
the glass may break and fluid may leak from
your camcorder.
• When you store your camcorder for an
extended period or you are not going to use it
soon, remove the batteries. Leakage may
occur that will damage your camcorder.
Troubleshooting
Problem Solution
The image on the LCD is not
clear.
Picture not recording
correctly.
The flash is not working. Make sure that your camcorder is
When recording, zoom does
not work.
Files on a memory card do
not display correctly when
“!” or the “funnel” icon
appear on the LCD.
Try switching between Normal and
Macro mode to adjust the focus.
Use Macro mode for objects within
7.8 inches. Use Normal for objects
over 7.8 inches away.
To record, adjust the focus, then
press the shutter button. A
“funnel” icon appears in the center
of the LCD. Hold your camcorder
steady until the “funnel”
disappears.
not in Macro mode.
Make sure that the batteries are
not low.
Make sure that the stabilization
feature is turned off. For more
information, see “Using motion
stabilization for movies” on
page 9.
The “!” indicates that the file
format is not supported by your
camcorder. The “funnel” icon
indicates that the file cannot be
displayed correctly.
Delete the files with incorrect file
formats.
We recommend that you format
the memory card before you use it,
and avoid placing files with
different formats in the same
folder.
Specifications
Note
The LCD screen is manufactured using extremely
high-precision technology. This ensures that
99.99% of the pixels work correctly. Some pixels
(tiny dots of black, white, red, blue, or green) may
appear on the LCD screen. These dots are a
normal result of the manufacturing process and do
not affect the recording.
Image Sensor 5 mega pixel
Operation Modes • Movie Record
Lens F3.2 (f = 7.0mm)
Focus Range • Normal mode: 59 in. (150 cm) ~
Digital Zoom 8×
Shutter Electronic
LCD monitor 2.4" LCD
Storage Media • Built-in 64 MB memory (part of
Image Resolution High: 3744 × 2808 (11M Pixels)
•Picture Record
•Voice Record
• MP3 Player
• Mass Storage Device
infinite
• Macro mode: Center: 7.87 in.
(20 cm)
memory is used for Firmware code)
• SD card slot support
Standard: 2592 × 1944 (5M Pixels)
Low: 1600 × 1200 (2M Pixels)
www.insignia-products.com
27
Insignia NS-DCC5SR09 5 MP Digital Camcorder with 2.4" LCD Monitor Standard Definition-Blue
Movie Resolution • VGA: 640 × 480 pixels 30 fps
White Balance Auto and Manual (Daylight, Fluorescent, and
Exposure Auto and Manual
Self-Timer 10 second delay
Flash • AUTO
File Format • Picture: JEPG
Image play • Single Image
PC Interface Mini USB 2.0 Port
TV out NTSC and PAL selectable
Battery AA (2)
Dimension
H×W×D
Weight 3.88 oz. (110 g) (without battery)
• QVGA: 320 × 240 pixels 30 fps
Tungsten)
•ON
•Off
• Red Eye Reduction
•Light: ON
• Movie: AVI (H.264)
•Voice: WAV
•Music: MP3
• Thumbnails
• Slideshow
3.54 × 2.2 × 1.1 in. (90 × 56.2 × 28 mm)
Installing the device driver software
To install the device driver software:
1 Insert the supplied mini CD into the CD drive
on your computer. The Autorun window
opens.
2 Click Install Device Driver, then follow the
on-screen instructions to install the driver.
Legal notices
FCC Part 15
This device complies with Part 15 of the FCC Rules.
Operation of this product is subject to the following two
conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference
received, including interference that may cause undesired
operation.
This equipment has been tested and found to comply within
the limits for a class B digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more
of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and
receiver.
• Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
• Consult the dealer or an experienced technician for
help.
FCC warning
Changes or modifications not expressly approved by the
party responsible for compliance with the FCC Rules could
void the user’s authority to operate this equipment.
Canada ICES-003 statement
This Class B digital apparatus complies with Canadian
ICES-003.
Accessing the User Guide
To access the User Guide:
• Insert the supplied mini CD into your
computer and open the User Guide file.
Or
Visit the Insignia Web site at
www.insignia-products.com and click on the
Digital Camcorder link under Products.
28
www.insignia-products.com
Insignia NS-DCC5SR09 5 MP Digital Camcorder with 2.4" LCD Monitor Standard Definition-Blue
One-Year Limited Warranty
Insignia Products (“Insignia”) warrants to you, the
original purchaser of this new NS-DCC5SR9 (“Product”),
that the Product shall be free of defects in the original
manufacture of the material or workmanship for a period
of one (1) year from the date of your purchase of the
Product (“Warranty Period”). This Product must be
purchased from an authorized dealer of Insignia brand
products and packaged with this warranty statement.
This warranty does not cover refurbished Product. If you
notify Insignia during the Warranty Period of a defect
covered by this warranty that requires service, terms of
this warranty apply.
How long does the coverage last?
The Warranty Period lasts for 1 year (365 days) from the
date you purchased the Product. The purchase date is
printed on the receipt you received with the Product.
What does this warranty cover?
During the Warranty Period, if the original manufacture of
the material or workmanship of the Product is
determined to be defective by an authorized Insignia
repair center or store personnel, Insignia will (at its sole
option): (1) repair the Product with new or rebuilt parts;
or (2) replace the Product at no charge with new or
rebuilt comparable products or parts. Products and parts
replaced under this warranty become the property of
Insignia and are not returned to you. If service of
Products or parts are required after the Warranty Period
expires, you must pay all labor and parts charges. This
warranty lasts as long as you own your Insignia Product
during the Warranty Period. Warranty coverage
terminates if you sell or otherwise transfer the Product.
How to obtain warranty service?
If you purchased the Product at a retail store location,
take your original receipt and the Product to the store
you purchased it from. Make sure that you place the
Product in its original packaging or packaging that
provides the same amount of protection as the original
packaging. If you purchased the Product from an online
web site, mail your original receipt and the Product to the
address listed on the web site. Make sure that you put
the Product in its original packaging or packaging that
provides the same amount of protection as the original
packaging.
To obtain in-home warranty service for a television with a
screen 25 inches or larger, call 1-888-BESTBUY. Call
agents will diagnose and correct the issue over the
phone or will have an Insignia-approved repair person
dispatched to your home.
• Products where the factory applied serial number
has been altered or removed
REPAIR REPLACEMENT AS PROVIDED UNDER THIS
WARRANTY IS YOUR EXCLUSIVE REMEDY.
INSIGNIA SHALL NOT BE LIABLE FOR ANY
INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR
THE BREACH OF ANY EXPRESS OR IMPLIED
WARRANTY ON THIS PRODUCT, INCLUDING, BUT
NOT LIMITED TO, LOST DATA, LOSS OF USE OF
YOUR PRODUCT, LOST BUSINESS OR LOST
PROFITS. INSIGNIA PRODUCTS MAKES NO OTHER
EXPRESS WARRANTIES WITH RESPECT TO THE
PRODUCT, ALL EXPRESS AND IMPLIED
WARRANTIES FOR THE PRODUCT, INCLUDING, BUT
NOT LIMITED TO, ANY IMPLIED WARRANTIES OF
AND CONDITIONS OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE, ARE
LIMITED IN DURATION TO THE WARRANTY PERIOD
SET FORTH ABOVE AND NO WARRANTIES,
WHETHER EXPRESS OR IMPLIED, WILL APPLY
AFTER THE WARRANTY PERIOD. SOME STATES,
PROVINCES AND JURISDICTIONS DO NOT ALLOW
LIMITATIONS ON HOW LONG AN IMPLIED
WARRANTY LASTS, SO THE ABOVE LIMITATION MAY
NOT APPLY TO YOU. THIS WARRANTY GIVES YOU
SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO
HAVE OTHER RIGHTS, WHICH VARY FROM STATE
TO STATE OR PROVINCE TO PROVINCE.
Contact Insignia:
For customer service please call 1-877-467-4289
www.insignia-products.com
Distributed by Best Buy Purchasing, LLC
7601 Penn Avenue South, Richfield, Minnesota, U.S.A.
55423-3645
© 2008 Best Buy Enterprise Services, Inc.
All rights reserved. INSIGNIA is a trademark of Best Buy
Enterprise Services, Inc. Registered in some countries.
All other products and brand names are trademarks of
their respective owners.
Where is the warranty valid?
This warranty is valid only to the original purchaser of the
product in the United States, Canada, and Mexico.
What does the warranty not cover?
This warranty does not cover:
• Customer instruction
• Installation
• Set up adjustments
• Cosmetic damage
• Damage due to acts of God, such as lightning
strikes
• Accident
•Misuse
•Abuse
• Negligence
• Commercial use
• Modification of any part of the Product, including
the antenna
This warranty also does not cover:
• Damage due to incorrect operation or maintenance
• Connection to an incorrect voltage supply
• Attempted repair by anyone other than a facility
authorized by Insignia to service the Product
• Products sold as is or with all faults
• Consumables, such as fuses or batteries
www.insignia-products.com
29
TM
www.insignia-products.com (877) 467-4289
Distributed by Best Buy Purchasing, LLC
7601 Penn Avenue South, Richfield, MN USA 55423-3645
All rights reserved. INSIGNIA is a trademark of Best Buy Enterprise Services, Inc. Registered in some countries.
All other products and brand names are trademarks of their respective owners.
© 2008 Best Buy Enterprise Services, Inc.
ENGLISH
08-1358
Loading...
