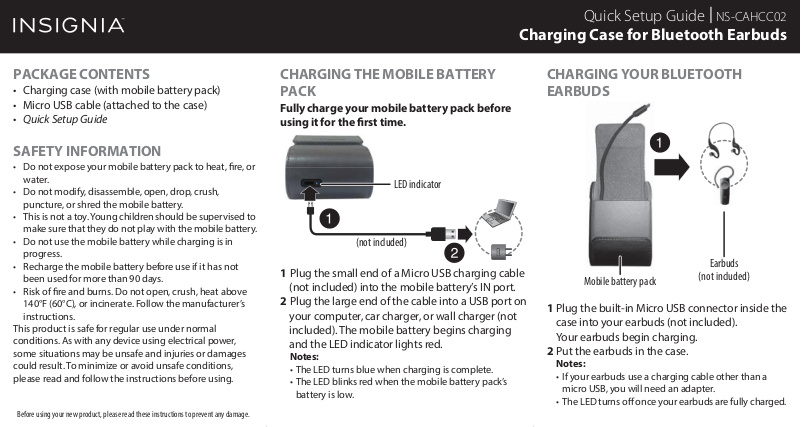

Insignia NS-CAHCC02 Quick Setup Manual

Quick Setup Guide | NS-CAHCC02

Charging Case for Bluetooth Earbuds

PACKAGE CONTENTS

• Charging case (with mobile battery pack)

• Micro USB cable (attached to the case)

• Quick Setup Guide

SAFETY INFORMATION

• Do not expose your mobile battery pack to heat, fire, or
water.

• Do not modify, disassemble, open, drop, crush,
puncture, or shred the mobile battery.

• This is not a toy. Young children should be supervised to
make sure that they do not play with the mobile battery.

• Do not use the mobile batter y while charging is in
progress.

• Recharge the mobile battery before use if it has not
been used for more than 90 days.

• Risk of re and burns. Do not open, crush, heat above
140°F (60°C), or incinerate. Follow the manufacturer’s
instructions.

This product is safe for regular use under normal
conditions. As with any device using electrical power,
some situations may be unsafe and injuries or damages
could result. To minimize or avoid unsafe conditions,
please read and follow the instructions before using.

Before using your new product, please read these instructions to prevent any damage.

CHARGING THE MOBILE BATTERY
PACK

Fully charge your mobile battery pack before
using it for the first time.

LED indicator

(not included)

1 Plug the small end of a Micro USB charging cable

(not included) into the mobile battery’s IN port.

2 Plug the large end of the cable into a USB port on

your computer, car charger, or wall charger (not
included). The mobile battery begins charging
and the LED indicator lights red.

Notes:

• The LED turns blue when charging is complete.

• The LED blinks red when the mobile battery pack’s
battery is low.

CHARGING YOUR BLUETOOTH
EARBUDS

Earbuds

Mobile battery pack

1 Plug the built-in Micro USB connector inside the

case into your earbuds (not included).
Your earbuds begin charging.

2 Put the earbuds in the case.

Notes:

• If your earbuds use a charging cable other than a
micro USB, you will need an adapter.

• The LED turns o once your earbuds are fully charged.

(not included)

UNDERSTANDING THE STATUS LEDS

STATUS

Battery pack charging

Battery pack charged

Battery pack battery low

LED

Solid red LED

Solid blue LED

Blinks red

SPECIFICATIONS

• Input: 5V, 600mA

• Output: 5V, 300mA

• Capacity: 590mAh

LEGAL NOTICES

FCC Statement:

This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to
part 15 of the FCC Rules.
These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause
harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a
particular installation.
If this equipment does cause harmful interference to
radio or television reception, which can be determined
by turning the equipment o and on, the user is
encouraged to try to correct the interference by one or
more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and
receiver.

- Connect the equipment into an outlet on a circuit
dierent from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV
technician for help.

This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1)
this device may not cause harmful interference, and (2) this
device must accept any interference received, including
interference that may cause undesired operation.

FCC Caution

Changes or modifications not expressly approved by the
party responsible for compliance could void the user’s
authority to operate the equipment.

ICES Statement

CAN ICES-3 (B)/NMB-3 (B)

ONE-YEAR LIMITED WARRANTY

Visit www.insigniaproducts.com for details.

CONTACT INSIGNIA:

For customer service, call 1-877-467-4289 (U.S.
and Canada) or 01-800-926-3000 (Mexico)
www.insigniaproducts.com

INSIGNIA is a trademark of Best Buy and its aliated companies.
Registered in some countries.
Distributed by Best Buy Purchasing, LLC
7601 Penn Ave South, Richeld, MN 55423 U.S.A.
©2015 Best Buy. All rights reserved.
Made in China

V3 ENGLISH 15-0455
