CD Boombox with
Dock for iPhone 4/4s
NS-BIPCD02
USER GUIDE
Before using your new product, please read these instructions to prevent any damage.
NS-BIPCD02_14-0811_MAN_V3_ENG.fm Page 2 Tuesday, August 5, 2014 7:22 AM
NS-BIPCD02 CD Boombox with Dock for iPhone 4/4s
NS-BIPCD02
CD Boombox with Dock for iPhone 4/4s
Contents
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Safety information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Setting up your boombox . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Using your boombox. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Legal notices. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
ONE-YEAR LIMITED WARRANTY - INSIGNIA . . . . . . . . . . . . . . . . . . . . . . .18
Introduction
Congratulations on your purchase of a high-quality Insignia product. Your
NS-BIPCD02 represents the state of the art in boomboxes and is designed
for reliable and trouble-free performance.
Safety information
RISK OF ELECTRIC SHOCK
This symbol indicates that dangerous voltage constituting a risk
of electric shock is present within your boombox. This label is
located on the back of your boombox.
This symbol indicates that there are important operating and
maintenance instructions in the literature accompanying your
boombox.
2
www.insigniaproducts.com
CAUTION
DO NOT OPEN
NS-BIPCD02_14-0811_MAN_V3_ENG.fm Page 3 Tuesday, August 5, 2014 7:22 AM
NS-BIPCD02 CD Boombox with Dock for iPhone 4/4s
Important safety instructions
1 Read these instructions.
2 Keep these instructions.
3 Heed all warnings.
4 Follow all instructions.
5 Do not use this apparatus near water.
6 Clean only with a dry cloth.
7 Do not block any ventilation openings. Install in accordance with the
manufacturer's instructions.
8 Do not install near any heat sources such as radiators, heat registers,
stoves, or other apparatus (including amplifiers) that produce heat.
9 Do not defeat the safety purpose of the polarized or grounding-type
plug. A polarized plug has two blades with one wider than the other. A
grounding type plug has two blades and a third grounding prong. The
wide blade or the third prong are provided for your safety. If the
provided plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10 Protect the power cord from being walked on or pinched particularly
at plugs, convenience receptacles, and the point where they exit from
the apparatus.
11 Only use attachments/accessories specified by the manufacturer.
12 Unplug this apparatus during lightning storms or when unused for
long periods of time.
13 Refer all servicing to qualified service personnel. Servicing is required
when the apparatus has been damaged in any way, such as
power-supply cord or plug is damaged, liquid has been spilled or
objects have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally, or has been
dropped.
14 To reduce the risk of fire or electric shock, do not expose this device to
rain, moisture, dripping, or splashing, and no objects filled with liquids,
such as vases, shall be placed on it.
15 An apparatus with a three-prong, grounding-type plug is a Class I
apparatus, which needs to be grounded to prevent possible electric
shock. Make sure that you connect this Class I device to a
grounding-type, three-prong outlet.
16 The wall plug is the disconnecting device. The plug must remain
readily operable.
www.insigniaproducts.com
3
Class ll equipment symbol
This symbol indicates that the unit
has a double insulation system .
NS-BIPCD02_14-0811_MAN_V3_ENG.fm Page 4 Tuesday, August 5, 2014 7:22 AM
NS-BIPCD02 CD Boombox with Dock for iPhone 4/4s
17 Batteries should not be exposed to excessive heat such as sunshine,
fire, or the like.
Warning
Danger of explosion if battery is incorrectly replaced. Replace
only with the same or equivalent type.
Features
Package contents
• Boombox
•AC Power Adapter
•Quick Setup Guide
•User Guide
4
www.insigniaproducts.com
-
VOL
NS-BIPCD02_14-0811_MAN_V3_ENG.fm Page 5 Tuesday, August 5, 2014 7:22 AM
NS-BIPCD02 CD Boombox with Dock for iPhone 4/4s
Top view
# Item Description
1 CD door Open to insert or remove a CD.
2 (power) button Press to turn on your boombox or put it into standby mode.
3 VOL+/– Push the left side to lower the volume, or the right side to raise the volume.
4 SOURCE button Press repeatedly to select the mode you want. Options include TUNER, iPod, CD, and
5 REPEAT button Press once to repeat the current CD selection. Press twice to repeat the entire CD. Press a
6 MUTE button Press to mute the sound. Press again to resume normal listening.
7 BASS button Press to activate the enhanced bass response of your boombox.
8 ST/MONO button Press to toggle between stereo and mono FM radio reception.
9 LCD display Displays mode, frequency, and playback information.
10 FM antenna Extend the FM antenna to improve the FM radio reception.
11 Carrying handle Use to carry your boombox from one location to another.
AUX.
third time to cancel repeat mode.
www.insigniaproducts.com
5
NS-BIPCD02_14-0811_MAN_V3_ENG.fm Page 6 Tuesday, August 5, 2014 7:22 AM
NS-BIPCD02 CD Boombox with Dock for iPhone 4/4s
# Item Description
12 TUNING/SKIP
13 PRESET+ button Press to tune the FM radio to the next preset station.
14
15 (play/pause)
16 MEMORY button Press to save preset FM radio stations. After pressing the MEMORY button, press
17 PRESET– button Press to tune the FM radio to the previous preset station.
/ buttons
(stop) button Press to stop playback.
button
In tuner mode:
• Press to go to a lower or higher radio frequency.
• Press for more than one second to auto scan for the next lower or higher radio
station.
In CD playback mode:
• Press once to skip to the beginning of the current selection.
• Press once to skip to the next selection.
• Press twice to skip to the beginning of the previous selection or press
twice to skip to the beginning of the next selection.
• Press and hold to search backward for a specific track.
• Press and hold to search forward for a specific track.
Press to start CD playback. Press again to pause playback. Press again to resume
playback.
PRESET+ or PRESET– to set the preset number. You can save up to 30 presets.

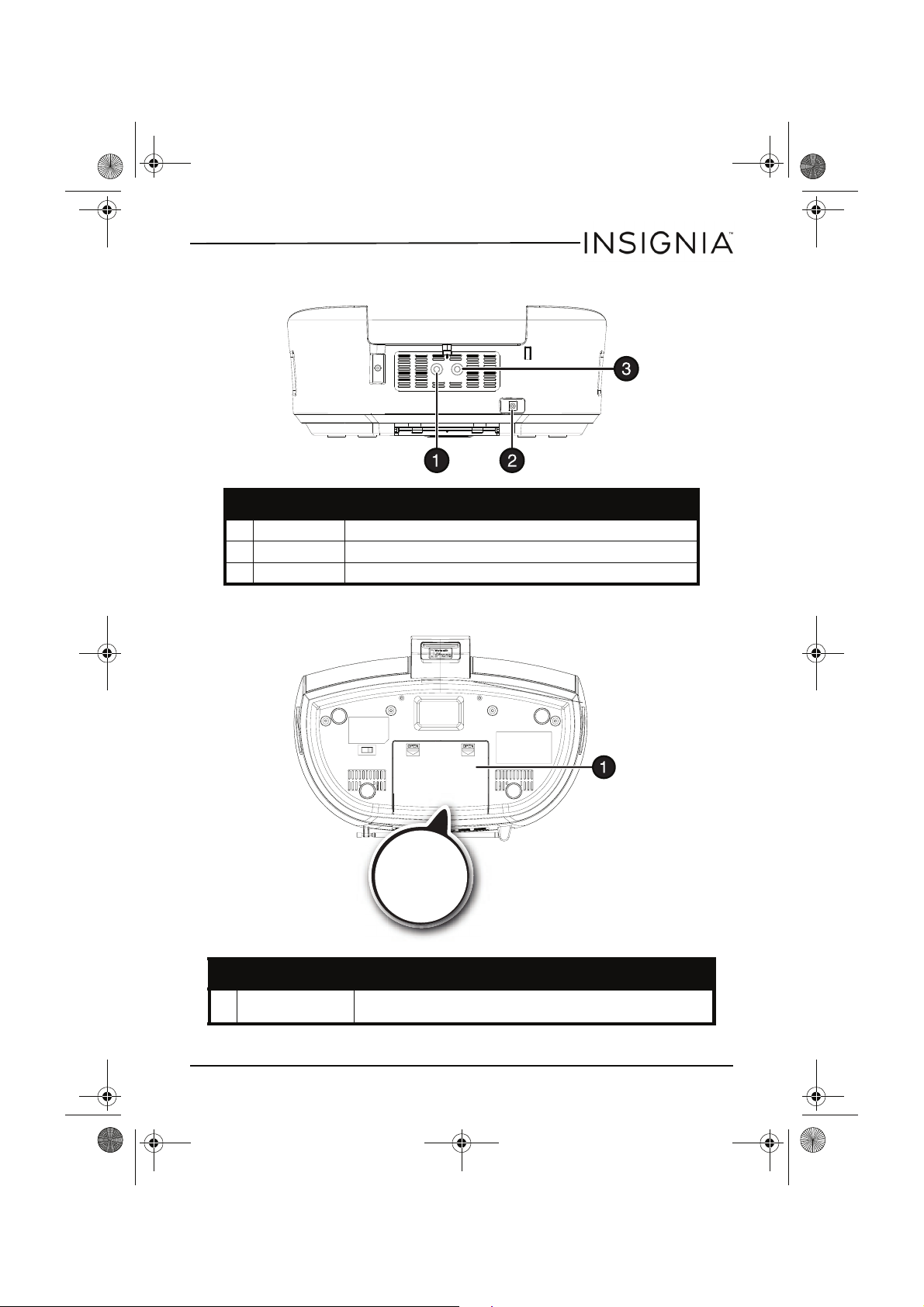

Front
6
# Item Description
1 Speakers Provides sound from your boombox.
2 iPod/iPhone dock Connect your iPod/iPhone to this dock to play selections through your
boombox.
3 iPhone holder Protects your iPhone when it’s docked.
www.insigniaproducts.com
