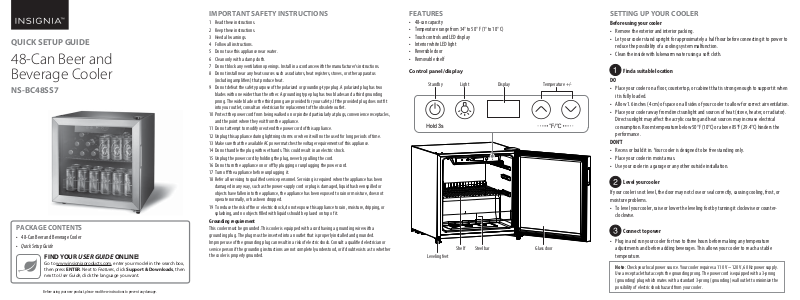

Insignia NS-BC48SS7 Quick Setup Guide

QUICK SETUP GUIDE
48-Can Beer and Beverage Cooler
NS-BC48SS7
PACKAGE CONTENTS
• 48-Can Beer and Beverage Cooler
Quick Setup Guide
FIND YOUR USER GUIDE ONLINE!
Go to www.insigniaproducts.com, enter your model in the search box, then press ENTER. Next to Features, click Support & Downloads, then next to User Guide, click the language you want.
Before using your new product, please read these instructions to prevent any damage.
IMPORTANT SAFETY INSTRUCTIONS
1 Read these instructions. 2 Keep these instructions. 3 Heed all warnings. 4 Follow all instructions. 5 Do not use this appliance near water. 6 Clean only with a damp cloth. 7 Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 8 Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus
(including ampliers) that produce heat.
9 Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two
blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not t into your outlet, consult an electrician for replacement of the obsolete outlet.
10 Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles,
and the point where they exit from the appliance. 11 Do not attempt to modify or extend the power cord of this appliance. 12 Unplug this appliance during lightning storms or when it will not be used for long periods of time. 13 Make sure that the available AC power matches the voltage requirements of this appliance. 14 Do not handle the plug with wet hands. This could result in an electric shock. 15 Unplug the power cord by holding the plug, never by pulling the cord. 16 Do not turn the appliance on or o by plugging or unplugging the power cord. 17 Turn o the appliance before unplugging it. 18 Refer all servicing to qualied service personnel. Servicing is required when the appliance has been
damaged in any way, such as the power-supply cord or plug is damaged, liquid has been spilled or
objects have fallen into the appliance, the appliance has been exposed to rain or moisture, does not
operate normally, or has been dropped. 19 To reduce the risk of re or electric shock, do not expose this appliance to rain, moisture, dripping, or
splashing, and no objects lled with liquids should be placed on top of it.
Grounding requirement
This cooler must be grounded. This cooler is equipped with a cord having a grounding wire with a grounding plug. The plug must be inserted into an outlet that is properly installed and grounded.
Improper use of the grounding plug can result in a risk of electric shock. Consult a qualied electrician or service person if the grounding instructions are not completely understood, or if doubt exists as to whether the cooler is properly grounded.
FEATURES
• Temperature range from 34° to 50° F (1° to 10° C)
• Touch controls and LED display
• Interior white LED light
• Reversible door
• Removable shelf
Control panel/display
Standby Light Display Temperature +/-
Steel barShelf
Leveling feet
Glass door
SETTING UP YOUR COOLER
Before using your cooler
• Remove the exterior and interior packing.
• Let your cooler stand upright for approximately a half hour before connecting it to power to reduce the possibility of a cooling system malfunction.
• Clean the inside with lukewarm water using a soft cloth.
Find a suitable location
DO
• Place your cooler on a oor, countertop, or cabinet that is strong enough to support it when it is fully loaded.
• Allow 1.6 inches (4 cm) of space on all sides of your cooler to allow for correct air ventilation.
• Place your cooler away from direct sunlight and sources of heat (stove, heater, or radiator). Direct sunlight may aect the acrylic coating and heat sources may increase electrical consumption. Room temperature below 50°F (10°C) or above 85°F (29.4°C) hinders the performance.
DON’T
• Recess or build it in. Your cooler is designed to be free standing only.
• Place your cooler in moist areas.
• Use your cooler in a garage or any other outside installation.
Level your cooler
If your cooler is not level, the door may not close or seal correctly, causing cooling, frost, or moisture problems.
• To level your cooler, raise or lower the leveling foot by turning it clockwise or counter­clockwise.
Connect to power
• Plug in and run your cooler for two to three hours before making any temperature adjustments and before adding beverages. This allows your cooler to reach a stable temperature.
Note: Check your local power source. Your cooler requires a 110 V ~ 120 V, 60 Hz power supply.
Use a receptacle that accepts the grounding prong. The power cord is equipped with a 3-prong (grounding) plug which mates with a standard 3-prong (grounding) wall outlet to minimize the possibility of electric shock hazard from your cooler.
USING YOUR COOLER
Setting the temperature
• Press the Temperature up ( ) or down ( ) buttons, to increase or decrease the temperature by one degree.
• The temperature range is 34° ~ 50° F (1° ~ 10° C).
• Press and hold the Temperature up ( ) or down ( ) buttons at the same time for three seconds to switch between Fahrenheit and Celsius.
• If you experience a power outage, your cooler remembers the currently set temperature and returns to that setting when power is restored.
Using the display
• When you plug in your cooler for the rst time, the display screen turns on for three seconds, and you hear a start-up tone.
• In normal mode, the display shows the set temperature.
Lighting your cooler
• Press Light ( ) to turn the interior light on or o. The buzzer sounds when the light is turned on or o.
Entering standby mode
• Press and hold Standby ( ) for three seconds. The buzzer sounds and the display turns o.
• To return to normal mode, press Standby ( ) again.
Reversing the door
• See the online user guide for steps on reversing the door.
CLEANING YOUR COOLER
1 Turn o your cooler and unplug it from the wall outlet. 2 Remove all beer and beverages. 3 Wash the inside with a damp warm cloth soaked in a solution of one quart of lukewarm
water to two tablespoons of baking soda solution.
4 Be sure to keep the door gasket (seal) clean to keep your cooler running eciently. 5 Dry the interior and exterior with a soft cloth.
TIPS ON SAVING ENERGY
• Place your cooler in the coolest area of the room, away from heat producing appliances or heating ducts and out of the direct sunlight.
• Do not overload your cooler because it forces the compressor to run longer.
• Do not open the door too often, especially if the weather is hot. Close the door as soon as possible to prevent cool air from escaping.
• Make sure that your cooler is suciently ventilated with adequate air circulation.
SPECIFICATIONS
• Dimensions (H×W×D): 19.4 × 18.9 × 17.3 in. (49.2 × 48 × 44 cm)
• Weight: 50.7 lbs (23 kg)
• Power requirements: 115 V~60 Hz-65 W
• Current: 0.8 A
• Cooler temperature range: 34–50 °F (1–10 °C)
TROUBLESHOOTING
Fault indication
• If a fault is detected, the display shows one of the following codes:
FAULT CODE
DESCRIPTIONE1Temperature sensor fault
If either of these error codes appears on the display, contact your local dealer or service center. Do not try to repair your cooler yourself.
PROBLEM:
My cooler does not operate.
The cooler door does not close completely.
My cooler is not cold enough.
My cooler makes unusual noises or vibrates.
Moisture is building up in the interior of my cooler.
My cooler turns on and o frequently.
SOLUTION:
• Make sure that your cooler is plugged in and that the plug is pushed completely into the outlet.
• Check the house fuse or circuit breaker box and replace the fuse or reset the circuit breaker.
• If a power failure occurs, your cooler turns o. Wait until the power is restored, then turn it on again.
• Adjust the shelf correctly.
• Clean the door gaskets.
• Level your cooler with the leveling feet.
• Make sure that the door is closed correctly.
• Allow time for the new beverage to cool, then check again.
• Set the control to a colder setting.
• Level your cooler with the leveling feet.
• Move your cooler out from the wall.
• This is normal.
• Make sure that the door is closed correctly.
• Move your cooler to a dryer location.
• Cool the room or move your cooler to a cooler location.
• Make sure that the door is closed correctly.
• Clean the door gaskets.
• Set the control to a colder setting.
E4
Defrost sensor fault
WARNING
Electric Shock Hazard Failure to follow these instructions can result in electric shock, re, or death. 1 WARNING–Keep ventilation openings in the appliance clear of
obstruction.
2 WARNING–Do not touch the interior of the cooler compartment
with wet hands. This could result in frost bite.
3 WARNING–Do not use mechanical devices or other means to
accelerate the defrosting process, other than those recommended by the manufacturer.
4 WARNING–Do not damage the refrigerant tubing when handling, moving, or using the
appliance.
5 WARNING–Do not use electrical appliances inside the food storage compartment of the
appliance, unless they are of the type recommended by the manufacturer.
6 WARNINGDANGER—Never allow children to play with, operate, or crawl inside the
appliance.
Risk of child entrapment. Before you throw away your old refrigerator or freezer:
1) Take o the doors
2) Leave the shelves in place so that children may not easily climb inside 7 Unplug the appliance before carrying out user maintenance on it.
ONEYEAR LIMITED WARRANTY
Visit www.insigniaproducts.com for details.
CONTACT INSIGNIA:
For customer support, call 1-877-467-4289 (U.S. and Canada) or 01-800-926-3000 (Mexico) www.insigniaproducts.com
INSIGNIA is a trademark of Best Buy and its aliated companies. Distributed by Best Buy Purchasing, LLC 7601 Penn Ave South, Richeld, MN 55423 U.S.A. ©2020 Best Buy. All rights reserved.
V6 ENGLISH 20-0236
