User Guide
Kix MP3 Player
NS-2A10s
08-1299 NS-2A10S.fm Page 0 Thursday, June 5, 2008 1:47 PM
08-1299 NS-2A10S.fm Page 1 Thursday, June 5, 2008 1:47 PM
NS-2A10s
Insignia NS-2A10s Kix MP3
Player
Contents
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Safety information . . . . . . . . . . . . . . . . . . . . . .2
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Package contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
System requirements . . . . . . . . . . . . . . . . . . . . . . . . . .4
Controls and connections . . . . . . . . . . . . . . . . . . . . . . .5
Setting up your digital music player . . . . . . . . .10
Charging the battery . . . . . . . . . . . . . . . . . . . . . . . . . .10
Connecting headphones . . . . . . . . . . . . . . . . . . . . . . .12
Installing the Best Buy Digital Music Store software
(Windows only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Using your digital music player. . . . . . . . . . . . .13
Turning your player on and off . . . . . . . . . . . . . . . . . .13
Changing the volume . . . . . . . . . . . . . . . . . . . . . . . . .14
Locking the buttons . . . . . . . . . . . . . . . . . . . . . . . . . .14
Navigating the on-screen menus . . . . . . . . . . . . . . . .15
Playing music files . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Repeating tracks. . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Repeating segments of a track . . . . . . . . . . . . . . . . . .18
Using the enhanced audio effect. . . . . . . . . . . . . . . . .20
Using the surround audio effect . . . . . . . . . . . . . . . . .21
Using the equalizer . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Using Chapter mode for Audible tracks . . . . . . . . . . .23
Repeating Audible tracks . . . . . . . . . . . . . . . . . . . . . .25
Getting more music . . . . . . . . . . . . . . . . . . . . . . . . . .26
Getting more music on your computer*. . . . . . . . . . .27
Copying music files to your player . . . . . . . . . . . . . . .30
Deleting all music files . . . . . . . . . . . . . . . . . . . . . . . .34
Disconnecting the player (Windows) . . . . . . . . . . . . .37
Listening to FM radio . . . . . . . . . . . . . . . . . . . . . . . . .40
Changing player settings. . . . . . . . . . . . . . . . . . . . . . .43
www.insignia-products.com
1
08-1299 NS-2A10S.fm Page 2 Thursday, June 5, 2008 1:47 PM
Viewing system information . . . . . . . . . . . . . . . . . . . 50
Maintaining your digital music player . . . . . . . 51
Care and cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Updating the firmware. . . . . . . . . . . . . . . . . . . . . . . . 51
Troubleshooting and FAQs. . . . . . . . . . . . . . . . . . . . . 52
Troubleshooting and FAQs . . . . . . . . . . . . . . . 52
Contacting technical support. . . . . . . . . . . . . . . . . . . 54
Learn more . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Specifications . . . . . . . . . . . . . . . . . . . . . . . . 55
One-year limited warranty . . . . . . . . . . . . . . . 59
Introduction
Congratulations on your purchase of a high-quality
Insignia product. Your NS-2A10s represents the state of
the art in digital media players and is designed for
reliable and trouble-free performance. You can use your
music player to play digital music files and listen to FM
radio. And the best part is that you can carry it with you
anywhere.
Safety information
• Read, keep, and follow all instructions. Heed all
warnings.
• Only use attachments and accessories made for
Insignia or universal MP3 accessories.
• Turn down the volume before turning on your
MP3 player and avoid using it at a high volume.
Permanent hearing loss may occur if earphones
or headphones are used at high volume.
Reduced volume also extends battery life.
• Do not use headphones or earphones while
driving, cycling, or operating any motorized
vehicle. Using them may create a traffic hazard
and may be illegal in your area.
NS-2A10s
2
www.insignia-products.com
08-1299 NS-2A10S.fm Page 3 Thursday, June 5, 2008 1:47 PM
NS-2A10s
• To reduce the chance of electrical shock, do not
use or operate this player near moist
environments.
• Risk of explosion, damage, or battery leakage if
the battery is replaced incorrectly or replaced by
an incorrect type. Dispose of used batteries
according to local regulations.
• Clean only with a dry cloth.
• Do not disassemble the player to access internal
components (except for the battery) under any
circumstances.
• We recommend that you handle the player with
one hand and open the USB cap with the other
to prevent dropping the player.
Features
• Plays MP3, WMA, secure WMA, and Audible file
(format-4) formats.
• OLED displays song information and the menus
support several languages.
• Digital FM radio tuner allows you to access local
radio stations. The radio also memorizes up to
20 of your favorite radio stations.
• Six preset equalizer settings to optimize
playback for normal, rock, jazz, classical, pop,
and bass music. You can also choose a custom
equalizer setting.
• Supports surround sound modes for a richer
music experience.
• Sophisticated music library sorting lets you
browse the music in your player by artist, album,
song title, genre, and playlist.
• A-B Repeat lets you select any starting and end
points during playback, so you can repeatedly
play that segment. This feature is especially
helpful while learning languages and words to
songs.
www.insignia-products.com
3
08-1299 NS-2A10S.fm Page 4 Thursday, June 5, 2008 1:47 PM
• High-speed mini USB 2.0 port for fast and easy
file transfers.
• Supports Microsoft WMDRM 10 technology.
• Fully compatible with Best Buy Digital Music
service (including channels) and other
subscription/download services.
• Easy-to-use menus.
• Upgradeable firmware to keep your music player
up to date.
• Rechargeable battery.
• Comes with two extra USB caps so you can
customize your player depending on your mood.
Package contents
• Insignia digital music player
• Earphones
• USB 2.0 extension cable
• Quick Start Guide
• CD (contains Best Buy Digital Music Store
software and this online
• Audible offer card
• Best Buy Digital Music card
• Warranty card
User Guide
NS-2A10s
)
System requirements
To transfer music from your computer to your music
player, your computer must have the following minimum
system requirements:
• One of the following operating systems:
• Windows XP Home, Windows XP
Professional, Windows Vista, or later.
• One available USB port
• CD drive
4
www.insignia-products.com
08-1299 NS-2A10S.fm Page 5 Thursday, June 5, 2008 1:47 PM
NS-2A10s
Controls and connections
Front
H
Item Icon Function
A OLED—This display shows information such as
B Rewind/Skip Back
C Up—Press to scroll up through lists or change radio
track name, time remaining, battery status, and play
mode.
• Press to restart the current track.
• Press repeatedly to skip to previous tracks.
• Press and hold to rewind.
• In FM radio mode, press to change
frequencies.
• In menus, press to go back to the previous
menu.
frequency presets.
www.insignia-products.com
5
08-1299 NS-2A10S.fm Page 6 Thursday, June 5, 2008 1:47 PM
NS-2A10s
Item Icon Function
D Play/Pause/Select
E Fast Forward/Skip/Next
F The USB cap is used to protect the USB connector
G Power/Menu—Press and hold for two seconds to
H Down—Press to scroll down through lists or change
• Press to play or pause playback.
• In Playback and FM mode, press and hold to
enter an options menu.
• In menus, press to select an option.
• Press to skip to the next track.
• Press and hold to fast forward.
• In menus, press to open the next submenu or
setting.
• In FM radio mode, press to change
frequencies.
• In menus, press to go to next menu.
while you are listening to music. To connect the
player to your computer, rotate the cap towards the
headphone jack and plug the player directly into
your USB port. To replace the cap, take one of the
cap arms and pull it gently off the player. It will snap
off easily. Push the new one onto the player.
turn on the player. Press and hold for two seconds
again to turn the player off. If the player freezes,
press and hold for seven seconds to force the
player to reset. Press once when the power is on to
go to the
radio frequency presets.
Main Menu
.
6
www.insignia-products.com
08-1299 NS-2A10S.fm Page 7 Thursday, June 5, 2008 1:47 PM
NS-2A10s
Left side, right side, and bottom
Left side
Right side
Bottom
C
Item Function
A Hold switch—Slide to disable all buttons.
B Volume—Press + to increase volume. Press — to decrease
volume.
C Connect the earphones to the jack.
www.insignia-products.com
7
08-1299 NS-2A10S.fm Page 8 Thursday, June 5, 2008 1:47 PM
NS-2A10s
Back
Item Function
A Connect the USB connector to a computer’s USB port for
transferring music and data.
8
www.insignia-products.com
08-1299 NS-2A10S.fm Page 9 Thursday, June 5, 2008 1:47 PM
NS-2A10s
OLED Display
Item Function
A Playback status—Displays the music or audible track
playback status.
B Track number—The first number is the current track
number, and the second is the total number of sound tracks.
C Subscription status—Shows the Best Buy Digital Music
service subscription status.
D Repeat mode—Indicates when the repeat feature is enabled
and shows the type of repeat selected.
E Battery status—Indicates the battery charge status.
F Artist name/Album name—Displays the artist name and
album name of the current file name that is being played.
G Track name—Displays the current file being played.
H Progress bar—Shows the playback progress.
www.insignia-products.com
9
08-1299 NS-2A10S.fm Page 10 Thursday, June 5, 2008 1:47 PM
NS-2A10s
Item Function
I Play time—Displays the elapsed time of the current
playback file.
J Total time —Displays the total time of all the files.
[
Item Function
K Vo lu me —Displays the volume status.
Setting up your digital music
player
Charging the battery
• Charge the battery whenever you are not using
the player to make sure it is always fully charged.
• The battery charges in about two hours.
• A fully charged battery provides up to 30 hours
of continuous music playback, depending on the
brightness and display time of the backlight and
the volume levels.
10
www.insignia-products.com
08-1299 NS-2A10S.fm Page 11 Thursday, June 5, 2008 1:47 PM
NS-2A10s
• You do not need to fully charge the battery
before beginning to use your player.
• If the following icon appears on the display, you
must charge your player.
To charge the battery:
1
Turn on your computer.
2 Connect the player’s USB connector to a USB port
on your computer. When the player is connected
correctly, it begins recharging its battery using the
USB connection, and the message USB Connected
appears on the player.
As the battery charges, the LEDs behind the buttons
blink every five seconds. When the battery is fully
charged, the LED stops blinking.
Note
You can also use a USB charger that supplies 0.5
Amps at 5 Volts to charge your player.
3 Disconnect the player from the USB port on your
computer when your player is charged (see
“Disconnecting the player (Windows)” on page 37).
www.insignia-products.com
11
08-1299 NS-2A10S.fm Page 12 Thursday, June 5, 2008 1:47 PM
NS-2A10s
Choosing the correct USB mode for
your player
Your Insignia player supports two USB modes: Media
Manager mode and File & Folder mode. You can choose
which mode you want to use depending on how you use
your player. In Windows XP, we recommend that you use
Media Manager mode, because it is fully supported by
nearly all music management software. For other
operating systems, such as Windows 2000, or for users
who would rather use their MP3 player like a flash drive,
File & Folder mode should be selected. This will make
the player look like another drive letter on your
Computer
folders to the drive. You can switch modes any time, but
we recommend that you erase all content and copy it
from your hard drive again when switching modes (see
“Copying music files to your player” on page 30). For
instructions on switching modes, see “Selecting the USB
mode” on page 49.
screen, and you can drag and drop files and
My
Connecting headphones
You can use any headphones with a standard 3.5 mm
stereo audio plug.
12
To connect headphones:
• Plug headphones or the provided earphones
into the earphone/headphone jack on the music
player.
Note
To use the FM radio, you must connect the
provided earphones because they act as the FM
antenna. To substitute for the earphones, you can
use any headphones with unshielded wires.
www.insignia-products.com
08-1299 NS-2A10S.fm Page 13 Thursday, June 5, 2008 1:47 PM
NS-2A10s
Installing the Best Buy Digital Music
Store software (Windows only)
To install the software:
1
Insert the Insignia software CD into your computer’s
CD or DVD drive. The software installation program
starts.
-ORIf the installation program doesn’t start automatically,
double-click Start, then My Computer, then
double-click the CD drive that contains the Insignia
CD, then double-click the file setup.exe. The
software installation program starts.
2 Follow the on-screen instructions to finish the
installation.
Tip
For iTunes Drag and Drop support, use File &
Folder (MSC) USB mode. To play iTunes MP3
files, you must drag and drop them from iTunes.
For information on changing USB modes, see
“Selecting the USB mode” on page 49.
Using your digital music player
Turning your player on and off
To turn your player on or off:
• Press and hold (Power/Menu) for two
seconds.
www.insignia-products.com
13
08-1299 NS-2A10S.fm Page 14 Thursday, June 5, 2008 1:47 PM
Resetting the player
If the player stops responding to button presses, you
should reset the player.
To reset your player:
• Press and hold (Power/Menu) for seven
seconds to force a reset. This will fully reset the
player.
Changing the volume
To change the volume:
• Press (Volume Up) or (Volume Down).
Locking the buttons
You can prevent accidental button operation by locking
the buttons.
To lock the buttons:
• Slide the HOLD switch in the direction of the
arrow. An image of the hold button in the HOLD
position appears on the screen.
Hold switch
NS-2A10s
14
To unlock the buttons:
• Slide the HOLD switch away from the arrow.
www.insignia-products.com
08-1299 NS-2A10S.fm Page 15 Thursday, June 5, 2008 1:47 PM
NS-2A10s
Navigating the on-screen menus
Use the on-screen menu to play music and change
settings.
To navigate the on-screen menu:
Press . The
1
Main Menu
opens.
2 Press or to highlight one of the following
menu items:
•Now Playing
• Music Library
• Rhapsody Channels
• FM Radio
• Settings
3 Press . The submenu of the item you selected
opens. To navigate backwards from a submenu,
press .
Playing music files
To play mu s ic:
Press . The
1
Main Menu
www.insignia-products.com
opens.
15
08-1299 NS-2A10S.fm Page 16 Thursday, June 5, 2008 1:47 PM
2 Press or to highlight Music Library, then press
. The music library opens.
3 Highlight one of the following options, then press
to open that category:
• Play All—Plays all tracks on the player.
• Artist—Lists all tracks arranged
alphabetically by artist.
• Album—Lists all tracks arranged
alphabetically by album. Even if you copied
only one track from an album to your player,
that album name appears in this list.
• Genre—Lists all tracks arranged
alphabetically by genre.
• Track —Lists all tracks arranged
alphabetically by track title.
• Playlist—Lists all tracks arranged
alphabetically by playlist.
• Audible—Lists all Audible tracks.
4 To play all tracks starting with a specific track, select
that track within the category. The player switches to
Now Playing
the
the track currently playing.
view, which displays information on
5 If your selection does not begin to play, press .
The track begins playing and the play status icon
appears in the upper-left corner of the display.
NS-2A10s
16
www.insignia-products.com
08-1299 NS-2A10S.fm Page 17 Thursday, June 5, 2008 1:47 PM
NS-2A10s
• To pause playback, press . The pause
status icon appears in the upper-left
corner of the screen.
• To skip to the next track, press .
• To skip to a previous track, press
repeatedly.
• To fast forward the current track, press and
hold .
• To rewind the current track, press and hold
.
• To restart the current track, press once.
Repeating tracks
To repeat tracks:
Open the
1
2 Press or to highlight Settings, then press
or . The
Main Menu
Settings
.
menu opens.
3 Press or to highlight Audio, then press or
Audio
. The
www.insignia-products.com
sub-menu opens.
17
08-1299 NS-2A10S.fm Page 18 Thursday, June 5, 2008 1:47 PM
4 Press or to highlight Repeat, then press or
. The
Repeat
sub-menu opens.
5 Press or to select one of the following options:
• Normal—default setting
• Repeat One—repeat a single track
• Repeat All—repeat all tracks
• Shuffle—play all tracks randomly
• Shuffle & REP—play all tracks randomly
and repeat
6 Press or to save your setting.
Repeating segments of a track
You can use A-B repeat to repeatedly play a segment of
a track. You must first enable A-B repeat.
To enable A-B repeat:
Open the
1
2 Press or to highlight Settings, then press
or . The
Main Menu
Settings
.
menu opens.
NS-2A10s
18
www.insignia-products.com
08-1299 NS-2A10S.fm Page 19 Thursday, June 5, 2008 1:47 PM
NS-2A10s
Press or to highlight Audio, then press or
3
. The
Audio
sub-menu opens.
4 Press or to highlight A-B Repeat, then press
or . The
A-B Repeat
sub-menu opens.
5 Press or to highlight On or Off, then press
or to save your setting. The
opens.
Audio Setting
menu
To repeat an audio segment:
During playback, press to mark the start of the
1
playback loop. The repeat icon on the display shows
as A.
www.insignia-products.com
19
08-1299 NS-2A10S.fm Page 20 Thursday, June 5, 2008 1:47 PM
NS-2A10s
2 Press again to mark the end of the playback loop.
The repeat icon on the display shows as A-B and the
player repeats that audio segment indefinitely.
3 Press again to cancel the repeating loop.
Using the enhanced audio effect
This player supports an enhanced audio effect.
To activate the enhanced audio effect:
Open the
1
2 Press or to highlight Settings, then press
or . The
Main Menu
Settings
.
menu opens.
20
3 Press or to highlight Audio, then press or
Audio
. The
sub-menu opens.
www.insignia-products.com
08-1299 NS-2A10S.fm Page 21 Thursday, June 5, 2008 1:47 PM
NS-2A10s
Press or to highlight Enhance Audio, then
4
press or .
5 Press or to select the Enhance Audio setting
you want.
6 Press or to save your setting.
Using the surround audio effect
This player supports a surround audio effect.
To activate the surround audio effect:
Open the
1
2 Press or to highlight Settings, then press
or . The
Main Menu
Settings
.
menu opens.
3 Press or to highlight Audio, then press or
Audio
. The
www.insignia-products.com
sub-menu opens.
21
08-1299 NS-2A10S.fm Page 22 Thursday, June 5, 2008 1:47 PM
4 Press or to highlight Surround, then press
or .
5 Press or to select the Surround setting you
want.
6 Press or to save your setting.
Using the equalizer
Six equalizer settings are available for you to select from.
Five are preprogrammed into the player: Normal, Rock,
Jazz, Classic, and Pop. The User setting lets you
customize the equalizer to your preference.
To select a pre-programmed equalizer
setting:
Open the
1
2 Press or to highlight Settings, then press
or . The
Main Menu
Settings
.
menu opens.
NS-2A10s
22
www.insignia-products.com
08-1299 NS-2A10S.fm Page 23 Thursday, June 5, 2008 1:47 PM
NS-2A10s
Press or to highlight Audio, then press or
3
. The
Audio
sub-menu opens.
4 Press or to highlight Equalizer, then press
or . The
5 Press or to select the equalizer setting you
want.
Equalizer
sub-menu opens.
6 Press or to save your setting.
Using Chapter mode for Audible
tracks
The player supports chapter mode for Audible tracks.
To enable chapter mode:
While playing an Audible track, press for two
1
seconds. The
Audible Playback
sub-menu opens.
www.insignia-products.com
23
08-1299 NS-2A10S.fm Page 24 Thursday, June 5, 2008 1:47 PM
2 Press or to highlight Chapter Mode, then
press or . The
opens.
Chapter Mode
sub-menu
3 Select Off to disable chapter mode or select On to
enable the feature.
When chapter mode is enabled:
• If 000/000 appears in white, it means that
the current track number and total track
number are being displayed.
• If 000/000 appears in yellow, it means that
the current chapter number and total chapter
number are being displayed.
4 Press skip the chapter or press to skip
forward.
NS-2A10s
24
www.insignia-products.com
08-1299 NS-2A10S.fm Page 25 Thursday, June 5, 2008 1:47 PM
NS-2A10s
Repeating Audible tracks
For Audible tracks, this player supports Repeat One and
Repeat All.
To set the repeat setting for Audible
tracks:
While playing an Audible track, press for two
1
seconds. The
Audible Playback
sub-menu opens.
2 Press or to highlight Repeat, then press
Repeat
or . The
sub-menu opens.
3 Press or to select one of the following options:
• Normal—default setting
• Repeat One—repeat a single track
• Repeat All—repeat all tracks
Icon Repeat Mode
Normal
Repeat One
Repeat All
www.insignia-products.com
25
08-1299 NS-2A10S.fm Page 26 Thursday, June 5, 2008 1:47 PM
4 Press or to save your setting. The repeat
icon appears on the
battery icon.
Now Playing
screen next to the
Getting more music
Your music player already contains some music files, but
you can get more music from your own music CDs and
from the Internet.
Getting music from CDs and the Internet
to your music player involves two steps:
Get more music on your computer (from CDs or from
1
the Internet)
2 Select the files to copy, then copy them to your
player.
NS-2A10s
26
www.insignia-products.com
08-1299 NS-2A10S.fm Page 27 Thursday, June 5, 2008 1:47 PM
NS-2A10s
Getting more music on your
computer*
* See “Installing the Best Buy Digital Music Store
software (Windows only) on page 13.
Getting music from CDs
To rip a CD:
Click Start, All Programs, Best Buy Digital Music
1
Store, Best Buy Digital Music Store.
Digital Music Store
opens.
Best Buy
2 Put a music CD in the CD drive.
Music Store
screen. If you are connected to the Internet, the list
shows the track names.
lists the tracks on the right side of the
Best Buy Digital
3 Click the check boxes in front of the songs you want
to copy.
www.insignia-products.com
27
08-1299 NS-2A10S.fm Page 28 Thursday, June 5, 2008 1:47 PM
NS-2A10s
4 Click Import CD.
creates MP3 files from the music tracks on the CD
and lists them under the My Library folder.
For information on transferring your music files to
your music player, see “Copying music files to your
player” on page 30.
Best Buy Digital Music Store
28
www.insignia-products.com
08-1299 NS-2A10S.fm Page 29 Thursday, June 5, 2008 1:47 PM
NS-2A10s
Getting music from Best Buy Digital Music
Store
To buy and download music files from the
Internet (Windows):
1
Click Start, All Programs, Best Buy Digital Music
Store, Best Buy Digital Music Store.
Digital Music Store
(BBDMS) opens.
2 In the Search box, type the name of the artist or
album you want to download music for, then click Go.
Any matches that Digital Music Store finds are
displayed on the screen.
3 Decide which tracks or albums you want to buy, then
click BUY next to the music you want.
Best Buy
www.insignia-products.com
29
08-1299 NS-2A10S.fm Page 30 Thursday, June 5, 2008 1:47 PM
NS-2A10s
4 Follow the on-screen directions to finish the
purchase. The music files are added to your Digital
Music Store music library.
Tips
You can also use other digital music management
programs to get music files from the Internet. See
the program’s online help for more information.
For iTunes Drag and Drop support, use File &
Folder (MSC) USB mode. To play iTunes MP3
files, you must drag and drop them from iTunes.
For information on changing USB modes, see
“Selecting the USB mode” on page 49.
Copying music files to your player
Copying files using Best Buy Digital Music
Store (Windows)
To copy files from your computer to the
music player using Best Buy Digital Music
Store:
1
Connect the player’s USB connector to a USB port
on your computer. The message USB Connected
appears on the player.
30
Your computer detects the player, and adds the
player as a new device called Insignia Kix Player in
the My Computer list of drives in Windows.
www.insignia-products.com
08-1299 NS-2A10S.fm Page 31 Thursday, June 5, 2008 1:47 PM
NS-2A10s
Click Start, All Programs, Best Buy Digital Music
2
Store, Best Buy Digital Music Store.
Digital Music Store
opens.
3 Close any popup windows that open.
4 Click My Library in the list of content types. Your
entire library of digital music appears in the right side
of the screen.
5 Click and drag the music files from your library list to
the Insignia Kix Player item in the Sources list.
Best Buy
6 When you have finished transferring all of the files
you want to copy to your player, click Insignia Kix
Player in the list of sources to view the updated list
of tracks on your player.
www.insignia-products.com
31
08-1299 NS-2A10S.fm Page 32 Thursday, June 5, 2008 1:47 PM
NS-2A10s
When the transfer is complete, the message OK to
disconnect appears on the player.
7 Unplug the player from the USB port on your
comtputer (see “Disconnecting the player
(Windows)” on page 37).
Copying files using Windows Explorer
To copy music files from your computer to
your player using Windows Explorer:
1
Open the
2 Press or to highlight Settings, then press
or . The
Main Menu
Settings
.
menu opens.
32
3 Press or to highlight Audio, then press or
Audio
. The
sub-menu opens.
4 Press or to highlight USB Mode, then press
.
www.insignia-products.com
08-1299 NS-2A10S.fm Page 33 Thursday, June 5, 2008 1:47 PM
NS-2A10s
Highlight Media Manager (MTP) or File & Folder
5
(MSC), then press or to save the setting.
• Use Media Manager (MTP) mode to copy
WMA and MP3 files to the Media folder, and
any other formats for copying to the Data
folder (you cannot see the Data folder using
the player’s display). Depending on which
media manager software (such as BBDMS
or Windows Media Player) you use, the
name of the subfolders may be different than
Media and Data.
• Use File & Folder (MSC) mode to copy
folders and any format of files to the player’s
root folder. The player will still play only MP3
and WMA files.
6 Connect the USB cable from a USB port on your
computer to the mini-USB jack on your player. The
message USB Connected appears on the player.
7 On your computer, click Start, My Computer, then
open the folder where your music files are.
8 Open My Computer again to open another window,
then open the Insignia Kix Player drive. (When your
computer detected the player, it added the player as
a new device called Insignia Kix Player in the My
Computer list of drives in Windows.)
9 Click and drag the music files from your computer to
the player:
• If your player is in Media Manager (MTP)
mode, copy them to the Media folder on the
player.
• If your player is in File & Folder (MSC) mode,
copy them to the root folder on the player.
www.insignia-products.com
33
08-1299 NS-2A10S.fm Page 34 Thursday, June 5, 2008 1:47 PM
While transferring data, yousee the following screen:
Tip
To select multiple files, press and hold Ctrl on your
keyboard while clicking the files with your mouse.
To select an entire range of files, click the file at
the top of the range, press and hold Shift on your
keyboard, then click the file at the bottom of the
range.
10 Unplug the USB cable from your computer and your
player (see “Disconnecting the player (Windows)” on
page 37).
Deleting all music files
To delete all music files from your player
using the on-screen menu:
Open the
1
2 Press or to highlight Settings, then press
Main Menu
or . The
.
Settings
menu opens.
NS-2A10s
34
www.insignia-products.com
08-1299 NS-2A10S.fm Page 35 Thursday, June 5, 2008 1:47 PM
NS-2A10s
Press or to highlight Audio, then press or
3
. The
Audio
sub-menu opens.
4 Press or to highlight System, then press or
System
. The
sub-menu opens.
5 Press or to highlight Erase All, then press .
6 Press (Up) or to highlight Ye s, then press
or .
While the player deletes all the music files, you will
see the following message. The duration depends on
the number of files being deleted.
www.insignia-products.com
35
08-1299 NS-2A10S.fm Page 36 Thursday, June 5, 2008 1:47 PM
After deleting all the files, the player takes some time
to rebuild the library. After the following message
disappears, all the music files have been deleted.
To delete music files from your player
using your computer (Windows):
1
Connect the USB cable from a USB port on your
computer to the mini-USB jack on your player. The
message USB Connected appears on the player.
Your computer detects the player and adds the
player as a new device called Insignia Kix Player in
the My Computer list of drives in Windows.
2 Click Start, then click My Computer.
3 Double-click the Insignia Kix Player device, then
open the Media folder.
NS-2A10s
36
www.insignia-products.com
08-1299 NS-2A10S.fm Page 37 Thursday, June 5, 2008 1:47 PM
NS-2A10s
Find the files you want to delete, click to select them,
4
then press Delete on your keyboard. The files are
deleted.
Tip
To select multiple files, press and hold Ctrl on your
keyboard while clicking the files with your mouse.
To select an entire range of files, click the file at
the top of the range, press and hold Shift on your
keyboard, then click the file at the bottom of the
range.
5 Unplug the USB cable from your computer and your
player (see “Disconnecting the player (Windows)” on
page 37).
Disconnecting the player (Windows)
After you have connected the player to a computer for
recharging or for transferring music, you need to safely
disconnect the player.
To safely disconnect the player from your
computer:
1
Double-click the icon on the Taskbar to open the
Safely Remove Hardware
all connected devices.
dialog box, which shows
www.insignia-products.com
37
08-1299 NS-2A10S.fm Page 38 Thursday, June 5, 2008 1:47 PM

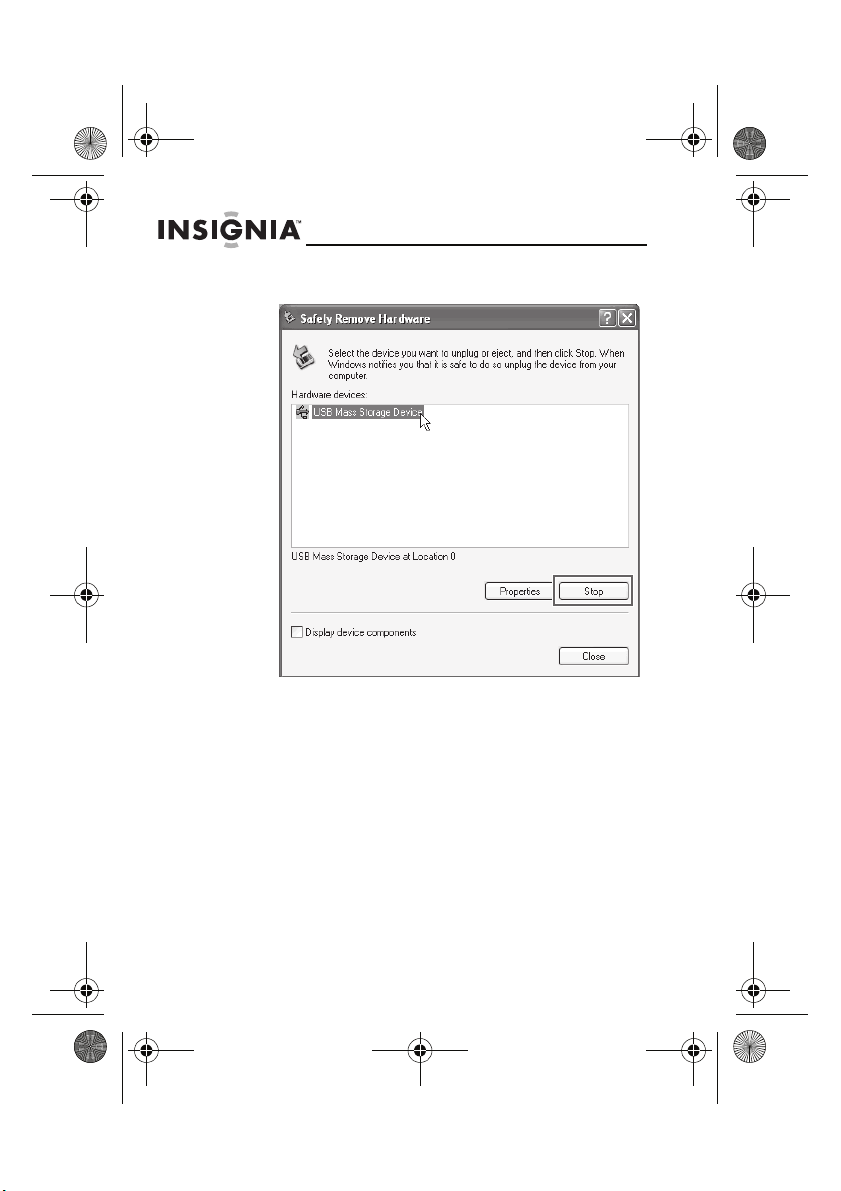

2 To remove the player, close all the programs, click
USB Mass Storage Device, then click Stop.
NS-2A10s
38
www.insignia-products.com
08-1299 NS-2A10S.fm Page 39 Thursday, June 5, 2008 1:47 PM
NS-2A10s
When you see a window similar to the one shown
3
below, click USB Mass Storage Device, then click
OK.
4 The following message appears, and you can
remove the player:
www.insignia-products.com
39
08-1299 NS-2A10S.fm Page 40 Thursday, June 5, 2008 1:47 PM
Listening to FM radio
You can listen to FM radio broadcasts on your player.
Note
To use the FM radio, you must have the provided
earphones connected because they act as the FM
antenna. To substitute for the earphones, you can
use any headphones with unshielded wires.
Tuning the radio
To tune to an FM radio station:
Plug the earphones that came with your player into
1
the earphone jack.
2 Press . The
3 Press or to highlight FM Radio, then press
or .
Main Menu
opens.
NS-2A10s
40
4 To change the frequency in increments of 100 KHz,
press or .
To search for the next or previous strong channel,
press and hold or for one second
5 Press or to switch among the preset channels
(after presets have been added).
www.insignia-products.com
08-1299 NS-2A10S.fm Page 41 Thursday, June 5, 2008 1:47 PM
NS-2A10s
Setting station presets
Station presets let you quickly access your favorite
frequencies.
To add station presets:
In FM mode, tune to an FM radio station frequency.
1
2 Press and hold for two seconds to open the
Options
menu.
3 Press or to highlight Preset Add, then press
or .
4 Press or to select a channel to add, then press
or . The channel is added. If a channel existed
at the same number, it is replaced.
FM
5 To tune to presets, press or to switch among
the preset channels.
www.insignia-products.com
41
08-1299 NS-2A10S.fm Page 42 Thursday, June 5, 2008 1:47 PM
To delete station presets:
In FM mode, press and hold for two seconds to
1
open the
2 Press or to highlight Preset Delete, then press
or ).
FM Options
menu.
3 Press or to select a preset station to delete,
then press or . The preset is deleted.
To set station presets automatically:
In FM mode, press and hold for two seconds to
1
open the
FM Options
menu.
NS-2A10s
42
www.insignia-products.com
08-1299 NS-2A10S.fm Page 43 Thursday, June 5, 2008 1:47 PM
NS-2A10s
Press or to highlight Auto Scan, then press
2
or .
The player scans the radio range and flashes the
message Auto Scanning.
While scanning, the player automatically adds a
preset for any local strong stations until all 20 preset
channels have been set or all frequencies have been
scanned.
Changing player settings
You can change the brightness, rotation, and backlight
settings.
To change the brightness, rotation, and
backlight settings:
Open the
1
2 Press or to highlight Settings, then press
or . The
Main Menu
Settings
.
menu opens.
www.insignia-products.com
43
08-1299 NS-2A10S.fm Page 44 Thursday, June 5, 2008 1:47 PM
3 Press or to highlight Display, then press
or . The
Display
sub-menu opens.
4 Change any of the following settings:
• Brightness—Changes the brightness of the
backlit screen.
• Backlight—Changes the length of time that
the backlight stays on after you press a
button. The backlight may noticeably
decrease battery life if it is left on for long
periods of time.
NS-2A10s
44
www.insignia-products.com
08-1299 NS-2A10S.fm Page 45 Thursday, June 5, 2008 1:47 PM
NS-2A10s
• Rotation—Rotates the screen and flips the
button functions to make left-handed use of
the player easier. Default is Right-Hand.
To change the power off and sleep
settings:
1
Open the
Main Menu
.
2 Press or to highlight Settings, then press
or . The
3 Press or to highlight Time, then press or
. The
Settings
Time
sub-menu opens.
menu opens.
www.insignia-products.com
45
08-1299 NS-2A10S.fm Page 46 Thursday, June 5, 2008 1:47 PM
4 Change any of the following settings:
• Auto Power Off—Adjusts the length of time
without any button presses that the player
waits before automatically turning off. You
can select 5 Min or 10 Min.
• Sleep—Changes the length of time the
player waits before automatically turning off,
regardless of button presses or other activity.
You can select 30-minute time increments
up to 120 minutes.
To change the player’s language:
Open the
1
2 Press or to highlight Settings, then press
or . The
Main Menu
Settings
.
menu opens.
NS-2A10s
46
www.insignia-products.com
08-1299 NS-2A10S.fm Page 47 Thursday, June 5, 2008 1:47 PM
NS-2A10s
Press or to highlight Information, then press
3
or . The
Information
sub-menu opens.
4 Press or to highlight Language, then press
or . The
Language
sub-menu opens.
5 Select English, French, or Spanish.
To erase all files and change all settings to
factory defaults:
1 Open the
2 Press or to highlight Settings, then press
or . The
Main Menu
Settings
www.insignia-products.com
.
menu opens.
47
08-1299 NS-2A10S.fm Page 48 Thursday, June 5, 2008 1:47 PM
3 Press or to highlight System, then press or
. The
System
sub-menu opens.
4 Change any of the following settings:
• Erase All—Erases all music files from the
player.
NS-2A10s
48
• System Init—Resets all player settings to
the factory defaults.
www.insignia-products.com
08-1299 NS-2A10S.fm Page 49 Thursday, June 5, 2008 1:47 PM
NS-2A10s
Selecting the USB mode
The music player can use two USB modes, Media
Manager (MTP, the default) mode and File & Folder
(MSC) mode.
To manually change the USB mode:
1
Open the
2 Press or to highlight Settings, then press
or . The
Main Menu
Settings
.
menu opens.
3 Press or to highlight USB Mode, then press
or . The
USB Mode
sub-menu opens.
4 Select any of the following settings:
• Media Manager (MTP)—Optimum setting
for using the player as a music player with
Windows XP.
• File & Folder (MSC)—Optimum setting for
using the player as a file storage device, and
required for using iTunes Drag and Drop
Support.
www.insignia-products.com
49
08-1299 NS-2A10S.fm Page 50 Thursday, June 5, 2008 1:47 PM
Viewing system information
Your player can tell you its total memory, used memory,
available memory, and other system information.
To view system information:
1
Open the
2 Press or to highlight Settings, then press
or . The
Main Menu
Settings
.
menu opens.
NS-2A10s
50
3 Press or to highlight Information, then press
or . The
showing memory use, firmware version, and date.
Information
sub-menu opens,
www.insignia-products.com
08-1299 NS-2A10S.fm Page 51 Thursday, June 5, 2008 1:47 PM
NS-2A10s
Maintaining your digital music
player
Care and cleaning
• Periodically clean your player by using a
washcloth dampened only with water, or
lens-cleaning papers dampened with water or
isopropyl (rubbing) alcohol.
• Do not get the player wet.
• Keep your player away from hot environments,
such as on top of a vehicle dashboard, a window
sill, or a heat register.
• Avoid carrying your player in a pocket that
contains metallic items, which can scratch and
damage the player.
• Avoid carrying your player in a pocket or
compartment that is dirty. Dirt, dust, and lint can
damage the player.
• As much as possible, keep your player in its
protective carrying case.
• Update the firmware occasionally to make sure
that you have the latest version and product
features.
Updating the firmware
To update the firmware:
On the Internet, connect your Web browser to
1
www.insignia-products.com, then search for the
music player firmware update.
2 Follow the online instructions to download the
updated firmware files. Take note of where the file is
saved to.
www.insignia-products.com
51
08-1299 NS-2A10S.fm Page 52 Thursday, June 5, 2008 1:47 PM
3 Double-click the file you saved in Step 2, then follow
the on-screen instructions to complete the upgrade.
4 When the file finishes copying, unplug the player
from the USB port on your computer (see
“Disconnecting the player (Windows)” on page 37).
The player automatically detects and installs the new
firmware.
Caution
Installing new firmware will automatically deletes
all content from the player.
Troubleshooting and FAQs
How do I copy files to the player?
In File & Folder (MSC) mode, you can copy files to the
player the same way you copy files to a hard drive or
flash memory drive. In Media Manager (MTP) mode, you
can use BBDMS, Windows Media Player, or other digital
music managers to transfer files to your player. For more
information, see “Copying music files to your player” on
page 30 and “Selecting the USB mode” on page 49.
Which file formats does the player
support?
This player supports MP3, WMA, secure WMA, and
Audible audio formats. Any other formats must be
converted to a supported format before being copied to
your player.
NS-2A10s
52
www.insignia-products.com
08-1299 NS-2A10S.fm Page 53 Thursday, June 5, 2008 1:47 PM
NS-2A10s
What is MTP?
Media Transfer Protocol (MTP, or Media Manager mode)
is a protocol for connecting portable devices to a
Windows XP computer and synchronizing digital media
content between those devices.
When I copy files to the player using
Windows Explorer, what folder should I
copy them to?
In Media Manager (MTP) mode, copy them to the Media
folder on the player. In File & Folder (MSC) mode, you
can copy them to the root directory.
Some of my music files are on my player
but cannot be played. When I select them,
a different song begins to play. What is
wrong?
You may not have purchased the rights to play the song
on an additional device. To test this, try to play a song
that you have copied from an older CD and converted to
MP3 format. If you can play that song but not the song
that doesn't play, then you need to purchase the rights to
play the song.
Why should I update the firmware?
You should always update the player to the latest
firmware to make sure that it works correctly and has the
latest features. For more information, see “Updating the
firmware” on page 51.
www.insignia-products.com
53
08-1299 NS-2A10S.fm Page 54 Thursday, June 5, 2008 1:47 PM
NS-2A10s
How do I copy a CD to my player?
First you must rip the CD using a digital music manager
like Best Buy Digital Music Store or Windows Media
Player. After the songs are on your computer, copy the
songs to the player using Windows Explorer or a digital
music manager. For more information, see “Copying
music files to your player” on page 30.
Why does my player display a message
that says “Unknown artist/album”?
This message usually appears when the music file does
not contain artist or album information (incomplete ID3
tags). See the documentation or online help of your
digital music manager for instructions on adding that
information to your music files.
Getting help
Contacting technical support
Before you contact technical support, review the
Troubleshooting and FAQs section (page 52) to see if
your question is already answered there.
If you have questions about the use or features of your
player, call Technical Support at (800) 699-9218 or
(877) 467-4289, or fill out an online support request at:
www.bestbuy.com/support.asp
Get additional online help at:
www.insignia-products.com
www.bestbuy.com/
mp3www.geeksquad.com
54
www.insignia-products.com
08-1299 NS-2A10S.fm Page 55 Thursday, June 5, 2008 1:47 PM
NS-2A10s
Learn more
On the Internet, you can use a Web search site to find
information on the following topics*:
• “Ripping CDs”
• “Downloading music”
• “Downloading MP3s”
• “MP3 music”
• “MP3 copyright law”
*Best Buy Enterprise Services, Inc. does not maintain and is not
responsible for the content of Web pages you find using these
search terms.
Specifications
Specifications and features are subject to change without
notice or obligation.
Ports and connections Mini USB 2.0, Earphones/Headphones
Display OLED, 16 colors, 96 × 64 pixels
Battery Rechargeable lithium-ion
Supported formats Audio: MP3, WMA (DRM10), and Audible
Dimensions
(L × W × H)
Weight 1.06 oz. (30 g)
3.27 × 1.45 × 0.66 in.
(83 × 36.8 × 16.7 mm)
www.insignia-products.com
55
08-1299 NS-2A10S.fm Page 56 Thursday, June 5, 2008 1:47 PM
Legal notices
FCC Part 15
This device complies with Part 15 of the FCC Rules. Operation of
this product is subject to the following two conditions: (1) this
device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that
may cause undesired operation.
This equipment has been tested and found to comply within the
limits for a class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and
receiver.
• Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
• Consult the dealer or an experienced technician for help.
FCC warning
Changes or modifications not expressly approved by the party
responsible for compliance with the FCC Rules could void the
user’s authority to operate this equipment.
NS-2A10s
DHHS and FDA safety certification
This product is made and tested to meet safety standards of the
FCC, requirements and compliance with safety performance of
the U.S. Department of Health and Human Services, and also
with FDA Radiation Performance Standards 21 CFR
Subchapter J.
56
www.insignia-products.com
08-1299 NS-2A10S.fm Page 57 Thursday, June 5, 2008 1:47 PM
NS-2A10s
Canada ICES-003 statement
This Class B digital apparatus complies with Canadian
ICES-003.
RSS 310 statement
To reduce potential radio interference to other users, the antenna
type and its gain should be so chosen that the equivalent
isotropically radiated power (e.i.r.p.) is not more than that
permitted for successful communication.
www.insignia-products.com
57
08-1299 NS-2A10S.fm Page 58 Thursday, June 5, 2008 1:47 PM
NS-2A10s
58
www.insignia-products.com
08-1299 NS-2A10S.fm Page 59 Thursday, June 5, 2008 1:47 PM
NS-2A10s
One-year limited warranty
Insignia Products (“Insignia”) warrants to you, the original
purchaser of this new NS-2A10s (“Product”), that the Product
shall be free of defects in the original manufacture of the material
or workmanship for a per iod of one (1) year from the date of your
purchase of the Product (“Warranty Period”). This Product must
be purchased from an authorized dealer of Insignia brand
products and packaged with this warranty statement. This
warranty does not cover refurbished Product. If you notify
Insignia during the Warranty Period of a defect covered by this
warranty that requires ser vice, terms of this warranty apply.
How long does the coverage last?
The Warranty Period lasts for 1 year (365 days) from the date you
purchased the Product. The purchase date is printed on the
receipt you received with the Product.
What does this warranty cover?
During the Warranty Period, if the original manufacture of the
material or workmanship of the Product is determined to be
defective by an authorized Insignia repair center or store
personnel, Insignia will (at its sole option): (1) repair the Product
with new or rebuilt parts; or (2) replace the Product at no charge
with new or rebuilt comparable products or parts. Products and
parts replaced under this warranty become the proper ty of
Insignia and are not returned to you. If service of Products or
parts are required after the Warranty Period expires, you must
pay all labor and parts charges. This warranty lasts as long as
you own your Insignia Product during the Warranty Period.
Warranty coverage terminates if you sell or otherwise transfer the
Product.
How to obtain warranty service?
If you purchased the Product at a retail store location, take your
original receipt and the Product to the store you purchased it
from. Make sure that you place the Product in its original
packaging or packaging that provides the same amount of
protection as the original packaging. If you purchased the
Product from an online web site, mail your original receipt and the
Product to the address listed on the web site. Make sure that you
www.insignia-products.com
59
08-1299 NS-2A10S.fm Page 60 Thursday, June 5, 2008 1:47 PM
put the Product in its original packaging or packaging that
provides the same amount of protection as the original
packaging.
To obtain in-home warranty service for a television with a screen
25 inches or larger, call 1-888-BESTBUY. Call agents will
diagnose and correct the issue over the phone or will have an
Insignia-approved repair person dispatched to your home.
Where is the warranty valid?
This warranty is valid only to the original purchaser of the product
in the United States and Canada.
What does the warranty not cover?
This warranty does not cover:
• Customer instruction
• Installation
• Set up adjustments
• Cosmetic damage
• Damage due to acts of God, such as lightning strikes
• Accident
•Misuse
•Abuse
• Negligence
• Commercial use
• Modification of any part of the Product, including the
antenna
• Plasma display panel damaged by static (non-moving)
images applied for lengthy periods (burn-in).
This warranty also does not cover:
• Damage due to incorrect operation or maintenance
• Connection to an incorrect voltage supply
• Attempted repair by anyone other than a facility authorized
by Insignia to service the Product
• Products sold as is or with all faults
• Consumables, such as fuses or batteries
• Products where the factory applied serial number has been
altered or removed
REPAIR REPLACEMENT AS PROVIDED UNDER THIS
WARRANTY IS YOUR EXCLUSIVE REMEDY. INSIGNIA SHALL
NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL
DAMAGES FOR THE BREACH OF ANY EXPRESS OR
IMPLIED WARRANTY ON THIS PRODUCT, INCLUDING, BUT
NOT LIMITED TO, LOST DATA, LOSS OF USE OF YOUR
NS-2A10s
60
www.insignia-products.com
08-1299 NS-2A10S.fm Page 61 Thursday, June 5, 2008 1:47 PM
NS-2A10s
PRODUCT, LOST BUSINESS OR LOST PROFITS. INSIGNIA
PRODUCTS MAKES NO OTHER EXPRESS WARRANTIES
WITH RESPECT TO THE PRODUCT, ALL EXPRESS AND
IMPLIED WARRANTIES FOR THE PRODUCT, INCLUDING,
BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES OF AND
CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO THE
WARRANTY PERIOD SET FORTH ABOVE AND NO
WARRANTIES, WHETHER EXPRESS OR IMPLIED, WILL
APPLY AFTER THE WARRANTY PERIOD. SOME STATES,
PROVINCES AND JURISDICTIONS DO NOT ALLOW
LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY
LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO
YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL
RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH
VARY FROM STATE TO STATE OR PROVINCE TO PROVINCE.
Contact Insignia:
For customer service please call 1-877-467-4289
www.insignia-products.com
Distributed by Best Buy Purchasing, LLC
7601 Penn Avenue South, Richfield, Minnesota, U.S.A.
55423-3645
© 2008 Best Buy Enterprise Services, Inc.
All rights reserved. INSIGNIA is a trademark of Best Buy
Enterprise Services, Inc. Registered in some countries. All other
products and brand names are trademarks of their respective
owners.
www.insignia-products.com
61
08-1299 NS-2A10S.fm Page 62 Thursday, June 5, 2008 1:47 PM
ENGLISH
08-1299
www.insignia-products.com (877) 467-4289
Distributed by Best Buy Purchasing, LLC
7601 Penn Avenue South, Richfield, MN USA 55423-3645
All rights reserved. INSIGNIA is a trademark of Best Buy Enterprise Services, Inc. Registered in
All other products and brand names are trademarks of their respective owners.
© 2008 Best Buy Enterprise Services, Inc.
some countries.
Loading...
