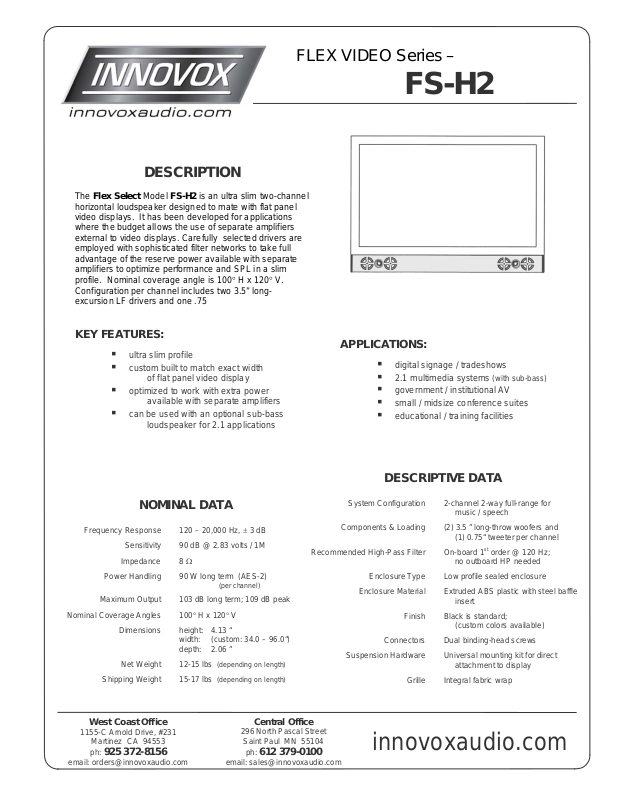

The Flex Select Model FS-H2 is an ultra slim two-channel
horizontal loudspeaker designed to mate with flat panel
video displays. It has been developed for applications
where the budget allows the use of separate amplifiers
external to video displays. Carefully selected drivers are
employed with sophisticated filter networks to take full
advantage of the reserve power available with separate
amplifiers to optimize performance and SPL in a slim
profile. Nominal coverage angle is 100 H x 120 V.
Configuration per channel includes two 3.5” longexcursion LF drivers and one .75
KEY FEATURES:
ultra slim profile
custom built to match exact width
optimized to work with extra power
can be used with an optional sub-bass
Frequency Response 120 – 20,000 Hz, 3 dB
Sensitivity 90 dB @ 2.83 volts / 1M
Impedance 8
Power Handling 90 W long term (AES-2)
(per channel)
Maximum Output 103 dB long term; 109 dB peak
Nominal Coverage Angles 100 H x 120 V
Dimensions height: 4.13 “
width: (custom: 34.0 – 96.0“)
depth: 2.06 ”
Net Weight 12-15 lbs (depending on length)
Shipping Weight 15-17 lbs (depending on length)
West Coast Office
1155-C Arnold Drive, #231
Martinez CA 94553
ph:
email: orders@innovoxaudio.com
925 372-8156
DESCRIPTION
of flat panel video display
available with separate amplifiers
loudspeaker for 2.1 applications
NOMINAL DATA
296 North Pascal Street
Saint Paul MN 55104
email: sales@innovoxaudio.com
Central Office
612 379-0100
ph:
FLEX VIDEO Series –
FS-H2
APPLICATIONS:
digital signage / tradeshows
2.1 multimedia systems (with sub-bass)
government / institutional AV
small / midsize conference suites
educational / training facilities
DESCRIPTIVE DATA
System Configuration 2-channel 2-way full-range for
music / speech
Components & Loading (2) 3.5 ” long-throw woofers and
(1) 0.75“ tweeter per channel
Recommended High-Pass Filter On-board 1st order @ 120 Hz;
no outboard HP needed
Enclosure Type Low profile sealed enclosure
Enclosure Material Extruded ABS plastic with steel baffle
insert
Finish Black is standard;
(custom colors available)
Connectors Dual binding-head screws
Suspension Hardware Universal mounting kit for direct
attachment to display
Grille Integral fabric wrap
