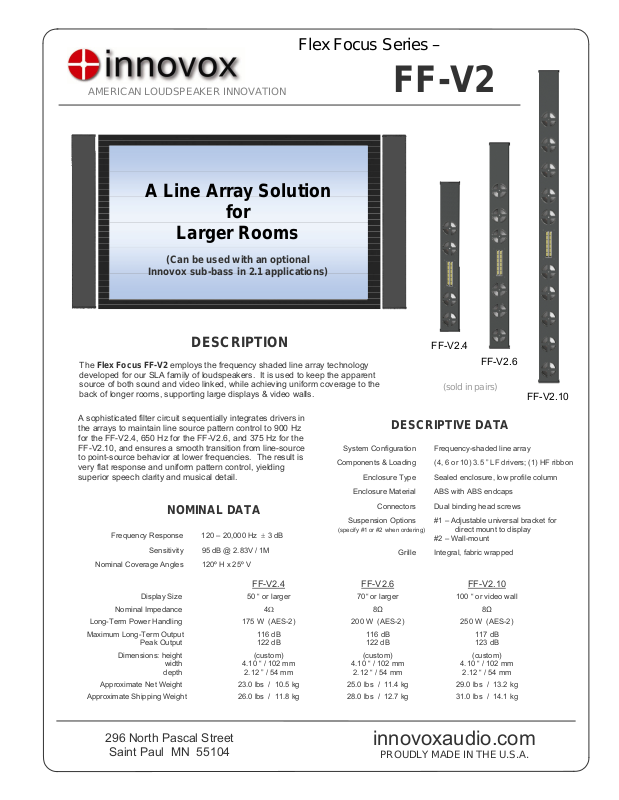

Flex Focus Series –
AMERICAN LOUDSPEAKER INNOVATIO
FF-
A Line Array Solution
Larger Rooms
(Can be used with an optional
Innovox sub-bass in 2.1 applications)
for
The Flex Focus FF-V2 employs the frequency shaded line array technology
developed for our SLA family of loudspeakers. It is used to keep the apparent
source of both sound and video linked, while achieving uniform coverage to the
back of longer rooms, supporting large displays & video walls.
DESCRIPTION
FF-V2.4
(sold in pairs)
A sophisticated filter circuit sequentially integrates drivers in
the arrays to maintain line source pattern control to 900 Hz
for the FF-V2.4, 650 Hz for the FF-V2.6, and 375 Hz for the
FF-V2.10, and ensures a smooth transition from line-source
to point-source behavior at lower frequencies. The result is
very flat response and uniform pattern control, yielding
superior speech clarity and musical detail.
NOMINAL DATA
Frequency Response 120 – 20,000 Hz 3 dB
Sensitivity 95 dB @ 2.83V / 1M
Nominal Coverage Angles 120º H x 25º V
FF-V2.4 FF-V2.6 FF-V2.10
Display Size 50 “ or larger 70“ or larger 100 “ or video wall
Nominal Impedance 4 8Ω 8Ω
Long-Term Power Handling 175 W (AES-2) 200 W (AES-2) 250 W (AES-2)
Maximum Long-Term Output 116 dB 116 dB 117 dB
Peak Output 122 dB 122 dB 123 dB
Dimensions: height (custom) (custom) (custom)
width 4.10 “ / 102 mm 4.10 “ / 102 mm 4.10 “ / 102 mm
depth 2.12 ” / 54 mm 2.12 “ / 54 mm 2.12 “ / 54 mm
Approximate Net Weight 23.0 lbs / 10.5 kg 25.0 lbs / 11.4 kg 29.0 lbs / 13.2 kg
Approximate Shipping Weight 26.0 lbs / 11.8 kg 28.0 lbs / 12.7 kg 31.0 lbs / 14.1 kg
System Configuration Frequency-shaded line array
Components & Loading (4, 6 or 10) 3.5 ” LF drivers; (1) HF ribbon
Enclosure Type Sealed enclosure, low profile column
Enclosure Material ABS with ABS endcaps
Connectors Dual binding head screws
Suspension Options #1 – Adjustable universal bracket for
(specify #1 or #2 when ordering) direct mount to display
#2 – Wall-mount
Grille Integral, fabric wrapped
DESCRIPTIVE DATA
296 North Pascal Street
Saint Paul MN 55104
innovoxaudio.com
PROUDLY MADE IN THE U.S.A.
2
FF-V2.6
FF-V2.10
