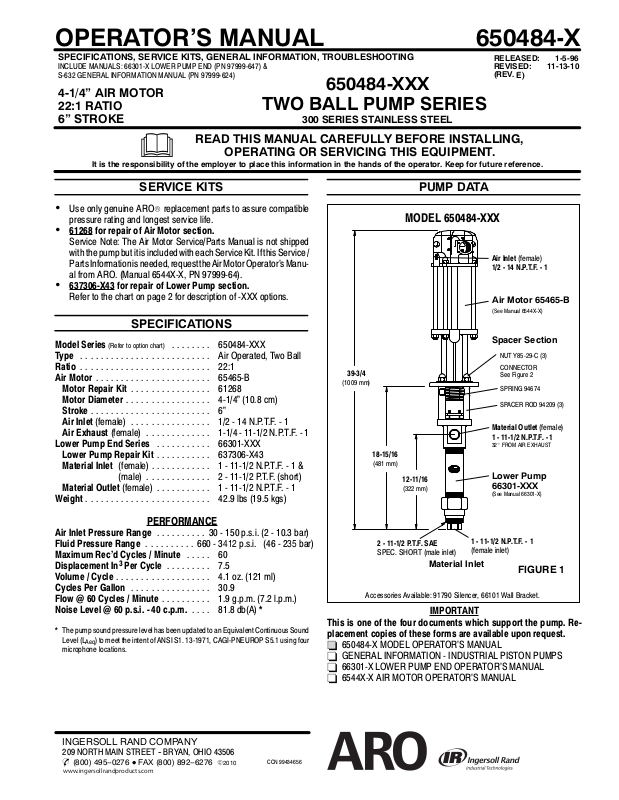

Ingersoll-Rand 650484-X User Manual

OPERATOR’S MANUAL 650484-X

SPECIFICATIONS, SERVICE KITS, GENERAL INFORMATION, TROUBLESHOOTING

INCLUDE MANUALS: 66301-X LOWER PUMP END (PN 97999-647) &
S-632 GENERAL INFORMATION MANUAL (PN 97999-624)

4-1/4” AIR MOTOR
22:1 RATIO
6” STROKE

TWO BALL PUMP SERIES

650484-XXX

300 SERIES STAINLESS STEEL

READ THIS MANUAL CAREFULLY BEFORE INSTALLING,

OPERATING OR SERVICING THIS EQUIPMENT.

It is the responsibility of the employer to place this information in the hands of the operator. Keep for future reference.

RELEASED: 1-5-96
REVISED: 6-1-10
(REV. D)

E)

11-13-10

SERVICE KITS

x

Use only genuine AROR replacement parts to assure compatible
pressure rating and longest service life.

x 61268 for repair of Air Motor section.

Service Note: The Air Motor Service/Parts Manual is not shipped
with the pump but it is included with each Service Kit. If this Service /
PartsInformationisneeded, request the AirMotorOperator’sManu­al from ARO. (Manual 6544X-X, PN 97999-64).

x 637306-X43 for repair of Lower Pump section.

Refer to the chart on page 2 for description of -XXX options.

SPECIFICATIONS

Model Series (Refer to option chart) 650484-XXX........

Typ e Air Operated, Two Ball..........................

Ratio 22:1..........................

Air Motor 65465-B.......................

Motor Repair Kit 61268................

Motor Diameter 4-1/4” (10.8 cm).................

Stroke 6”........................

Air Inlet (female) 1/2 - 14 N.P.T.F. - 1................

Air Exhaust (female) 1-1/4 - 11-1/2 N.P.T.F. - 1.............

Lower Pump End Series 66301-XXX...........

Lower Pump Repair Kit 637306-X43...........

Material Inlet (female) 1 - 11-1/2 N.P.T.F. - 1 &............

(male) 2 - 11-1/2 P.T.F. (short).............

Material Outlet (female) 1 - 11-1/2 N.P.T.F. - 1...........

Weight 42.9 lbs (19.5 kgs).........................

39-3/4

(1009 mm)

18-15/16

(481 mm)

PUMP DATA

MODEL 650484-XXX

12-11/16

(322 mm)

Air Inlet (female)
1/2 - 14 N.P.T.F. - 1

Air Motor 65465-B

(See Manual 6544X-X)

Spacer Section

NUT Y85-29-C (3)

CONNECTOR
See Figure 2

SPRING 94674

SPACER ROD 94209 (3)

Material Outlet (female)
1 - 1 1- 1 /2 N . P.T. F. - 1

32_ FROM AIR EXHAUST

Lower Pump
66301-XXX

(See Manual 66301-X)

PERFORMANCE

Air Inlet Pressure Range 30 - 150 p.s.i. (2 - 10.3 bar)..........

Fluid Pressure Range 660 - 3412 p.s.i. (46 - 235 bar)..........

Maximum Rec’d Cycles / Minute 60.....

Displacement In

Volume / Cycle 4.1 oz. (121 ml)...................

Cycles Per Gallon 30.9................

Flow @ 60 Cycles / Minute 1.9 g.p.m. (7.2 l.p.m.)..........

Noise Level @ 60 p.s.i. - 40 c.p.m. 81.8 db(A) *....

* The pumpsoundpressure level has been updated to an Equivalent Continuous Sound

Level (L

Aeq

microphone locations.

INGERSOLL RAND COMPANY

209 NORTH MAIN STREET -- BRYAN, OHIO 43506

 (800) 495--0276 D FAX [phone]

www.ingersollrandproducts.com

3

Per Cycle 7.5.........

) to meet the intent of ANSI S1. 13-1971, CAGI-PNEUROP S5.1 using four

E2010

CCN 99434656

2 - 1 1- 1 /2 P. T. F. S A E

SPEC. SHORT (male inlet)

Material Inlet

Accessories Available: 91790 Silencer, 66101 Wall Bracket.

1 - 1 1- 1 /2 N . P.T. F. - 1

(female inlet)

FIGURE 1

IMPORTANT
This is one of the four documents which support the pump. Re­placement copies of these forms are available upon request.

= 650484-X MODEL OPERATOR’S MANUAL

- GENERAL INFORMATION - INDUSTRIAL PISTON PUMPS

- 66301-X LOWER PUMP END OPERATOR’S MANUAL

- 6544X-X AIR MOTOR OPERATOR’S MANUAL

PUMP OPTION DESCRIPTION CHART

650484-X

PACKING MATERIAL

X

X

PLUNGER TYPE

SPRING ARRANGEMENT

GENERAL DESCRIPTION

WARNING

mum operating pressure of 3300 p.s.i. (228 bar) at 150 p.s.i.
(10.3 bar) inlet air pressure.

INLET PRESSURE TO PUMP MOTOR

Pump ratio is an expression of the relationship between the pump motor area and
the lower pump end area. EXAMPLE: When 150 p.s.i. (10.3 bar) inlet pressure is
supplied to the motor of a 6:1 ratio pump it will develop a maximum of 750 p.s.i. (52
bar) fluid pressure (at no flow) - as the fluid control is opened, the flow rate will in­crease as the motor cycle rate increases to keep up with the demand.

WARNING

safety precautions and important information.

HAZARDOUS PRESSURE. Do not exceed maxi-

PUMP RATIO X

MAXIMUM PUMP

=

FLUID PRESSURE

Refer to general information sheet for additional

x The Two-Ball pumps are primarily designed for the pumping of me-

dium viscosity fluids, Stainless Steel construction offers compatibili­ty with a wide range of fluids. The two-ball design provides better
priming of the lower foot valve. The double acting feature is standard
in all ARO industrial pumps, material is delivered to the pump dis­charge outlet on both the up and down stroke.

x The motor is connected to the lower pump end by a spacer section.

This allows for lubrication of the upper packing gland and prevents
motor contamination because of normal wear and eventual leakage
through the material packing gland. Be sure the solvent cup is ade­quately filled with lubricant to protect the upper packings and insure
longest service life.

TROUBLE SHOOTING

Pump problems can occur in either the Air Motor Section or the Lower
Pump End Section, use these basic guidelines to help determine which
section is affected.

If the pump will not cycle.

x Be certain to first check for non-pump problems including kinked, re-

strictive or plugged inlet / outlet hose or dispensing device. Depres­surize the pump system and clean out any obstructions in the inlet /
outlet material lines.

x Refer to the motor manual for trouble shooting if the pump does not

cycle and / or air leaks from the air motor.

If the pump cycles but does not deliver material.

x Refer to the lower pump end manual for further trouble shooting.

PACKING MATERIAL

3 Glass filled PTFE P UHMW-PE / PTFE staggered (upper)
C UHMW-PE UHMW-PE (lower)
G UHMW-PE / Leather staggered R PTFE / UHMW-PE staggered (upper)

ARRANGEMENT

SPRING

4 Multiple Wave Spring w/

316 Stainless Steel Balls

7 Multiple Wave Spring w/

440 Stainless Steel Balls

(PACKINGS ARE UPPER AND LOWER UNLESS NOTED)

PTFE (lower)

PLUNGER

3 Hardened Stainless Steel w/

B Hardened Stainless Steel w/

TYPE

Hard Chrome Plating

Ceramic Coating

PUMP CONNECTION -- UPPER / LOWER

NOTE: All threads are right hand.

1. Lay the pump assembly on a workbench.

2. Remove the three nuts from the three spacer rods. (Fig. 1)

3. Pull the air motor from the lower pump end until motor piston rod is in
the “down” position and lower pump end rod is in “up” position.

4. Using e-ring pliers, slide the retaining ring up far enough to allow the
sleeve to move upward and release the two connectors. (Fig. 2)

PUMP CONNECTOR DETAIL

Pump Motor
Piston Rod

FIGURE 2

Lower Pump
Piston Rod

REASSEMBLY

1. Align the pump motor with the lower pump end.

2. Install the two connectors and retain with the sleeve, slide the retain­ing ring back into position.

3. Reinstall the spacer rods to the pump motor.

4. Bring the motor and lower pump together and retain with the three
nuts.

RETAINING RING
90102

SLEEVE
90109

CONNECTOR
90096 (2)

PN 97999-653

Page 2of 2 650484-X
