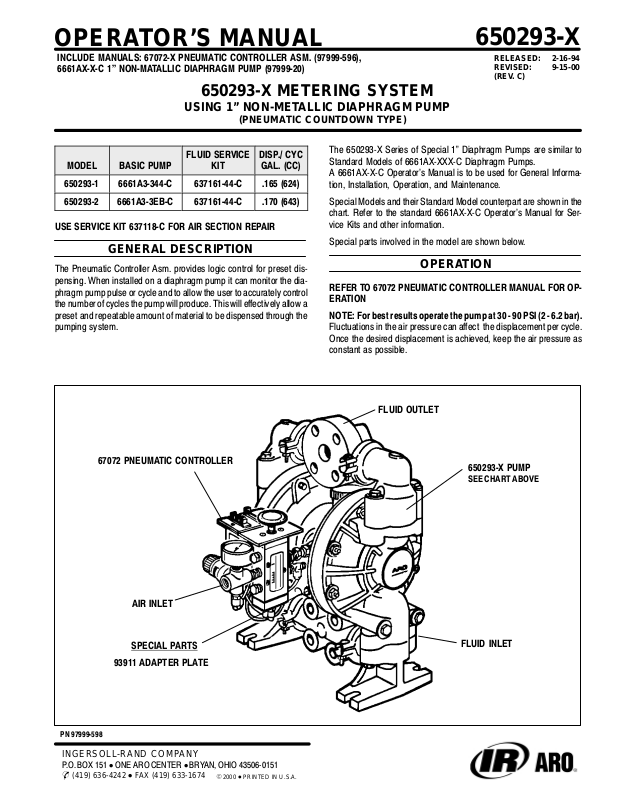

OPERATOR’S

INCLUDE MANUALS: 67072ĆX PNEUMATIC CONTROLLER ASM. (97999Ć596),
6661AXĆXĆC 1" NONĆMATALLIC DIAPHRAGM PUMP (97999Ć20)

MANUAL

650293-X METERING SYSTEM

USING 1” NON-METALLIC DIAPHRAGM PUMP

(PNEUMATIC COUNTDOWN TYPE)

650293-X

RELEASED: 2-16-94
REVISED: 9-15-00
(REV.

C)

FLUID SERVICE

MODEL BASIC PUMP

650293Ć1 6661A3Ć344ĆC 637161Ć44ĆC .165 (624)

650293Ć2 6661A3Ć3EBĆC 637161Ć44ĆC .170 (643)

USE SERVICE KIT 637118ĆC FOR AIR SECTION REPAIR

GENERAL

The Pneumatic Controller Asm. provides logic control for preset disĆ
pensing. When installed on a diaphragm pump it can monitor the diaĆ
phragm pump pulse or cycle and to allow the user to accurately control
the number of cycles the pump will produce. This will effectively allow a
preset and repeatable amount of material to be dispensed through the
pumping system.

DESCRIPTION

KIT

DISP./ CYC

GAL. (CC)

The 650293ĆX Series of Special 1" Diaphragm Pumps are similar to
Standard Models of 6661AXĆXXXĆC Diaphragm Pumps.
A 6661AXĆXĆC Operator's Manual is to be used for General InformaĆ
tion, Installation, Operation, and Maintenance.

Special Models and their Standard Model counterpart are shown in the
chart. Refer to the standard 6661AXĆXĆC Operator's Manual for SerĆ
vice Kits and other information.

Special parts involved in the model are shown below.

OPERATION

REFER TO 67072 PNEUMATIC CONTROLLER MANUAL FOR OPĆ
ERATION

NOTE: For best results operate the pump at 30 Ć 90 PSI (2 Ć 6.2 bar).

Fluctuations in the air pressure can affect the displacement per cycle.
Once the desired displacement is achieved, keep the air pressure as
constant as possible.

FLUID OUTLET

PN 97999Ć598

67072 PNEUMATIC CONTROLLER

AIR INLET

SPECIAL PARTS

93911 ADAPTER PLATE

650293ĆX PUMP

SEE CHART ABOVE

FLUID INLET

INGERSOLL-RAND COMPANY

P.O. BOX 151 D ONE ARO CENTER D BRYAN,OHIO 43506Ć0151

&

[phone] D F

AX [phone]

E2000 D PRINTED IN U.S.A.
