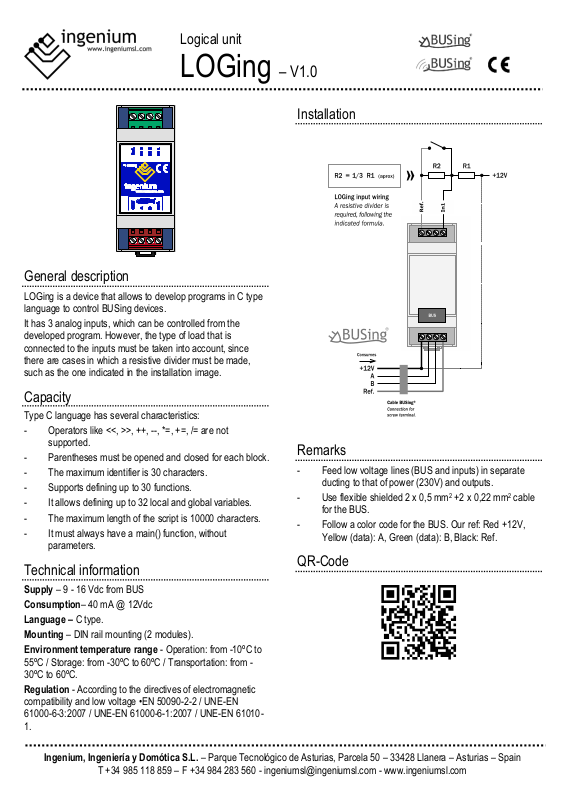

Ingenium LOGing User Manual

Logical unit

LOGing – V1.0

Ingenium, Ingeniería y Domótica S.L. – Parque Tecnológico de Asturias, Parcela 50 – 33428 Llanera – Asturias – Spain

T [phone] – F [phone] - [e-mail] - www.ingeniumsl.com

General description

LOGing is a device that allows to develop programs in C type
language to control BUSing devices.

It has 3 analog inputs, which can be controlled from the
developed program. However, the type of load that is
connected to the inputs must be taken into account, since
there are cases in which a resistive divider must be made,
such as the one indicated in the installation image.

Capacity

Type C language has several characteristics:

- Operators like <<, >>, ++, --, *=, +=, /= are not

supported.

- Parentheses must be opened and closed for each block.

- The maximum identifier is 30 characters.

- Supports defining up to 30 functions.

- It allows defining up to 32 local and global variables.

- The maximum length of the script is 10000 characters.

- It must always have a main() function, without

parameters.

Technical information

Supply – 9 - 16 Vdc from BUS
Consumption– 40 mA @ 12Vdc
Language – C type.
Mounting – DIN rail mounting (2 modules).
Environment temperature range - Operation: from -10ºC to

55ºC / Storage: from -30ºC to 60ºC / Transportation: from ­30ºC to 60ºC.

Regulation - According to the directives of electromagnetic
compatibility and low voltage •EN 50090-2-2 / UNE-EN
61000-6-3:2007 / UNE-EN 61000-6-1:2007 / UNE-EN 61010-

1.

Installation

Remarks

- Feed low voltage lines (BUS and inputs) in separate

ducting to that of power (230V) and outputs.

- Use flexible shielded 2 x 0,5 mm

2

+2 x 0,22 mm2 cable

for the BUS.

- Follow a color code for the BUS. Our ref: Red +12V,

Yellow (data): A, Green (data): B, Black: Ref.

QR-Code
