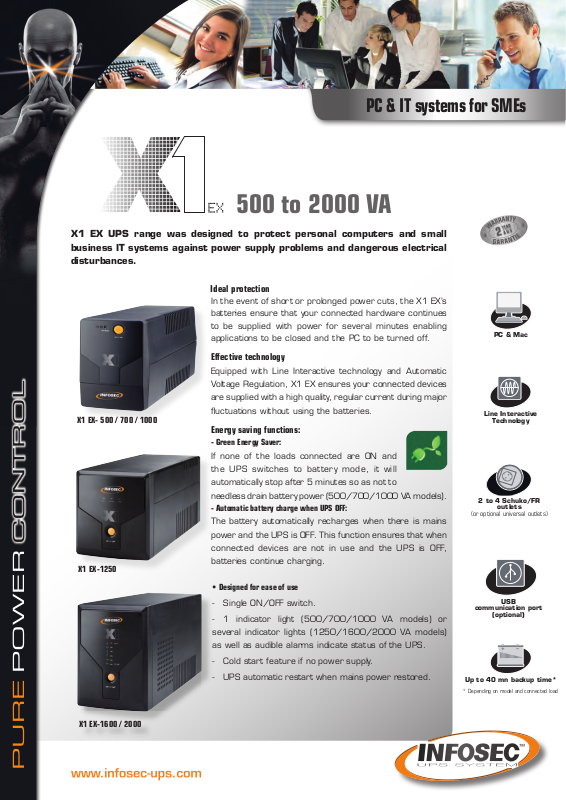

Page 1
PURE
PC & IT systems for SMEs
500 to 2000 VA
X1 EX UPS range was designed to protect personal computers and small
business IT systems against power supply problems and dangerous electrical
disturbances.
Ideal protection
In the event of short or prolonged power cuts, the X1 EX’s
batteries ensure that your connected hardware continues
to be supplied with power for several minutes enabling
applications to be closed and the PC to be turned off.
Effective technology
Equipped with Line Interactive technology and Automatic
Voltage Regulation, X1 EX ensures your connected devices
are supplied with a high quality, regular current during major
fluctuations without using the batteries.
X1 EX- 500 / 700 / 1000
Energy saving functions:
- Green Energy Saver:
If none of the loads connected are ON and
the UPS switches to battery mode, it will
automatically stop after 5 minutes so as not to
needless drain battery power (500/700/1000 VA models).
- Automatic battery charge when UPS OFF:
The battery automatically recharges when there is mains
power and the UPS is OFF. This function ensures that when
connected devices are not in use and the UPS is OFF,
batteries continue charging.
X1 EX-1250
PC & Mac
Line Interactive
Technology
2 to 4 Schuko/FR
outlets
(or optional universal outlets)
POWER
X1 EX-1600 / 2000
• Designed for ease of use
- Single ON/OFF switch.
- 1 indicator light (500/700/1000 VA models) or
several indicator lights (1250/1600/2000 VA models)
as well as audible alarms indicate status of the UPS.
- Cold start feature if no power supply.
- UPS automatic restart when mains power restored.
USB
communication port
(optional)
Up to 40 mn backup time*
* Depending on model and connected load
Page 2
500 to 2000 VA
1/
Power integrated input cable
2/
UPS protected outlets
3/
Input breaker
4/
USB communication port (optional)
5/
IEC input outlet
6/
Fuse
4
4
4
1
3
3
1
2
2
2
4
5
X1 EX-500 / 700 / 1000 X1 EX-1250
X1 EX-500 X1 EX-700 X1 EX-1000 X1 EX-1250 X1 EX-1600 X1 EX-2000
GENERAL CHARACTERISTICS
Technology Line Interactive with Automatic Voltage Regulation
Power 500 VA 700 VA 1000 VA 1250 VA 1600 VA 2000 VA
Power factor 0,5 0,5 0,5 0,5 0,56 0,6
Schuko/FR1 protected UPS outlets 2 2 2 4 4 4
PROTECTION & FILTERING
Output form Modied sinewave
Protection Discharge / overcharge / overload
Input protection Breaker Fuse
PHYSICAL CHARACTERISTICS
Dimensions D x W x H (mm) 279 x 101 x 142 350 x 146 x 160 397 x 146 x 205
Net weight (kg) 3,55 4,2 4,9 8,3 11,1 12
INPUT TECHNICAL CHARACTERISTICS
Voltage [110/120 VAC] or [220/230/240 VAC]*
Voltage range [81/145 VAC] or [162-290 VAC]
Frequency 50/60 Hz (auto sensing)
OUTPUT TECHNICAL CHARACTERISTICS
Voltage [110/120 VAC] or [220/230/240 VAC]*
Automatic Voltage Regulation (battery
mode)
Frequency 50 or 60 Hz
Crest ratio 3:1
Output current (A) 4,2 5,4 8,3 10 12,5 16,7
±
10 %
± 1Hz
BATTERY
Battery charger Operates when UPS is connected to mains
Cold start (no mains) yes yes yes yes yes yes
Battery type 12V/4,5AH 12V/7AH 12V/9AH 12V/7AH 12V/9AH 12V/9AH
Number 1 1 1 2 2 2
Recharging voltage 13.7 Vdc 27.4 Vdc
Recharging time 4 to 6 hours to 90% after complete discharge
Backup time (1 PC) From 8 to 40 min.
INDICATORS
Indicators 1 LED 3 LEDs 6 LEDs
AUDIBLE ALARMS
Battery mode Sounding every 10 seconds
Low battery mode Sounding every second
Overload Sounding twice every second
Battery replacement Sounding every 2 seconds
Fault Continuously sounding
COMMUNICATION
USB communication port optional USB
Logiciel InfoPower
ENVIRONMENT
Ideal environment 0-40°, 0-90% of relative humidity (without condensation)
Noise level
<40 dB
NORMS
Standard CE RoHS
(EMC) Electromagnetic Compatibility
Low voltage (safety) EN60950-1:2006+A11:2009+A1:2010, EN62040-1:2008
EN62040-2:2006, EN61000-4-2:2009, EN61000-4-3:2006+A1:2008+A2:2010,
EN61000-4-4:2004+A1:2010, EN61000-4-5:2006, EN61000-2-2:2002
INFORMATIONS COMMERCIALES
Warranty 2 years
Gencods - standard models
Gencods - models equipped with USB
port
Crédit photos : © A. Rodriguez, © Y. Arcus, © Auremar - 90776
* Low voltage (110V) and High voltage (230V) are dierent products
3700085 65953 33700085 65954 03700085 65955 73700085 65956 4 3700085 65957 13700085 65958 8
3700085 65962 53700085 65963 23700085 65964 93700085 65959 5 3700085 65960 13700085 65961 8
.
X1 EX -1600 / 2000
Connection and backup
2 Schuko/FR1 protected UPS outlets for
500/700/1000 VA models
4 Schuko/FR1 protected UPS outlets for
1250/1600/2000VA.
The range is also available with non CE universal
outlets.
Protected UPS outlets oer up to 40 minutes
backup time (connected load : 1 PC).
USB communication port (optional) enables the
UPS to be operated remotely from a PC and tu use
automatic shutdown. Free download from website :
www.infosec-ups.com
1
To use with FR/Schuko CEE /7-7 plugs.
Package content
X1 EX 500/700/1000/1250 : 1 integrated input cable
2P+T (FR/Schuko) and
a trilingual user manual
(FR / GB / AR)
X1 EX 1600/2000 :
1 input cable 2P+T (FR/
Schuko)/IEC-C13 and
a trilingual user manual
(FR / GB / AR)
Warranty
2-year warranty against
manufacturing defects
under normal conditions
and compliance with
precautionary measures.
Warranty to be taken out
on www.infosec-ups.com withing 10 days of
purchase.
Infosec Communication
4, rue de la Rigotière
44700 ORVAULT - FRANCE
Sales contact
Tél: 02 40 76 11 77
©2013 Infosec Communication, all rights reserved. Infosec UPS System is
a trademarks or registered trademarks of Infosec Communication. All other
trademarks or registered trademarks belong to their respective owners.
Photos are not bindong. Specifications are subject to change without prior
notice. Surge protected outlets belong to the category of electronic and
electrical equipment, and as such, have to be disposed of separately at the
end of their useful life. 04 13 AA XX 111 26 v1.4
