Page 1
ASSURANCE
INSURANCE
GARANTIE
WARRANTY
2
YEARS
ANS
ASSURANCE
1 500 €
INSURANCE
1 500 €

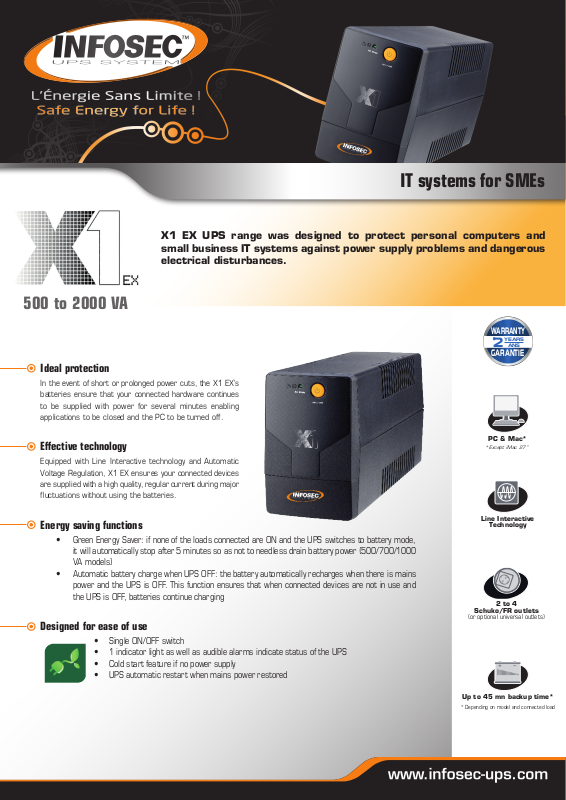

X1 EX UPS range was designed to protect personal computers and
small business IT systems against power supply problems and dangerous
electrical disturbances.
500 to 2000 VA
Ideal protection
In the event of short or prolonged power cuts, the X1 EX’s
batteries ensure that your connected hardware continues
to be supplied with power for several minutes enabling
applications to be closed and the PC to be turned off.
Effective technology
Equipped with Line Interactive technology and Automatic
Voltage Regulation, X1 EX ensures your connected devices
are supplied with a high quality, regular current during major
fluctuations without using the batteries.
IT systems for SMEs
WARRANTY
YEARS
2
ANS
GARANTIE
PC & Mac*
*Except iMac 27’’
Energy saving functions
• Green Energy Saver: if none of the loads connected are ON and the UPS switches to battery mode,
• Automatic battery charge when UPS OFF: the battery automatically recharges when there is mains
Designed for ease of use
it will automatically stop after 5 minutes so as not to needless drain battery power (500/700/1000
VA models)
power and the UPS is OFF. This function ensures that when connected devices are not in use and
the UPS is OFF, batteries continue charging
• Single ON/OFF switch
• 1 indicator light as well as audible alarms indicate status of the UPS
• Cold start feature if no power supply
• UPS automatic restart when mains power restored
Line Interactive
Technology
2 to 4
Schuko/FR outlets
(or optional universal outlets)
Up to 45 mn backup time*
* Depending on model and connected load
*Selon le modèle et la charge connectée
Page 2
CONNECTION
ASSURANCE
INSURANCE
GARANTIE
WARRANTY
2
YEARS
ANS
ASSURANCE
1 500 €
INSURANCE
1 500 €
1. Power integrated input cable
2. UPS protected outlets
3. Input breaker
3
1
X1 500 / 700 / 1000 EX
TECHNICAL CHARACTERISTICS
X1 500 EX X1 700 EX X1 1000 EX X1 1250 EX X1 1600 EX X1 2000 EX
GENERAL CHARACTERISTICS
Technology
Power
Power factor
Schuko/FR1 protected UPS outlets
PROTECTION & FILTERING
Output form
Protection
Input protection
PHYSICAL CHARACTERISTICS
Dimensions D x W x H (mm)
Net weight (kg)
INPUT TECHNICAL CHARACTERISTICS
Voltage
Voltage range
Frequency
OUTPUT TECHNICAL CHARACTERISTICS
Voltage
Automatic Voltage Regulation (battery
mode)
Frequency
Crest ratio
Output current (A)
BATTERY
Battery charger
Cold start (no mains)
Recharging voltage
Recharging time
Backup time (1 PC)
INDICATORS & ALARMS
Indicators
Alarms
ENVIRONMENT
Ideal environment
Noise level
NORMS
Standard
(EMC) Electromagnetic Compatibility
Low voltage (safety)
INFORMATIONS COMMERCIALES
Warranty
PN - standard models
PN - models equipped with USB port
500 VA 700 VA 1000 VA 1250 VA 1600 VA 2000 VA
0,5 0,5 0,5 0,5 0,56 0,6
2 2 2 4 4 4
3,7 4,4 5 8.2 10.4 11
4,2 5,4 8,3 10 12,5 16,7
8 min. 12 min. 20 min. 30 min. 40 min. 45 min.
EN 62040-2:2006 ; EN 62040-2 :2006 ; EN61000-3-2 :2014 ; EN61000-3-3 :2013 ; EN 61000-4-2 :2009 ; EN 61000-4-3
:2006+A1 :2008+A2 :2010 ; EN 61000-4-4 :2012 ; EN 61000-4-5 :2014 ; EN 61000-4-6 :2014 ; EN 61000-4-8 :2010 ; EN
65953 65954 65955 65956 65957 65958
65962 65963 65964 65959 65960 65961
300 x 101 x 142 320 x 130 x 182
13.7 Vdc 27.4 Vdc
Battery mode, low battery mode, overload, battery replacement, fault
3
1
2
X1 1250 EX
Line Interactive with Automatic Voltage Regulation
Modied sinewave
Discharge / overcharge / overload
[110/120 VAC] or [220/230/240 VAC]*
[110/120 VAC] or [220/230/240 VAC]*
Operates when UPS is connected to mains
4 to 6 hours to 90% after complete discharge
0-40°, 0-90% of relative humidity (without condensation)
61000-4-11 :2004 ; EN 61000-2-2 :2002
Breaker
[81/145 VAC] or [162-290 VAC]*
50/60 Hz (auto sensing)
± 10 %
50 or 60 Hz ± 1Hz
3:1
yes
1 LED
<40 dB
CE RoHS
EN62040-1 :2008+A1 :2013
2 years
3
1
2
X1 1600 / 2000 EX
500 to 2000 VA
Connection
2 Schuko/FR1 protected UPS outlets for
500/700/1000 VA models
4 Schuko/FR
1250/1600/2000VA.
USB communication port (optional)
enables the UPS to be operated remotely
from a PC and tu use automatic shutdown.
Free download from our website .
1
Package content
X1 EX 500/700/1000/1250 :
• 1 integrated input cable 2P+T (FR/
• 1 trilingual user manual (FR / GB / AR)
X1 EX 1600/2000 :
• 1 input cable 2P+T (FR/Schuko)/IEC-C13
• 1 trilingual user manual (FR / GB / AR)
Warranty
2-year warranty
against
manufacturing
defects under normal
conditions and
compliance with precautionary measures.
Warranty to be taken out on our website
within 10 days of purchase.
1
protected UPS outlets for
To use with FR/Schuko CEE /7-7 plugs.
Schuko)
WARRANTY
YEARS
2
ANS
GARANTIE
* Low voltage (110V) and High voltage (230V) are dierent products
.
Infosec Communication
15 Rue du Moulin
44880 SAUTRON - FRANCE
Sales contact
Tél: 02 40 76 11 77
©2018 Infosec Communication, all rights reserved. Infosec UPS System is a trademarks or registered trademark of Infosec Communication. All other trademarks or registered trademarks belong to their respective owners. Photos are
not binding. Specifications are subject to change without prior notice. Backup time is only a guide: actual duration may vary depending on the temperature, battery condition and peripherals added. UPS are part of electronic and electric
equipments category. At the end of their lives, they have to be collected separately. 07 18 AA AA 111 17
