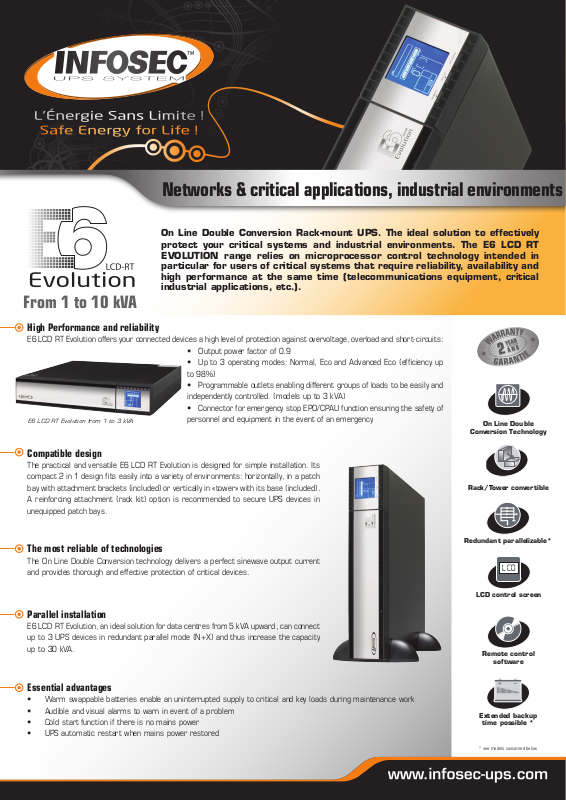

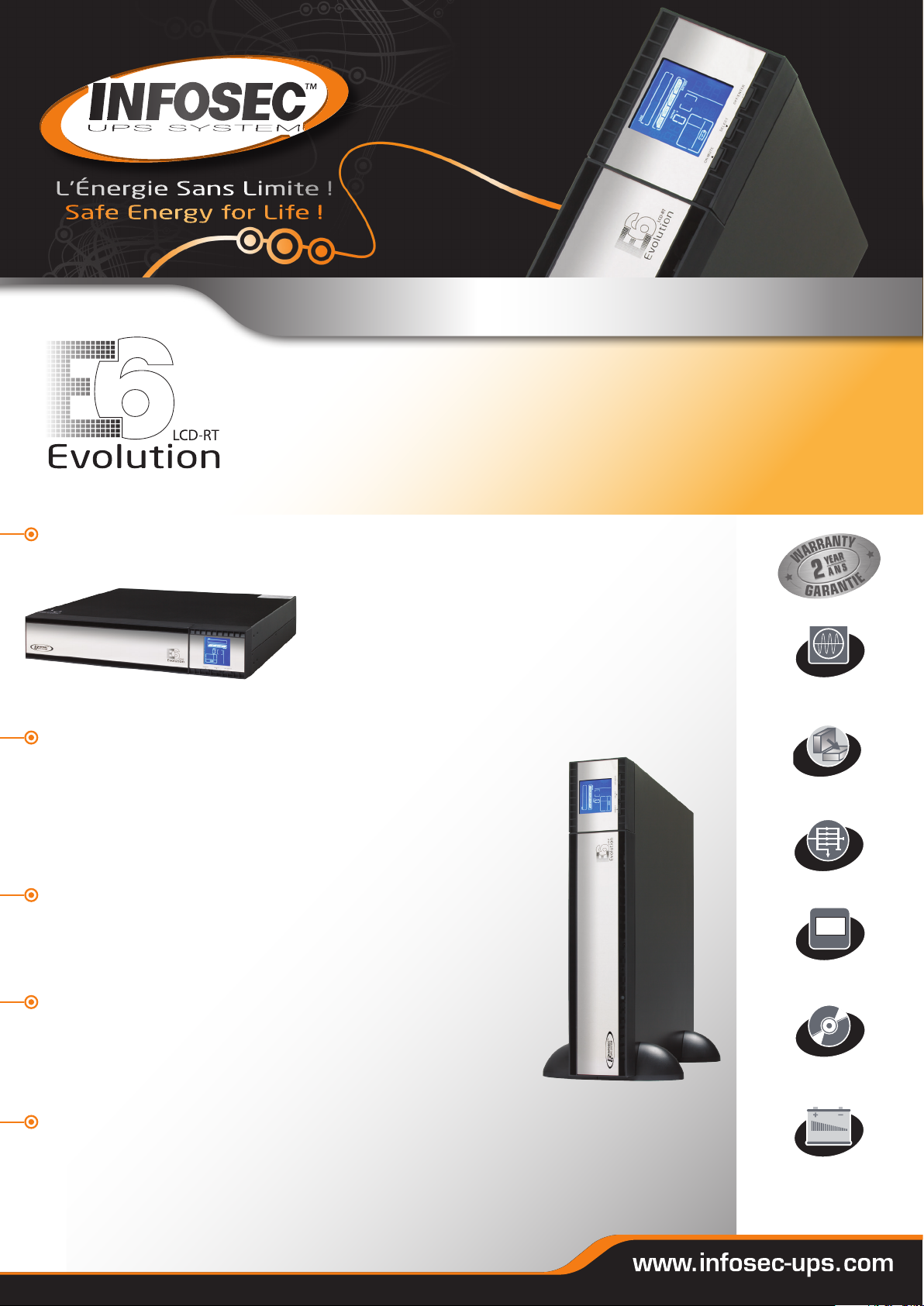

Networks & critical applications, industrial environments

LCD

On Line Double Conversion Rack-mount UPS. The ideal solution to effectively protect your critical systems and industrial environments. The E6 LCD RT

EVOLUTION range relies on microprocessor control technology intended in particular for users of critical systems that require reliability, availability and high performance at the same time (telecommunications equipment, critical industrial applications, etc.).

From 1 to 10 kVA

High Performance and reliability

E6 LCD RT Evolution offers your connected devices a high level of protection against overvoltage, overload and short-circuits:

• Output power factor of 0.9

• Up to 3 operating modes: Normal, Eco and Advanced Eco (efﬁciency up to 98%)

• Programmable outlets enabling different groups of loads to be easily and independently controlled. (models up to 3 kVA)

• Connector for emergency stop EPO/CPAU function ensuring the safety of

E6 LCD RT Evolution from 1 to 3 kVA

Compatible design

The practical and versatile E6 LCD RT Evolution is designed for simple installation. Its compact 2 in 1 design ﬁts easily into a variety of environments: horizontally, in a patch bay with attachment brackets (included) or vertically in «tower» with its base (included). A reinforcing attachment (rack kit) option is recommended to secure UPS devices in unequipped patch bays.

personnel and equipment in the event of an emergency

On Line Double

Conversion Technology

Rack/Tower convertible

The most reliable of technologies

The On Line Double Conversion technology delivers a perfect sinewave output current and provides thorough and effective protection of critical devices.

Parallel installation

E6 LCD RT Evolution, an ideal solution for data centres from 5 kVA upward, can connect up to 3 UPS devices in redundant parallel mode (N+X) and thus increase the capacity up to 30 kVA.

Essential advantages

• Warm swappable batteries enable an uninterrupted supply to critical and key loads during maintenance work

• Audible and visual alarms to warn in event of a problem

• Cold start function if there is no mains power

• UPS automatic restart when mains power restored

Redundant parallelizable*

LCD

LCD control screen

Remote control

software

Extended backup

time possible *

* see models concerned below

Page 2

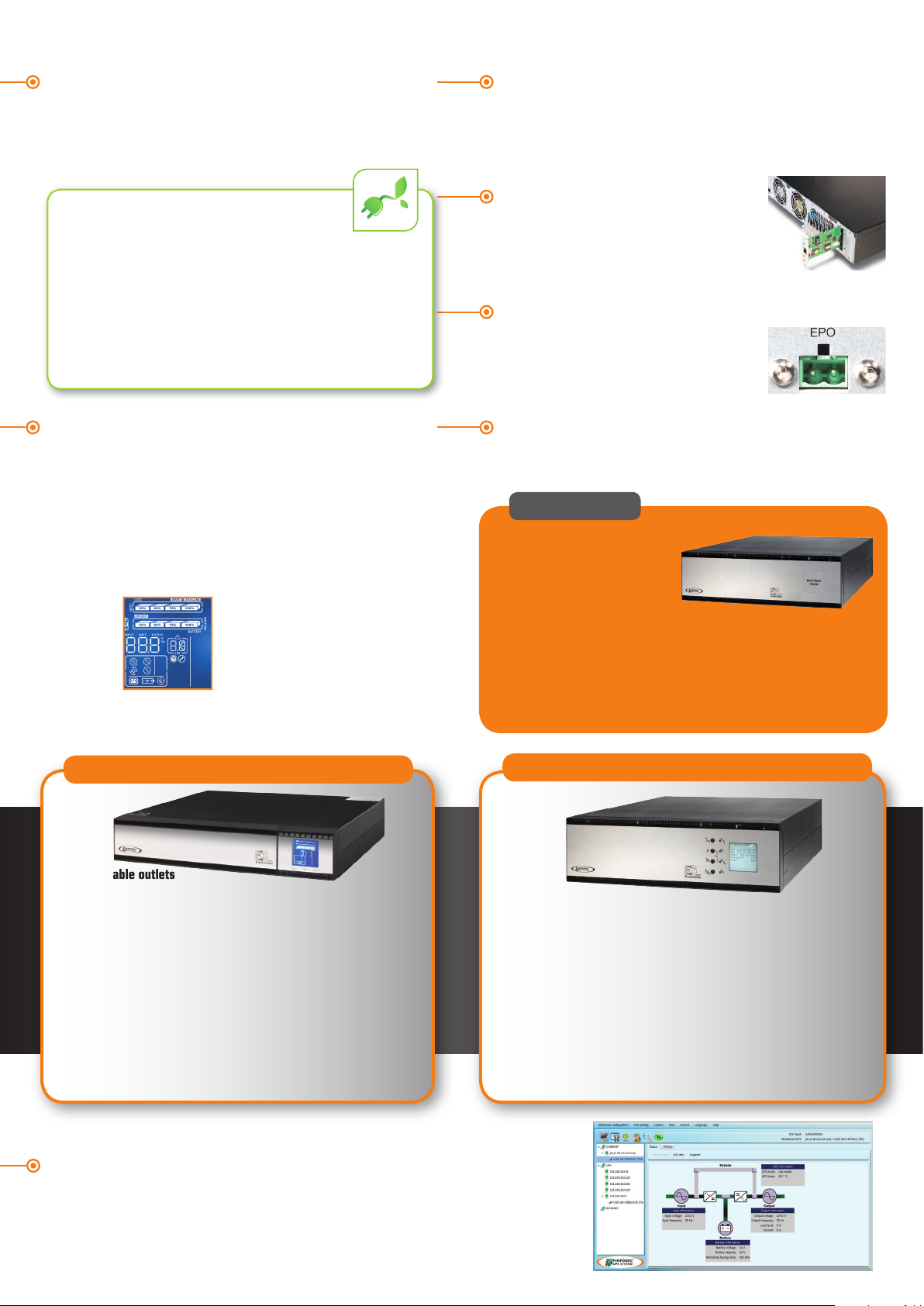

AVANTAGES

Power factor of 0.9

• Optimal output power factor : 0.9 (NB: 0.8 for models from 1 to 3 kVA)

• High performance

• Efﬁciency for critical applications

Energy Saving ECO Mode

Efﬁciency of up to 92% from 1 to 3 kVA and 96% for powers from 5 to 10 kVA reduce energy consumption and costs. This operating mode delivers a static bypass power supply and offers timely return to on-line double conversion if required. The E6 devices from 1 to 3 kVA also have an Advanced Eco mode that provides up to 98% efﬁciency.

User-friendly LCD display

• Accurate and user-friendly LCD screen displays status and

parameters in real time

• Intuitive and multi-directional : allows both Tower and Rack-mount

• Rotating front panel LCD display : gives direct access to UPS

settings (adjusting output voltage...)

• Simple programming from the front panel LCD screen enables

the frequency to be set to 50 or 60 Hz.

Overload protection

• Protection of internal power components

• prevention of connection errors.

• reliability : automatic control of loads, power supply and UPS

internal operation

Communication

• USB or RS 232 ports enable communication

between the UPS and the various stations and IT servers they are protecting

• SNMP agent optional

EPO emergency stop control

• This function ensures the safety of

personnel and equipment in the event of ﬁre or any other emergency situation by initiating

a total and immediate shutdown of the UPS.

Cold start function

• It enables an emergency situation involving a total power cut to

be overcome by starting the UPS using batteries if there is no mains power supply.

Batteries

Adapted battery cabinets

Other battery cabinets can be added to increase backup time.

LCD Rack Display E6 LCD RT Evolution 1000 VA

Advantages of models from 1 to 3 kVA

Programmable outlets

Programmable outlets allow users to easily control different load groups separately. It will therefore be possible to increase the backup time on the most strategic and vital hardware, during a power outage, by stopping non-critical hardware connected to programmable outlets. These outlets are easy to manage via the LCD display and/or Infopower software.

Warm swappable batteries

The E6 LCD RT EVOLUTION, equipped with a practical and versatile battery system, gives the user the opportunity to replace batteries without stopping the UPS and consequently without interrupting the power supply to critical and vital loads.

Intelligent battery chargers to optimise battery performance

A battery charger from 1 to 3 kVA with 2 levels reduces charging time and adjusts the charging voltage according to the outside temperature to increase the lifetime of batteries and thereby generate energy savings.

Advantages of models from 5 to 10 kVA

Parallel installation:

option to connect up to 3 UPS devices in redundant parallel mode (N+X)

Battery chargers:

UPSs upward of 5 kVA are ﬁtted with extendable chargers with 3 levels optimising battery performance as well as their recharge time and extending their useful life even further. In addition, due to an extendible design, a charger can be connected in parallel as needed, thereby offering a greater battery charge capacity.

COMMUNICATION

Communication software

• InfoPower control software (supplied as standard)

• If there is no power : the UPS close the ﬁles automatically and in doing so save data from all

the PCs in a network

• The communication software offers a graphic interface to view system status, various

measurements, events log, etc.

Page 3

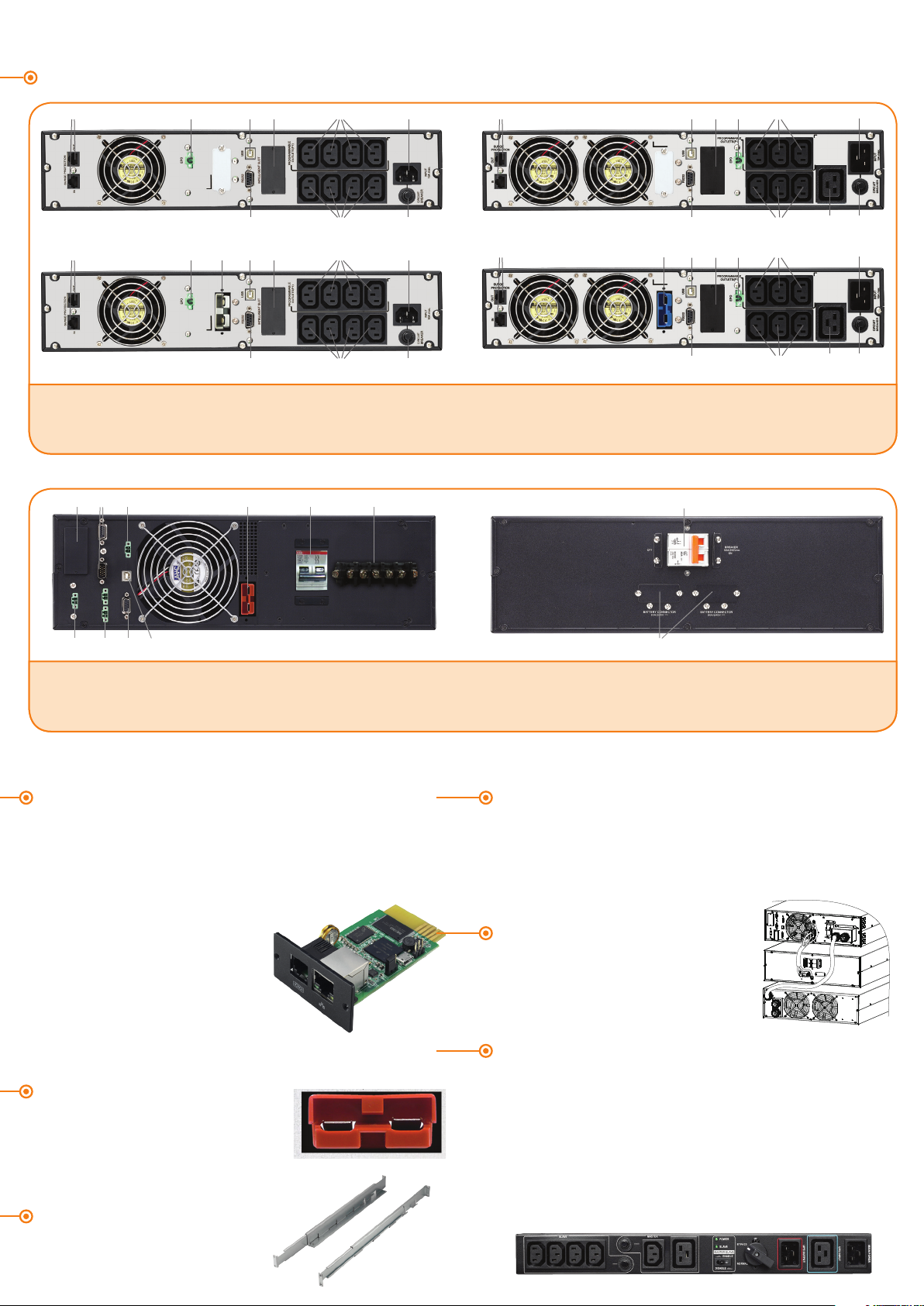

CONNECTION

A connector tailored to industrial environments

E6 LCD RT EVOLUTION 1000 & 2000

E6 LCD RT EVOLUTION 1000 S & 2000 S

1. Programmables protected UPS outlets (10A)

2. Standards protected UPS outlets (10A)

3. Standards protected UPS outlets (16A)

4. AC input cable (1000 VA:10A ; 2000 and 3000 VA:16A)

6 3 8 9 10

7 7

5. Input breaker

6. Network/Fax/Modem surge

protection

7. EPO (Emergency Power O)

E6 LCD RT EVOLUTION 3000

E6 LCD RT EVOLUTION 3000 S

8. USB communication port

9. RS-232 communication port

10. SNMP intelligent slot

11. External battery connector

(S models only)

7 4 21

1. RS-232 communication port

2. USB communication port

3. EPO (Emergency Power O )

4. Parallel port 1

E6 LCD RT EVOLUTION (S) from 5000 to 10000 VA

5. Parallel port 2

6. SNMP intelligent slot

7. EMBS (External Maintain Bypass

Switch) port

OPTIONS

SNMP I Pro agent

The use of SNMP agent with E6 LCD RT EVOLUTION UPS devices makes it easier to manage the UPS due to its many special features:

• Connection to the Ethernet network and identiﬁcation by IP address (random or ﬁxed)

• Low battery detection.

• Conﬁguring and programming switch-off and restarts of the system on a weekly (or other) basis.

• UPS conﬁguration locally or remotely.

• Self-diagnosis of the UPS devices while operating.

• Automatic shutdown according to predeﬁned priorities on network PCs.

• Sending warning messages to users of the network / mail / GSM, etc.

• Events log.

Backup extensions

Opportunity to increase battery power for unstable or highly disrupted environments. The S versions (extended backup time) are delivered without an internal battery but with external battery packs.

Rack kit

Enables securing to a patch bay

Battery pack from 5000 to 10000 VA

8. External Battery connector

9. Input circuit breaker

10. Input/Output terminal

11. Battery pack output circuit breaker

AS400 dry contact card

The AS400 communication card supplies dry contacts to feedback alarms from your UPS (e.g. centralized technical management).

Depending on the applications, dry contacts may normally be open or closed.

Isolation Transformer

Isolution Transpormer provides isolation between the input and output current.

External Maintenance bypass (BMe) for E6 LCD RT EVOLUTION UPS devices from 1 to 10 kVA

• Provides continuous power to connected equipment during

maintenance of the UPS via a rotary switch.

• Provides a large number of outlets for extended use.

• Rack or Tower model depending on the working environment (1 to 3 kVA).

• Simple installation (plug and play for models from 1 to 3 kVA).

• Available for all UPS devices from 1 to 10 kVA.

Page 4

TECHNICAL

CHARACTERISTICS

E6 LCD

Evolution 1000

RT (S)

6 LCD

Evolution 2000

RT (S)

6 LCD

Evolution 3000

RT (S)

6 LCD

Evolution 5000

RT (S)

6 LCD

Evolution 6000

RT (S)

6 LCD

Evolution 8000

RT (S)

GENERAL CHARACTERISTICS

Technology On Line Double Conversion Power (VA) 1000 VA 2000 VA 3000 VA 5000 VA 6000 VA 8000 VA 10000 VA

Power (W)

Power factor

Standard 900 W 1800 W 2700 W 4500 W 5400 W 7200 W 9000 W Long Backup time (S) 900 W 1800 W 2700 W 4500 W 5400 W 7200 W 9000 W Standard Long Backup time (S)

0,9

PHYSICAL CHARACTERISTICS

Standard

Long Backup time (S)

Dim. D x W x H (mm) UPS Dim. D x W x H (mm) Battery bank Net weight (kg) : UPS + Battery bank Dim. D x W x H (mm) UPS Net weight (kg) 8,6 11,3 16 17 20

415 x 440 x 88

515 x 440 x 88

(2U)

- - - 645 x 440 x 133 (3U) 645 x 440 x 133 (3U)

12,9 20,6 28 17 + 57 20 + 63

515 x 440 x 88

(2U)

635 x 440 x 88

(2U)

635 x 440 x 88

(2U)

580 x 440 x 133 (3U) 745 x 440 x 133 (3U)

TECHNICAL INPUT CHARACTERISTICS

Low Line transfer

(based on load

Low voltage range

High voltage range

Frequency range 50 Hz : 40 Hz ~ 70 Hz 50 Hz : 46 Hz ~ 54 Hz or 60 Hz : 56 Hz ~ 64 Hz Phase Single phase Single phase Power factor 0,99 at 100% load 0,99 at 100% load

percentage : 100%80% / 80%-70% / 70%-60% / 60%-0%)

Low Line comeback

High Line transfer

High Line comeback

110 V* 80 VAC / 70 VAC / 60 VAC / 55 VAC +/- 5% -

230 V* 160 VAC / 140 VAC / 120 VAC / 110 VAC +/- 5% 176 VAC / 154 VAC / 132 VAC / 110 VAC +/- 2%

110 V 85 VAC / 75 VAC / 65 VAC / 60 VAC +/- 5% - 230 V 170 VAC / 150 VAC / 130 VAC / 120 VAC +/- 5% 186 VAC / 164 VAC / 142 VAC / 120 VAC +/- 2% 110 V 150 VAC +/- 5% - 230 V 300 VAC +/- 5% 300 VAC 110 V 140 VAC +/- 5% - 230 V 290 VAC +/- 5% 290 VAC

TECHNICAL OUTPUT CHARACTERISTICS

Voltage

AC voltage regulation (Batt mode) +/- 1% +/- 1% Frequency range (Synchronized range) 50 Hz : 47 ~ 53 Hz or 60 Hz : 57 ~ 63 Hz 50 Hz : 46 Hz ~ 54 Hz or 60 Hz : 56 Hz ~ 64 Hz Frequency range (Batt mode) 50 Hz +/- 0,2 Hz or 60 Hz +/- 0,2 Hz 50 Hz +/- 0,1 Hz or 60 H z +/- 0,1 Hz Current crest ration 5 : 1 (max) 3 : 1 (max)

Harmonic distorsion

Transfer time

Waveform Pure sinewave

Output outlets IEC standards / programmables

Line mode to battery mode 0 ms 0 ms Inverter to Bypass 4 ms (Typical) 0 ms

[110 / 115 / 120 / 127 VAC]*

or [208 / 220 / 230 / 240 VAC]

<= 2% THD (linear load);

<= 4% THD (batt mode before shut down)

4 (10A) /

4 (10A)

4 (10A) /

4 (10A)

3/3 (10A) + 1 standard

(16A)

200 / 208 / 220 / 230 / 240 VAC

<= 2% THD (linear load);

<= 4% THD (batt mode before shut down)

Terminal board

EFFICIENCY

AC mode 87% 88% 89% 90% Battery mode 85% 86% 87% 88% Eco mode 92% 96%

BATTERY

Standard model

Long backup time model (S)

Recharging voltage 24 Vdc 48 Vdc 72 Vdc 240 Vdc 240 Vdc

Typical recharge time 4 hours recover to 90% capacity

Charging current (max) 1A 1A Backup time From 5 to 30 minutes depending on the connected load Typical recharge time Depending on the capacity of external batteries Charging current (max) 1A, 2A, 4A or 8A 4A

7 hours recover to 90%

capacity

9 hours recover to 90%

capacity

INDICATORS & ALARMS

LCD screen Load level, Battery level, AC mode, Battery mode, Bypass mode, and Fault indicator.

Alarms Battery mode, low battery, overload, fault

MANAGEMENT / COMMUNICATION

USB & RS232 port and Infopower included software

Communication

Parallel connection - Parallel port

Optional SNMP I Pro : Management system through SNMP software (VMware

(support Windows family, Linux, Unix and MAC)

compatible) and web browser

ENVIRONMENT

Ideal environment

Operating Altitude Up to 1000 m above sea level (> 1000 m 1% deterioration for every 100 m) Noise level Less than 50dBA @ 1 meter Less than 58dBA @ 1 meter Less than 60dBA @ 1 meter

Heat dissipation max - LV (110 V)

Photos non contractuelles

Heat dissipation max - HV (230 V)

20 - 90% relative humidity @ 0-40° non

163 W /

556,31 Btu/h

141 W /

481,11 Btu/h

condensing

257 W /

877,13 Btu/h

256 W /

873,5 Btu/h

1419,80 Btu/h

1187,41 Btu/h

416 W /

348 W /

0 - 95% relative humidity @ 0-40° non condensing

- - - -

600 W /

2047,8 Btu/h

600 W /

2047,8 Btu/h

600 W /

2047,8 Btu/h

NORMS

Standard CE RoHS CE RoHS, cTUVus EMC (Electromagnetic compatibility) EN 62040-2 : 2006 EN 62040-2 : 2006 Low voltage (Safety) EN62040-1 : 2008

EN62040-1 : 2008, UL 1778/R:2006;CSA C22.2 NO.107.3-05/R:2006

SALES INFO

Warranty 2 years PN - Standard versions PN - Long backup time version (S)

* LV (110V) and HV (230V) products are dierent. Reduction of the power down to 95% of (puissance nominale) when the output current is adjusted at 115V. Reduction of the power down to 90% of (puissance nominale) when the output current is adjusted at 110V. Reduction of the power down to 80% of (puissance nominale) when the output current is adjusted at 100V, 200V, 208V.

E6 LCD

BACKUP MODULES

10-31-1614 / Cette entreprise a fait certifier sa chaîne de contrôle / pefc-france.or

Dimensions - D x W x H (mm) Net weight (kg) - (empty) Net weight (kg) - (avec batteries) PN 67402 67406 67409 67136 67137

Evolution 1000 RT

67113 67114 67115 67325 67326 67327 67328 67116 67117 67118 67123 67124 67125 67126

E6 LCD

Evolution 2000 RT

515 x 440 x 88 (2U) 635 x 440 x 88 (2U) 640 x 440 x 88 (2U)

10.2 10.3 12.1 9 13

20.6 31.1 43.3 59 65

E6 LCD

Evolution 3000 RT

E6 LCD Evolution

5000 / 6000 RT

E6 LCD Evolution

8000 / 10k RT

6 LCD

Evolution 10k

RT (S)

600 W /

2047,8 Btu/h

From 1 to 10 kVA

Package content

- 1 UPS

- 1 USB cable

- 1 RS 232 cable

- 1 input cable (1 to 3 kVA models)

- 4 IEC 10A output cable (1 to 3 kVA models)

- 2 19’’ Rackmount Bracket

- 1 oor standing system

- 1 user manual

- Infopower Software

- 2 cables for parallel ports (> 5kVA)

- 1 battery cable (> 5kVA)

Options

- Rack kit (Ref : 61429)

- SNMP I Pro card (Ref : 61156)

- SNMP vm Minislot card (Ref : 61142)

- Dry contact card (Ref : 61454)

- RS 485 card (Ref : 61439)

- External Maintain Bypass switch

Model Ref

External bypass RM-IEC 61442

External bypass RM-FR 61443

External bypas E6 5 to 10k 61444

- Isolation transformer

Model Ref

Isolation transformer for 5 and 6 kVA

Isolation transformer for 8 and 10 kVA

- Additional Battery banks - see table

Warranty

Two-year warranty against manufacturing defects under normal conditions and compliance with precautionary measures.

Warranty to be taken out on www.infosec-ups.com within 10 days of

purchase.

Maintenance contract

A Maintenance contract is highly recommended: contact [email protected]

Infosec Communication

15, rue du Moulin

44880 SAUTRON - FRANCE

Sales Contact

Tel: 02 40 76 11 77

[email protected]

67146

67147

©2017 Infosec Communication SAS, all rights reserved. Infosec UPS System is a trademarks or registered trademark of Infosec Communication. All other trademarks or registered trademarks belong to their respective owners. Photos are not binding. Speciﬁcations are subject to change without prior notice. Backup time is only a guide: actual duration may vary depending on the temperature, battery condition and peripherals added. UPS are part of electronic and electric equipments category. At the end of their lives, they have to be collected separately. 04 17 AA 80 111 82
