X10
User’s Guide
Mode d’emploi
Benutzeranleitung
Manual de Uso
Guidaall'uso
Gebruikershandleiding
Guia do usuário
Användarhandbok
用户指南
Declaration of Conformity
Manufacturer: InFocus Corporation, 27500 SW Parkway Ave. Wilsonville, Oregon 97070
USA
European Office: Louis Armstrongweg 110, 1311 RL Almere, The Netherlands
We declare under our sole responsibility that this projector conform to the following directives and norms:
EMC Directive 89/336/EEC, Amended by 93/68/EEC
EMC: EN 55022
EN 55024
EN 61000-3-2
EN 61000-3-3
Low Voltage Directive 73/23/EEC, Amended by 93/68/EEC
Safety: IEC 60950-1: 1
July, 2007
st
Edition
Trademarks
Adobe and Acrobat are trademarks or registered trademarks of Adobe Systems
Incorporated. Digital Light Processing and BrilliantColor are trademarks or registered
trademarks of Texas Instruments. ISF is a trademark or registered trademark of Imaging
Science Foundation, Inc. Deep Color s a trademark or registered trademark of Pixelworks
and DNX are trademarks or registered trademarks of Pixelworks Inc. HDMI, the HDMI logo
and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI
Licensing LLC.
registered trademarks or trademarks of InFocus Corporation in the United States and other
countries.
InFocus, In Focus, and INFOCUS (stylized), ASK and Proxima are either
FCC Warning
Note: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver.
--Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
--Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by InFocus Corporation may void authority
to operate the equipment.
Canada
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
Agency Approvals
UL, cUL, GOST
Other specific Country Approvals may apply. Please see product certification label.
This document applies to regulatory model P820.
InFocus reserves the right to alter product offerings and specifications at any time without
notice.
1
Table of Contents
Introduction 3
Positioning the projector 5
Choosing the aspect ratio 6
Connecting a video device 7
Video connectors 7
Digital connections 7
HDMI 1.3 connection 8
DVI connection 8
Component (RCA) connection 8
S-video connection 8
Composite (RCA) video connection 8
Computer connections 8
RS-232 connections 8
Displaying an image 9

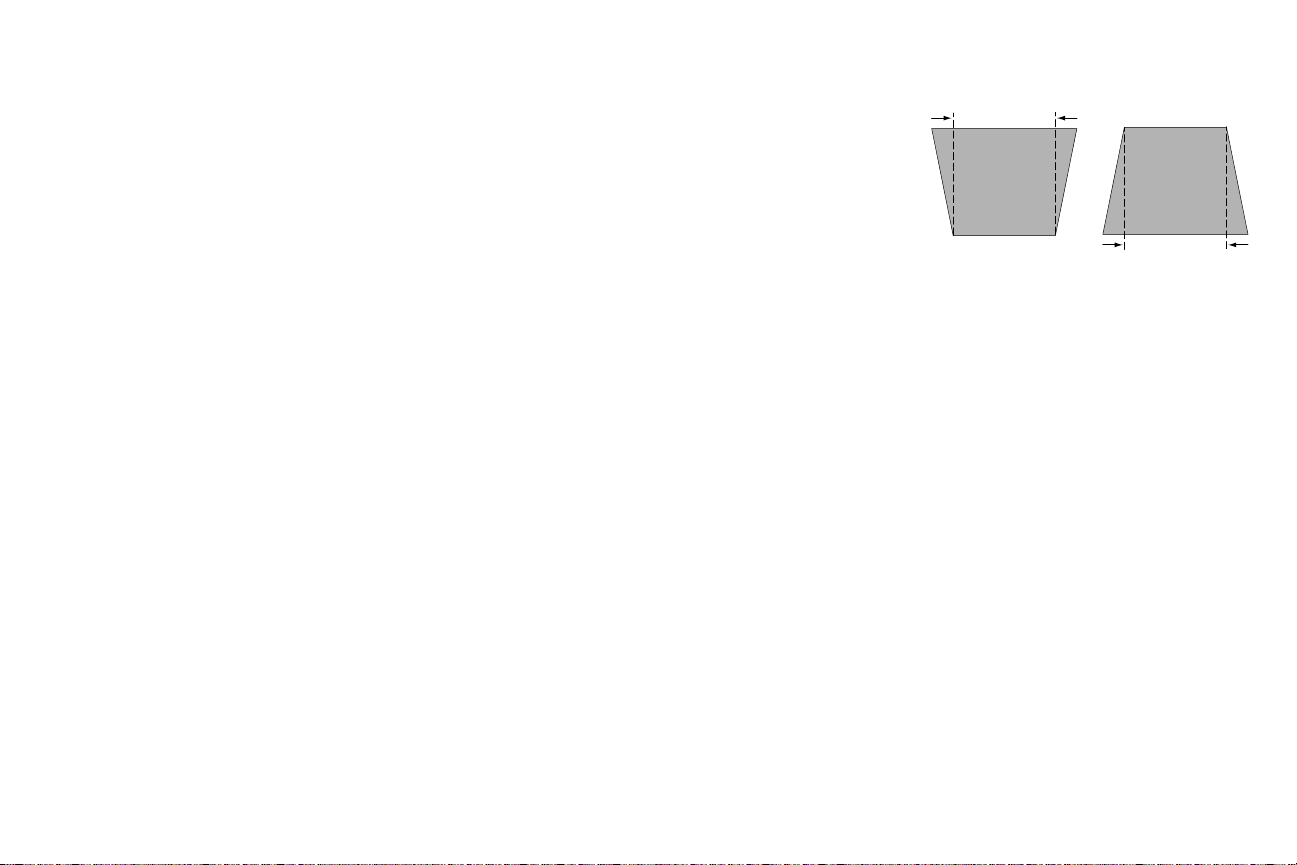

Adjusting the image 9
Shutting down the projector 11

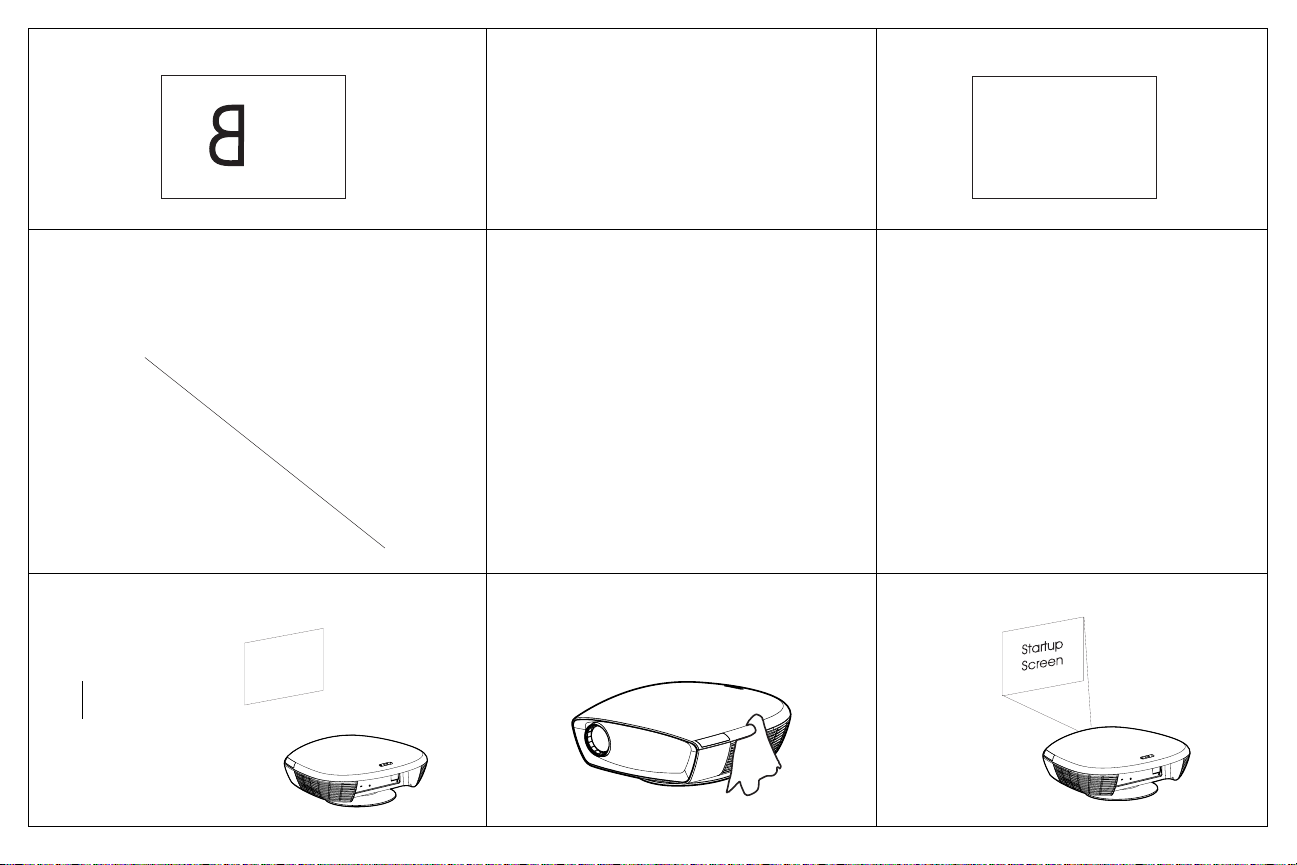

Troubleshooting your setup 11

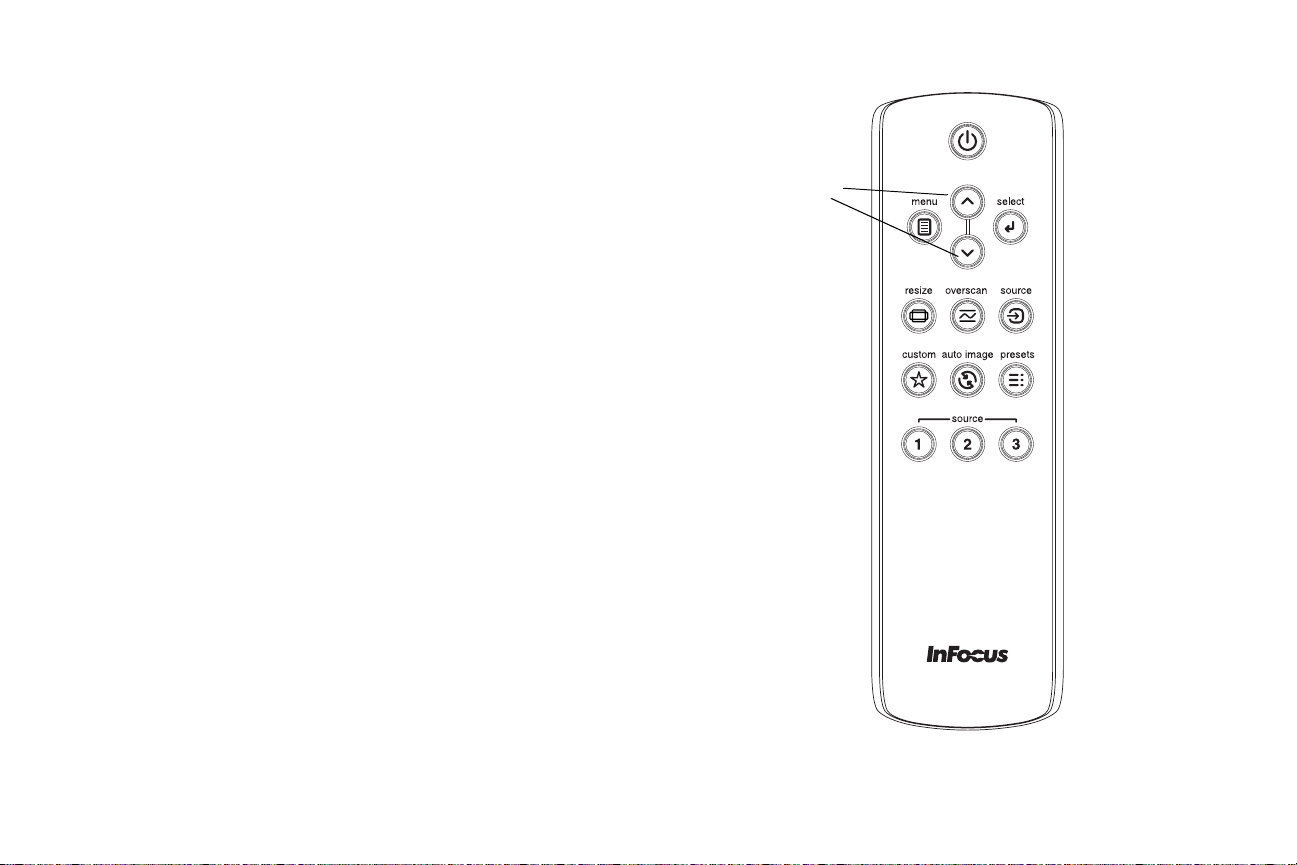

Using the remote control 17
Optimizing video images 18
Customizing the projector 18
Important Operating Considerations for Safety
• Place the projector in a horizontal position no greater than 15 degrees off
axis.
• Locate the projector in a well-ventilated area without any obstructions to
intake or exhaust vents. Do not place the projector on a tablecloth or other
soft covering that may block the vents.
• Locate the projector at least 4' (1.2 m) away from any heating or cooling
vents.
• Use only InFocus-approved ceiling mounts.
• Use only the power cord provided. A surge-protected power strip is recommended.
• Refer to this guide for proper startup and shutdown procedures.
• Hg – Lamp contains mercury. Manage in accordance with local disposal laws. See www.lamprecycle.org.
• In the unlikely event of a lamp rupture, particles may exit through the projector side vents. When the projector is turned on, keep people, food, and
drinks out of the "keep out" area under and around the projector, as indicated
by the "X" areas below.
Follow these instructions to help ensure image quality and lamp life over the life of
the projector. Failure to follow these instructions may affect the warranty. For
complete details of the warranty, see the Warranty booklet.
Using the menus 19
Picture menu 20
Settings menu 24
Maintenance 27

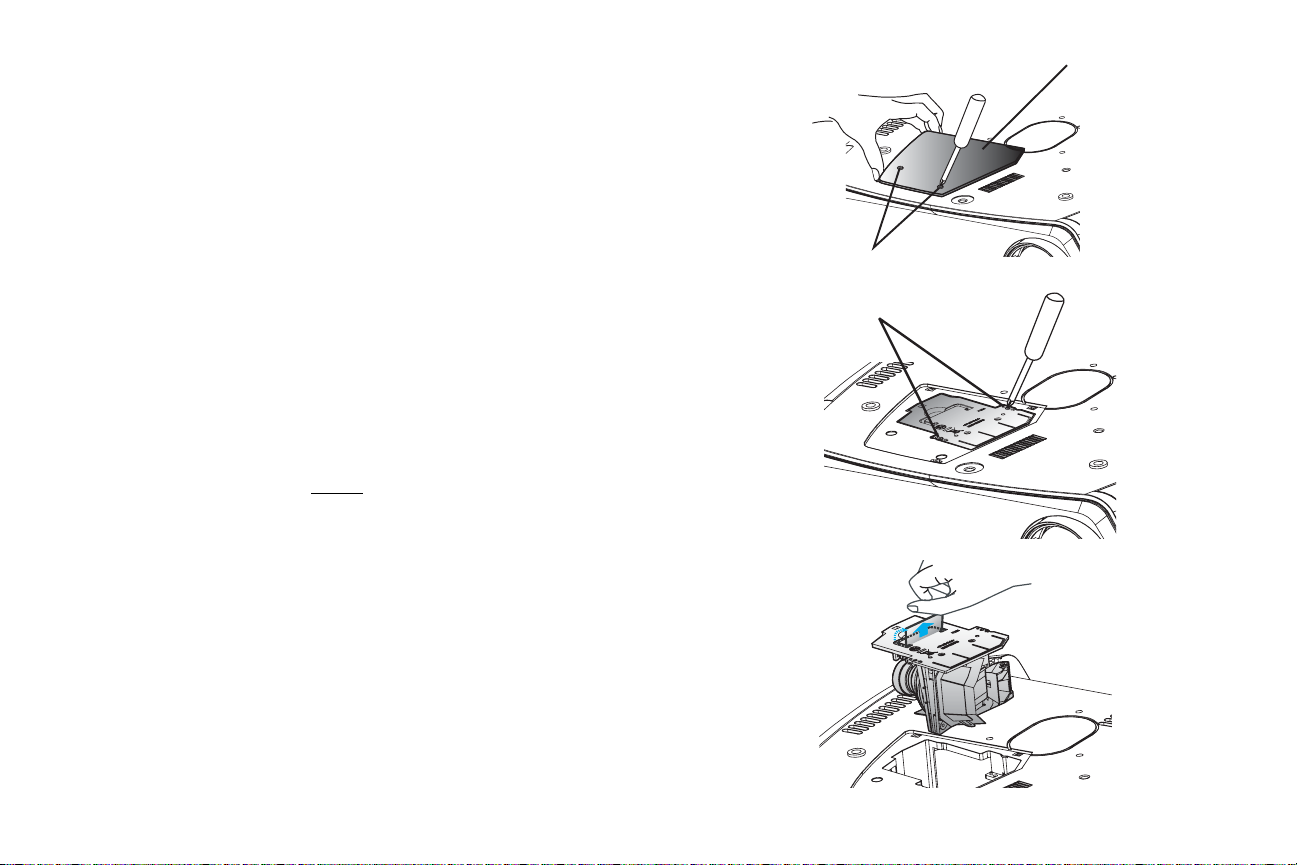

Replacing the projection lamp 27
Appendix 29
Remote control discrete codes 29

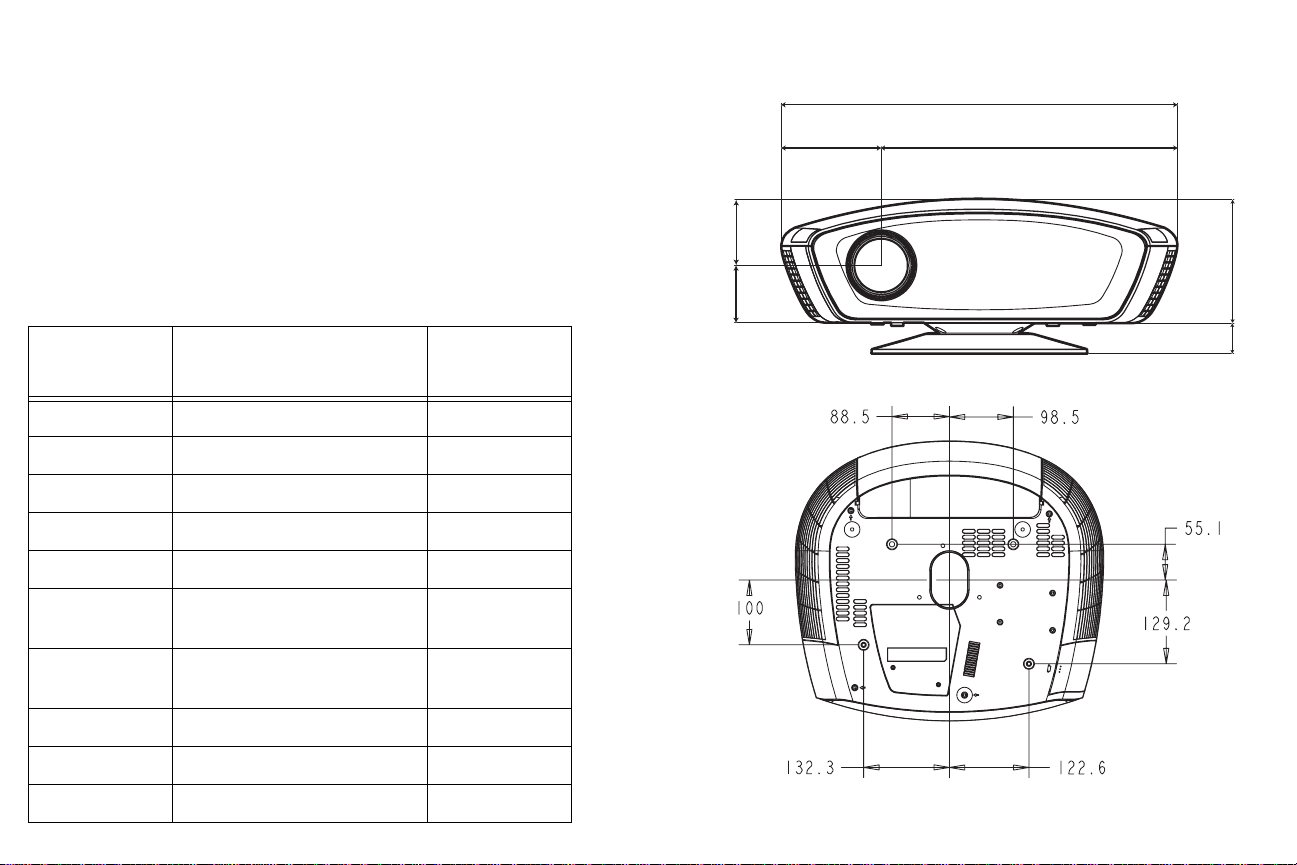

Projector dimensions for ceiling mount installations 29
RS-232 terminal Product Interface specifications 31
8
’
/2.4m
’
5
/1.5m
3
’
/1m
/0.6m
’
2
2
Introduction
Your new InFocus projector is specifically designed for home theater applications.
It sets a high standard using the latest DLP™ technology and new DNX™ video
processing from Pixelworks™. The projector has 1920x1080 resolution (1080p).
Whether you are watching movies or High Definition broadcasts or playing the latest video game, you will enjoy amazing image quality.
Product specifications
To read the latest specifications, be sure to visit our website at www.infocus.com
as specifications are subject to change.
Online Registration
Register your projector on our website at www.infocus.com/register to activate
your warranty and receive product updates, announcements, and registration
incentives.
Included items
•power cord
•HDMI™ cable
• M1-to-HDMI adapter
• remote control
• swivel base (for tabletop use)
• polishing cloth
• cable cover (attached to projector)
Optional accessories can be found on our website at www.infocus.com or at your
retailer or dealer.
remote control
receiver (IR)
status indicator panel
swivel base
connector panel
remote control
receiver (IR)
focus ring
zoom ring
3
Connector Panel
Remove the cable cover, if attached, to access the connector panel. Replace the
cover after the projector is installed, if desired.
The projector provides the following connection options:
• M1-DA/DVI (Digital Visual Interface)
• HDMI™ (High Definition Multimedia Interface)
• Component (RCA)
•S-video
• Composite video (RCA)
See “Video connectors” on page 7 for details.
The projector also provides the following connectors:
• RS-232 for serial control
• Two 12 volt DC outputs (see below)
• IR input for connection to Niles/Xantech compatible IR repeater systems
HDMI
+12v
M1-DA/
DVI
component
RCA
ground
IR input
composite
RCA
RS-232
S-video
12 volt DC output
12 volt DC outputs
The 3.5mm mini-jack triggers provide a 12 volt, 0.25 amp DC output. They provide
a constant output while the projector is on. They are typically used for screen control. For example, if you connect your projection screen to the vertical screen trigger with the cable that came with your screen, when you turn on the projector the
screen will move down; when you turn the projector off, the screen will return to
the storage position. The horizontal screen trigger output can be used to control
curtains or an adjustable aspect ratio screen.
3.5mm plug
to, for example, screen relay (see screen manufacturer
for details)
4
Positioning the projector
To determine where to position the projector, consider the size and shape of your
screen, the location of your power outlets, and the distance between the projector
and the rest of your equipment. Here are some guidelines:
• Position the projector on a flat surface at a right angle to the screen. The projector must be at least 4.9 feet (1.5m) from the projection screen.
• For safety reasons, position the projector within 10 feet (3m) of your power
source (running extension cables may introduce a trip hazard). To ensure adequate cable access, do not place the projector within 6 inches (.15m) of a wall
or other object.
• If you are installing the projector on the ceiling, refer to the installation guide
that comes with the Ceiling Mount Kit for more information. To turn the
image upside down, see “Ceiling” on page 24. We recommend using an InFocus authorized ceiling mount.
• Position the projector the desired distance from the screen. The distance
from the lens of the projector to the screen, the zoom setting, and the video
format determine the size of the projected image.
• The image offset is 136%. This means that if you have an image 10’ high, the
bottom of the image will be 3.6’ above the center of the lens.
Tab l e 1:
Range of distance to the screen for a given screen size
Distance to screen
Diagonal
Screen Size
(inches/m)
Horizontal
Screen Size
(inches/m)
Maximum
distance
(feet/m)
Minimum
Distance
(feet/m)
60/1.5 52.6/1.3 9.7/2.96 8.1/2.47
80/2 69.8/1.8 12.9/3.94 10.8/3.28
92/2.3 80.2/2 14.8/4.52 12.4/3.77
150/3.8 130.9/3.3 24.2/7.38 20.2/6.15
NOTE: Visit the Service section of our website at www.infocus.com/calculator for
an interactive image size calculator.
10 ft high
bottom of image
3.6 ft above center
of lens
Projection angle in 16:9 mode
lens center
5
Choosing the aspect ratio
Aspect ratio is the ratio of the image width to image height. HDTV and most
DVDs are 16:9, which is the default for this projector. When in 4:3 mode the projector places black bars on both sides of the image. Native mode centers the image
and turns off the internal scaler so that any resolution larger than the native projector resolution is cropped on the edges. Letterbox expands the image to fill the
screen.
What you plan to project will also help you choose between 4:3 and 16:9. For
example, most TV shows are 4:3, while most movies are 16:9. If you have a 16:9
screen, then you should select an aspect ratio of 16:9 for anamorphic movies and
HDTV, and Native for 4:3 content. If you have a 4:3 screen you should still use 16:9
for anamorphic movies or HDTV, but you also have the option of using 4:3, Native,
or Natural Wide for 4:3 content. Keep in mind that anamorphic movies only
appear correctly if the DVD player is set to output to a 16:9 television. Natural
Wide stretches a 4:3 image to fill the entire 16:9 screen. The center two-thirds of
the image is unchanged; the edges of the image are stretched.
NOTE: If you purchase an optional anamorphic lens, select the Letterbox option to
achieve the 2.35:1 aspect ratio.
16:9
aspect ratio
4:3 aspect ratio
letterbox
aspect ratio
16:9 image input
9
16
4:3 image input 4:3 image on 16:9 screen
3
4
letterbox image input
black bars
3
black bars
4
9
16:9 image
16
9
black bars
16:9 image fills 16:9 screen
9
black bars
16
16
6
natural wide
aspect ratio
4:3 image input
3
4:3 image fills 16:9 screen
9
4
16
Connecting a video device
You can connect video devices such as HDTV receivers, HD-DVD players, VCRs,
camcorders, digital cameras, video game consoles, and TV tuners to the projector.
Connect the audio from your video device to your stereo system to get sound.
You can connect the projector to most video devices that can output video. You
cannot directly connect the coaxial cable that enters your house from a cable or
satellite company, the signal must pass through a tuner first. Examples of tuners are
digital cable boxes, VCRs, digital video recorders, and satellite TV boxes. Basically,
any device that can change channels is considered a tuner.
composite
RCA
S-video
Video connectors
The first step for connecting video is determining what type of output connectors
your video device has. If there is more than one output, select the one with the
highest quality. The best quality ranking, with 1 being the highest, is:
1 HDMI or M1-DA/DVI (both are digital inputs)
2 component RGB video (RCAs)
3 S-video
4 composite video (RCA)
If your device has a VGA connector, you can use an optional M1-DA/DVI connector for a high quality image. You can use the included M1-DA to HDMI adapter to
connect a second HDMI source.
For detailed information on supported video formats, see page 30.
HDMI
M1-DA/
DVI
component
RCA
IR input
RS-232
12 volt DC output
Digital connections
The M1-DA/DVI and HDMI (High-Definition Multimedia Interface) connectors are
digital and yield the highest quality image. It is common for these signals to be
encrypted with HDCP (high-bandwidth digital-content protection). Your new projector ships standard with decryption codes so you can enjoy these high quality, all
digital images.
This projector features the M1-DA connector, which has the following advantages:
• allows connection to a second DVI source
• allows connection to second component source
• allows connection to an analog computer source (VGA)
• has output pins that can power accessories.
This is an HDTV (High Definition Television) monitor, meaning it has vertical scanning lines of 720 progressive, 1080 interlaced or higher.
7
HDMI 1.3 connection
HDMI is a standard, uncompressed, all-digital audio/video interface. HDMI provides an interface between sources, such as set-top boxes, DVD players, and
receivers and your projector. Plug an HDMI cable into the video-out connector on
the video device and into the HDMI connector on the projector.
To take advantage of HDMI 1.3 Deep Color (30 bit) you must have a 1.3-compatible source.
Note that the projector has no audio capabilities, so audio signals transferred
through HDMI will not be audible.
DVI connection
If your video device uses a DVI connector, plug the DVI end of an M1-DA cable
into the video-out connector on the video device. This connector may be labeled
“To Monitor” on the video device. Plug the M1-DA end of the cable into the M1-
DA/DVI connector on the projector.
Component (RCA) connection
If your device uses component connectors, plug a component video cable with red,
green, and blue RCA connectors into the source device’s component connectors
and the Component connectors on the projector.
S-video connection
If your video device uses a round, four-prong S-video connector, plug the
S-video cable into the S-video connector on your video device and into the S-
video connector on the projector.
Computer connections
You can connect a computer’s VGA connector to the M1-DA/DVI input on the
projector using an M1-A cable.
RS-232 connections
You can control the projector from an LCD control panel or computer by connecting an RS-232 cable to the projector’s Serial control connector. Specific RS232 commands can be found in the Service section of our website at www.info-
cus.com/support.
Composite (RCA) video connection
Plug the composite video cable’s yellow connector into the video-out connector
on the video device. Plug the other yellow connector into the yellow Composite
connector on the projector.
8
Displaying an image
Connect the power cord to the Powe r connector on the back of the projector
and to your electrical outlet.
NOTE: Always use the power cord that shipped with the projector.
Press the Power button on the remote.
The Power light on the Status Indicator Panel blinks green and the fans start to
run. When the lamp comes on, the start up screen displays and the Power light is
solid green. It can take a minute for the image to achieve full brightness.
? No start up screen? Get help on page 12.
Plug in, connect, and turn on your video device.
The video source’s image should appear on the projection screen. If it doesn’t,
press the Source button on the remote until the image appears.
? No image? Try pressing the Auto Image button on the remote. Get help
on page 12.
Adjusting the image
Adjust the height of the image by tilting the projector up or down, either using the
base or the ceiling mount.
plug in Power cord
press Power button
turn on video device
adjust height
Position the projector the desired distance from the screen at a 90 degree angle to
the screen.
See page 5 for a table listing screen sizes and distances to the screen.
9
Adjust the zoom and focus.
zoom (rear ring)
adjust zoom
and focus
focus (front ring)
If the image is not square, adjust the keystone using the Picture menu. See page 20
for details.
Adjust the volume on your stereo receiver.
Your projector has been factory optimized for very good performance no matter
what the source. However, if you wish to make further changes you can optimize
the image using onscreen menus. Adjust the Contrast, Brightness, Color, Tint, or
Aspect Ratio in the Picture menu. See page 20 for help with the menus and these
adjustments.
For Aspect Ratio, keep in mind that DVD players must be configured for 16:9 in
order to view the highest quality image. For more information regarding Aspect
Ratio, see page 6.
adjust keystone
adjust volume
adjust Picture menu options
including Aspect Ratio
10
Shutting down the projector
Power S ave
The projector also has a Power Save feature that automatically turns the lamp off
after no active sources are detected and no user interaction with the projector is
performed for 20 minutes. By default, this feature is on. See page 24.
Sleep Timer
The projector also has a sleep timer feature that automatically turns the projector
off after 4 hours. See page 24.
Turning off the projector
Press the Power button on the remote to turn the projector off. The lamp turns
off and the Power light on the Status Indicator Panel blinks amber for one (1)
minute while the fans continue to run to cool the lamp. While the light is blinking,
the projector does not accept any keypad and remote control input. When the
lamp has cooled, the Power light is solid amber.
Table 2: Status indicator light behavior and meaning
Status Indicator Meaning
Power, green Powering up or powered up
Power, amber Powering down or powered down
Temperature The projector is too hot. Make sure the
Solid: the lamp is on and an image is displayed.
Blinking: the projector is powering up.
Solid: the lamp is off and the projector is
in standby.
Blinking: the projector is powering down
and the fans are running to cool the lamp.
vents aren’t blocked. Turn off the projector and wait one minute, then turn the
projector on again. Contact Technical
Support if the problem persists
.
Troubleshooting your setup
If your image appears correctly on the screen, skip to the next section. If it does
not, troubleshoot the setup.
The Status Indicator Panel on top of the projector indicates the state of the projector and can help you troubleshoot.
Lamp Turn off the projector and wait one
minute, then turn the projector on again.
If the lamp light turns on again, replace the
lamp and reset the lamp timer.
Service Turn off the projector and wait one
minute, then turn the projector on again.
If the service lamp turns on again, service
is required. Visit www.infocus.com/service
to contact Service.
The following tables show common problems. In some cases, more than one possible solution is provided. Try the solutions in the order they are presented. When
the problem is solved, you can skip the additional solutions.
11
Problem Solution Result
no start up screen
only start up screen appears
plug power cord in back of projector
press power button on remote
press power button
connect active source
press the Source button
correct image
image projected
Video
12
Problem Solution Result
image not centered on screen
image not square
move projector, adjust zoom, adjust height
Adjust Keystone in Picture menu. If using in
tabletop mode, tilt the projector up or
down.
correct image
square image
13
image not sharp
Adjust focus or adjust Sharpness in the
Picture>Advanced menu
correct image
image upside down
ABAB
AB
turn off ceiling in Settings>System menu
AB
correct image
AB
14
image reversed left to right
turn off rear in Settings>System menu
correct image
A
projected colors don’t match source
COLOR
lamp won’t turn on, Temperature light is on
Temperature light
adjust color, tint, color temperature,
brightness, contrast in the menus. Verify
cable connections.
make sure vents aren’t blocked, turn off the
projector and allow it to cool for one
minute
AB
correct image
COLOR
lamp turns on
15

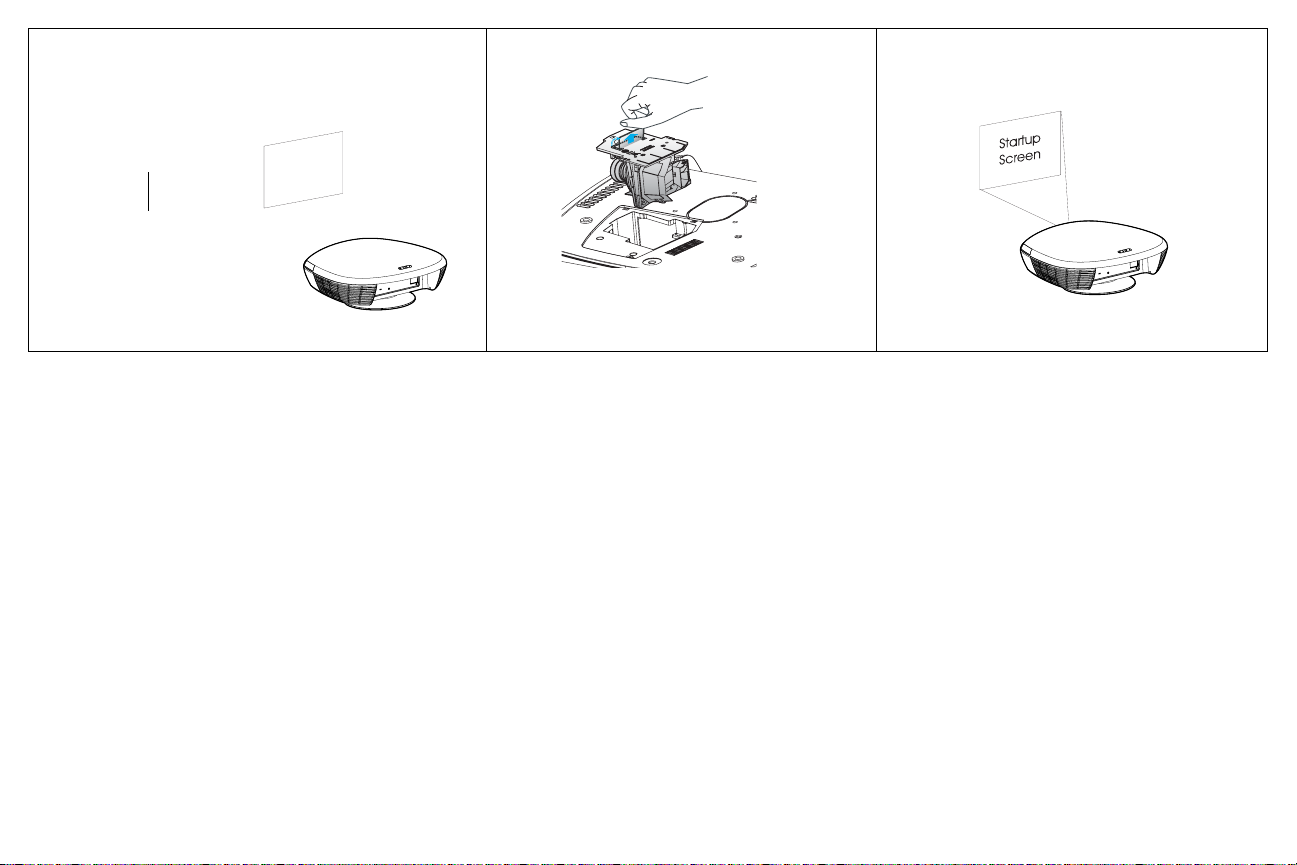

“Change lamp” message appears at startup or
lamp must be replaced (see page 27)
Lamp light is turned on
Lamp light
Still need assistance?
If you need assistance, visit our website at www.infocus.com or call us. This product is backed by a limited warranty. An extended warranty plan may be purchased
from your retailer or dealer.
When sending the projector in for repair, we recommend shipping the unit
in its original packing material, or having a professional packaging company pack the
unit. Please insure your shipment for its full value.
message disappears, lamp turns on
replace lamp,
reset lamp timer
16
Using the remote control
e
The remote uses two (2) AA batteries. They are easily installed by sliding the cover
off the remote’s back, aligning the + and - ends of the batteries, sliding them into
place, and then replacing the cover.
To operate, point the remote at the projection screen or at the front of the projector (not at the video device or computer). The range of optimum operation is
up to 30 feet (9.14m).
Press the remote’s Menu button to open the projector’s menu system. Use the
arrow buttons to navigate, and the Select button to select features and adjust values in the menus. See page 19 for more info on the menus.
The remote also has:
• Power button to turn the projector on and off (see page 11 for shutdown
info)
• backlight button to light the remote’s buttons in the dark
• Source buttons to switch among sources (to assign a particular source to a
source button, see page 24) and a source toggle
• Resize button to change the Aspect Ratio (see page 20)
• Auto Image button to resynch the projector to the source
• Preset button to select stored settings (see page 21)
• Overscan button to remove noise at the edge of a video image (page 21)
• Custom button that can be assigned to a special function, like Blank Screen
or Freeze (see page 25).
• Backlight/Flashlight button on the underside of the remote. Press this button once to light up the remote, press and hold it to turn on the flashlight.
Troubleshooting the remote
• Make sure the batteries are installed in the proper orientation and are not
dead.
• Make sure you’re pointing the remote at the front of the projector or at the
screen, not at the video device or the computer, and are within the remote
range of 30 feet (9.14m).
navigation buttons
backlight/flashlight
button (on undersid
of remote)
17
Optimizing video images
Customizing the projector
Your projector has been factory optimized for excellent performance no matter
what the source. However, if you wish to make further changes you can optimize
the image using onscreen menus. For general information on using the menus, see
page 19.
• Adjust the Keystone, Contrast, Brightness, Color, or Tint in the Picture menu
(page 20).
• Select a Sharpness setting (page 22).
• Use the Color Control to adjust the color gain and offset (page 23).
• Adjust the Color Temperature. Select a listed value (page 23).
• Turn on Overscan to remove noise on the edges of the video image (page 21).
• Change the Aspect ratio (page 20). Aspect ratio is the ratio of the image
width to image height. TV screens are usually 1.33:1, also known as 4:3.
HDTV and most DVDs are 1.78:1, or 16:9 (the projector’s default). Choose
the option that best fits your input source in the menus, or press the Resize
button on the remote to cycle through the options. See page 17.
• Select a specific Color Space. See page 22.
• Select a different Video Standard. Auto tries to determine the standard of the
incoming video. Select a different standard if necessary. See page 23.
• Make sure your DVD player is set for a 16:9 television. See your DVD player’s
user’s guide for instructions.
You can customize the projector for your specific setup and needs. See page 24 to
page 26 for details on these features.
• For rear projection, turn rear mode on in the Settings>System menu.
• For ceiling mounted projection, the projector has an Auto Ceiling feature to
invert the image (Settings>System menu).
• Turn the projector’s display messages on and off.
• Turn on power saving features.
• Specify blank screen colors and start up logos.
• Specify the language viewed on the menus.
• Save settings for the active source as a preset.
18
Using the menus

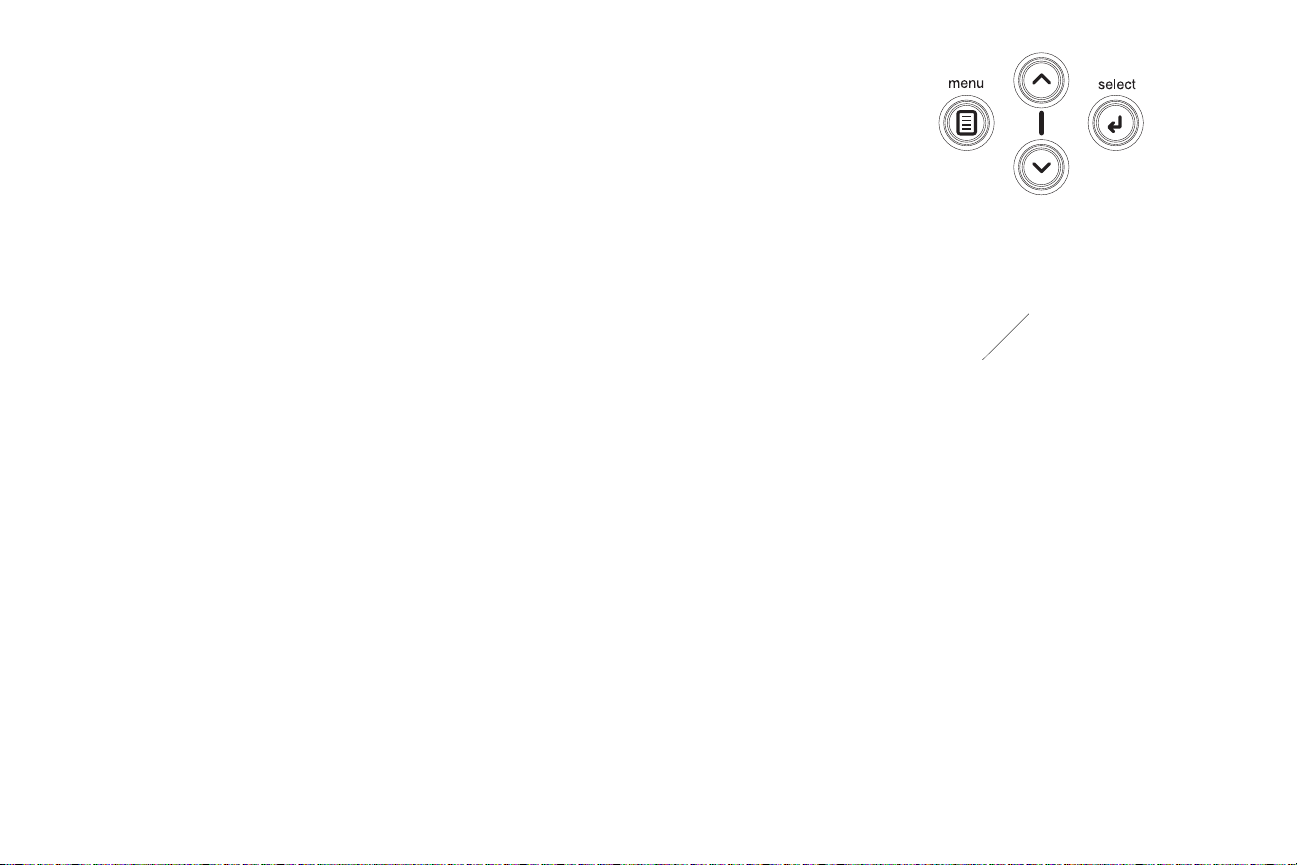

To open the menus, press the Menu button on the remote. (The menus automatically close after 60 seconds if no buttons are pressed.) The Main menu appears.
Use the arrow buttons to move up and down to highlight the desired submenu,
then press the Select button.
remote navigation
buttons
To change a menu setting, highlight it, press Select, then use the up and down
arrow buttons to adjust the value, select an option using radio buttons, or turn the
feature on or off using check boxes. Press Select to confirm your changes. Use
the arrows to navigate to another setting. When your adjustments are complete,
navigate to Previous or Exit, then press Select to go to the previous menu; press
the Menu button at any time to close the menus.
Dots appear before the menu name. The number of dots indicate menu’s level,
ranging from one (the Main menu) to four (the most nested menus).
The menus are grouped by usage:
• The Picture menu provides image adjustments.
• The Settings menu provides set-up type adjustments that are not changed
often.
• The Source Info menu provides a read-only display of information about the
projector and source.
Certain menu items may not be visible or may be grayed depending upon a particular source being connected. Differences are also seen in analog versus digital
video sources and interlaced versus progressive sources.
Menu options are grayed out only if the source is selected but no signal is present.
For example, if the projector is set to a video source but the source, such as a
DVD player, is turned off video menu options are grayed out.
Main menu
menu
dots
Settings
menu
Source Info menu
19
Picture menu
To adjust the following settings, highlight the setting, press Select, use the up and
down arrows to adjust the values, then press Select to confirm the changes.
Key ston e : adjusts the image vertically and makes a squarer image. Tilt the projector up or down to adjust for keystone before using the digital keystone correction
in the menu.
Image Shift: moves the image vertically. Use to shift the image, or to mask artifacts or bars on the top or bottom of the image.
Contrast: controls the degree of difference between the lightest and darkest
parts of the picture.
Brightness: changes the intensity of the image.
Color: adjusts a video image from black and white to fully saturated color.
Tint: adjusts the red-green color balance in the image of NTSC video images. The
tint setting applies to NTSC video sources only.
Auto Image: resynchs the projector to the source.
Aspect Ratio: Aspect ratio is the ratio of the image width to image height. HDTV
and most DVDs are 16:9. TV screens are usually 4:3. The projector’s default is
16:9. See “Choosing the aspect ratio” on page 6 for more information.
Select Native to see the unmodified input with no resizing by the projector.
Select 16:9 to watch enhanced widescreen DVDs. Select Letterbox to preserve the
16:9 aspect ratio. If you have a 16:9 source and screen, the image fills the screen. If
your source is letterboxed, the image is expanded to fill the screen. Select Natural
Wide to stretch a 4:3 image to fill the entire 16:9 screen. The center two-thirds of
the image is unchanged; the edges of the image are stretched. For more information regarding Aspect Ratio, see page 6.
Picture menu
increasing keystone
Aspect ratio
decreasing keystone
20
Presets: This allows you to customize settings and save the settings to be
restored later. To restore the factory default settings, choose Factory Reset in the
Settings>Service menu.
To set a preset for the current source, adjust the image, select Save Settings in
the Presets menu, then choose Save User 1, 2, or 3. You can recall these settings in
the future by selecting the appropriate user presets. All settings in the Picture
menu (except Keystone) are saved and recalled. ISF Day and ISF Night settings
support certified Imaging Science Inc. calibration. ISF presets are not available until
after calibration is performed, and picture settings cannot be adjusted when ISF
presets are active. For more information go to www.infocus.com/service.
BrilliantColor™: produces an expanded on-screen color spectrum that delivers
enhanced color saturation for bright, true-to-life images. This feature is off by
default.
Presets
Save
User
Settings
Gamma: Gamma tables contain preset intensity configurations optimized for the
input source. You can select a gamma table that has been specifically tuned for
either film, CRT (Cathode Ray Tube), video, PC, or Bright Room input. (Film input
is material originally captured on a film camera, like a movie; video input is material
originally captured on a video camera, like a TV show or sporting event.)
NOTE: Your viewing preferences may vary. Cycle through the gamma options and
pick the one you like the best.
Overscan: removes noise around the edges of the video image. Select Zoom to
remove the outer 3% of the image and scale the image back up to its original size.
Select Crop to remove the outer 3% of the image without rescaling the image.
Gamma
Overscan
21
Advanced menu
Remember that not all options in the menus are available for all sources/signals.
Iris: adjusts the aperture of the iris from 0 to 100 (fully open) to regulate the
amount of light emitting from the projector. Close the aperture to increase the
contrast in dark images.
Phase: adjusts the horizontal phase of a computer source.
Tr a c k i ng : adjusts the vertical scan of a computer source.
Horizontal/Vertical Position: adjusts the position of a computer source.
Sync Threshold Adjust: (progressive signals only) If a hardware device, such as a
DVD player, is not syncing properly with the projector, adjust this option to help it
to sync when connected to the projector.
Flesh Tone Correction: this modifies colors to make the skin complexion better.
Black Level Calibration: Automatically adjusts brightness to get the best black
level. Before using, make sure there are black bars at the top, bottom, or sides of
the image.
Film Mode: controls deinterlacing and is On by default. When checked, it
assumes the incoming signal is film material and optimizes the image accordingly.
Sharpness: (video sources only) changes the clarity of the edges of a video image.
Select a sharpness setting.
Color Space: This option applies to computer and component video sources. It
allows you to select a color space that has been specifically tuned for the input signal. When Auto is selected, the projector automatically determines the standard.
To choose a different setting, turn off Auto, then choose RGB for computer
sources, choose either REC709 or REC601 for component video sources.
Advanced menu
Sharpness
22
Color Space
Color Temperature: changes the intensity of the colors. Select a value. Native
means an uncorrected/unchanged color temperature. Other values change the
white point of the colors. 6500K (the default setting) is generally used for film content and 9300K is used for TV video.
Color Gamut: sets the total number of possible displayable colors (gamut).
Choose Auto to have the projector select automatically based on the current signal format. Choose Maximum to display all colors that the projector is capable of
displaying.
Color Control: allows you to individually adjust the gain and offset of the red,
green, and blue colors. These advanced controls have the same effect as contrast
and brightness, but each controls a single color only.
Video Standard: when it is set to Auto, the projector attempts to automatically
pick the video standard based on the input signal it receives. (The video standard
options may vary depending on your region of the world.) If the projector is unable
to detect the correct standard, the colors may not look right or the image may
appear “torn.” If this happens, manually select a video standard by selecting NTSC,
PAL, or SECAM from the Video Standard menu.
Noise Reduction: adjusts signal noise reduction. Choose Enable then adjust the
level. The software determines the differences between successive image frames
and averages the changes out to reduce the noise.
Color
Temperature
Color Control
Video Standard
Noise Reduction
23
Settings menu
Sources: allows programming of source buttons, enables autosource, and enables
the SCART RGB source. When Autosource is selected, the Source Enable feature indicates which sources the projector attempts to lock onto. You can use the
Source Enable feature to eliminate certain sources from this search, which will
speed the search. By default, the check boxes for all sources are checked except
SCART RGB. Uncheck a source box to eliminate it from the search. When Autosource is not checked, the projector defaults to Component initially, then defaults
to whatever the last active source was when the projector was powered down. To
display another source, you must manually select one by pressing the Source button on the remote. This cycles through all the sources that are selected in the
Source Enable menu.
The Source 1, 2, and 3 menus in the Sources menu allow you to assign a source to
the Source 1, 2, and 3 buttons on the remote. The Source 4 menu selection would
apply to the Custom key if that option is chosen in the Custom key menu, see
page 25. To use the SCART RGB source, you must first select it in the Source
Enable menu (the projector cannot automatically detect this source). Enabling
SCART will disable Component and Composite sources.
System>OSD Offset: allows you to adjust the position of the OSD. By default,
the menus are postponed in the upper lefthand corner of the displayed image and
the messages are postponed in the lower lefthand corner. Adjust the offset to
move these items more to the right and middle of the display. Rear: reverses the
image so you can project from behind a translucent screen. Ceiling: turns the
image upside down for ceiling-mounted projection. Auto Ceiling: uses an internal
sensor to automatically turn on ceiling mount mode if the projector is inverted.
High Power: maximizes the light output of the lamp. Auto Power: When Auto
Power is checked, the projector automatically goes into the startup state after the
projector receives power. This allows control of ceiling mounted projectors with a
wall power switch.
Sources
Settings menu
Source
Enable
System menu
24
Display Messages: displays status messages (such as “Searching”) in the lower-
left corner of the screen.Tra n s l u c e n t O S D (On Screen Display): makes the
menus translucent. This prevents the image from being completely covered by the
menus while you are making image adjustments. Sleep Timer: automatically turns
off the projector after 4 hours. Power Save: automatically turns the lamp off after
no signals are detected for 20 minutes. After 10 additional minutes with no signal,
the projector powers down. If an active signal is received before the projector
powers down, the image is displayed.
Startup Logo: allows you to display a blank screen instead of the default screen
at startup.
Blank Screen: determines what color is displayed when you select Blank Screen
in the Startup Logo menu and when no source is displayed.
Language: allows you to select a language for the onscreen display.
Custom key: allows you to assign a different function to the Custom key on the
remote, allowing you to quickly and easily use that function. Highlight an effect and
press Select to choose a different one.
• Blank Screen: displays a solid blank image.
• Freeze: takes a snapshot of the projected image. If you’re watching video, the
source video continues to run but the image is frozen.
• Source Info: the default effect. It opens a window with projector and source
information.
• Service Info: opens the Service info window.
• Source 4: selects source 4 (by default, Source 4 is the Composite input). This
gives you 4 direct source options on the remote. See page 24.
Startup Logo
Blank Screen
Language menu
Custom Key
25
Service: To use these features, highlight them and press Select.
Factory Reset: restores all settings to their default.
Reset Lamp hours: resets the lamp hours used counter in the Service Info
menu to zero. Do this only after changing the lamp.
Service menu
Te s t P a t t er n : displays a test pattern. To display test patterns, first you must
assign Blank Screen to the Custom key (page 25), then click the Test pattern
check box in the Service menu to turn the option on, exit the menus, then
press the Custom button on the remote. To select the patterns, use the up/
down arrows on the remote. To exit the test patterns, press the Custom
button.
Blue Only: turns off the Red and Green portions of the input, allowing you
to properly adjust the color balance with a SMPTE color bar pattern.
HDMI DDC: turns the EDID extension on and off. Some graphic cards cannot recognize the projector’s EDID. By default, the extensions are on (checkboxes are checked). Change these settings if you have trouble using HDMI or
DVI sources.
Serial Port: allows you to select the baud rate to accommodate some older,
slower external control systems.
Service Info: provides information about the projector’s software, serial
number, and lamp.
Service Code: only used by authorized service personnel.
Source Info: provides information about the active source.
HDMI menu
Serial Port menu
Service Info
Source Info menu
26
Maintenance
Replacing the projection lamp
The lamp hours timer in the Service Info menu counts the number of hours the
lamp has been in use. Twenty hours before the lamp life expires, a message appears
on the screen at startup indicating that you should change the lamp. The LED on
top of the projector also blinks red twice to indicate that the lamp should be
changed.
NOTE: You can order new lamp housings from www.infocus.com (in select areas),
your retailer or your dealer. Use only a replacement lamp with the same type and
rating as the original lamp.
WARNING :
To avoid burns, allow the projector to cool for at least 60 minutes before
you replace the lamp.
Be extremely careful when removing the lamp housing. In the unlikely
event that the bulb ruptures, small glass fragments may be generated. The
lamp housing is designed to contain these fragments, but use caution when
removing the lamp housing. Before replacing the lamp, clean the lamp
compartment and dispose of cleaning materials. Wash hands after lamp
replacement.
Hg – Lamp contains mercury. Manage in accordance with local disposal laws. See www.lamprecycle.org.
1
Turn off the projector and unplug the power cord. If ceiling mounted, disconnect all cables and detach the projector from the ceiling mount.
turn off and unplug
projector
Lamp hours used
wait 60 minutes
2 Wait 60 minutes to allow the projector to cool thoroughly.
3 Turn the projector upside down on a soft cloth so that the lamp door is facing
you. Remove the base or ceiling mount plate, if attached.
27
4
Loosen the two captive screws on the lamp door and lift the door off.
5 Loosen the two captive screws that attach the lamp housing to the projector.
6 Carefully remove the lamp housing. Dispose of the lamp in an environmentally
proper manner.
7 Install the new lamp housing and tighten the screws.
8 Replace the lamp door.
Lamp door
9 Replace the base or ceiling mount plate, if necessary.
10 Plug in the power cord and press the Power button on the remote to turn the
projector back on.
11 To reset the lamp hour timer, navigate to the Settings>Service menu and
select Reset Lamp Hours. See page 26 for details.
Reset lamp hours
Captive screws
Captive screws
28
Appendix
Remote control discrete codes
You can use these codes to program another remote to learn the projector’s
remote functions.
To activate discrete mode, press and hold the Custom button on the remote for
10 seconds. The back light blinks twice when discrete mode is entered. The
remote buttons are now remapped to new functions as listed below. To return to
normal remote mode, press and hold the Custom button on the remote for 10
seconds. The remote also returns to normal mode automatically if no activity is
detected for 2 minutes.
Projector dimensions for ceiling mount installations
All values in millimeters (mm).
475.82
119.91 355.91
68.95 79.2
Function Description
Power off turns power off Nav Up
Power on turns power on Nav Down
Native resize selects Native resize resize
16:9 resize selects 16:9 resize overscan
4:3 resize selects 4:3 resize source
Letterbox
resize
Natural wide
resize
User preset 1 selects user preset 1 Source 1
User preset 2 selects user preset 2 Source 2
User preset 3 selects user preset 3 Source 3
selects letterbox resize custom
selects natural wide resize auto image
Remote
button
36.54 148.63
29
Supported video formats
Connector Signal Type Supported formats
HDMI Digital RGB and YCrCb
(HDCP or non-HDCP)
Digital RGB video via M1-to-DVI cable
(HDCP or non-HDCP)
Analog RGB video via M1-to-VESA cable
M1-DA YPrPb video via M1-to-Component adapter
Analog Computer via M1-to-VESA cable All industry-standard analog and digi-
Digital Computer via M1-to-DVI cable
Component YPrPb 1080p/24Hz
Composite Standard definition TV composite video sources NTSC: M, 4.43
S-video S-VHS Y/C
1080p/24Hz
1080p/50Hz
1080p/60Hz
1080i/50Hz/60Hz
1080i/50Hz (Australia)
720p/50Hz/60Hz
576i/p/50Hz/60Hz
480i/p/50Hz/60Hz
tal computer formats conforming to
VESA standards
1080p/50Hz
1080p/60Hz
1080i/50Hz/60Hz
1080i/50Hz (Australia)
720p/50Hz/60Hz
576i/p/50Hz/60Hz
480i/p/50Hz/60Hz
PAL: B , G,H, I , M,N
SECAM: M
30
RS-232 terminal Product Interface specifications
Communication configuration
To control the projector from an LCD control panel, connect an RS-232 cable to
the serial control connector on the projector and set your computer’s serial port
settings to match this communication configuration:
Setting Value
Bits per second 115,200
Data bits 8
Parity None
Stop bits 1
Flow control None
Emulation VT100
Command format
All commands consist of 3 alpha characters followed by a request, all enclosed in
“greater than” and “less than” signs. The request can be a read request (indicated
by a “?”) or a write request (indicated by 1 to 4 ASCII digits).
A read request format: <AAA?> where
< starts the command
AAA denotes the command
? denotes the read request
> ends the command
A write request example: <AAA=####> where
< starts the command
AAA denotes the command
=#### denotes the value to be written
(leading zeros not necessary)
> ends the command
Some commands have ranges, while others are absolute. If a number greater than
the maximum range is received, it is automatically set to the maximum number for
that function. With absolute settings, “0” is off, 1-9999 is on. The one exception is
the Power command, where 0 is off and 1 is on
Refer to the support section of our website for detailed information on the Product Interface formats.
.
31
Supported commands
Function Command Range
Aspect Ratio ARZ 0-5
0 = Auto
1 = Native
2 = 4:3
3 = 16:9
4 = Letterbox
5 = Natural Wide
Auto Ceiling Enable ACL 0-1 0
Auto Color Gamut Enable AGA 0-1 1
Auto Color Space enable ACS 0-1 1
Auto Image AIM 0-1 0
Auto Power Enable APO 0-1 0
Auto Source Enable ASC 0-1 1
Auto Video Standard Enable AVS 0-1 1
Black Level Calibration BLC 0-100 0
Blank BLK 0-1 0
Blank Screen Color BSC 0-2
0 = black
1 = blue
Blue Gain BCG 1-255 128
Blue Offset BCO 1-255 128
Blue Only Enable BOE 0-1 0
Boot Version BVS 3 0
Brightness BRT 0-100 128
BrilliantColor Look BCL 0-2 0
Defa
ult
1
0
Ceiling CEL 0-1 0
Color CLR 0-100 50
Color Coordinate Adjust
Enable
Color Gamut Enable CGC 22 0
Color Space CSM 0-2
Color Temp TMP 0-3
Computer Advance CAD 0-1 0
Configuration Version CVS 3 0
Contrast CON 0-100 128
Current Subsource CRS 0-7 0
Custom Key Program EFK 0-11 8
Display Messages Enable DMG 0-1 1
Echo Received Char 1 EC1 0-1 0
Engine Version EVS 77 0
Factory Reset (Write only) RST 0-1 n/a
Film Mode Auto Detect TTO 0-1 1
Film Mode Auto Detect TTO 0-1 1
Firmware Version FVS 3 0
Flash Mode Reset FMR 0-1 0
Flesh Tone Correction FTC 0-1 0
Freeze Enabled FRZ 0-1 0
CCA 0-1 1
0 = RGB
3 = REC709
2 = REC601
0 = 6500
1 = 7500
2 = 9300
3 = Native
32
0
0
Gamma Table GTB 0-8
2 = Video
3 = Film
5 = Bright Room
7 = CRT
8 = PC
Green Gain GCG 0-100 128
Green Offset GCO 0-100 128
HDMI DDC Enable 1 EE1 0-1 1
HDMI DDC Enable 3 EE3 0-1 1
High Power Enable HPE 0-1 0
Horizontal Position HPS n/a n/a
Illuminating State LML 0-2 0
Iris IRI 0-100 100
ISF Day Saved Status IDS 0-2 0
ISF Night Saved Status INS 0-2 0
Keycode Entry KEY 0-70 0
Lamp Hours (Read only) LMP 0-65535 0
Lamp Power IPM 0-1 0
Lamp Power IPM 0-1 0
Lamp Total Time On in hours
for all bulbs
LMT 0-65535 0
3
Language LAN 0-13
0 = English
1 = French
2 = German
3 = Italian
4 = Japanese
5 = Korean
6 = Norwegian
7 = Portuguese
8 = Russian
9 = Chinese Simplified
10 = Spanish
11 = Chinese Traditional
Logo Capture Compress COM 0-1 0
Logo Capture Compression
Progress Count
Logo Capture Enable CAP 0-1 0
Menu Enable MNU 0-1 0
Menu Navigation NAV 0-4
Model Name MDL 4 0
Noise Reduction Level NRL 8-248 128
Noise Reduction Mode NRE 0-1
Number of Lamp Resets LMR 0-65535 0
Number of times unit has been
turned on
CPC 0-480 0
1 = up
2 = down
3 = select
0 = Off
1 = Auto
O00 0-65535 0
0
1
0
33
Number of times unit has been
turned on for at least 30 minutes
Number of times unit has been
turned on for at least 60 minutes
Number of times unit has been
turned on for at least 90 minutes
Overscan OVS 0-2 0
Perform Lamp Reset LRT 0-1 0
Phase MSS 0-100 50
PI Response String Enable PRE 0-1 0
PI Verbose Enable PVE 0-1 0
PI Version PVS 3 0
Platform Name PLA 10 0
Power Enable PWR 0-1 0
Power Save Enable PSV 0-1 1
Power-up Source DSC 0-5 2
Preferred Aspect Ratio PAR 1-7 7
Presets PST 0-9
Rear Project REA 0-1 0
Red Gain RCG 0-100 128
O30 0-65535 0
O60 0-65535 0
O90 0-65535 0
0
0 = default
1 = User 1
2 = User 2
3 = User 3
4 = Off
8 = ISF Day
9 = ISF Night
Red Offset RCO 0-100 128
Resolution String RES 29 0
Screen Trigger Enable STE 0-1 1
Sequence Version SVS 3 0
Serial 1 Baud Rate BR1 4,7 7
Sharpness SHP 0-4 2
Sleep Timer SLT 0-1 0
Source SRC 0-5
0 = HDMI
1 = M1-DA
2 = Component
3 = S-Video
4 = Composite
5 = SCART RGB
Source 1 Program SR1 0-5 0
Source 2 Program SR2 0-5 2
Source 3 Program SR3 0-5 3
Source 5 Program SR4 0-5 3
Source Advance SAD 0-1 0
Source Enable 0 CE0 0-1 0
Source Enable 1 CE1 0-1 0
Source Enable 2 CE2 0-1 0
Source Enable 3 CE3 0-1 0
Source Enable 4 CE4 0-1 0
Source Enable 5 CE5 0-1 0
Startup Logo DSU 0-1 1
Sync Threshold Adjust STH 1-15 8
System Error Code ERR 0-7 0
0
34
System Power Enable SPE 0-1 0
System State SYS 0-24 0
Test Pattern Enable TPE 0-1 0
Test Pattern Select TPS 0-10, 15-21 0
Time in Hours Last Bulb1
Lasted
Time in Hours Last Bulb2
Lasted
Time in Hours Last Bulb3
Lasted
Time in minutes unit has been
turned on
Time in minutes unit is currently onONL 0-4294967295 0
LB1 0-65535 0
LB2 0-65535 0
LB3 0-65535 0
ONC 0-4294967295 0
Vertical Keystone DKV 0-100 50
Vertical Position VPS 0-100 50
Video Standard VSU 0-9
0 = Auto
1 = NTSC
2 = PAL
5 = SECAM
Video Advance VAD 0-1 0
Vertical Image Shift VIS 0-100 50
0
Time in minutes unit was previously turned on
Tint TNT 2-98 50
Total number of Strike
Attempts
Total number of successful
Strike Attempts
Tracking MTS 0-100 50
Tra ns l u c e n t O S D T O E 0 -1 1
Unit Part Number UPN 8 0
Unit Serial Number USN 12 0
User Preset 1 Saved Status UP1 0-2 0
User Preset 2 Saved Status UP2 0-2 0
User Preset 3 Saved Status UP3 0-2 0
Vertical Keystone DKC 0-80 40
ONP 0-4294967295 0
TSA 0-65535 0
SSA 0-65535 0
35
INDEX
Numerics
12 volt outputs 4
16x9 18
A
Advanced menu 22
aspect ratio 6, 20
Auto Ceiling 24
Auto Image 20
Auto Power 24
Autosource 24
B
Black Level Calibration 22
blank screen 25
Brightness 20
BrilliantColor 21
C
cable box 7
Ceiling 24
CLI commands 32
Color 20
Color Control 23
Color Gamut 23
Color Space 22, 23
Color Temperature 23
command line interface commands 32
component connector 8
connecting
component 8
composite 8
computers 8
digital components 7
HDMI components 8
RS-232 8
S-video 8
video device 7
contacting InFocus 16
Contrast 20
Custom key 21
customer service contact information 16
customizing the projector 18
D
digital connections 7
dimensions of projector 29
Display Messages 25
DVDs 20
DVI connector 4, 8
F
Factory Reset 26
Film mode 22
Flesh tone correction 22
focus 10
G
gamma 21
36
H
HDMI 4, 8, 26
HDTV 7, 18, 20
High Power 24
Horizontal position 22
I
adjusting 9
focus 10
size 5
zoom 10
Image Shift 20
K
keystone adjustment 10, 20
L
lamp replacement 27
Language 25
LEDs 9, 11
Letterbox 20
logo 25
M
maintaining the projector 27
Menu button 19
menu usage 19
N
Noise reduction 23
O
OSD Offset 24
Overscan 21
P
Phase 22
Picture menu 20
power cord 9
Power Save 11, 25
presets 21
projection distance 5
projector
connecting video devices 7
customization 18
dimensions 29
included items 3
maintenance 27
positioning 5
remote control 17
setting up 5
Status Indicator Panel 11
troubleshooting problems 11
R
registering your projector 3
remote control 17
replacing the lamp 27
RS-232
connecting 8
specifications 31
37
S
SCART 24
screen triggers 4
serial connection 8
Service 26
Service Code 26
Service menu 26
Settings menu 24
sharpness 22
Sleep Timer 25
Source Enable 24
Source Info 26
Startup Logo 25
Status Indicator Panel 11
S-video connector 8
Sync Threshhold Adjust 22
System menu 24
T
Tint 20
Tracking 22
Translucent OSD 25
troubleshooting 11
TV tuner 7
V
Vertical postion 22
Video Standard 23
volume adjustment 10
Z
zoom 10
38
Loading...
