User’s Guide
multi-use per for mance
This entire user’s guide is available on the enclosed CD as an Adobe Acrobat pdf file in the following languages: English, Fren
gian, Portuguese, Spanish, Russian, Japanese, Korean, Traditional Chinese, Simplified Chinese. Before using this projector, ple
ch, German, Italian, Norwease read these instructions.
Le mode d'emploi complet est disponible sur le CD joint sous forme de fichier pdf d'Adobe Acrobat dans les langues suivantes :
allemand, italien, norvégien, portugais, espagnol, russe, japonais, coréen, chinois traditionnel, chinois simplifié. Avant d'ut
lire ces instructions.
Die vollständige Benutzeranleitung ist auf der im Lieferumfang enthaltenen CD als Adobe Acrobat PDF-Datei in den folgenden Spra
Englisch, Französisch, Deutsch, Italienisch, Norwegisch, Portugiesisch, Spanisch, Russisch, Japanisch, Koreanisch, Traditionell
Vereinfachtes Chinesisch. Bitte lesen Sie diese Anweisungen vor der Verwendung des Projektors.
La presente guida è disponibile sul CD allegato, come file Adobe Acrobat pdf, nelle seguenti lingue: inglese, francese, tedesco
portoghese, spagnolo, russo, giapponese, coreano, cinese tradizionale e cinese semplificato. Prima di usare questo proiettore,
Hele denne brukerhåndboken finnes på den vedlagte CD-en som en Adobe Acrobat pdf-fil på følgende språk: Engelsk, fransk, tysk,
portugisisk, spansk, russisk, japansk, koreansk, tradisjonell og forenklet kinesisk. Les diss anvisningene før projektoren tas
Este guia do usuário completo está disponível no CD anexo, como um arquivo pdf do Adobe Acrobat nos seguintes idiomas: inglês,
norueguês, português, espanhol, russo, japonês, coreano, chinês tradicional, chinês simplificado. Antes de utilizar este projet
Este manual de uso está disponible en su totalidad en el CD incluido, como archivo pdf de Adobe Acrobat, en los siguientes idio
italiano, noruego, português, español, ruso, japonés, coreano, chino tradicional, chino simplificado. Antes de usar el proyecto
anglais, français,
iliser ce projecteur, veuillez
chen verfügbar:
es Chinesisch und
, italiano, norvegese,
leggere le seguenti istruzioni.
italiensk, norsk,
i bruk.
francês, alemão, italiano,
or, leia estas instruções.
mas: inglés, frances, alemán,
r, lea estas instrucciones.
Ⱦɚɧɧɨɟ ɪɭɤɨɜɨɞɫɬɜɨ ɩɨɥɶɡɨɜɚɬɟɥɹ ɜ ɩɨɥɧɨɦ ɨɛɴɟɦɟ ɩɪɟɞɫɬɚɜɥɟɧɨ ɧɚ ɩɪɢɥɚɝɚɟɦɨɦ ɤɨɦɩɚɤɬ-ɞɢɫɤɟ ɜ ɜɢɞɟ pdf-ɮɚɣɥɚ Adobe Acrobat ɧɚ ɫɥɟɞɭɸɳɢɯ
ɹɡɵɤɚɯ: ɚɧɝɥɢɣɫɤɨɦ, ɮɪɚɧɰɭɡɫɤɨɦ, ɧɟɦɟɰɤɨɦ, ɢɬɚɥɶɹɧɫɤɨɦ, ɧɨɪɜɟɠɫɤɨɦ, ɩɨɪɬɭɝɚɥɶɫɤɨɦ, ɢɫɩɚɧɫɤɨɦ, ɪɭɫɫɤɨɦ, ɹɩɨɧɫɤɨɦ, ɤɨɪɟɣɫɤɨɦ,
ɬɪɚɞɢɰɢɨɧɧɨɦ ɢ ɭɩɪɨɳɟɧɧɨɦ ɤɢɬɚɣɫɤɨɦ. ɉɟɪɟɞ ɢɫɩɨɥɶɡɨɜɚɧɢɟɦ ɩɪɨɟɤɬɨɪɚ, ɩɪɨɱɢɬɚɣɬɟ ɞɚɧɧɵɟ ɢɧɫɬɪɭɤɰɢɢ.
ŘųKПП .ŴЕ<R$Ű֞ඤŜūʼnƐ CD Ű Adobe Acrobat ų PDF :P༜ŭŜūⲟŚƑūʼnƃŞЖᜑų➸⠰ųKПП
.Ɨřߓ᰻ʼnŤťŖƃŞЖ␣⠰Е:NX⠰Е.)⠰Е$O⠰Е3PП⠰ЕBP-P⠰Е?X⠰ЕR⠰ЕᎣᒍ⠰Е⺩
Ԟઞ⠰Е↭תԞઞ⠰ЖŘų<R$Ɨ᰻ŞƐ߰ŰЕKПП .Ɨ྿şŏ⠿ƄŔťŚʼnЖ
&' $GREH$FURE DW S GI
ઞ⠰Е‱ת
Adobe Acrobat (PDF)
동봉된 CD에는 Adobe Acrobat pdf 파일 형식의 사용 설명서가 영어, 프랑스어, 독일어, 이탈리아어, 노르웨이어, 포르투갈어, 스페인어, 러시아어, 일본어, 한국
어, 중국어(번체 및 간체)로 제공됩니다. 이 프로젝터를 사용하기 전에 다음 지침을 읽으십시오.
Declaration of Conformity
Manufacturer: InFocus Corporation, 27700B SW Parkway Ave. Wilsonville, Oregon 97070 USA
European Office: Strawinskylaan 585, 1077 XX Amsterdam, The Netherlands
We declare under our sole responsibility that the InFocus X1 projector conforms to the following directives and norms:
EMC Directive 89/336/EEC, Amended by 93/68/EEC
EMC: EN 55022
EN 55024
EN 61000-3-2
EN 61000-3-3
Low Voltage Directive 73/23/EEC, Amended by 93/68/EEC
Safety: EN 60950: 2000
June, 2003
Australian Certification C-tick mark
Trademarks
Apple, Macintosh, and PowerBook are trademarks or registered trademarks of Apple Computer, Inc. IBM and PS/2 are trademarks or registered trademarks of International
Business Machines, Inc. Microsoft, PowerPoint, and Windows are trademarks or registered trademarks of Microsoft Corporation. InFocus and LP are trademarks or registered
trademarks of InFocus Corporation.
FCC Warning
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver.
--Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
--Consult the dealer or an experienced radio/TV technician for help.
Canada
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
Agency Approvals
UL, c-UL, TÜV, NOM, IRAM, GOST
2
Table of Contents
Introduction 4
Positioning the projector 5
Projector and Device Connector Guide 6
Computer connections 6
Video connections 6
Connecting a computer source 9
Required computer connections 9
Optional computer connections 9
Displaying a computer source image 10
Adjusting the image 11
Using the projector with Windows 98 for the first time 12
Connecting a video device 14
Video device connections 15
Composite video connection 15
S-video connection 15
Component video connection 16
VGA connection 16
Displaying video 17
Adjusting the image 17
Shutting down the projector 19
Troubleshooting your setup 19
Using the remote control 27
Using the audio 28
Using the keypad buttons 28
Optimizing computer images 29
Presentation features 29
Optimizing video images 30
Customizing the projector 30
Using the menus 31
Picture menu 32
Settings menu 35
Maintenance 38
Cleaning the Lens 38
Replacing the Projection Lamp 38
Cleaning the Lamp Housing Screens 40
Using the security lock 40
Appendix 41
Specifications 41
Accessories 41
Projected image size 43
Red LED Behavior and Projector Errors 43
If you are experienced in setting up projection systems, use the Quick Setup
card that was included. For complete details on connecting and operating
the projector, refer to this User’s Guide. Electronic versions of this User’s
Guide in multiple languages are available on the included CD and on our
website at www.infocus.com/service.
The website also has technical specifications (an interactive image size calculator, laptop activation commands, connector pin outs, a glossary, the
product data sheet), a web store to buy accessories, and a page for online
registration.
Important Operating Considerations
Do not place the projector on a tablecloth or other soft coverings that may
block the front or back vents. Do not use a non-approved ceiling mount. In
the unlikely event of the bulb rupturing, thoroughly clean the area in front
of the projector and discard any edible items that may have been placed in
that area.
)
m
6
.
(
t
f
2
Do not place objects in
this area in front
of the projector
3
Introduction
Your new digital projector is easy to connect, use, and maintain. It is an
exceptional projector for both business presentations and home entertain-
ment. The InFocus
video devices, including:
• Most standard VCRs, DVD players (progressive and interlaced), HDTV
sources (1080i, 1035i, and 720P HDTV formats), TV and satellite tuners,
camcorders, video games, and laser disc players.
• IBM-compatible computers, including laptops, up to 1024x768 resolu-
tion.
• Apple
®
lution.
The projector has native SVGA 800x600 resolution and comes with the following standard accessories.
®
X1 is compatible with a wide variety of computers and
Macintosh® and PowerBook® computers up to 1024x768 reso-
remote control
receiver (IR)
speaker
focus (thin ring)
keypad
power cord
connector
power switch
adjustable foot release
zoom (thick ring)
lamp
housing
door
projector
projector
case
e
id
u
G
’s
r
e
s
U
CD and
documentation
lens cap
audio
cable
power cord*
*country-dependent
computer cable
S-video
cable
audio
adapter
remote
control
Register your projector online at www.infocus.com/service/register to
receive product updates, announcements, and registration incentives.
4
connector
panel
adjustable
monitor
foot
computer
S-video
security lock
USB
audiovideo
Positioning the projector
To determine where to position the projector, consider the size and shape of
your screen, the location of your power outlets, and the distance between
the projector and the rest of your equipment. Here are some general guidelines:
• Position the projector on a flat surface at a right angle to the screen. The
projector must be at least 4.9 feet (1.49m) from the projection screen.
• Position the projector within 10 feet (3m) of your power source and
within 6 feet (1.8m) of your video device (unless you purchase extension cables). To ensure adequate cable access, do not place the projector
within 6 inches (.15m) of a wall or other object.
• If you are installing the projector on the ceiling, refer to the installation
guide that comes with the Ceiling Mount Kit for more information. To
turn the image upside down, see “Ceiling” on page 35. InFocus recommends using an authorized InFocus ceiling mount. The Ceiling Mount
Kit is sold separately; see “Optional Accessories” on page 42.
• Position the projector the desired distance from the screen. The distance
from the lens of the projector to the screen, the zoom setting, and the
video format determine the size of the projected image. The top illustration to the right shows three projected image sizes. For more information about image sizes at different distances, see “Projected image
size” on page 43.
• The image exits the projector at a given angle. The image offset is
112.2% when the projector is in 4:3 mode (default mode). This means
that if you have an image 10’ high, the bottom of the image will be 1.22’
above the center of the lens.
• This image offset is 132.9% when the projector is in 16:9 mode. This
means that if you have an image 10’ high, the bottom of the image will
be 3.29’ above the center of the lens.
• See “Connecting a video device” on page 14 for additional information
on 16:9 and 4:3 modes.
10 ft high
bottom of image
1.22 ft above lens
lens center
1
2
.
5
f
t
.
5
f
t
.
3
.
3
f
t
.
4.8 ft.
Projection angle in 4:3 mode (default)
19 ft.
7.5 ft.
5
Projector and Device Connector Guide
The following should help you find the connectors that you want to use to obtain the best resolution possible from your input devices, such as computers,
standard VCRs, DVD players (progressive and interlaced), HDTV sources (1080i, 1035i, and 720P HDTV formats), TV and satellite tuners, camcorders, video
games (progressive and interlaced), and laser disc players.
Computer connections
Computer connections involve attaching the computer cable included with the projector from a computer to the Computer In input. Optional connections
include attaching the included audio cable from computer to projector, connecting the computer monitor to the projector, and connecting a USB cable (notincluded) from the computer to the projector to advance slides in a PowerPoint™ presentation. See page 9 for setup computer/projector setup information.
Video connections
The first step for connecting video is deciding what type of output connector you want to connect to the projector has. If there is more than one output, select
the one with the highest quality. The best quality ranking, with 1 being the highest and 3 being the lowest, is:
1 Component video
2 S-video
3 Composite video
If you are connecting the projector to HDTV sources, the projector’s computer (VGA) connector, labeled Video In, should be used. Keep in mind that HDTV
and progressive sources should only be handled through the projector’s VGA connector. The S-video port does not function with progressive sources, even
with an the optional Component to S-video adapter. With progressive sources, the optional Component to VESA adapter must be used. Both of these adapters can be found in “Optional Accessories” on page 42 for ordering information.
projector input connectors
monitor
(out)
computer in
(HDTV and
progressive
sources)
s-video
video in
audio in
USB
6
Video Device
Video
Compatibility
If Your Device
Connector Is
Attach to this
Labeled Connector
on Projector
Comments For Setup Instructions, see
Standard Broadcast TV (not
HDTV) via: cable, digital
cable, satellite TV, DVD, or
VCR
Standard Video Camera
Standard Video Game
NTSC, PAL, and
SECAM formats
Component 480i
NTSC, PAL, and
SECAM formats
Component 480i
NTSC, PAL, and
SECAM formats
Component 480i
Composite video
or S-video
Component Video
Composite video
or S-video
Component Video
Composite video
or S-video
Component Video
Composite video
or S-video
S-video via the
optional Component
to S-video adapter
Composite video
or S-video
S-video via the
optional Component
to S-video adapter
Composite video
or S-video
S-video via the
optional Component
to S-video adapter
Not for progressive
(i.e. HDTV) sources.
See next page.
Not for progressive
(i.e. HDTV) sources
See next page.
Not for progressive
(i.e. HDTV) sources
See next page.
Composite video connection on
page 15.
S-video connection on page 15
Component video connection on
page 16
Composite video connection on
page 15.
S-video connection on page 15
Component video connection on
page 16
Composite video connection on
page 15.
S-video connection on page 15
Component video connection on
page 16
7
Video Device
Video
Compatibility
If Your Device
Connector Is
Attach to this
Labeled Connector
on Projector
Comments For Setup Instructions, see
HDTV
(High Definition TV)
EDTV
(Enhanced Definition TV)
Progressive DVD
Progressive Video Game
1080i, 720p VGA Computer In Not for Component
480i
Component 480p Component video Computer In (via the
optional Component
to VESA adapter)
1080i, 720p
Component 480p
1080i, 720p
Component 480p
VGA
Component video
VGA
Component video
Computer In
Computer In (via the
optional Component
to VESA adapter)
Computer In
Computer In (via the
optional Component
to VESA adapter)
Not for Component
480i
Not for Component
480i
Not for Component
480i
VGA connection on page 16
Component video connection on
page 16
VGA connection on page 16
Component video connection on
page 16
VGA connection on page 16
Component video connection on
page 16
8
Connecting a computer source
Required computer connections
Connect one end of the computer cable (see page 14 for connecting video
devices) to the dark blue Computer In connector on the projector. Connect
the other end to the video port on your computer. If you are using a desktop
computer, you will need to disconnect the monitor cable from the computer’s video port first.
Connect the black power cord to the Power connector on the side of the projector and to your electrical outlet.
NOTE: Always use the power cord that shipped with the projector.
connect computer cable
connect power cable
Optional computer connections
To have sound with your presentation, connect the audio cable to your computer and to the Audio In connector on the projector.
If you are using a desktop computer and want to see the image on your
computer screen as well as on the projection screen, connect the computer’s
monitor cable to the Monitor Out connector on the projector.
To advance slides in a PowerPoint presentation using the remote, plug the
USB connector on the computer cable into the USB mouse connector on
your computer. USB drivers must be installed to use the USB feature. For
more information For more information, see page 13.
connect audio cable
connect monitor cable
connect USB cable
9
Displaying a computer source image
Remove the lens cap.
remove lens cap
Toggle t h e Power switch on the side of the projector to the On position.
The LED flashes green and the fans start to run. When the lamp comes on,
the start up screen displays and the LED is steady green. It can take a
minute for the image to achieve full brightness.
? No start up screen? Get help on page 19.
Turn on your computer.
The computer’s image should appear on the projection screen. If it doesn’t,
press the Computer button on the projector’s keypad.
If your computer has Windows 98 as its operating system, see “Using the
projector with Windows 98 for the first time” on page 12 regarding the
driver setup process.
Make sure your laptop’s external video port is active.
Many laptops do not automatically turn on their external video port when a
projector is connected. Usually a key combination like FN + F5 is used to
turn the external display on and off. Refer to your laptop’s documentation
to learn your laptop’s key combination.
? No laptop image? Try pressing the Auto Image button on the key-
pad. Get help on page 20.
toggle Power switch
turn on computer
activate laptop’s external port
10
Adjusting the image
Adjust the height of the projector, if necessary, by pressing the release button to extend the foot.
Rotate the leveling foot located at the rear of the projector, if necessary.
Avoid placing your hands in near the hot exhaust vent in front of the projector.
Position the projector the desired distance from the screen at a 90 degree
angle to the screen.
See page 43 for a table listing screen sizes and distances.
adjust height
elevator
foot
adjust distance
rotate
leveling
foot
release button
Adjust the zoom or focus.
If the image is not square, adjust the keystone using the buttons on the keypad.
Press the top Keysto ne button to reduce the upper part of the image, and
press the bottom Keys t one button to reduce the lower part.
Adjust the Contrast or Brightness in the Picture menu.
See page 32 for help with these menu adjustments.
adjust zoom or focus
adjust keystone
adjust Picture menu
11
focus
(thin ring)
zoom
(thick ring)
Using the projector with Windows 98 for the first time
The first time you connect a computer running Windows 98 to the projector,
the computer recognizes the projector as “new hardware” and the Add
New Hardware Wizard appears. Follow these instructions to use the Wizard to load the correct driver (which was installed with your Windows
operating system).
If you are running Windows 2000 or Windows ME, skip these steps and go
to “Adjusting the image” on page 11.
a Click Next to begin searching for the driver.
b Make sure “Search for the best driver” is selected, then click Next.
a
b
c Uncheck any checked boxes, then click Next. Windows automatically
locates the driver. If this driver has been removed, reload the driver using
your Windows operating system CD.
d When Windows finds the driver, you are ready to install it. Click Next.
c
d
12
Skip this page if you did not connect a USB mouse cable
For Windows 98:
• If you connected the USB cable, the Add New Hardware Wizard
appears again. Drivers must be installed to use the USB functionality.
• The Wizard launches three times.
The first time it detects a USB Composite Device.
The second time a USB Human Interface Device (for the keyboard).
The third time it detects a USB Human Interface Device (for the
mouse).
For Windows 2000, Windows ME, and Windows XP:
• The USB drivers are automatically installed.
13
Connecting a video device
You can connect video devices such as VCRs, DVD players, camcorders,
digital cameras, video game consoles, HDTV receivers, and TV tuners to the
projector. There is also an audio input. You can connect the audio directly to
the projector to get sound from the built-in speaker, or you can connect the
audio to your stereo system.
Before connecting your projector, you should decide which aspect ratio you
want to use. The projector’s Aspect Ratio setting is accessed through the
projector’s Menu. See page 32 for more information.
Aspect ratio is the ratio of the image width to image height. TV screens are
usually 4:3, which is the default for this projector. HDTV and most DVDs
are 16:9. If you’re projecting onto a screen, the size/shape of the screen may
answer this question for you. If you are projecting onto a blank wall, you
don’t have the screen size restriction. What you plan to project will also help
you choose between 4:3 and 16:9. Most regular TV shows are 4:3, while most
movies are 16:9.
If a have a 16:9 screen then you should select an aspect ratio of 16:9 for
anamorphic movies or HDTV, and Native for 4:3 content. If you have a 4:3
screen you should still use 16:9 for anamorphic movies or HDTV, but you
also have the option of using either 4:3 (to fill the screen) or Native (for
direct pixel mapping) for 4:3 content. Keep in mind that anamorphic movies only appear correctly if the DVD player is set to output to a 16:9 television.
4:3 screen
16:9 screen
Do Not Use
4:3
mode
16:9
mode
You can connect the projector to most video devices that can output video.
You cannot directly connect the coaxial cable that enters your house from a
cable or satellite company, the signal must pass through a tuner first. Examples of tuners are digital cable boxes, VCRs, digital video recorders, and satellite TV boxes. Basically, any device that can change channels is considered
a tuner.
Native
mode
(NTSC
only)
14
Video device connections
Composite video connection
Plug the composite video cable’s (not included) yellow connector into the
video-out connector on your video device. Plug the other yellow connector
into the yellow Video In connector on the projector. Plug the included audio
adapter’s white connector into the left audio out connector on your video
device; plug the audio adapter’s red connector into the right audio out connector on the video device. Plug the included audio cable into the black connector on the audio adapter. Plug the other end of the audio cable into the
blue Audio In connector on the projector.
Keep in mind that video output from composite connections are not as high
quality as S-video or component.
S-video connection
If your video device uses a round, four-prong S-video connector, plug an Svideo cable into the S-video connector on your video device and into the S-
video connector on the projector. Use the audio cable and the audio adapter
as described above.
Keep in mind that S-video delivers higher quality video output than composite, but not as high quality video output as component.
connect video cable and audio cable (via
the audio adapter)
connect S-video and audio cable (via
audio adapter)
15
Component video connection
If your video device has component connectors, use a Component to Svideo adapter or a Component to VESA adapter (available from a thirdparty vendor) for HD and progressive sources. Plug the component cable
into the video device. Plug the other end of the component cable into the
adapter and plug the adapter into the projector’s S-video (for S-video) or
Computer in (for VESA) connector. Use the audio adapter as described on
the previous page.
Component connection offers the highest quality video output.
VGA connection
If your video device has a 15-pin VGA output, plug one end of the included
computer cable to the VGA connector on your video source. This connector
may be labeled “To Monitor” on the video source. Plug the other end of the
cable into the Computer In connector on the projector.
Use the audio adapter as described on the previous page.
connect component cables via component
to S-video adapter and audio cables via
audio adapter
or
via component to VESA adapter and
audio adapter
connect VGA cable and
audio cable via audio
adapter
Component
to VESA
Component
to S-vi deo
Connect the power cord to the Powe r connector on the side of the projector
and to your electrical outlet.
NOTE: Always use the power cord that shipped with the projector.
connect power cable
16
Displaying video
Remove the lens cap.
remove lens cap
Toggle t h e Power switch on the side of the projector to the On position.
The LED flashes green and the fans start to run. When the lamp comes on,
the start-up screen is displayed and the LED is steady green. It can take a
minute for the image to achieve full brightness.
? No start up screen? Get help on page 20.
Plug in and turn on your video device.
The video device’s image should appear on the projection screen. If it
doesn’t, press the Video button on the keypad.
? No image? Get help on page 23.
Adjusting the image
Adjust the height of the projector by pressing the release button to extend
the foot.
Rotate the leveling foot at the rear of the projector, if necessary.
Position the projector the desired distance from the screen at a 90 degree
angle to the screen.
See page 43 for a table listing screen sizes and distances to the screen.
toggle Power switch
turn on video device
adjust height
elevator
foot
adjust distance
release button
rotate
leveling
foot
17
Adjust the zoom and focus.
adjust zoom and focus
If the image is not square, adjust the keystone using the buttons on the keypad. Press the top Keys tone button to reduce the upper part of the image,
and press the bottom Keystone button to reduce the lower part.
Adjust the volume on the keypad or remote.
Adjust the Contrast, Brightness, Color, Tint, or Aspect Ratio in the Picture
menu. See page 32 for help with the menus and these adjustments.
For Aspect Ratio, keep in mind that DVD players must be configured for
16:9 in order to view the highest quality image. For more information
regarding Aspect Ratio, see page 14.
adjust keystone
adjust volume
adjust Picture menu options
including Aspect Ratio
focus
(thin ring)
zoom
(thick ring)
18
Shutting down the projector
Troubleshooting your setup
The projector automatically displays a black screen after no active source is
detected for 30 minutes. This black screen helps preserve the life of the projector. The image returns when an active source is detected or a remote or
keypad button is pressed.
Screen Save
You can make the black screen appear after a preset number of minutes by
turning on the Screen Save feature in the Settings>System menu. See
page 35.
Power Save
The projector also has a Power Save feature that automatically turns the
lamp off after no active sources are detected and no user interaction with
the projector is performed for 20 minutes. By default, this feature is off. See
page 35.
Turning off the projector
You can turn the projector off simply by toggling the power switch to the off
position.
You can also press the remote’s Power button to place the projector in the
Off state while it is running. When the Power button is pressed twice (once
to start the power-down process and a second time to verify that you want
to power the projector off), the lamp turns off and the LED blinks green for
one (1) minute while the fans continue to run to cool the lamp. While the
LED is blinking green, the projector does not accept any keypad and remote
control input.
When the lamp has cooled, the LED lights solid green and the fans slow
down to minimal speed. To turn off the projector, toggle the power switch to
the off position.
If your image appears correctly on the screen, skip to the next section. If it
does not, troubleshoot the setup.
The LED on top of the projector indicates the state of the projector and can
help you troubleshoot.
Table 1: LED behavior and meaning
LED color/behavior Meaning
solid green The power switch has been toggled on
blinking green The power switch has been toggled on
blinking red
see page 43 for more information
solid red An unidentifiable error: please contact
and the software has initialized or the projector has been powered off via the
remote.
and the software is initializing, or the projector is powering down and the fans are
running to cool the lamp.
A fan or lamp failure has occurred. Make
sure the vents aren’t blocked (see
page 25).Turn off the projector and wait
one minute, then turn the projector on
again. If the projector has been working
for 4,000 hours or more (page 38),
replace the lamp and reset the lamp timer.
Contact Technical Support if the problem
.
persists
Technical Support.
NOTE: Once the projector has been toggled off, you must wait for one (1)
minute before turning the projector on again. This allows the lamp to properly cool. However, if the remote was used to power the projector to the Off
state you do not need to wait one minute to turn it on again.
The following tables show common problems. In some cases, more than one
possible solution is provided. Try the solutions in the order they are presented. When the problem is solved, you can skip the additional solutions.
19
Problem Solution Result
no start up screen
only start up screen appears
A
plug power cord in projector’s left side
remove lens cap
toggle power switch
toggle power switch
on side
press the Computer button
activate laptop’s external port
restart laptop
correct image
computer image projected
A
A
20
Problem Solution Result
no computer image, just the words “Signal out of
range”
A
Signal out of
range
press the Auto Image button on keypad
adjust computer refresh rate in Control
Panel>Display>Settings>Advanced>Adapter
(location varies by operating system)
you may also need to set a different
resolution on your computer, as shown
in the following problem, “image fuzzy
or cropped”
computer image projected
A
A
21
Problem Solution Result
image fuzzy or cropped
AA
image not centered on screen
A
set your computer’s display resolution to
the native resolution of the projector
(Start>Settings>Control
Panel>Display>Settings tab)
select 800x600
For a laptop,
disable laptop
monitor
or turn-on dualdisplay mode
move projector, adjust zoom, adjust height
adjust horizontal or
vertical position in
Picture>Advanced
menu
image clear and not cropped
A
correct image
22
Problem Solution Result
image not square adjust Keystone on keypad
image not sharp
adjust Sharpness (video sources only) in the
Picture>Advanced menu
ABAB
image does not fit 4:3 or 16:9 screen
change aspect ratio to 4:3 or 16:9 in
Picture>Aspect ratio menu
square image
correct image
AB
correct image
23
Problem Solution Result
image upside down
AB
image reversed left to right
A
projected colors don’t match source
turn off ceiling in Settings>System menu
turn off rear in Settings>System menu
adjust color, tint, color temperature,
brightness, contrast in the menus
correct image
AB
correct image
AB
correct image
COLOR
COLOR
24
Problem Solution Result
make sure vents aren’t blocked, turn off the
lamp won’t turn on, LED blinking red
LED
projector and allow it to cool for a minute
lamp turns on
“Change lamp” message appears at startup or lamp
won’t turn on and LED blinking red
LED
if lamp hours > 4,000, lamp must be
replaced (see page 38)
check lamp hours
Main>About
replace lamp
25
lamp turns on
Still need assistance?
If you need assistance, call InFocus Customer Service directly at
1-800-799-9911. Support is free between 6 a.m. and 6 p.m. PST, Monday
through Friday. Support is available in North America after hours and
weekends for a fee at 1-888-592-6800.
Or, send us an e-mail at techsupport@infocus.com.
In Europe, call InFocus in The Netherlands at +31 (0) 20 579 2820.
In Asia, call InFocus in Singapore at (65) 6334-9005.
This product is backed by a limited two-year warranty (page 47). An
extended warranty plan may be purchased from your dealer. When sending
your projector in for repair, we recommend shipping the unit in its original
packing material, or having a professional packaging company pack the
unit for shipping. Please insure your shipment for its full value.
26
Using the remote control
The remote uses two (2) provided AAA batteries. They are easily installed
by sliding the cover off the remote’s back, aligning the + and - ends of the
batteries, sliding them into place, and then replacing the cover.
Caution: When replacing the batteries, be aware that using batteries other
than the type provided with the projector may risk severe damage to the
remote. When disposing of the batteries, be sure to do so in an environmentally proper manner.
To operate, point the remote at the projection screen or at the projector (not
at the computer). The range of optimum operation is about 15 feet (4.5m).
Pressing the remote’s Powe r button when the projector’s Power toggle
switch is in the Off position does not cause the projector to power up. You
need to put the projector’s Power toggle switch in the On position to let the
remote power on the projector.
When the projector is running, you can press the remote’s Power button to
place the projector in the Off state (see page 19 for shutdown info) and
power it off.
Press the remote’s Menu button to open the projector’s menu system. Use
the arrow buttons to navigate, and the Select button to select features and
adjust values in the menus. See page 31 for more info on the menus.
The remote also has Volu me and Mute buttons to control the sound, and
Video and Computer buttons to switch between sources.
Two presentation-specific features are also provided. Use the Blank button
to display a blank screen instead of the current slide (you can choose which
color is displayed, see page 36); use the Effect button to invoke a user-definable action, such as freeze, zoom or change your aspect ratio for viewing
DVDs (see page 36 to learn to program this button).
Previous and Next buttons allow you to navigate through your PowerPoint
presentation while in Slide Show mode. Connect the USB connector on the
computer cable to your computer to use these buttons. When you do this for
the first time, the Add New Hardware wizard may appear. See page 13 for
details on loading the correct USB drivers.
previous button
navigation
buttons
Troubleshooting the remote
• Make sure the batteries are installed in the proper orientation and are
not dead.
• Make sure you’re pointing the remote at the projector or the screen, not
the computer, and are within the remote range of 15 feet (4.5m). For
best results, point the remote at the screen.
• If you are trying to advance PowerPoint slides, make sure the USB
cable is connected. If using a USB cable, make sure the correct drivers
are installed.
next button
27
Using the audio
To use the projector’s speaker, connect your source to the Audio In connector on the projector. See page 15 regarding using the audio adapter.
To adjust the volume, press the Volume buttons on the keypad or remote.
To mute the sound, press the Mute button on the remote.
Troubleshooting Audio
If you aren’t hearing the audio, check the following:
• Make sure the audio cable is connected.
• Make sure mute is not active (press the Mute button on the remote).
• Make sure the volume is turned up enough. Press the Volume button
on the keypad or remote.
• Make sure the correct source is active.
• Adjust the audio source.
• If playing a video, make sure the playback has not been paused.
Using the keypad buttons
Most buttons are described in detail in other sections, but here is an overview of their functions:
Menu–opens the on-screen menus (page 31).
Select–confirms choices made in the menus (page 31).
Up/Down arrows–navigates to and adjusts settings in the menus (page 31).
Auto Image–resets the projector to the source.
connect audio cable
adjust volume
menu navigation
buttons
Presets–cycles through the available preset settings (page 33).
Key ston e–adjusts squareness of the image (page 11).
Vo lu me –adjusts sound (page 28).
Video and Computer–changes the active source.
28
Optimizing computer images
After your computer is connected properly and the computer’s image is on
the screen, you can optimize the image using the onscreen menus. For general information on using the menus, see page 31.
• Adjust the Keystone, Contrast, or Brightness in the Picture menu
(page 32).
• Change the Aspect Ratio. Choose the option that best fits your input
source (page 32).
• Adjust the Color Temperature in the Advanced menu (page 34).
• Adjust the phase, Tracking, or Horizontal or Vertical position in the
Advanced menu (page 34).
• Once you have optimized the image for a particular source, you can
save the settings using Presets. This allows you to quickly recall these
settings later (page 33).
Presentation features
Several features are provided to make giving presentations easier. Here is an
overview, details are found in the menu section.

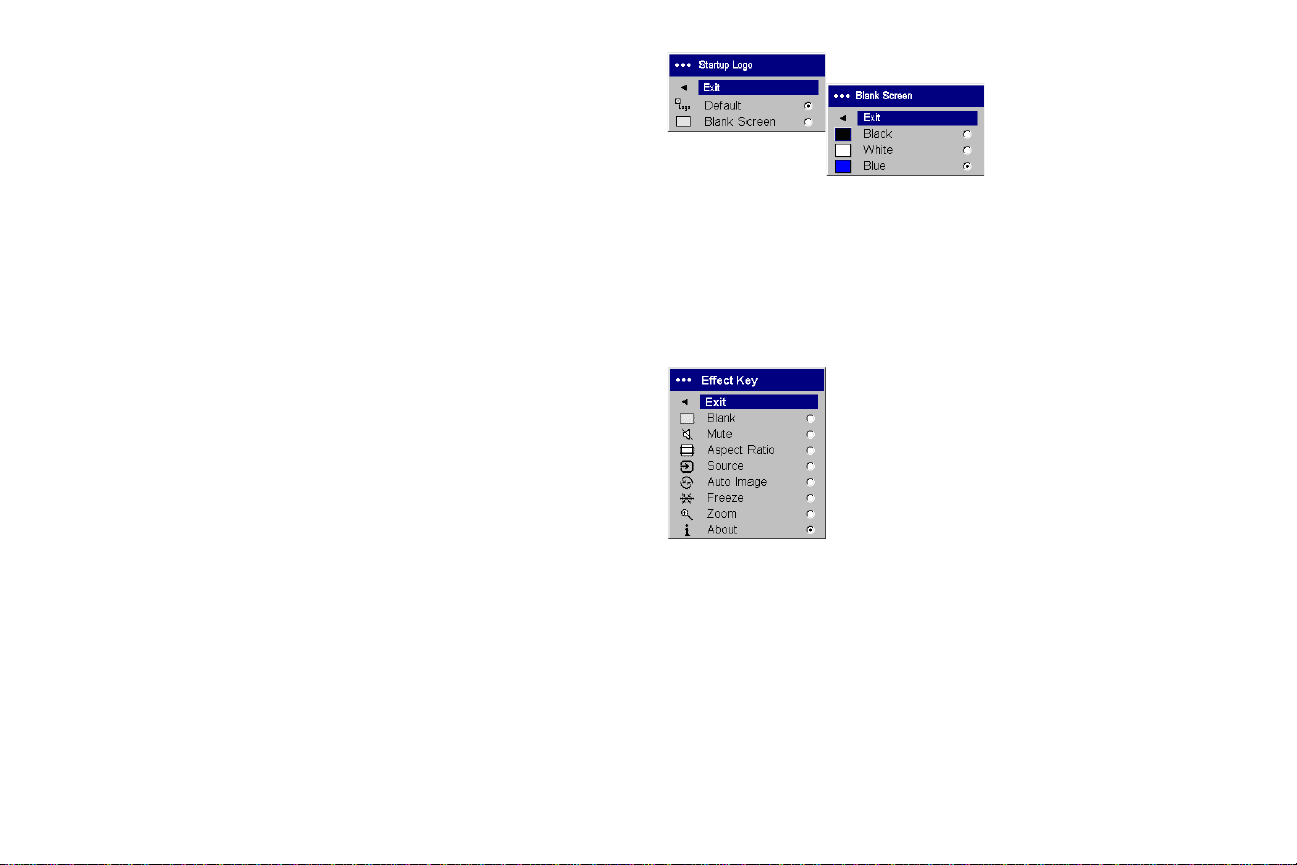

• The Effect button on the remote allows you to assign various features to
the button. The default effect is About, which displays information
about the projector and current source. You can select among Blank,
Mute, Aspect Ratio, Source, Auto Image, Freeze, Zoom, and About. See
page 36 for details. The freeze effect allows you to freeze the displayed
image. This is useful if you want to make changes on your computer
without your audience seeing them. The mask effect allows you to
cover part of the image with a black curtain.
• The Blank button on the remote allows you to display a blank screen
instead of the active source. You can determine the color of this screen
(page 36).
• The Startup Logo option lets you change the default start up screen to a
blank or default screen (page 36).
• Two options, Power Save and Screen Save, are provided to automatically shut down the projector after several minutes of inactivity or display a black screen. This helps preserve lamp life (page 35).
29
Optimizing video images
Customizing the projector
After your video device is connected properly and the image is on the
screen, you can optimize the image using the onscreen menus. For general
information on using the menus, see page 31.
• Adjust the Keystone, Contrast, Brightness, Color, or Tint in the Picture
menu (page 32).
• Change the Aspect Ratio. Choose the option that best fits your input
source (page 32).
• The remote’s Effect button allows you to assign various features to the
button. The default effect is About, which displays information about
the projector and current source. You can select among Blank, Mute,
Aspect Ratio, Source, Auto Image, Freeze, Zoom, and About. See
page 36 for details.
• Select a Sharpness setting (page 34).
• Use the Color Control to adjust the color gain (page 34).
• Adjust the Color Temperature. Select a listed warmth value (page 34).
• Turn on Overscan to remove noise on the edges of the image.
You can customize the projector for your specific setup and needs. See
page 35 to page 37 for details on these features.
• For rear projection, turn rear mode on in the Settings>System menu.
• For ceiling mounted projection, turn ceiling mode on in the Set-
tings>System menu.
• Specify which source the projector checks first for active video during
power-up.
• Specify the function of the Effect button on the remote.
• Turn the projector’s display messages on and off.
• Turn on power saving features.
• Specify blank screen colors and start up logos.
• Specify the language viewed on the menus.
• Save settings for the active source as a preset.
30
Using the menus
To open the menus, press the Menu button on the keypad or remote. (The
menus automatically close after 60 seconds if no buttons are pressed.) The
Main menu appears. Use the arrow buttons to move up and down to highlight the desired submenu, then press the Select button.
To change a menu setting, highlight it, press Select, then use the up and
down arrow buttons to adjust the value, select an option using radio buttons, or turn the feature on or off using check boxes. Press Select to confirm
your changes. Use the arrows to navigate to another setting. When your
adjustments are complete, navigate to Exit, then press Select to go to the
previous menu; press the Menu button at any time to close the menus.
Dots appears before the menu name. The number of dots indicate menu’s
level, ranging from one (the Main menu) to four (the most nested menus).
The menus are grouped by usage:
• The Picture menu provides image adjustments.
• The Settings menu provides set-up type adjustments that are not
changed often.
• The About menu provides a read-only display of information about the
projector and source.
Certain menu items may not be visible or may be grayed depending upon a
particular source being connected. For example, Sharpness is only available
for video sources and is not visible when a computer source is active. Menu
options are grayed out only if the source if selected but no signal is present.
For example, if the projector is set to a video source but the source, such as a
DVD player, is turned off video menu options are grayed out.
Main menu
menu
dots
keypad navigation
buttons
Settings
menu
About menu
31
Picture menu
To adjust the following settings, highlight the setting, press Select, use the
up and down arrows to adjust the values, then press Select to confirm the
changes.
Key ston e: adjusts the image vertically and makes a squarer image. You can
also adjust keystone from the keypad.
Contrast: controls the degree of difference between the lightest and darkest
parts of the picture and changes the amount of black and white in the
image.
Brightness: changes the intensity of the image.
Color: adjusts a video image from black and white to fully saturated color.
The color setting applies to video sources only.
Tint: adjusts the red-green color balance in the image of NTSC video
images. The tint setting applies to NTSC video sources only.
Aspect Ratio: Aspect ratio is the ratio of the image width to image height.
TV screens are usually 4:3. HDTV and most DVDs are 16:9. The default is
4:3.
Select Native to see the unmodified input with no resizing by the projector.
Select 16:9 to watch enhanced widescreen DVDs.
For more information regarding Aspect Ratio, see page 14.
Picture menu
increasing keystone
decreasing keystone
Aspect ratio
32
Presets: Presets are provided that optimize the projector for displaying
computer presentations, photographs, film images, and video images. Film
input is material originally captured on a film camera, like a movie; video
input is material originally captured on a video camera, like a TV show or
sporting event. You can use the preset as a starting point, then further customize the settings for each source. The settings you customize are saved in
the preset for each source. To restore the factory default settings, choose Factory Reset in the Settings>Service menu (page 37).
There is also a user-definable preset. To set a preset for the current source,
adjust the image, select Save User in the Presets menu, then select Yes. You
can recall these settings in the future by selecting the User 1 preset.
Presets
Save
User
Settings
33
Advanced menu
Sharpness: (video sources only) changes the clarity of the edges of a video
image. Select a sharpness setting.
Advanced menu
Sharpness
Color Temperature: changes the intensity of the colors. Select a listed relative warmth value.
Color Control: allows you to individually adjust the gain for the red, green,
and blue colors.
Video Standard: when it is set to Auto, the projector attempts to automatically pick the video standard based on the input signal it receives. (The
video standard options may vary depending on your region of the world.) If
the projector is unable to detect the correct standard, the colors may not
look right or the image may appear “torn.” If this happens, manually select
a video standard by selecting NTSC, PAL, or SECAM from the Video Standard menu.
Overscan: (video sources only) removes noise around the video image.
The following four (4) options are for computer sources only.
Phase: adjusts the horizontal phase of a computer source.
Tr a c k i ng : adjusts the vertical scan of a computer source.
Horizontal/Vertical Position: adjusts the position of a computer source.
Color Temperature
Color Control
Video Standard
34
Settings menu
Audio: allows adjustments to Volume of the internal speaker. Adjustments
can also be made from the projector’s keypad and the remote.
Sources: Power-up Source determines which source the projector checks
first for active video during power-up. When the Autosource feature is On,
the projector automatically finds the active source, checking the Powe r-up
Source first. The options are Computer 1 for a computer source, and Video
1 (for S-video connections), and Video 2 (for composite video connections)
for video sources. When this feature is Off, the projector defaults to the
source selected in Power-up Source. To display another source, you must
manually select one by pressing the Computer or Video button on the
remote or keypad.
System: Rear reverses the image so you can project from behind a translucent screen. Ceiling turns the image upside down for ceiling-mounted projection. Display Messages displays status messages (such as “Searching” or
“Mute”) in the lower-left corner of the screen. NND prevents your notebook
computer from going into Screen Save mode if the USB cable is connected.
Power Sav e automatically turns the lamp off after no signals are detected
for 20 minutes. After an additional 10 minutes with no signal, the projector
powers down and can be toggled off. If an active signal is received before
the projector powers down, the image will be displayed. When Power Save
is enabled, Screen Save is disabled. Screen Save automatically blanks the
screen with a black color after no signals are detected for a preset number of
minutes. The image returns when an active source is detected or a remote or
keypad button is pressed.
Settings menu
Audio
Sources
Power-up
Source
System menu
Screen Save
35
Startup Logo: allows you to display a blank screen instead of the default
screen at startup, and when no source is detected.
Blank Screen: determines what color is displayed when you press the
Blank button on the remote.
Effect Key: allows you to assign a different function to the Effect button on
the remote, allowing you to quickly and easily use the effect. Highlight an
effect and press Select to choose a different one.
• Blank: displays an empty screen.
• Mute: turns off all sound.
• Aspect Ratio: toggles among 4:3, 16:9, and Native (see page 14 and
page 32). Set as the Effect Key, it can allow you to switch the Aspect
Ratio for DVDs.
• Source: cycles through available sources.
• Auto Image: resets the projector to the source (page 28).
• Freeze: pauses the projected image.
• Zoom: allows you to magnify part of the image. This feature only
works if you purchase an optional remote control with mouse buttons
and cursor control. Press Effect, then press the left mouse button to
zoom the image. Use the cursor control to pan the image while it is
zoomed. Press the right mouse button to decrease the magnification.
Press the Effect button to cancel zoom and return to normal magnification.
• About: the default effect. It opens a window with projector and source
information.
Startup Logo
Blank Screen
Effect Key
36
Language: allows you to select a language for the onscreen display.
Language menu
Service: To use these features, highlight them and press Select.
Factory Reset: restores all settings to their default.
Lamp Reset: resets the lamp hours used counter in the About menu to
zero. Do this only after changing the lamp.
Service Code: only used by authorized service personnel.
About: provides information about the projector and the active source.
Showing the About box is the default action assigned to the Effect button.
Service menu
About menu
37
Maintenance
Cleaning the Lens
1 Apply a non-abrasive camera lens cleaner to a soft, dry cloth.
• Avoid using an excessive amount of cleaner, and don’t apply the
cleaner directly to the lens. Abrasive cleaners, solvents or other harsh
chemicals might scratch the lens.
2 Lightly wipe the cleaning cloth over the lens in a circular motion. If you
don’t intend to use the projector immediately, replace the lens cap.
Replacing the Projection Lamp
The lamp hours used timer in the About menu counts the number of hours
the lamp has been in use. After 3,980 hours, the message “Change lamp”
appears on the screen at startup. If the maximum lamp time of 4,000 hours
is exceeded, the lamp will not light. In this case, after replacing the lamp
you must reset the lamp hours by simultaneously pressing both Vo lu me
buttons on the keypad and holding them for 10 seconds.
NOTE: You can order new lamp housings from your dealer. See “Accessories” on page 41 for information. Use only a replacement lamp (see
“Optional Accessories” on page 42 for the part number) with the same type
and rating as the original lamp.
1 Turn off the projector and unplug the power cord.
Lamp hours used
wait 30 minutes
2 Wait 30 minutes to allow the projector to cool thoroughly.
3 Turn the projector on its side so that the lamp door is facing you. Using a
flat-blade screwdriver, gently pry the lamp door from the projector by
placing the screwdriver blade into the space between the top of the lamp
door and the projector.
lamp door
38
4
l
Loosen the two captive screws that attach the lamp housing to the projector.
5 Detach the lamp connector from the projector by depressing the locking
tab on the connector and lightly pulling it free.
WARNING:
To avoid burns, allow the projector to cool for at least 30 minutes
before you replace the lamp.
amp
connector
lamp cable
Do not drop the lamp housing or touch the glass bulb! The glass
may shatter and cause injury.
Be extremely careful when removing the lamp housing. In the
unlikely event that the bulb ruptures, small glass fragments may be
generated. The lamp housing is designed to contain these fragments, but use caution when removing the lamp housing.
6 Carefully remove the lamp housing. Dispose of the lamp in an environ-
mentally proper manner.
7 Install the new lamp housing and tighten the screws.
8 Re-attach the lamp connector to the projector. The locking tab should
engage when the connector is fully plugged in.
9 Replace the lamp door.
10 Plug in the power cord and toggle the Powe r switch to turn the projector
back on.
11 To reset the lamp hour timer, navigate to the Settings>Service menu
and select Lamp Reset. See page 37 for details.
39
screw
connector
locking tab
lamp
housing
Service menu
lamp
housing
lamp cable
screw
Cleaning the Lamp Housing Screens
In dirty or dusty environments, the two dust filter screens in the lamp housing can become clogged, causing high temperatures and premature lamp
failure. Routine maintenance to remove dust from the screens lowers the
lamp operating temperature and prolongs lamp life. To maximize lamp life
you should clean the screen every 250 hours.
1 Remove the lamp housing.
2 Examine the dust filter screens on the lamp housing. If necessary, use a
vacuum cleaner set on low power to clean the screens. Be careful not to
disturb any internal components when cleaning the screens.
3 Replace the lamp housing and lamp door.
Using the security lock
The projector has a security lock for use with a PC Guardian Cable Lock
System. See “Optional Accessories” on page 42 for ordering information.
Refer to the information that came with the lock for instructions on how to
use it.
lamp housing
lamp
two screens
(one on each
side of the
lamp housing)
security
lock
40
Appendix
Accessories
Specifications
Te m p e r a t u r e
Operating
Non-operating
Altitude Operating 0 to 10,000 feet (3,048 meters)
Non-operating 0 to 20,000 feet (6,096 meters)
Humidity Operating 10% to 95% relative humidity, non-condensing
Non-operating 10% to 90% relative humidity, non-condensing
Dimensions
We ig ht
Optics Focus Range
Lamp type
Input Power Requirements 100-120/200-240 3/2A 50/60Hz
50 to 104° F (10 to 40° C) at sea level
50 to 95
° F (10 to 35° C) at 10,000 feet
-4 to 140
12.5 x 9.8 x 4.49” (318 x 249 x 114 mm)
6.8 lbs. (3.1 kg) unpacked
4.9 - 32.8 feet (1.5 - 10 m)
150 - W DC SHP lamp
° F (-20 to 60° C)
Standard Accessories
(ship with the projector)
Shipping Box (with packaging) 110-0551-xx
Soft Carrying Case 110-0580-xx
Computer Cable 6 ft (1.8 m) 210-0175-xx
Audio Cable 6 ft (1.8 m) 210-0118-xx
RCA to 3.5mm Audio Adapter 210-0177-xx
S-video Cable 13 ft (4 m) 210-0125-10
Power Cable (country-dependent) 210-0023-xx
Remote and Batteries 590-0678-xx
Projection Lamp Housing
(included in projector)
Lens Cap 505-1523-xx
Quick Setup Card 009-0655-02
User’s Guide 010-0357-03
CD 010-0399-03
Safety Card 009-0659-xx
Color-coded Cable Ties, 3 set SP-CABLETIES
Part Number
SP-LAMP-009
Ceiling Mount UL tested/listed ceiling mount with minimum capacity of
34 lbs (15.5 kg)
41
NOTE: Use only approved accessories. You can purchase these items by contacting your dealer or InFocus Catalog
Optional Accessories Part Number
Shipping Case (ATA approved) CA-ATA-014
Samsonite Deluxe Travel Case CASE-802
Deluxe Carry Case for Laptop and Projector
Component to S-video Adapter SP-SVIDEO-ADPT
Component to VESA Adapter SP-VESA-ADPT
50’ VGA Extension bundle SP-VGAEXT50-D
50’ VGA Extension bundle International
version
Projector Mount SP-CEIL-007B,
False Ceiling Plate SP-LTMT-PLT
Mounting Extension Arm SP-LTMT-EXTP
RCA Video Cable 210-0176-xx
Projector Security Cable SP-LOCK
50” Diagonal Screen (portable) A650
60” Diagonal Screen (portable) HW-DLXSCRN
84” Diagonal Wall/Ceiling Mounted Screen HW-WALLSCR84
30’ A/V Cable SP-AV30
Replacement Lamp Housing SP-LAMP-009
IR Presentation Remote HW-PRESENTER
Full-Feature Remote with Laser HW-CONDUCTOR
PocketPoint RF Presentation Remote HW-RF-POCKTPNT
CA-C132
SP-VGAEXT50-I
SP-LTMT-EXTPS
Sales at 1-800-660-0024 or visiting our website at www.infocus.com/accessories. For general product information, please call 1-800-294-6400.
42
Projected image size
NOTE: Visit our website at www.infocus.com/service for an interactive
image size calculator.
Tabl e 2:
Range of distance to the screen for a given screen size for the InFocus X1
Red LED Behavior and Projector Errors
If the projector is not functioning properly and the LED is blinking red, consult Ta b le 3 to determine a possible cause. There are two-second pauses
between the blinking cycles. Visit www.infocus.com/service for more
details on the red LED error codes.
Table 3:
Distance to screen
Diagonal
Screen Size
(inches/m)
40/1 32/0.8 5.8/1.8 4.8/1.5
50/1.3 40/1 7.8/2.4 6,5/2.0
60/1.5 48/1.2 8.8/2.7 7.5/2.3
100/2.5 80/2 14.6/4.5 12.4/3.8
150/3.8 120/3.1 22.6/6.9 19.03/5.8
200/5.1 160/4.1 30.5/9.3 25.2/7.7
Image Width
(inches/m)
Maximum
distance
(feet/m)
Minimum
Distance
(feet/m)
Red LED Behavior Explanation
One (1) blink The lamp won't strike after five (5)
attempts. Check the lamp and lamp door
installations for loose connections.
Two (2) blinks The lamp counter hours have exceeded
lamp life hours. Replace the lamp and
reset the lamp hours counter.
Three (3) blinks The projector has shut down. Check to
see if the lamp door is open. If the lamp
door is closed, toggle off the projector
and wait one minute, then toggle the projector on again. If the lamp does not strike
after one minute, replace the lamp. Contact Technical Support (see page 26) for
repair if replacing the lamp does not solve
the problem.
Four (4) blinks The fan has failed. Contact Technical Sup-
port (see page 26) for repair or replacing
the fan.
Five (5) blinks The projector is overheating. Check for a
blocked air vent. Contact Technical Support (see page 26) for repair if clearing
the air vents does not solve the problem.
43
Numerics
16x9 vs 4x3 screen aspect 14
800x600 resolution 4
A
About 36, 37
Accessories
optional 42
standard 41
accessories, ordering 41, 42
Advance menu 34
altitude limits 41
Aspect Ratio 36
Aspect ratio 32
aspect ratio 14
Audio 35
Audio In connector 9, 15, 28
Autosource 35
B
Blank button 29
Blank Screen 36
blinking green 19
blinking red 19
Brightness 32
C
cable box 14
cables
ordering 41, 42
Ceiling 35
Color 32
Color Control 34
Color Space 34
Color Temperature 34
compatibility
IBM-compatible 4
Macintosh 4
video devices 4
component cable connector 16
Computer In connector 9
connecting
video device 14
connectors on projector 7, 8
contacting InFocus 26
Contrast 32
Customer Service 26
customer service contact information 26
customizing the projector 30
D
Display Messages 35
Drivers
USB 13
Windows 98 13
DVDs 32
E
Effect button 29, 30
Effect Key 36
e-mail
techical support 26
F
Factory Reset 37
focus 11, 18
H
HDTV 4, 6, 32
Horizontal 34
I
IBM-compatible computers 4
size 5
image optimization 29
image size
projected 43
K
keypad buttons
44
projector 28
keystone adjustment 11, 18
L
lamp
ordering 41
Lamp Housing Screens
cleaning 40
lamp replacement 38
Lamp Reset 37
Language 37
LED 19
blinking green 19
solid green 19
LED Behavior
red 43
LED behavior 19
lens
cap 41
leveling foot 17
M
Macintosh computers
compatibility 4
maintaining the projector 38
Menu button 31
menu usage 31
Monitor Out connector 9
mouse, using your 9
Mute button 28
N
NND 35
O
optimizing images 29
optimizing video 30
Overscan 34
P
Phase 34
phone numbers
technical support 26
Picture menu 32
Power connector 9
power cord 9, 16
Power Save 19
Power switch 10
PowerPoint
remote’s mouse buttons 27
Power-up Source 35
presentation
features 29
Presets 33
projection distance 5
projector
connecting video devices 14
customization 30
keypad buttons 28
maintenance 38
positioning 5
returning for service 26
setting up 5
troubleshooting problems 19
turning off 19
warranty 26
R
Rear 35
Red LED behavior 43
registering your projector 4
remote control
usage 27
replacing the lamp 38
S
Screen Aspect 14
Screen Save 19
security lock 40
45
Service 37
Service Code 37
Settings menu 35
sharpness 34
solid green 19
solid red 19
Sources 35
Specifications 41
Startup Logo 36
S-video connector 15
System 35
T
technical support
e-mail 26
phone numbers 26
temperature limits 41
Tint 32
Tracking 34
troubleshooting 19
turning off
projector 19
TV tuner 14
U
USB 9
USB, using your mouse 9
V
vents 3
Vertical 34
Video In connector 15
video optimizing 30
Video Standard 34
volume adjustment 18
Volume button 28
W
Windows 2000 13
Windows 98 12
Windows ME 13
Windows XP 13
Z
zoom 11, 18
46
Limited Warranty
Subject to the Limitations, Exclusions and Disclaimers hereof, InFocus Corporation ("InFocus") warrants that the Projector, Lamps and Accessories
(hereinafter collectively or individually referred to as "Product" as appropriate) purchased from InFocus, an InFocus distributor, or an InFocus reseller
will conform to InFocus' specifications and be free from defects in material
or workmanship for the respective Limited Warranty period provided
below. InFocus does not warrant that the Product will meet the specific
requirements of the end-user customer.
If the Product while subject to this Limited Warranty, is defective in material
or workmanship during the warranty period, then InFocus, at its option,
will REPAIR or REPLACE the Product.
All exchanged parts and Products replaced under this Limited Warranty
will become property of InFocus. InFocus' sole obligation is to supply (or
pay for) all labor necessary to repair the Product found to be defective
within the Limited Warranty period and to repair or replace defective parts
with new parts or, at the option of InFocus, serviceable used parts that are
equivalent or superior to new parts performance. Limited Warranty periods
are as follows:
• Projector Product Limited Warranty Period (Excluding Lamps)
(2) years from date of purchase.
• Lamp Product Limited Warranty Periods
Product purchase, the original installed lamp shall have a 90-day or 500
hours usage Limited Warranty Period, whichever comes first, and
replacement Lamps purchased at the time of Projector Product pur-
chase will have a 500 hours usage Limited Warranty period.
• Accessory Product Limited Warranty Period
purchase.
WARRANTY LIMITATION AND EXCLUSION
THIS WARRANTY SETS FORTH INFOCUS' MAXIMUM LIABILITY FOR
ITS PRODUCT. THIS WARRANTY EXTENDS ONLY TO PRODUCTS PURCHASED FROM INFOCUS OR AN INFOCUS AUTHORIZED RESELLER.
: From the date of Projector
: one (1) year from date of
: Two
InFocus shall have no further obligation under the foregoing Limited Warranty if the Product has been damaged due to abuse, misuse, neglect, smoke
exposure (cigarette or otherwise), accident, unusual physical or electrical
stress, unauthorized modifications (including use of an unauthorized
mount), tampering, alterations, or service other than by InFocus or its
authorized agents, causes other than from ordinary use or failure to properly use the Product in the application for which said Product was intended.
This Limited Warranty excludes Product cleaning, repair, or replacement of
plastics due to cosmetic damage and damage as a result of normal wear.
Product repair outside of the terms of the Limited Warranty will be on a
time and materials basis. Prolonged Product "demonstration" causes
unusual Product wear and is not considered normal use under the terms of
this Limited Warranty.
The Accessory Product Limited Warranty covers the accessory item only
and excludes normal wear. The Lamp Product Limited Warranty excludes
expected lamp degradation.
Remanufactured Products and Software Products are exempt from the foregoing Limited Warranty. Please refer to the appropriate Remanufactured
Product Limited Warranty or Software Product Limited Warranty for applicable Warranty information.
DISCLAIMER OF UNSTATED WARRANTIES
THE WARRANTY PRINTED ABOVE IS THE ONLY WARRANTY APPLICABLE TO THIS PRODUCT. ALL OTHER WARRANTIES, EXPRESS OR
IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR PARTICULAR
PURPOSE ARE DISCLAIMED. THERE ARE NO WARRANTIES THAT
EXTEND BEYOND THE DISCRITPTION ON THE FACE HEREOF AND
THE FOREGOING WARRANTY SHALL NOT BE EXTENDED, ALTERED
OR VARIED EXCEPT BY WRITTEN INSTRUMENT SIGNED BY INFOCUS.
SOME JURISDICTIONS DO NOT ALLOW LIMITATIONS ON HOW
LONG AN IMPLIED WARRANTY MAY LAST, SO SUCH LIMITATIONS
MAY NOT APPLY TO YOU.
47
Limited Warranty Period
The Limited Warranty periods hereof commence on the date of purchase by
the end-user customer. These Limited Warranty provisions shall apply only
to the end-user purchaser (first person or entity that purchased a new Product for personal or business use and not for the purpose of distribution or
resale). SOME JURISDICTIONS MAY GRANT YOU CONSUMER RIGHTS
WITH MINIMUM WARRANTY DURATION THAT DIFFER FROM THE
DURATIONS PROVIDED HEREIN, AND INFOCUS WILL HONOR ALL
SUCH CONSUMER RIGHTS.
To Be Eligible For Limited Warranty Coverage
Any person exercising a claim under this Limited Warranty must establish
to the satisfaction of InFocus both the date of purchase and that the Product
was purchased new. The sales receipt or invoice, showing the date of purchase of the Product is the proof of the date of purchase.
To Obtain Warranty Service
During the Limited Warranty period, to exercise this Limited Warranty, the
purchaser must first contact 1) InFocus, 2) a service facility authorized by
InFocus or 3) the place of original purchase.
InFocus Customer Service - 1-800-799-9911 or techsupport@infocus.com
For Warranty service, the purchaser will be advised to return or deliver the
defective Product freight and all fees prepaid, to an InFocus Service Center
or to a service facility authorized by InFocus. When returning Product to
InFocus, a Return Material Authorization Number (RMA #) is required and
must be clearly displayed on the outside of the shipping carton or a similar
package affording an equal degree of protection. InFocus or the service
facility authorized by InFocus will return the repaired/replaced Product
freight prepaid to the purchaser.
Products returned for Warranty service must be accompanied by a written
letter that: (i) explains the problem; (ii) provides proof of date of purchase;
(iii) provides the dealer's name; and (iv) provides the model and serial number of the Product. Upon request of InFocus Corporation or an authorized
repair center for InFocus, proof of legal import must accompany the warranty repair Product, otherwise the Product must be returned to the place of
original purchase, to the manufacturer (Purchaser must bear all tax, duty
and freight), or the Purchaser must bear charges for the warranty repair.
No repair or replacement of Product or part thereof shall extend the Limited
Warranty period as to the entire Product. Warranty on the repair part and
workmanship shall only be effective for a period of ninety (90) days following the repair or replacement of that part or the remaining period of the
Product Limited Warranty whichever is greater.
LIMITATION OF LIABILITY
IT IS UNDERSTOOD AND AGREED THAT INFOCUS' LIABILITY
WHETHER IN CONTRACT, IN TORT, UNDER ANY WARRANTY, IN
NEGLIGENCE OR OTHERWISE SHALL NOT EXCEED THE RETURN OF
THE AMOUNT OF THE PURCHASE PRICE PAID BY PURCHASER AND
UNDER NO CIRCUMSTANCES SHALL INFOCUS BE LIABLE FOR SPECIAL, INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES OR
LOST PROFITS, LOST REVENUES OR LOST SAVINGS. THE PRICE
STATED FOR THE PRODUCTS IS A CONSIDERATION IN LIMITING
INFOCUS' LIABILITY.
Limitation on Bringing Action
of the agreement to purchase the Product may be brought by purchaser
more than one year after the cause of action has accrued.
Governing Law
ment to purchase the Product is governed by Oregon law.
Mandatory Arbitration
agreement to purchase the Product is subject to mandatory arbitration.
SOME JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES SO THE
ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU. THIS
LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND
YOU MAY ALSO HAVE OTHER RIGHTS, DEPENDING ON JURISDICTION.
- Any action, regardless of form, arising out of the agree-
- Any action, regardless of form, arising out of the
- No action, regardless of form, arising out
48
OEMN02014/L0002UB
InFocus Corporation
27700B SW Parkway Avenue
Wilsonville, Oregon 97070-9215
1-800-294-6400 •503-685-8888
Fax: 503-685-8887
http://www.infocus.com
In Europe:
InFocus International BV
Strawinskylaan 585
1077 XX Amsterdam
The Netherlands
Phone: (31) 20 5792000
Fax: (31) 20 5792999
Freephone: 008000
4636287 (008000 INFOCUS)
In Asia:
238A Thomson Road
#18-01/04 Novena Square
Singapore 307684
Telephone: (65) 6334-9005
Fax: (65) 6333-4525
Loading...
