InFocus Work Big LP540 Technical Specifications

Work Big LP

540

Picture the perfect business projector. It would
incorporate every industry-leading innovation. It
would be ridiculously user-friendly and reliable.
It would look good enough intrigue any audience.
It would project your ideas in unbelievably big,
rich, bold images. And its reasonable price tag
would surprise even the savviest technology
shopper. Spend years talking to thousands of
business presenters about what they want in a
business projector, and the results are likely to
please almost everybody. The InFocus Work Big
LP540 apparently does. All thanks to you.

Play with your projector.

Your technology shouldn’t stand in the way of
your creativity. The LP540 certainly won’t. It lets
you do all this and more:

Enjoy the clear, full-screen detail enabled by

true XGA (1024 x 768) resolution.

Watch 1700 beyond-bright lumens project

truly stunning images in any setting.

Get outstanding color saturation with 16.7

million colors.

Downtime is for weekends.

Relieve the IT department of its projector-crisis
duties. And free your mind to focus on a aw­less presentation — without a single cry for
technical help. The LP540 projector is truly easy
to set up, use, maintain, and store. How easy,
you ask?

Hook up in seconds with color-coded ports

and cables.

Use the interactive display to ensure smooth,

glitch-proof presentations and receive instant
status updates — in your choice of 12
languages.

Control most commands with the touch of a

button on the user-dened keypad.

Work Big LP540

Blow them away with 1700 ANSI
lumens of outstanding brightness
and a contrast ratio of 400:1.

Enjoy the clear, full-screen detail
enabled by native XGA resolution.

It’s as if you designed it yourself.

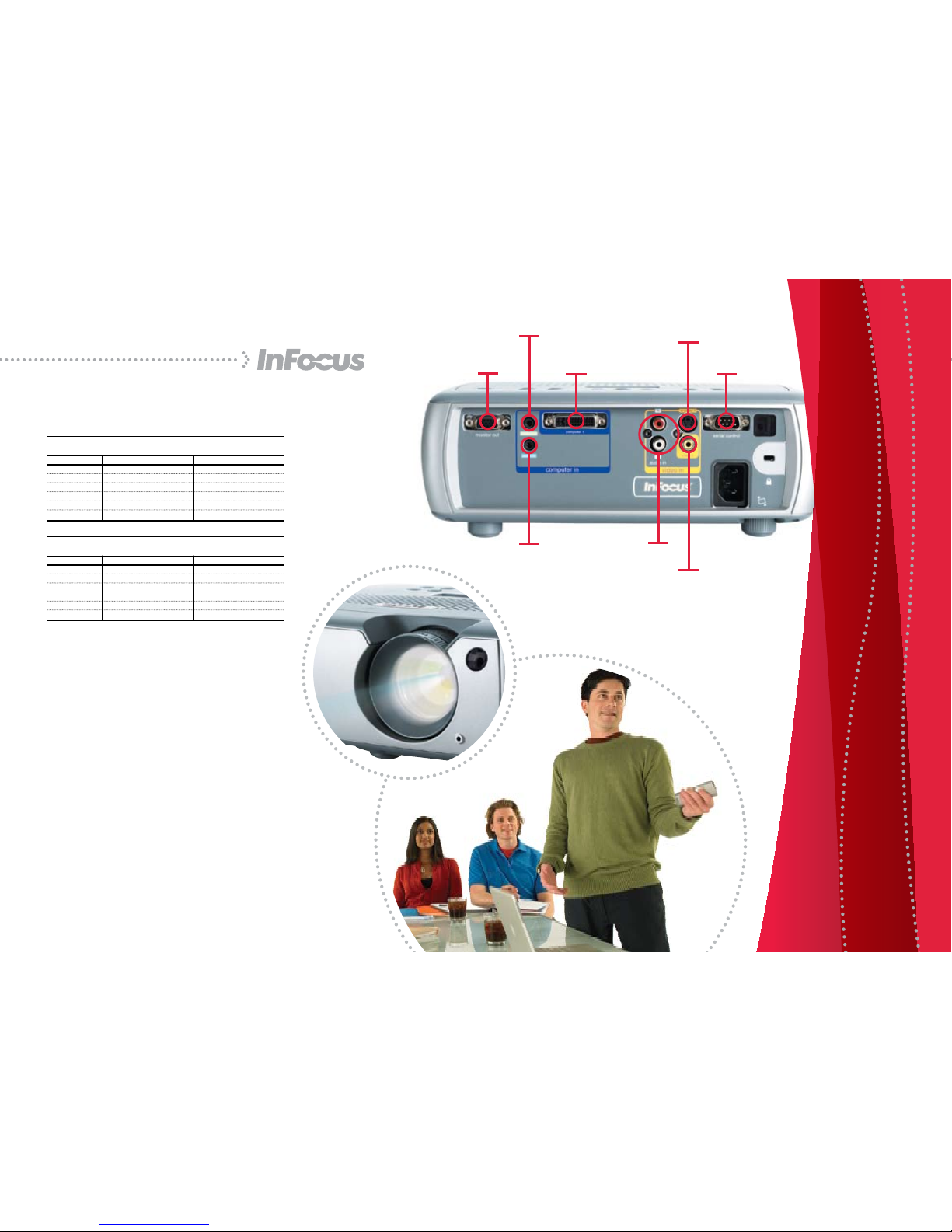

S-Video

Monitor

Loop-Through

Audio In

Audio Out

Audio In

Composite Video

RS-232

Digital/Analog

Computer—M1-DA

Distance Min. Horizontal Image Size Max. Horizontal Image Size
To Screen Throw Ratio*: 1.91 Throw Ratio*: 1.6

Feet Meters Feet Meters Feet Meters

5.0 1.5 2.6 0.8 3.2 1.0

10.0 3.0 5.2 1.6 6.3 1.9

15.0 4.6 7.8 2.4 9.3 2.8

20.0 6.1 10.4 3.2 12.4 3.8

30.0 9.1 15.6 4.8 18.6 5.7

32.8 10.0 17.0 5.2 20.3 6.2

Projection distances

Distance Min. Diagonal Image Size Max. Diagonal Image Size
To Screen Throw Ratio*: 1.53 Throw Ratio*: 1.28

Feet Meters Feet Meters Feet Meters

5.0 1.5 3.3 1.0 4.0 1.2

10.0 3.0 6.5 2.0 7.8 2.4

15.0 4.6 9.8 3.0 11.7 3.6

20.0 6.1 13.0 4.0 15.5 4.7

30.0 9.1 19.5 5.9 23.2 7.1

32.8 10.0 21.3 6.5 25.4 7.7

*Diagonal throw ratio = (distance/diagonal image size);
Horizontal throw ratio = (distance/horizontal image size)

INFOCUS TECHNICAL SPECIFICATIONS

†

Native Resolution XGA 1024 x 768
Display Technology 3 x .79” polysilicon TFT LCD, active-matrix non-MLA
Computer Input Sources Computer 1 (M1-DA), Audio (3.5mm Stereo)
Video Input Sources Video 1 (S-Video), Video 2 (Composite RCA), Audio (RCA Stereo)
Control Input Sources RS232, USB
Output Sources Variable Stereo Audio (RCA), Monitor Out (VESA)
Computer Compatibility SXGA+, SXGA, XGA, SVGA, VGA, Macintosh

®

Video Compatibility Full NTSC, PAL, SECAM, EDTV (480p, 576p), HDTV (720p, 1080i, 1080p)
Brightness 1700 max ANSI lumens
Brightness Uniformity 75%
Contrast Ratio 400:1
Number of Colors 16.7 million
H-Synch Range 16 – 110 kHz
V-Synch Range 50 – 85 Hz
Dot Clock 135 MHz
Automatic Ceiling Detection Yes
Automatic Vertical Keystone Correction Yes
Digital Keystone Correction (Vertical) +/- 25°; data/video
Projection Lens Zoom lens with manual focus and manual zoom adjust
Zoom Ratio 1.2:1
Throw Ratio 1.6:1 – 1.9:1 (D:W)
Projection Distance 5’ – 32.8’ (1.5m - 10.0m)
Image Offset ratio (%) 95 +/- 5 %
Aspect Ratio 4:3 Native, 16:9, 5:4
Image size (diagonal) 40” to greater than 300”/1.0 m to greater than 7.5 m
Projection Methods Front, rear and ceiling
Projector Audio 2.0-watt stereo speakers
Projector Interface Interactive LCD Display or Menu system
Projector Interface Languages English, Spanish, French, German, Japanese, Korean, Portuguese, Italian,
Norwegian, Russian, Chinese Simple, Chinese Traditional
Projector Control Menu, Keypad, ProjectorManager, RS-232
Mouse Control USB
Lamp 170 W UHP / 2000 hours*
Dimensions 4.1” (H) x 10.3” (L) x 11.6” (W)/10.3 cm x 26.0 cm x 29.4 cm
Weight 7.5 lbs / 3.4 kg
Power Consumption 260 watts
Power Supply 85V – 240V at 50 – 60 Hz
Operating Temperature 10° – 35° C at sea level (0’ – 10,000’); 50° – 95° F
Audible Noise 34dB
Approvals FCC A (US/Canada), UL & cUL (US/Canada), GOST (Russia), TUV GS (Germany),
CCC (China), IRAM (Argentina), NOM (Mexico), MIC (Korea), C-Tick (Australia)
Lamp Warranty 90 days
Product Warranty 2 years parts and labor
Accessory Warranty 90 days

†

InFocus reserves the right to alter product offerings and specications at any time without notice.

* Actual lamp life may vary based on the ambient environment. Conditions that may affect lamp life include temperature,

altitude, and rapidly switching the projector on and off.

InFocus Corporate Headquarters:

27700B SW Parkway Avenue
Wilsonville, Oregon 97070-9215, USA
Phone: [phone]
1-800-294-6400
Fax: [phone]

In Europe:

Strawinskylaan 585
1077 XX Amsterdam
The Netherlands
Phone: [phone]
Fax: [phone]
Freephone: 008000 4636287 (008000 INFOCUS)

In Asia:

#07-01, Tanglin Shopping Centre
19 Tanglin Road
Singapore 247909
Phone: [phone]
Fax: [phone]

InFocus, In Focus, INFOCUS (stylized), Play Big, Work Big, LP, and SP are either registered trademarks or trademarks of InFocus Corporation in the United States and other
countries. DLP, the DLP logo, and the DLP medallion are trademarks of Texas Instruments. All other trademarks are used for identication purposes only and are the property
of their respective owners in this and other countries. ©2006 InFocus Corporation. All rights reserved. Part Number: 805-1765-05. WB_LP540_DS_E_012606.

Enduring Quality

If you’re happy, InFocus is happy. That’s why every
InFocus projector comes with a standard two-year
limited factory warranty (including parts and labor)

and a 90-day lamp-replacement warranty.

Ships standard with

Soft Carry Case

Wireless Navigator Remote Control

(including batteries)

Color-Coded Cable Straps

M1-A Computer Cable with USB Mouse

Audio Cables

RCA Video Cable

Power Cord

Projector System CD Includes:

Multi-Language User’s Guide, Quick Start
Card, URL/Service Information/Accessories

User’s Guide (printed version)

Quick Start Card (printed version)

Optional Accessories

Projection Screens
Performance Cables
Enhanced Remote Controls

Universal Travel Cases

For more information about the LP540,
any InFocus business projector, optional
accessories, or service programs please
visit: www.infocus.com
