InFocus LP920 User Manual

FCC Warning

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

Canada

This Class A digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada.

Safety Certifications

UL, CUL, TÜV, NOM

EN 55022 Warning

This is a Class A product. In a domestic environment it may cause radio interference, in which case the user may be required to take adequate measures. The typical use is in a conference room, meeting room or auditorium.

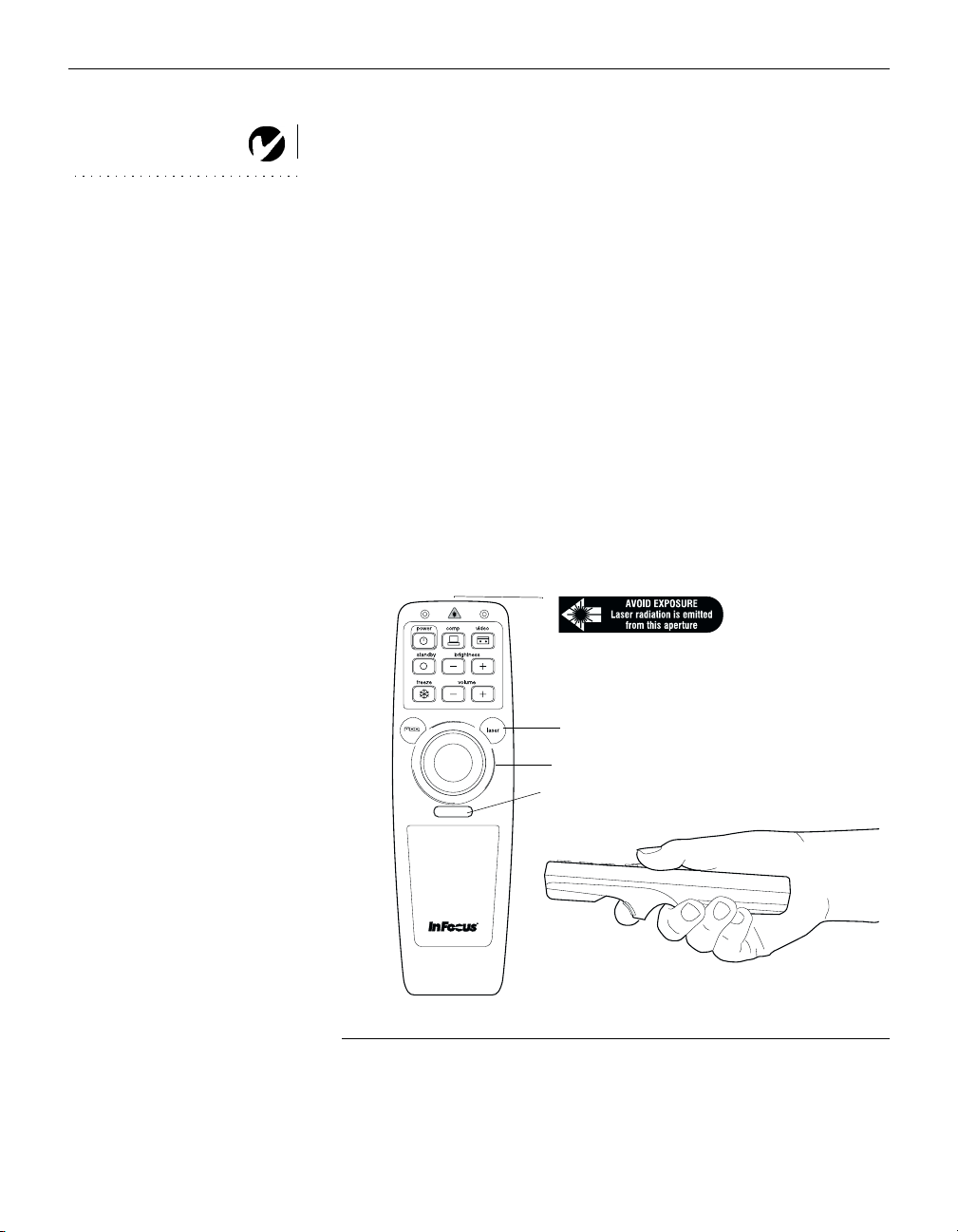

Remote Control Warning

Laser radiation class II product; wavelength 670nm; maximum output 1mW. Remote control complies with applicable requirements of 21 CFR 1040.10 and

1040.11. Remote control complies with applicable requirements of EN 60 825-1: 1994 +A11.

Declaration of Conformity

Manufacturer: InFocus 27700B SW Parkway Ave. Wilsonville, Oregon 97070 USA European Office: Olympia 1, NL-1213 NS Hilversum, The Netherlands

We declare under our sole responsibility that the LP920 projector conforms to the following directives and norms:

Directive 89/336/EEC, Amended by 93/68/EEC EMI: EN 55022 (1992) Class A EMC: EN 50082-1 (1992)

IEC 801-2, IEC 801-3, IEC 801-4 Directive 73/23/EEC, Amended by 93/68/EEC Safety: EN 60950: 1992 + A1 + A2 + A3 + A4: 1997

October, 2000

Trademarks

Apple, Macintosh, and PowerBook are trademarks or registered trademarks of Apple Computer, Inc. IBM and PS/2 are trademarks or registered trademarks of International Business Machines, Inc. Microsoft, PowerPoint, and Windows are trademarks or registered trademarks of Microsoft Corporation. InFocus, CableWizard, and LP are trademarks or registered trademarks of InFocus.

TABLE OF CONTENTS

Safety Instructions iii

Introduction 1

Image Resolution 1 Compatibility 1 Unpacking the Projector 1 Usage Guidelines 3 If You Need Assistance 4 Warranty 4

Setting up the Projector 5

Connecting a Computer with an M1-DA Cable 11 Connecting a Computer Using a VESA Cable 13 Connecting a USB type B mouse 13 Connecting a Computer using BNC Cables 13 Connecting a Computer with an RS-232 Cable 14 Connecting a Video Player 14 Connecting a Video Player using BNC Cables 15 Connecting External Speakers 16 Connecting the Remote Control Cable 16 Powering up the Projector and Adjusting the Image 17 Turning Off the Projector 18

Using the Projector 19

Basic Image Adjustment 19 Adjusting the Projector 20 Using the Remote Control 22 Using the Keypad and Remote Buttons 24 Using the On-Screen Menus 27 Display Menu 28 Audio Menu 30 Image Menu 32 Controls Menu 35 Language Menu Status Menu 38

Ta b l e o f C o n t e n t s

Maintenance & Troubleshooting 41

Cleaning the Lens 41 Replacing the Projection Lamp 41 Replacing the Batteries in the Remote Control 44 Using the Security Lock 44 Troubleshooting 45

Appendix 49

Specifications 49 Accessories 50 Portable and Laptop Activation Chart 52 Using Video Mirroring with a PowerBook Computer 57 Projected Image Sizes 58 RS232 Terminal Specifications 59

Index 63

SAFETY INSTRUCTIONS

Please read and follow all safety instructions provided BEFORE using your new projector. Failure to comply with safety instructions may result in fire, electrical shock, or personal injury and may damage or impair protection provided by equipment. Please save all safety instructions.

Safety Definitions:

•

Warning:

Statements identify conditions or practices that

could result in personal injury.

•

Caution:

Statements identify conditions or practices that could

result in damage to your equipment.

Safety Symbols:

Attention:

For information about usage of a feature, please

refer to the User’s Guide.

Hot surface. Do not touch.

Warn ing:

An arrow pointing to the lamp door on the projector.

Laser radiation. Do not stare into laser beam.

Warn ing:

Safety Terms:

•

Warning:

Don’t look directly into the lens when the lamp is

turned on.

•

Warning:

To replace the lamp, turn the projector off by

unplugging the power cord. To avoid burns, wait 30 minutes before opening the lamp door. Follow all instructions provided in this User’s Guide.

iii

Safety Instructions

•

Warning:

Please use the power cord provided. Connect

the power cord to a receptacle with a protective safety

(earth) ground terminal.

•

Warning:

Visible laser radiation. Do not stare into

beam.

•

Warning:

Refer all service to qualified service personnel. Servicing your own projector will void the warranty. See the following page for the customer service contact information.

•

Caution:

•

Caution:

Don’t block ventilation openings.

Don’t set liquids on the projector. Spilled liquids may

damage your projector.

•

Caution:

Don’t place the projector on a hot surface or in direct

sunlight.

•

Caution:

Do not drop the projector. Transport the projector in

an InFocus-approved case; see page 50 for a list of cases.

•

Caution:

For ceiling mount installations, please use the ceiling mount recommended in this User’s Guide on page 50 and follow all instructions provided with it.

Important Operating Considerations

Do not place the projector on a tablecloth or other soft covering that may block the vents. In the unlikely event of the bulb rupturing, thoroughly clean the area behind the projector and discard any edible items placed in that area.

Do not place objects in this area behind the projector

)

(

Customer Service

If you need assistance, call InFocus Customer Service directly at

1-800-799-9911

. Support is free between 6 a.m. and 6 p.m. PST, Monday through Friday. Support is available in North America after hours and weekends for a fee at 1-888-592-6800.

Or, send us an e-mail at

techsupport@infocus.com

In Europe, call InFocus in The Netherlands at

In Asia, call InFocus in Singapore at

(65) 332-0659

(31) 35-6474010

Safety Instructions

INTRODUCTION

The InFocus

LP920™ XGA multimedia projector is specifically designed for fixed installations. The projector features an M1-DA connector for easy, built-in digital/analog and USB connectivity. It allows four computer, three video, and three audio inputs, one audio output, and RS-232 control.

Image Resolution

The native resolution of the 920’s projected image is XGA 1024x768. Screen resolutions between 1024x768 and 1280x1024 are compressed to 1024x768. The projector cannot compress screen resolutions above 1280x1024. If your computer’s screen resolution is higher than 1280x1024, reset it to a lower resolution before you connect the projector.

Compatibility

The projector is compatible with a wide variety of computers and video devices, including:

•

IBM-compatible computers, including laptops, up to 1280x1024 resolution.

NOTE: The LP920 automatically

expands 640x480 and 800x600

images to 1024x768. You can dis-

play these images at their native

resolutions by turning off the Auto

Resize feature. See “Resize” on

page 32 for more information.

•

Apple® Macintosh® and PowerBook® computers up to 1280x1024 resolution.

•

Most standard VCRs, DVD players, HDTV sources, camcorders and laser disc players.

•

Selected workstations (contact your dealer for details).

Unpacking the Projector

The projector comes with the items shown in Figure 1. Check to make sure all are included.

anything is missing

Contact your dealer immediately if

A registration card is included in the box. Register to receive product updates, announcements, and special offers from InFocus. Or, register online at www.infocus.com/service/register and you will be automatically entered to win free merchandise.

NOTE: The projector is compati-

ble with 1080i HDTV format.

NOTE: The projector is compati-

ble with many third-party control-

lers and amplifiers, including

AMX, Crestron, and Extron. Call

your dealer for details.

Introduction

NOTE: The contents of your

shipping box may vary depending

on the projector configuration

you’ve ordered.

IGURE 1

Shipping box contents

1. LP920 projector + lens cap

2. Power cord

3. Remote control

w e

r s t

y f r e

i d

e r i

o g

h t

n e s

s v o

l u m

l a s

NOTE: Long throw zoom, wide

angle zoom, and ultra wide angle

lenses are also available. See

page 50 for details.

keypad

zoom ring

focus ring

connector panel

speaker

power cord connector

FIGURE 2

Side view of projector

Usage Guidelines

•

Do not look directly into the projection lens when the lamp is turned on. The bright light may harm your eyes.

•

Do not block the grills on the projector. Restricting the air flow can cause it to overheat and turn off. If this happens, you must wait a minute before attempting to turn it back on.

•

Handle the projector as you would any product with glass components. Be especially careful not to drop it.

•

Avoid leaving the projector in direct sunlight or extreme cold for extended periods of time. If this happens, allow it to reach room temperature before use.

•

Transport the projector in a vendor-approved hard or soft case. Part numbers for these cases are listed on page 50.

Introduction

If You Need Assistance

The first place to look for help is in this manual. Be sure to check the guidelines in “Troubleshooting” on page 45. Or, check the Service and Support section of our website at

http://www.infocus.com/service.

FAQs, and support contacts including a technical support e-mail form.

If those sources don’t answer your question, call your InFocus dealer. You can also call InFocus Customer Service directly at

1-800-799-9911

through Friday. Service is available in North America after hours and on weekends for a fee at 1-888-592-6800.

You’ll find a Technical Library,

. Call between 6 a.m. and 6 p.m. PST, Monday

In Europe, call InFocus in The Netherlands at In Asia, call InFocus in Singapore at

Or, send us an e-mail at

techsupport@infocus.com

Ou r Wo rl d Wi de Web ad dres s i s

(65) 332-0659

http://www.infocus.com

(31) 35-6474010

Warranty

This product is backed by a limited two-year warranty. The details of the warranty are printed at the back of this manual. A longer term warranty can be purchased from your InFocus dealer. Refer to page 50 for the part number.

SETTING UP THE PROJECTOR

Place the projector on a flat surface.

•

The projector must be within 10 feet (3 m) of your power source and within 6 feet (1.8 m) of your computer.

•

If you want to project from behind a translucent screen, set up the projector behind your screen. See “Rear Projection” on page 36 to reverse the image.

•

If you are installing the projector on the ceiling, refer to the installation guide that comes with the Ceiling Mount Kit for more information. To turn the image upside down, see “Ceiling Projection” on page 36. The Ceiling Mount Kit is sold separately; see “Optional Accessories” on page 50.

Position the projector the desired distance from the screen.

•

The distance from the lens of the projector to the screen and the zoom lens setting determine the size of the projected image. Table 1 shows example projected image sizes and minimum and maximum distances to the screen.

The formulas for distance to the screen are:

Max distance (ft) = diagonal image size (ft) ÷.49 Min distance (ft) = diagonal image size (ft) ÷.69

Ta b le 1:

Diagonal Image Size and Width at Maximum and Minimum Distance

to Screen-Standard Lens

Distance to screen

Diagonal

Image Size

(inches)

300 240 51 36 240 192 41 29

180 144 31 22 144 115 24 17 120 96 20 14

96 77 16 12 72 58 12 9 60 48 10 7

48 38 8 6

Image Width

(inches)

Maximum

distance

(feet)

Minimum

Distance

(feet)

NOTE: For a similar table for the

optional short throw and long

throw lenses, see page 58 of the

Appendix.

Setting up the Projector

A 0

zoom adjustment range:

20-14’

90º

RGGBB

BNC BNC

R RR

L L

Inout InIn

minimum L: 14’

maximum L: 20’

distance between lens and screen: L

IGURE 3

Projected image size for 10’ diagonal image size

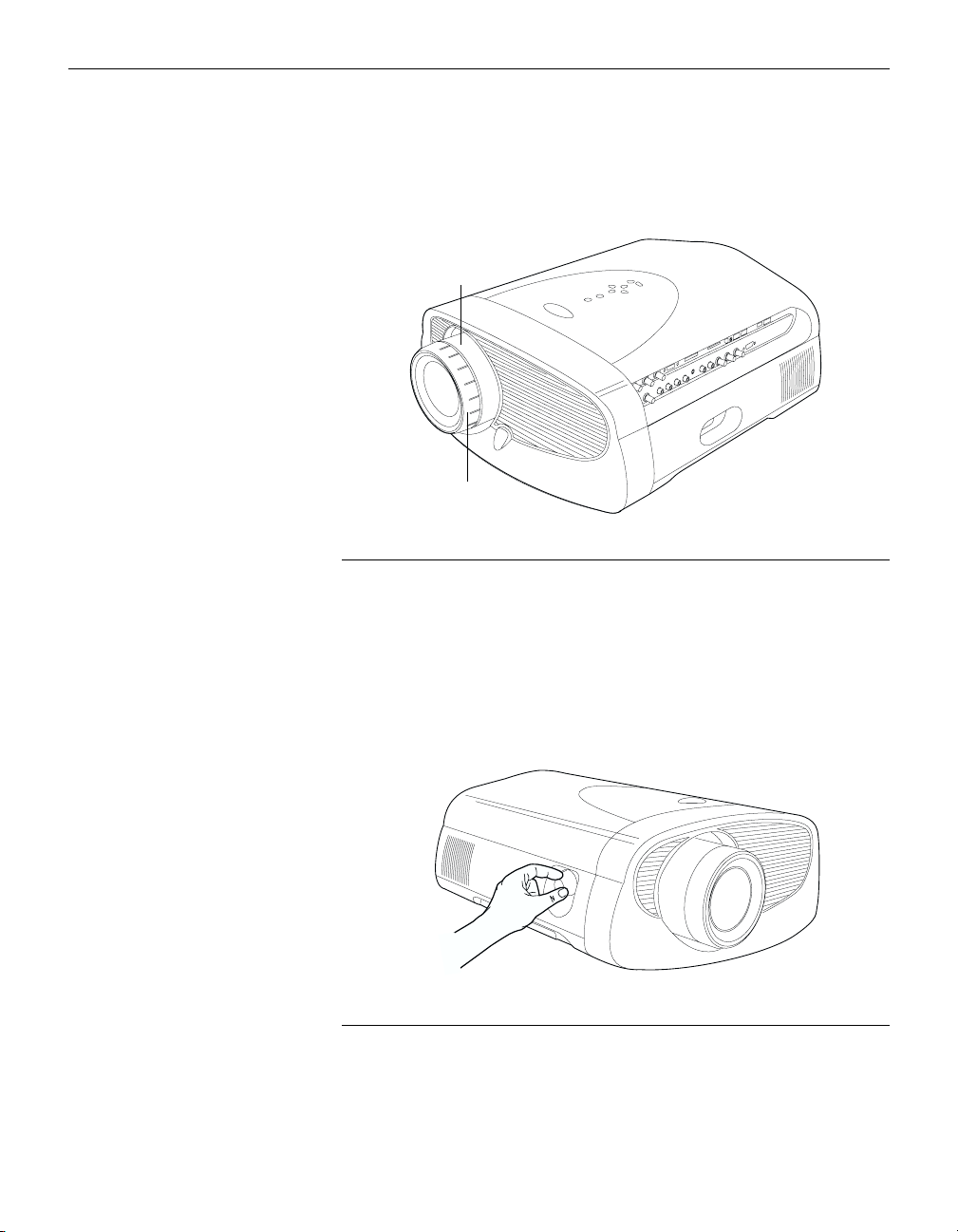

The projector is equipped with a lens shift feature that allows you to adjust the projection height (move the image along the wall) without moving the projector, while still maintaining a perfectly square image. Turn the lens shift knob on the side of the projector to make this adjustment (Figure 4).

IGURE

Adjusting the lens shift

The bottom of the image can move from half way below the pro-

A 0

jector’s lens (Figure 5) to parallel with the lens (Figure 6).

Example:

With a 10’ image, at the lowest projection angle, the bottom of the image is 5’ below the projector’s lens; at the highest projection angle, the bottom of the image is parallel with the lens.

10’ high image

bottom of image 5’ below lens

10’ high image

lens center

Lowest image projection angle

RGGBB

BNC BNC

R RR

L L

Inout InIn

FIGURE 5

bottom of image parallel with lens

RGGBB

BNC BNC

R RR

L L

Inout InIn

lens center

IGURE

Highest image projection angle

Once you know the diagonal image size, you can figure out the width and height using these formulas:

width (inches) = diagonal (inches) x 0.8 height (inches) = width (inches) x 0.75

Setting up the Projector

The following tables give the lens shift values for desktop and ceiling-mounted setups for various image sizes. The lower lens shift position represents the highest the projector can be above the bottom of the screen; the upper lens shift position represents the lowest the projector can be below the bottom of the screen.

Ta b le 2:

Lens Shift Positions for Desktop Setup

Distance from lens center to

lower edge of screen (H)

Diagonal

Image Size

(inches)

300 90 0 240 72 0

180 54 0 144 43 0 120 36 0

96 29 0 72 22 0 60 18 0

48 14 0

Lower lens

shift position

(inches)

Upper lens

shift position

(inches)

When the projector is ceiling mounted, use the upper edge of the screen as the base line.

Ta b le 3:

Lens Shift Positions for Ceiling-Mounted Setup

Distance from lens center to

upper edge of screen (H)

Diagonal

Image Size

(inches)

300 90 0

240 72 0 180 54 0 144 43 0

120 36 0

96 29 0 72 22 0

60 18 0 48 14 0

Lower lens

shift position

(inches)

Upper lens

shift position

(inches)

high edge of screen

lens center

Make sure the projector is unplugged and your computer is

lens center

FIGURE 7

Lens shift with ceiling-mounted projector

turned off.

Now you’re ready to connect your equipment.

Steps for connecting the different types of equipment are given on the pages listed below.

Equipment you want to connect Page

Computer with M1-DA cable page 11

Computer with VESA cable page 13

USB type B mouse page 13

Computer with BNC cables page 13

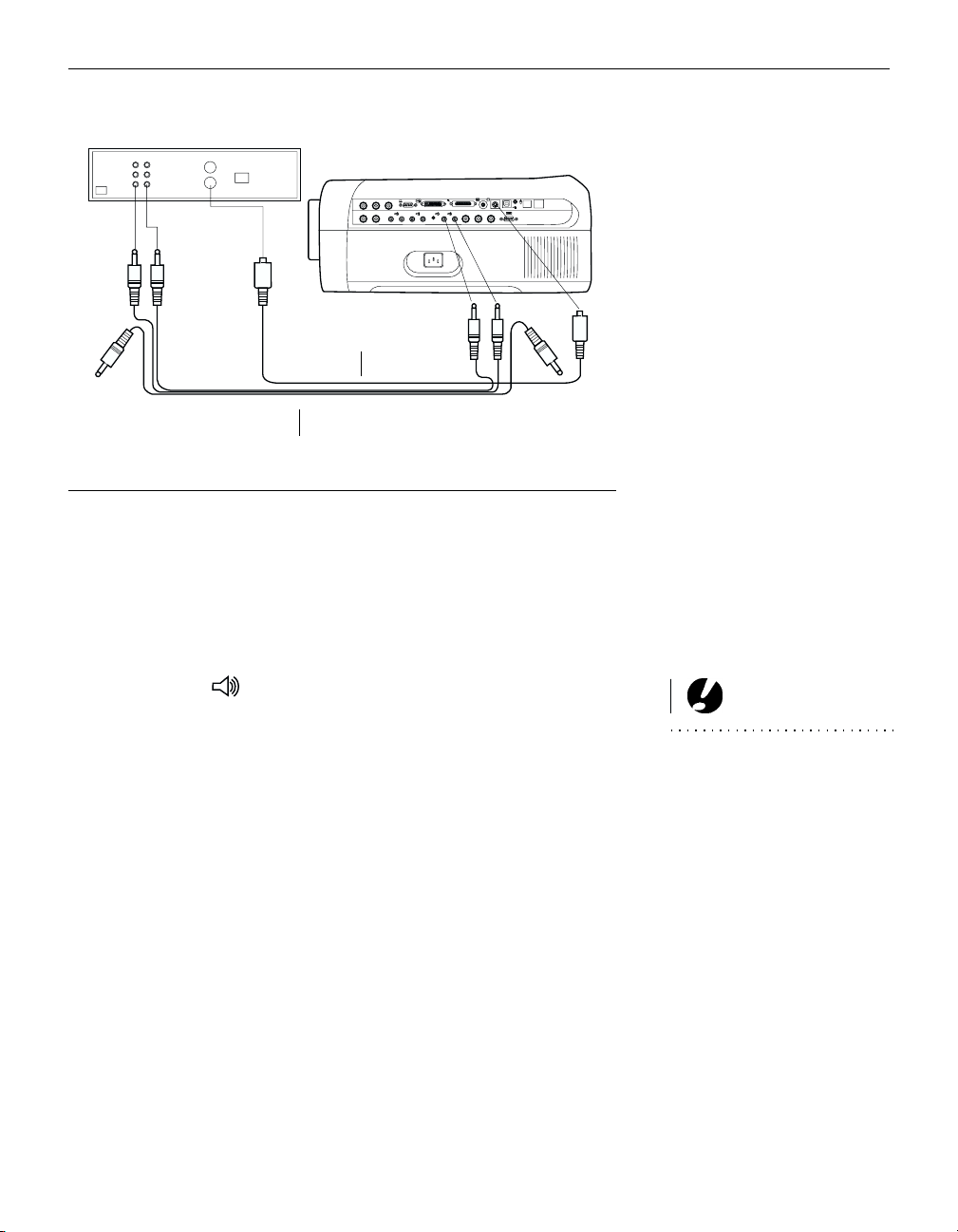

Video player page 14

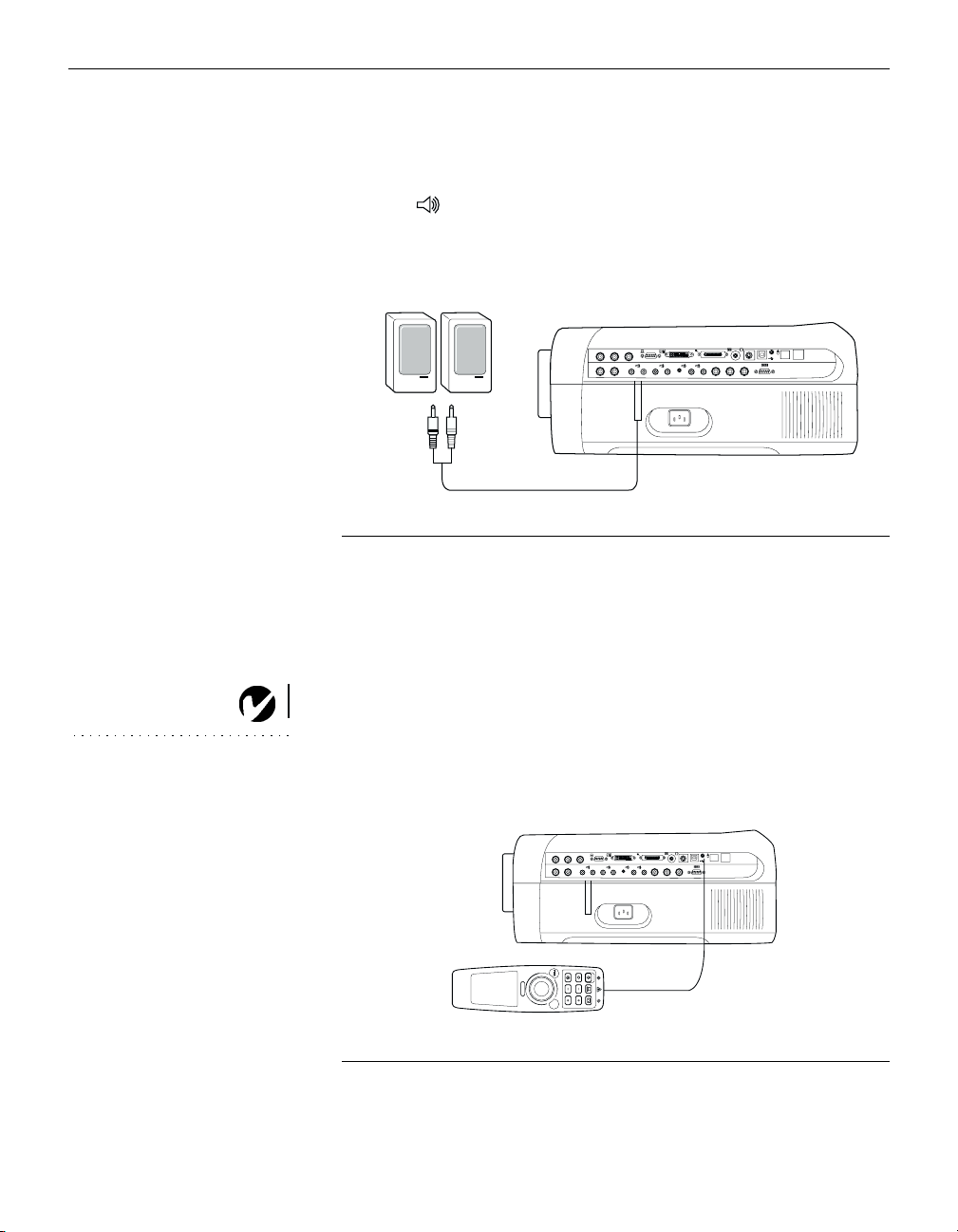

External speaker page 16

Remote cable page 16

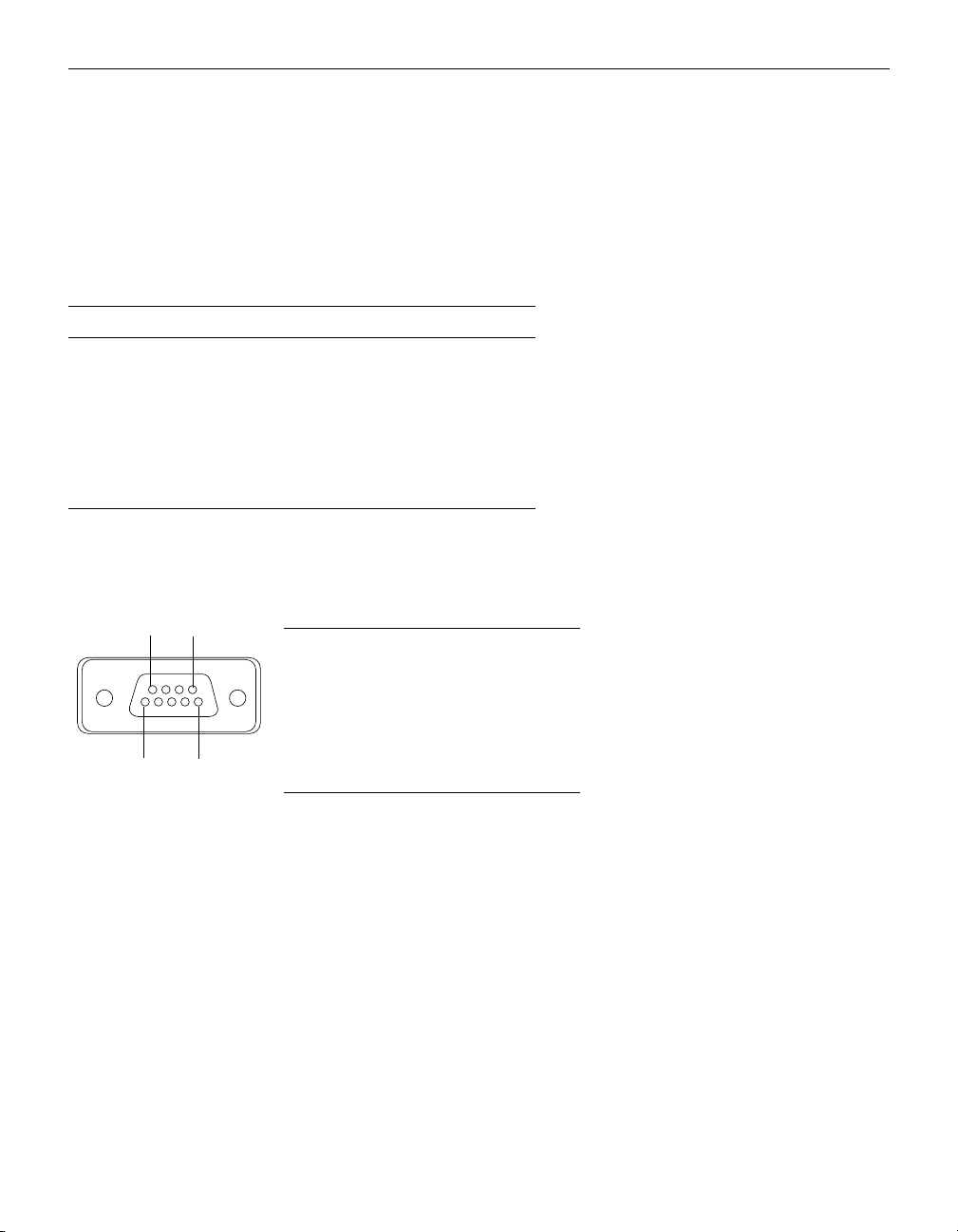

RS-232 cable page 14

NOTE: The CableWizard connec-

tor is used with the optional

CableWizard3, a connection hub

containing mouse, audio, monitor

and computer connectors. It is

optimized for ceiling-mounted

installations, and can be used with

a 60’ extension cable. See

“Optional Accessories” on

page 50. This input is designated

Computer CableWizard.

Setting up the Projector

Computer RGBHV 5 BNCs

external

speakers

IGURE 8

Computer VESA

Computer M1 Analog/Digital

VESA

M1-DA

RRR

Inout In

Computer CableWizard

Audio 3Audio 1 Audio 2

audio inputs

CableWizard

YGCr

Component Video 3 BNCs

Connector panel

Composite Video

S-video

Video

S-Video

USB

RS232 Serial

wired remote

Wired Remote

RS-232

NOTE: Make sure all equipment

is turned off before connecting

equipment.

The projector has the following audio/video inputs:

Source Video Audio

Computer RGBHV

Computer VESA

Computer M1

Computer CableWizard

Component Video

Composite Vid eo

S-Video S-video Y/C (4-pin circular) Left and right line-level

3 Single-ended analog RGB + 2 H&V sync (5 BNCs)

VESA Single-ended analog RGB (HD-15)

M1-DA Single-ended analog or digital

Left and right line-level (2 RCAs)

CableWizard Analog RGB Combined with CableWizard

Base-band component video (BNC)

Base-band composite video (RCA)

Left and right line-level (2 RCAs)

(2 RCAs)

Connecting a Computer with an M1-DA Cable

A 0

See “Optional Accessories” on page 50 to order this cable. This input is designated Computer M1 Analog or Computer M1 Digital.

Plug the end of the M1-DA analog computer cable

into the M1-DA connector on the projector.

Plug the end of the M1-DA analog computer cable into

the video connector on your computer.

FIGURE 9

USB mouse

RGGBB

BNC BNC

R RR

L L

Inout InIn

M1-DA analog computer cable

Connecting the projector to a computer using the M1-DA cable

NOTE: Many laptop computers

do not automatically turn on their

external video port when a sec-

ondary display device such as a

projector is connected. Refer to

your computer manual for the

command that activates the exter-

nal video port. Activation com-

mands for some laptop computers

are listed in the Appendix of this

manual on page 52.

Setting up the Projector

Do you want to control the computer’s mouse from the projector’s remote or keypad?

Plug the end of the M1-DA analog computer cable

NOTE: The USB mouse is

supported for use with

Windows 98, Windows 2000, and

Apple OS 8.5 and higher only.

into the mouse connector on your computer.

Do you want to play your computer’s audio on the projector?

Plug an audio cable (not supplied) into the audio connector

on your computer.

Plug the other end of the audio cable into a In connector

NOTE: You do not need to restart

your computer after connecting a

USB mouse to use it (it is hot-

pluggable).

on the projector.

Now you’re ready to power up the projector and your laptop. Skip to “Powering up the Projector and Adjusting the Image” on page 17.

Connecting a Computer Using a VESA Cable

A 0

See “Optional Accessories” on page 50 to order this cable. This input is designated Computer VESA.

Plug one end of the VESA cable into the video connector on

your computer. Plug the other end into the VESA connector on the projector.

If you want audio with your presentation, plug an audio cable

(not supplied) into the audio connector on your computer.

Plug the other end into a In connector on the projector.

NOTE: If you are connecting an

older Macintosh computer that

has a 2-row 15-pin connector, you

must use a Mac adaptor between

the computer and the projector.

See “Optional Accessories” on

page 50.

RGGBB

BNC BNC

A 0

R RR

L L

Inout InIn

VESA cable

FIGURE 10

Connecting the projector to a computer using a VESA cable

Connecting a USB type B mouse

You can control the computer’s mouse with the projector’s keypad or remote by connecting a USB mouse cable to the USB connector on the projector (Figure 8 on page 10) and on your computer. This feature is available for PC Computer RGBHV and VESA sources only. It is not supported on the Macintosh platform. See page 37 for menu options that apply to a USB type B mouse.

Connecting a Computer using BNC Cables

Connect the BNC cables to the appropriate RGBHV connectors on the projector (Figure 8 on page 10) and on your computer.

NOTE: When all 5 BNCs are con-

nected, the projector handles sepa-

rate synch on H and V. When 4

BNCs are connected, the projector

handles a composite sync on H.

When 3 BNCs are connected, the

projector handles a composite sync

on G.

This input is designated Computer RGBHV.

Setting up the Projector

A 0

Connecting a Computer with an RS-232 Cable

You can control the projector from an LCD control panel by connecting an RS-232 cable to the projector (see Figure 8 on page 10). See “RS232 Terminal Specifications” on page 59 for details.

Connecting a Video Player

See “Optional Accessories” on page 50 to order video cables. There are 3 video inputs: Composite video, S-video, and Component video. For Composite and S-video, follow these instructions:

Plug the A/V cable’s yellow connector into the “video-out”

NOTE: HDTV sources are

connected to the projector using

the computer inputs, not the video

inputs. All analog computer inputs

can display HDTV. See the

previous pages for computer

connection instructions.

connector on your video player (Figure 11). This connector may be labeled “To Monitor.”

•

If you’re using an S-video cable, connect it to the “S-video out” connector on the video player (Figure 12).

Plug the other yellow connector into the composite video con-

nector

•

on the projector.

If you’re using S-video, plug the other end of the cable into the “S-video” connector

on the projector (Figure 12).

RGGBB

BNC BNC

A 0

R RR

L L

Inout InIn

A/V cable

IGURE

Connecting the projector to a video player using the standard A/V cable

+ 54 hidden pages
