InFocus IN2124, IN2126 User Manual

Download

Page 1

Page 2

Declaration of Conformity

Manufacturer: InFocus Corporation, 13190 SW 68th Parkway, Suite 200, Portland, Oregon 97223-8368 USA

We declare under our sole responsibility that t directives and norms:

ErP Directive 2009/125/EC

EMC Directive 2004/108/EC

EMC: EN 55022, EN 55024, EN 61000-3-2, EN 61000-3-3

Low Voltage Directive 2006/95/EC

Safety: IEC 60950-1: 2005;EN 60950-1:2006 +A11:2009

his projector conforms to the following

Trademarks

Apple, Macintosh, and PowerBook are trademarks or registered trademarks of Apple Computer, Inc. IBM is a trademark or registered trademark of International Business Machines, Inc. Microsoft, PowerPoint, and Windows are trademarks or registered trademarks of Microsoft Corporation. Adobe and Acrobat are trademarks or registered trademarks of Adobe Systems Incorporated. DLP®, DLP Link and the DLP logo are registered trademarks of Texas Instruments and BrilliantColor™ is a trademark of Texas Instruments. InFocus, In Focus, and INFOCUS (stylized) are either registered trademarks or trademarks of InFocus Corporation in the United States and other countries.

NOTE: This product is covered electrical and electronic equipment under the European Union's Waste from Electrical and Electronic Equipment ("WEEE") Directive (2002/96/EC). The WEEE Directive requires that covered equipment be collected and managed separately from typical household waste in all EU member states. Please follow the guidance of your local environmental authority or ask the shop where you purchased the product for collection or recycling options.

FCC Warning

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B

digita

l device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

--Reorient or relocate the receiving antenna.

--Increase the separation between the equipment and receiver.

--Connect the equipment into an outlet on a circuit is connected.

--Consult the dealer or an experienced radio/TV tech Changes or modifications not expressly approved b

to operate the equipment.

different from that to which the receiver

nician for help.

y InFocus Corporation may void authority

Canada

This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

Agency Approvals

cULus

Other specific Country Approvals may apply. Please see product certification label.

This document applies to regulat

Input ratings: 100-240Vac, 2.6A, 50-60Hz

InFocus reserves the right to alter product offerings and specifications at any time without

tice.

ory model IN2124/IN2126.

Page 3

Table of Contents

Introduction 4 Positioning the projector 6 Connecting a computer source 7

VGA connection 7 HDMI connection 7 Connecting power 7

Optional computer connections 7 Displaying an image 8 Adjusting the image 9 Connecting a video device 10

Video device connections 10

Composite video connection 10

VGA connection 10

Component video connection 10

S-video connection 10 Shutting down the projector 11 Troubleshooting your setup 11 Using the remote control 19 Using the audio 20 Using the keypad buttons 21 Optimizing computer images 22 Presentation features 22 Optimizing video images 23 Customizing the projector 23 Using the menus 24

Basic Menu 25

Advanced Menu 26

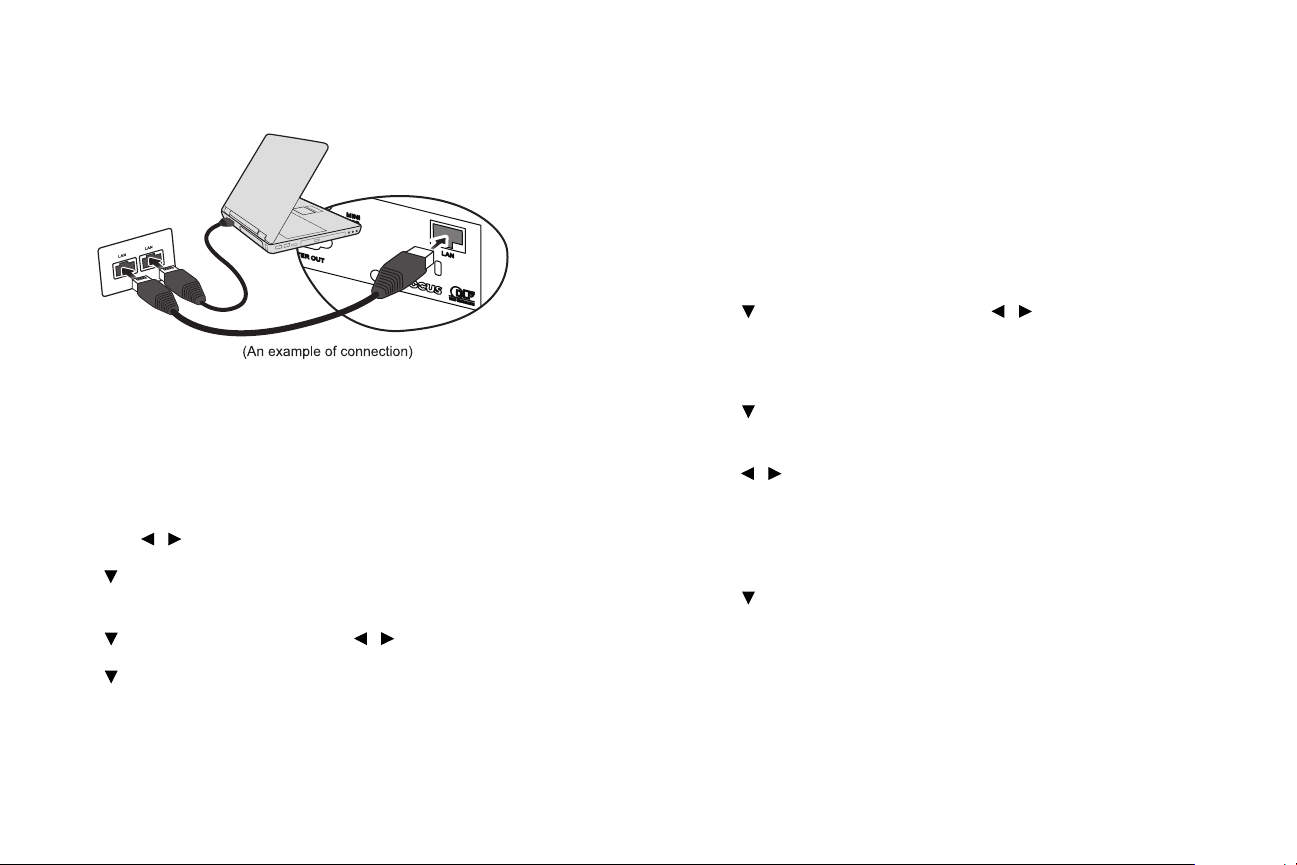

Controlling the projector through a LAN environment 30

Controlling the projector remotely through a web browser 31

About Crestron e-Control

Crestron RoomView 34 Maintenance 35

Cleaning the lens 35

Using the security lock 35

Replacing the projection lamp 36

Page 4

Important Operating Considerations for Safety

• Refer to this guide for proper startup and shutdown procedures.

• Follow all warnings and cautions in this manual and on the projector.

• Place the projector in a horizontal position no greater than 15 degrees off

axis.

• Locate the projector at least 4' (1.2m) away from any heating or cooling vents.

• Do not block ventilation openings. Locate the projector in a well-ventilated

area without obstructions to intake or exhaust vents. Do not place the projector on a tablecloth or other soft covering that may block the vents.

• Do not place the projector in direct sunlight, humid, greasy or dusty places or

in places where the projector may come into contact with smoke or steam.

• Do not touch or block the projector lens with any objects as this can damage

projector lens. Scratches, gouges and other lens damage are not covered

the by the product warranty.

• Do not look directly into the lens while the projector is being used.

Do not drop the projector.

•

• Do not spill liquid on the projector. Spilled liquid may damage the projector.

• Use the power cord provided. Connect the power cord to a receptacle with a

protective safety (earth) ground terminal. A surge-protected power strip is recommended.

• Do not overload wall outlets.

• When disconnecting the power cord, hold the plug, not the cord.

• Wash hands after handling the cables supplied with this product.

• The projector remote control uses batteries. Make sure the batteries’ polarity

(+/-) is aligned correctly. Dispose of used batteries in accordance with local disposal laws.

• Use an InFocus approved ceiling mount kit for proper fitting, ventilation and

installation. The warranty does not cover any damage caused by use of nonapproved ceiling mount kits or by installing in an improper location.

• When the projector is ceiling mounted, wear protective eyewear to prevent

eye injury before opening lamp door.

• Refer all service to qualified service personnel. Servicing your own projector can be dangerous to you and will void the warranty.

• Only use replacement parts specified by InFocus. Unauthorized substitutions may result in fire, electrical shock, or injury, and may void the warranty

• Only genuine InFocus lamps are tested for use in this projector. Use of non InFocus lamps may cause electrical shock and fire, and may void the projector warranty.

• Hg – Lamp contains mercury. Manage in accordance with local disposal laws. See www.lamprecycle.org.

• The projector uses a high-pressure mercury glass lamp. The lamp may fail prematurely, or it may rupture with a popping sound if jolted, scratched, or handled while hot. The risk of lamp failure or rupture also increases as the lamp age increases; please replace the lamp when you see the “Replace Lamp” message.

• In the unlikely event of a lamp rupture, particles may exit through the projector vents. Keep people, food, and drinks out of the "keep out" area under and around the projector, as indicated by the "X" areas below.

3’ / 1 m

’

/2.4m

’ /1.5m

• Follow these instructions to help ensure image quality and lamp life over the life of the projector. Failure to follow these instructions may affect the warranty. For complete details of the warranty, see the Warranty/Safety booklet.

3’ / 1 m

2’ / 0.6 m

Page 5

Introduction

Your new digital projector is simple to connect, easy to use, and straightforward to maintain. It is a versatile projector that is flexible enough for business presentations and home video viewing too. IN2124 has native XGA 1024 x 768 resolution, and IN2126 has native WXGA 1280 x 800 resolution. It is compatible with a wide variety of computers and video devices.

Product specifications

To read the latest specifications on your multimedia projector, be sure to visit our website at

www.infocus.com, as specifications are subject to change.

Accessories

The standard accessories that came with your projector are listed in the included Quick Start documentation. Optional accessories can be found on our website at

support or at your retailer or dealer.

Online registration

Register your projector on our website at www.infocus.com/register to activate your warranty and receive product updates, announcements, and registration incentives.

www.infocus.com/

focus

remote control receiver (IR)

lens

zoom

keypad

security bar

power cord connector

connector panel

Page 6

Connector panel

The projector provides both computer and video connection options, including:

• VGA computer

• Composite video

•HDMI

•S-video

• USB mini B connector for firmware upgrades and presentation slide control.

• Monitor out, for VGA pass through to an external monitor.

• Audio input for video and computer.

• Audio output to external speakers.

• RS-232 serial control. Command control codes are on our support website at

www.inf

• LAN for RJ45 LAN control.

ocus.com/support.

audio in/out

HDMI

S-video

computer

RS 232

USB mini B

LAN

composite video

monitor out

security lock

Page 7

Positioning the projector

To determine where to position the projector, consider the size and shape of your screen, the location of your power outlets, and the distance between the projector and the rest of your equipment. Here are some general guidelines:

• Position the projector on a flat surface at a right angle to the screen. IN2124 m

ust be at least 45.3” (1.2m) from the projection screen, and IN2126 must be

at least 55.4” (1.4m) from the projection screen.

• If you are installing the projector on the ceiling, we strongly recommend using

ocus approved ceiling mounts for proper fitting, ventilation and installation.

InF Refer to the installation guide that comes with the InFocus Ceiling Mount Kit (p/n PRJ-MNT-UNIV) for more information. The warranty does not cover any damage caused by use of non-approved ceiling mount kits or by installing in an improper location. To turn the image upside down, see “Ceiling mount” on page 27. We recommend using an InFocus authorized ceiling mount.

• Position the projector the desired distance from the screen. The distance

om the lens of the projector to the screen and the video format determine

fr the size of the projected image.

• The image offset is 115% +/-5%. This inches (1.5 meters) tall from a table-mounted projector, the bottom of the image will be 9 inches (22.9 cm) above the centerline of the lens.

60 inches high image

bottom of image 9 inches above center of lens

lens center

means that if you have an image 60

Projection angle

Table 1: IN2124 (XGA) Screen size

Diagonal Screen Size (inches/m)

Size of the Pr

ojected Image Width (inches/m)

Distance to screen

Minimum di

stance

(inches/m)

Maximum distance (inches/m)

30”/0.8m 24”/0.6m 45.3”/1.2m 50.6”/1.3m 60”/1.5m 48”/1.2m 92.2”/2.3m 102.9”/2.6m 80”/2.0m 64”/1.6m 123.5”/3.1m 137.7”/3.5m 100”/2.5m 80”/2.0m 154.8”/3.9m 172.5”/4.4m 150”/3.8m 120”/3.0m 233.0”/5.9m 259.6”/6.6m

Table 2: IN2126 (WXGA) Screen size

Diagonal Screen Size (inches/m)

Size of the Pr

ojected Image Width (inches/m)

Distance to screen

Minimum di

stance

(inches/m)

Maximum distance (inches/m)

45”/1.1m 38”/1.0m 55.4”/1.4m 69.3”/1.8m 60”/1.5m 51”/1.3m 74.5”/1.9m 92.9”/2.4m 80”/2.0m 68”/1.7m 100.0”/2.5m 124.4”/3.2m 100”/2.5m 85”/2.2m 125.5”/3.2m 155.8”/4.0m 150”/3.8m 128”/3.2m 189.2”/4.8m 234.6”/6.0m

Page 8

Connecting a computer source

VGA connection

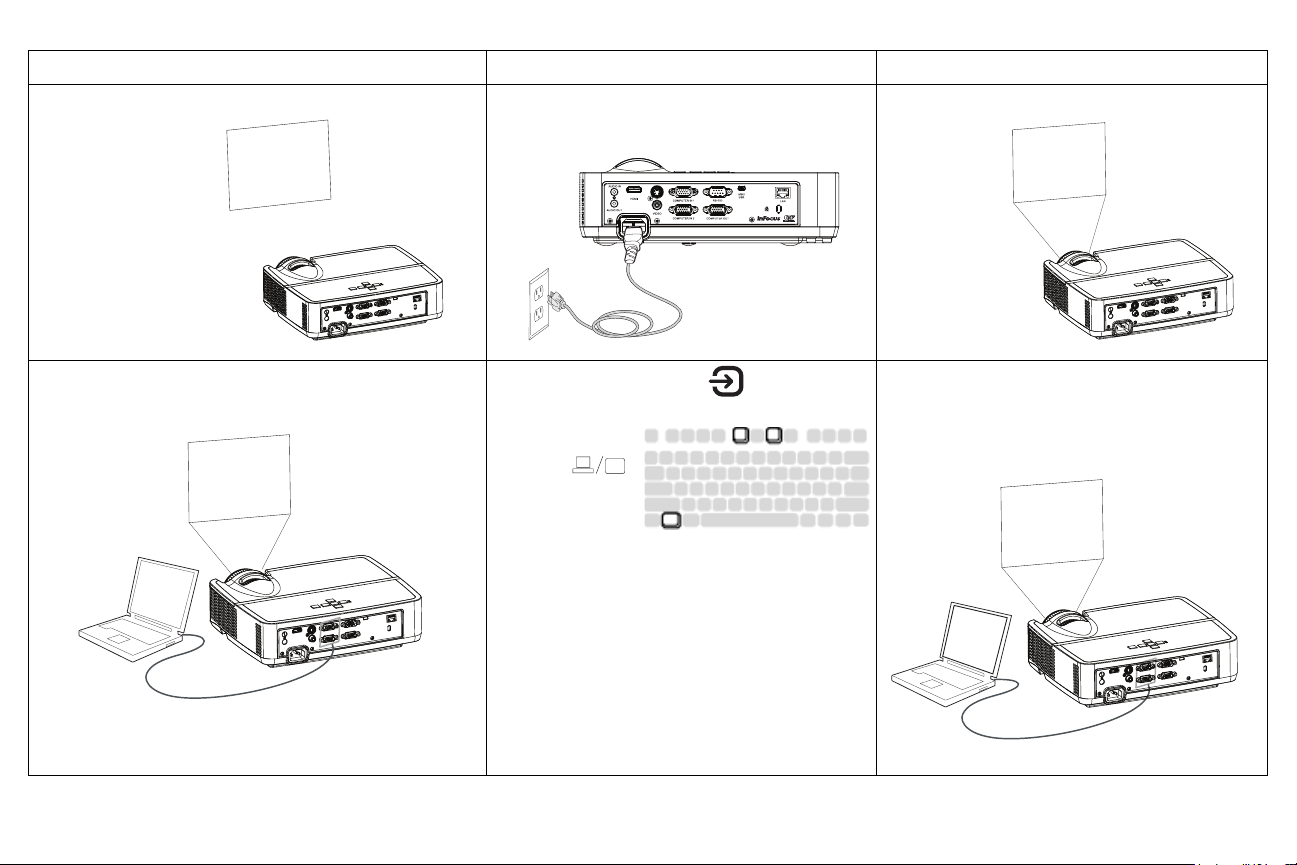

Connect one end of the provided computer cable to the Computer in 1/Computer

in 2 connector on the projector and the other to the VGA connector on your computer. If

you are using a desktop computer, you will need to disconnect the monitor cable from the computer’s video port first.

HDMI connection

HDMI is a standard, uncompressed, all-digital audio/video interface. HDMI provides an interface between sources, such as set-top boxes, DVD players, and receivers and your projector. Plug an HDMI cable into the video-out connector on the video device and into the HDMI connector on the projector.

Connecting power

Connect the black power cord to the Power connector on the rear of the projector and to your electrical outlet. If the Power Saving Mode feature is off, the Power LED on the Status Indicator Panel (page 11) blinks blue. If the Power Saving Mode feature is on, the Power LED is steady blue. By default, this feature is off. You can change the setting, see page 28 Always use the power cord that shipped with the projector.

. NOTE:

Optional computer connections

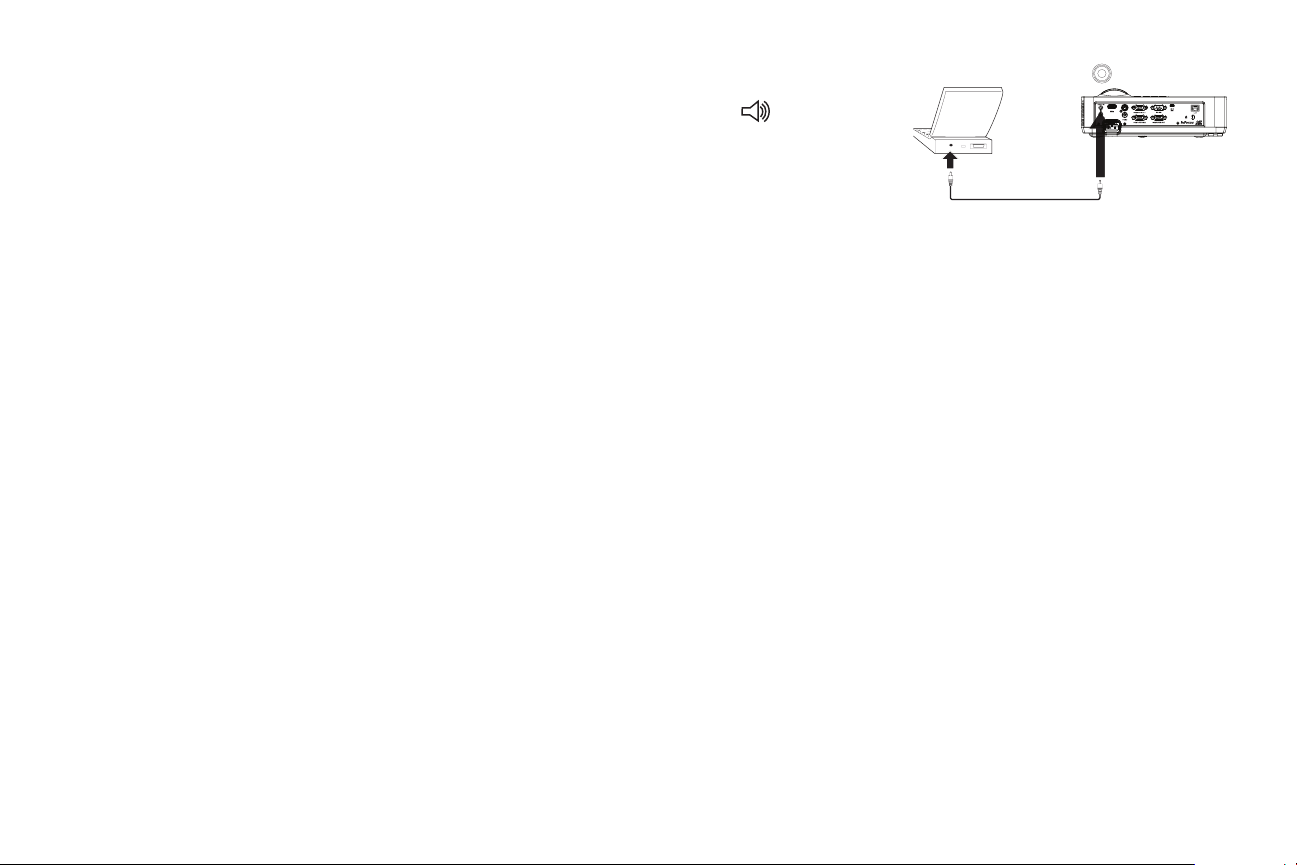

To get sound from the projector, connect an audio cable (optional cable, not included) to your computer and to the adapter.

If you are using a desktop computer and want to see the imag well as on the projection screen, connect to the desktop’s computer cable to Computer 1 and the desktop’s monitor cable to the Computer out connector on the projector.

Audio in connector on the projector. You may also need an

e on your computer screen as

connect VGA cable

connect HDMI

connect power

connect audio cable

Page 9

Displaying an image

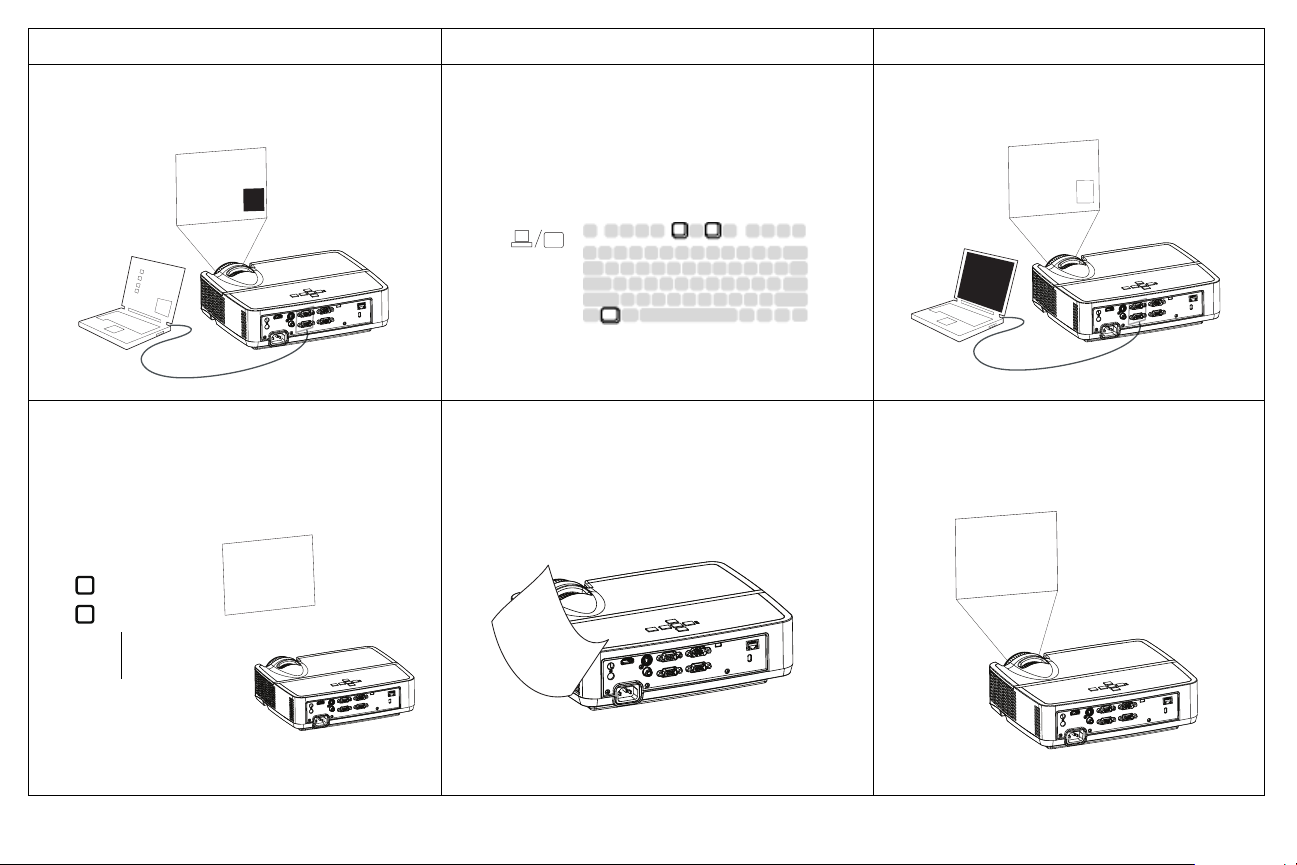

Press the Power button. The Power LED lights blue, an

screen displays. It can take up to a minute for the image to achieve full brightness.

No start up screen? Get help on page 12.

Turn on your computer or video device.

The image should appear on the projection screen. If it doesn’t, press the the projector’s keypad or remote.

d the fans start to run. When the lamp comes on, the start up

Source button on

press Power button

turn on computer or video device

If you are using a VGA cable to connect your computer to the projecto

If using a laptop, make sure its external video port is active.

Many laptops do not automatically turn on their external video port when a projector is co

nnected. Usually a key combination like FN + F8 or CRT/LCD key turns the external display on and off. Locate a function key labeled CRT/LCD or a function key with a monitor symbol. Press FN and the labeled function key simultaneously.

Refer to your laptop's documentation for more information about your laptop's key combination.

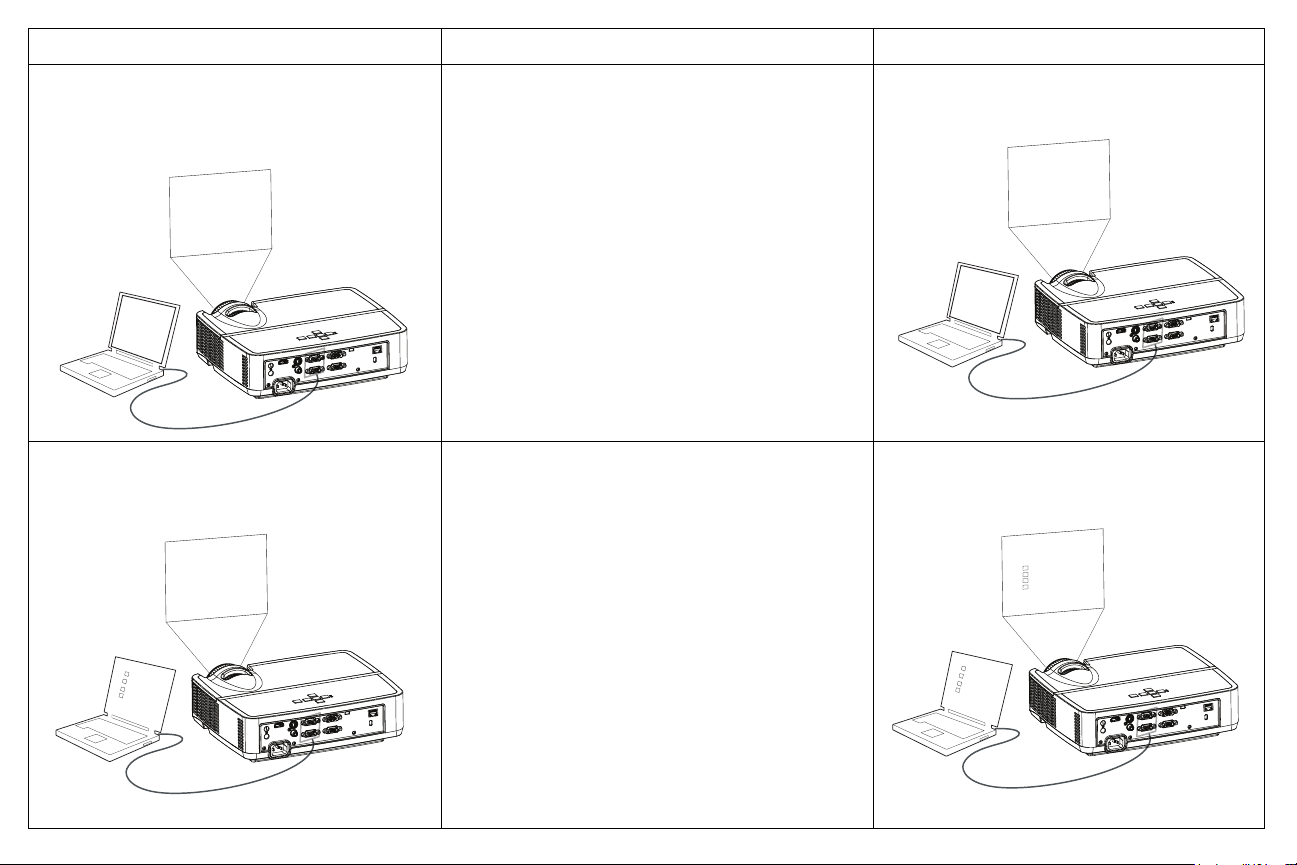

No laptop image? T

ry pressing the Auto Image button on the remote.

Get help on page 12.

activate laptop’s external port

monitor key or LCD/CRT key

FN key

Page 10

Adjusting the image

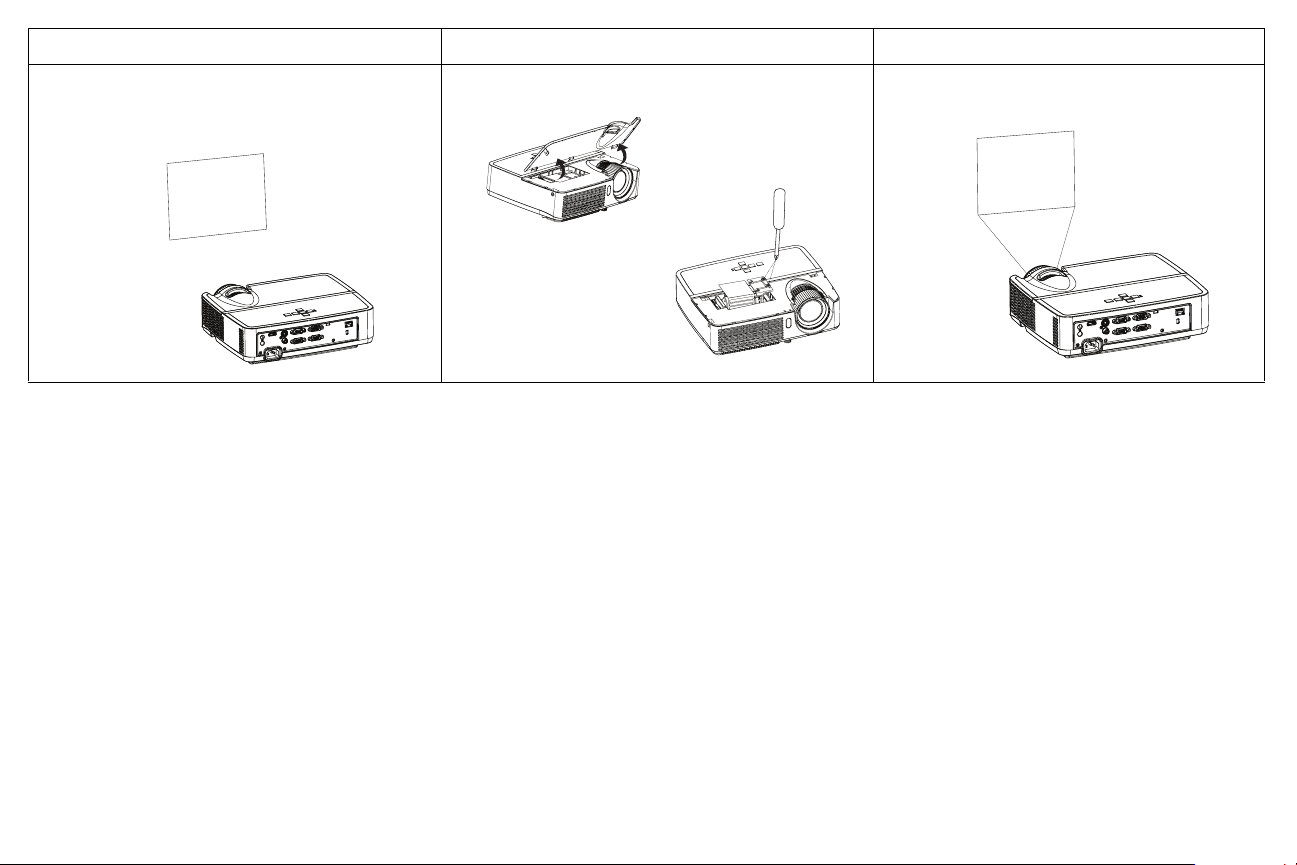

If necessary, adjust the height of the projector by rotating the elevator foot to extend the foot.

adjust height

If necessary, rotate the leveling foot located at the rear of the projector.

Avoid placing your hands near the hot exhaust vent at the front of the projector.

Position the projector the desired distance from the scr screen.

een at a 90 degree angle to the

See page 6 for a table listing screen sizes and distances.

Adjust the zoom or focus.

If the image is not square, first mak the image is larger or smaller on the top or bottom edge of the screen, press the top

e sure that the projector is perpendicular to the screen. If

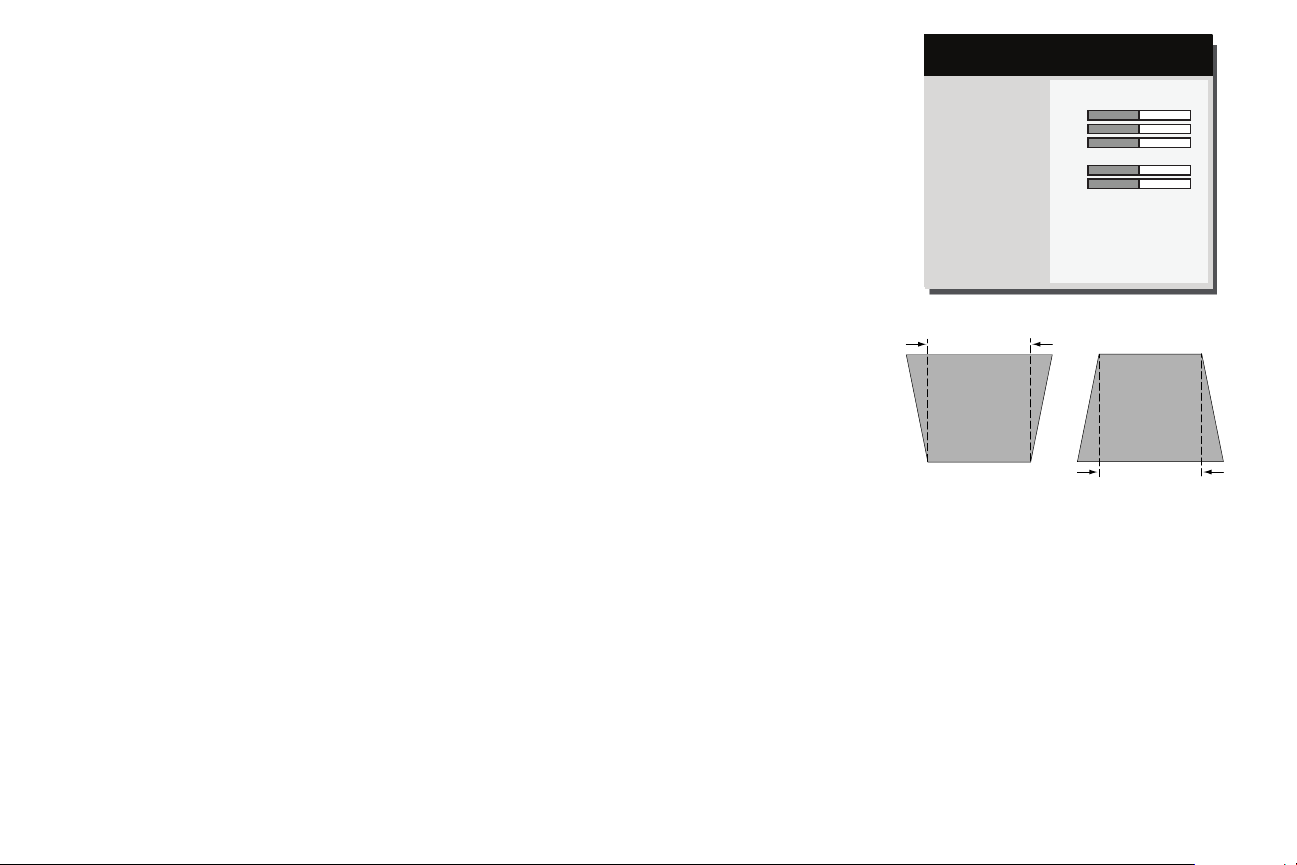

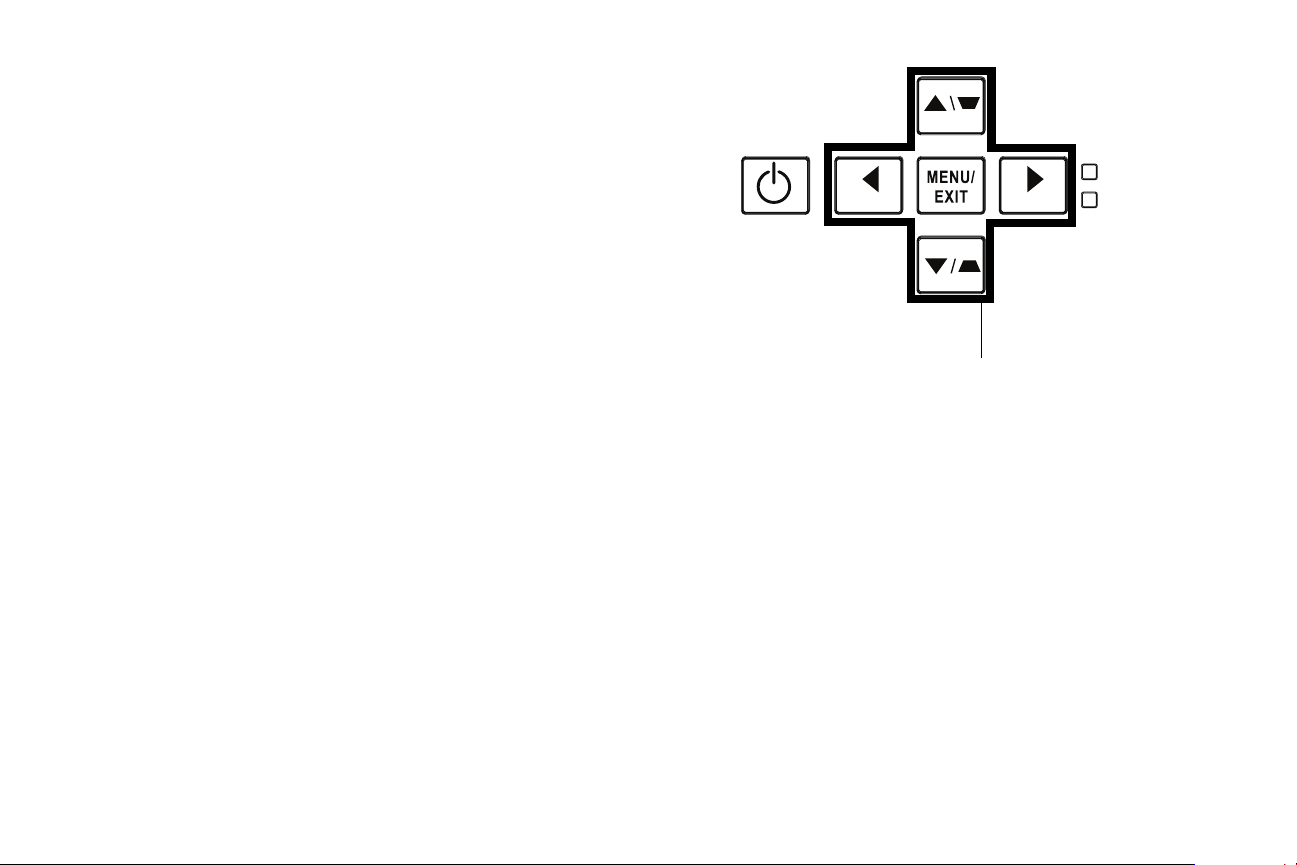

Keystone button to reduce the upper part of the image, and press the bottom Keystone button to reduce the lower part.

If the left or right side of the screen is larger or to the left or to the right a few degrees to square the image.

Adjust the Contrast or Brightness in the Ba adjustments.

smaller the other, you can turn the projector

sic Menu. See page 25 for help with these menu

adjust distance

adjust zoom and focus

adjust keystone

adjust Basic Menu

elevator foot

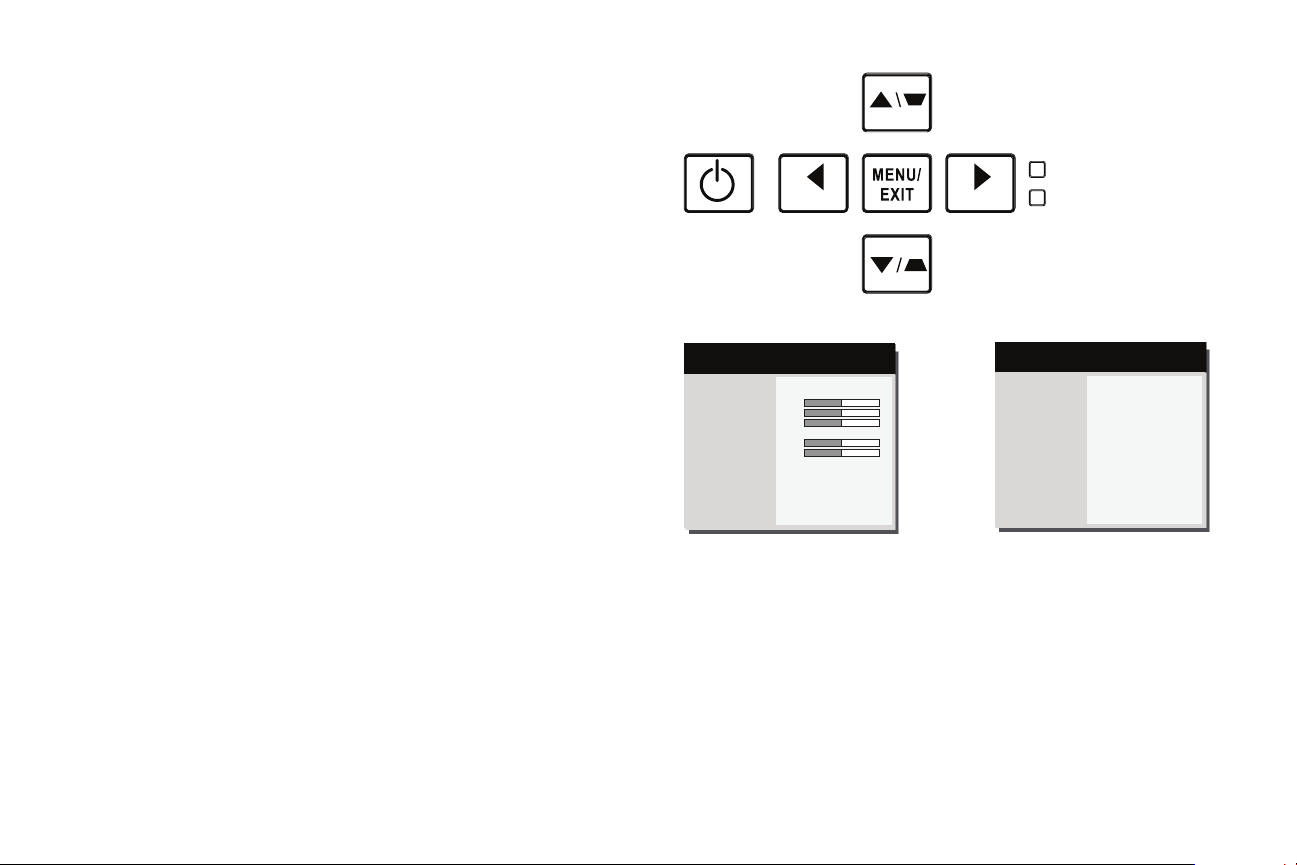

( Basic Menu )

Aspect Ratio

Auto Image Brightness Contrast Keystone Presets Sharpness Volume Ceiling Mount

Advanced Menu

◄ Auto ► Execute 50 50 50 Presentation 50 50 Off

MDL: IN2124

FW: 1.24

Page 11

Connecting a video device

You can connect video devices such as VCRs, DVD players, camcorders, digital cameras, video game consoles, HDTV receivers, and TV tuners to the projector. You can connect the audio directly to the projector to get sound from the built-in speaker, or you can bypass the projector’s audio system and connect the audio directly from your source to a stereo or home theater system.

You can connect the projector to most video devices that can output video. You cannot

ectly connect the coaxial cable that enters your house from a cable or satellite company,

dir the signal must pass through a tuner first. Examples of tuners are digital cable boxes, VCRs, digital video recorders, and satellite TV boxes. Basically, any device that can change channels is considered a tuner.

Before connecting your projector, you should decide which aspect ratio you want to use. The pr

ojector’s Aspect Ratio setting is accessed through the Resize button on the remote or

through the projector’s Basic Menu. See page 25 for more information.

Video device connections

No video cables are provided with the projector. You can order cables from InFocus or provide your own.

HDMI connection

Composite video connection

Plug the composite video cable’s yellow connector into the video-out connector on the video device. Plug the other yellow connector into the yellow

Video connector on the projector.

Component video connection

If your HD video device has component connectors, an optional Component to VGA adapter can be used. Plug the component cable into the video device. Plug the other end of the component cable into the adapter and plug the adapter into the

Computer connector.

S-video connection

Plug the S-video cable’s connector into the video-out connector on the video device. Plug the other connector into the S-

Video connector on the projector.

Audio

For audio, connect a 3.5mm stereo cable to the Audio In connector on the projector and to your source. If your source uses RCA audio connectors, a Y-cable or adapter may be used. (Note: A separate audio connection is not required for HDMI source inputs.)

VGA connection

If your video device has a 15-pin VGA output, plug one end of the included computer cable into the VGA connector on your video source. This connector may be labeled “To Monitor” on the video source. Plug the computer cable into either the Computer In 1 or

Computer In 2 connector on the projector.

Page 12

Shutting down the projector

TEMP/LAMP

POWER

Auto Off Time

The projector also has an Auto Off Time feature that automatically turns the projector off after no active sources are detected and no user interaction with the projector is performed for 30 minutes. By default, this feature is off. You can change the length of time, see

page 29.

The Status Indicator Panel on top of the projecto can help you troubleshoot

r indicates the state of the projector and

Table 3: Status indicator light behavior and meaning

Turning off the projector

To turn the projector off, press the Power button on the remote or keypad. The lamp turns off and the Power LED blinks blue for 1 minute while the fans continue to run to cool the lamp. If the Power Saving Mode feature is on and when the lamp has cooled, the LED lights blue and the fans stop. If the Power Saving Mode feature is off and when the lamp has cooled, the LED blinks blue and the fans stop. Unplug the power cable to completely power off the projector.

Troubleshooting your setup

If your image appears correctly on the screen, skip to the next section. If it does not, troubleshoot the setup.

Status Indicator Light Meaning

POWER: Solid blue

POWER: Blinking blue

POWER: Blinking blue TEMP/LAMP: Blinking pink

POWER: Solid blue TEMP/LAMP: Blinking pink

POWER: Solid blue TEMP/LAMP: Blinking red

POWER: Solid blue TEMP/LAMP: Blinking blue

1. If the Power Saving Mode feature is on, the projector is plugged in.

2. The projector is on and initialized.

3. The projector is in normal operation.

1. If the Power Saving Mode is off, the ojector is plugged in.

2. The projector is powering down and

e fans are cooling the projector.

The projector fan(s) are not operating co

rrectly and the projector has been shut

down.

The lamp failed to ignite. Contact Technical Support if the problem per

sists. Visit www.infocus.com/support

to contact service.

The lamp has reached its end of life and must be replac to operate until it fails. Contact Technical Support. Repair may be nee

ded.

1. The projector is overheating and the

lamp will be shut continue to run.

2. The projector will not turn back on

unt

il the cooling process is complete.

ed. The lamp will continue

off. The fans will

Page 13

Problem Solution Result

Startup

Screen

No start up screen

Plug power cord into the projector press power button

Correct image

Only start up screen appears

Startup

Screen

Press the Source button activate laptop’s external port

Restart laptop

Computer image projected

Page 14

Problem Solution Result

No computer image, just the words “Signal out of range”

Signal out of the range

Only my laptop’s background appears, not the Desktop icons

Press the Auto Image button on remote Adjust computer refresh rate (Windows 7:

ontrol Panel > Display > Screen Resolution >

C Advanced Settings > Adapter tab). Varies per operating system.

You may also need to set a different resolution on your computer, as shown in the following problem, “image fuzzy or cropped”

Change the Multiple Display setting to "Duplicate these displays" (Windows 7: Control Panel > Display > Screen Resolution). Varies per operating system.

Computer image projected

Background and Desktop projected

Page 15

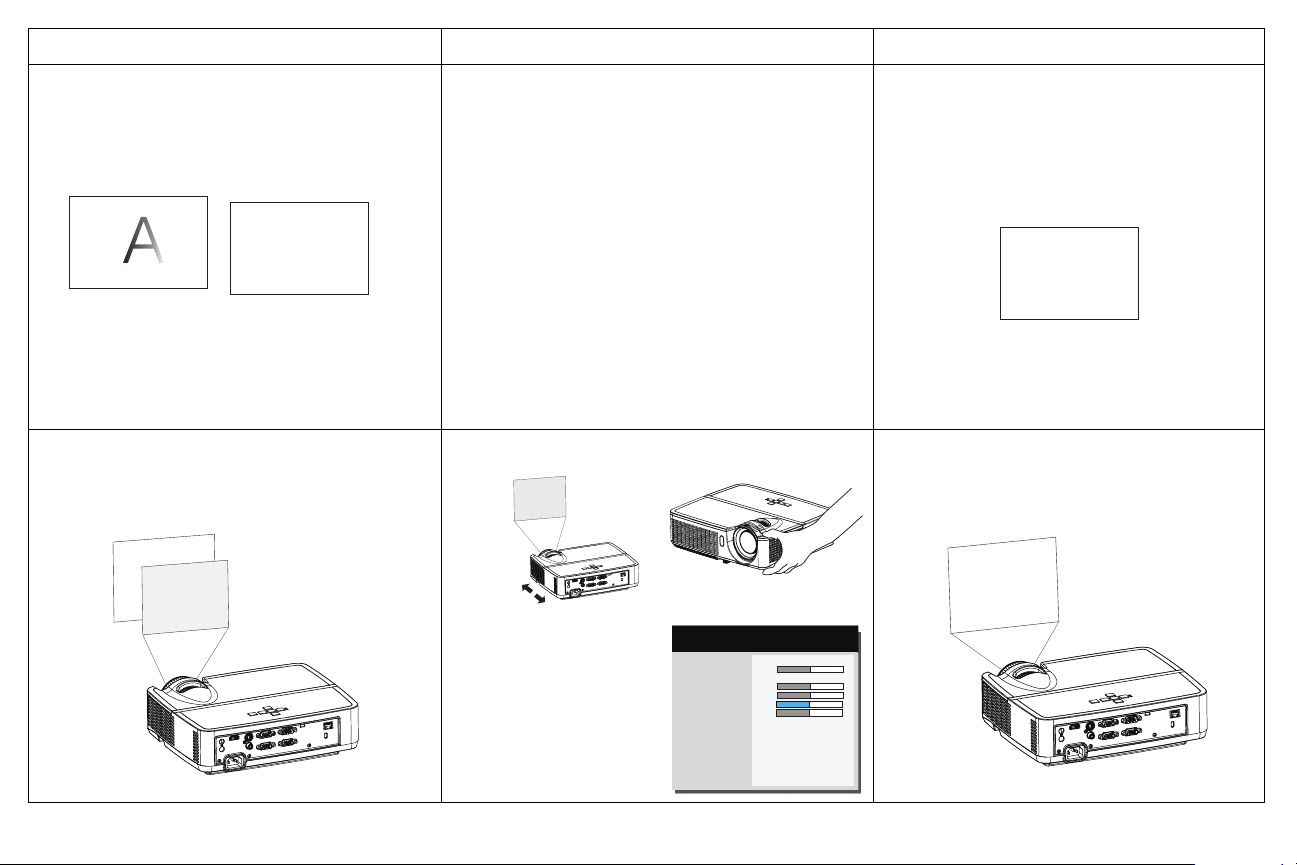

Problem Solution Result

Image fuzzy or cropped

Image not centered on screen

Change the computer's "Resolution" setting to match the projector's resolution (Windows 7:

ontrol Panel > Display > Screen Resolution).

C Varies per operating system.

Move projector, adjust height

MDL: IN2124

Adjust horizontal or vertical position in Advanced Menu > Image > PC...

( PC )

Force Wide Phase Prevent PC Screen Saver Sync Threshold Tracking

Horz Position

Vert Position

Off 50 Off 50 50

Image clear and not cropped

Correct image

FW: 1.24

Page 16

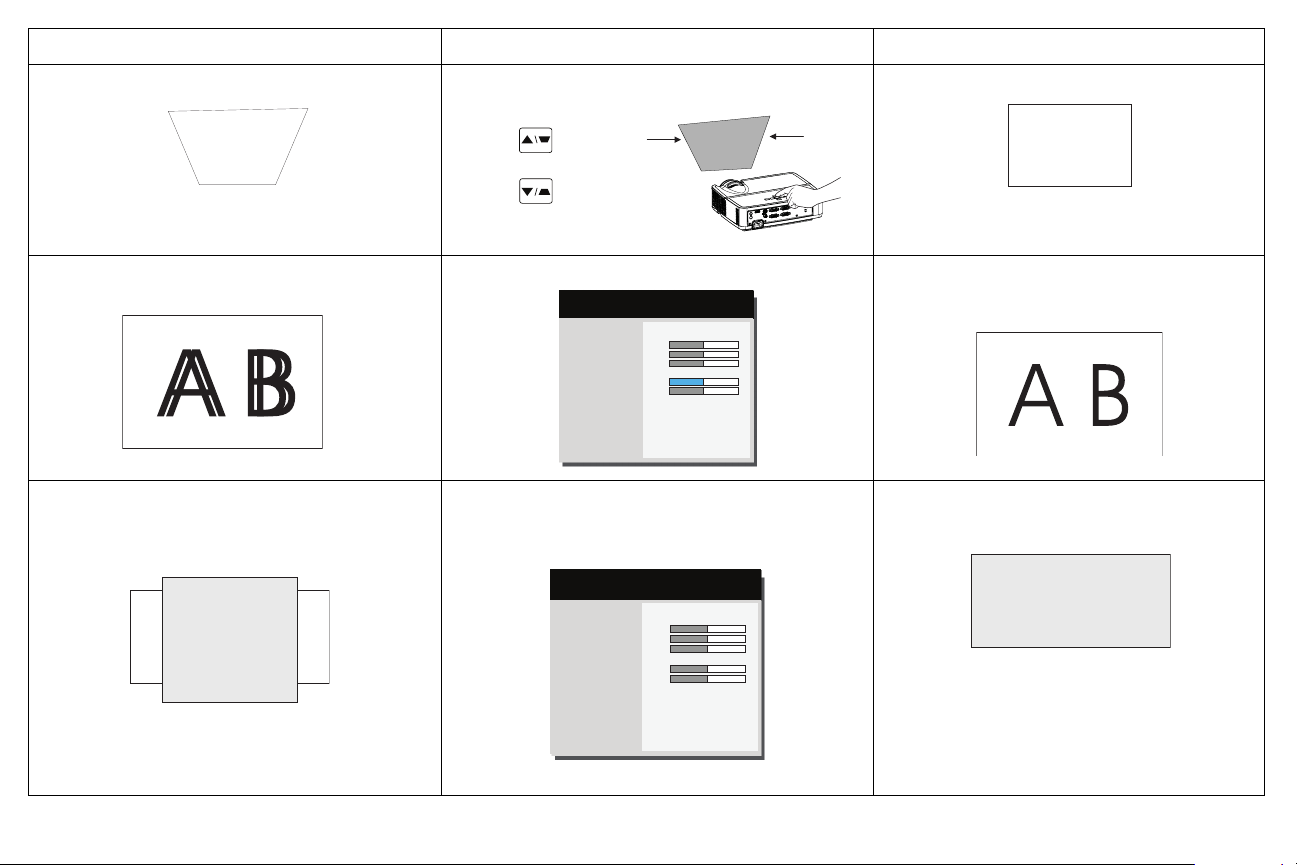

Problem Solution Result

Image not square Adjust Keystone on keypad

Image not sharp

Image does not fit 4:3 or 16:9 screen

Adjust Sharpness in the Basic Menu

( Basic Menu )

Aspect Ratio Auto Image Brightness Contrast Keystone Presets

Sharpness

Volume Ceiling Mount

Advanced Menu

◄ Auto ► Execute 50 50 50 Presentation

50 Off

Change aspect ratio to 4:3 or 16:9 in Basic Menu > Aspect Ratio menu

( Basic Menu )

Aspect Ratio

Auto Image Brightness Contrast Keystone Presets Sharpness Volume Ceiling Mount

Advanced Menu

◄ Auto ►

Execute 50 50 50 Presentation 50 50 Off

MDL: IN2124

FW: 1.24

MDL: IN2124

Square image

Correct image

FW: 1.24

Page 17

Problem Solution Result

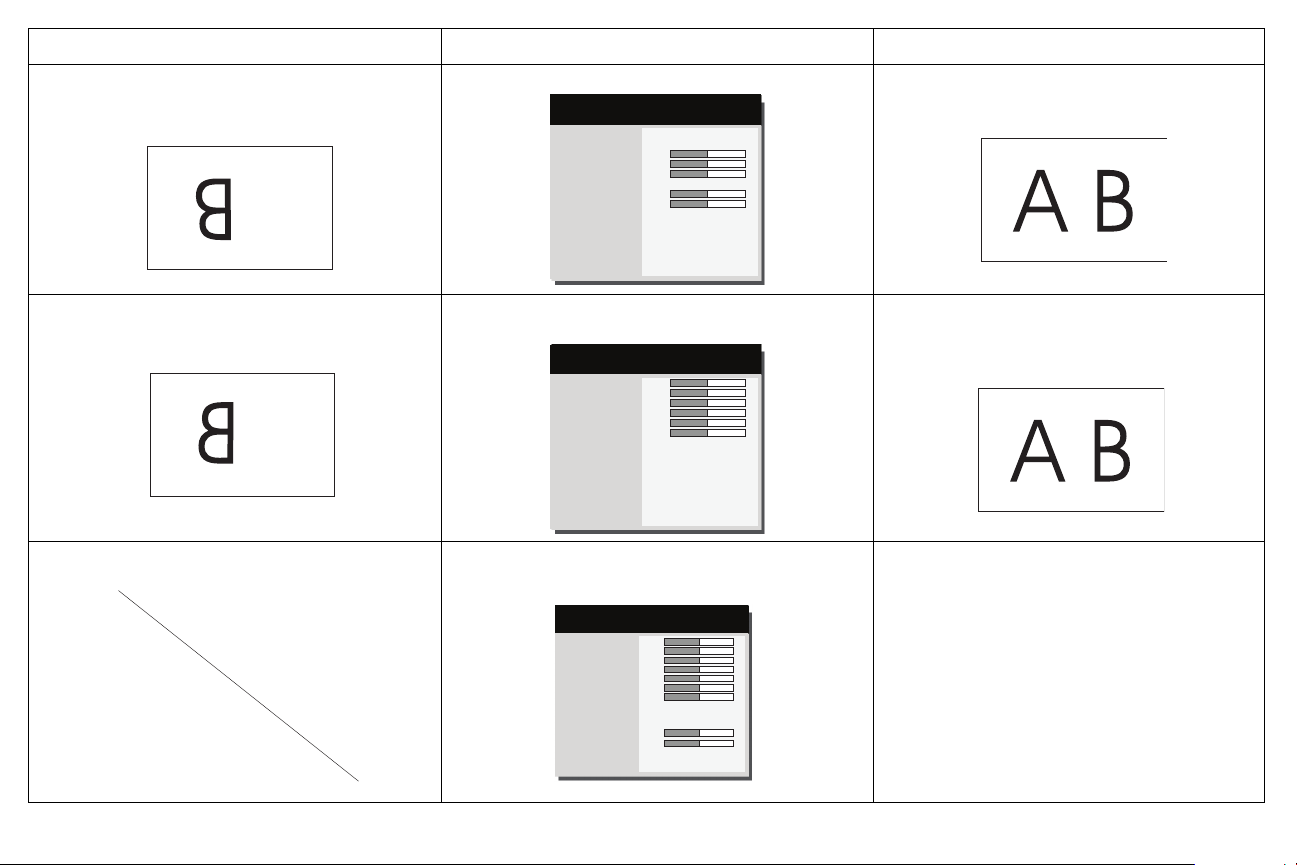

Image upside down

Image reversed left to right

Projected colors don’t match source

COLOR

Turn off Ceiling Mount in Basic menu

( Basic Menu )

Aspect Ratio Auto Image Brightness Contrast Keystone Presets Sharpness Volume

Ceiling Mount

Advanced Menu

◄ Auto ► Execute 50 50 50 Presentation 50 50

Off

MDL: IN2124

FW: 1.24

Turn off Rear Project in Advanced Menu > Setup > Image Setup... menu

( Image Setup )

Digital Zoom Horz Shift Vert Shift Magnify Level Horz Shift Vert Shift

Rear Project

Ceiling Mount

50 50 50 50 50 50

Off

MDL: IN2124

FW: 1.24

Adjust the items in the Advanced Menu > Image > Color... menu

( Color )

Color

Red Gain Green Gain Blue Gain Red Offset Green Offset Blue Offset Color Space Color Temp Gamma Tint White Intensity Previous

50 50 50 50 50 50 50 Auto Warm Bright 50 50

MDL: IN2124

FW: 1.24

Correct image

COLOR

Page 18

Startup

Screen

Problem Solution Result

The video embedded in my PowerPoint presentation does not play on the screen

Lamp won’t turn on, the projector is overheating

POWER

TEMP/LAMP

Overheating indicator

Turn off the internal LCD display on your laptop

Make sure vents aren’t blocked, turn off the projector and allow it to cool for one minute

Embedded video plays correctly

Lamp turns on

Page 19

Startup

Screen

Problem Solution Result

“Replace lamp” message appears at startup,

Lamp must be replaced (see page 36)

lamp won’t turn on

replace lamp

Still need assistance?

If you need assistance, visit our website at the Warranty/Safety booklet for support contact information.

This product is backed by a limited warranty. An extended warranty plan may be purchased

om your dealer. When sending the projector in for repair, we recommend shipping the unit

fr in its original packing material, or having a professional packaging company pack the unit. Please insure your shipment for its full value.

www.infocus.com/support or call us. See

Lamp turns on

lamp door

Page 20

Using the remote control

The remote uses two (2) AAA batteries (not provided). They are easily installed by removing the cover from the remote’s back, aligning the + and - ends of the batteries, sliding them into place, and then replacing the cover.

Caution:

• When replacing the remote batteries, be aware that using batteries other AAA batteries may risk severe damage to the remote. When disposing

than of the batteries, be sure to do so in an enviromentally proper manner.

• If the remote control gets wet, wipe it dry immediately.

Avoid excessive heat and humidity.

•

• Ensure the batteries' polarity (+/-) is aligned correctly.

• Do not mix new and old batteries together, or mix different types of batteries

together.

• Replace the batteries as soon as they run out.

• Remove batteries from the remote control when storing or not in use for a

prolonged period.

To operate, point the remote at the front of the projector (not at the computer). The range of optimum operation is about 15 feet (4.5m).

Press the remote’s Po for shutdown info).

Press the remote’s Menu button to open the projector’s menu system. Use the arrow buttons to navigate, and the Select button to select features and adjust values in the menus. See page 24 for more info on the menus.

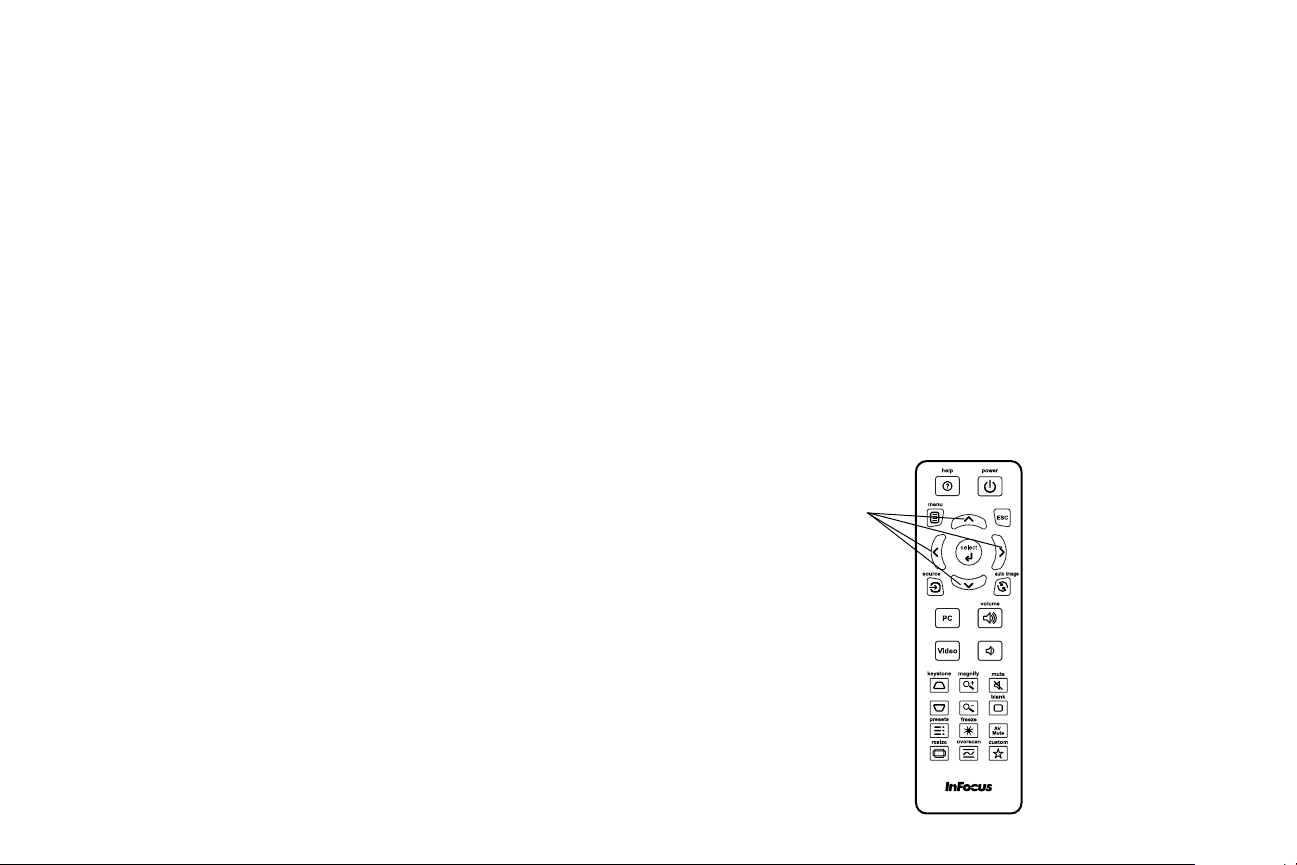

The remote also has:

• Vol

• Cu

• Sou

• Blank button to blank the screen.

• Presets button to select stored settings (see page 25).

• Mu

ume buttons adjust the sound.

stom button that can be assigned to a special function, like Blank Screen

or Freeze (see page 27).

rce button brings up a menu of all possible sources allowing the user to

switch the active source.

te button to silence the audio.

wer button to turn the projector on and off (see page 11

• Auto Image button to resynch the projector to the source.

• Resi

• Help button to get help with connecting sources and improving the picture.

•ESC but

• PC button to cycle thr

• Video button to cycle through Composite/S-Video/HDMI input sources.

• Ke

• Ma

• Freeze button to pause the projected image.

• Overscan bu

• AV Mute

ze button to switch among aspect ratios (see page 25).

ton to go back to previous OSD menu.

ough the Computer sources.

ystone buttons adjust the squareness of the image

gnify buttons magnify and reduce the projected picture size.

tton remove noise around the video image.

button blanks the projected image and mutes audio.

Troubleshooting the remote

• Make sure the batteries are installed in the proper orientation and are not dead.

• Make sure you’re pointing the remote at the projector or the screen, not the computer, and are within the remote range of 15 feet (4.5m). For best results, point the remote at the projector.

navigation buttons

Page 21

Using the audio

Using the projector’s speakers

Connect the audio source to the Audio In connectors to hear audio through the projector speakers.

Amplified speakers may also be connected to the projector using the Audio Out

nnector.

connect audio cable

To adjust the volume, press the Volum

e buttons on the remote.

Troubleshooting Audio

If you aren’t hearing the audio, check the following:

• Make sure the audio cable is connected to the Audio In connector on the ojector, and that the other end of the cable is connected to an Audio Out

pr connector on the source (not a “line-in” or “microphone” connector).

• Make sure the volume is turned up enough. Press the Volum

remote.

• Make sure the correct source is active.

• Adjust the audio source.

• If playing a video, make sure the playback has not been paused.

e button on the

Page 22

Using the keypad buttons

SOURCE

PRESET

TEMP/LAMP

POWER

Most buttons are described in detail in other sections, but here is an overview of their functions:

Power–tu

rns the projector on and off (page 8).

Right arrow/Presets - Whe

n the menu is displayed, the right arrow button navi-

gates through the menu. When the menu is not displayed, this button cycles

through available preset options.

Up arrow/Keystone - When the menu is displayed, the up arrow button navi-

gates through the menu. When the menu is not displayed, this button adjusts the

squareness of the image (page 9).

Down arrow/Keystone - When the menu is displayed, the down arrow button

navigates through the menu. When the menu is not displayed, this button adjusts

the squareness of the image (page 9).

Left arrow/Source - When the menu is displayed, the left arrow button navigates

through the menu. When the menu is not displayed, this button brings up a source

menu, allowing the user to change the active source (page 8).

menu navigation buttons

Page 23

Optimizing computer images

Presentation features

After the projector is running and the image is on the screen, you can optimize the image using the onscreen menus. For general information on using the menus, see page 24.

• Select default image settings using a preset appropriate to your environment.

• Adjust the Keystone, Contrast, or Brightness (page 25).

• Change the Aspect Ratio. Choose the option that best fits your input source

(page 25).

• Adjust the Color Temperature (page 26).

• Adjust the Phase, Tracking, or Horizontal or Vertical position (page 26).

• Once you have optimized the image for a particular source, you can save the

ettings using Presets. This allows you to quickly recall these settings later

s (page 25).

Several features are provided to make giving presentations easier. Here is an overview, details are found in the menu section.

• The Custom key allows you to assign various features to the button. The defau

lt effect is Source Info, which displays information about the projector

and current source. See

• The Search Screen option lets you change the appearance of the blank screen

art up screen (page 28).

and st

• Auto Off Time is provided to automatically shut down the projector after several minutes. This helps preserve lamp life (page 28).

page 27 for details.

Page 24

Optimizing video images

Customizing the projector

After your video device is connected properly and the image is on the screen, you can optimize the image using the onscreen menus. For general information on using the menus, see page 24.

• Adjust the Keystone, Contrast, Brightness, Color, or Tint (page 25).

• Change the Aspect Ratio. Choose the option that best fits your input source (page 25).

• Select a Sharpness setting (page 25).

• Adjust the Color Temperature. Select a listed warmth value (page 26).

• Turn on Overscan to remove noise on the edges of the image (page 27).

You can customize the projector for your specific setup and needs. See page 27 for details on these features.

• For rear projection, turn Rear Project on Image Setup... menu.

• For ceiling mounted projection, turn Ceiling Mount on in the Basic menu.

• Specify which source the projector checks first for active video during powerup.

• Specify the function of the Custom key on the remote.

• Turn the projector’s display messages on and off.

• Turn on power saving features.

• Specify appearance of blank screen and startup screen.

• Specify the language viewed on the menus.

• Save settings for the active source as a preset.

in the Advanced Menu > Setup >

Page 25

Using the menus

SOURCE

PRESET

TEMP/LAMP

POWER

1 To open the menus, press the Menu button on the keypad or remote. (The

menus automatically close after 60 seconds if no buttons are pressed.) Use the arrow buttons to move up and down to review the menu options.

2 To enter a submenu, highlight the desired submenu and press > on the keypad

or Select on remote.

3 To adjust a menu setting, highlight the desired menu option and press < or >

to scroll through the available adjustments.

4 Press the Menu button to exit the menu system.

The menus are grouped by usage:

• The Basic Menu provides common adjustments.

• The Advanced Menu provides more complex adjustments.

( Basic Menu )

Aspect Ratio

Auto Image Brightness Contrast Keystone Presets Sharpness Volume Ceiling Mount

Advanced Menu

◄ Auto ►

Execute 50 50 50 Presentation 50 50 Off

Basic Menu

MDL: IN2124

FW: 1.24

keypad navigation

( Advanced Menu )


Setup Status/Service

Basic Menu

3D Control... Color... PC... Video...

Advanced Menu

MDL: IN2124

FW: 1.24

Page 26

Basic Menu

To adjust the following settings, highlight the setting, use the right and left arrows to adjust the values.

Aspect Ratio: As screens are usually 4:3. HDTV and most DVDs are 16:9.

Select Auto to have the projector choose the ratio. Choose Native to see the unmodif

ied input with no resizing by the projector. Select 16:9 to watch enhanced

widescreen DVDs.

Auto Image: r Brightness: Contrast:

parts of the picture and changes the amount of black and white in the image. Keystone: adjust

adjust keystone from the keypad. Presets: Pr

presentations and video images under certain conditions. Note: Users can save their settings as a User Preset.

Sharpness: Changes the clarity of the edges of a video image. Select a sharpness setting.

Volume: i Ceiling Mount:

pect ratio is the ratio of the image width to image height. TV

esets the projector to the source.

changes the intensity of the image.

controls the degree of difference between the lightest and darkest

s the image vertically and makes a squarer image. You can also

esets are provided that optimize the projector for displaying computer

ncreases or decreases the audio volume.

turns the image upside down for ceiling-mounted projection.

Basic Menu

(

Basic Menu

Aspect Ratio

Auto Image Brightness Contrast Keystone Presets Sharpness Volume Ceiling Mount

Advanced Menu

)

◄ Auto ► Execute 50 50 50 Presentation 50 50 Off

MDL: IN2124

FW: 1.24

increasing keystone decreasing keystone

Page 27

Advanced Menu

(

Advanced Menu


Setup Status/Service

Basic Menu

)

3D Control... Color... PC... Video...

MDL: IN2124

FW: 1.24

Color Space: applies to computer and component video sources. It allows you to select a color space that has been specifically tuned for the input signal. When Auto is selected, the projector automatically determines the standard. To choose a different setting, turn off Auto, then choose RGB for computer sources or choose either REC709 or REC601 for component video sources.

Color Temperature: changes the intensity of the colors. Select a listed relative warmth value.

Gamma: sele

ct the appropriate gamma from among Video, Film, Bright, and

CRT.

Tint:

adjusts the red-green color balance in the image of NTSC video images.

The tint setting applies to NTSC video sources only.

Image:

3D Control:

3D Control: allows you to enjoy 3D (stereoscopic) content. Your projector

supports two synchronization modes (External Sync and DLP Link™) for controlling LCD shutter glasses. In addition to the projector, you will need a pair of 3D shutter glasses, 3D content, and 3D compatible source (and emitter). Ensure the glasses you choose are consistent with the synchronization mode you will be using.

3D Sync Invert: (Only applies when 3D control is set to DLP Link™.) If the image appears to flutter, look odd or if the image depth looks off or you experience eye strain, turn this feature on to see if the image improves.

Color...

Color:

adjusts a video image from black and white to fully saturated color.

The color setting applies to video sources only.

Red/Green/Blue Gain: the image.

Red/Green/Blue Offset: adjus of the image.

adjusts the gain of the red, green or blue channel of

ts the offset of the red, green or blue channel

White Intensity: incr

eases the brightness of whites that are near 100%.

PC:

Force Wide: when this is off, the analog locking algorithms choose the stan-

dard mode resolution (4:3) as the preferred default resolution. When this is

the analog locking algorithms choose wide mode resolution (16:10) as the

on, preferred default resolution.

Phase: adj

Prevent PC Screen Saver:

usts the horizontal phase of a computer source.

prevents your computer from going into Screen Save mode. The projector must be connected to the PC via a USB cable for this feature to work.

Sync Threshold:

(progressive signals only) If a hardware device, such as a DVD player, is not syncing properly with the projector, select this option to help it to sync when connected to the projector.

Tracking:

Horizontal/Vertical Position:

adjusts the vertical scan of a computer source.

adjusts the position of a computer source.

Video:

Detect Film: de

termines whether the original source of the input video was

film (progressive) or video (interlaced).

Page 28

Overscan: removes noise around the video image.

Set Black Level:

analyzes the current input image and calculates an offset value which is then added to the analog to digital converter black level value. This ensures optimum black level for each analog source.

Setup:

Audio Setup...

Internal Speaker: turns the internal speaker on or off.

Closed Captioning...

Closed Captions: controls closed captioning. If the source is NTSC and

contains captions on the selected channel, then the projector will display caption text overlaid on the image. When Closed Captions is off and volume is muted, closed captioning will appear. Options are: Off, CC1 and CC2.

Image Setup...

Digital Zoom: reduces the size of projector’s display area. If the display area

has been resized by this setting, it can be moved by changing the Horz Shift and Vert Shift settings.

Magnify Level: magni setting, it can be moved by changing the Horz Shift and Vert Shift settings.

Rear Project: cent screen.

fies the image. If the image has been magnified by this

reverses the image so you can project from behind a translu-

Mute: turns off all sound.

•

Source: brings up a menu of available sources.

•

Auto Image: resets the projector to the source.

•

Freeze Screen: pauses the projected image.

•

Source Info: the default action. Shows the Source Info menu.

•

Projector Info: shows the Projector Info menu.

•

Overscan: removes noise around the image.

•

• AV Mute: enables or disables AV Mute function.

• Closed Captions: enables or disables Closed Captions.

Keypad: enables or locks the projector keypad.

•

Ceiling Mount: turns

the image upside down for ceiling-mounted projection.

Keypad/Remote Settings...

Blank Key: select what to display when the blank key on the remote is

pressed: your custom snapshot, a solid color screen (blue, black or white), or the factory logo screen.

Custom Key: all

ows you to assign a different function to the Custom button, allowing you to quickly and easily use the effect. Highlight an effect and press ^ or v on the keypad or Select on remote to choose a different one.

• Blank Screen: displays an empty screen.

Page 29

Lamp...

Programmed Dimming: When

contrast ratios in dark scenes and disables Lamp Low Power. Programmed Dimming will impact lamp life and system noise performance. Programmed Dimming works in conjunction with the lamp. If Lamp Low Power is enabled, Programmed Dimming is unavailable.

Lamp Low Power: toggles between on and off. Turn it on to lower the light output of the lamp. This also lowers the fan speed, making the projector quieter.

OSD Setup...

Language:

Menu Position: all

items.

Menu Transparency: al image behind the menu you can see. As the value increases, more of the image behind the menu is visible.

Show Messages: di left corner of the screen.

PIN Settings

PIN Protect: The PIN (personal

password protect your projector. Once you enable the PIN feature, you must enter the PIN before you can project an image. Use the Up/Down/Left/ Right arrows buttons on the remote or keypad to set a 4-button press sequence. If you enter an incorrect PIN 3 times in succession, the projector will automatically shut down. If you lose or forget your custom PIN, contact InFocus Technical Support.

allows you to select a language for the onscreen display.

ows you to change the position of the On Screen Display

lows you to change how much of the projected

splays status messages (such as “Searching”) in the lower-

enabled, Programmed Dimming enhances

identification number) feature allows you to

To change the PIN:

Select “C Enter the existing PIN. Enter the new PIN.

Power

Power Saving Mode: When

tor is in standby (powered off but connected to AC power), the monitor out functio

Source

Auto Source: When t

active source, checking the selected Power-up Source first. When this feature is Off, the projector defaults to the source selected in Power-up Source. To display another source, you must manually select one by pressing the Source button on the remote or keypad and selecting one from the displayed Source menu.

Power-up Source: determines which source the projector checks first for active video during power-up.

Search Screen: screen at startup, and when no source is detected.

hange PIN...” in the Advanced Menu > Setup > PIN settings menu.

the Power Saving Mode is On and the projec-

n will not work.

his feature is On, the projector automatically finds the

allows you to display a blank screen instead of the default

To enter the PIN at projector startup:

Power up the projector. The “En tup screen. Enter the PIN. Use the Up/Down/Left/Right arrows buttons on the remote or keypad to enter the correct 4-button press sequence. See the description above for instructions.

ter PIN” dialog box displays after the star-

Page 30

Timer

Auto Off Time: aut

omatically turns the projector off after no signals are detected for a preset number of minutes. If an active signal is received before the projector powers down, the image will be displayed.

High Altitude Setting

High Altitude Setting: W

e recommend you turn on the High Altitude Mode when your environment is between 5000' (1500m) and 10,000' (3000m) above sea level.

Network

Allow you to configure the network settings.

DHCP: Abbr

eviation for Dynamic Host Configuration Protocol. This

protocol automatically assigns IP Address to networked devices.

• When the “DHCP” is set to “On”, it takes some time to obtain IP address from DHCP server.

• When the "DHCP" is set to "Off", that means user will set IP address by manually.

IP Address: Numerical address to identify networked computers. This function can only be used when DHCP is set to Off.

• The IP Address is the number that identifies this projector on the netw

ork. You cannot have two devices with the same IP Address on the

same network.

• The IP Address “0.0.0.0” is prohibited.

Subnet Mask: A

numeric value to define the number of bits used for a network address of a divided network (or subnet) in an IP Address. This function can only be used when DHCP is set to Off.

• The Subnet Mask “0.0.0.0” is prohibited.

Default Gateway:

A server (or router) to communicate across networks (subnets) that are divided by a Subnet Mask. This function can only be used when DHCP is set to Off.

DNS:

Setup DNS server address when DHCP is disabled.

Mac Address: Abbreviation for Media Access Control Address. Mac Address is a unique ID number assigned to each network adapter.

Apply:

Save and execute the wired network settings.

Restart Network...: Restar

t network settings.

Status/Service:

Source Info: a read-only display of current source settings.

Projector Info:

Reset Lamp Hours...:

Info menu to zero. Do this only after changing the lamp.

Factory Reset...: r

Service Code...: onl

Network Menu

a read-only display of current projector settings.

resets the lamp hours used counter in the Projector

estores all settings to their factory default settings.

y used by authorized service personnel.

Restart Network...

Page 31

Controlling the projector through a LAN environment

The projector supports Crestron® software. With correct settings for the Network menu, you can manage the projector from a computer using a web browser when the computer and the projector are properly connected to the same local area network.

Configuring the LAN control setting

If you are in a DHCP environment:

1 Take a RJ45 cable and connect one end to the RJ45 LAN input jack of the

projector and the other end to the RJ45 port .

he Projector IP Address still does not display, contact your network

• If t administrator.

• If the RJ45 cables are not properly connected, the IP Address, Subnet Mask, Default Gateway, DNS and Mac Address settings will display 0.0.0.0. Make sure the cables are properly connected and perform the procedures above again.

• If you need to connect to the projector in its standby mode, set the Power Saving Mode feature to Off.

If you are in a non-DHCP environment:

1 Repeat steps 1-3 above.

2 Press to highlight DHCP and press / to select Off.

3 Contact your ITS administrator for information on the IP address, Subnet

Mask, Default Gateway, DN

S and Mac Address settings.

4 Press to select the item you want to modify and press Select on the

remote control.

5 Press / to move the cursor and the enter the value.

2 Press MENU/EXIT on the projector or Menu on the remote control and

then press

/ until the Network menu is highlighted.

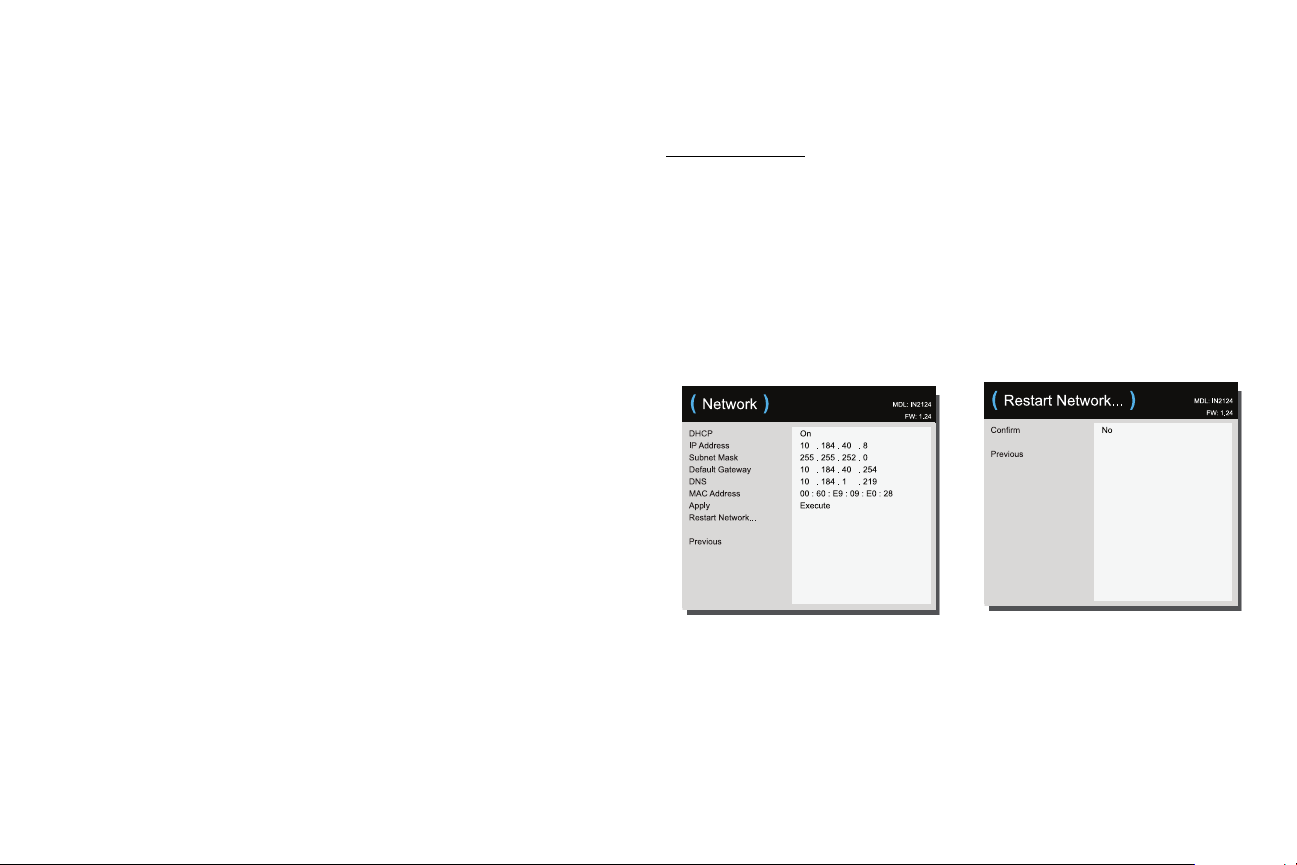

3 Press to highlight Network and press Select on the remote control. The

Network page is displayed.

4 Press to highlight DHCP and press / to select On.

5 Press to highlight Apply and press Select on the remote control.

6 Please wait for around 15 - 20 seconds, and then re-enter the Network page.

The IP address, Subnet Mask, Default Gateway, DNS and Mac Address settings will be

IP address

row.

displayed. Write down the IP address displayed in the

6 To save the settings, press Select on the remote control. If you do not want

to save the settings, press MENU/EXIT on the projector or Menu on remote control.

7 Press to highlight Apply and press Select on the remote control.

• If you wish to connect to the projector in its standby mode, be sure to select RJ45 and obtain the IP Address, Subnet Mask, Default Gateway, DNS and Mac Address information when the projector is on.

the

Page 32

Controlling the projector remotely through a web browser

Once you have the correct IP address for the projector and the projector is on or in standby mode, you can use any computer that is on the same local area network to

ojector.

• If you are using Microsoft Internet Explorer, make sure it is version 7.0 or higher.

• The screen shots in this manual are for reference only, and may differ depending on your browser.

1 Enter the address of the projector in the address bar of your browser and

press Enter.

control the

4 If your projector is connected to a network which supports Simple Mail

Transfer Protocol (SMTP), you can configure it to alert you via email about significant events.

2 The main page of the Network Control displays.

• Accessing the Network Settings or the Email Alert page requires an

Administrator password. The

default password is "0000".

3 This page allows you to make adjustments to the AMX and SNMP settings. In

the AMX Device Discovery field, when ON is selected, the projector can be detected by AMX controllers connected to the same network. For details about AMX Device Discovery, visit the AMX website at http://www.amx.com.

5 The Crestron (e-Control) page displays the Crestron e-Control user

interface. See the next page for details.

Please pay attention to the input length and character limitations (including character and punctuation restrictions) listed blow:

Category Item Input-Length

Network

Network Settings

Password

SNMP

DHCP/Manual (N/A)

IP Address XXX.XXX.XXX.XXX

Subnet Mask XXX.XXX.XXX.XXX

Gateway

DNS Server XXX.XXX.XXX.XXX

AMX device discovery (N/A)

Administrator (N/A)

New Password 4

Confirm Password 4

SysLocation 22

SysName 22

SysContact 22

Maximum Number of

Characters

XXX.XXX.XXX.XXX

Page 33

Email Setting

Email Alert

SMTP Setting

Alert Condition

• / > < $ % + \ ' " are prohibited.

To 4 0 Cc 40

Subject 40

From 40

Server

User Name 21

Password 14 Fan Error (N/A)

Lamp Error (N/A)

Temperature Error (N/A)

Submit (N/A)

Issue Test Mail (N/A)

About Crestron e-Control

1 The Crestron e-Control

the projector or adjust the projector’s image.

page provides a variety of virtual keys to control

You can press /

to reveal more

buttons.

a. These buttons function the same as the ones on the OSD menus or remote

control.

• Source List: To switch the source, click on the desired source.

• Menu: Use to go back to previous OSD menu, exit and save menu settings.

• When you use the projector control panel or remote control to change the OSD menu settings, it may take a while for the web browser to synchronize these changes with the projector.

Page 34

The Tools page allows you to manage the projector, configure the LAN

control settings and remotely access the network operations of this projector.

a. This area is only used with a Crestron Control System. Please contact Creston or

refer to the Crestron user manual for setup information.

b. This area is used for naming the projector, associating it with a particular location,

assigning a responsible party to it, and adjusting network settings.

c. This area is used to set User and Admin passwords. When password protection is

enabled, unauthorized changes to the projector configuration will be avoided.

• To prevent errors, only enter alphanumeric characters on the Tools page.

• After configuring the settings, press the Send button and the data will be

saved in the projector.

• Press exit to go back to the Crestron remote network operation page.

Please pay attention to the input length and character limitations (including character and punctuation restrictions) listed blow:

Category Item Input-Length

IP Address 15

Crestron Control

Projector

Network

Configuration

User Password

Admin Password

IP ID 4

Port 5

Projector Name 22

Location 22

Assigned To 22

DHCP (Enabled) (N/A)

IP Address 15

Subnet Mask 15

Default Gateway 15

DNS Server 15

Enabled (N/A)

New Password 15

Confirm 15

Enabled (N/A)

New Password 15

Confirm 15

Maximum Number of

Characters

• / > < $ % + \ ' " are prohibited.

Page 35

The Info page displays the information and status of this projector.

Press exit to go back to the Crestron remote network operation page.

Crestron RoomView

From the Crestron RoomView software in the Edit Room page, enter the IP Address (or hostname) as shown on the projector’s on-screen display (OSD) menu, “02” for IPID, and “41794” for the reserved Crestron control port.

4 After pressing the Contact IT Help button, the Help Desk window will

display in the upper right corner of the screen. You will be able to send m

essages to RoomView™ software administrators/users who are connected

the same local area network.

• For more information, visit http://www.crestron.com and

www.crestron.com/getroomview.

For the Crestron RoomView user guide and information about RoomView settings and commands, go to: http://www.crestron.com/products/

roomview_connected_embedded_projectors_devices/resources.asp

Page 36

Maintenance

Cleaning the lens

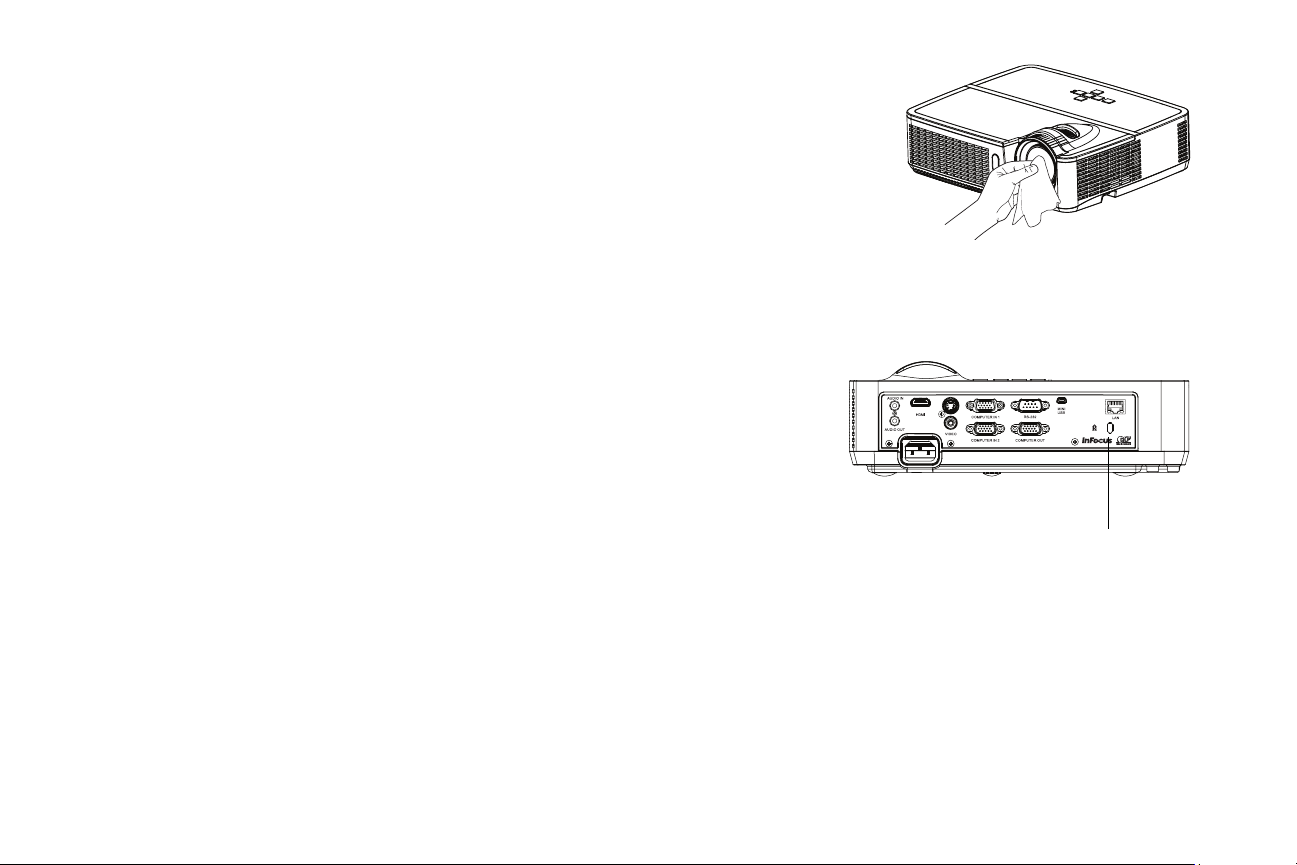

1 Apply a non-abrasive camera lens cleaner to a soft, dry cloth.

• Projector must be off and the lens must be at room temperature.

• Avoid using an excessive amount of cleaner, and don’t apply the cleaner

directly to the lens. Abrasive cleaners, solvents or other harsh chemicals might scratch the lens.

2 Lightly wipe the cleaning cloth over the lens in a circular motion.

WARNINGS:

• Turn the projector off and unplug power cord before cleaning any part of the projector.

• Do not touch or block the projector lens with any objects as this can damage the projector lens. Scratches, gouges and other lens damage are not covered by the product warranty.

• Do not open any cover on the projector, except the lamp cover.

• Do not attempt to service this product yourself as opening and removing

covers may expose you to dangerous voltage and other hazards. Refer all servicing to qualified service personnel.

Using the security lock

The projector has a security lock for use with a Cable Lock System. Refer to the information that came with the lock for instructions on how to use it.

security lock

Page 37

Replacing the projection lamp

The Lamp Hours timer in the Projector Info menu counts the number of hours the lamp has been in use. Twenty hours before the lamp life expires, the message “Replace lamp” displays on the screen at startup.

• NOTE: Be sure to use the InFocus lamp module designed for this projector. You can order new lamps from www.infocus.com (in select areas), your retailer or your dealer. Only genuine InFocus lamps are tested for use in this projector. Use of non InFocus lamps may cause electrical shock and fire, and may void the projector warranty. InFocus is not liable for the performance, safety or certification of any other lamps.

WARNINGS

• To avoid burns, allow the projector to cool for at least 60 minutes before you replace the lamp.

• Do not touch or block the projector lens with any objects as this can damage the projector lens. Scratches, gouges and other lens damage are not covered by the product warranty.

• Unplug the power cord before replacing the lamp.

• Do not drop the lamp module. The glass may shatter and cause injury.

• Do not touch the glass surface of the lamp module. Fingerprints can obscure projection sharpness and may cause the glass to shatter.

• Be extremely careful when removing the lamp housing. In the unlikely event that the lamp ruptures, small glass fragments may be generated. The lamp module is designed to contain most of these fragments, but use caution when removing it.

• Before replacing a ruptured lamp, clean the lamp compartment and dispose of cleaning materials. Wash hands after lamp replacement.

• When replacing the lamp while the projector is ceiling-mounted, wear protective eyewear to prevent eye injury.

Hg – Lamp contains mercury. Manage in accordance with local disposal laws. See www.lamprecycle.org.

Page 38

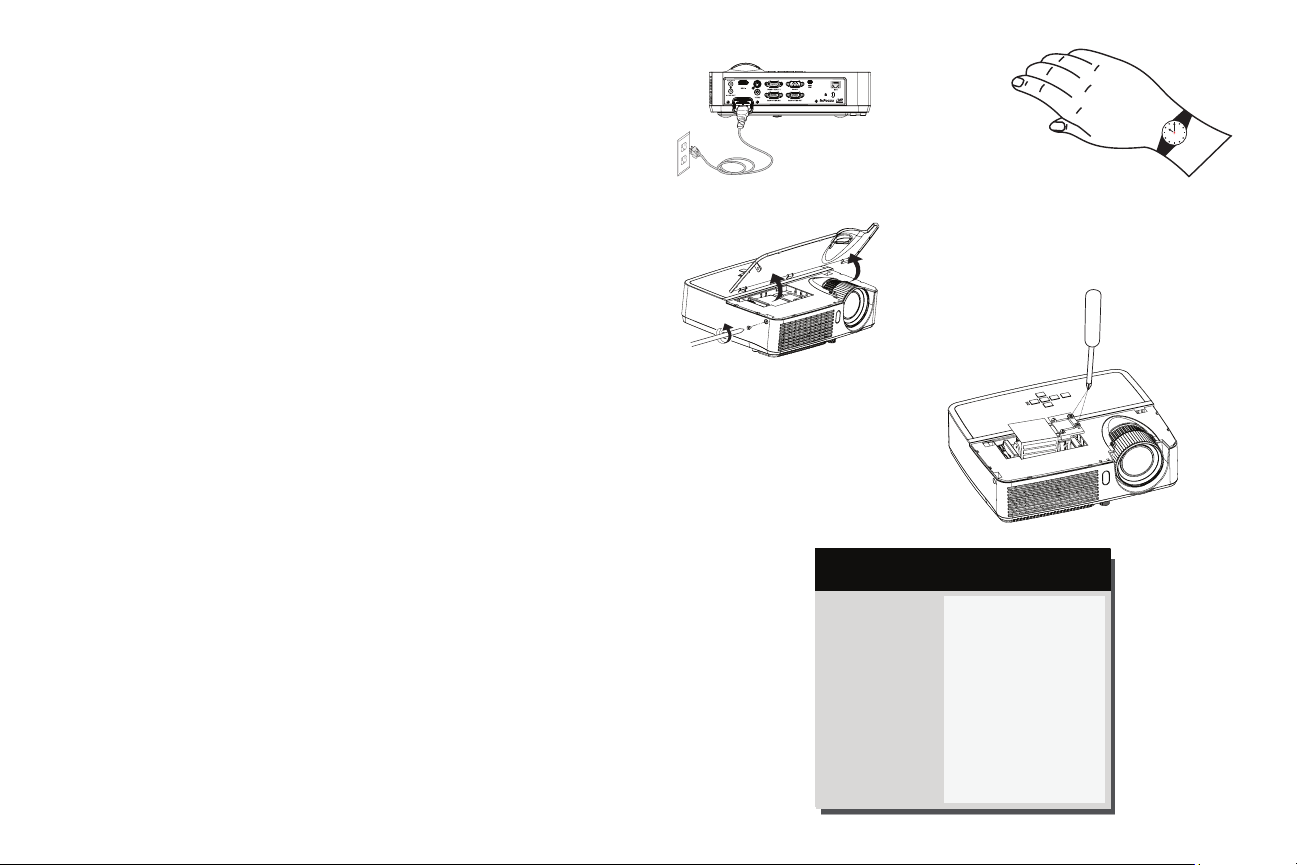

Turn off the projector and unplug the power cord.

2 Wait 60 minutes to allow the projector to cool thoroughly.

3 Remove the lamp door, located on top of the projector, by removing the screw

on the side of the lamp door, sliding the door forward, and lifting the lamp door off.

4 Loosen the captive screws that attach the lamp housing to the projector.

NOTE: If the

the lamp module once the captive screws are loosened.

projector is installed on a ceiling mount, be careful not to drop

5 Carefully lift the lamp straight up, off of the alignment pins; being careful not to

pinch the lamp connector. Dispose of the lamp in an environmentally proper manner.

6 Install the new lamp module, aligning the pins properly. Be careful not to pinch

the lamp connector.

7 Tighten the screws. (NOTE: If the pins have not been aligned properly, the

screws will not tighten securely.)

8 Replace the lamp door by (a) aligning the hinges, (b) putting the lamp door

down and (c) locking it back into place.

turn off and unplug projector

wait 60 minutes

loosen screws

9 Replace the lamp door screw and tighten securely.

10 Plug in the power cord and press the Power button to turn the projector back

on.

11 To reset the lamp hour timer, navigate to the Advanced Menu > Status/

Service menu and select Reset Lamp Hours....

( Advanced Menu )


Setup Status/Service

Basic Menu

3D Control... Color... PC... Video...

MDL: IN2124

FW: 1.24

Page 39

INDEX

Numerics

3D Sync Invert 26

Apply 29 Aspect Ratio 25 Audio In Computer connector 7 Auto Image 25 Auto Off Time 29 Auto Source 28 AV Mute 27

Blank Key 27 Blank Screen 27 Brightness 25

Cable box 10 Ceiling Mount 27 Closed Captions 27 Color Space 26 Computer In connector 7 Connecting Video device 10 Contacting InFocus 18 Contrast 25 Crestron e-Control Crestron RoomView 34 Customer service contact information 18

Default Gateway 29 Detect Film 26 DHCP 29 Digital Zoom 27 DNS 29

Factory Reset 29

Focus 9 Force wide 26 Freeze Screen 27

Gamma 26

HDTV 25 High Altitude Setting 29 Horizontal Position 26 Horz Shift 27

Internal Speaker 27 IP Address 29

Keypad 27 Keypad buttons 21 Keystone 25

Lamp Low Power 28 LAN 30

Mac Address 29 Magnify Level 27 Menu Transparency 28 Menu usage 24 Mute 27

Network 29

Overscan 27

Phase 26 PIN Protect 28 Power connector 7 Power cord 7 Power Saving Mode 28

Page 40

Prevent PC Screen Saver 26 Programmed Dimming 28 Keypad buttons 21 Menus 24 Positioning 6 Setting up 6 Troubleshooting problems 11 Projector Info 27, 29

Rear Project 27 Red/Green/Blue Gain 26 Red/Green/Blue Offset 26 Remote control 19 Resetting the projector 29 Restart Network... 29

Search Screen 28 Service 29 Set Black Level... 27 Sharpness 25 Show Messages 28 Source 27 Source Info 27, 29 Subnet mask 29 Sync Threshold 26

Tint 26 Tracking 26 Troubleshooting 11 TV tuner 10

USB 5

Vert Shift 27 Vertical Position 26 Volume 25

Volume button 20

Warranty 18 web browser 31

Zoom 9
