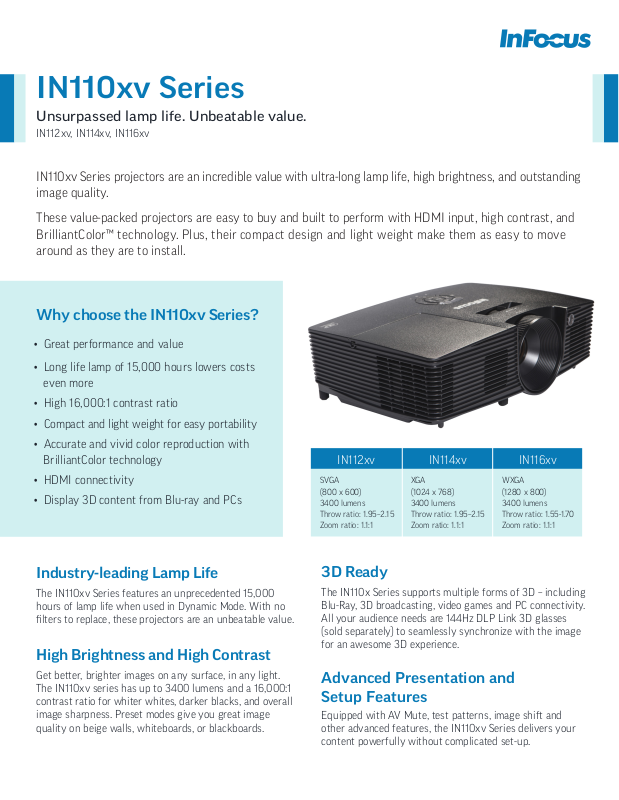

IN110xv Series

Unsurpassed lamp life. Unbeatable value.

IN112xv, IN114xv, IN116xv

IN110xv Series projectors are an incredible value with ultra-long lamp life, high brightness, and outstanding image quality.

These value-packed projectors are easy to buy and built to perform with HDMI input, high contrast, and BrilliantColor™ technology. Plus, their compact design and light weight make them as easy to move around as they are to install.

Why choose the IN110xv Series?

• Great performance and value

• Long life lamp of 15,000 hours lowers costs even more

• High 16,000:1 contrast ratio

• Compact and light weight for easy portability

• Accurate and vivid color reproduction with BrilliantColor technology

• HDMI connectivity

• Display 3D content from Blu-ray and PCs

Industry-leading Lamp Life

The IN110xv Series features an unprecedented 15,000 hours of lamp life when used in Dynamic Mode. With no lters to replace, these projectors are an unbeatable value.

High Brightness and High Contrast

Get better, brighter images on any surface, in any light. The IN110xv series has up to 3400 lumens and a 16,000:1 contrast ratio for whiter whites, darker blacks, and overall image sharpness. Preset modes give you great image quality on beige walls, whiteboards, or blackboards.

IN112xv IN114xv IN116xv

SVGA (800 x 600) 3400 lumens Throw ratio: 1.95–2.15 Zoom ratio: 1.1:1

XGA (1024 x 768) 3400 lumens Throw ratio: 1.95–2.15 Zoom ratio: 1.1:1

WXGA (1280 x 800) 3400 lumens Throw ratio: 1.55-1.70 Zoom ratio: 1.1:1

3D Ready

The IN110x Series supports multiple forms of 3D – including Blu-Ray, 3D broadcasting, video games and PC connectivity. All your audience needs are 144Hz DLP Link 3D glasses (sold separately) to seamlessly synchronize with the image for an awesome 3D experience.

Advanced Presentation and Setup Features

Equipped with AV Mute, test patterns, image shift and other advanced features, the IN110xv Series delivers your content powerfully without complicated set-up.

Specications

IN112xv IN114xv IN116xv

Native Resolution SVGA 800 x 600 XGA 1024 x 768

Maximum Resolution WUXGA 1920 X 1200

Display Technology DLP 0.55” DLP 0.65”

Brightness 3400 lumens Normal Mode (2700 lumens Low Power)

Lamp Life** 5,000 hours (Normal Mode), 6,000 hours (Low Power), 15,000 hours (Dynamic Mode***)

Lamp Power 195W (Normal Mode), 160W (Low Power), 60W (Dynamic Mode)

Contrast Ratio 16,000:1

Color Wheel 6 segment, 2x speed

Audible Noise 31 dB Normal Mode (28 dB Low Power)

Computer Compatibility PC, Mac

Projection Oset 15% 12% Keystone Correction ± 40° vertical Lens Type Manual zoom and focus

Lens - Throw Ratio

- Zoom Ratio

Projection Distance 1.2m - 12.0 m 1.1m - 10.0 m Image Size 27.5” ~ 300”

Aspect Ratio 4:3 (Native), Supports 16:10, 16:9 16:10 (Native), Supports 4:3, 16:9 Synch - Horizontal Scan Freq

- Vertical Scan Freq

Video Compatibility Standard (NTSC, NTSC 4.43, PAL / M / N, SECAM), SD ( 480i, 480p, 576i), HD (720p, 1080i 1080p)

Number of Colors 1.07 billion

Input Sources HDMI v1.4b, VGA, Composite S-Video

Control Projector Keypad, IR Remote, RS232C, USB B for presentation control

Product Dimensions - W×D×H 8.8 x 12.4 x 4 in / 223.5 x 314.2 x 101.7 mm

Product Weight 5.5 lbs / 2.5 kg.

Shipping Dimensions - W×D×H 12 x 14.3 x 7.8in / 304.8 x 363.2 x 198.1 mm Shipping Weight 7.3 lbs / 3.3 kg.

Operating Conditions Sea Level to 10,000 feet @ 73.4°F / manual switch to high altitude mode above 5000 feet

Ships with - Accessories Power cord, VGA cable, Safety instructions, User documentation, Remote control without batteries

Menu Languages English, French, German, Italian, Korean, Norwegian, Portuguese, Polish, Hindi, Filipino, Malay, Romania, Russian, Simp. Chinese,

Approvals UL and c-UL (US/Canada), FCC (US/Canada), CE (Europe), CCC+CECP (China), KCC (Korea), IRAM (Argentina), NOM (Mexico),

Also supports PC-based 3D content congured at 1080p running at 60Hz signal. DLP Link 3D glasses required.

Trad. Chinese, Japanese, Hungarian, Czech, Thai, Turkish, Farsi, Vietnamese, Spanish, Swedish, Dutch, Arabic, Indonesian

Supports 3D content from Blu-ray, cable boxes, dish services, and more (over HDMI).

PCT/CU/EAC (Russia), PSB (Singapore), SABS (South Africa), CB, Nemco/GS, KC

1.95 - 2.15

1.1:1

31.469kHz ~ 97.551kHz

56 - 85 Hz (120Hz for 3D feature projector)

WXGA 1280 X 800

1.55 - 1.70

1.1:1

* Product specications, terms, and oerings are preliminary and subject to change at any time without notice. ** Actual lamp life may vary based on the ambient environment and projector usage. Conditions that may aect lamp life include temperature, altitude, and rapidly switching the projector on and o. *** Dynamic lamp hours are determined by a power saving algorithm that varies the lamp power according to the input content that is being displayed, conserving energy and extending lamp life.

Optional Accessories

Replacement Lamp (SP-LAMP-097) Universal Ceiling Mount (PRJ-MNT-UNIV) LiteShow Wireless Adapter (INLITESHOW4) LiteShow Mount (PRJ-MNT-LS3)

Soft Carry Case (CA-SOFTVAL-2) Extended Warranties (EPW-PJV1, EPW-PJV2)
