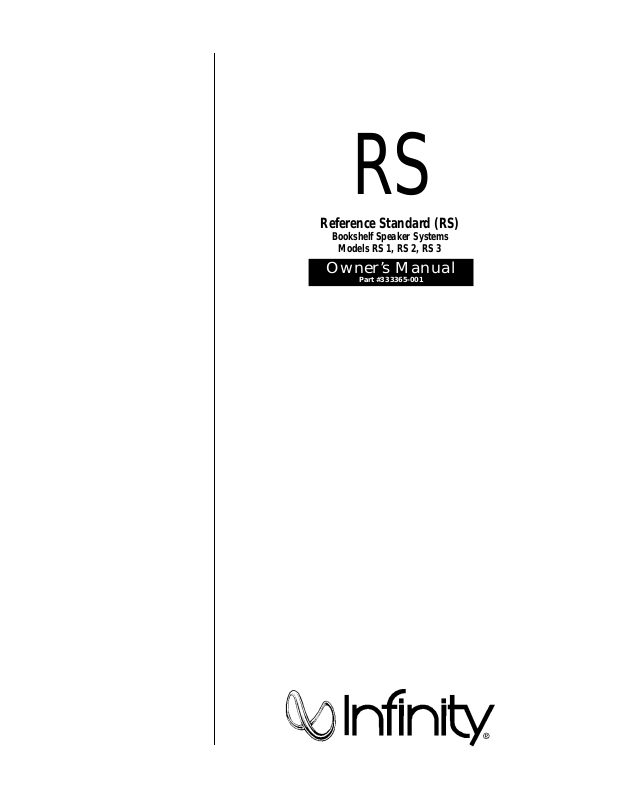

Infinity RS 3, RS 1, RS 2 User Manual

R S

R e f e rence Standard (RS)

Bookshelf Speaker Systems

Models RS 1, RS 2, RS 3

Owner’s Manual

Part #333365-001

T

HEREFERENCESTANDARD

(RS) S

ERIES

The Infinity RS Series is our newest family of bookshelf and floorstanding speaker
systems, featuring advanced acoustic technology, highest-quality components, and
exceptional cabinet designs. The RS 1, RS 2, and RS 3 models are 2-way, vented
bookshelf systems, while the RS 4 and RS 5 are 2-way, vented high-output tower
models.

All products use efficient drivers for maximum stereo output with minimal amplifier
power. They are magnetically shielded, making them suitable for home theater
applications as well.

U

NPACKINGTHESPEAKERS

If you suspect damage from transit, report it immediately to your dealer and/or delivery service.
Keep the shipping carton and packing materials for future use.

These speakers are covered by a Limited Warranty (see Limited Five-Year Warranty on page 8),
so save the sales receipt to protect your purchase and aid in any service-related questions. Also,
save these instructions for future reference.

Declaration of Conformity

We, Infinity Systems A/S

Kongevejen 194B
DK-3460 Birkerød
DENMARK

declare in own responsibility, that the product described
in this owner’s manual is in compliance with technical
standards:
EN 50 081-1/1992
EN 50 082-1/3.1995

Steen Michaelsen

Infinity Systems A/S

Birkerød. DENMARK. 3/97

S

TEREOSPEAKER

P

LACEMENT

...

Figure 1. Experiment with speaker

placement to obtain the best bass level

and stereo imaging in your room.

P

LANNINGYOURSYSTEM

Before deciding where to put your RS Series bookshelf speakers, survey your room and think
about placement, keeping the following points in mind:

◆

These speakers are designed for placement on surfaces such as bookshelves, a low table, or
speaker stands.

◆

For best results, try placing the speakers closer together than the distance to the listening
area.

◆

Position each speaker so that the top of the cabinet is between 25 and 50 inches above the
f l o o r.

◆

Refer to Figure 1 when placing speakers for best bass level and stereo image (see Final
Adjustments on page 6).

◆

Refer to Home Theater Placement on the next page if you also plan to use the speakers for
home theater reproduction.
