Page 1
Infinity iW-340 RDM V1
Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands
Ordercode: 41525
MANUAL
ENGLISH
Page 2
1
Ordercode: 41525
Infinity iW-340 RDM
Table of contents
Warning ............................................................................................................................................................................... 2
Safety Instructions ......................................................................................................................................................... 2
Operating Determinations .......................................................................................................................................... 4
Rigging ............................................................................................................................................................................ 4
Connection with the mains......................................................................................................................................... 5
Return Procedure .......................................................................................................................................................... 6
Claims .............................................................................................................................................................................. 6
Description of the device ................................................................................................................................................. 7
Optional accessories.................................................................................................................................................... 7
Overview ........................................................................................................................................................................ 8
Backside ......................................................................................................................................................................... 9
Installation ........................................................................................................................................................................... 9
Set Up and Operation ....................................................................................................................................................... 9
Control Modes .............................................................................................................................................................10
One Infinity (Built-in Programs)...............................................................................................................................10
Multiple Infinitys (Master/Slave control) ...............................................................................................................10
Multiple Infinitys (DMX Control) .............................................................................................................................11
Multiple Infinitys (ArtNet control) ...........................................................................................................................12
Connecting to a Network .........................................................................................................................................13
ArtNet settings ..........................................................................................................................................................13
How to make a data cable ...................................................................................................................................13
Fixture Linking ...............................................................................................................................................................14
Data Cabling ...............................................................................................................................................................14

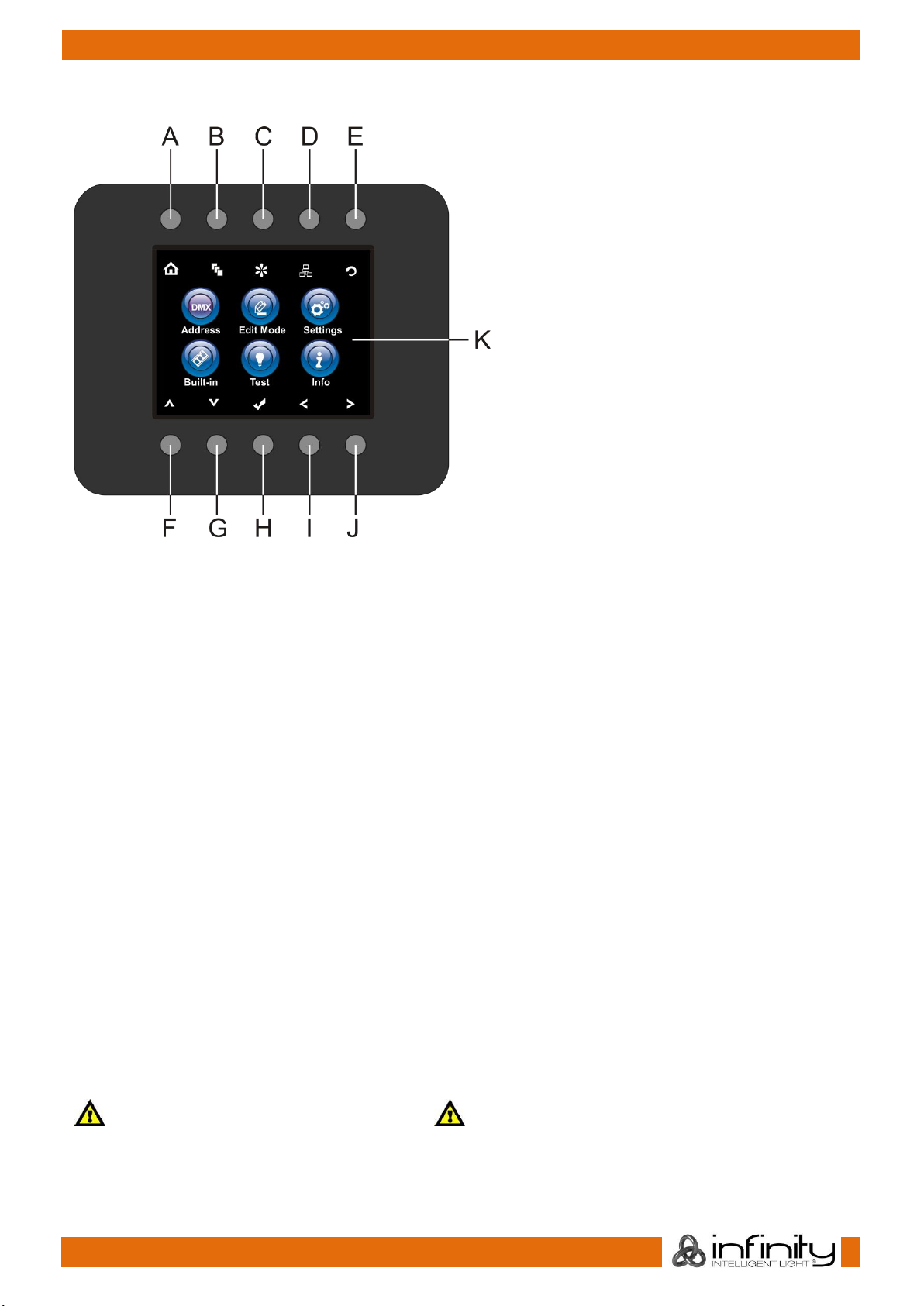

Control Panel ...............................................................................................................................................................15
Control Mode ..............................................................................................................................................................15
DMX Addressing ..........................................................................................................................................................15

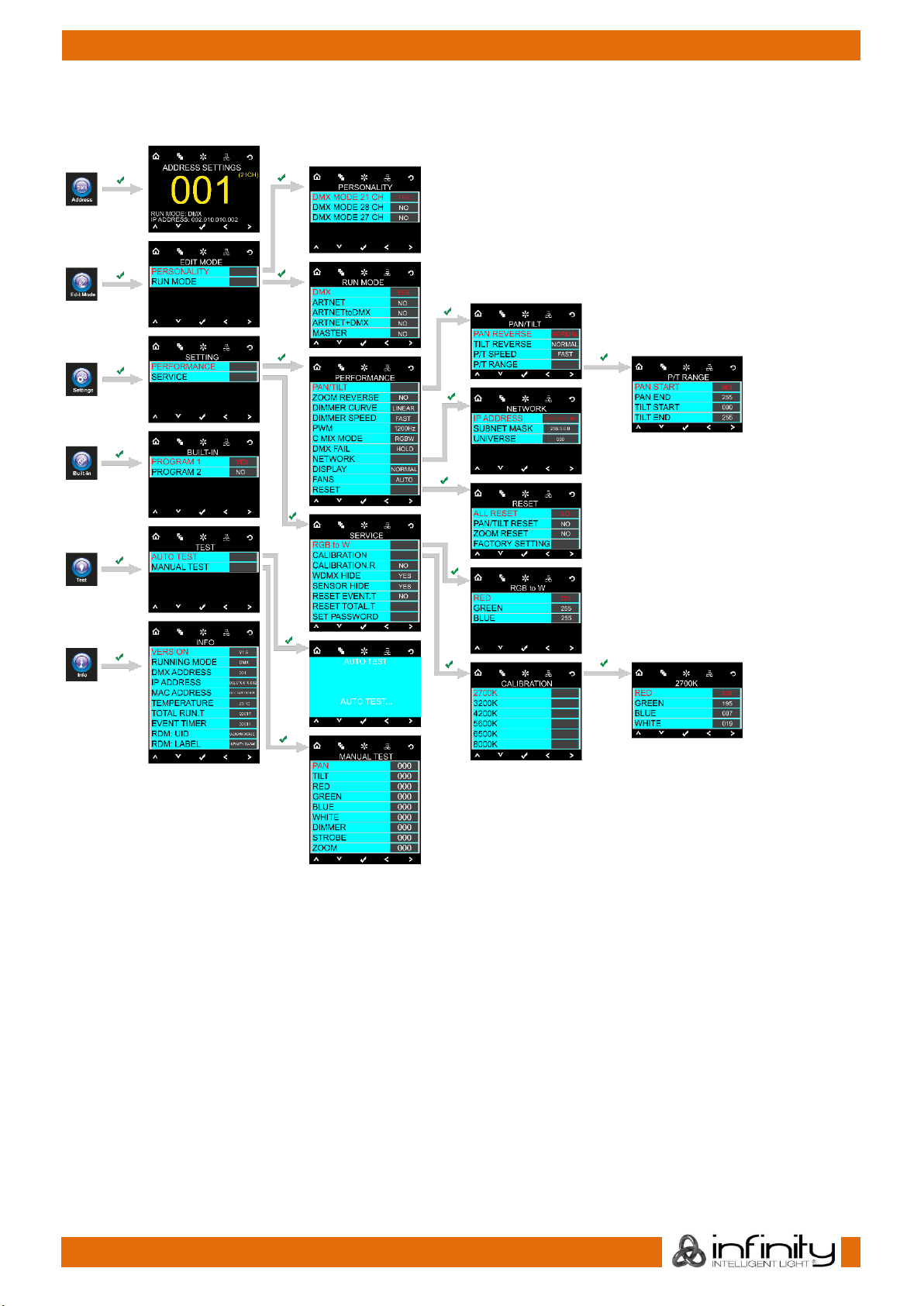

Menu Overview ...........................................................................................................................................................16

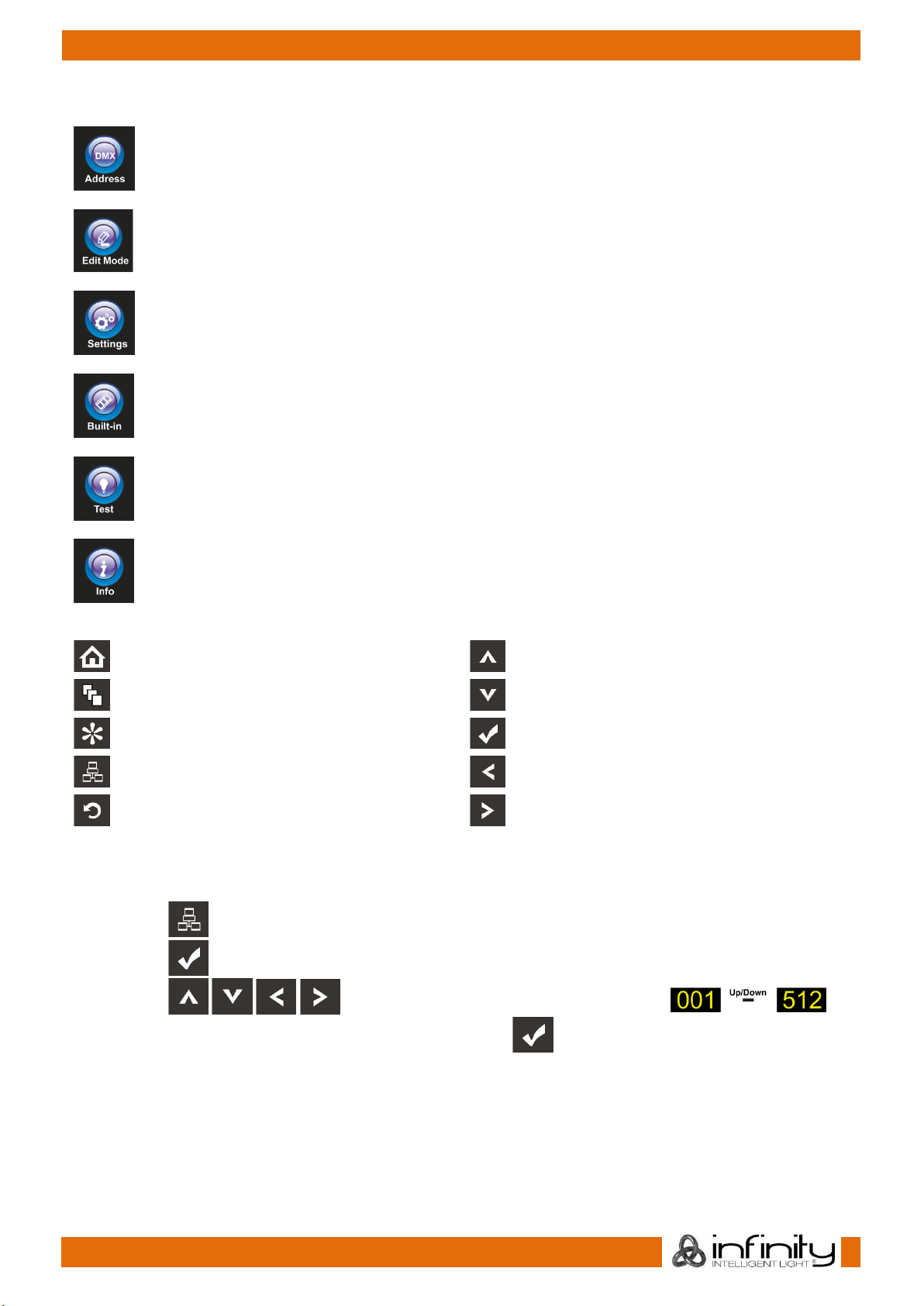

Main Menu Options ....................................................................................................................................................17
1. DMX Address ........................................................................................................................................................17

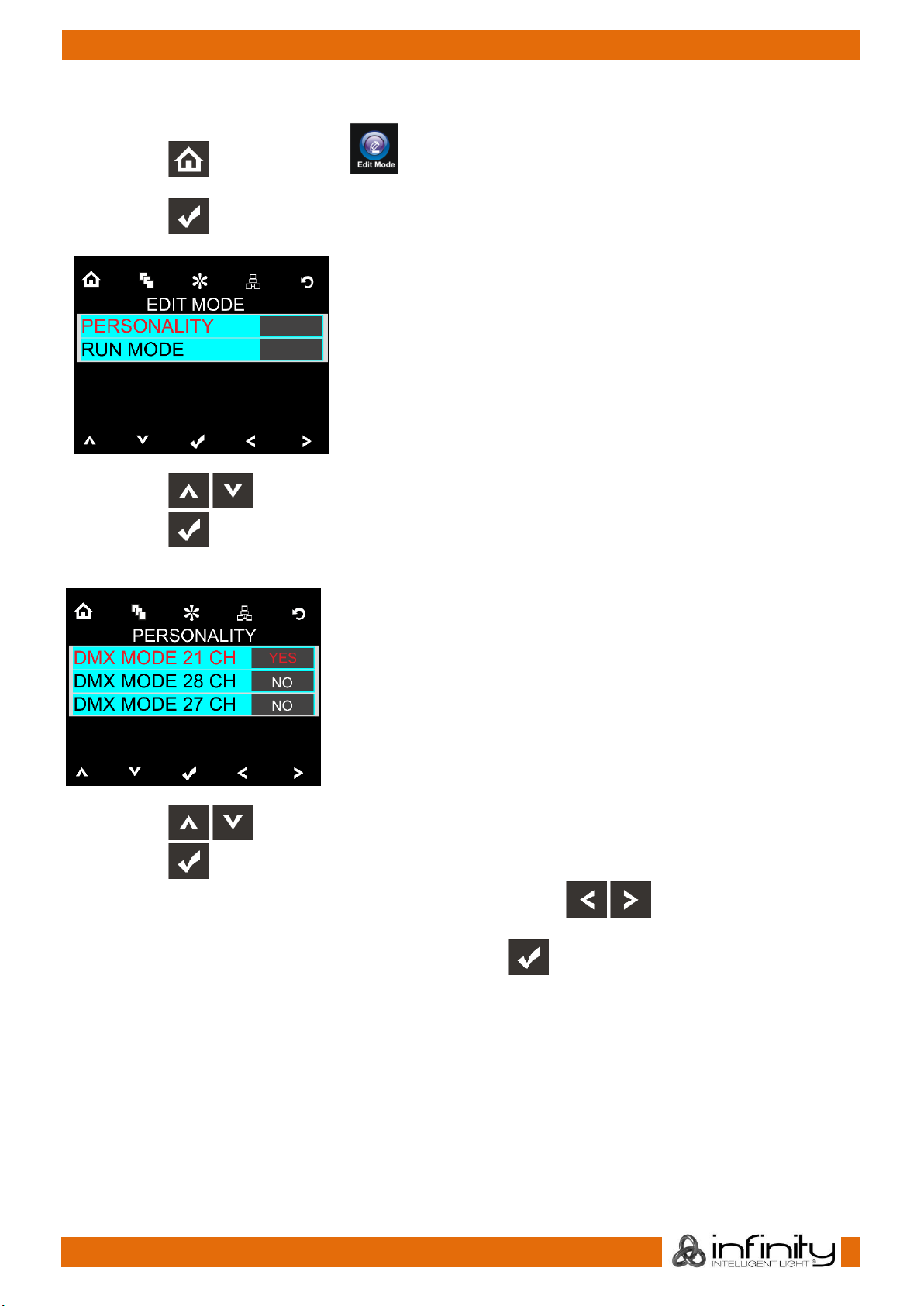

2. Edit Mode ..............................................................................................................................................................18
3. Settings Menu .......................................................................................................................................................19
3.1 Performance ......................................................................................................................................................20

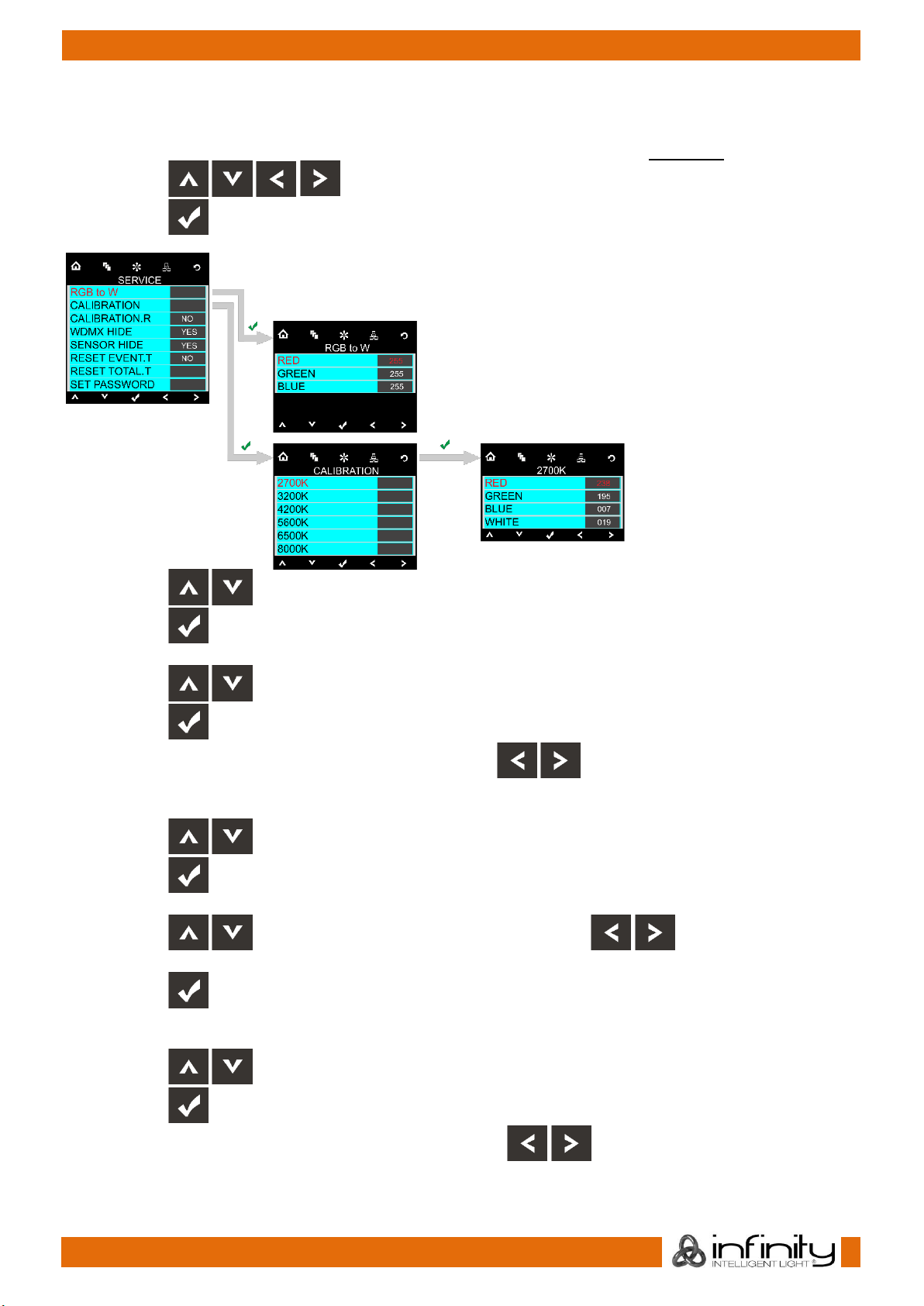

3.2 Service .................................................................................................................................................................22

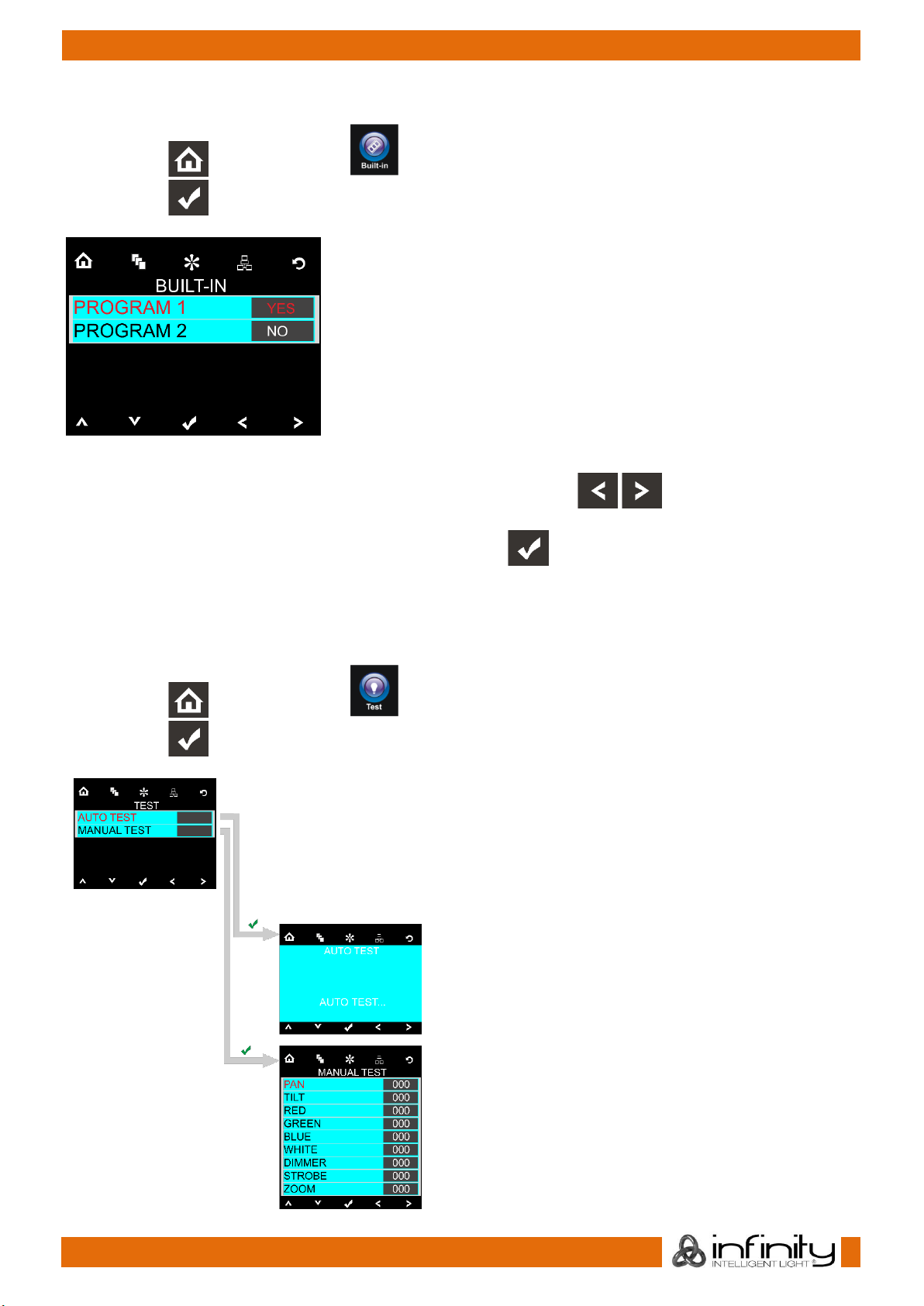

4. Built-in Programs ...................................................................................................................................................24
5. Test Menu ..............................................................................................................................................................24

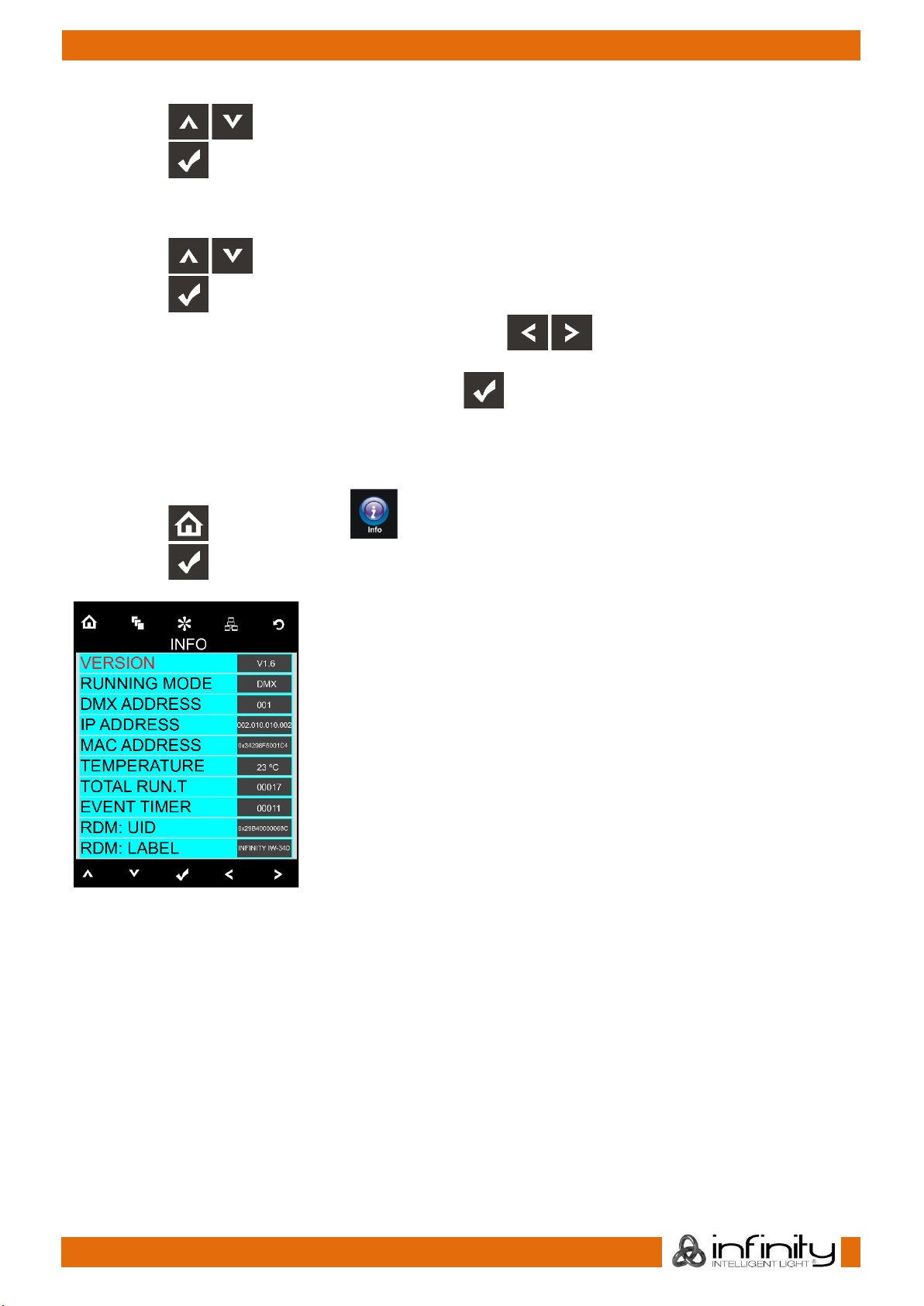

6. Information Menu ................................................................................................................................................25
DMX Channels .............................................................................................................................................................26
21 Channels ..............................................................................................................................................................26
28 Channels ..............................................................................................................................................................29
27 Channels ..............................................................................................................................................................33
15 Channels + 12 channels (DMX + Artnet) ........................................................................................................37
Channel settings .........................................................................................................................................................40
Maintenance ....................................................................................................................................................................41
Replacing a Fuse ........................................................................................................................................................41
Troubleshooting ...............................................................................................................................................................42
No Light .........................................................................................................................................................................42
No Response to DMX..................................................................................................................................................42
Product Specifications ....................................................................................................................................................44

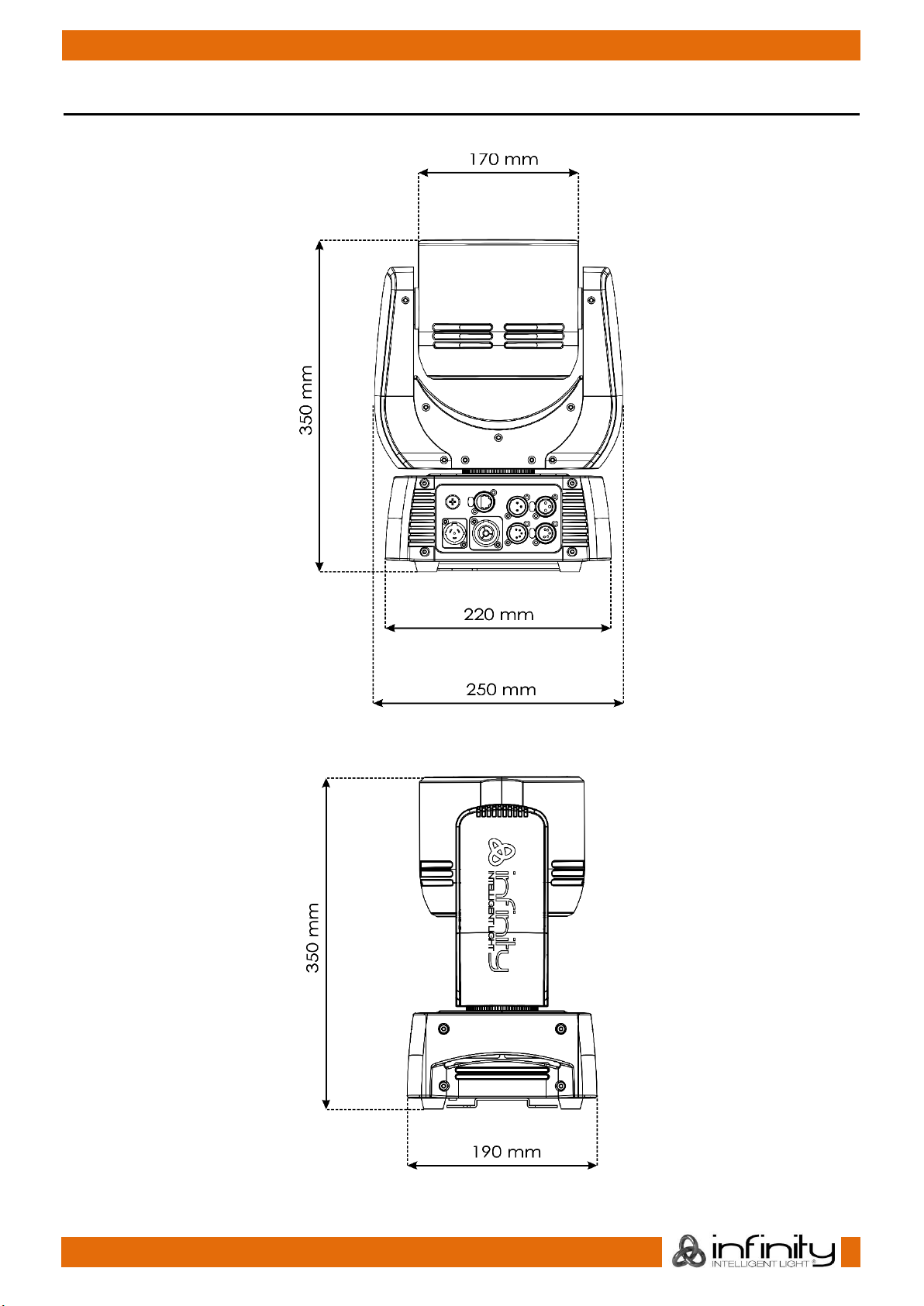

Dimensions ........................................................................................................................................................................45
Notes ..................................................................................................................................................................................46
Page 3
2
Ordercode: 41525
Infinity iW-340 RDM
Warning
Unpacking Instructions
Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure
that all parts are present, and have been received in good condition. Notify the dealer immediately and
retain packing material for inspection if any parts appear damaged from shipping or the carton itself
shows signs of mishandling. Save the carton and all packing materials. In the event that a fixture must be
returned to the factory, it is important that the fixture be returned in the original factory box and packing.
Your shipment includes:
Infinity iW-340 RDM with PowerCON True 1 power cable (1,4 m)
1 bracket for truss mounting
User manual
LED Expected Lifespan
LEDs gradually decline in brightness over time. HEAT is the dominant factor that leads to the acceleration
of this decline. Packaged in clusters, LEDs exhibit higher operating temperatures than in ideal or singular
optimum conditions. For this reason when all color LEDs are used at their fullest intensity, life of the LEDs is
significantly reduced. If improving your lifespan expectancy is of a higher priority, place care in providing
for lower operational temperatures. This may include climatic-environmental and the reduction of overall
projection intensity.
Safety Instructions
Every person involved with the installation, operation and maintenance of this device has to:
be qualified
follow the instructions of this manual
Before your initial start-up, please make sure that there is no damage caused by transportation. Should
there be any, consult your dealer and do not use the device.
To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to
follow the safety instructions and warning notes written in this manual.
Page 4
3
Ordercode: 41525
Infinity iW-340 RDM
Please consider that damages caused by manual modifications to the device are not subject to
warranty.
This device contains no user-serviceable parts. Refer servicing to qualified technicians only.
IMPORTANT:
The manufacturer will not accept liability for any resulting damages caused by the non-observance of
this manual or any unauthorized modification to the device.
Never let the power cord come into contact with other cables! Handle the power cord and all
connections with the mains with particular caution!
Never remove warning or informative labels from the unit.
Never use anything to cover the ground contact.
Never lift the fixture by holding it at the projector-head, as the mechanics may be damaged. Always
hold the fixture at the transport handles.
Never place any material over the lens.
Never look directly into the light source.
Never leave any cables lying around.
Do not insert objects into air vents.
Do not connect this device to a dimmer pack.
Do not switch the device on and off in short intervals, as this would reduce the device’s life.
Do not touch the device’s housing bare-handed during its operation (housing becomes very hot).
Allow the fixture to cool for at least 5 minutes before handling.
Do not shake the device. Avoid brute force when installing or operating the device.
Only use device indoors, avoid contact with water or other liquids.
Only operate the fixture after having checked that the housing is firmly closed and all screws are
tightly fastened.
Only operate the device after having familiarized with its functions.
Avoid flames and do not put close to flammable liquids or gases.
Always keep case closed while operating.
Always allow free air space of at least 50 cm around the unit for ventilation.
Always disconnect power from the mains, when device is not used or before cleaning! Only handle
the power cord by the plug. Never pull out the plug by tugging the power cord.
Make sure that the device is not exposed to extreme heat, moisture or dust.
Make sure that the available voltage is not higher than stated on the rear panel.
Make sure that the power cord is never crimped or damaged. Check the device and the power
cord from time to time.
If the lens is obviously damaged, it has to be replaced, so that its functions are not impaired due to
cracks or deep scratches.
If device is dropped or struck, disconnect mains power supply immediately. Have a qualified
engineer inspect for safety before operating.
If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not
switch it on immediately. The arising condensation water might damage your device. Leave the
device switched off until it has reached room temperature.
If your Infinity device fails to work properly, discontinue use immediately. Pack the unit securely
(preferably in the original packing material), and return it to your Infinity dealer for service.
For adult use only. Moving head must be installed out of the reach of children. Never leave the unit
running unattended.
Never attempt to bypass the thermostatic switch or fuses.
For replacement use fuses of same type and rating only.
The user is responsible for correct positioning and operating of the Infinity. The manufacturer will not
accept liability for damages caused by the misuse or incorrect installation of this device.
This device falls under protection class I. Therefore it is essential to connect the yellow/green
conductor to earth.
Repairs, servicing and electric connection must be carried out by a qualified technician.
WARRANTY: Till one year after date of purchase.
Page 5
4
Ordercode: 41525
Infinity iW-340 RDM
Operating Determinations
This device is not designed for permanent operation. Consistent operation breaks will ensure that the
device will serve you for a long time without defects.
The minimum distance between light-output and the illuminated surface must be more than 1 meter.
To eliminate wear and improve lifespan, during periods of non-use, completely disconnect from
power via breaker or by unplugging.
The maximum ambient temperature ta = 40°C must never be exceeded.
The relative humidity must not exceed 50 % with an ambient temperature of 40° C.
If this device is operated in any other way, than the one described in this manual, the product may
suffer damages and the warranty becomes void.
Any other operation may lead to dangers like short-circuit, burns, electric shock, crash etc.
You endanger your own safety and the safety of others!
Rigging
Please follow the European and national guidelines concerning rigging, trussing and all
other safety issues.
Do not attempt the installation yourself !
Always let the installation be carried out by an authorized dealer !
Procedure:
If the Infinity is lowered from the ceiling or high joists, professional trussing systems have to be used.
Use a clamp to mount the Infinity, with the mounting-bracket, to the trussing system.
The Infinity must never be fixed swinging freely in the room.
The installation must always be secured with a safety attachment, e.g. an appropriate safety net or
safety-cable.
When rigging, derigging or servicing the Infinity, always make sure, that the area below the
installation place is blocked and staying in the area is forbidden.
The Infinity can be placed on a flat stage floor or mounted to any kind of truss with a clamp.
Page 6
5
Ordercode: 41525
Infinity iW-340 RDM

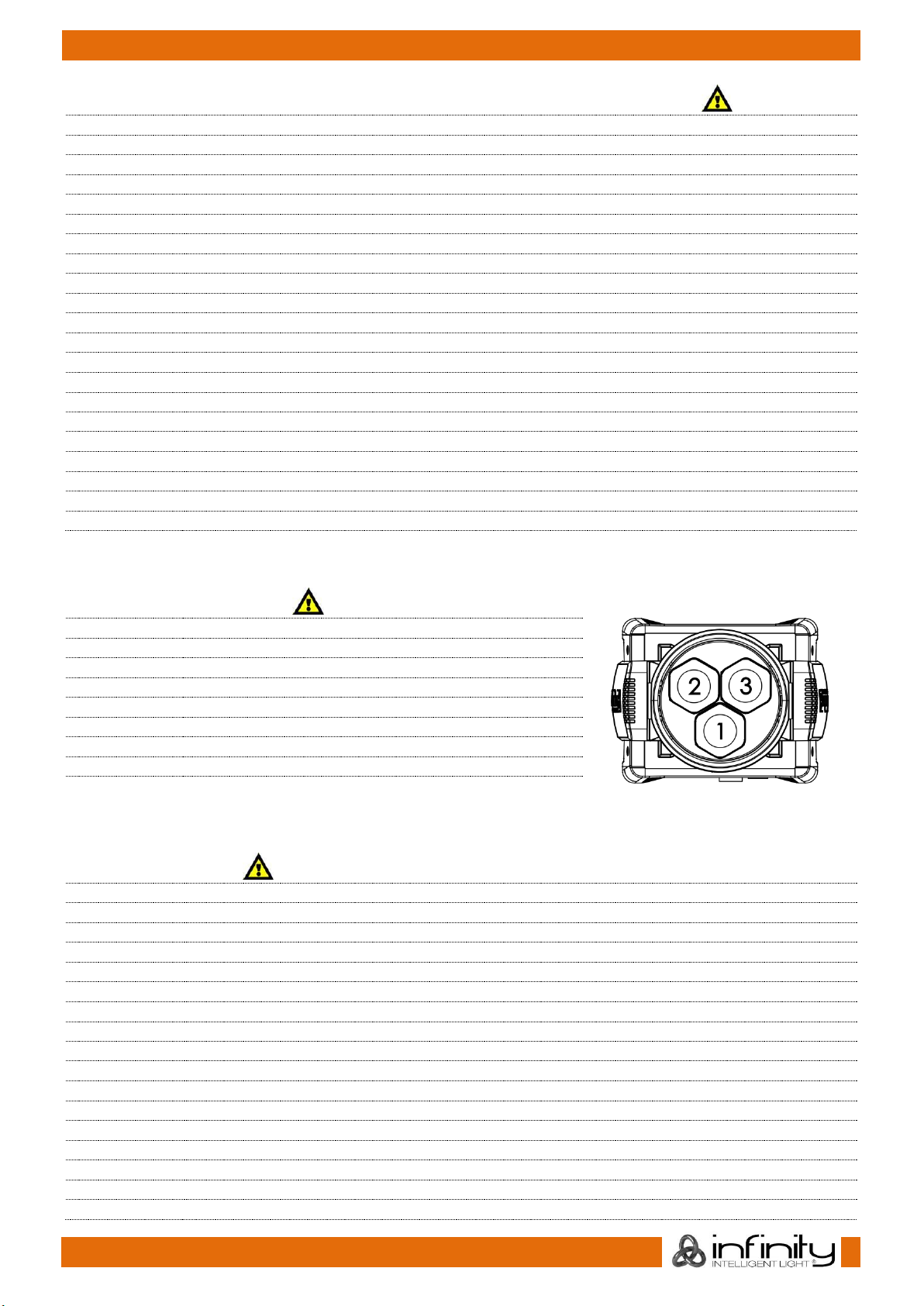

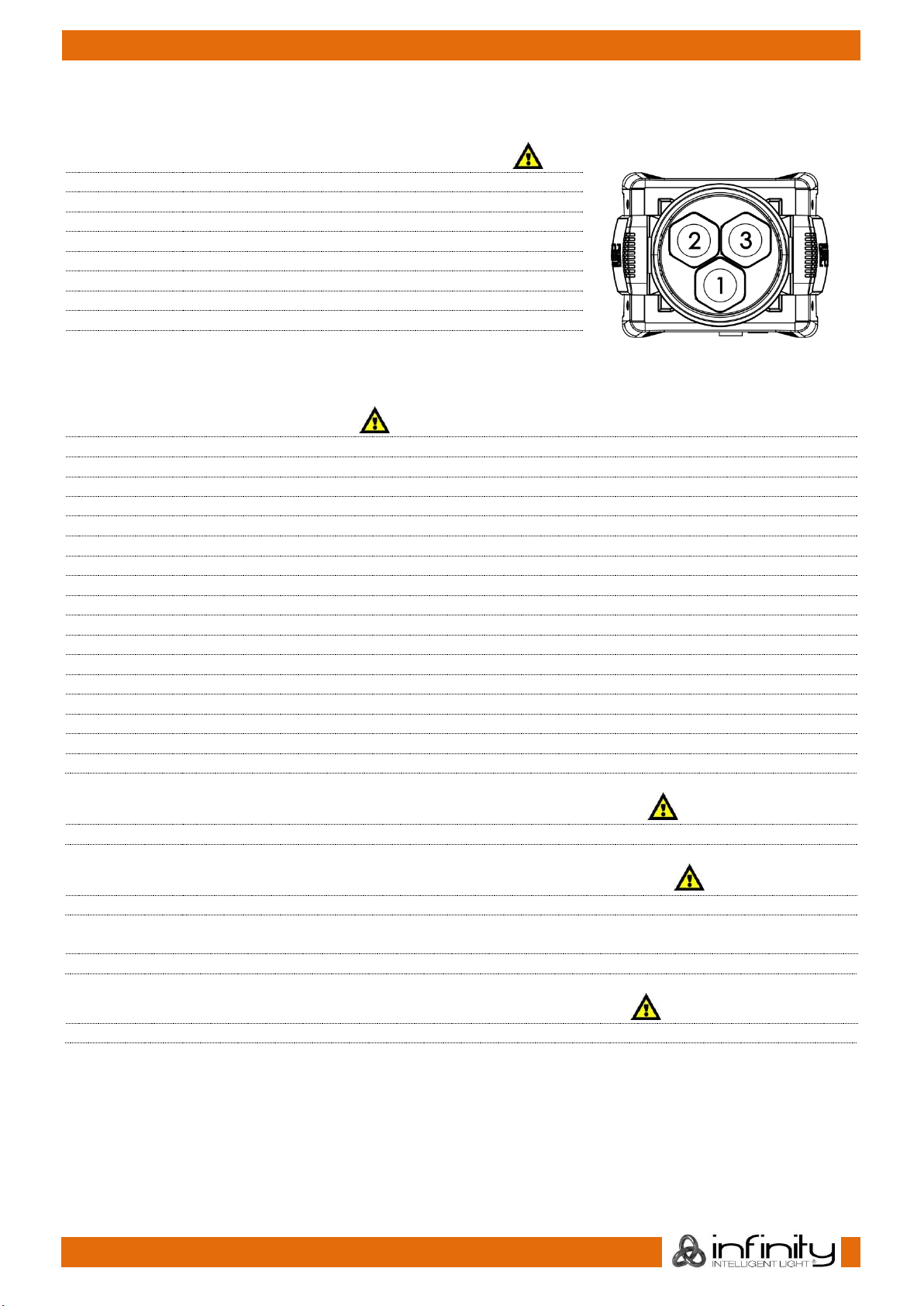

Mounting a clamp to the underside of the Infinity moving head
Improper installation can cause serious injuries and/or damage of property !
Connection with the mains
Connect the device to the mains with the power-plug.
Always pay attention, that the right color cable is connected to the right place.
International
EU Cable
UK Cable
US Cable
Pin
L
BROWN
RED
YELLOW/COPPER
FASE
N
BLUE
BLACK
SILVER
NULL
YELLOW/GREEN
GREEN
GREEN
EARTH
Make sure that the device is always connected properly to the earth!
Page 7
6
Ordercode: 41525
Infinity iW-340 RDM
Return Procedure
Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued.
Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned
without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility.
Call Highlite 0031-455667723 or mail [email protected] and request an RMA prior to shipping the fixture.
Be prepared to provide the model number, serial number and a brief description of the cause of the
return. Be sure to properly pack fixture as any shipping damage resulting from inadequate packaging is
the customer’s responsibility. Highlite reserves the right to use its own discretion to repair or replace
product(s). As a suggestion, proper UPS packing or double-boxing is always a safe method to use.
Note: If you are given an RMA number, please include the following information on a piece of paper
inside the box:
01) Your name.
02) Your address.
03) Your phone number.
04) A brief description of the symptoms.
Claims
The client has the obligation to check the delivered goods immediately upon delivery for any shortcomings and/or visible defects, or perform this check after our announcement that the goods are at their
disposal. Damage incurred in shipping is the responsibility of the shipper; therefore the damage must be
reported to the carrier upon receipt of merchandise.
It is the customer's responsibility to notify and submit claims with the shipper in the event that the fixture is
damaged due to shipping. Transportation damage has to be reported to us within one day after receipt
of the delivery.
Any return shipment has to be made post-paid at all times. Return shipments must be accompanied with
a letter defining the reason for return shipment. Non-prepaid return shipments will be refused, unless
agreed otherwise in writing.
Complaints against us must be made known in writing or by fax within 10 working days after receipt of the
invoice. After this period, complaints will not be handled anymore.
Complaints will only be considered if the client has so far complied with all parts of the agreement,
regardless of the agreement of which the obligation is resulting.
Page 8
7
Ordercode: 41525
Infinity iW-340 RDM
Description of the device
Features
The Infinity iW-340 RDM is a wash moving head with high output and great effects.
Input voltage: 100-240V AC, 50/60Hz
Power consumption: 145W
Light source: 3 x 40W RGBW 4-in-1 Osram Ostar LED
Light output: 14400 Lux @ 3m
Beam angle: 4,5°-36°
Dimmer: 0-100%
Strobe: 0-20Hz
Dimmer curves: Linear, Square, I-Square, S curve
Dimmer speed: Smooth, Fast
Channel modes: 21, 27, 28 channels
Onboard: Battery powered full color display including gravity sensor
DMX-control: via standard DMX/Artnet/RDM controller
2 selectable built-in programs
Reverse pan/tilt movement
Special: pan/tilt movement, blackout
Pan 0º-540º
Tilt 0º-270º
Pan/Tilt resolution: 16 bit
Control: DMX-512, Master/Slave, Built-in Programs
Housing: Metal & flame-retardant plastic
Color: Black
Connections: 3-pin XLR data IN/OUT
5-pin XLR data IN/OUT
RJ-45 Data IN/OUT
Neutrik PowerCON True 1 IN/OUT
Fuse: T2,5AL/250V
Dimensions: 250 x 190 x 350 mm (LxWxH)
Weight: 7,2 kg
Note: Knowledge of DMX is required to fully utilize this unit.
Optional accessories
MOD41525 – Wireless DMX upgrade kit
The Wireless DMX upgrade kit should be installed ONLY by a qualified technician.
Do not attempt installation yourself!
Page 9
8
Ordercode: 41525
Infinity iW-340 RDM
Overview
Fig. 01
01) 3 x 40W RGBW 4-in-1 Osram Ostar LED
02) Control buttons + LCD display
Beam angle 4,5°-Electronic adjustment
Beam angle 36°- Electronic adjustment
Fig. 02
Page 10
9
Ordercode: 41525
Infinity iW-340 RDM
Backside
Fig. 03
03) RJ45 connector data IN/OUT
04) Fuse T2,5AL/250V
05) Neutrik PowerCON True 1 IN
06) Neutrik PowerCON True 1 OUT
07) 3-pin DMX signal connector IN
08) 3-pin DMX signal connector OUT
09) 5-pin DMX signal connector OUT
10) 5-pin DMX signal connector IN
Installation
Remove all packing materials from the Infinity iW-340 RDM. Check that all foam and plastic padding is
removed. Connect all cables.
Do not supply power before the whole system is set up and connected properly.
Always disconnect from electric mains power supply before cleaning or servicing.
Damages caused by non-observance are not subject to warranty.
Set Up and Operation
Follow the directions below, as they pertain to your preferred operation mode.
Before plugging the unit in, always make sure that the power supply matches the product specification
voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa.
Page 11
10
Ordercode: 41525
Infinity iW-340 RDM
Control Modes
There are 4 modes:
Stand-alone (built-in programs)
Master/Slave
DMX512 (21CH, 27CH, 28CH)
Artnet+DMX (15CH+12CH)
One Infinity (Built-in Programs)
01) Fasten the effect light onto firm trussing. Leave at least 1 meter on all sides for air circulation.
02) Always use a safety cable (ordercode 70140 / 70141).
03) Plug the end of the electric mains power cord into a proper electric power supply socket.
04) When the Infinity is not connected with a DMX cable, it functions as a stand-alone device.
05) Please see page 23 for more information about the built-in programs.
Multiple Infinitys (Master/Slave control)
01) Fasten the effect light onto firm trussing. Leave at least 1 meter on all sides for air circulation.
02) Always use a safety cable (ordercode 70140 / 70141).
03) Plug the end of the electric mains power cord into a proper electric power supply socket.
04) Use a 3-pin XLR cable to connect the Infinity.
The pins:
1. Earth
2. Signal (-)
3. Signal (+)
05) Link the units as shown in fig. 04. Connect a DMX signal cable from the first unit's DMX "out" socket to
the second unit's "in" socket. Repeat this process to link the second, third, and fourth units. You can
use the same functions on the master device as described on page 23 (Built-in Programs). This means
that you can set your desired operation mode on the master device and all slave devices will react
the same as the master device.
Multiple Infinitys (Master/Slave control)
Fig. 04
Page 12
11
Ordercode: 41525
Infinity iW-340 RDM
Multiple Infinitys (DMX Control)
01) Fasten the effect light onto firm trussing. Leave at least 1 meter on all sides for air circulation.
02) Always use a safety cable (ordercode 70140 / 70141).
03) Plug the end of the electric mains power cord into a proper electric power supply socket.
04) Use a 3-pin XLR cable to connect the Infinitys and other devices.
05) Link the units as shown in fig. 05. Connect a DMX signal cable from the first unit's DMX "out" socket to
the second unit's "in" socket. Repeat this process to link the second, third, and fourth units.
06) Supply electric power: Plug electric mains power cords into each unit's PowerCON True 1 socket,
then plug the other end of the mains power cord into proper electric power supply sockets, starting
with the first unit. Do not supply power before the whole system is set up and connected properly.
Multiple Infinitys DMX Set Up
Fig. 05
Note: Link all cables before connecting electric power
Page 13
12
Ordercode: 41525
Infinity iW-340 RDM
Multiple Infinitys (ArtNet control)
01) Fasten the effect light to a firm trussing. Leave at least 0,5 meter on all sides for air circulation.
02) Always use a safety cable (ordercode 70140 / 70141).
03) Use a CAT-5/CAT-6 cable to connect your ArtNet controller to a network switch as shown in fig. 06.
04) Link all the Infinitys by connecting their RJ45 sockets to your network switch, using a CAT-5/CAT-6
signal cable as shown in fig. 06.
05) Supply electric power: Plug electric mains power cords into each unit's PowerCON True 1 socket,
then plug the other end of the mains power cord into proper electric power supply sockets, starting
with the first unit. Do not supply power before the whole system is set up and connected properly.
Multiple Infinitys ArtNet Set Up
Fig. 06
Note : Link all cables before connecting electric power
Page 14
13
Ordercode: 41525
Infinity iW-340 RDM
Connecting to a Network
ArtNet settings
01) Install any ArtNet-based software on your PC (Windows, Mac or user console with ArtNet support).
02) Connect the power supply to the Infinity.
03) Connect the device’s Ethernet connector (03) to your software/light controller’s Ethernet connector,
using a CAT-5/CAT-6 cable.
04) Set the IP address of your software/light controller to 2.x.x.x or 10.x.x.x, depending on the ArtNet
settings.
05) Set the subnet mask to 255.0.0.0. on both – the Infinity and your software/light controller. Make sure
that all the fixtures in the network have a unique IP address.
06) If you want to connect more than one fixture, follow the example below.
Example:
01) Make sure that each connected Infinity has a unique IP address.
02) Make sure that the subnet mask on each device is set to 255.0.0.0.
03) Set the universe of the first Infinity to 1.
04) Set the first Infinity’s DMX address to 001.
05) If you have reached the DMX limit of 512 channels, while connecting multiple Infinitys, set the
universe of the following Infinity to 2 and its DMX address to 001.
06) Repeat step 5 up to 255 times (as there are 255 universes available).
07) Using your software, map all the connected devices, using the settings described above.
08) The Infinitys are now ready for use.
09) When creating large setups, it is recommended to use a 16-bit, high speed ethernet switch to
distribute the ArtNet data signal.
How to make a data cable
A standard ETHERNET Cable can be used to replace the Data Cable required to transmit the data for the
iW-340 RDM.
Please follow the instructions below in order to create an extra Net Cable.
Take a standard net cable (CAT-5/ 5E /6) and connect it to the RJ45 connector, as shown in the picture
below (fig. 07). The wires should now be colored as follows:
Fig. 07
Page 15
14
Ordercode: 41525
Infinity iW-340 RDM
Fixture Linking
You will need a serial data link to run light shows of one or more fixtures using a DMX-512 controller or to
run synchronized shows on two or more fixtures set to a master/slave operating mode. The combined
number of channels required by all the fixtures on a serial data link determines the number of fixtures the
data link can support.
Important:
Fixtures on a serial data link must be daisy chained in one single line. To comply with the
EIA-485 standard no more than 30 devices should be connected on one data link.
Connecting more than 30 fixtures on one serial data link without the use of a DMX
optically isolated splitter may result in deterioration of the digital DMX signal.
Maximum recommended DMX data link distance: 100 meters
Maximum recommended number of fixtures on a DMX data link: 30 fixtures
Maximum recommended number of fixtures on a power link @120V: 8 fixtures
Maximum recommended number of fixtures on a power link @230V: 16 fixtures
Data Cabling
To link fixtures together you must obtain data cables. You can purchase DAP Audio certified DMX cables
directly from a dealer/distributor or construct your own cable. If you choose to create your own cable
please use data-grade cables that can carry a high quality signal and are less prone to electromagnetic
interference.
DAP Audio DMX Data Cables
• DAP Audio Basic microphone cable for allround use. bal. XLR/M 3-pin > XLR/F 3-pin. Ordercode
FL01150 (1,5 m), FL013 (3 m), FL016 (6 m), FL0110 (10 m), FL0115 (15 m), FL0120 (20 m).
• DAP Audio X-type data cable XLR/M 3-pin > XLR/F 3-pin. Ordercode FLX0175 (0,75 m),
FLX01150 (1,5 m), FLX013 (3 m), FLX016 (6 m), FLX0110 (10 m).
• DAP Audio cable for the demanding user with exceptional audio-qualities and connector made by
Neutrik®. Ordercode FL71150 (1,5 m), FL713 (3 m), FL716 (6 m), FL7110 (10 m).
• DAP Audio cable for the demanding user with exceptional audio-qualities and connector made by
Neutrik®. Ordercode FL7275 (0,75 m), FL72150 (1,5 m), FL723 (3 m), FL726 (6 m), FL7210 (10 m).
• DAP Audio 110 Ohm cable with digital signal transmission. Ordercode FL0975 (0,75 m),
FL09150 (1,5 m), FL093 (3 m), FL096 (6 m), FL0910 (10 m), FL0915 (15 m), FL0920 (20 m).
• DAP Audio DMX adapter: 3-pin/5-pin. Ordercode FLA30.
The Infinity iW-340 RDM can be operated with a controller in control mode or without the controller in
stand-alone mode.
Page 16
15
Ordercode: 41525
Infinity iW-340 RDM
Control Panel
A)
B)
C)
D)
E)
F)
G)
H)
I)
J)
K)
Home button
Edit Menu button
Settings Mode button
Address Setting button
Infinity Logo button/ Previous screen
Up button
Down button
OK/ENTER
Left button
Right button
LCD display
Fig. 08
Control Mode
The fixtures are individually addressed on a data-link and connected to the controller.
The fixtures respond to the DMX signal from the controller. (When you select the DMX address and save it,
the controller will display the saved DMX address the next time.)
DMX Addressing
The control panel on the front side of the base allows you to assign the DMX fixture address, which is the
first channel from which the Infinity will respond to the controller.
Please note when you use the controller, the unit has 28 channels.
When using multiple Infinitys, make sure you set the DMX addresses right.
Therefore, the DMX address of the first Infinity should be 1(001); the DMX address of the second Infinity
should be 1+28=29 (029); the DMX address of the third Infinity should be 29+28=57 (057), etc.
Please, be sure that you do not have any overlapping channels in order to control each Infinity correctly.
If two or more Infinitys are addressed similarly, they will work similarly.
For address settings, please refer to the instructions under ”Addressing”.
Controlling:
After having addressed all Infinity fixtures, you may now start operating these via your lighting controller.
Note: After switching on, the Infinity will automatically detect whether DMX 512 data is received or not. If
not the problem may be:
The XLR cable from the controller is not connected with the input of the Infinity.
The controller is switched off or defective, the cable or connector is detective, or the signal wires are
swapped in the input connector.
Note: It’s necessary to insert a XLR termination plug (with 120 Ohm) in the last fixture in order to ensure
proper transmission on the DMX data link.
Display Off after 30 seconds
When no button is pressed for 30 seconds, the display will turn off.
To light up the display, you have to press any of the buttons on the control panel.
Once you have pressed the button, the display will light up.
Page 17
16
Ordercode: 41525
Infinity iW-340 RDM
Menu Overview
Page 18
17
Ordercode: 41525
Infinity iW-340 RDM
Main Menu Options
DMX address
Edit Mode
Settings Menu
Built-in Programs
Test Mode
Info
Home
Up
Edit Menu
Down
Settings Mode
OK/Enter
Address Setting
Left
Previous screen/Infinity Logo
Right
1. DMX Address
With this menu you can set the DMX address.
01) Press the button.
02) Press the button, to confirm. You can choose 512 different DMX addresses.
03) Press the buttons to select the required address from .
04) Once you have set the desired DMX address, press the button to store your DMX address.
Page 19
18
Ordercode: 41525
Infinity iW-340 RDM
2. Edit Mode
With this menu you can set your desired DMX personality and running mode.
01) Press the button and select .
02) Press the button, to confirm. You can choose between 2 submenus.
03) Press the buttons to select the required mode.
04) Press the button, to confirm.
05) If you have chosen PERSONALITY you can set the desired DMX channels.
06) Press the buttons to select the desired DMX channels.
07) Press the button, to confirm.
08) Once you have selected the desired DMX channels, press the buttons to change the
value from NO to YES.
09) Once you have selected the desired setting, press the button to store your settings.
Page 20
19
Ordercode: 41525
Infinity iW-340 RDM

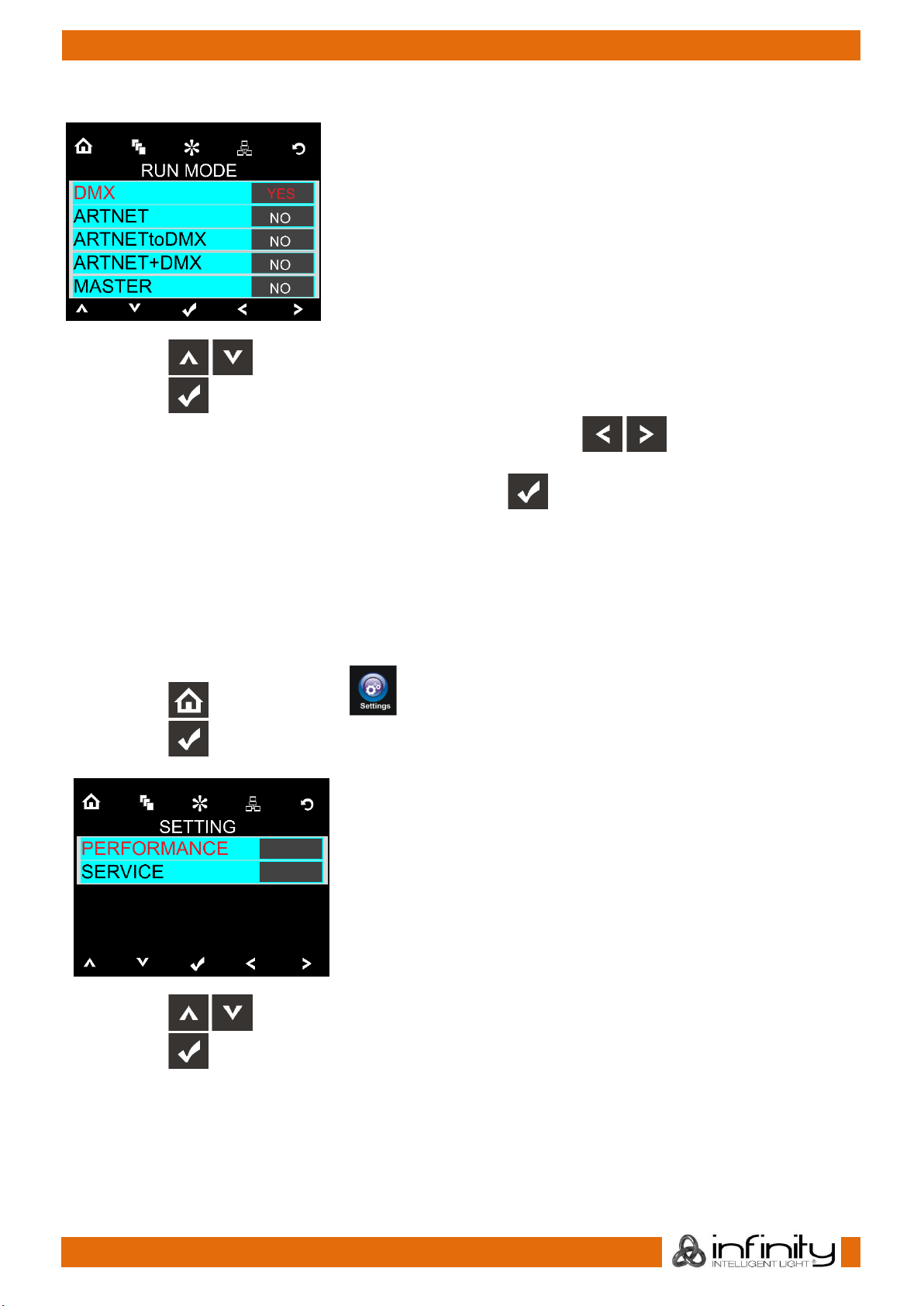

10) If you have chosen RUN MODE you can choose the desired operation mode.
11) Press the buttons to select the desired operation mode.
12) Press the button, to confirm.
13) Once you have selected the desired operation mode, press the buttons to change the
value from NO to YES.
14) Once you have selected the desired setting, press the button to store your settings.
15) If you choose NO in MASTER MODE the device will react as slave, it will react the same as its master
device.
16) If you choose YES in MASTER MODE the device will react as the master, all other devices will react as
a slave device.
3. Settings Menu
With this menu you can set your desired settings.
01) Press the button and select .
02) Press the button, to confirm. You can choose between 2 submenus.
03) Press the buttons to select the required settings submenu.
04) Press the button, to confirm.
Page 21
20
Ordercode: 41525
Infinity iW-340 RDM

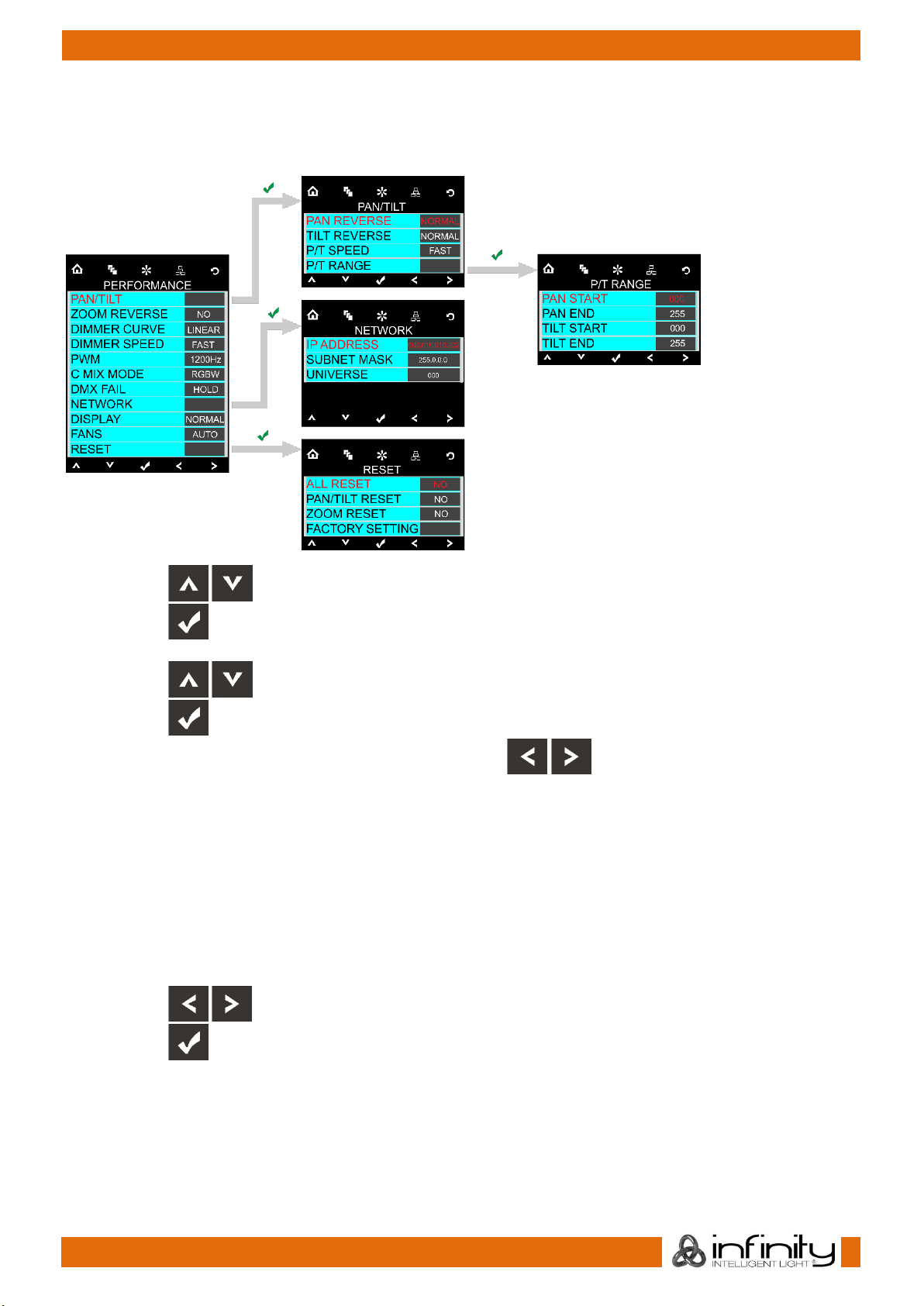

3.1 Performance
With this menu you can set the performance settings.
01) Choose PERFORMANCE in the settings menu.
02) Press the buttons to select the desired setting.
03) Press the button, to confirm.
04) If you choose option PAN/TILT, you will enter a submenu.
05) Press the buttons to select the desired option.
06) Press the button, to confirm.
07) Once you have selected the desired option, press the buttons to change the value:
PAN REVERSE: Normal or reverse
TILT REVERSE: Normal or reverse
P/T SPEED: Fast or Smooth
P/T RANGE
PAN SENSOR From -99 to +99 (optional, see page 22)
TILT SENSOR From -99 to +99 (optional, see page 22)
08) If you choose the option P/T RANGE you will enter another submenu. With this options you can set the
start and end position of PAN and TILT. Use the buttons as described in step 05-07 to change the
settings. The adjustment range is from 000-255.
09) If you choose option ZOOM REVERSE you can choose between YES or NO.
10) Press the buttons to change the value between YES or NO.
11) Press the button, to confirm.
12) The following menus have more options than the regular YES/NO function:
DIMMER CURVE: Linear, Square, Inv-Square or S-Curve
DIMMER SPEED: Fast or Smooth
PWM: 1200Hz, 2000Hz, 2400Hz, 6000Hz or 25000Hz
The higher the PWM frequency, the lower the dimmer’s grayscale.
C MIX MODE: RGBW or CMY
Page 22
21
Ordercode: 41525
Infinity iW-340 RDM
DMX FAIL: Hold or Blackout. If you have chosen Blackout, the device will blackout the output,
in case of a DMX signal error. If you have chosen Hold, the device will fall back on
the last working DMX signal, which will ensure undisrupted performance.
DISPLAY: Normal, Inverted or Auto reverse
FANS: Auto, Slow or Fast
13) If you choose option NETWORK, you will enter a submenu.
14) Press the buttons to select the desired option.
15) Press the button, to confirm.
16) Once you have selected the desired network setting, press the buttons to change the
value in the options:
IP ADDRESS: Artnet IP address
SUBNET MASK: Artnet Submask
UNIVERSE: The device’s universe, the adjustment range is from 000-255.
17) If you choose option RESET, you will enter a submenu.
18) Press the buttons to select the desired option.
19) Press the button, to confirm.
20) Once you have selected the desired reset function, press the buttons to change the
value into YES or NO if you select one of the options ALL RESET, PAN/TILT RESET or ZOOM RESET.
If you choose FACTORY SETTING you will enter a screen to insert the password.
Press the buttons to insert the numbers in the following order: 1234.
Press the button, to confirm. The device will reset and set to default settings.
21) In case of WDMX you can activate the performance option by selecting the WDMX HIDE option in
the service menu (page 22). Select WDMX HIDE and press the button, to confirm.
22) Press the buttons to change the value into NO and press the button, to confirm.
The extra options for WDMX will be shown now in the PERFORMANCE menu.
23) To activate WDMX choose the WDMX POWER submenu and to reset WDMX choose WDMX RESET
submenu.
Page 23
22
Ordercode: 41525
Infinity iW-340 RDM
3.2 Service
With this menu you can set the service settings.
01) Choose SERVICE in the settings menu, you will enter a screen to insert the password.
02) Press the buttons to insert the numbers in the following order: 1234.
03) Press the button, to confirm.
04) Press the buttons to select the desired setting.
05) Press the button, to confirm.
06) If you choose option RGB to W, you will enter a submenu.
07) Press the buttons to select the desired color in order to adjust the RGB calibration.
08) Press the button, to confirm.
09) Once you have selected the desired color, press the buttons to change the values.
You can choose between RED, GREEN or BLUE, the adjustment range is from 000-255.
10) If you choose option CALIBRATION, you will enter a submenu.
11) Press the buttons to select the desired preset white color.
12) Press the button, to confirm.
13) Once you have chosen one of the 6 preset colors you can adjust the colors in the submenu.
14) Press the buttons to select the desired color, press the buttons to change the
values. You can choose between RED, GREEN, BLUE or WHITE, the adjustment range is from 000-255.
15) Press the button, to confirm.
16) The options CALIBRATION.R, WDMX HIDE, SENSOR HIDE and RESET EVENT.T can be activated in the
service menu.
17) Press the buttons to select the desired option.
18) Press the button, to confirm.
19) Once you have selected the desired option, press the buttons to change the value into
YES or NO.
Page 24
23
Ordercode: 41525
Infinity iW-340 RDM
20) Press the button, to confirm.
21) If you choose option RESET TOTAL.T you will enter a screen to insert the password.
22) Press the buttons to insert the numbers in the following order: 1234.
23) Press the button, to confirm. The total operating time of the device will be reset.
24) If you choose option SET PASSWORD you will enter a screen to insert the old password.
25) Press the buttons to insert the numbers in the following order: 1234.
26) Press the button, to confirm.
27) In the next screen you are able to choose a new password.
28) Press the buttons to insert the desired numbers.
29) Press the button, to confirm.
30) To confirm the new password you’ll have to insert the chosen password again.
31) Press the button, to confirm.
32) The password is changed into the chosen numbers.
Please make sure you do not lose your newly set password.
Page 25
24
Ordercode: 41525
Infinity iW-340 RDM
4. Built-in Programs
With this menu you can choose your desired built-in program.
01) Press the button and select .
02) Press the button, to confirm. You can choose 2 different built-in programs.
03) Press the Up / Down buttons to select the required program:
04) Once you have selected the desired built-in program, press the buttons to change the
value from NO to YES.
05) Once you have selected the desired setting, press the button to store your settings.
06) If you have chosen YES the desired built-in program will start automatically.
5. Test Menu
With this menu you can test the device automatic or manual.
01) Press the button and select .
02) Press the button, to confirm. You can choose 2 different test modes.
Page 26
25
Ordercode: 41525
Infinity iW-340 RDM
03) Press the buttons to select the required test mode.
04) Press the button, to confirm.
05) If you have chosen AUTO TEST the device will automatically start its auto test program.
06) If you have chosen MANUAL TEST you will enter a submenu. You can choose between 9 test options:
Pan, Tilt, Red, Green, Blue, White, Dimmer, Strobe or Zoom.
07) Press the buttons to select the required test option.
08) Press the button, to confirm.
09) Once you have selected the desired option, press the buttons to change the value from
000 to 255.
10) Once you have set the desired option, press the button to store your settings.
6. Information Menu
With this menu you can see several device settings.
01) Press the button and select .
02) Press the button, to confirm.
03) You can view 10 parameters.
Page 27
26
Ordercode: 41525
Infinity iW-340 RDM
DMX Channels
21 Channels
Channel 1 – Horizontal movement (Pan)
Move the slider up, in order to move head horizontally (PAN).
Gradual head adjustment from one end of the slider to the other (0-255, 128-center).
The head can be turned by 540° and stopped at any position you wish.
Channel 2 – Vertical movement (Tilt)
Move the slider up, in order to move head vertically (TILT).
Gradual head adjustment from one end of the slider to the other (0-255, 128-center).
The head can be turned by 270° and stopped at any position you wish.
Channel 3 – Pan fine 16 bit
Channel 4 – Tilt fine 16 bit
Channel 5 – Pan / Tilt speed
0-255
From Max Speed (0) to Min. Speed (255)
Channel 6 – Dimmer
0-255
Dimmer intensity, from dark to brightest
Channel 7 – Shutter / Strobe (CH6 and CH8, CH9, CH10, CH11 or CH13 must be set between 1-255 )
0-4
Shutter closed
5-9
Shutter open
10-50
Strobe effect 1, from fast to slow
51-54
Shutter open
55-95
Strobe effect 2 (fast on and slow off), from fast to slow
96-99
Shutter open
100-140
Strobe effect 3 (slow on and fast off), from fast to slow
141-144
Shutter open
145-195
Strobe effect 4 (Random strobe), from slow to fast
196-199
Shutter open
200-239
Strobe effect 5 (Pulse strobe), from fast to slow
240-255
Shutter open
Channel 8 – Red Dimmer intensity (CH6 must be set between 1-255 and CH7 between 5-9 )
0-255
Gradual adjustment Red from 0-100%
Channel 9 – Green Dimmer intensity ( CH6 must be set between 1-255 and CH7 between 5-9 )
0-255
Gradual adjustment Green from 0-100%
Channel 10 – Blue Dimmer intensity (CH6 must be set between 1-255 and CH7 between 5-9 )
0-255
Gradual adjustment Blue from 0-100%
Channel 11 – White Dimmer intensity (CH6 must be set between 1-255 and CH7 between 5-9 )
0-255
Gradual adjustment White from 0-100%
Channel 12 – CTC correction
(CH6 and CH8, CH9, CH10, CH11 or CH13 must be set between 1-255 and CH7 between 5-9 )
0
No function
1-255
Color temperature correction from 1900K to 2700K
Page 28
27
Ordercode: 41525
Infinity iW-340 RDM

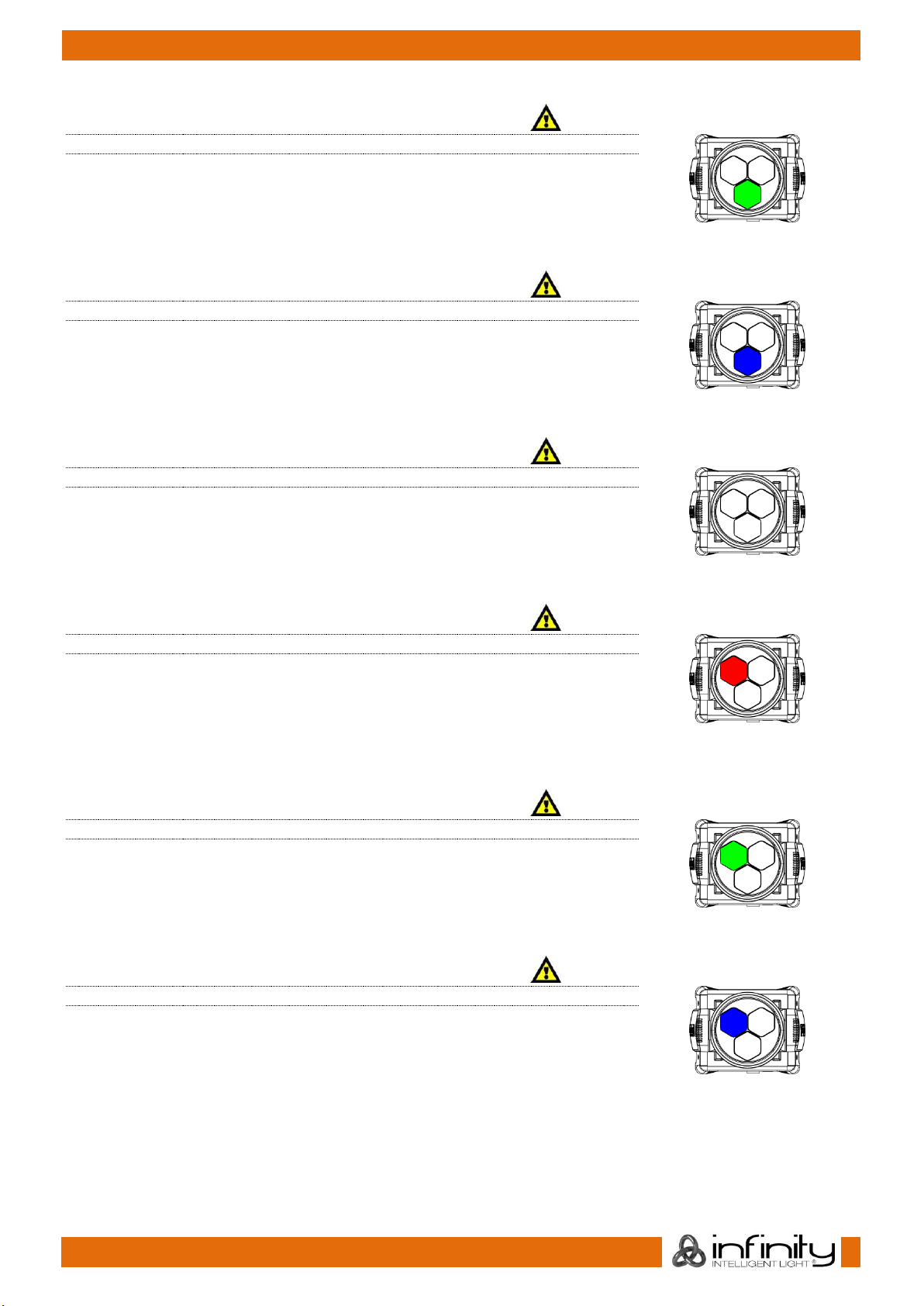

Channel 13 – Color Macros (CH6 must be set between 1-255 and CH7 between 5-9 )
0
No function
1-2
2700K
3-4
3200K
5-6
4200K
7-8
5600K
9-10
8000K
11
Blue
12-48
From blue to cyan
49
Cyan
50-86
From cyan to green
87
Green
88-124
From green to yellow
125
Yellow
126-162
From yellow to red
163
Red
164-200
From red to purple
201
Purple
202-238
From purple to blue
239
Blue
240-247
Colorflow, from fast to slow
248-255
Colorjump, from fast to slow
Channel 14 – Static LED pixel control
(CH6 and CH8, CH9, CH10, CH11 or CH13 must be set between
1-255 and CH7 between 5-9 )
0-11
No function
12-51
LED Pixel 1
52-91
LED Pixel 2
92-131
LED Pixel 3
132-171
LED Pixel 1 & 2
172-211
LED Pixel 2 & 3
212-251
LED Pixel 1 & 3
252-255
All LED Pixels (1,2,3)
Channel 15 – Dynamic LED control
(CH6 (program 1-16) and CH8, CH9, CH10, CH11 or CH13 (program 1-8) must be set between 1-255
and CH7 between 5-9 )
0-14
No function
15-29
Program 1
30-44
Program 2
45-59
Program 3
60-74
Program 4
75-89
Program 5
90-104
Program 6
105-119
Program 7
120-134
Program 8
135-149
Program 9 with color flow
150-164
Program 10 with color flow
165-179
Program 11 with color flow
180-194
Program 12 with color flow
195-209
Program 13 with color flow
210-224
Program 14 with color flow
225-239
Program 15 with color flow
240-255
Program 16 with color flow
Page 29
28
Ordercode: 41525
Infinity iW-340 RDM
Channel 16- Speed Dynamic LED control (CH15 must be set between 15-255 )
0-255
Gradual adjustment Speed, from slow to fast
Channel 17- Fade time Dynamic LED control (CH15 must be set between 15-255 )
0-255
Gradual adjustment Fade time, from slow to fast
Channel 18 – Background dimmer
0-255
Dimmer intensity, from dark to brightest
Channel 19 – Background Color Macros (CH18 must be set between 1-255, CH14 between 12-255 or
CH15 between 15-255 and CH7 between 5-9 )
0
No function
1-2
2700K
3-4
3200K
5-6
4200K
7-8
5600K
9-10
8000K
11
Blue
12-48
From blue to cyan
49
Cyan
50-86
From cyan to green
87
Green
88-124
From green to yellow
125
Yellow
126-162
From yellow to red
163
Red
164-200
From red to purple
201
Purple
202-238
From purple to blue
239
Blue
240-247
Colorflow, from fast to slow
248-255
Colorjump, from fast to slow
Channel 20 – Zoom
0-255
Gradual zoom adjustment, from small to big (4,5º-36º)
Channel 21 – Channel Functions (Desired function starts after 5 seconds setting DMX value)
0-9
No Function
10-19
Pan/Tilt blackout activated
20-29
Pan/Tilt blackout deactivated
30-39
Pan tilt speed fast
40-49
Pan tilt speed smooth
50-59
Dimmer Linear
60-69
Dimmer Square
70-79
Dimmer Inv-Square
80-89
Dimmer s-Curve
90-99
Dimmer fast
100-109
Dimmer smooth
110-119
CMY color mix
120-129
RGBW color mix
130-149
PWM 1200Hz
150-159
PWM 2000Hz
160-169
PWM 2400Hz
170-179
PWM 6000Hz
Page 30
29
Ordercode: 41525
Infinity iW-340 RDM
180-189
PWM 25000Hz
190-199
Fan slow
200-209
Fan fast
210-219
Fan auto
220-229
Auto test
230-239
Pan/Tilt reset
240-249
Zoom reset
250-255
Total reset
28 Channels
Channel 1 – Horizontal movement (Pan)
Move the slider up, in order to move head horizontally (PAN).
Gradual head adjustment from one end of the slider to the other (0-255, 128-center).
The head can be turned by 540° and stopped at any position you wish.
Channel 2 – Vertical movement (Tilt)
Move the slider up, in order to move head vertically (TILT).
Gradual head adjustment from one end of the slider to the other (0-255, 128-center).
The head can be turned by 270° and stopped at any position you wish.
Channel 3 – Pan fine 16 bit
Channel 4 – Tilt fine 16 bit
Channel 5 – Pan / Tilt speed
0-255
From Max Speed (0) to Min. Speed (255)
Channel 6 – Dimmer
0-255
Dimmer intensity, from dark to brightest
Channel 7 – Dimmer 16Bit (CH6 must be set between 1-255 )
0-255
Fine dimmer intensity, from dark to brightest
Channel 8 – Shutter / Strobe (CH6, CH7 and CH9, CH10, CH11, CH12, CH13, CH14, CH15, CH16 or CH18
must be set between 1-255 )
0-4
Shutter closed
5-9
Shutter open
10-50
Strobe effect 1, from fast to slow
51-54
Shutter open
55-95
Strobe effect 2 (fast on and slow off), from fast to slow
96-99
Shutter open
100-140
Strobe effect 3 (slow on and fast off), from fast to slow
141-144
Shutter open
145-195
Strobe effect 4 (Random strobe), from slow to fast
196-199
Shutter open
200-239
Strobe effect 5 (Pulse strobe), from fast to slow
240-255
Shutter open
Channel 9 – Red Dimmer intensity (CH6 must be set between 1-255 and CH8 between 5-9 )
0-255
Gradual adjustment Red from 0-100%
Channel 10 – Red Dimmer intensity16Bit
(CH6, CH7 and CH9 must be set between 1-255 and CH8 between 5-9 )
0-255
Fine gradual adjustment Red from 0-100%
Page 31
30
Ordercode: 41525
Infinity iW-340 RDM
Channel 11 – Green Dimmer intensity (CH6 must be set between 1-255 and CH8 between 5-9 )
0-255
Gradual adjustment Green from 0-100%
Channel 12 – Green Dimmer intensity 16Bit
(CH6, CH7 and CH11 must be set between 1-255 and CH8 between 5-9 )
0-255
Fine gradual adjustment Green from 0-100%
Channel 13 – Blue Dimmer intensity (CH6 must be set between 1-255 and CH8 between 5-9 )
0-255
Gradual adjustment Blue from 0-100%
Channel 14 – Blue Dimmer intensity 16Bit
(CH6, CH7 and CH13 must be set between 1-255 and CH8 between 5-9 )
0-255
Fine gradual adjustment Blue from 0-100%
Channel 15 – White Dimmer intensity (CH6 must be set between 1-255 and CH8 between 5-9 )
0-255
Gradual adjustment White from 0-100%
Channel 16 – White Dimmer intensity 16Bit
(CH6, CH7 and CH15 must be set between 1-255 and CH8 between 5-9 )
0-255
Fine gradual adjustment White from 0-100%
Channel 17 – CTC correction (CH6, CH7 and CH9, CH10, CH11, CH12, CH13, CH14, CH15, CH16 or CH18
must be set between 1-255 and CH8 between 5-9 )
0
No function
1-255
Color temperature correction from 1900K to 2700K
Channel 18 – Color Macros (CH6, CH7 must be set between 1-255 and CH8 between 5-9 )
0
No function
1-2
2700K
3-4
3200K
5-6
4200K
7-8
5600K
9-10
8000K
11
Blue
12-48
From blue to cyan
49
Cyan
50-86
From cyan to green
87
Green
88-124
From green to yellow
125
Yellow
126-162
From yellow to red
163
Red
164-200
From red to purple
201
Purple
202-238
From purple to blue
239
Blue
240-247
Colorflow, from fast to slow
248-255
Colorjump, from fast to slow
Page 32
31
Ordercode: 41525
Infinity iW-340 RDM

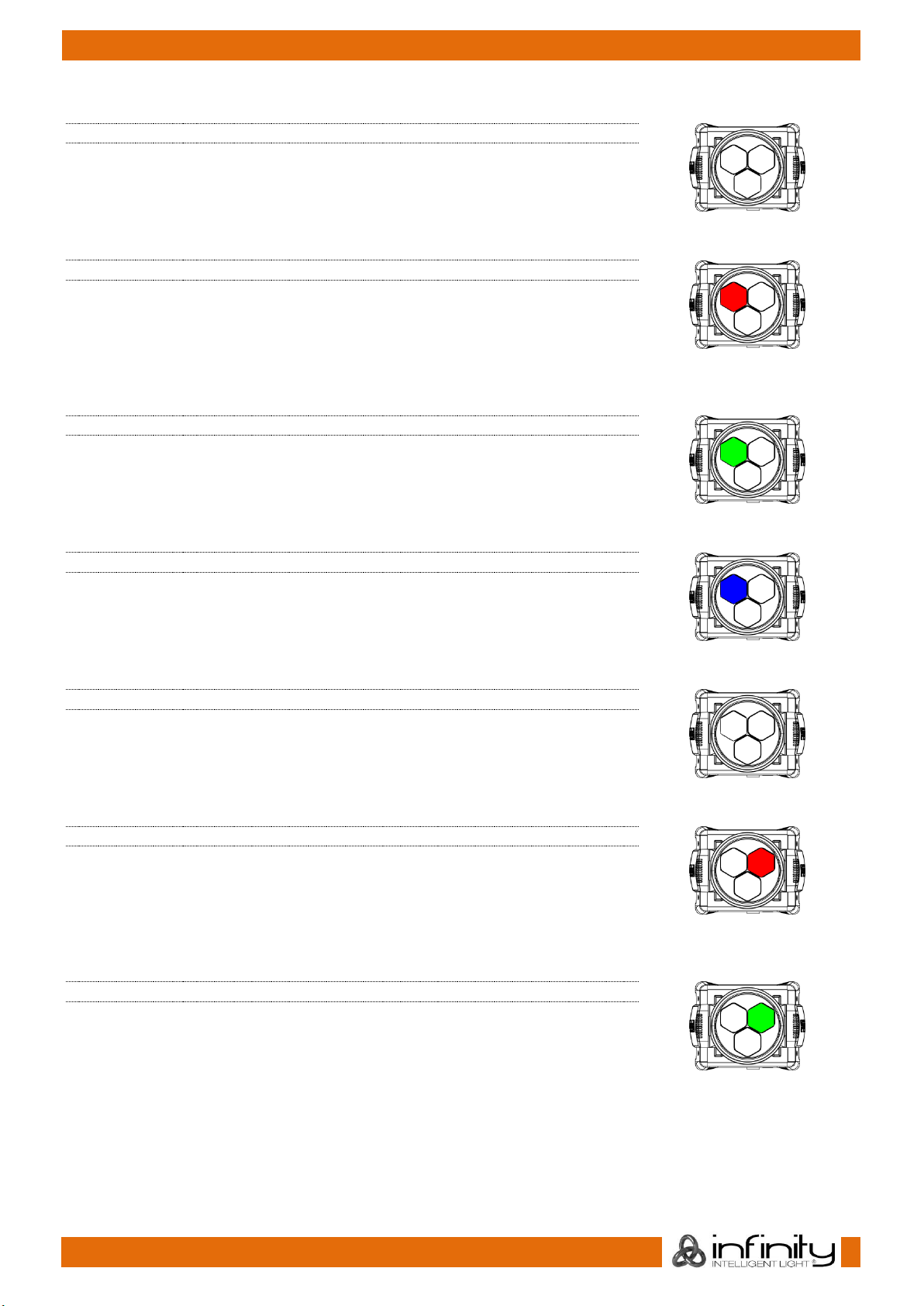

Channel 19 – Static LED pixel control
(CH6 and CH7, CH9, CH10, CH11, CH12, CH13, CH14, CH15, CH16
or CH18 must be set between 1-255 and CH8 between 5-9 )
0-11
No function
12-51
LED Pixel 1
52-91
LED Pixel 2
92-131
LED Pixel 3
132-171
LED Pixel 1 & 2
172-211
LED Pixel 2 & 3
212-251
LED Pixel 1 & 3
252-255
All LED Pixels (1,2,3)
Channel 20 – Dynamic LED control
(CH6, CH7, CH9, CH10, CH11, CH12, CH13, CH14, CH15, CH16 or CH18 (program 1-8) must be set
between 1-255 and CH8 between 5-9 )
0-14
No function
15-29
Program 1
30-44
Program 2
45-59
Program 3
60-74
Program 4
75-89
Program 5
90-104
Program 6
105-119
Program 7
120-134
Program 8
135-149
Program 9 with color flow
150-164
Program 10 with color flow
165-179
Program 11 with color flow
180-194
Program 12 with color flow
195-209
Program 13 with color flow
210-224
Program 14 with color flow
225-239
Program 15 with color flow
240-255
Program 16 with color flow
Channel 21- Speed Dynamic LED control (CH20 must be set between 15-255 )
0-255
Gradual adjustment Speed, from slow to fast
Channel 22- Fade time Dynamic LED control (CH20 must be set between 15-255 )
0-255
Gradual adjustment Fade time, from slow to fast
Channel 23 – Background dimmer
0-255
Dimmer intensity, from dark to brightest
Channel 24 – Background dimmer 16Bit (CH23 must be set between 1-255 )
0-255
Fine dimmer intensity, from dark to brightest
Page 33
32
Ordercode: 41525
Infinity iW-340 RDM
Channel 25 – Background Color Macros (CH23, CH24 must be set between 1-255, CH19 between 12-
255 or CH20 between 15-255 and CH8 between 5-9 )
0
No function
1-2
2700K
3-4
3200K
5-6
4200K
7-8
5600K
9-10
8000K
11
Blue
12-48
From blue to cyan
49
Cyan
50-86
From cyan to green
87
Green
88-124
From green to yellow
125
Yellow
126-162
From yellow to red
163
Red
164-200
From red to purple
201
Purple
202-238
From purple to blue
239
Blue
240-247
Colorflow, from fast to slow
248-255
Colorjump, from fast to slow
Channel 26 – Zoom
0-255
Gradual zoom adjustment, from small to big (4,5º-36º)
Channel 27 – Zoom 16Bit (CH26 must be set between 1-255 )
0-255
Fine gradual zoom adjustment, from small to big (4,5º-36º)
Channel 28 – Channel Functions (Desired function starts after 5 seconds setting DMX value)
0-9
No Function
10-19
Pan/Tilt blackout activated
20-29
Pan/Tilt blackout deactivated
30-39
Pan tilt speed fast
40-49
Pan tilt speed smooth
50-59
Dimmer Linear
60-69
Dimmer Square
70-79
Dimmer Inv-Square
80-89
Dimmer s-Curve
90-99
Dimmer fast
100-109
Dimmer smooth
110-119
CMY color mix
120-129
RGBW color mix
130-149
PWM 1200Hz
150-159
PWM 2000Hz
160-169
PWM 2400Hz
170-179
PWM 6000Hz
180-189
PWM 25000Hz
190-199
Fan slow
200-209
Fan fast
210-219
Fan auto
220-229
Auto test
230-239
Pan/Tilt reset
240-249
Zoom reset
250-255
Total reset
Page 34
33
Ordercode: 41525
Infinity iW-340 RDM
27 Channels
Channel 1 – Horizontal movement (Pan)
Move the slider up, in order to move head horizontally (PAN).
Gradual head adjustment from one end of the slider to the other (0-255, 128-center).
The head can be turned by 540° and stopped at any position you wish.
Channel 2 – Vertical movement (Tilt)
Move the slider up, in order to move head vertically (TILT).
Gradual head adjustment from one end of the slider to the other (0-255, 128-center).
The head can be turned by 270° and stopped at any position you wish.
Channel 3 – Pan fine 16 bit
Channel 4 – Tilt fine 16 bit
Channel 5 – Pan / Tilt speed
0-255
From Max Speed (0) to Min. Speed (255)
Channel 6 – Dimmer
0-255
Dimmer intensity, from dark to brightest
Channel 7 – Dimmer 16Bit (CH6 must be set between 1-255 )
0-255
Fine dimmer intensity, from dark to brightest
Channel 8 – Shutter / Strobe (CH6 and CH7, CH9, CH10, CH11, CH12, CH16, CH17, CH18, CH19, CH20,
CH21, CH22, CH23, CH24, CH25, CH26 or CH27 must be set between 1-255 )
0-4
Shutter closed
5-9
Shutter open
10-50
Strobe effect 1, from fast to slow
51-54
Shutter open
55-95
Strobe effect 2 (fast on and slow off), from fast to slow
96-99
Shutter open
100-140
Strobe effect 3 (slow on and fast off), from fast to slow
141-144
Shutter open
145-195
Strobe effect 4 (Random strobe), from slow to fast
196-199
Shutter open
200-239
Strobe effect 5 (Pulse strobe), from fast to slow
240-255
Shutter open
Channel 9 – Red Dimmer intensity (CH6, CH7 must be set between 1-255 and CH8 between 5-9 )
0-255
Gradual adjustment Red from 0-100%
Channel 10 – Green Dimmer intensity
(CH6, CH7 must be set between 1-255 and CH8 between 5-9 )
0-255
Gradual adjustment Green from 0-100%
Channel 11 – Blue Dimmer intensity (CH6, CH7 must be set between 1-255 and CH8 between 5-9 )
0-255
Gradual adjustment Blue from 0-100%
Channel 12 – White Dimmer intensity (CH6, CH7 must be set between 1-255 and CH8 between 5-9 )
0-255
Gradual adjustment White from 0-100%
Page 35
34
Ordercode: 41525
Infinity iW-340 RDM
Channel 13 – Zoom
0-255
Gradual zoom adjustment, from small to big (4,5º-36º)
Channel 14 – Zoom 16Bit (CH13 must be set between 1-255 )
0-255
Fine gradual zoom adjustment, from small to big (4,5º-36º)
Channel 15 – Channel Functions (Desired function starts after 5 seconds setting DMX value)
0-9
No Function
10-19
Pan/Tilt blackout activated
20-29
Pan/Tilt blackout deactivated
30-39
Pan tilt speed fast
40-49
Pan tilt speed smooth
50-59
Dimmer Linear
60-69
Dimmer Square
70-79
Dimmer Inv-Square
80-89
Dimmer s-Curve
90-99
Dimmer fast
100-109
Dimmer smooth
110-119
CMY color mix
120-129
RGBW color mix
130-149
PWM 1200Hz
150-159
PWM 2000Hz
160-169
PWM 2400Hz
170-179
PWM 6000Hz
180-189
PWM 25000Hz
190-199
Fan slow
200-209
Fan fast
210-219
Fan auto
220-229
Auto test
230-239
Pan/Tilt reset
240-249
Zoom reset
250-255
Total reset

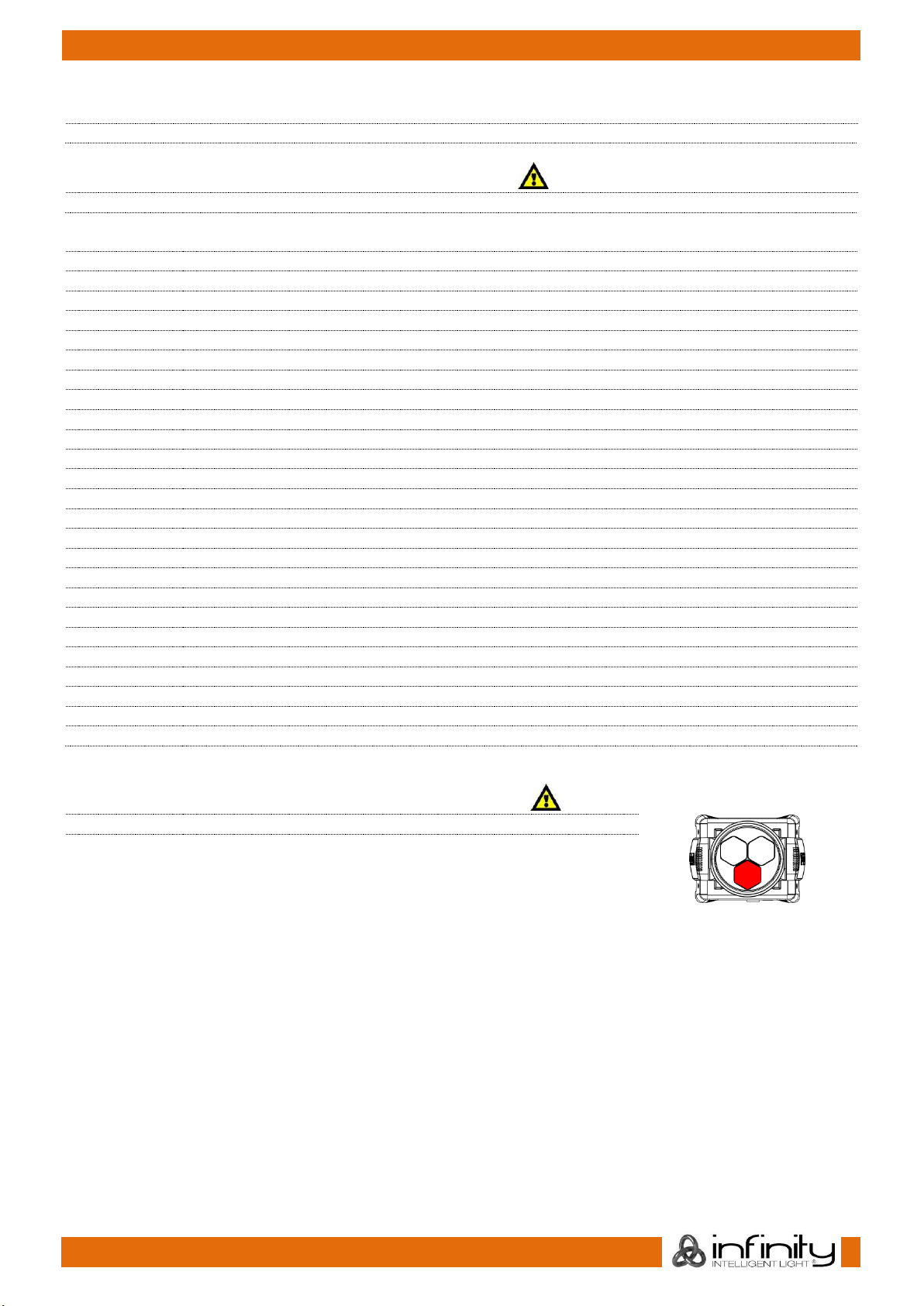

Channel 16 – Red LED Pixel 1
(CH6, CH7 must be set between 1-255 and CH8 between 5-9 )
0-255
Gradual adjustment Red from 0 – 100%
Page 36
35
Ordercode: 41525
Infinity iW-340 RDM
Channel 17 – Green LED Pixel 1
(CH6, CH7 must be set between 1-255 and CH8 between 5-9 )
0-255
Gradual adjustment Green from 0 – 100%
Channel 18 – Blue LED Pixel 1
(CH6, CH7 must be set between 1-255 and CH8 between 5-9 )
0-255
Gradual adjustment Blue from 0 – 100%
Channel 19 – White LED Pixel 1
(CH6, CH7 must be set between 1-255 and CH8 between 5-9 )
0-255
Gradual adjustment White from 0 – 100%
Channel 20 – Red LED Pixel 2
(CH6, CH7 must be set between 1-255 and CH8 between 5-9 )
0-255
Gradual adjustment Red from 0 – 100%
Channel 21 – Green LED Pixel 2
(CH6, CH7 must be set between 1-255 and CH8 between 5-9 )
0-255
Gradual adjustment Green from 0 – 100%
Channel 22 – Blue LED Pixel 2
(CH6, CH7 must be set between 1-255 and CH8 between 5-9 )
0-255
Gradual adjustment Blue from 0 – 100%
Page 37
36
Ordercode: 41525
Infinity iW-340 RDM

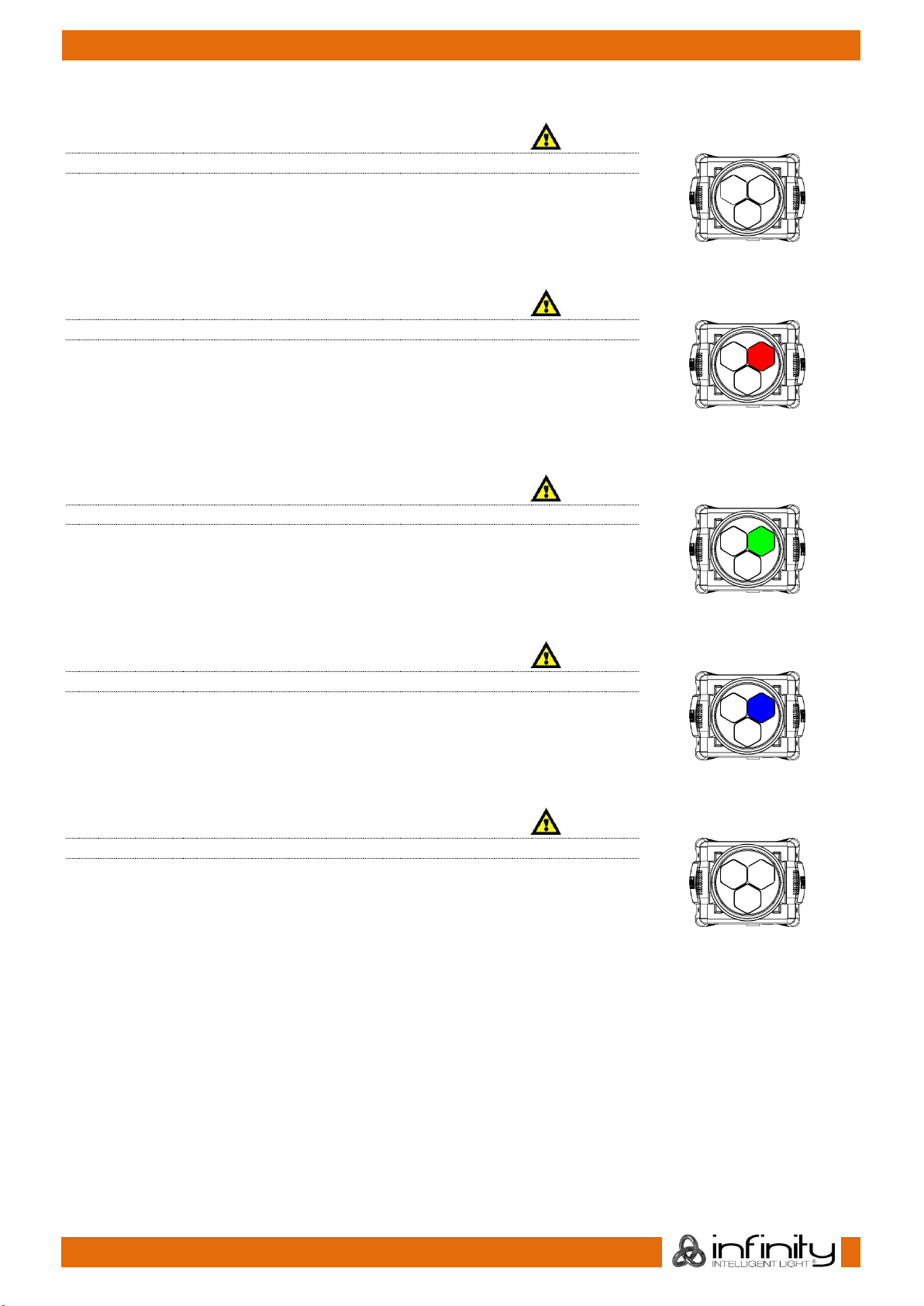

Channel 23 – White LED Pixel 2
(CH6, CH7 must be set between 1-255 and CH8 between 5-9 )
0-255
Gradual adjustment White from 0 – 100%
Channel 24 – Red LED Pixel 3
(CH6, CH7 must be set between 1-255 and CH8 between 5-9 )
0-255
Gradual adjustment Red from 0 – 100%
Channel 25 – Green LED Pixel 3
(CH6, CH7 must be set between 1-255 and CH8 between 5-9 )
0-255
Gradual adjustment Green from 0 – 100%
Channel 26 – Blue LED Pixel 3
(CH6, CH7 must be set between 1-255 and CH8 between 5-9 )
0-255
Gradual adjustment Blue from 0 – 100%
Channel 27 – White LED Pixel 3
(CH6, CH7 must be set between 1-255 and CH8 between 5-9 )
0-255
Gradual adjustment White from 0 – 100%
Page 38
37
Ordercode: 41525
Infinity iW-340 RDM
15 Channels + 12 channels (DMX + Artnet)
Channel 1 – Horizontal movement (Pan)
Move the slider up, in order to move head horizontally (PAN).
Gradual head adjustment from one end of the slider to the other (0-255, 128-center).
The head can be turned by 540° and stopped at any position you wish.
Channel 2 – Vertical movement (Tilt)
Move the slider up, in order to move head vertically (TILT).
Gradual head adjustment from one end of the slider to the other (0-255, 128-center).
The head can be turned by 270° and stopped at any position you wish.
Channel 3 – Pan fine 16 bit
Channel 4 – Tilt fine 16 bit
Channel 5 – Pan / Tilt speed
0-255
From Max Speed (0) to Min. Speed (255)
Channel 6 – Dimmer
0-255
Dimmer intensity, from dark to brightest
Channel 7 – Dimmer 16Bit (CH6 must be set between 1-255 )
0-255
Fine dimmer intensity, from dark to brightest
Channel 8 – Shutter / Strobe (CH6 and CH7, CH9, CH10, CH11 or CH12 must be set between 1-255 )
0-4
Shutter closed
5-9
Shutter open
10-50
Strobe effect 1, from fast to slow
51-54
Shutter open
55-95
Strobe effect 2 (fast on and slow off), from fast to slow
96-99
Shutter open
100-140
Strobe effect 3 (slow on and fast off), from fast to slow
141-144
Shutter open
145-195
Strobe effect 4 (Random strobe), from slow to fast
196-199
Shutter open
200-239
Strobe effect 5 (Pulse strobe), from fast to slow
240-255
Shutter open
Channel 9 – Red Dimmer intensity (CH6, CH7 must be set between 1-255 and CH8 between 5-9 )
0-255
Gradual adjustment Red from 0-100%
Channel 10 – Green Dimmer intensity
(CH6, CH7 must be set between 1-255 and CH8 between 5-9 )
0-255
Gradual adjustment Green from 0-100%
Channel 11 – Blue Dimmer intensity (CH6, CH7 must be set between 1-255 and CH8 between 5-9 )
0-255
Gradual adjustment Blue from 0-100%
Channel 12 – White Dimmer intensity
(CH6, CH7 must be set between 1-255 and CH8 between 5-9 )
0-255
Gradual adjustment White from 0-100%
Channel 13 – Zoom
0-255
Gradual zoom adjustment, from small to big (4,5º-36º)
Page 39
38
Ordercode: 41525
Infinity iW-340 RDM
Channel 14 – Zoom 16Bit (CH13 must be set between 1-255 )
0-255
Fine gradual zoom adjustment, from small to big (4,5º-36º)
Channel 15 – Channel Functions (Desired function starts after 5 seconds setting DMX value)
0-9
No Function
10-19
Pan/Tilt blackout activated
20-29
Pan/Tilt blackout deactivated
30-39
Pan tilt speed fast
40-49
Pan tilt speed smooth
50-59
Dimmer Linear
60-69
Dimmer Square
70-79
Dimmer Inv-Square
80-89
Dimmer s-Curve
90-99
Dimmer fast
100-109
Dimmer smooth
110-119
CMY color mix
120-129
RGBW color mix
130-149
PWM 1200Hz
150-159
PWM 2000Hz
160-169
PWM 2400Hz
170-179
PWM 6000Hz
180-189
PWM 25000Hz
190-199
Fan slow
200-209
Fan fast
210-219
Fan auto
220-229
Auto test
230-239
Pan/Tilt reset
240-249
Zoom reset
250-255
Total reset

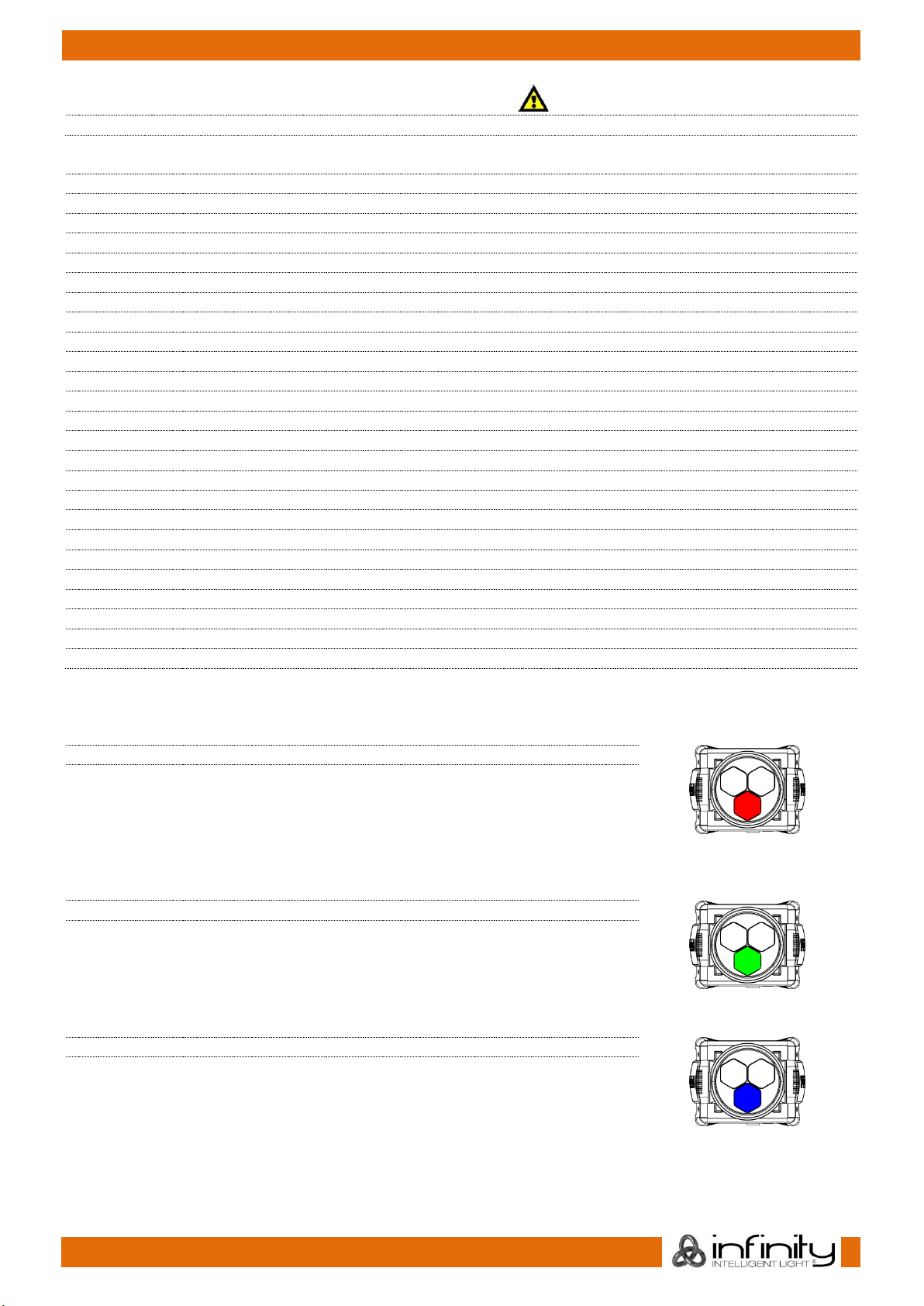

Artnet
Channel 1 – Red LED Pixel 1
0-255
Gradual adjustment Red from 0 – 100%
Channel 2 – Green LED Pixel 1
0-255
Gradual adjustment Green from 0 – 100%
Channel 3 – Blue LED Pixel 1
0-255
Gradual adjustment Blue from 0 – 100%
Page 40
39
Ordercode: 41525
Infinity iW-340 RDM
Channel 4 – White LED Pixel 1
0-255
Gradual adjustment White from 0 – 100%
Channel 5 – Red LED Pixel 2
0-255
Gradual adjustment Red from 0 – 100%
Channel 6 – Green LED Pixel 2
0-255
Gradual adjustment Green from 0 – 100%
Channel 7 – Blue LED Pixel 2
0-255
Gradual adjustment Blue from 0 – 100%
Channel 8 – White LED Pixel 2
0-255
Gradual adjustment White from 0 – 100%
Channel 9 – Red LED Pixel 3
0-255
Gradual adjustment Red from 0 – 100%
Channel 10 – Green LED Pixel 3
0-255
Gradual adjustment Green from 0 – 100%
Page 41
40
Ordercode: 41525
Infinity iW-340 RDM
Channel 11 – Blue LED Pixel 3
0-255
Gradual adjustment Blue from 0 – 100%
Channel 12 – White LED Pixel 3
0-255
Gradual adjustment White from 0 – 100%
Channel settings
Fig. 09
Page 42
41
Ordercode: 41525
Infinity iW-340 RDM
Maintenance
The operator has to make sure that safety-related and machine-technical installations are to be
inspected by an expert after every year in the course of an acceptance test.
The operator has to make sure that safety-related and machine-technical installations are to be
inspected by a skilled person once a year.
The following points have to be considered during the inspection:
01) All screws used for installing the device or parts of the device have to be tightly connected and must
not be corroded.
02) There may not be any deformations on housings, fixations and installation spots.
03) Mechanically moving parts like axles, eyes and others may not show any traces of wearing.
04) The electric power supply cables must not show any damages or material fatigue.
The Showtec Infinity iW-340 RDM requires almost no maintenance. However, you should keep the unit
clean. Otherwise, the fixture’s light-output will be significantly reduced. Disconnect the mains power
supply and then wipe the cover with a damp cloth. Wipe the front glass panel clean with glass cleaner
and a soft cloth. Do not use alcohol or solvents. The front glass panel will require weekly cleaning, as
smoke-fluid tends to build up residues, reducing the light output very quickly. Do not immerse in liquid.
The cooling-fans and the internal lenses should be cleaned monthly with a soft brush.
Please clean internal components once a year with a light brush and vacuum cleaner.
Keep connections clean. Disconnect electric power, and then wipe the DMX and audio connections
with a damp cloth. Make sure connections are thoroughly dry before linking equipment or supplying
electric power.
Replacing a Fuse
Power surges, short-circuit or inappropriate electrical power supply may cause a fuse to burn out. If the
fuse burns out, the product will not function whatsoever. If this happens, follow the directions below.
01) Unplug the unit from electric power source.
02) Insert a screwdriver into the slot in the fuse cover. Turn the screwdriver to the left, at the same time
gently push a bit (Turn and Push). The fuse will come out.
03) Remove the used fuse. If brown or unclear, it is burned out.
04) Insert the replacement fuse into the holder where the old fuse was. Reinsert the fuse cover. Be sure to
use a fuse of the same type and specification. See the product specification label for details.
Page 43
42
Ordercode: 41525
Infinity iW-340 RDM
Troubleshooting
No Light
This troubleshooting guide is meant to help solve simple problems.
If a problem occurs, carry out the steps below in sequence until a solution is found. Once the unit
operates properly, do not carry out following steps.
If the light effect does not operate properly, refer servicing to a technician.
Suspect five potential problem areas as: factory reset, the power supply, the LEDs, the fuse, the battery.
01) First try to reset the device to its original factory default settings (3.1 Performance Menu see page 21).
02) Power supply. Check that the unit is plugged into an appropriate power supply.
03) The LEDs. Return the Infinity to your Showtec dealer.
04) The fuse. Replace the fuse. See page 40 for replacing the fuse.
05) The battery. Return the Infinity to your Showtec dealer.
06) If all of the above appears to be O.K., plug the unit in again.
07) If you are unable to determine the cause of the problem, do not open the Infinity, as this may
damage the unit and the warranty will become void.
08) Return the device to your Showtec dealer.
No Response to DMX
Suspect the DMX cable or connectors, a controller malfunction, a light effect DMX card malfunction.
01) Check the DMX setting. Make sure that DMX addresses are correct.
02) Check the DMX cable: Unplug the unit; change the DMX cable; then reconnect to electrical power.
Try your DMX control again.
03) Determine whether the controller or light effect is at fault. Does the controller operate properly with
other DMX products ? If not, take the controller in for repair. If so, take the DMX cable and the light
effect to a qualified technician.
Page 44
43
Ordercode: 41525
Infinity iW-340 RDM
Problem
Probable cause(s)
Remedy
One or more
fixtures do not
function at all.
No power to the fixture.
Check if power is switched on and
cables are plugged in.
Primary fuse blown.
Replace fuse.
Fixtures reset
correctly, but all
respond erratically
or not at all to the
controller.
The controller is not connected.
Connect controller.
3-pin/5-pin XLR Out of the
controller does not match XLR Out
of the first fixture on the link (i.e.
signal is reversed).
Install a phase reversing cable
between the controller and the first
fixture on the link.
Fixtures reset
correctly, but
some respond
erratically or not at
all to the
controller.
Poor data quality
Check data quality. If much lower than
100 percent, the problem may be a
bad data link connection, poor quality
or broken cables, missing termination
plug, or a defective fixture disturbing
the link.
Bad data link connection
Inspect connections and cables.
Correct poor connections. Repair or
replace damaged cables.
Data link not terminated with 120
Ohm termination plug.
Insert termination plug in output jack of
the last fixture on the link.
Incorrect addressing of the fixtures.
Check address setting.
One of the fixtures is defective and
disturbs data transmission on the
link.
Bypass one fixture at a time until
normal operation is regained: unplug
both connectors and connect them
directly together.
Have the defective fixture serviced by
a qualified technician.
3-pin XLR Out on the fixtures does
not match (pins 2 and 3 reversed).
Install a phase-reversing cable
between the fixtures or swap pin 2 and
3 in the fixture that behaves erratically.
No light or LEDs cut
out intermittently
Fixture is too hot.
Allow fixture to cool.
Clean fan.
Make sure air vents are not blocked.
Turn up the air conditioning .
LEDs damaged
Disconnect fixture and return to your
dealer.
The power supply settings do not
match local AC voltage and
frequency.
Disconnect fixture. Check settings and
correct if necessary.
Page 45
44
Ordercode: 41525
Infinity iW-340 RDM
Product Specifications
Model:
Infinity iW-340 RDM
Input Voltage:
100-240V AC, 50/60Hz
Power consumption:
145W (full output)
DMX linking:
30pcs
Power linking @120V
8pcs
Power linking @240V
16pcs
Fuse:
T2,5AL/250V
Dimensions:
250 x 190 x 350 mm (LxWxH)
Weight:
7,2 kg
Operating and Programming:
Signal pin OUT:
Pin 1 (earth), pin 2 (-), pin 3 (+)
DMX Mode:
21, 27, 28 channels
DMX+Artnet:
15 +12 channels
Signal input:
3-pin/5-pin XLR IN
Signal output:
3-pin/5-pin XLR OUT
Electro-mechanical effects:
Light source:
3 x 40W RGBW 4-in-1 Osram Ostar LED
Lux @ 3 m:
14400
Color mixing:
RGBW, CMY
Beam angle:
4,5-36°
Motorized zoom:
4,5-36°
Dimmer:
0-100%
Strobe:
0-20Hz
Pan:
540°
Tilt:
270°
Dimming Curves:
Linear, Square, I-Square, S-curve
Housing:
Metal & Flame retardant plastic
IP rating:
IP20
DMX control:
via standard DMX/Artnet/RDM controller
Onboard:
LCD display with gravity sensor
Control:
Built-in programs, Master/Slave, DMX-512, ArtNet
Connections:
3-pin XLR data IN/OUT, 5-pin XLR data IN/OUT, RJ-45
Data in/out, Neutrik PowerCON True 1 IN/OUT
Max. ambient temperature ta:
40°C
Max. housing temperature tB:
80°C
Minimum distance:
Minimum distance from flammable surfaces:
0,5 m
Minimum distance to lighted object:
1,5 m
Design and product specifications are subject to change without prior notice.
Website: www.Showtec.info
Email: [email protected]
Page 46
45
Ordercode: 41525
Infinity iW-340 RDM
Dimensions
Page 47
46
Ordercode: 41525
Infinity iW-340 RDM
Notes
Page 48
©2017 Infinity
Loading...
