Page 1
Infinity iW-1941 RDM V1
Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands
Ordercode: 41529
MANUAL
ENGLISH
Page 2
1
Ordercode: 41529
Infinity iW-1941 RDM
Table of contents
Warning ............................................................................................................................................................................... 3
Safety Instructions ......................................................................................................................................................... 3
Operating Determinations .......................................................................................................................................... 5
Rigging ............................................................................................................................................................................ 5
Connection with the mains......................................................................................................................................... 6
Return Procedure .......................................................................................................................................................... 7
Claims .............................................................................................................................................................................. 7
Description of the device ................................................................................................................................................. 8
Optional accessories.................................................................................................................................................... 8
Overview ........................................................................................................................................................................ 9

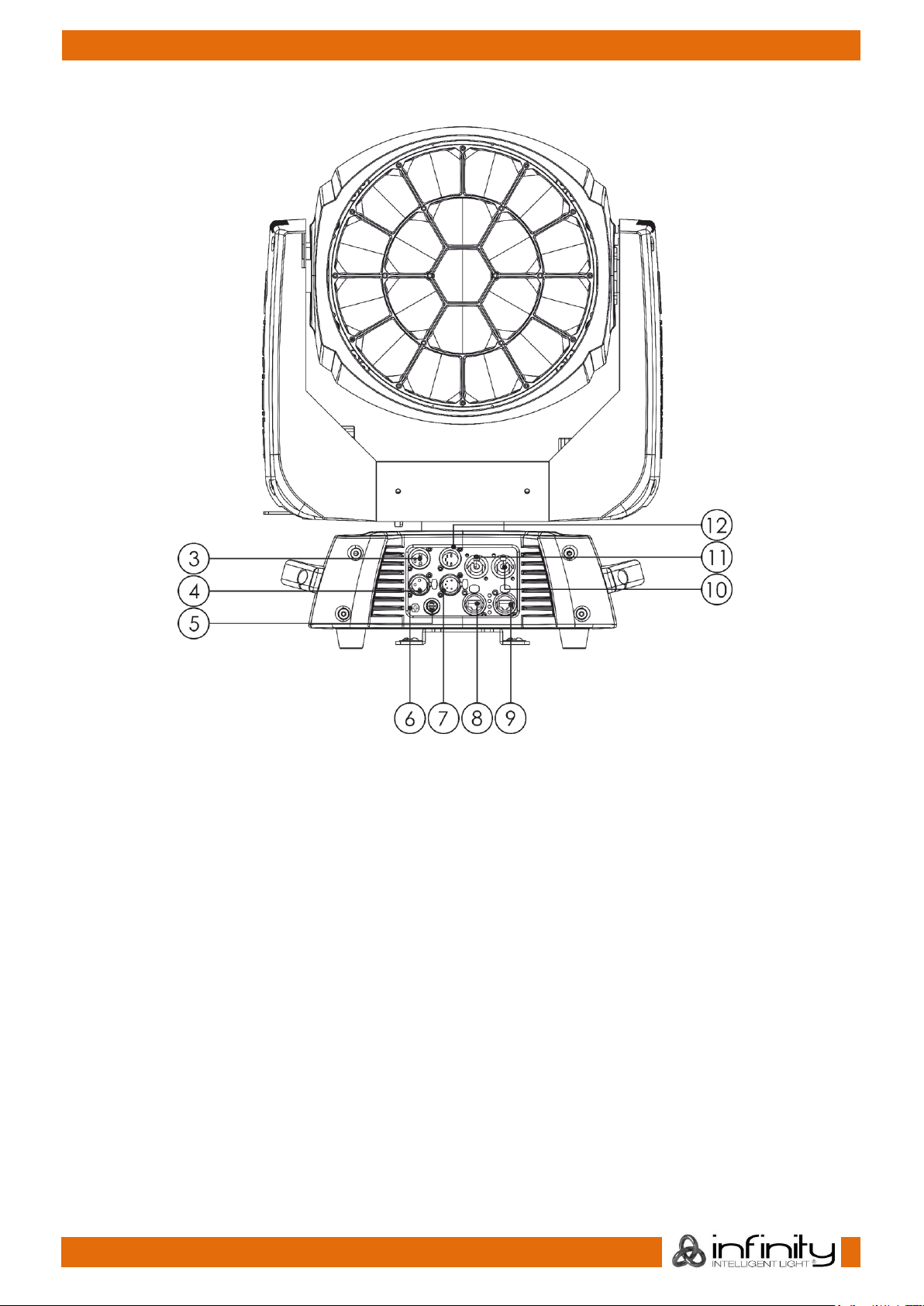

Backside .......................................................................................................................................................................10
Installation .........................................................................................................................................................................11
Lock/Unlock the Moving Head ................................................................................................................................11
Set Up and Operation .....................................................................................................................................................11
Control Modes .............................................................................................................................................................12
One Infinity (Built-in Programs)...............................................................................................................................12
Multiple Infinity’s (Master/Slave control) .............................................................................................................12
Multiple Infinity’s (DMX Control) ............................................................................................................................13

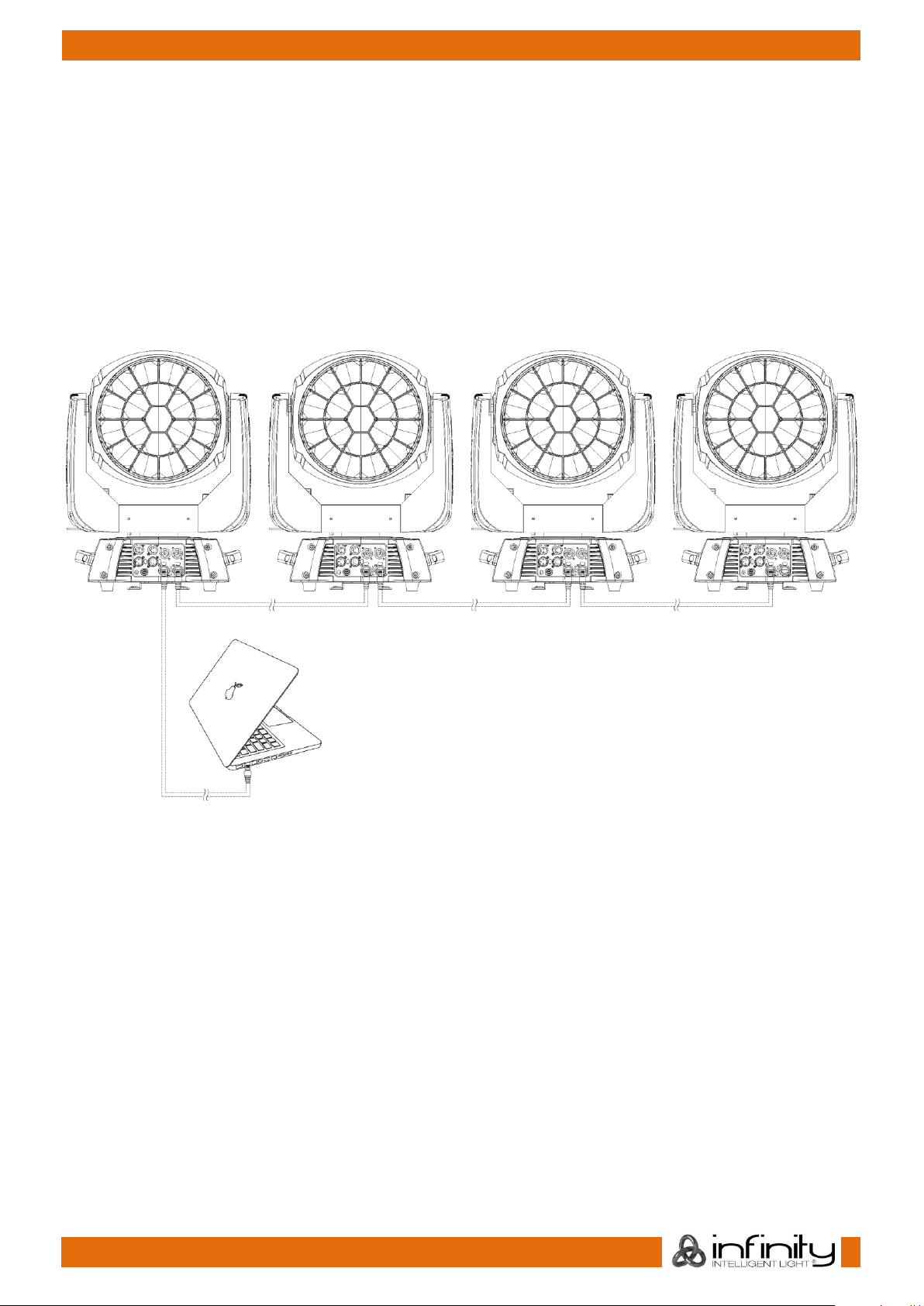

Multiple Infinitys (ArtNet Control) ..........................................................................................................................14
Connecting to a Network .........................................................................................................................................15
ArtNet Settings ..........................................................................................................................................................15

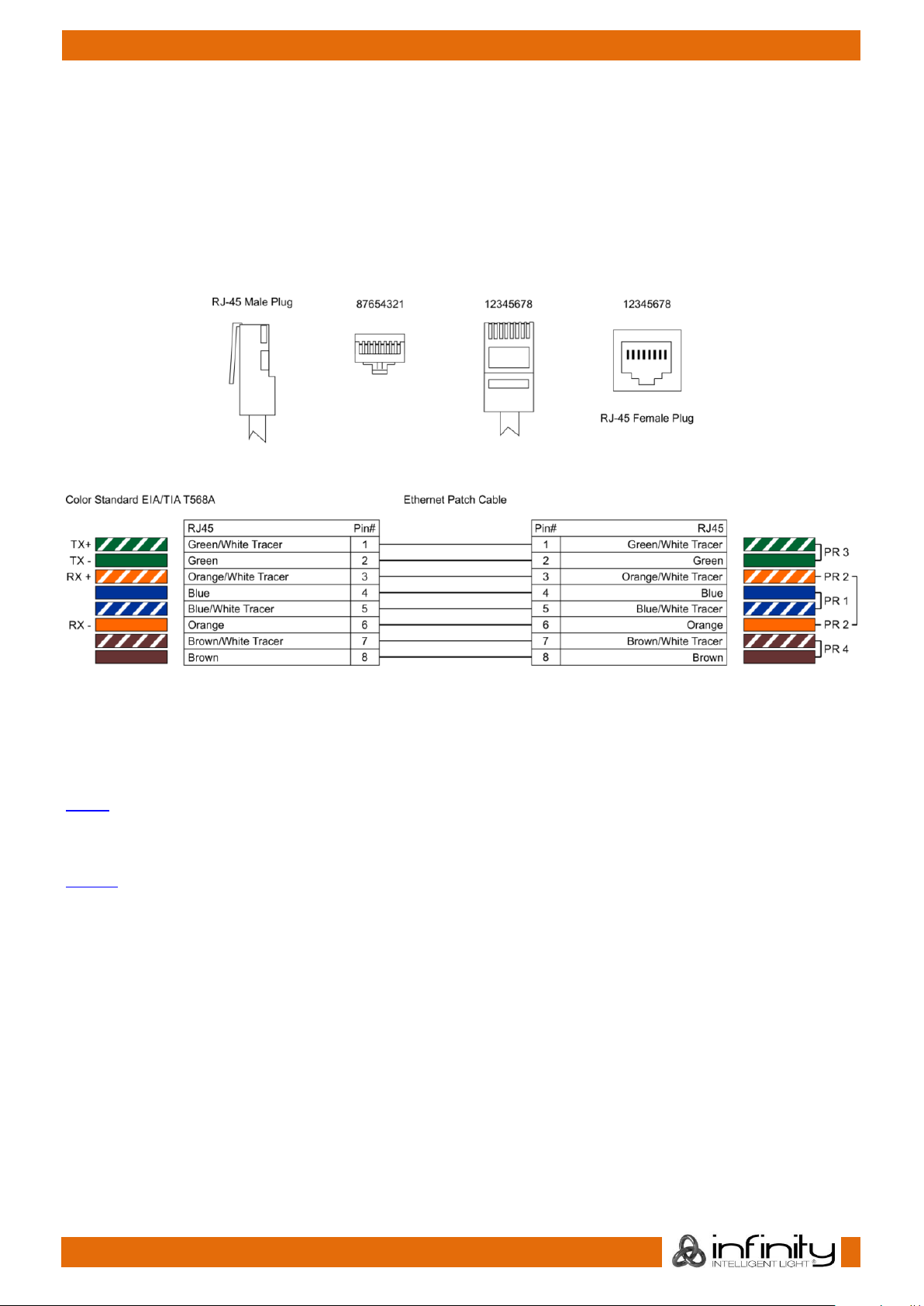

How to Make a Data Cable .....................................................................................................................................16
Software for controlling .............................................................................................................................................16

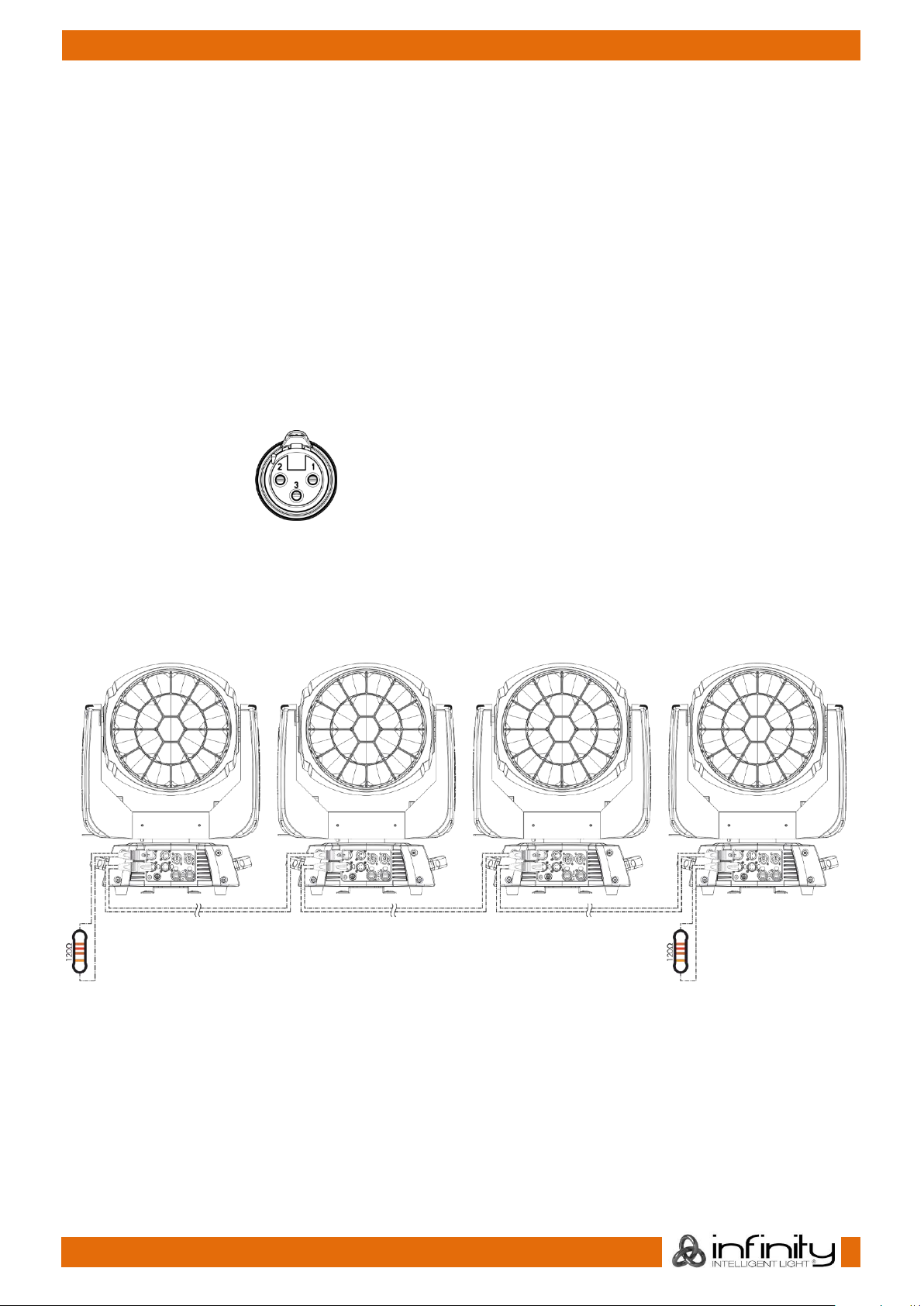

Fixture Linking ...............................................................................................................................................................17

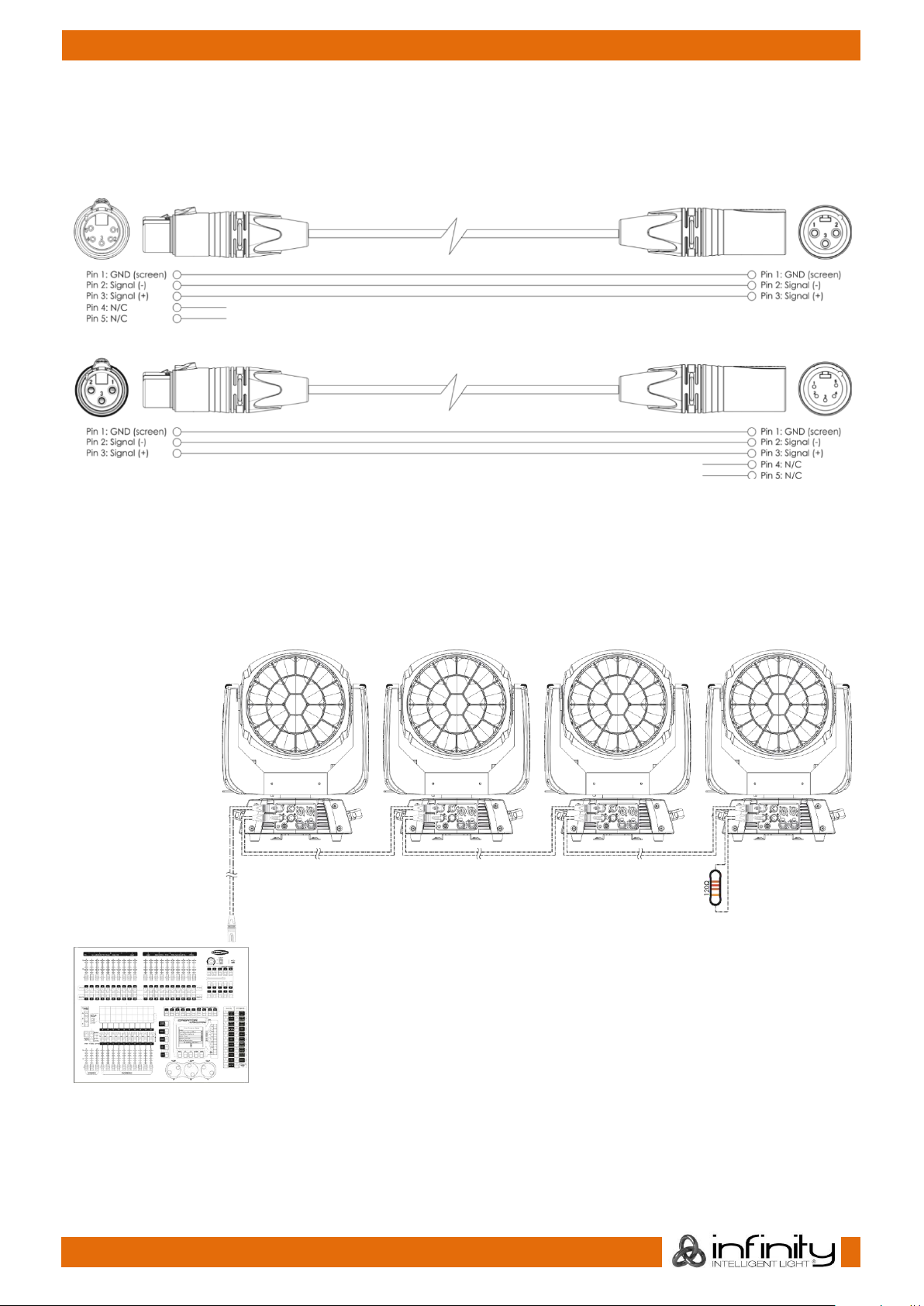

Data Cabling ...............................................................................................................................................................17
Control Panel ...............................................................................................................................................................18
Control Mode ..............................................................................................................................................................18
DMX Addressing ..........................................................................................................................................................18

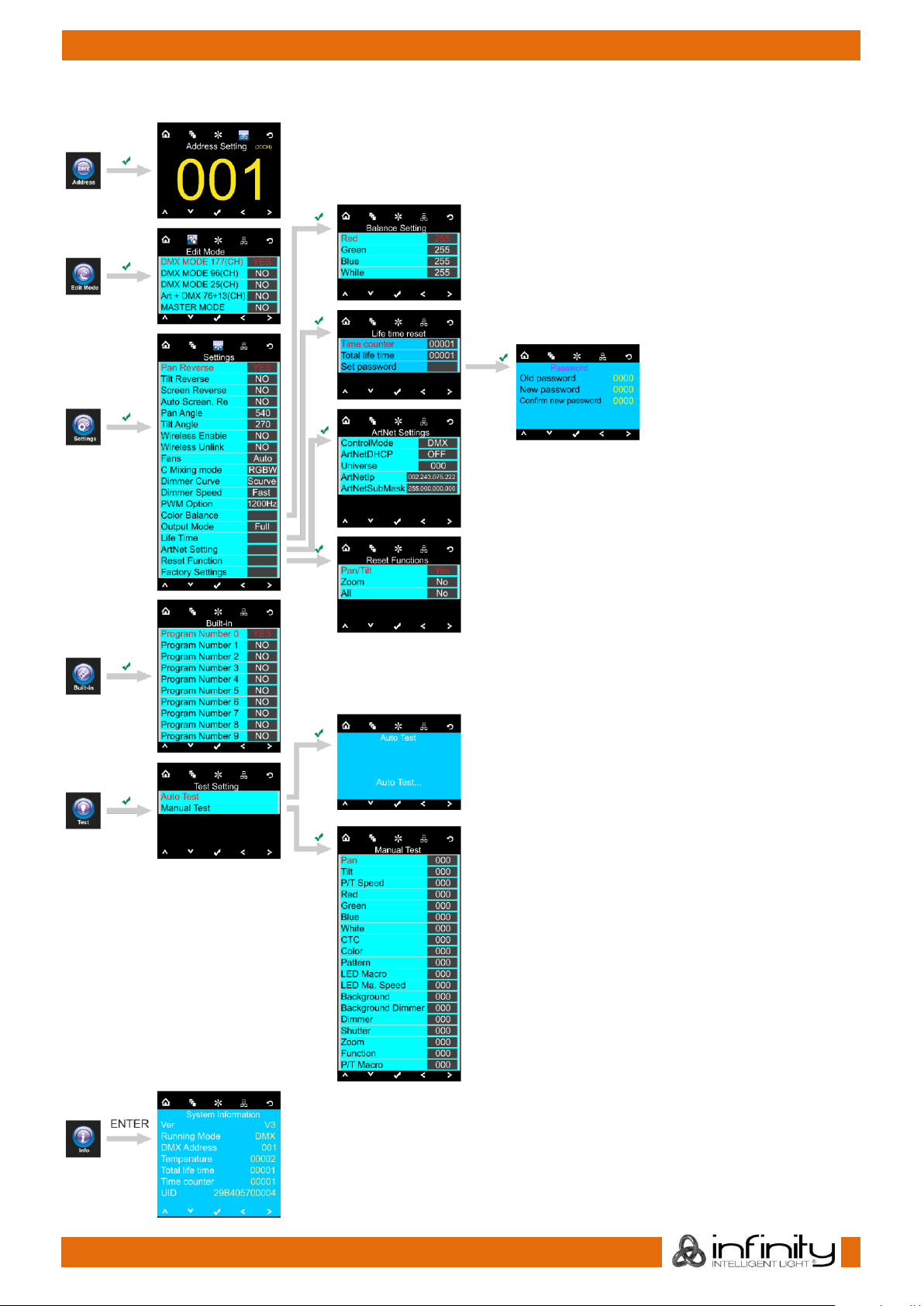

Menu Overview ...........................................................................................................................................................19
Main Menu Options ....................................................................................................................................................20
1. DMX Address ........................................................................................................................................................20

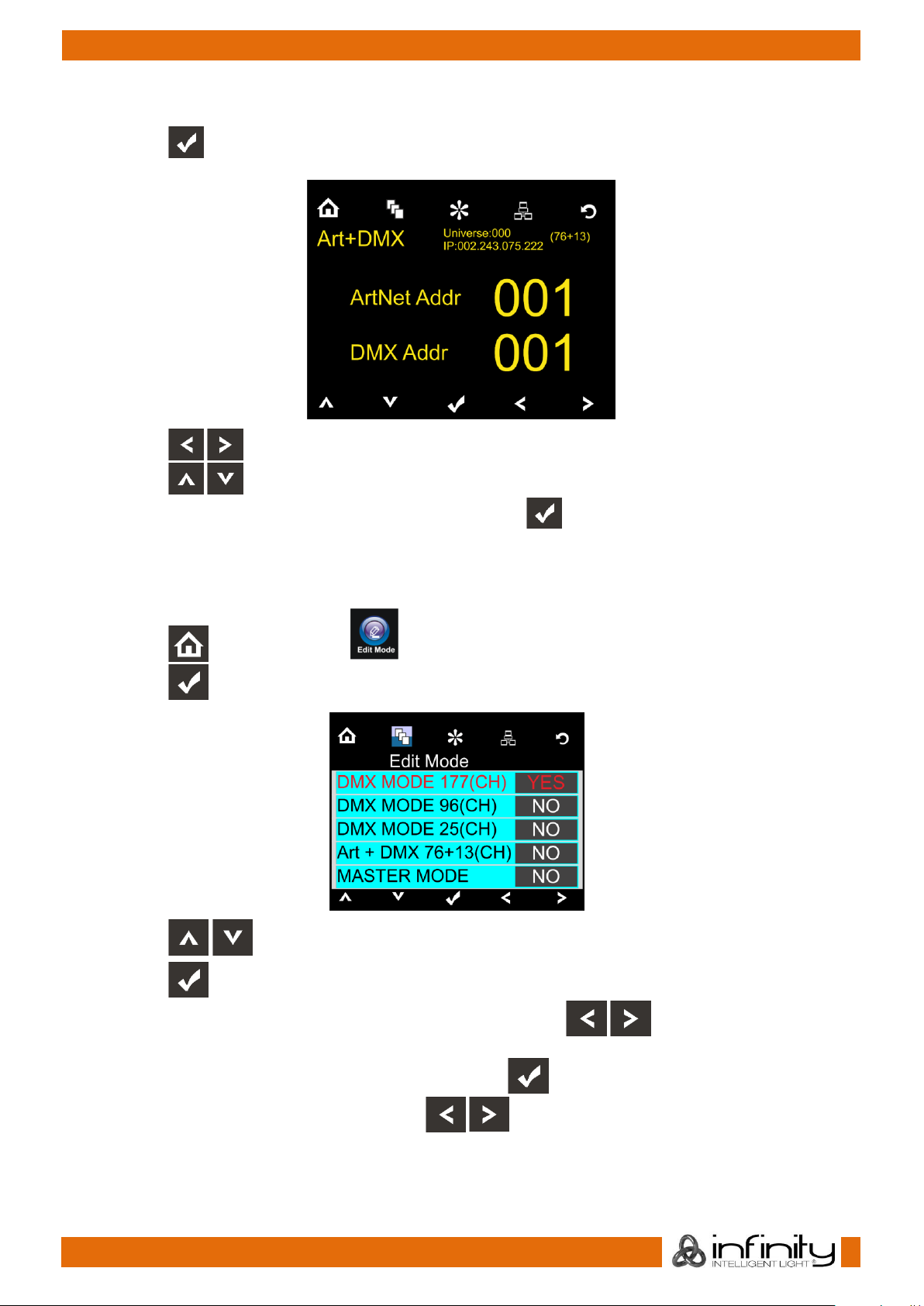

1.2. ArtNet settings (ArtNet + DMX mode) ..........................................................................................................21
2. Edit Mode ..............................................................................................................................................................21

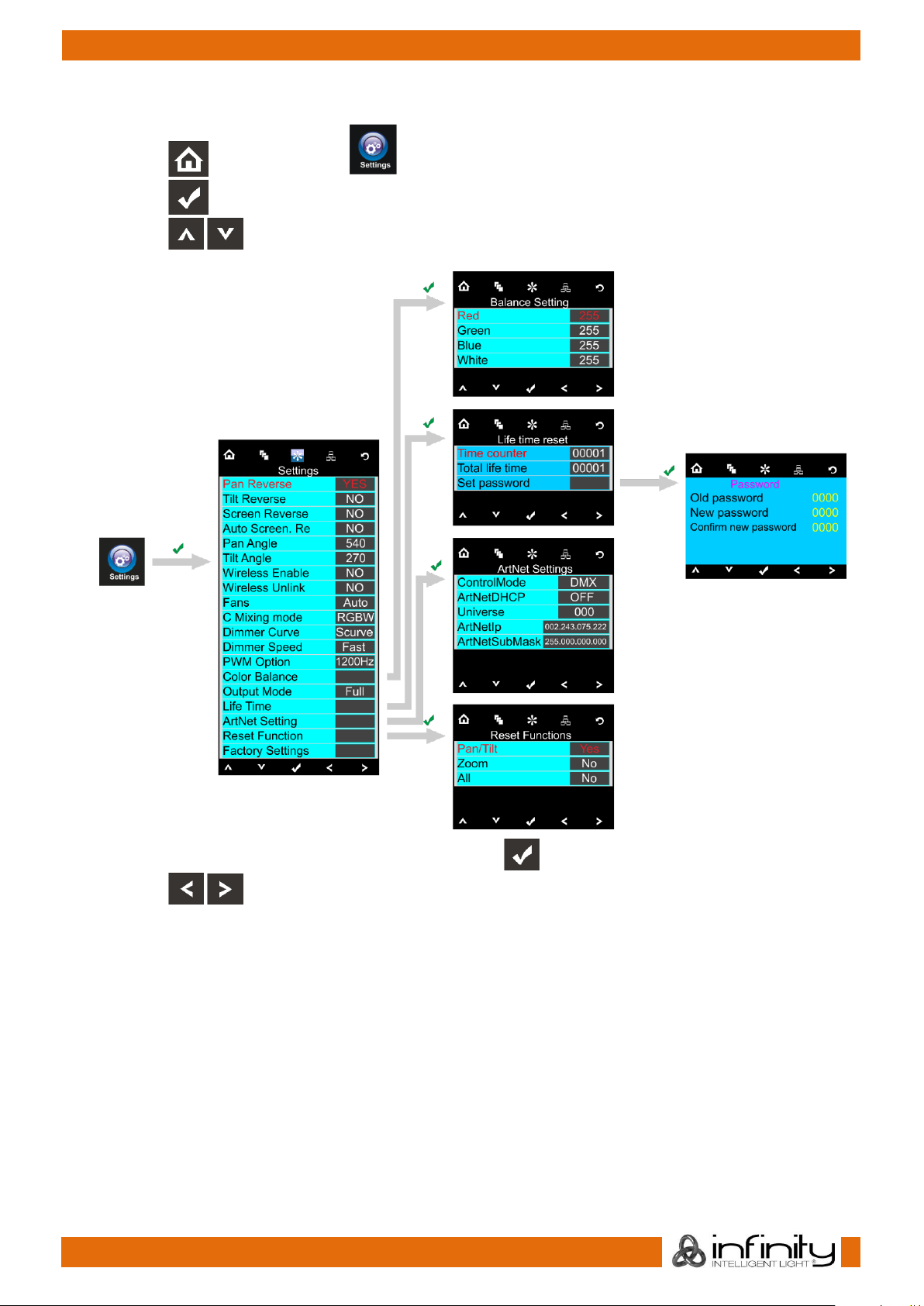

3. Settings Menu .......................................................................................................................................................22
3.1. Color Balance ...................................................................................................................................................23
3.2. Life Time ..............................................................................................................................................................23

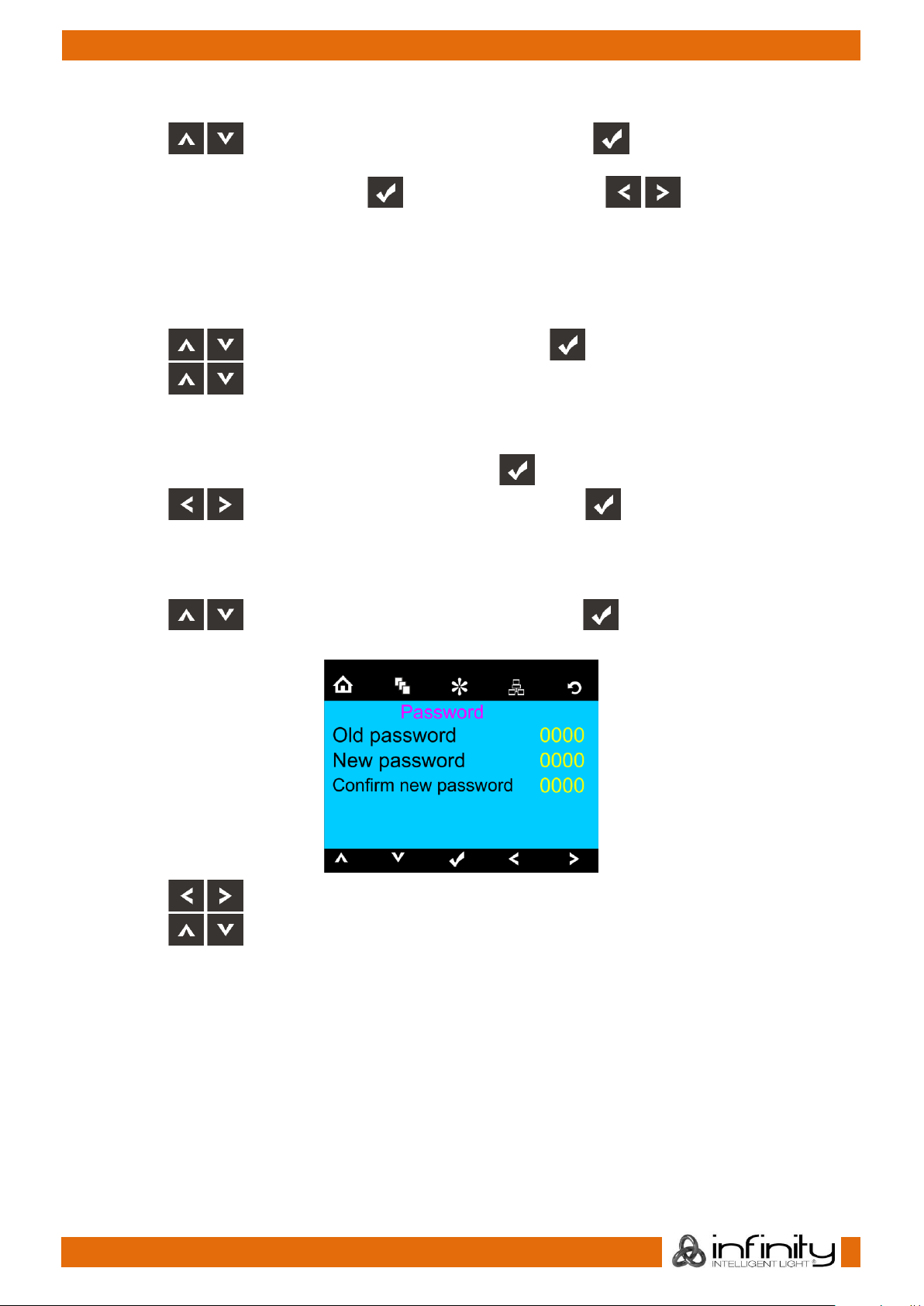

3.2.1. Set Password ..................................................................................................................................................23
3.3. ArtNet Settings ...................................................................................................................................................24
3.4. Reset Functions .................................................................................................................................................24

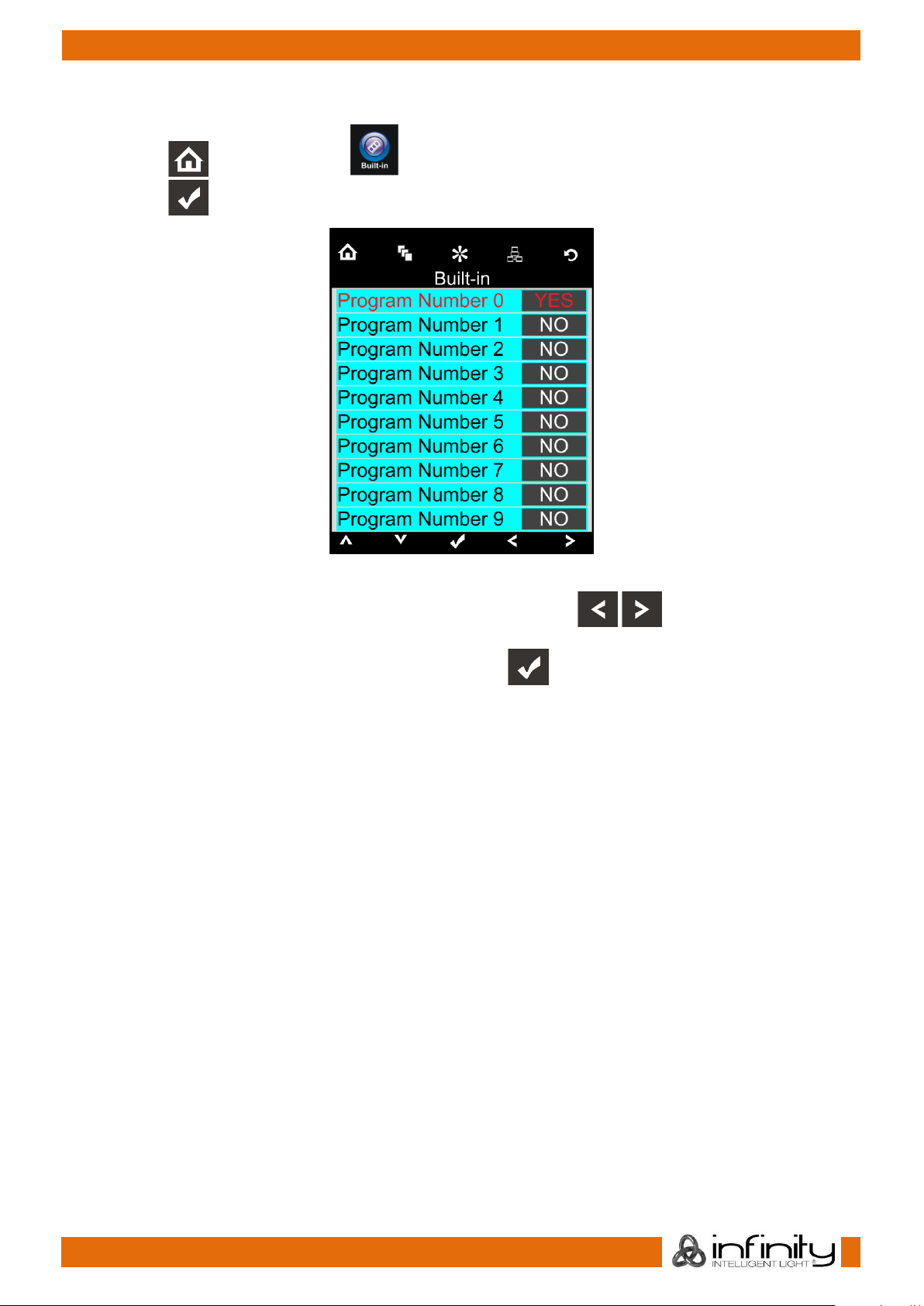

4. Built-in Programs ...................................................................................................................................................25
5. Test Menu ..............................................................................................................................................................26

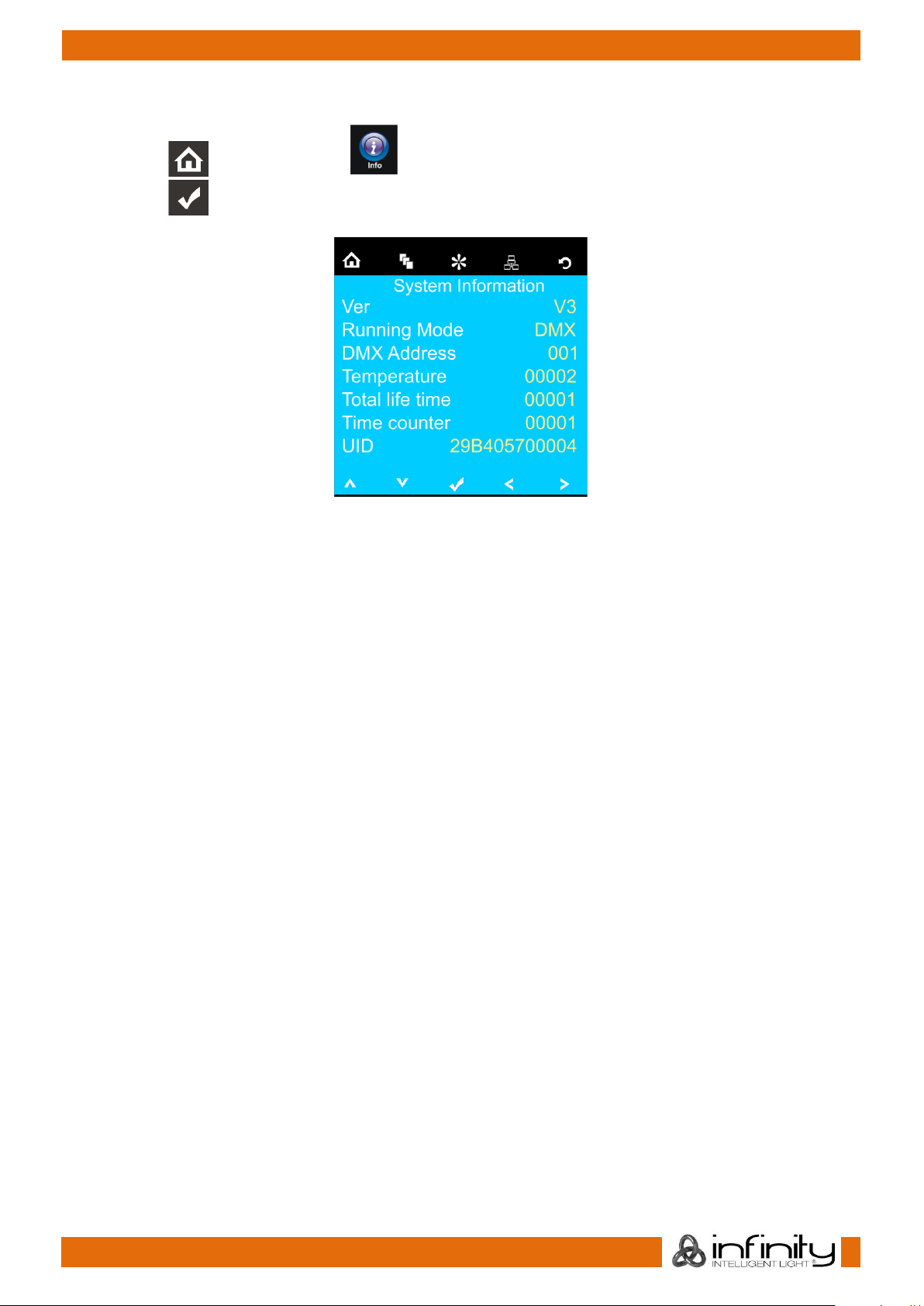

6. Information Menu ................................................................................................................................................27
DMX Channels .............................................................................................................................................................28
25 Channels Basic ....................................................................................................................................................28
DMX Channels .............................................................................................................................................................33
96 Channels Advanced .........................................................................................................................................33
DMX Channels .............................................................................................................................................................39
177 Channels Advanced 16bit .............................................................................................................................39
DMX Channels .............................................................................................................................................................45
76+13 Channels ArtNet + DMX ..............................................................................................................................45
Maintenance ....................................................................................................................................................................48
Replacing a Fuse ........................................................................................................................................................48
Page 3
2
Ordercode: 41529
Infinity iW-1941 RDM
Troubleshooting ...............................................................................................................................................................49
No Light .........................................................................................................................................................................49
No Response to DMX..................................................................................................................................................49
Product Specifications ....................................................................................................................................................51

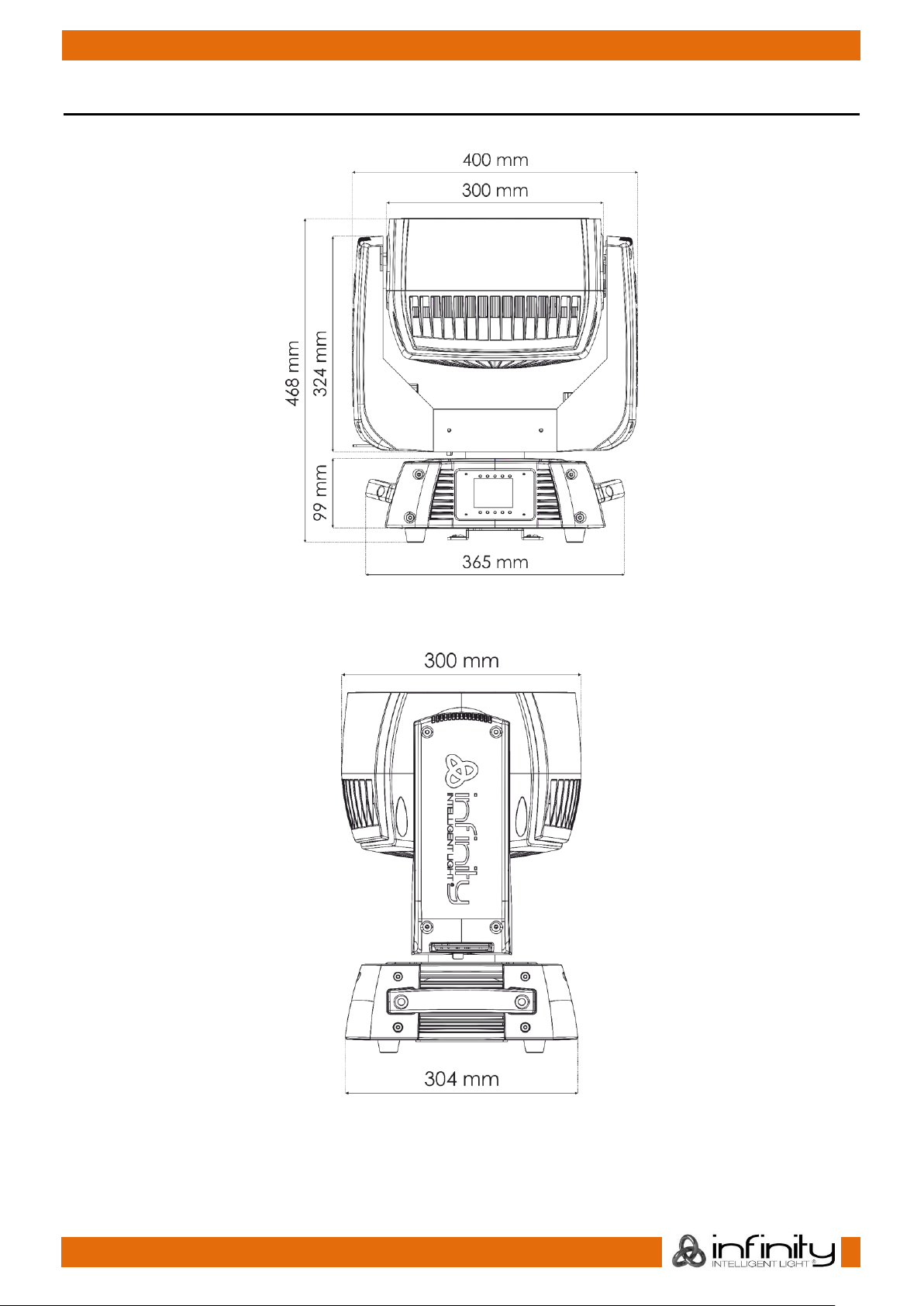

Dimensions ........................................................................................................................................................................52
Notes ..................................................................................................................................................................................53
Page 4
3
Ordercode: 41529
Infinity iW-1941 RDM
Warning
Unpacking Instructions
Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure
that all parts are present, and have been received in good condition. Notify the dealer immediately and
retain packing material for inspection if any parts appear damaged from shipping or the carton itself
shows signs of mishandling. Save the carton and all packing materials. In the event that a fixture must be
returned to the factory, it is important that the fixture be returned in the original factory box and packing.

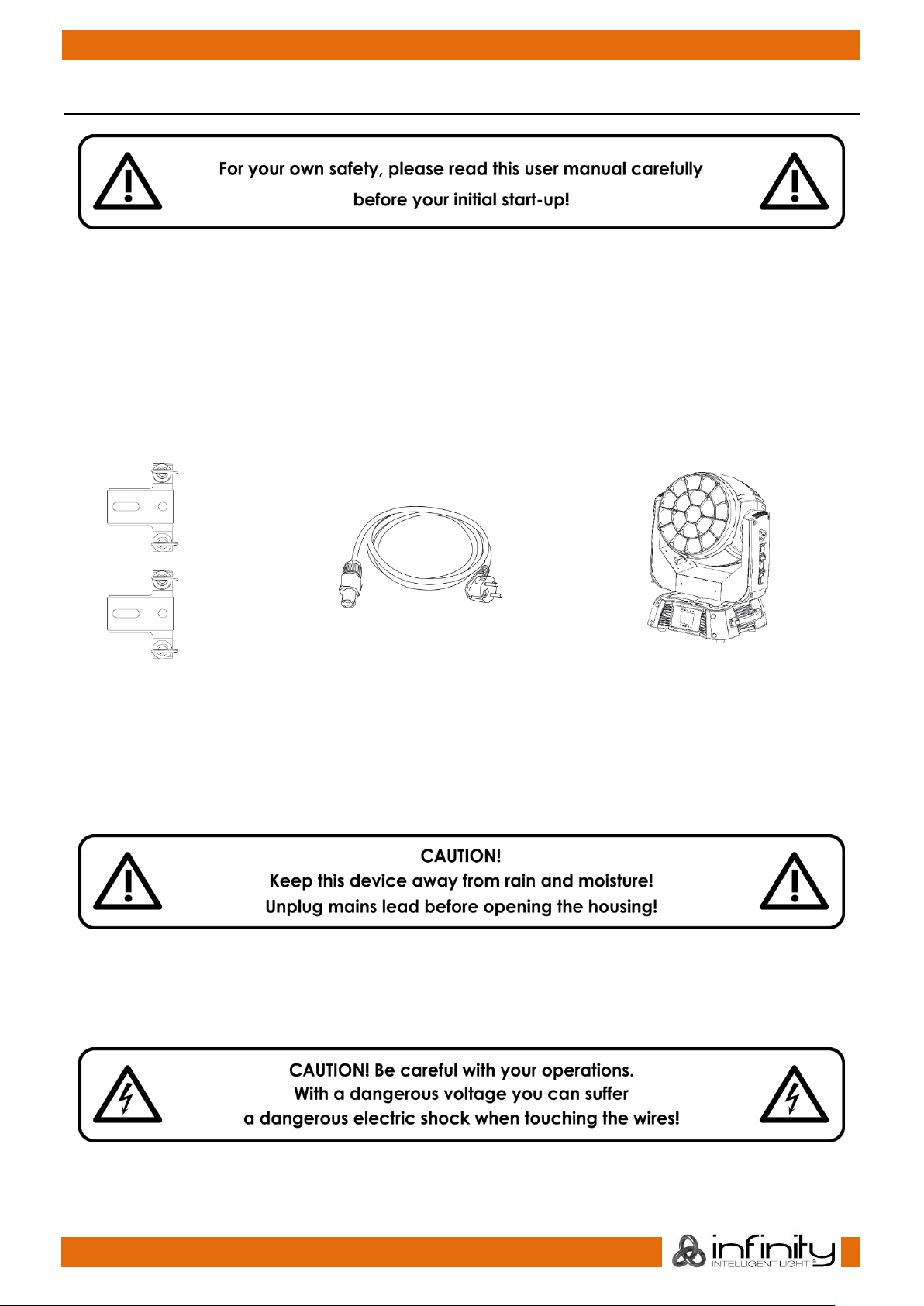

Your shipment includes:
Infinity iW-1941 RDM with PowerCON cable (1,4 m)
2 brackets for truss mounting
User manual
LED Expected Lifespan
LEDs gradually decline in brightness over time. HEAT is the dominant factor that leads to the acceleration
of this decline. Packaged in clusters, LEDs exhibit higher operating temperatures than in ideal or singular
optimum conditions. For this reason when all color LEDs are used at their fullest intensity, life of the LEDs is
significantly reduced. If improving your lifespan expectancy is of a higher priority, place care in providing
for lower operational temperatures. This may include climatic-environmental and the reduction of overall
projection intensity.
Safety Instructions
Every person involved with the installation, operation and maintenance of this device has to:
be qualified
follow the instructions of this manual
Before your initial start-up, please make sure that there is no damage caused by transportation. Should
there be any, consult your dealer and do not use the device.
Page 5
4
Ordercode: 41529
Infinity iW-1941 RDM
To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to
follow the safety instructions and warning notes written in this manual.
Please consider that damages caused by manual modifications to the device are not subject to
warranty.
This device contains no user-serviceable parts. Refer servicing to qualified technicians only.
IMPORTANT:
The manufacturer will not accept liability for any resulting damages caused by the non-observance of
this manual or any unauthorized modification to the device.
Never let the power cord come into contact with other cables! Handle the power cord and all
connections with the mains with particular caution!
Never remove warning or informative labels from the unit.
Never use anything to cover the ground contact.
Never lift the fixture by holding it at the projector-head, as the mechanics may be damaged. Always
hold the fixture at the transport handles.
Never place any material over the lens.
Never look directly into the light source.
Never leave any cables lying around.
Do not insert objects into air vents.
Do not connect this device to a dimmer pack.
Do not switch the device on and off in short intervals, as this would reduce the device’s life.
Do not touch the device’s housing bare-handed during its operation (housing becomes very hot).
Allow the fixture to cool for at least 5 minutes before handling.
Do not shake the device. Avoid brute force when installing or operating the device.
Only use device indoors, avoid contact with water or other liquids.
Only operate the fixture after having checked that the housing is firmly closed and all screws are
tightly fastened.
Only operate the device after having familiarized with its functions.
Avoid flames and do not put close to flammable liquids or gases.
Always keep case closed while operating.
Always allow free air space of at least 50 cm around the unit for ventilation.
Always disconnect power from the mains, when device is not used or before cleaning! Only handle
the power cord by the plug. Never pull out the plug by tugging the power cord.
Make sure that the device is not exposed to extreme heat, moisture or dust.
Make sure that the available voltage is not higher than stated on the rear panel.
Make sure that the power cord is never crimped or damaged. Check the device and the power
cord from time to time.
If the lens is obviously damaged, it has to be replaced, so that its functions are not impaired due to
cracks or deep scratches.
If device is dropped or struck, disconnect mains power supply immediately. Have a qualified
engineer inspect for safety before operating.
If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not
switch it on immediately. The arising condensation water might damage your device. Leave the
device switched off until it has reached room temperature.
If your Infinity device fails to work properly, discontinue use immediately. Pack the unit securely
(preferably in the original packing material), and return it to your Infinity dealer for service.
For adult use only. Moving head must be installed out of the reach of children. Never leave the unit
running unattended.
Never attempt to bypass the thermostatic switch or fuses.
For replacement use fuses of same type and rating only.
The user is responsible for correct positioning and operating of the Infinity. The manufacturer will not
accept liability for damages caused by the misuse or incorrect installation of this device.
This device falls under protection class I. Therefore it is essential to connect the yellow/green
conductor to earth.
Repairs, servicing and electric connection must be carried out by a qualified technician.
WARRANTY: Till one year after date of purchase.
Page 6
5
Ordercode: 41529
Infinity iW-1941 RDM
Operating Determinations
This device is not designed for permanent operation. Consistent operation breaks will ensure that the
device will serve you for a long time without defects.
The minimum distance between light-output and the illuminated surface must be more than 1 meter.
To eliminate wear and improve lifespan, during periods of non-use, completely disconnect from
power via breaker or by unplugging.
The maximum ambient temperature ta = 40°C must never be exceeded.
The relative humidity must not exceed 50 % with an ambient temperature of 40° C.
If this device is operated in any other way, than the one described in this manual, the product may
suffer damages and the warranty becomes void.
Any other operation may lead to dangers like short-circuit, burns, electric shock, crash etc.
You endanger your own safety and the safety of others!
Rigging
Please follow the European and national guidelines concerning rigging, trussing and all
other safety issues.
Do not attempt the installation yourself !
Always let the installation be carried out by an authorized dealer !
Procedure:
If the Infinity is lowered from the ceiling or high joists, professional trussing systems have to be used.
Use a clamp to mount the Infinity, with the mounting-bracket, to the trussing system.
The Infinity must never be fixed swinging freely in the room.
The installation must always be secured with a safety attachment, e.g. an appropriate safety net or
safety-cable.
When rigging, derigging or servicing the Infinity, always make sure, that the area below the
installation place is blocked and staying in the area is forbidden.
The Infinity can be placed on a flat stage floor or mounted to any kind of truss with a clamp.
Page 7
6
Ordercode: 41529
Infinity iW-1941 RDM

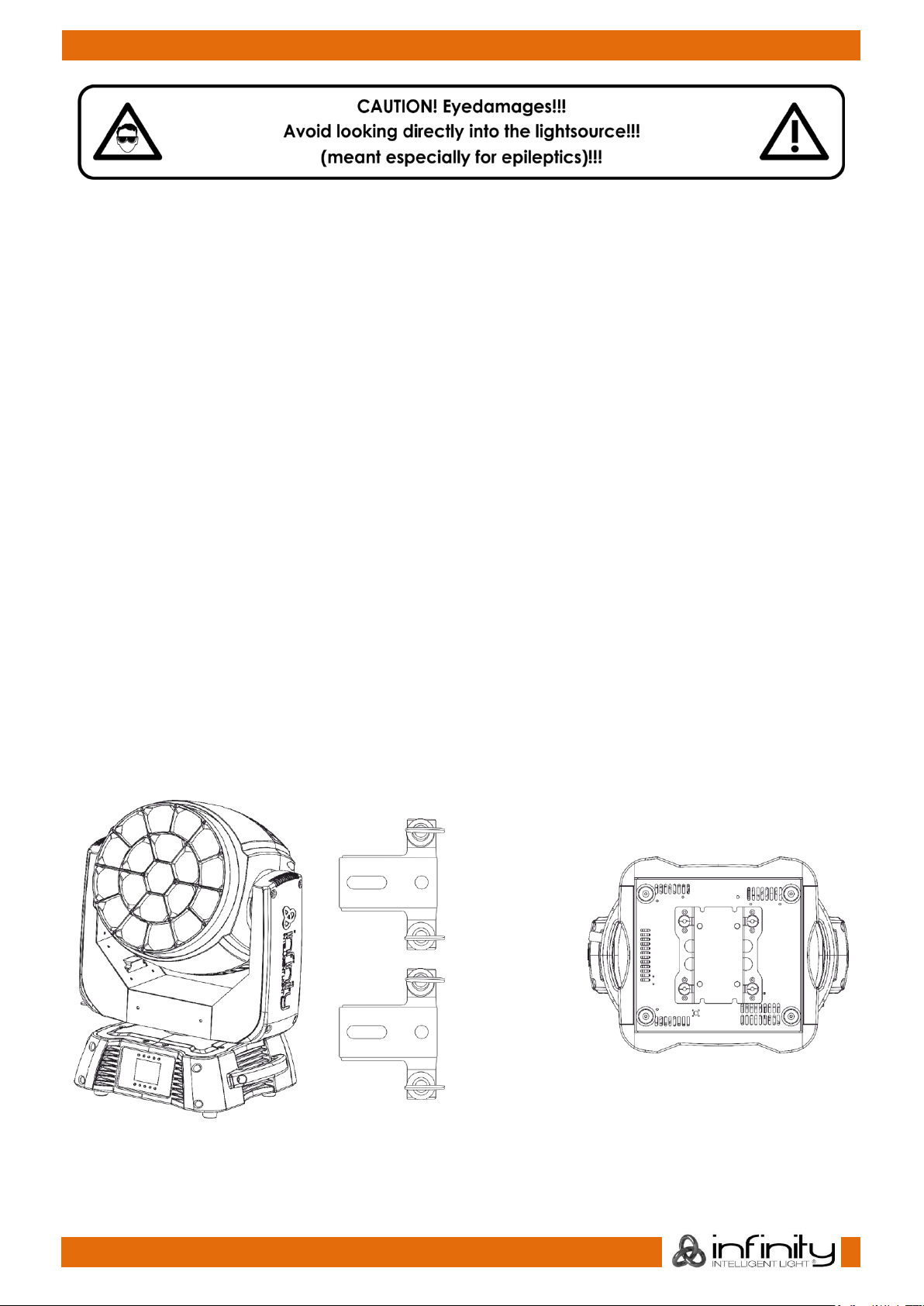

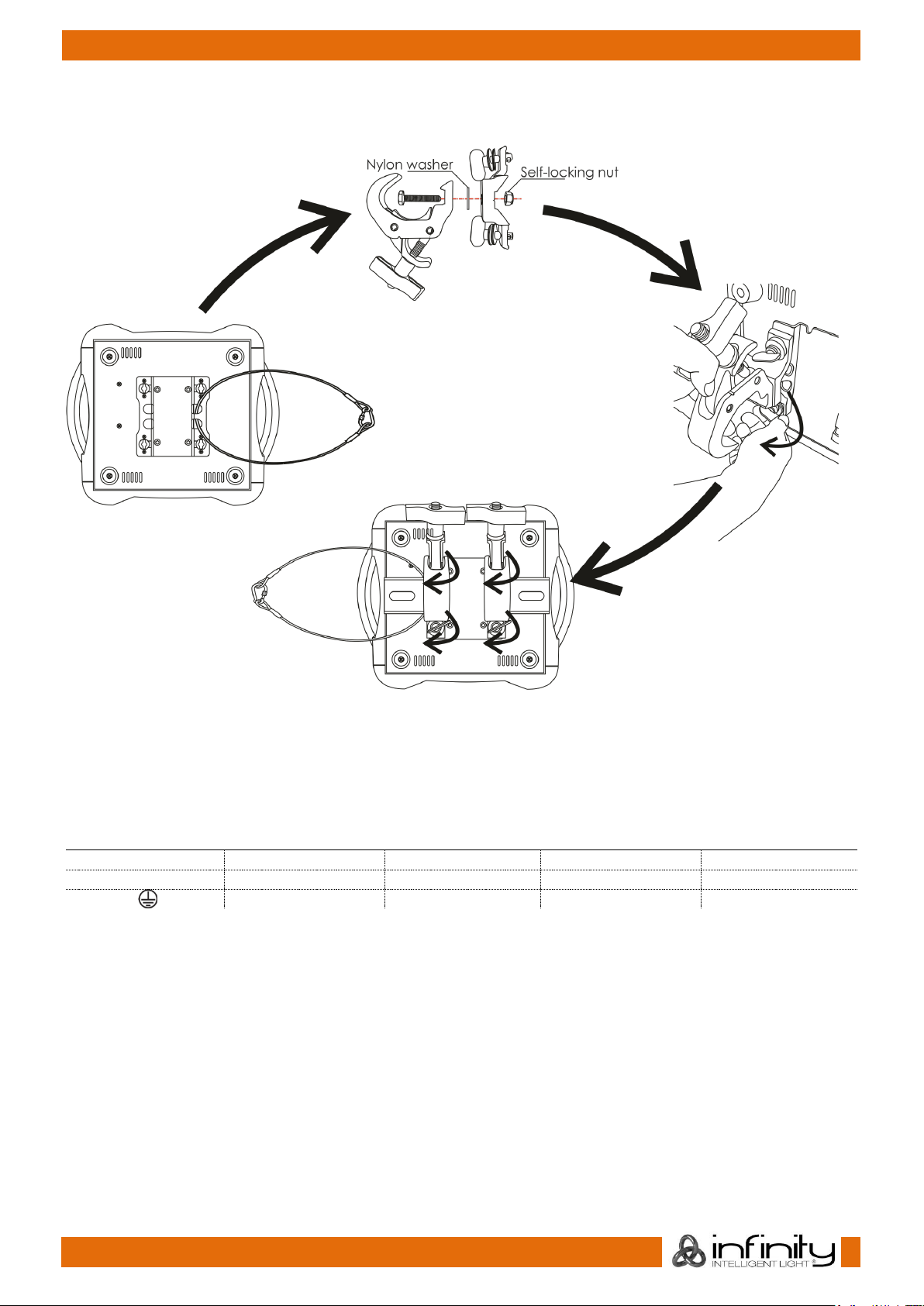

Mounting a clamp to the underside of the Infinity moving head
Improper installation can cause serious injuries and/or damage of property !
Connection with the mains
Connect the device to the mains with the power-plug.
Always pay attention, that the right color cable is connected to the right place.
International
EU Cable
UK Cable
US Cable
Pin
L
BROWN
RED
YELLOW/COPPER
FASE
N
BLUE
BLACK
SILVER
NULL
YELLOW/GREEN
GREEN
GREEN
EARTH
Make sure that the device is always connected properly to the earth!
Page 8
7
Ordercode: 41529
Infinity iW-1941 RDM
Return Procedure
Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued.
Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned
without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility.
Call Highlite 0031-455667723 or mail [email protected] and request an RMA prior to shipping the
fixture. Be prepared to provide the model number, serial number and a brief description of the cause of
the return. Be sure to properly pack fixture as any shipping damage resulting from inadequate packaging
is the customer’s responsibility. Highlite reserves the right to use its own discretion to repair or replace
product(s). As a suggestion, proper UPS packing or double-boxing is always a safe method to use.
Note: If you are given an RMA number, please include the following information on a piece of paper
inside the box:
01) Your name.
02) Your address.
03) Your phone number.
04) A brief description of the symptoms.
Claims
The client has the obligation to check the delivered goods immediately upon delivery for any shortcomings and/or visible defects, or perform this check after our announcement that the goods are at their
disposal. Damage incurred in shipping is the responsibility of the shipper; therefore the damage must be
reported to the carrier upon receipt of merchandise.
It is the customer's responsibility to notify and submit claims with the shipper in the event that the fixture is
damaged due to shipping. Transportation damage has to be reported to us within one day after receipt
of the delivery.
Any return shipment has to be made post-paid at all times. Return shipments must be accompanied with
a letter defining the reason for return shipment. Non-prepaid return shipments will be refused, unless
agreed otherwise in writing.
Complaints against us must be made known in writing or by fax within 10 working days after receipt of the
invoice. After this period, complaints will not be handled anymore.
Complaints will only be considered if the client has so far complied with all parts of the agreement,
regardless of the agreement of which the obligation is resulting.
Page 9
8
Ordercode: 41529
Infinity iW-1941 RDM
Description of the device
Features
The Infinity iW-1941 RDM is a wash moving head with high output and great effects.
Pixel control
Zoom 3,6° to 60°
Selectable PWM rate by DMX
Battery powered touch display
Lumen 101571 Lux @ 3m
Beam angle: 3,6° to 60°
Light source: 19x 40W RGBW (Osram)
Input voltage: 100-240V AC, 50/60Hz (auto ranging)
Power consumption: 625W
Light output: 101571 Lux @ 3m
Beam angle: 3,6°-60° motorized zoom
Dimmer: 0-100%, 16 bit
Strobe: 0-20Hz
Dimmer curves: Linear, Square, Inv-Square, S curve
Dimmer speed: Smooth, Fast
Channel modes: 25, 96, 177, 76+13channels
Onboard: Battery powered full color display including gravity sensor
Color balance: Separate RGBW adjustment
Color mode: RGBW/CMY
Control Protocol: DMX, Artnet, RDM
Pan / Tilt movement blackout, User-selectable Pan / Tilt ranges, 540°/360°/180° Reverse Pan / Tilt
movement, Fan control (auto, full, silent)
Pan 0º-540º
Tilt 0º-270º
Pan/Tilt resolution: 16 bit
Control: DMX-512, Master/Slave, Built-in Programs
Housing: Metal & flame-retardant plastic
Color: Black
Connections: 3-pin + 5-pin XLR data IN/OUT
Neutrik PowerCON IN/OUT
Wireless DMX: optional available
Max. ambient temp: 45º
Fuse: T10AL/250V
Dimensions: 365 x 304 x 468 mm (LxWxH)
Weight: 19,26 kg
Note: Knowledge of DMX is required to fully utilize this unit.
Optional accessories
MOD41526 – Wireless DMX upgrade kit
The Wireless DMX upgrade kit should be installed ONLY by a qualified technician.
Do not attempt installation yourself!
Page 10
9
Ordercode: 41529
Infinity iW-1941 RDM

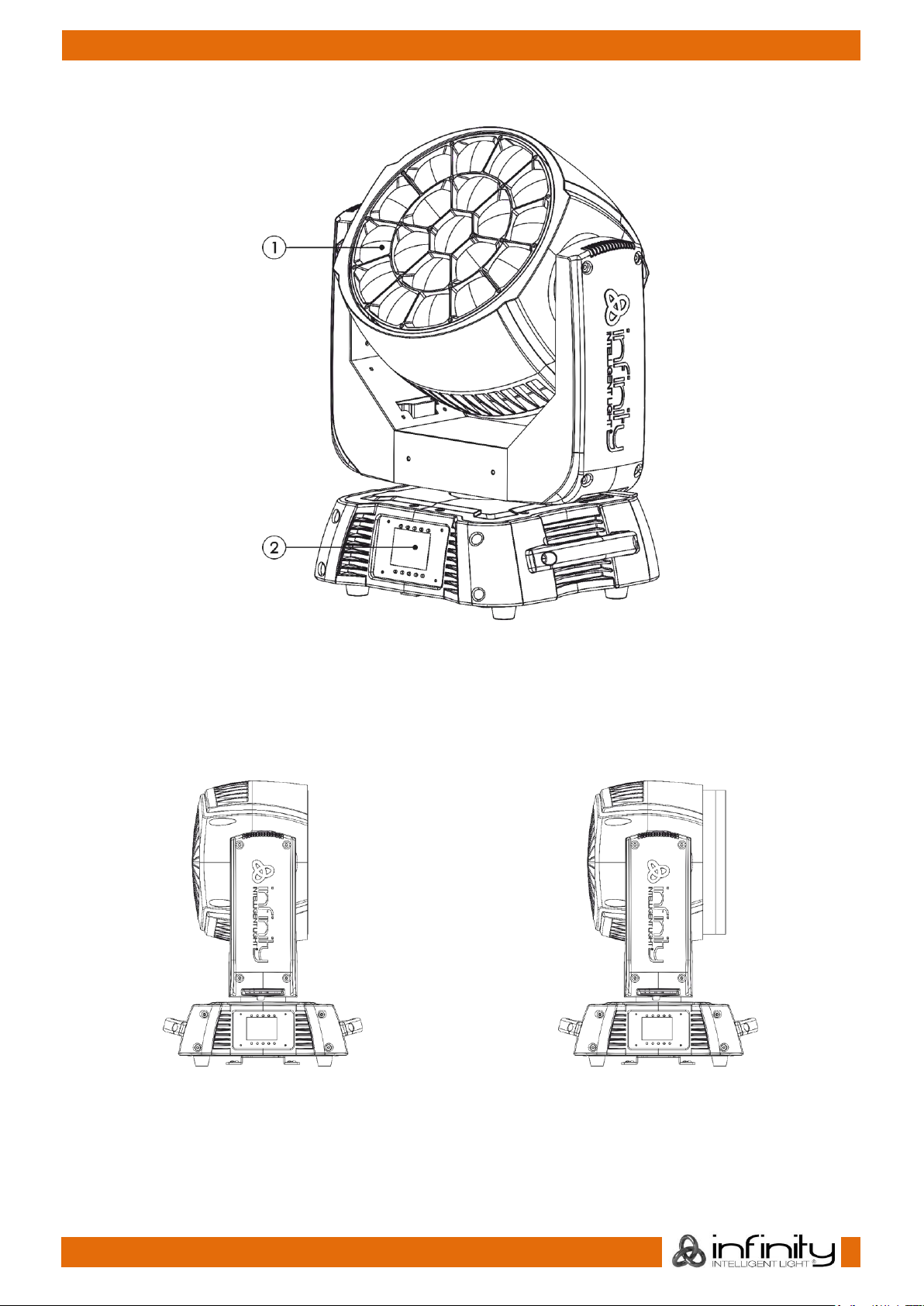

Overview
Fig. 01
01) 19x 40W RGBW 4-in-1 Osram
02) Control buttons + LCD display
Beam angle 3,6°-Electronic adjustment
Beam angle 60°- Electronic adjustment
Fig. 02
Page 11
10
Ordercode: 41529
Infinity iW-1941 RDM
Backside
Fig. 03
03) 3-pin DMX signal connector IN
04) 3-pin DMX signal connector OUT
05) Fuse T5AL/250V
06) Ground/earth connection
07) 5-pin DMX signal connector OUT
08) RJ45 ArtNet connector
09) RJ45 ArtNet connector
10) Neutrik PowerCON OUT (Gray)
11) Neutrik PowerCON IN (Blue)
12) 5-pin DMX signal connector IN
Page 12
11
Ordercode: 41529
Infinity iW-1941 RDM
Installation
Remove all packing materials from the Infinity iW-1941 RDM. Check that all foam and plastic padding is
removed. Connect all cables.
Do not supply power before the whole system is set up and connected properly.
Always disconnect from electric mains power supply before cleaning or servicing.
Damages caused by non-observance are not subject to warranty.

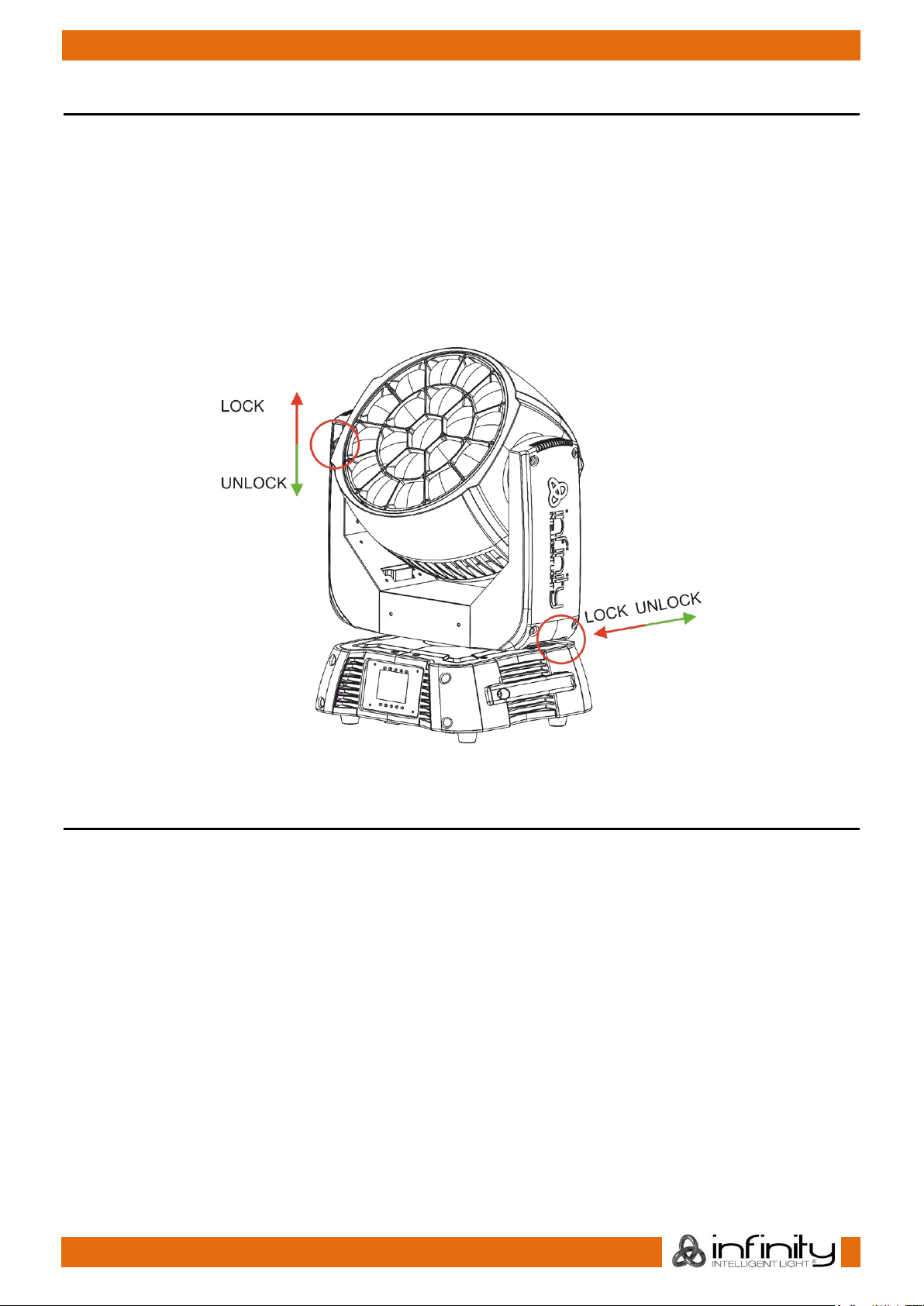

Lock/Unlock the Moving Head
You can lock the moving head by sliding the lock pin to the left (horizontally) for Pan or upwards
(vertically) for Tilt (Red arrows). You can unlock the moving head by sliding the lock pin to the right
(horizontally) for Pan or downwards (vertically) for Tilt (Green arrows).
Fig. 04
Set Up and Operation
Follow the directions below, as they pertain to your preferred operation mode.
Before plugging the unit in, always make sure that the power supply matches the product specification
voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa.
Page 13
12
Ordercode: 41529
Infinity iW-1941 RDM
Control Modes
There are 4 modes:
● Stand-alone (built-in programs)
● Master/Slave
● DMX512 (25CH, 96CH, 177CH)
● ArtNet + DMX (76+13CH)
One Infinity (Built-in Programs)
01) Fasten the effect light onto firm trussing. Leave at least 1 meter on all sides for air circulation.
02) Always use a safety cable (ordercode 70140 / 70141).
03) Plug the end of the electric mains power cord into a proper electric power supply socket.
04) When the Infinity is not connected with a DMX cable, it functions as a stand-alone device.
05) Please see page 25 for more information about the built-in programs.
Multiple Infinity’s (Master/Slave control)
01) Fasten the effect light onto firm trussing. Leave at least 1 meter on all sides for air circulation.
02) Always use a safety cable (ordercode 70140 / 70141).
03) Plug the end of the electric mains power cord into a proper electric power supply socket.
04) Use a 3-pin XLR cable to connect the Infinity.
The pins:
1. Earth
2. Signal (-)
3. Signal (+)
05) Link the units as shown in fig. 05. Connect a DMX signal cable from the first unit's DMX "out" socket to
the second unit's "in" socket. Repeat this process to link the second, third and fourth units. You can
use the same functions on the master device as described on page 25 (Built-in Programs). This means
that you can set your desired operation mode on the master device and all slave devices will react
the same as the master device.
Multiple Infinity’s (Master/Slave control)
Fig. 05
Page 14
13
Ordercode: 41529
Infinity iW-1941 RDM
Multiple Infinity’s (DMX Control)
01) Fasten the effect light onto firm trussing. Leave at least 1 meter on all sides for air circulation.
02) Always use a safety cable (ordercode 70140 / 70141).
03) Plug the end of the electric mains power cord into a proper electric power supply socket.
04) Use a 3-pin XLR cable to connect the Infinity’s and other devices.
05) Link the units as shown in fig. 06. Connect a DMX signal cable from the first unit's DMX "out" socket to
the second unit's "in" socket. Repeat this process to link the second, third and fourth units.
06) Supply electric power: Plug electric mains power cords into each unit's PowerCON socket, then plug
the other end of the mains power cord into proper electric power supply sockets, starting with the
first unit. Do not supply power before the whole system is set up and connected properly.
Multiple Infinity’s DMX Set Up
Fig. 06
Note: Link all cables before connecting electric power
Page 15
14
Ordercode: 41529
Infinity iW-1941 RDM
Multiple Infinitys (ArtNet Control)
01) Fasten the effect light to a firm trussing. Leave at least 0,5 meter on all sides for air circulation.
02) Always use a safety cable (ordercode 70140 / 70141).
03) Use a CAT-5/CAT-6 cable to connect the Infinity and other devices.
04) Connect your PC with installed ArtNet software to the first device’s RJ45 "in" socket.
05) Link the units as shown in fig. 06. Connect the first unit's RJ45 "out" socket with the second unit's "in"
socket, using a CAT-5/CAT-6 cable. Repeat this process to link the second, third, and fourth units.
06) Supply electric power: Plug electric mains power cords into each unit's PowerCON socket, then plug
the other end of the mains power cord into proper electric power supply sockets, starting with the
first unit. Do not supply power before the whole system is set up and connected properly.
Multiple Infinitys ArtNet Set Up
Fig. 07
Note : Link all cables before connecting electric power
Page 16
15
Ordercode: 41529
Infinity iW-1941 RDM
Connecting to a Network

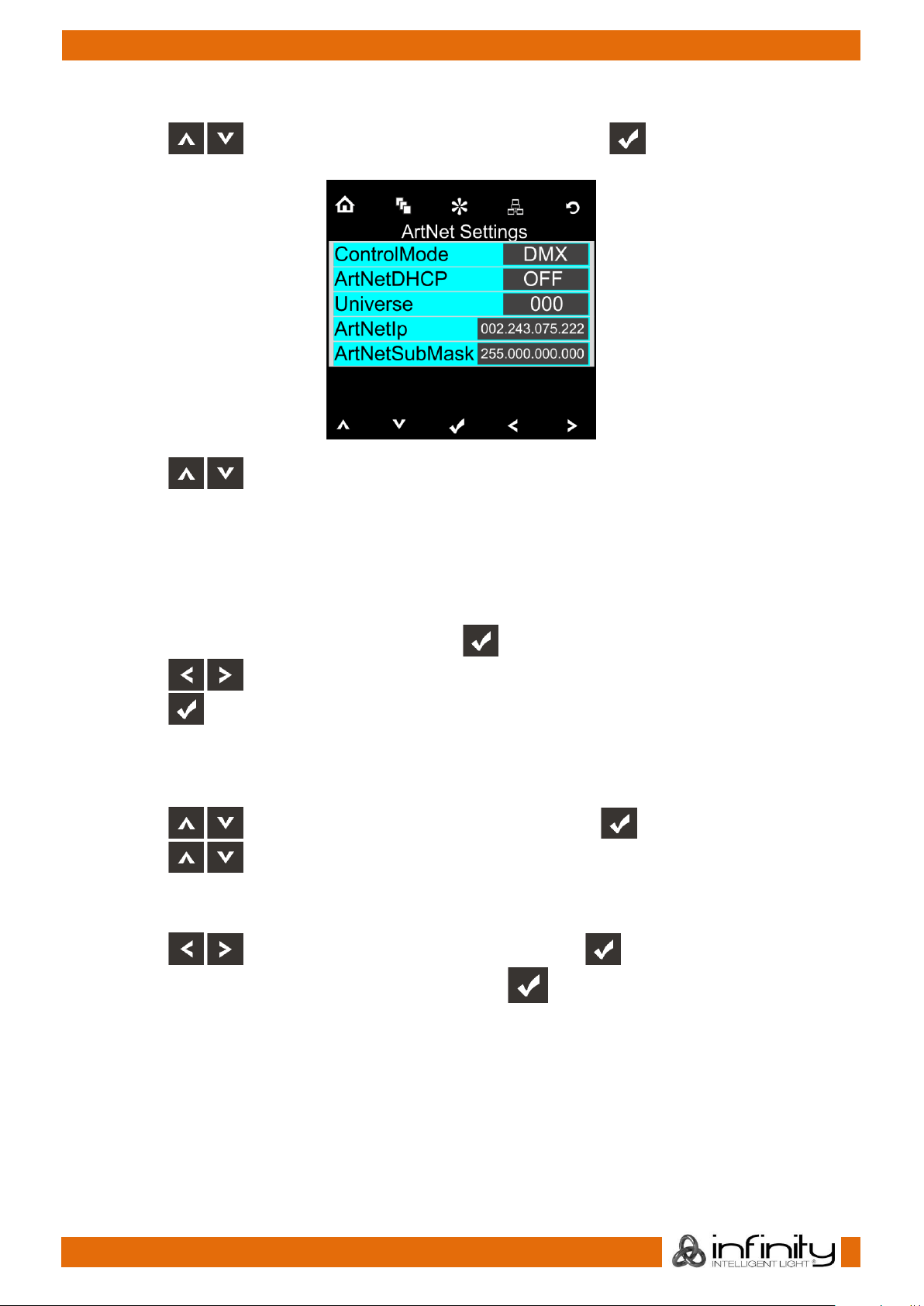

ArtNet Settings
01) Install any ArtNet-based software on your PC (Windows or Mac) or use a light controller which
supports ArtNet.
02) Connect the power supply to the Infinity.
03) Connect the device’s Ethernet connector to your software/light controller’s Ethernet connector,
using a CAT-5/CAT-6 cable.
04) Set the IP address of your software/light controller to 2.x.x.x or 10.x.x.x, depending on the ArtNet
settings.
05) Set the subnet mask to 255.0.0.0. on both – the Infinity and your software/light controller. Make sure
that all the fixtures in the network have a unique IP address.
06) If you want to connect more fixtures, follow the example below.
Example:
01) Make sure that each connected Infinity has a unique IP address.
02) Make sure that the subnet mask on each device is set to 255.0.0.0.
03) Set the universe of the first Infinity to 1.
04) Set the first Infinity’s DMX address to 001.
05) Please note, that you can connect only 8 devices (8 x 57 channels = 456 channels needed). Due to
the channel limit of 512, you cannot connect the 9th device to the same data line, as it would result
in limited functionality of the 9th device.
06) In order to solve this problem, set the universe of the 9
th
S601 to 2 and its DMX address to 001.
07) When connecting multiple devices, you can repeat steps 5 and 6 up to 255 times, each time
inserting ascending universe numbers (as there are 255 universes available).
08) Using your software (for example 50224 - Arkaos Media Master Express), map all the connected
devices, using the settings described above.
09) The Infinity S601’s are now ready for use.
10) When creating large setups, it is recommended to use a 16-bit, high speed ethernet switch to
distribute the ArtNet data signal.
Page 17
16
Ordercode: 41529
Infinity iW-1941 RDM
How to Make a Data Cable
A standard ETHERNET cable can be used to replace the data cable required to transmit the data for the
S601.
Please follow the instructions below in order to create an extra net cable.
Take a standard net cable (CAT-5/ 5E /6) and connect it to the RJ45 connector, as shown in the picture
below (fig. 07). The wires should now be colored as follows:
Fig. 07
Software for controlling
Connect all the devices and run your software.
50224
Arkaos Media Master Express
The latest update of the successful media server software.
502267
Arkaos Media Master Pro 4.0: PRO DMX video software for lighting designers.
Page 18
17
Ordercode: 41529
Infinity iW-1941 RDM
Fixture Linking
You will need a serial data link to run light shows of one or more fixtures using a DMX-512 controller or to
run synchronized shows on two or more fixtures set to a master/slave operating mode. The combined
number of channels required by all the fixtures on a serial data link determines the number of fixtures the
data link can support.
Important:
Fixtures on a serial data link must be daisy chained in one single line. To comply with the
EIA-485 standard no more than 30 devices should be connected on one data link.
Connecting more than 30 fixtures on one serial data link without the use of a DMX
optically isolated splitter may result in deterioration of the digital DMX signal.
Maximum recommended DMX data link distance: 100 meters
Maximum recommended number of fixtures on a DMX data link: 30 fixtures
Maximum recommended number of fixtures on a power link @120V: 2 fixtures
Maximum recommended number of fixtures on a power link @230V: 5 fixtures
Data Cabling
To link fixtures together you must obtain data cables. You can purchase DAP Audio certified DMX cables
directly from a dealer/distributor or construct your own cable. If you choose to create your own cable
please use data-grade cables that can carry a high quality signal and are less prone to electromagnetic
interference.
DAP Audio DMX Data Cables
• DAP Audio Basic microphone cable for allround use. bal. XLR/M 3-pin > XLR/F 3-pin. Ordercode
FL01150 (1,5 m), FL013 (3 m), FL016 (6 m), FL0110 (10 m), FL0115 (15 m), FL0120 (20 m).
• DAP Audio X-type data cable XLR/M 3-pin > XLR/F 3-pin. Ordercode FLX0175 (0,75 m),
FLX01150 (1,5 m), FLX013 (3 m), FLX016 (6 m), FLX0110 (10 m).
• DAP Audio cable for the demanding user with exceptional audio-qualities and connector made by
Neutrik®. Ordercode FL71150 (1,5 m), FL713 (3 m), FL716 (6 m), FL7110 (10 m).
• DAP Audio cable for the demanding user with exceptional audio-qualities and connector made by
Neutrik®. Ordercode FL7275 (0,75 m), FL72150 (1,5 m), FL723 (3 m), FL726 (6 m), FL7210 (10 m).
• DAP Audio 110 Ohm cable with digital signal transmission. Ordercode FL0975 (0,75 m),
FL09150 (1,5 m), FL093 (3 m), FL096 (6 m), FL0910 (10 m), FL0915 (15 m), FL0920 (20 m).
• DAP Audio DMX adapter: 3-pin/5-pin. Ordercode FLA30.
The Infinity iW-1941 RDM can be operated with a controller in control mode or without the controller in
stand-alone mode.
Page 19
18
Ordercode: 41529
Infinity iW-1941 RDM

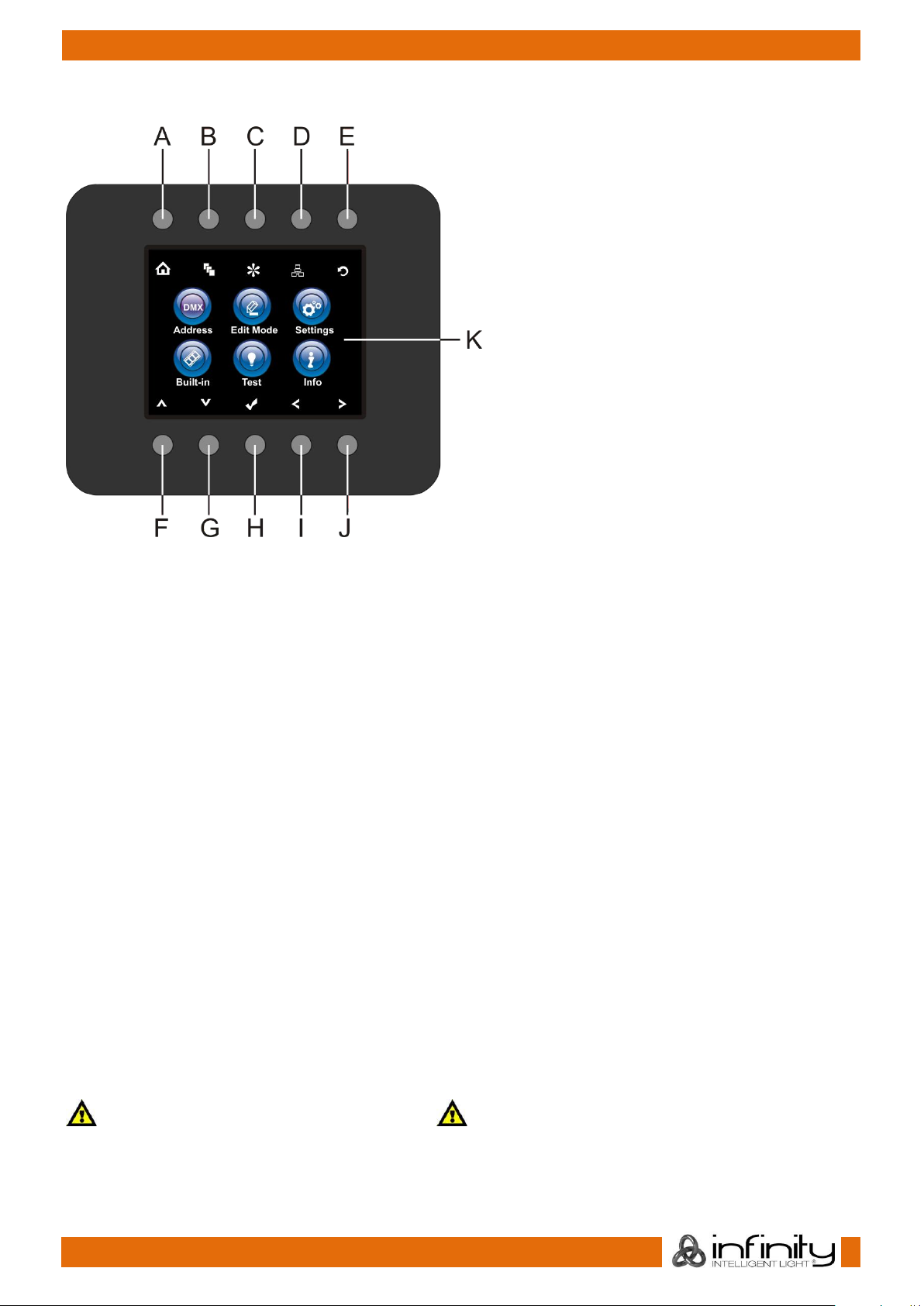

Control Panel
A)
B)
C)
D)
E)
F)
G)
H)
I)
J)
K)
Home button
Edit Menu button
Settings Mode button
Address Setting button
Infinity Logo button/ Previous screen
Up button
Down button
OK/ENTER
Left button
Right button
LCD display
Fig. 08
Control Mode
The fixtures are individually addressed on a data-link and connected to the controller.
The fixtures respond to the DMX signal from the controller. (When you select the DMX address and save it,
the controller will display the saved DMX address the next time.)
DMX Addressing
The control panel on the front side of the base allows you to assign the DMX fixture address, which is the
first channel from which the Infinity will respond to the controller.
Please note when you use the controller, the unit has 177 channels.
When using multiple Infinitys, make sure you set the DMX addresses right.
Therefore, the DMX address of the first Infinity should be 1(001); the DMX address of the second Infinity
should be 1+177=178 (178); the DMX address of the third Infinity should be 178+177=355 (355), etc.
Please, be sure that you do not have any overlapping channels in order to control each Infinity correctly.
If two or more Infinity’s are addressed similarly, they will work similarly.
For address settings, please refer to the instructions under ”Addressing”.
Controlling:
After having addressed all Infinity fixtures, you may now start operating these via your lighting controller.
Note: After switching on, the Infinity will automatically detect whether DMX 512 data is received or not. If
not the problem may be:
The XLR cable from the controller is not connected with the input of the Infinity.
The controller is switched off or defective, the cable or connector is detective, or the signal wires are
swapped in the input connector.
Note: It’s necessary to insert a XLR termination plug (with 120 Ohm) in the last fixture in order to ensure
proper transmission on the DMX data link.
Display Off after 35 seconds
When no button is pressed for 35 seconds, the display will turn off.
To light up the display, you have to press any of the buttons on the control panel.
Once you have pressed the button, the display will light up.
Page 20
19
Ordercode: 41529
Infinity iW-1941 RDM
Menu Overview
Page 21
20
Ordercode: 41529
Infinity iW-1941 RDM

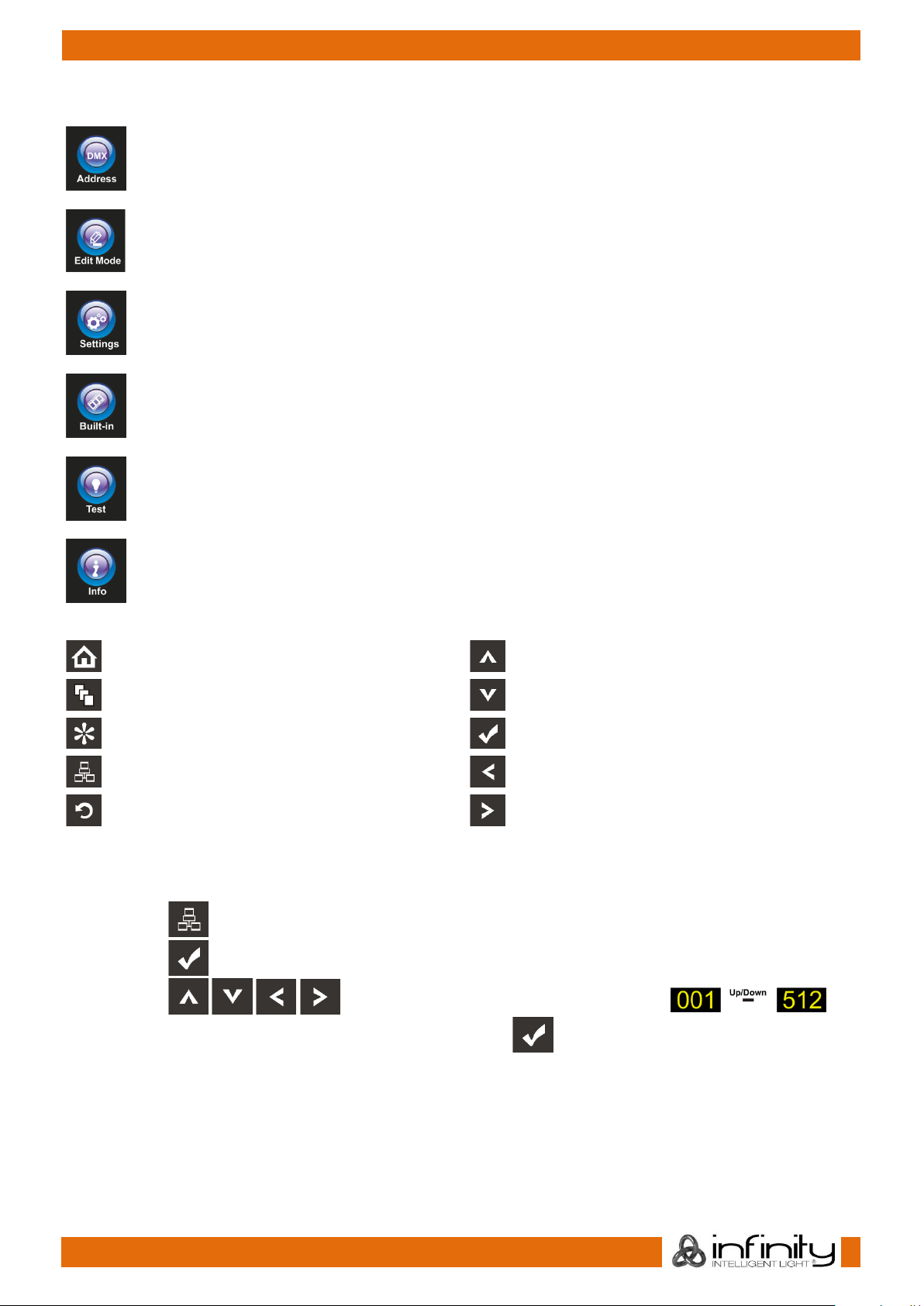

Main Menu Options
DMX address
Edit Mode
Settings Menu
Built-in Programs
Test Mode
Info
Home
Up
Edit Menu
Down
Settings Mode
OK/Enter
Address Setting
Left
Previous screen/Infinity Logo
Right
1. DMX Address
With this menu you can set the DMX address.
01) Press the button.
02) Press the button, to confirm. You can choose 512 different DMX addresses.
03) Press the buttons to select the required address from .
04) Once you have set the desired DMX address, press the button to store your DMX address.
Page 22
21
Ordercode: 41529
Infinity iW-1941 RDM
1.2. ArtNet settings (ArtNet + DMX mode)
01) Activate Art + DMX (76+13) mode (see 2. Edit Mode, page 16).
02) Press the button, to confirm. You can now set the DMX starting address and/or the device’s
ArtNet address.
03) Press the buttons to select the digit which you want to adjust.
04) Press the buttons to change the value.
05) Once you have made all the desired changes, press the button to store.
2. Edit Mode
With this menu you can set your desired DMX personality and running mode.
01) Press the button and select .
02) Press the button, to confirm. You can choose between 5 submenus.
03) Press the buttons to select the desired DMX channels.
04) Press the button, to confirm.
05) Once you have selected the desired DMX channels, press the buttons to change the
value from NO to YES.
06) Once you have selected the desired setting, press the button to store your settings.
07) If you have chosen Master Mode, press the buttons to change the value from NO to YES.
08) If you choose NO in MASTER MODE the device will react as slave, it will react the same as its master
device.
09) If you choose YES in MASTER MODE the device will react as the master, all other devices will react as
a slave device.
Page 23
22
Ordercode: 41529
Infinity iW-1941 RDM
3. Settings Menu
With this menu you can set your desired settings.
01) Press the button and select .
02) Press the button, to confirm. You can choose from 19 different modes.
03) Press the buttons to select the required mode:
04) Once you have selected the desired mode, press the button to proceed to edition.
05) Press the buttons to change the value from NO to YES.
06) Some of the available menus have different options to the regular, YES or NO function:
● Pan Angle: 540°, 360°, 180°
● Tilt Angle: 270°, 180°, 90°
● Fans: Auto, Silent, Full
● C Mixing Mode: RGBW, CMY
● Dimmer Curve: Linear, Square, I Squa, SCurve
● Dimmer Speed: Smooth, Fast
● PWM Option: 600Hz, 1200Hz, 2000Hz, 4000Hz, 6000Hz, 15000Hz
● Output Mode: White, Full
Page 24
23
Ordercode: 41529
Infinity iW-1941 RDM
3.1. Color Balance
With this menu you can set the device’s color brightness.
01) Press the buttons to select Color Balance and press the button to open the menu.
02) You can now adjust 4 colors: Red, Green, Blue, White.
03) Choose the desired color, press the button and then press the buttons to set the
value. The adjustment range is between 0-255, from dark to brightest.
04) You can combine Red, Green, Blue and White to create an infinite range of colors.
3.2. Life Time
With this menu you can reset the device’s counters.
01) Press the buttons to select Life Time and press the button to open the menu.
02) Press the buttons to choose one of the 3 reset options:
● Time Counter (the time counter will be reset)
● Total Life Time (the device’s operation time counter will be reset)
● Set Password
03) If you select Time Counter or Total Life Time, press the button to open the selection menu.
04) Press the buttons to choose either YES or NO. Press the button to confirm.
3.2.1. Set Password
With this menu you can set the new password for the device.
01) Press the buttons to select Set Password and press the button to open the menu.
02) The following screen will pop up:
03) Press the buttons to select the digit which you want to edit.
04) Press the buttons to adjust the values.
Page 25
24
Ordercode: 41529
Infinity iW-1941 RDM
3.3. ArtNet Settings
With this menu you can set the device’s network settings.
01) Press the buttons to select Network Settings and press the button to open the menu.
02) The following screen will pop up:
03) Press the buttons to choose one of the 4 options:
● Control mode (ArtNet, DMX, ArtNet + DMX)
● ArtNet DHCP (If set to ON, the device receives the IP address from the router. If set to OFF, you
can assign your desired IP address to the device.)
● Universe (the device’s universe, 0-255)
● ArtNet IP
● ArtNet submask
04) If you have chosen the desired option, press the button to proceed to edition mode.
05) Press the buttons to adjust the options.
06) Press the button to confirm your choice.
3.4. Reset Functions
With this menu you can reset the device.
01) Press the buttons to select Reset Functions and press the button to open the menu.
02) Press the buttons to choose one of the 3 reset options:
● Pan/Tilt
● Zoom
● All
03) Press the buttons to choose either YES or NO. Press the button to confirm.
04) Once you have selected the desired setting, press the button to store your settings.
Page 26
25
Ordercode: 41529
Infinity iW-1941 RDM
4. Built-in Programs
With this menu you can choose your desired built-in program.
01) Press the button and select .
02) Press the button, to confirm. You can choose 10 different built-in programs.
03) Press the Up / Down buttons to select the required program:
04) Once you have selected the desired built-in program, press the buttons to change the
value from NO to YES.
05) Once you have selected the desired setting, press the button to store your settings.
06) If you have chosen YES the desired built-in program will start automatically.
Page 27
26
Ordercode: 41529
Infinity iW-1941 RDM

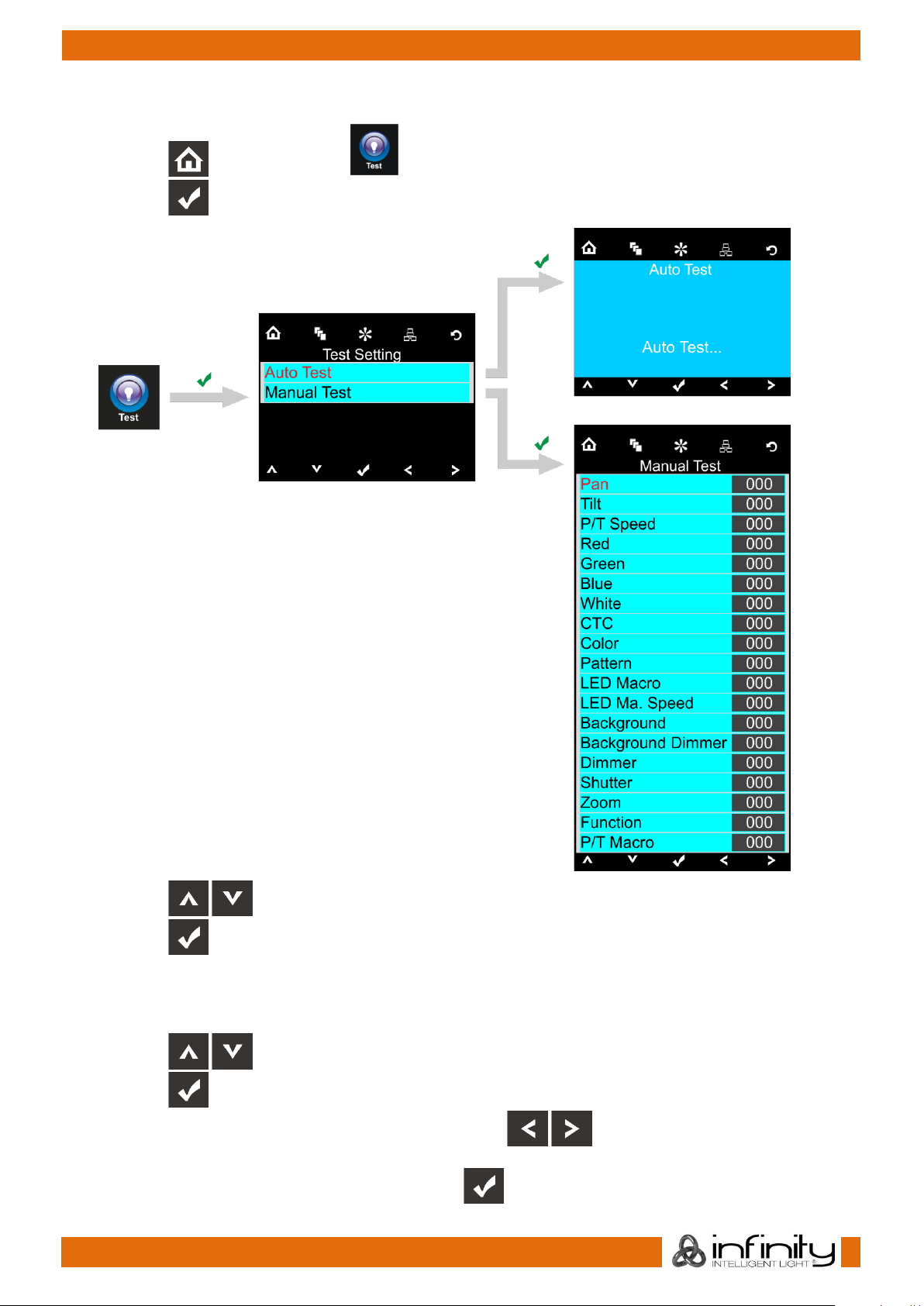

5. Test Menu
With this menu you can test the device automatic or manual.
01) Press the button and select .
02) Press the button, to confirm. You can choose 2 different test modes.
03) Press the buttons to select the required test mode.
04) Press the button, to confirm.
05) If you have chosen AUTO TEST the device will automatically start its auto test program.
06) If you have chosen MANUAL TEST you will enter a submenu. You can choose between 19 test
options: Pan, Tilt, P/T Speed, Red, Green, Blue, White, CTC, Color, Pattern, LED Macro, LED Macro
Speed, Background, Background Dimmer, Dimmer, Shutter, Zoom, Function or P/T Macro.
07) Press the buttons to select the required test option.
08) Press the button, to confirm.
09) Once you have selected the desired option, press the buttons to change the value from
000 to 255.
10) Once you have set the desired option, press the button to store your settings.
Page 28
27
Ordercode: 41529
Infinity iW-1941 RDM
6. Information Menu
With this menu you can see several device settings.
01) Press the button and select .
02) Press the button, to confirm.
03) You can view 7 parameters.
Page 29
28
Ordercode: 41529
Infinity iW-1941 RDM
DMX Channels
25 Channels Basic
Channel 1 – Horizontal movement (Pan)
Move the slider up, in order to move head horizontally (PAN).
Gradual head adjustment from one end of the slider to the other (0-255, 128-center).
The head can be turned by 540° and stopped at any position you wish.
Channel 2 – Vertical movement (Tilt)
Move the slider up, in order to move head vertically (TILT).
Gradual head adjustment from one end of the slider to the other (0-255, 128-center).
The head can be turned by 270° and stopped at any position you wish.
Channel 3 – Pan fine 16 bit
Channel 4 – Tilt fine 16 bit
Channel 5 – Pan / Tilt speed
0-255
From Max Speed (0) to Min. Speed (255)
Channel 6 – Red Main Dimmer intensity (CH21 must be set between 1-255 and CH23 between 20-255 )
0-255
Gradual adjustment Red from 0-100%
Channel 7 – Red Main Dimmer 16Bit (CH21 must be set between 1-255 and CH23 between 20-255 )
0-255
Fine dimmer intensity, from dark to brightest
Channel 8 – Green Dimmer intensity (CH21 must be set between 1-255 and CH23 between 20-255 )
0-255
Gradual adjustment Green from 0-100%
Channel 9 – Green Main Dimmer 16Bit (CH21 must be set between 1-255 and CH23 between 20-255 )
0-255
Fine dimmer intensity, from dark to brightest
Channel 10 – Blue Dimmer intensity (CH21 must be set between 1-255 and CH23 between 20-255 )
0-255
Gradual adjustment Blue from 0-100%
Channel 11 – Blue Main Dimmer 16Bit (CH21 must be set between 1-255 and CH23 between 20-255 )
0-255
Fine dimmer intensity, from dark to brightest
Channel 12 – White Dimmer intensity (CH21 must be set between 1-255 and CH23 between 20-255 )
0-255
Gradual adjustment White from 0-100%
Channel 13 – White Main Dimmer 16Bit (CH21 must be set between 1-255 and CH23 between 20-255 )
0-255
Fine dimmer intensity, from dark to brightest
Channel 14 – CTC correction (CH6 CH8, CH8, CH10, CH12, CH21 must be set between 1-255, CH23 between
20-255 )
0
No function
1-255
Color temperature correction from 19000K to 2700K
Page 30
29
Ordercode: 41529
Infinity iW-1941 RDM
Channel 15 – Color correction (CH21 must be set between 1-255 and CH23 between 20-255 )
0
No function
1-2
White 2700K(R=156，G=118，B=0，W=63
3-4
White 3200K(R=156，G=141，B=5，W=89)
5-6
White 4200K(R=156，G=141，B=14，W=255)
7-8
White 5600K(R=156，G=207，B=54，W=255)
9-10
White 8000K(R=130，G=255，B=96，W=255)
11
Blue（R=0，G=0，B=255，W=0)
12-48
R=0，G+，B=255，W=0
49
Cyan (R=0，G=255，B=255，W=0)
50-86
R=0，G=255，B-，W=0
87
Green (R=0，G=255，B=0，W=0)
88-124
R+，G=255，B=0，W=0
125
Yellow (R=255，G=255，B=0，W=0)
126-162
R=255，G-，B=0，W=0
163
Red (R=255，G=0，B=0，W=0)
164-200
R=255，G=0，B+，W=0
201
Magenta (R=255，G=0，B=255，W=0)
202-238
R-，G=0，B=255，W=0
239
Blue (R=0，G=0，B=255，W=0)
240-247
Color fade with decreasing speed
248-255
Color jump with decreasing speed
Channel 16 – Gobos (CH21 must be set between 1-255 and CH23 between 20-255 )
0
No function
1
Gobo 1
2
Gobo 2
3
Gobo 3
4
Gobo 4
5
Gobo 5
6
Gobo 6
7
Gobo 7
8
Gobo 8
9
Gobo 9
245
Gobo 245
246
Gobo 246
247
Gobo 247
248
Gobo 248
249
Gobo 249
250
Gobo 250
251
Gobo 251
252
Gobo 252
253
Gobo 253
254
Gobo 254
255
On
Page 31
30
Ordercode: 41529
Infinity iW-1941 RDM
Channel 17 – LED Built-in (CH21 must be set between 1-255 and CH23 between 20-255 )
0-15
No function
16
LED built-in 1
17
LED built-in 2
18
LED built-in 3
19
LED built-in 4
20
LED built-in 5
112
LED built-in 1
113
LED built-in 98
114
LED built-in 99
115
LED built-in 100
116
LED built-in 101
117-135
On
136
LED built-in 102 (main)
137
LED built-in 103 (main)
138
LED built-in 104 (main)
139
LED built-in 105 (main)
140
LED built-in 106 (main)
232
LED built-in 199 (main)
233
LED built-in 200 (main)
234
LED built-in 201 (main)
235
LED built-in 202 (main)
236
LED built-in 203 (main)
237-255
LED built-in 204 (main)
Channel 18– LED Built-in Speed (CH17 must be set between 16-255, CH21 must be set between 1-255,
and CH23 between 20-255 )
0
No function
1-255
Speed adjustment, from slow to fast
Channel 19 – Background Color (CH21 must be set between 1-255 and CH23 between 20-255 )
0
No function
1-2
White 2700K(R=156，G=118，B=0，W=63
3-4
White 3200K(R=156，G=141，B=5，W=89)
5-6
White 4200K(R=156，G=141，B=14，W=255)
7-8
White 5600K(R=156，G=207，B=54，W=255)
9-10
White 8000K(R=130，G=255，B=96，W=255)
11
Blue（R=0，G=0，B=255，W=0)
Page 32
31
Ordercode: 41529
Infinity iW-1941 RDM
12-48
R=0，G+，B=255，W=0
49
Cyan (R=0，G=255，B=255，W=0)
50-86
R=0，G=255，B-，W=0
87
Green (R=0，G=255，B=0，W=0)
88-124
R+，G=255，B=0，W=0
125
Yellow (R=255，G=255，B=0，W=0)
126-162
R=255，G-，B=0，W=0
163
Red (R=255，G=0，B=0，W=0)
164-200
R=255，G=0，B+，W=0
201
Magenta (R=255，G=0，B=255，W=0)
202-238
R-，G=0，B=255，W=0
239
Blue (R=0，G=0，B=255，W=0)
240-247
Color fade with decreasing speed
248-255
Color jump with decreasing speed
Channel 20 – Background Color Dimmer (CH 19 and CH21 must be set between 1-255, CH23 between 20-
255 )
0-255
Dimmer intensity, from dark to brightest
Channel 21 – Dimmer (CH6, CH8, CH8, CH10, CH14, CH15, CH16 must be set between 1-255 and CH23
between 20-255 )
0-255
Dimmer intensity, from dark to brightest
Channel 22 – Dimmer 16Bit (CH6, CH8, CH8, CH10, CH14, CH15, CH16 must be set between 1-255 and
CH23 between 20-255 )
0-255
Dimmer intensity, from dark to brightest
Channel 23 – Shutter / Strobe (CH6, CH8, CH8, CH10, CH14, CH15, CH16 and CH21 must be set between
1-255 )
0-19
Shutter closed
20-24
Shutter open
25-64
Strobe 1 with decreasing speed
65-69
Shutter open
70-84
Strobe 2(fast on, slow off) with decreasing speed
85-89
Shutter open
90-104
Strobe 3(slow on, fast off) with decreasing speed
105-109
Shutter open
110-124
Strobe 4(random strobe) with decreasing speed
125-129
Shutter open
130-144
Strobe 5(random fast on, slow off)with decreasing speed
145-149
Shutter open
150-164
Strobe 6(random slow on, fast off) with decreasing speed
165-169
Shutter open
170-184
Strobe 7(pulse strobe) with decreasing speed
185-189
Shutter open
190-204
Strobe 8(random pulse strobe) with decreasing speed
205-209
Shutter open
210-224
Strobe 9(fade on or off) with decreasing speed
225-229
Shutter open
230-244
Strobe 10(pulse strobe) with decreasing speed
245-255
Shutter open
Channel 24– Zoom
0-255
Gradual zoom adjustment, from small to big (3,6º-60º)
Page 33
32
Ordercode: 41529
Infinity iW-1941 RDM
Channel 25 – Channel Functions (Desired function starts after 5 seconds setting DMX value)
0-9
No Function
10-14
Pan/Tilt black activated, after 3 seconds
15-19
reserved
20-24
RGBW color mixing, after 3 seconds
25-29
CMY color mixing, after 3 seconds
30-34
LED built-in Delay Off, after 3 seconds
35-39
LED built-in Delay On, after 3 seconds
40-44
Reserved
45-49
Reserved
50-54
Pan reset, after 3 seconds
55-59
Tilt reset, after 3 seconds
60-64
Zoom reset, after 3 seconds
65-69
Reserved
70-74
All reset, after 3 seconds
75-79
Reserved
80-84
Reserved
85-89
Reserved
90-94
Reserved
95-99
Reserved
100-104
Reserved
105-109
Reserved
110-114
Reserved
115-119
Reserved
120-124
Fan low speed
125-129
Fan full speed
130-134
Fan auto
135-139
Dimmer fast
140-144
Dimmer smooth
145-164
No function
165-169
Output = Full
170-174
Output = White
175-247
Reserved
248-255
Reserved
Page 34
33
Ordercode: 41529
Infinity iW-1941 RDM
DMX Channels
96 Channels Advanced
Channel 1 – Horizontal movement (Pan)
Move the slider up, in order to move head horizontally (PAN).
Gradual head adjustment from one end of the slider to the other (0-255, 128-center).
The head can be turned by 540° and stopped at any position you wish.
Channel 2 – Vertical movement (Tilt)
Move the slider up, in order to move head vertically (TILT).
Gradual head adjustment from one end of the slider to the other (0-255, 128-center).
The head can be turned by 270° and stopped at any position you wish.
Channel 3 – Pan fine 16 bit
Channel 4 – Tilt fine 16 bit
Channel 5 – Pan / Tilt speed
0-255
From Max Speed (0) to Min. Speed (255)
Channel 6 – Red Main Dimmer intensity (CH93 must be set between 1-255 and CH94 between 20-255 )
0-255
Gradual adjustment Red from 0-100%
Channel 7 – Green Dimmer intensity (CH93 must be set between 1-255 and CH94 between 20-255 )
0-255
Gradual adjustment Green from 0-100%
Channel 8 – Blue Dimmer intensity (CH93 must be set between 1-255 and CH94 between 20-255 )
0-255
Gradual adjustment Blue from 0-100%
Channel 9 – White Dimmer intensity (CH93 must be set between 1-255 and CH94 between 20-255 )
0-255
Gradual adjustment White from 0-100%

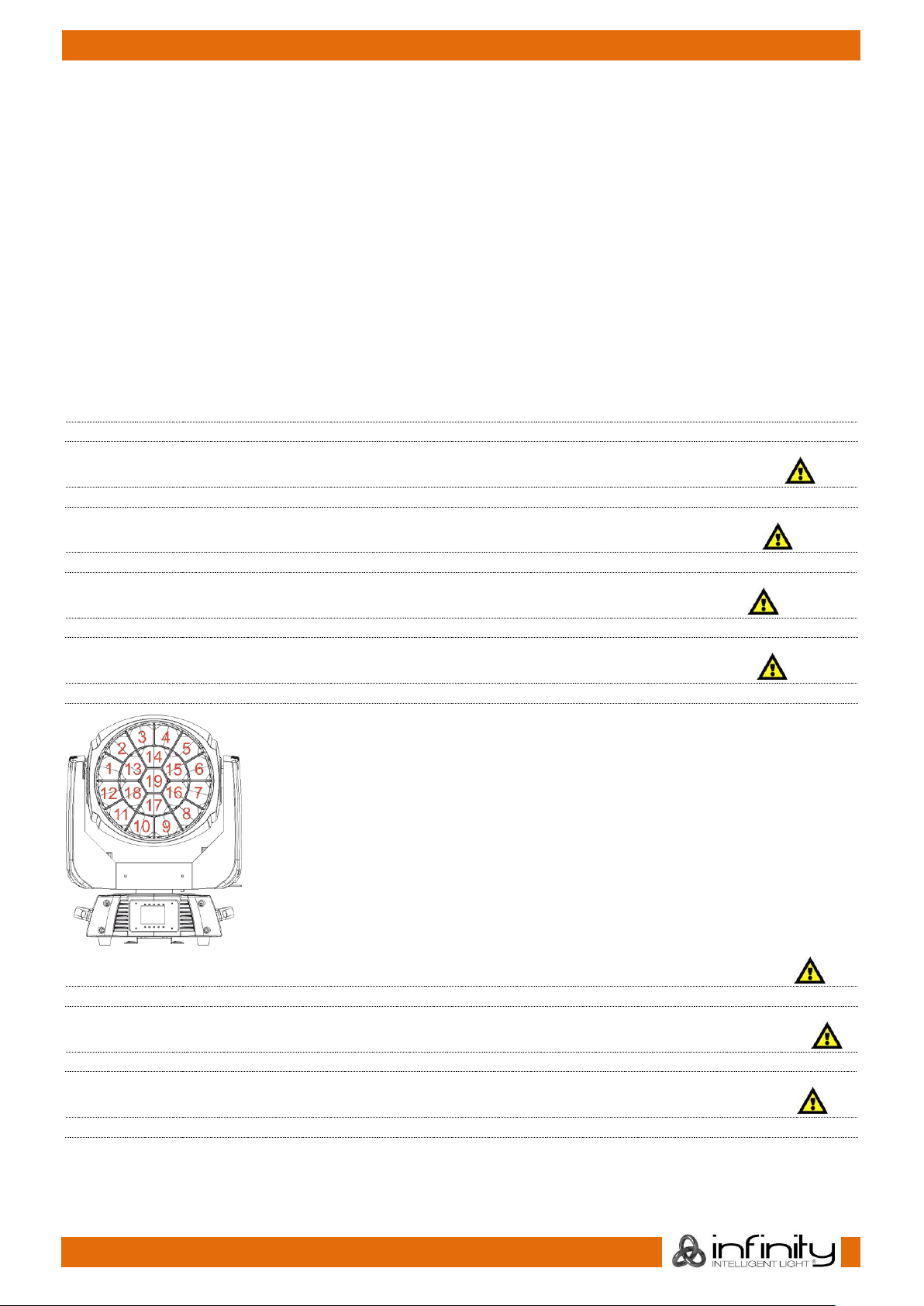

Channel 10 – Red Dimmer LED 1 intensity (CH93 must be set between 1-255 and CH94 between 20-255 )
0-255
Gradual adjustment Red from 0-100%
Channel 11 – Green Dimmer LED 1 intensity (CH93 must be set between 1-255 and CH94 between 20-255 )
0-255
Gradual adjustment Green from 0-100%
Channel 12 – Blue Dimmer LED 1 intensity (CH93 must be set between 1-255 and CH94 between 20-255 )
0-255
Gradual adjustment Blue from 0-100%
Page 35
34
Ordercode: 41529
Infinity iW-1941 RDM
Channel 13 – White Dimmer LED 1 intensity (CH93 must be set between 1-255 and CH94 between 20-255 )
0-255
Gradual adjustment White from 0-100%
Channel 82 – Red Dimmer LED 1 intensity (CH93 must be set between 1-255 and CH94 between 20-255 )
0-255
Gradual adjustment Red from 0-100%
Channel 83 – Green Dimmer LED 1 intensity (CH93 must be set between 1-255 and CH94 between 20-255 )
0-255
Gradual adjustment Green from 0-100%
Channel 84 – Blue Dimmer LED 1 intensity (CH93 must be set between 1-255 and CH94 between 20-255 )
0-255
Gradual adjustment Blue from 0-100%
Channel 85 – White Dimmer LED 1 intensity (CH93 must be set between 1-255 and CH94 between 20-255 )
0-255
Gradual adjustment White from 0-100%
Channel 86 – CTC correction (CH6 CH7, CH8, CH9, CH11, CH17 must be set between 1-255, CH18 between 20-
255 )
0
No function
1-255
Color temperature correction from 19000K to 2700K
Channel 87 – Color correction (CH17 must be set between 1-255 and CH18 between 20-255 )
0
No function
1-2
White 2700K(R=156，G=118，B=0，W=63
3-4
White 3200K(R=156，G=141，B=5，W=89)
5-6
White 4200K(R=156，G=141，B=14，W=255)
7-8
White 5600K(R=156，G=207，B=54，W=255)
9-10
White 8000K(R=130，G=255，B=96，W=255)
11
Blue（R=0，G=0，B=255，W=0)
12-48
R=0，G+，B=255，W=0
49
Cyan (R=0，G=255，B=255，W=0)
50-86
R=0，G=255，B-，W=0
87
Green (R=0，G=255，B=0，W=0)
88-124
R+，G=255，B=0，W=0
125
Yellow (R=255，G=255，B=0，W=0)
126-162
R=255，G-，B=0，W=0
163
Red (R=255，G=0，B=0，W=0)
164-200
R=255，G=0，B+，W=0
201
Magenta (R=255，G=0，B=255，W=0)
202-238
R-，G=0，B=255，W=0
239
Blue (R=0，G=0，B=255，W=0)
240-247
Color fade with decreasing speed
248-255
Color jump with decreasing speed
Page 36
35
Ordercode: 41529
Infinity iW-1941 RDM
Channel 88 – Gobos (CH17 must be set between 1-255 and CH18 between 20-255 )
0
No function
1
Gobo 1
2
Gobo 2
3
Gobo 3
4
Gobo 4
5
Gobo 5
250
Gobo 250
251
Gobo 251
252
Gobo 252
253
Gobo 253
254
Gobo 254
255
On
Channel 89 – LED Built-in (CH17 must be set between 1-255 and CH18 between 20-255 )
0-15
No function
16
LED built-in 1
17
LED built-in 2
18
LED built-in 3
19
LED built-in 4
20
LED built-in 5
112
LED built-in 1
113
LED built-in 98
114
LED built-in 99
115
LED built-in 100
116
LED built-in 101
117-135
On
136
LED built-in 102 (main)
137
LED built-in 103 (main)
138
LED built-in 104 (main)
139
LED built-in 105 (main)
140
LED built-in 106 (main)
232
LED built-in 199 (main)
233
LED built-in 200 (main)
234
LED built-in 201 (main)
Page 37
36
Ordercode: 41529
Infinity iW-1941 RDM
235
LED built-in 202 (main)
236
LED built-in 203 (main)
237-255
LED built-in 204 (main)
Channel 90– LED Built-in Speed (CH13 must be set between 16-255, CH17 must be set between 1-255,
and CH18 between 20-255 )
0
No function
1-255
Speed adjustment, from slow to fast
Channel 91 – Background Color (CH17 must be set between 1-255 and CH18 between 20-255 )
0
No function
1-2
White 2700K(R=156，G=118，B=0，W=63
3-4
White 3200K(R=156，G=141，B=5，W=89)
5-6
White 4200K(R=156，G=141，B=14，W=255)
7-8
White 5600K(R=156，G=207，B=54，W=255)
9-10
White 8000K(R=130，G=255，B=96，W=255)
11
Blue（R=0，G=0，B=255，W=0)
12-48
R=0，G+，B=255，W=0
49
Cyan (R=0，G=255，B=255，W=0)
50-86
R=0，G=255，B-，W=0
87
Green (R=0，G=255，B=0，W=0)
88-124
R+，G=255，B=0，W=0
125
Yellow (R=255，G=255，B=0，W=0)
126-162
R=255，G-，B=0，W=0
163
Red (R=255，G=0，B=0，W=0)
164-200
R=255，G=0，B+，W=0
201
Magenta (R=255，G=0，B=255，W=0)
202-238
R-，G=0，B=255，W=0
239
Blue (R=0，G=0，B=255，W=0)
240-247
Color fade with decreasing speed
248-255
Color jump with decreasing speed
Channel 92 – Background Color Dimmer (CH 15 and CH17 must be set between 1-255, CH18 between 20-
255 )
0-255
Dimmer intensity, from dark to brightest
Channel 93 – Dimmer (CH6, CH7, CH8, CH9, CH10, CH11, CH12 must be set between 1-255 and CH18
between 20-255 )
0-255
Dimmer intensity, from dark to brightest
Channel 94 – Shutter / Strobe (CH6, CH7, CH8, CH9, CH10, CH11, CH12 and CH17 must be set between
1-255 )
0-19
Shutter closed
20-24
Shutter open
25-64
Strobe 1 with decreasing speed
65-69
Shutter open
70-84
Strobe 2(fast on, slow off) with decreasing speed
85-89
Shutter open
90-104
Strobe 3(slow on, fast off) with decreasing speed
105-109
Shutter open
110-124
Strobe 4(random strobe) with decreasing speed
125-129
Shutter open
130-144
Strobe 5(random fast on, slow off)with decreasing speed
145-149
Shutter open
150-164
Strobe 6(random slow on, fast off) with decreasing speed
Page 38
37
Ordercode: 41529
Infinity iW-1941 RDM
165-169
Shutter open
170-184
Strobe 7(pulse strobe) with decreasing speed
185-189
Shutter open
190-204
Strobe 8(random pulse strobe) with decreasing speed
205-209
Shutter open
210-224
Strobe 9(fade on or off) with decreasing speed
225-229
Shutter open
230-244
Strobe 10(pulse strobe) with decreasing speed
245-255
Shutter open
Channel 95– Zoom
0-255
Gradual zoom adjustment, from small to big (3,6º-60º)
Channel 96 – Channel Functions (Desired function starts after 5 seconds setting DMX value)
0-9
No Function
10-14
Pan/Tilt black activated, after 3 seconds
15-19
reserved
20-24
RGBW color mixing, after 3 seconds
25-29
CMY color mixing, after 3 seconds
30-34
LED built-in Delay Off, after 3 seconds
35-39
LED built-in Delay On, after 3 seconds
40-44
Reserved
45-49
Reserved
50-54
Pan reset, after 3 seconds
55-59
Tilt reset, after 3 seconds
60-64
Zoom reset, after 3 seconds
65-69
Reserved
70-74
All reset, after 3 seconds
75-79
Reserved
80-84
Reserved
85-89
Reserved
90-94
Reserved
95-99
Reserved
100-104
Reserved
105-109
Reserved
110-114
Reserved
115-119
Reserved
120-124
Fan low speed
125-129
Fan full speed
130-134
Fan auto
135-139
Dimmer fast
140-144
Dimmer smooth
145-164
No function
165-169
Output = Full
170-174
Output = White
175-247
Reserved
248-255
Reserved
Channel 93 – Dimmer (CH6, CH7, CH8, CH9, CH10, CH11, CH12 must be set between 1-255 and CH18
between 20-255 )
0-255
Dimmer intensity, from dark to brightest
Channel 94 – Shutter / Strobe (CH6, CH7, CH8, CH9, CH10, CH11, CH12 and CH17 must be set between
1-255 )
0-19
Shutter closed
20-24
Shutter open
25-64
Strobe 1 with decreasing speed
Page 39
38
Ordercode: 41529
Infinity iW-1941 RDM
65-69
Shutter open
70-84
Strobe 2(fast on, slow off) with decreasing speed
85-89
Shutter open
90-104
Strobe 3(slow on, fast off) with decreasing speed
105-109
Shutter open
110-124
Strobe 4(random strobe) with decreasing speed
125-129
Shutter open
130-144
Strobe 5(random fast on, slow off)with decreasing speed
145-149
Shutter open
150-164
Strobe 6(random slow on, fast off) with decreasing speed
165-169
Shutter open
170-184
Strobe 7(pulse strobe) with decreasing speed
185-189
Shutter open
190-204
Strobe 8(random pulse strobe) with decreasing speed
205-209
Shutter open
210-224
Strobe 9(fade on or off) with decreasing speed
225-229
Shutter open
230-244
Strobe 10(pulse strobe) with decreasing speed
245-255
Shutter open
Channel 95– Zoom
0-255
Gradual zoom adjustment, from small to big (3,6º-60º)
Channel 96 – Channel Functions (Desired function starts after 5 seconds setting DMX value)
0-9
No Function
10-14
Pan/Tilt black activated, after 3 seconds
15-19
reserved
20-24
RGBW color mixing, after 3 seconds
25-29
CMY color mixing, after 3 seconds
30-34
LED built-in Delay Off, after 3 seconds
35-39
LED built-in Delay On, after 3 seconds
40-44
Reserved
45-49
Reserved
50-54
Pan reset, after 3 seconds
55-59
Tilt reset, after 3 seconds
60-64
Zoom reset, after 3 seconds
65-69
Reserved
70-74
All reset, after 3 seconds
75-79
Reserved
80-84
Reserved
85-89
Reserved
90-94
Reserved
95-99
Reserved
100-104
Reserved
105-109
Reserved
110-114
Reserved
115-119
Reserved
120-124
Fan low speed
125-129
Fan full speed
130-134
Fan auto
135-139
Dimmer fast
140-144
Dimmer smooth
145-164
No function
165-169
Output = Full
170-174
Output = White
175-247
Reserved
248-255
Reserved
Page 40
39
Ordercode: 41529
Infinity iW-1941 RDM
DMX Channels
177 Channels Advanced 16bit
Channel 1 – Horizontal movement (Pan)
Move the slider up, in order to move head horizontally (PAN).
Gradual head adjustment from one end of the slider to the other (0-255, 128-center).
The head can be turned by 540° and stopped at any position you wish.
Channel 2 – Vertical movement (Tilt)
Move the slider up, in order to move head vertically (TILT).
Gradual head adjustment from one end of the slider to the other (0-255, 128-center).
The head can be turned by 270° and stopped at any position you wish.
Channel 3 – Pan fine 16 bit
Channel 4 – Tilt fine 16 bit
Channel 5 – Pan / Tilt speed
0-255
From Max Speed (0) to Min. Speed (255)
Channel 6 – Red Main Dimmer intensity (CH173 must be set between 1-255 and CH175 between 20-255 )
0-255
Gradual adjustment Red from 0-100%
Channel 7 – Red Main Dimmer 16Bit (CH173 must be set between 1-255 and CH175 between 20-255 )
0-255
Fine dimmer intensity, from dark to brightest
Channel 8 – Green Dimmer intensity (CH173 must be set between 1-255 and CH175 between 20-255 )
0-255
Gradual adjustment Green from 0-100%
Channel 9 – Green Main Dimmer 16Bit (CH173 must be set between 1-255 and CH175 between 20-255 )
0-255
Fine dimmer intensity, from dark to brightest
Channel 10 – Blue Dimmer intensity (CH173 must be set between 1-255 and CH175 between 20-255 )
0-255
Gradual adjustment Blue from 0-100%
Channel 11 – Blue Main Dimmer 16Bit (CH173 must be set between 1-255 and CH175 between 20-255 )
0-255
Fine dimmer intensity, from dark to brightest
Channel 12 – White Dimmer intensity (CH173 must be set between 1-255 and CH175 between 20-255 )
0-255
Gradual adjustment White from 0-100%
Channel 13 – White Main Dimmer 16Bit (CH173 must be set between 1-255 and CH175 between 20-255 )
0-255
Fine dimmer intensity, from dark to brightest
Page 41
40
Ordercode: 41529
Infinity iW-1941 RDM

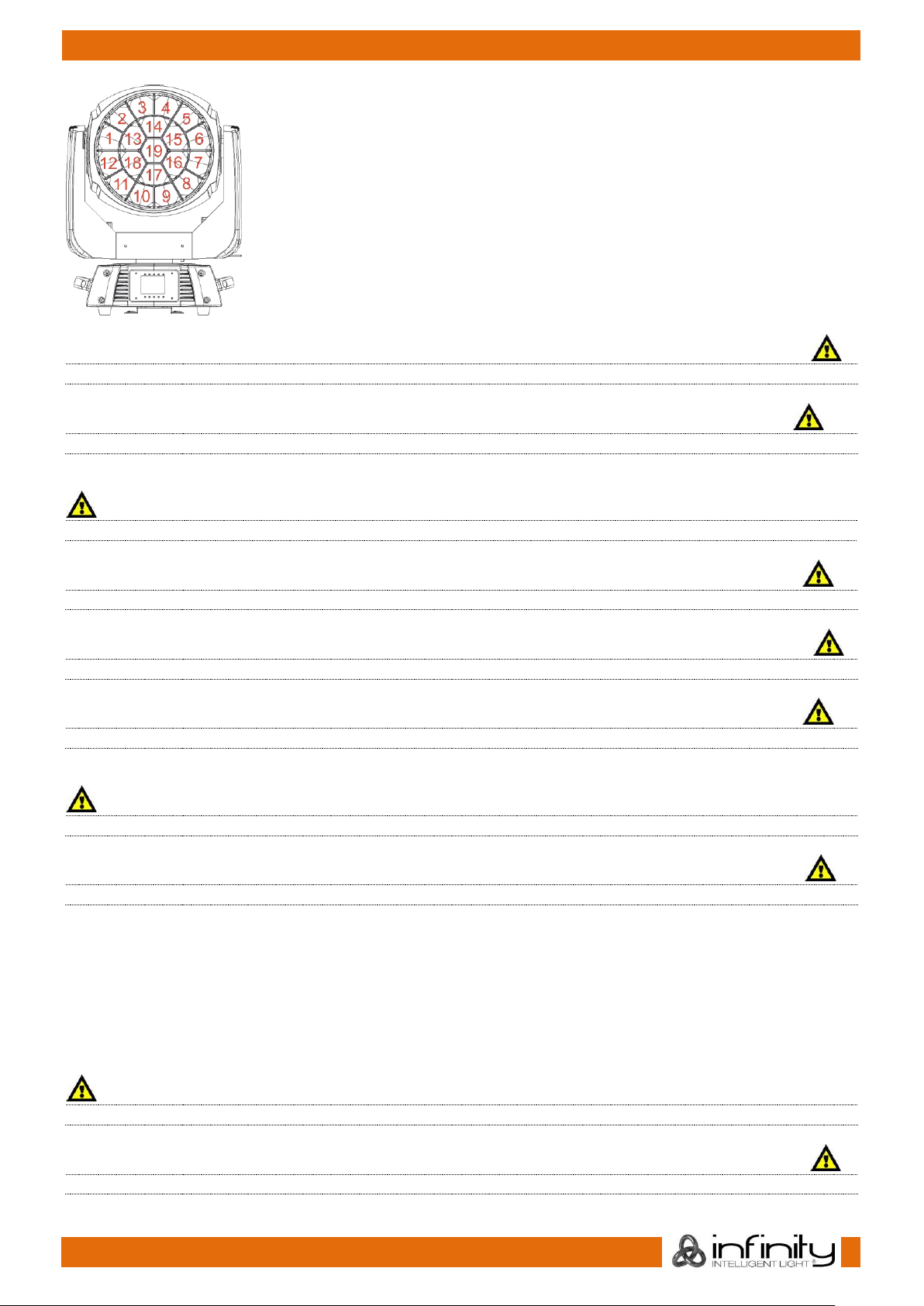

Channel 14 – Red Dimmer LED 1 intensity (CH173 must be set between 1-255 and CH175 between 20-255 )
0-255
Gradual adjustment Red from 0-100%
Channel 15 – Red Dimmer LED 1 16Bit (CH173 must be set between 1-255 and CH175 between 20-255 )
0-255
Fine dimmer intensity, from dark to brightest
Channel 16 – Green Dimmer LED 1 intensity (CH173 must be set between 1-255 and CH175 between 20-255
)
0-255
Gradual adjustment Green from 0-100%
Channel 17 – Green Dimmer LED 1 16Bit (CH173 must be set between 1-255 and CH175 between 20-255 )
0-255
Fine dimmer intensity, from dark to brightest
Channel 18 – Blue Dimmer LED 1 intensity (CH173 must be set between 1-255 and CH175 between 20-255
0-255
Gradual adjustment Blue from 0-100%
Channel 19 – Blue Dimmer LED 1 16Bit (CH173 must be set between 1-255 and CH175 between 20-255 )
0-255
Fine dimmer intensity, from dark to brightest
Channel 20 – White Dimmer LED 1 intensity (CH173 must be set between 1-255 and CH175 between 20-255
)
0-255
Gradual adjustment White from 0-100%
Channel 21 – White Dimmer LED 1 16Bit (CH173 must be set between 1-255 and CH175 between 20-255 )
0-255
Fine dimmer intensity, from dark to brightest
Channel 158 – Red Dimmer LED 19 intensity (CH173 must be set between 1-255 and CH175 between 20-255
)
0-255
Gradual adjustment Red from 0-100%
Channel 159 – Red Dimmer LED 19 16Bit (CH173 must be set between 1-255 and CH175 between 20-255 )
0-255
Fine dimmer intensity, from dark to brightest
Page 42
41
Ordercode: 41529
Infinity iW-1941 RDM
Channel 160 – Green Dimmer LED 19 intensity (CH173 must be set between 1-255 and CH175 between 20-255
)
0-255
Gradual adjustment Green from 0-100%
Channel 161 – Green Dimmer LED 19 16Bit (CH173 must be set between 1-255 and CH175 between 20-255
)
0-255
Fine dimmer intensity, from dark to brightest
Channel 162 – Blue Dimmer LED 19 intensity (CH173 must be set between 1-255 and CH175 between 20-255
)
0-255
Gradual adjustment Blue from 0-100%
Channel 163 – Blue Dimmer LED 19 16Bit (CH173 must be set between 1-255 and CH175 between 20-255
)
0-255
Fine dimmer intensity, from dark to brightest
Channel 164 – White Dimmer LED 19 intensity (CH173 must be set between 1-255 and CH175 between 20-255
)
0-255
Gradual adjustment White from 0-100%
Channel 165 – White Dimmer LED 19 16Bit (CH173 must be set between 1-255 and CH175 between 20-255
)
0-255
Fine dimmer intensity, from dark to brightest
Channel 166 – CTC correction (CH6 CH7, CH8, CH9, CH11, CH17 must be set between 1-255, CH18 between
20-255 )
0
No function
1-255
Color temperature correction from 19000K to 2700K
Channel 167 – Color correction (CH173 must be set between 1-255 and CH175 between 20-255 )
0
No function
1-2
White 2700K(R=156，G=118，B=0，W=63
3-4
White 3200K(R=156，G=141，B=5，W=89)
5-6
White 4200K(R=156，G=141，B=14，W=255)
7-8
White 5600K(R=156，G=207，B=54，W=255)
9-10
White 8000K(R=130，G=255，B=96，W=255)
11
Blue（R=0，G=0，B=255，W=0)
12-48
R=0，G+，B=255，W=0
49
Cyan (R=0，G=255，B=255，W=0)
50-86
R=0，G=255，B-，W=0
87
Green (R=0，G=255，B=0，W=0)
88-124
R+，G=255，B=0，W=0
125
Yellow (R=255，G=255，B=0，W=0)
126-162
R=255，G-，B=0，W=0
163
Red (R=255，G=0，B=0，W=0)
164-200
R=255，G=0，B+，W=0
201
Magenta (R=255，G=0，B=255，W=0)
202-238
R-，G=0，B=255，W=0
239
Blue (R=0，G=0，B=255，W=0)
240-247
Color fade with decreasing speed
248-255
Color jump with decreasing speed
Page 43
42
Ordercode: 41529
Infinity iW-1941 RDM
Channel 168 – Gobos (CH17 must be set between 1-255 and CH18 between 20-255 )
0
No function
1
Gobo 1
2
Gobo 2
3
Gobo 3
4
Gobo 4
5
Gobo 5
250
Gobo 250
251
Gobo 251
252
Gobo 252
253
Gobo 253
254
Gobo 254
255
On
Channel 169 – LED Built-in (CH17 must be set between 1-255 and CH18 between 20-255 )
0-15
No function
16
LED built-in 1
17
LED built-in 2
18
LED built-in 3
19
LED built-in 4
20
LED built-in 5
112
LED built-in 1
113
LED built-in 98
114
LED built-in 99
115
LED built-in 100
116
LED built-in 101
117-135
On
136
LED built-in 102 (main)
137
LED built-in 103 (main)
138
LED built-in 104 (main)
139
LED built-in 105 (main)
140
LED built-in 106 (main)
232
LED built-in 199 (main)
233
LED built-in 200 (main)
234
LED built-in 201 (main)
Page 44
43
Ordercode: 41529
Infinity iW-1941 RDM
235
LED built-in 202 (main)
236
LED built-in 203 (main)
237-255
LED built-in 204 (main)
Channel 170– LED Built-in Speed (CH13 must be set between 16-255, CH17 must be set between 1-255,
and CH18 between 20-255 )
0
No function
1-255
Speed adjustment, from slow to fast
Channel 171 – Background Color (CH17 must be set between 1-255 and CH18 between 20-255 )
0
No function
1-2
White 2700K(R=156，G=118，B=0，W=63
3-4
White 3200K(R=156，G=141，B=5，W=89)
5-6
White 4200K(R=156，G=141，B=14，W=255)
7-8
White 5600K(R=156，G=207，B=54，W=255)
9-10
White 8000K(R=130，G=255，B=96，W=255)
11
Blue（R=0，G=0，B=255，W=0)
12-48
R=0，G+，B=255，W=0
49
Cyan (R=0，G=255，B=255，W=0)
50-86
R=0，G=255，B-，W=0
87
Green (R=0，G=255，B=0，W=0)
88-124
R+，G=255，B=0，W=0
125
Yellow (R=255，G=255，B=0，W=0)
126-162
R=255，G-，B=0，W=0
163
Red (R=255，G=0，B=0，W=0)
164-200
R=255，G=0，B+，W=0
201
Magenta (R=255，G=0，B=255，W=0)
202-238
R-，G=0，B=255，W=0
239
Blue (R=0，G=0，B=255，W=0)
240-247
Color fade with decreasing speed
248-255
Color jump with decreasing speed
Channel 172 – Background Color Dimmer (CH 15 and CH17 must be set between 1-255, CH18 between 20-
255 )
0-255
Dimmer intensity, from dark to brightest
Channel 173 – Master Dimmer (CH6, CH7, CH8, CH9, CH10, CH11, CH12 must be set between 1-255 and
CH18 between 20-255 )
0-255
Dimmer intensity, from dark to brightest
Channel 174 – Master Dimmer 16Bit (CH6, CH7, CH8, CH9, CH10, CH11, CH12 must be set between 1-255
and CH18 between 20-255 )
0-255
Dimmer intensity, from dark to brightest
Channel 175 – Shutter / Strobe (CH6, CH7, CH8, CH9, CH10, CH11, CH12 and CH17 must be set between
1-255 )
0-19
Shutter closed
20-24
Shutter open
25-64
Strobe 1 with decreasing speed
65-69
Shutter open
70-84
Strobe 2(fast on, slow off) with decreasing speed
85-89
Shutter open
90-104
Strobe 3(slow on, fast off) with decreasing speed
105-109
Shutter open
Page 45
44
Ordercode: 41529
Infinity iW-1941 RDM
110-124
Strobe 4(random strobe) with decreasing speed
125-129
Shutter open
130-144
Strobe 5(random fast on, slow off)with decreasing speed
145-149
Shutter open
150-164
Strobe 6(random slow on, fast off) with decreasing speed
165-169
Shutter open
170-184
Strobe 7(pulse strobe) with decreasing speed
185-189
Shutter open
190-204
Strobe 8(random pulse strobe) with decreasing speed
205-209
Shutter open
210-224
Strobe 9(fade on or off) with decreasing speed
225-229
Shutter open
230-244
Strobe 10(pulse strobe) with decreasing speed
245-255
Shutter open
Channel 176– Zoom
0-255
Gradual zoom adjustment, from small to big (3,6º-60º)
Channel 177 – Channel Functions (Desired function starts after 5 seconds setting DMX value)
0-9
No Function
10-14
Pan/Tilt black activated, after 3 seconds
15-19
reserved
20-24
RGBW color mixing, after 3 seconds
25-29
CMY color mixing, after 3 seconds
30-34
LED built-in Delay Off, after 3 seconds
35-39
LED built-in Delay On, after 3 seconds
40-44
Reserved
45-49
Reserved
50-54
Pan reset, after 3 seconds
55-59
Tilt reset, after 3 seconds
60-64
Zoom reset, after 3 seconds
65-69
Reserved
70-74
All reset, after 3 seconds
75-79
Reserved
80-84
Reserved
85-89
Reserved
90-94
Reserved
95-99
Reserved
100-104
Reserved
105-109
Reserved
110-114
Reserved
115-119
Reserved
120-124
Fan low speed
125-129
Fan full speed
130-134
Fan auto
135-139
Dimmer fast
140-144
Dimmer smooth
145-164
No function
165-169
Output = Full
170-174
Output = White
175-247
Reserved
248-255
Reserved
Page 46
45
Ordercode: 41529
Infinity iW-1941 RDM

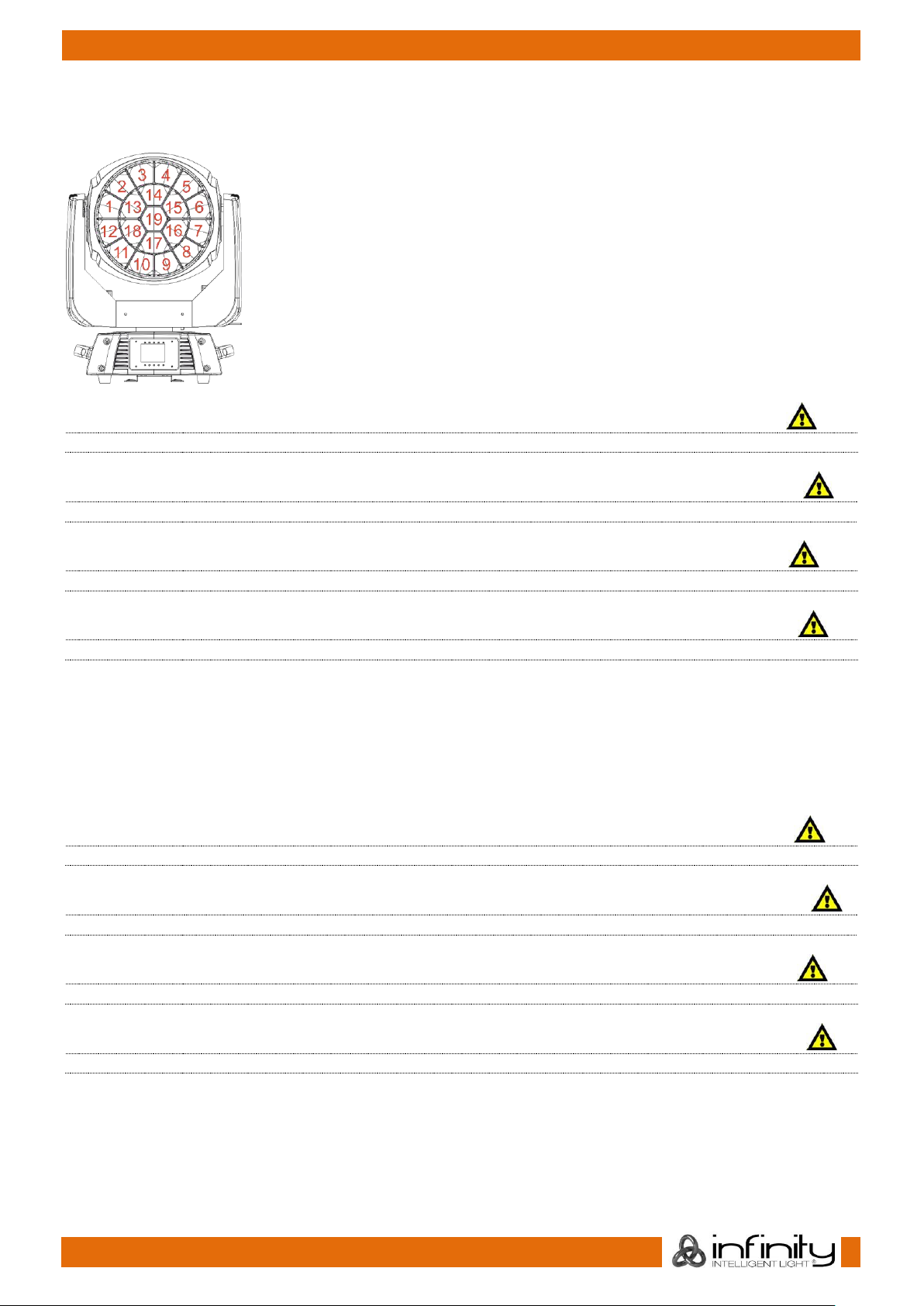

DMX Channels
76+13 Channels ArtNet + DMX
Channel 1 – Red Dimmer LED 1 intensity (CH93 must be set between 1-255 and CH94 between 20-255 )
0-255
Gradual adjustment Red from 0-100%
Channel 2 – Green Dimmer LED 1 intensity (CH93 must be set between 1-255 and CH94 between 20-255 )
0-255
Gradual adjustment Green from 0-100%
Channel 3 – Blue Dimmer LED 1 intensity (CH93 must be set between 1-255 and CH94 between 20-255 )
0-255
Gradual adjustment Blue from 0-100%
Channel 4 – White Dimmer LED 1 intensity (CH93 must be set between 1-255 and CH94 between 20-255 )
0-255
Gradual adjustment White from 0-100%
Channel 73 – Red Dimmer LED 1 intensity (CH93 must be set between 1-255 and CH94 between 20-255 )
0-255
Gradual adjustment Red from 0-100%
Channel 74 – Green Dimmer LED 1 intensity (CH93 must be set between 1-255 and CH94 between 20-255 )
0-255
Gradual adjustment Green from 0-100%
Channel 75 – Blue Dimmer LED 1 intensity (CH93 must be set between 1-255 and CH94 between 20-255 )
0-255
Gradual adjustment Blue from 0-100%
Channel 76 – White Dimmer LED 1 intensity (CH93 must be set between 1-255 and CH94 between 20-255 )
0-255
Gradual adjustment White from 0-100%
Page 47
46
Ordercode: 41529
Infinity iW-1941 RDM
DMX 13 Channels
Channel 1 – Horizontal movement (Pan)
Move the slider up, in order to move head horizontally (PAN).
Gradual head adjustment from one end of the slider to the other (0-255, 128-center).
The head can be turned by 540° and stopped at any position you wish.
Channel 2 – Vertical movement (Tilt)
Move the slider up, in order to move head vertically (TILT).
Gradual head adjustment from one end of the slider to the other (0-255, 128-center).
The head can be turned by 270° and stopped at any position you wish.
Channel 3 – Pan fine 16 bit
Channel 4 – Tilt fine 16 bit
Channel 5 – Pan / Tilt speed
0-255
From Max Speed (0) to Min. Speed (255)
Channel 6 – Red Main Dimmer intensity (CH10 must be set between 1-255 and CH11 between 20-255 )
0-255
Gradual adjustment Red from 0-100%
Channel 7 – Green Dimmer intensity (CH10 must be set between 1-255 and CH11 between 20-255 )
0-255
Gradual adjustment Green from 0-100%
Channel 8 – Blue Dimmer intensity (CH10 must be set between 1-255 and CH11 between 20-255 )
0-255
Gradual adjustment Blue from 0-100%
Channel 9 – White Dimmer intensity (CH10 must be set between 1-255 and CH11 between 20-255 )
0-255
Gradual adjustment White from 0-100%
Channel 10 – Dimmer (CH6, CH7, CH8, CH9 must be set between 1-255 and CH11 between 20-255 )
0-255
Dimmer intensity, from dark to brightest
Channel 11 – Shutter / Strobe (CH6, CH7, CH8, CH9 must be set between 1-255 and CH11 between 20-
255 )
0-19
Shutter closed
20-24
Shutter open
25-64
Strobe 1 with decreasing speed
65-69
Shutter open
70-84
Strobe 2(fast on, slow off) with decreasing speed
85-89
Shutter open
90-104
Strobe 3(slow on, fast off) with decreasing speed
105-109
Shutter open
110-124
Strobe 4(random strobe) with decreasing speed
125-129
Shutter open
130-144
Strobe 5(random fast on, slow off)with decreasing speed
145-149
Shutter open
150-164
Strobe 6(random slow on, fast off) with decreasing speed
165-169
Shutter open
170-184
Strobe 7(pulse strobe) with decreasing speed
185-189
Shutter open
190-204
Strobe 8(random pulse strobe) with decreasing speed
205-209
Shutter open
210-224
Strobe 9(fade on or off) with decreasing speed
Page 48
47
Ordercode: 41529
Infinity iW-1941 RDM
225-229
Shutter open
230-244
Strobe 10(pulse strobe) with decreasing speed
245-255
Shutter open
Channel 12– Zoom
0-255
Gradual zoom adjustment, from small to big (3,6º-60º)
Channel 13 – Channel Functions (Desired function starts after 5 seconds setting DMX value)
0-9
No Function
10-14
Pan/Tilt black activated, after 3 seconds
15-19
reserved
20-24
RGBW color mixing, after 3 seconds
25-29
CMY color mixing, after 3 seconds
30-34
LED built-in Delay Off, after 3 seconds
35-39
LED built-in Delay On, after 3 seconds
40-44
Reserved
45-49
Reserved
50-54
Pan reset, after 3 seconds
55-59
Tilt reset, after 3 seconds
60-64
Zoom reset, after 3 seconds
65-69
Reserved
70-74
All reset, after 3 seconds
75-79
Reserved
80-84
Reserved
85-89
Reserved
90-94
Reserved
95-99
Reserved
100-104
Reserved
105-109
Reserved
110-114
Reserved
115-119
Reserved
120-124
Fan low speed
125-129
Fan full speed
130-134
Fan auto
135-139
Dimmer fast
140-144
Dimmer smooth
145-164
No function
165-169
Output = Full
170-174
Output = White
175-247
Reserved
248-255
Reserved
Page 49
48
Ordercode: 41529
Infinity iW-1941 RDM
Maintenance
The operator has to make sure that safety-related and machine-technical installations are to be
inspected by an expert after every year in the course of an acceptance test.
The operator has to make sure that safety-related and machine-technical installations are to be
inspected by a skilled person once a year.
The following points have to be considered during the inspection:
01) All screws used for installing the device or parts of the device have to be tightly connected and must
not be corroded.
02) There may not be any deformations on housings, fixations and installation spots.
03) Mechanically moving parts like axles, eyes and others may not show any traces of wearing.
04) The electric power supply cables must not show any damages or material fatigue.
The Showtec Infinity iW-1941 RDM requires almost no maintenance. However, you should keep the unit
clean. Otherwise, the fixture’s light-output will be significantly reduced. Disconnect the mains power
supply and then wipe the cover with a damp cloth. Wipe the front glass panel clean with glass cleaner
and a soft cloth. Do not use alcohol or solvents. The front glass panel will require weekly cleaning, as
smoke-fluid tends to build up residues, reducing the light output very quickly. Do not immerse in liquid.
The cooling-fans and the internal lenses should be cleaned monthly with a soft brush.
Please clean internal components once a year with a light brush and vacuum cleaner.
Keep connections clean. Disconnect electric power, and then wipe the DMX and audio connections
with a damp cloth. Make sure connections are thoroughly dry before linking equipment or supplying
electric power.
Replacing a Fuse
Power surges, short-circuit or inappropriate electrical power supply may cause a fuse to burn out. If the
fuse burns out, the product will not function whatsoever. If this happens, follow the directions below.
01) Unplug the unit from electric power source.
02) Insert a screwdriver into the slot in the fuse cover. Turn the screwdriver to the left, at the same time
gently push a bit (Turn and Push). The fuse will come out.
03) Remove the used fuse. If brown or unclear, it is burned out.
04) Insert the replacement fuse into the holder where the old fuse was. Reinsert the fuse cover. Be sure to
use a fuse of the same type and specification. See the product specification label for details.
Page 50
49
Ordercode: 41529
Infinity iW-1941 RDM
Troubleshooting
No Light
This troubleshooting guide is meant to help solve simple problems.
If a problem occurs, carry out the steps below in sequence until a solution is found. Once the unit
operates properly, do not carry out following steps.
If the light effect does not operate properly, refer servicing to a technician.
Suspect four potential problem areas as: factory reset, the power supply, the LEDs, the fuse.
First try to reset the device to its original factory default settings (3. Settings Menu see page 22).
01) Power supply. Check that the unit is plugged into an appropriate power supply.
02) The LEDs. Return the Infinity to your Showtec dealer.
03) The fuse. Replace the fuse. See page 48 for replacing the fuse.
04) If all of the above appears to be O.K., plug the unit in again.
05) If you are unable to determine the cause of the problem, do not open the Infinity, as this may
damage the unit and the warranty will become void.
06) Return the device to your Showtec dealer.
No Response to DMX
Suspect the DMX cable or connectors, a controller malfunction, a light effect DMX card malfunction.
01) Check the DMX setting. Make sure that DMX addresses are correct.
02) Check the DMX cable: Unplug the unit; change the DMX cable; then reconnect to electrical power.
Try your DMX control again.
03) Determine whether the controller or light effect is at fault. Does the controller operate properly with
other DMX products ? If not, take the controller in for repair. If so, take the DMX cable and the light
effect to a qualified technician.
Page 51
50
Ordercode: 41529
Infinity iW-1941 RDM
Problem
Probable cause(s)
Solution
One or more
fixtures do not
function at all
No power to the fixture
• Check if power is switched on and
cables are plugged in
Primary fuse blown
• Replace fuse
Fixtures reset
correctly, but all
respond
erratically or not
at all to the
controller
The controller is not connected.
• Connect controller.
3-pin/5-pin XLR Out of the
controller does not match XLR Out
of the first fixture on the link (i.e.
signal is reversed)
• Install a phase reversing cable
between the controller and the
first fixture on the link
Fixtures reset
correctly, but
some respond
erratically or not
at all to the
controller
Poor data quality
• Check data quality. If much lower
than 100 percent, the problem
may be a bad data link
connection, poor quality or
broken cables, missing termination
plug, or a defective fixture
disturbing the link
Bad data link connection
• Inspect connections and cables.
Correct poor connections. Repair
or replace damaged cables
Data link not terminated with 120
Ohm termination plug
• Insert termination plug in output
jack of the last fixture on the link
Incorrect addressing of the fixtures
• Check address setting
One of the fixtures is defective and
disturbs data transmission on the
link
• Bypass one fixture at a time until
normal operation is restored:
unplug both connectors and
connect them directly together.
• Have the defective fixture
serviced by a qualified technician
3-pin/5-pin XLR Out on the fixtures
does not match (pins 2 and 3
reversed)
• Install a phase-reversing cable
between the fixtures or swap pin 2
and 3 in the fixture that behaves
erratically
No light or LEDs
cut out
intermittently
Fixture is too hot
• Allow the fixture to cool down
• Clean the fan
• Make sure air vents and the front
lens are not blocked
• Turn up the air conditioning
LEDs damaged
• Disconnect the fixture and return it
to your dealer
The power supply settings do not
match local AC voltage and
frequency
• Disconnect fixture. Check settings
and correct if necessary
Page 52
51
Ordercode: 41529
Infinity iW-1941 RDM
Product Specifications
Model:
Infinity iW-1941 RDM
Input Voltage:
100-240V AC, 50/60Hz (auto ranging)
Power consumption:
625W (full output)
DMX linking:
30pcs
Power linking @120V
2pcs
Power linking @240V
5pcs
Fuse:
T10AL/250V
Dimensions:
365 x 304 x 468 mm (LxWxH)
Weight:
19,26 kg
Operating and Programming:
Signal pin OUT:
Pin 1 (earth), pin 2 (-), pin 3 (+)
DMX Mode:
25, 96, 177, 76+13 channels
Signal input:
3-pin XLR IN
Signal output:
3-pin XLR OUT
Electro-mechanical effects:
Light source:
19x 40W RGBW (Osram)
Lux @ 3 m:
101571
Color mixing:
RGBW, CMY
Beam angle:
3,6°-60°
Motorized zoom:
3,6°-60°
Dimmer:
0-100%, 16 bit
Dimmer speed:
Smooth, Fast
Strobe:
0-20Hz
Pan:
540°
Tilt:
270°
Pan/Tilt resolution:
16 bit
Dimming Curves:
Linear, Square, Inv-Square, S-curve
Housing:
Metal & Flame retardant plastic
IP rating:
IP20
DMX control:
via standard DMX/RDM controller
Onboard:
Battery powered full color display including gravity sensor
Wireless DMX:
Optional available
Color balance:
Separate RGBW adjustment
Control Protocol:
DMX, Artnet, RDM
Pixel control
Selectable PWM rate by DMX
Control:
DMX-512, Master/Slave, Built-in Programs
Connections:
3-pin + 5-pin XLR data IN/OUT, Neutrik PowerCON IN/OUT
Max. ambient temperature ta:
45°C
Max. housing temperature tB:
80°C
Minimum distance:
Minimum distance from flammable surfaces:
0,5 m
Minimum distance to lighted object:
1,5 m
Design and product specifications are subject to change without prior notice.
Page 53
52
Ordercode: 41529
Infinity iW-1941 RDM
Dimensions
Page 54
53
Ordercode: 41529
Infinity iW-1941 RDM
Notes
Page 55
54
Ordercode: 41529
Infinity iW-1941 RDM
Page 56
©2019 Infinity
Loading...
