Connection with the mains......................................................................................................................................... 5
Description of the device ................................................................................................................................................. 7
Set Up and Operation ....................................................................................................................................................... 8
Control Modes ............................................................................................................................................................... 9
One Infinity (Stand-alone) ........................................................................................................................................ 9
Data Cabling ...............................................................................................................................................................12

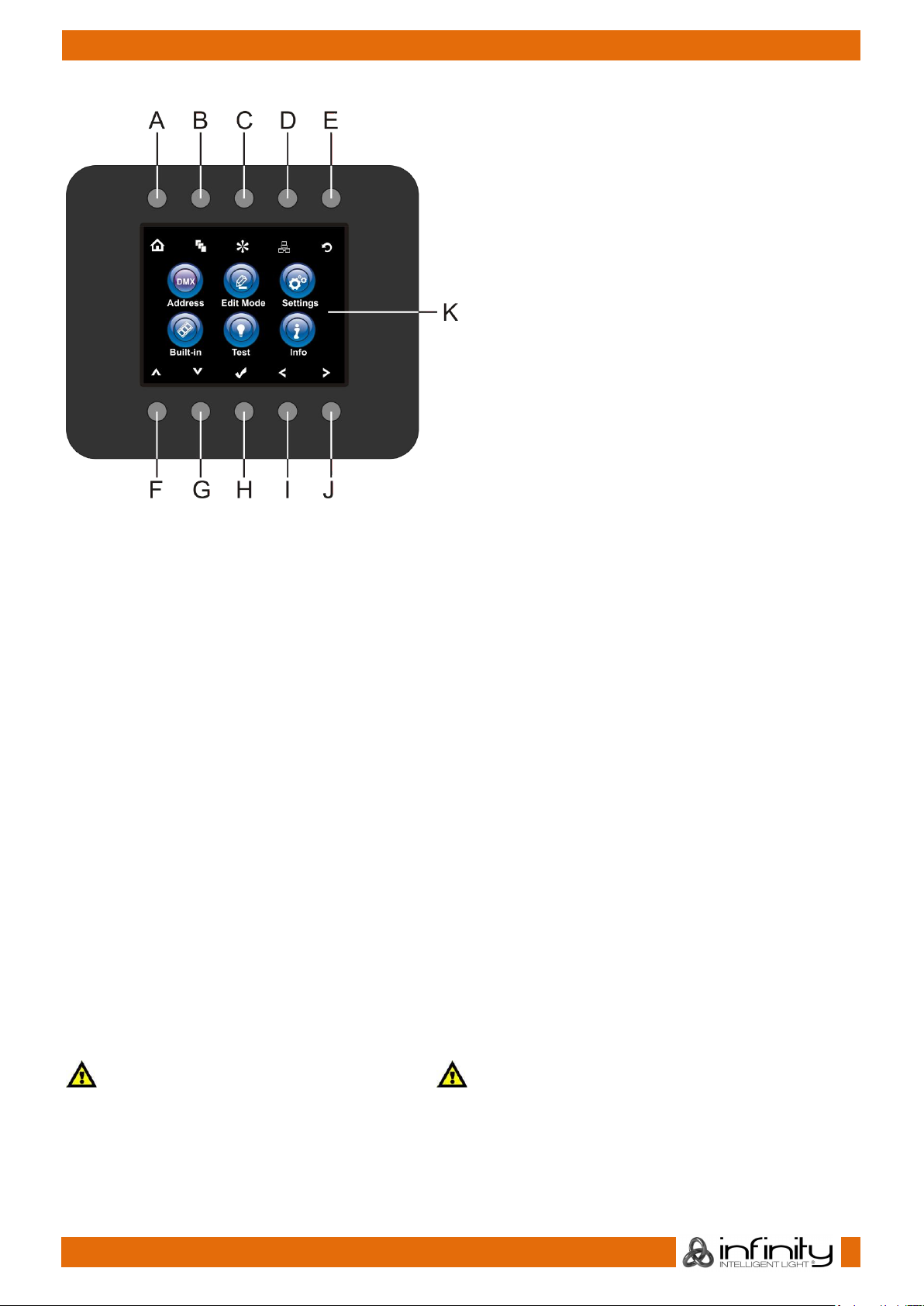

Control Panel ...............................................................................................................................................................13
Control Mode ..............................................................................................................................................................13

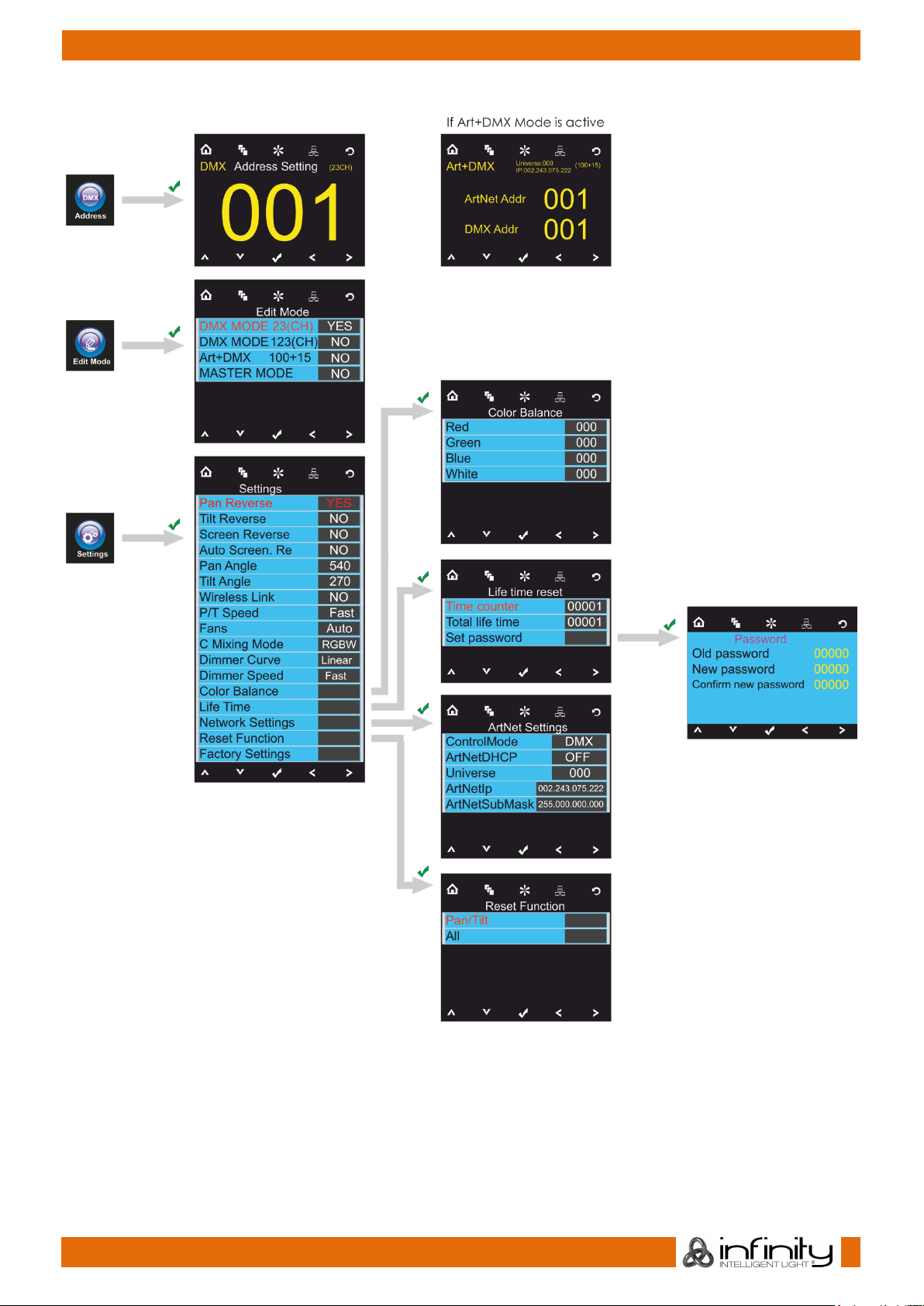

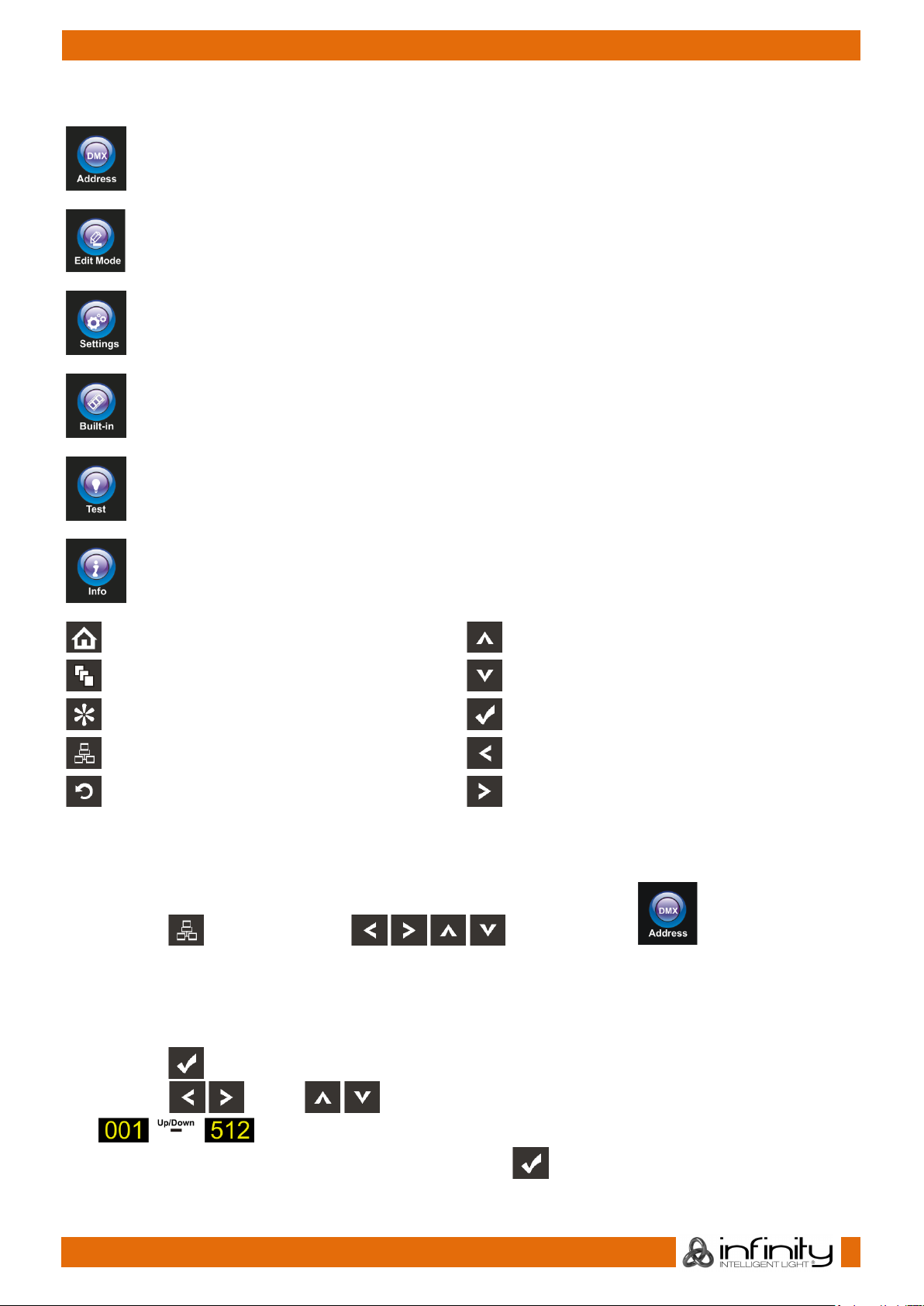

Menu Overview ...........................................................................................................................................................14
Main Menu Options ....................................................................................................................................................16

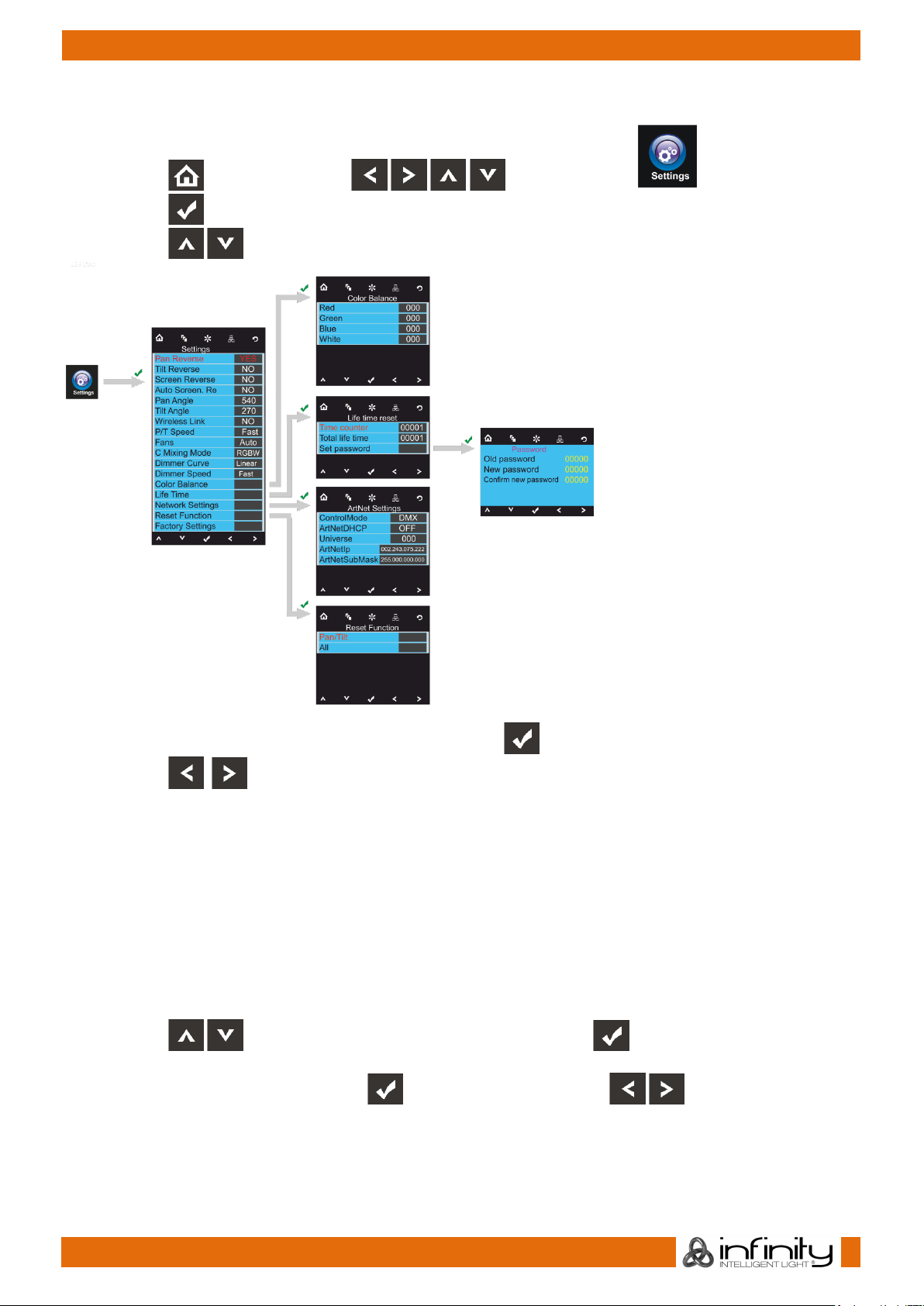

3. Settings Menu .......................................................................................................................................................18
3.1. Color Balance ...................................................................................................................................................18
3.2. Life Time ..............................................................................................................................................................19

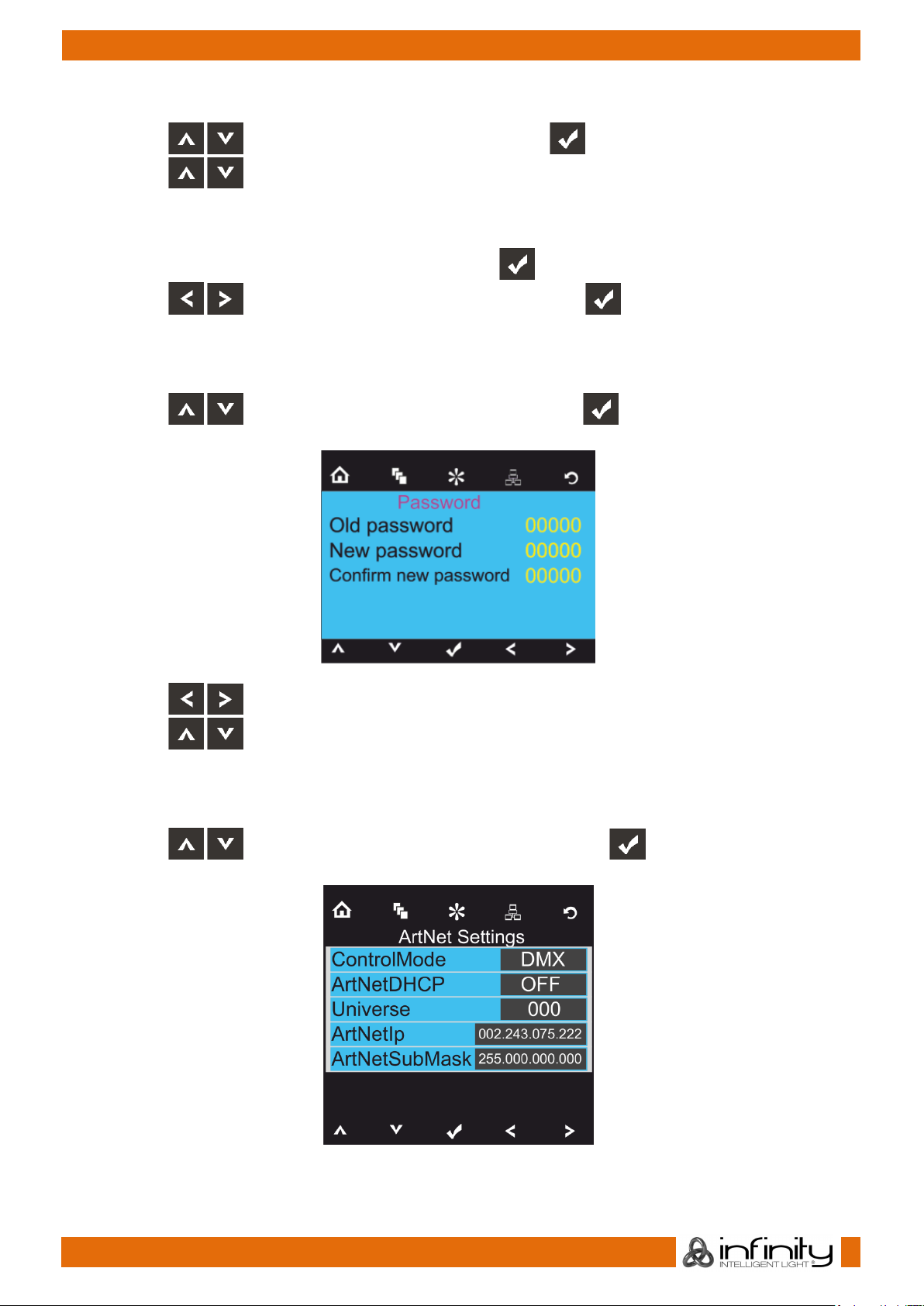

3.2.1. Set Password ..................................................................................................................................................19

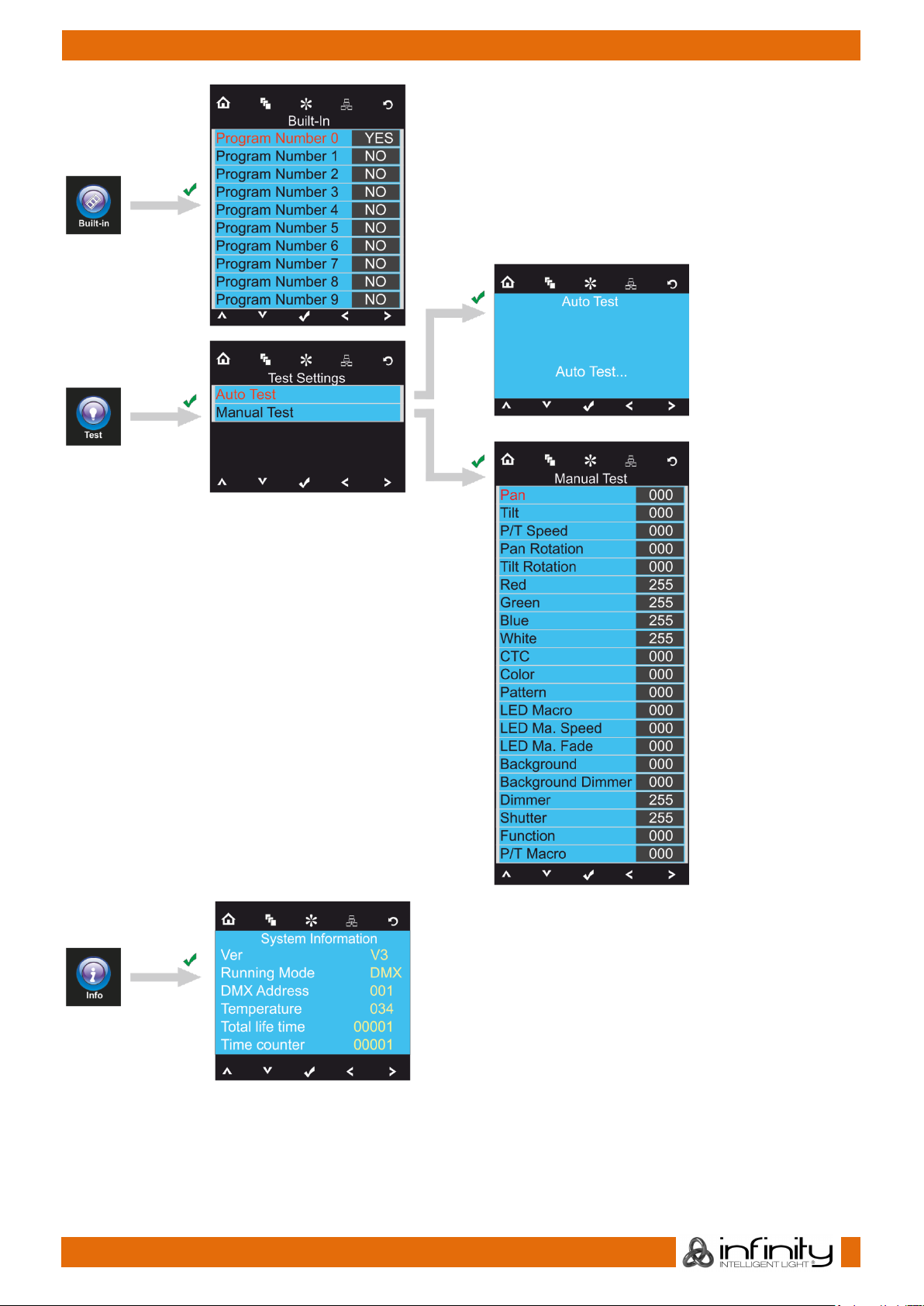

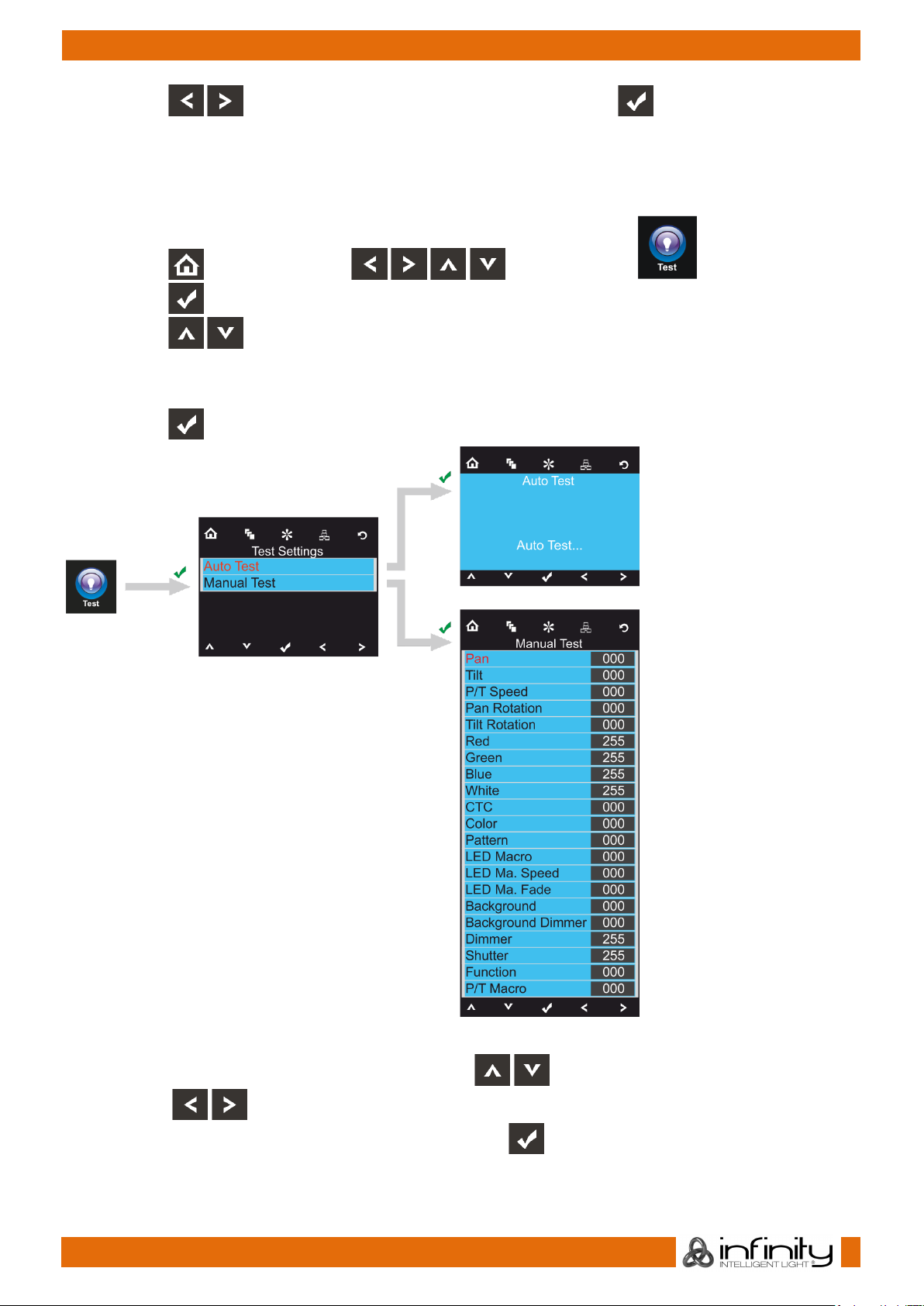

5. Test Menu ..............................................................................................................................................................21

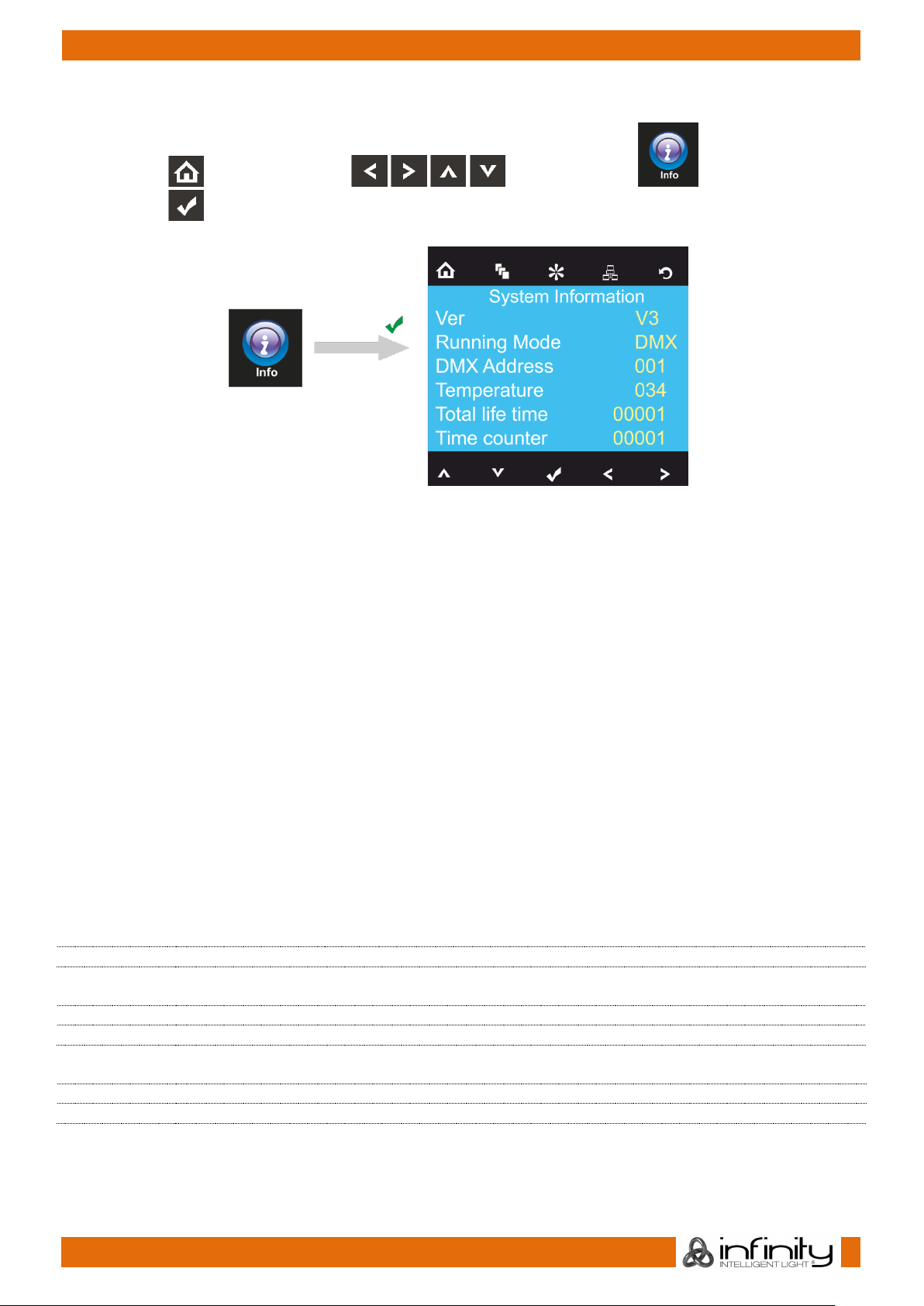

6. System information ..............................................................................................................................................22
Connecting to a Network ..............................................................................................................................................34

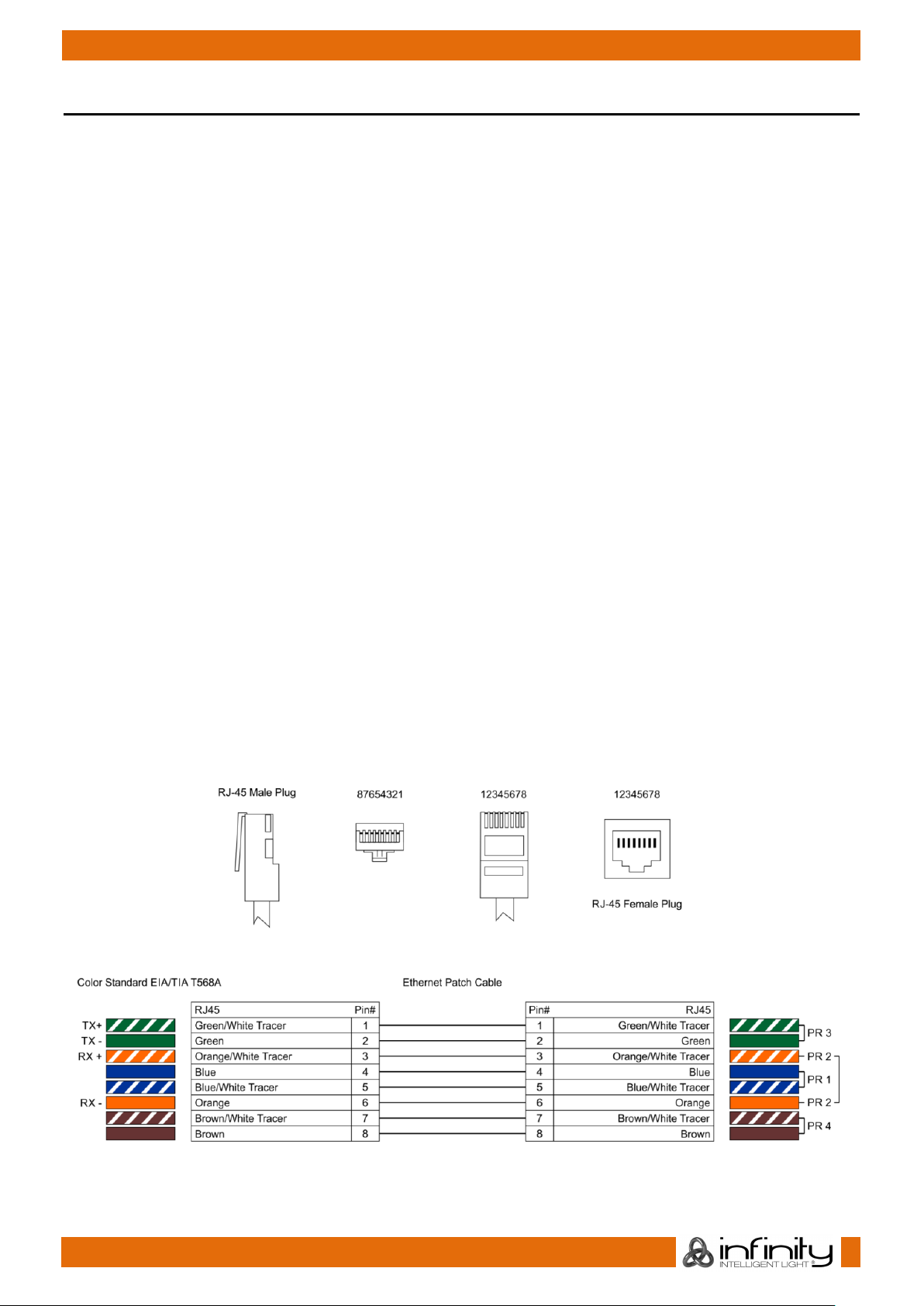

How to make a data cable ......................................................................................................................................34
Replacing the Fuse .....................................................................................................................................................35
No Light .........................................................................................................................................................................35
No Response to DMX..................................................................................................................................................36
Infinity iM-2515
2 x mounting bracket with quick-locks
Neutrik PowerCON to Schuko power cable 1,5 m
User manual
Warning
Unpacking Instructions
Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure
that all parts are present, and have been received in good condition. Notify the dealer immediately and
retain packing material for inspection if any parts appear damaged from shipping or the carton itself
shows signs of mishandling. Save the carton and all packing materials. In the event that a fixture must be
returned to the factory, it is important that the fixture be returned in the original factory box and packing.
LED Expected Lifespan
LEDs gradually decline in brightness over time. HEAT is the dominant factor that leads to the acceleration
of this decline. Packaged in clusters, LEDs exhibit higher operating temperatures than in ideal or singular
optimum conditions. For this reason, when all color LEDs are used at their fullest intensity, life of the LEDs is
significantly reduced. If improving life expectancy is of higher priority, place care in providing for lower
operational temperatures. This may include climatic-environmental and the reduction of overall
projection intensity.
Safety Instructions
Every person involved with the installation, operation and maintenance of this device has to:
be qualified
follow the instructions of this manual
Before the initial start-up, please make sure that there is no damage caused by transportation. Should
there be any, consult your dealer and do not use the device.
To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to
follow the safety instructions and warning notes written in this manual.
Please consider that damages caused by manual modifications to the device are not subject to
warranty.
This device contains no user-serviceable parts. Refer servicing to qualified technicians only.
2
Page 4
Ordercode: 41560
Infinity iM-2515
IMPORTANT:
The manufacturer will not accept liability for any resulting damages caused by the non-observance of
this manual or any unauthorized modification to the device.
Never let the power cord come into contact with other cables! Handle the power cord and all
connections with the mains with particular caution!
Never remove warning or informative labels from the unit.
Never use anything to cover the ground contact.
Never lift the fixture holding it by the projector-head, as the mechanics may be damaged. Always
hold the fixture by the transport handles.
Never place any material over the lens.
Never look directly into the light source.
Never leave any cables lying around.
Do not insert objects into air vents.
Do not connect this device to a dimmerpack.
Do not switch the device on and off in short intervals, as this will reduce the device’s life.
Do not touch the device’s housing bare-handed during its operation (housing becomes very hot).
Allow the fixture to cool for at least 5 minutes before handling.
Do not shake the device. Avoid brute force when installing or operating the device.
Only use the device indoors, avoid contact with water or other liquids.
Only operate the fixture after having checked if the housing is firmly closed and all screws are tightly
fastened.
Only operate the device after having familiarized with its functions.
Avoid flames and do not put close to flammable liquids or gases.
Always keep the case closed while operating.
Always allow a free air space of at least 50 cm around the unit for ventilation.
Always disconnect power from the mains, when device is not used or before cleaning! Only handle
the power cord holding it by the plug. Never pull out the plug by tugging the power cord.
Make sure that the device is not exposed to extreme heat, moisture or dust.
Make sure that the available voltage is not higher than stated on the rear panel.
Make sure that the power cord is never crimped or damaged. Check the device and the power
cord from time to time.
If the lens is obviously damaged, it has to be replaced.
If device was dropped or struck, disconnect mains power supply immediately. Have a qualified
engineer inspect for safety before operating.
If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not
switch it on immediately. The arising condensation water might damage your device. Leave the
device switched off until it has reached room temperature.
If your Infinity device fails to work properly, discontinue the use immediately. Pack the unit securely
(preferably in the original packing material), and return it to your Showtec dealer for service.
For adult use only. The moving head must be installed beyond the reach of children. Never leave the
unit running unattended.
Never attempt to bypass the thermostatic switch or fuses.
For replacement use fuses of same type and rating only.
The user is responsible for correct positioning and operating of the Infinity. The manufacturer will not
accept liability for damages caused by the misuse or incorrect installation of this device.
This device falls under protection class I. Therefore it is essential to connect the yellow/green
conductor to earth.
Repairs, servicing and electric connection must be carried out by a qualified technician.
WARRANTY: Till one year after date of purchase.
3
Page 5
Ordercode: 41560
Infinity iM-2515
Operating Determinations
This device is not designed for permanent operation. Consistent operation breaks will ensure that the
device will serve you for a long time without defects.
The minimum distance between light output and the illuminated surface must be more than 2 meter.
The maximum ambient temperature ta = 40°C must never be exceeded.
The relative humidity must not exceed 50 % with an ambient temperature of 40° C.
If this device is operated in any other way than the one described in this manual, the product may
suffer damages and the warranty becomes void.
Any other operation may lead to dangers like short-circuit, burns, electric shock, crash etc.
You endanger your own safety and the safety of others!
Rigging
Please follow the European and national guidelines concerning rigging, trussing and all
other safety issues.
Do not attempt the installation yourself!
Always have the inspections carried out by an authorized dealer!
Procedure:
If the projector is lowered from the ceiling or high joists, professional trussing systems have to be used.
Use a clamp to mount the projector, with the mounting bracket, to the trussing system.
The projector must never be fixed swinging freely in the room.
The installation must always be secured with a safety attachment, e.g. an appropriate safety net or
safety cable.
When rigging, derigging or servicing the projector, always make sure, that the area below the
installation site is secured and that there are not any unauthorized people around.
4
Page 6
Ordercode: 41560
Infinity iM-2515
International
EU Cable
UK Cable
US Cable
Pin
L
BROWN
RED
YELLOW/COPPER
PHASE
N
BLUE
BLACK
SILVER
NEUTRAL
YELLOW/GREEN
GREEN
GREEN
PROTECTIVE GROUND
The Infinity can be placed on a flat stage floor or mounted to any kind of truss with a mounting bracket
and a clamp.
Improper installation can cause serious injuries and/or damage of property!
Connection with the mains
Connect the device to the mains with the power-plug.
Always check if the right color cable is connected to the right place.
Make sure that the device is always properly connected to the earth!
Improper installation can cause serious injuries and/or damage of property!
5
Page 7
Ordercode: 41560
Infinity iM-2515
Return Procedure
Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued.
Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned
without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility.
Call Highlite 0031-455667723 or mail [email protected] and request an RMA prior to shipping the fixture.
Be prepared to provide the model number, serial number and a brief description of the cause for the
return. Be sure to properly pack fixture, any shipping damage resulting from inadequate packaging is the
customer’s responsibility. Highlite reserves the right to use its own discretion to repair or replace
product(s). As a suggestion, proper UPS packing or double-boxing is always a safe method to use.
Note: If you are given an RMA number, please include the following information on a piece of paper
inside the box:
01) Your name
02) Your address
03) Your phone number
04) A brief description of the symptoms
Claims
The client has the obligation to check the delivered goods immediately upon delivery for any shortcomings and/or visible defects, or perform this check after our announcement that the goods are at their
disposal. Damage incurred in shipping is the responsibility of the shipper; therefore the damage must be
reported to the carrier upon receipt of merchandise.
It is the customer's responsibility to notify and submit claims with the shipper in the event that a fixture is
damaged due to shipping. Transportation damage has to be reported to us within one day after receipt
of the delivery.
Any return shipment has to be made post-paid at all times. Return shipments must be accompanied with
a letter defining the reason for return shipment. Non-prepaid return shipments will be refused, unless
otherwise agreed in writing.
Complaints against us must be made known in writing or by fax within 10 working days after receipt of the
invoice. After this period complaints will not be handled anymore.
Complaints will only then be considered if the client has so far complied with all parts of the agreement,
regardless of the agreement of which the obligation is resulting.
6
Page 8
Ordercode: 41560
Infinity iM-2515
Frontside
Fig. 01
Description of the device
Features
The Infinity iM-2515 is a moving head effect with high output and great effects.
Input voltage: 100-240V, 60/50Hz
Power consumption: 510W
DMX channels: 23, 123, 100+15 channels
LCD display with gravity sensor
Light source: 25 x 15W RGBW 4-in-1 Osram Ostar
Light output: 11700 lumen
Color temperature: 19000K
Control modes: Stand-alone, Master/Slave, DMX-512, DMX-512+ArtNet
Control protocol: DMX-512, ArtNet
Dimmer: 0-100%
Strobe: 0-20Hz
Dimming curves: Linear, Square, I-Square, S-curve
Beam Angle: 4,5°
Pan: 540°
Tilt: 270°
IP rating: IP20
Housing: Metal & Flame retardant plastic
Connections: Neutrik PowerCON & 3-pin/5-pin XLR IN/OUT
Fuse: F10AL/250V

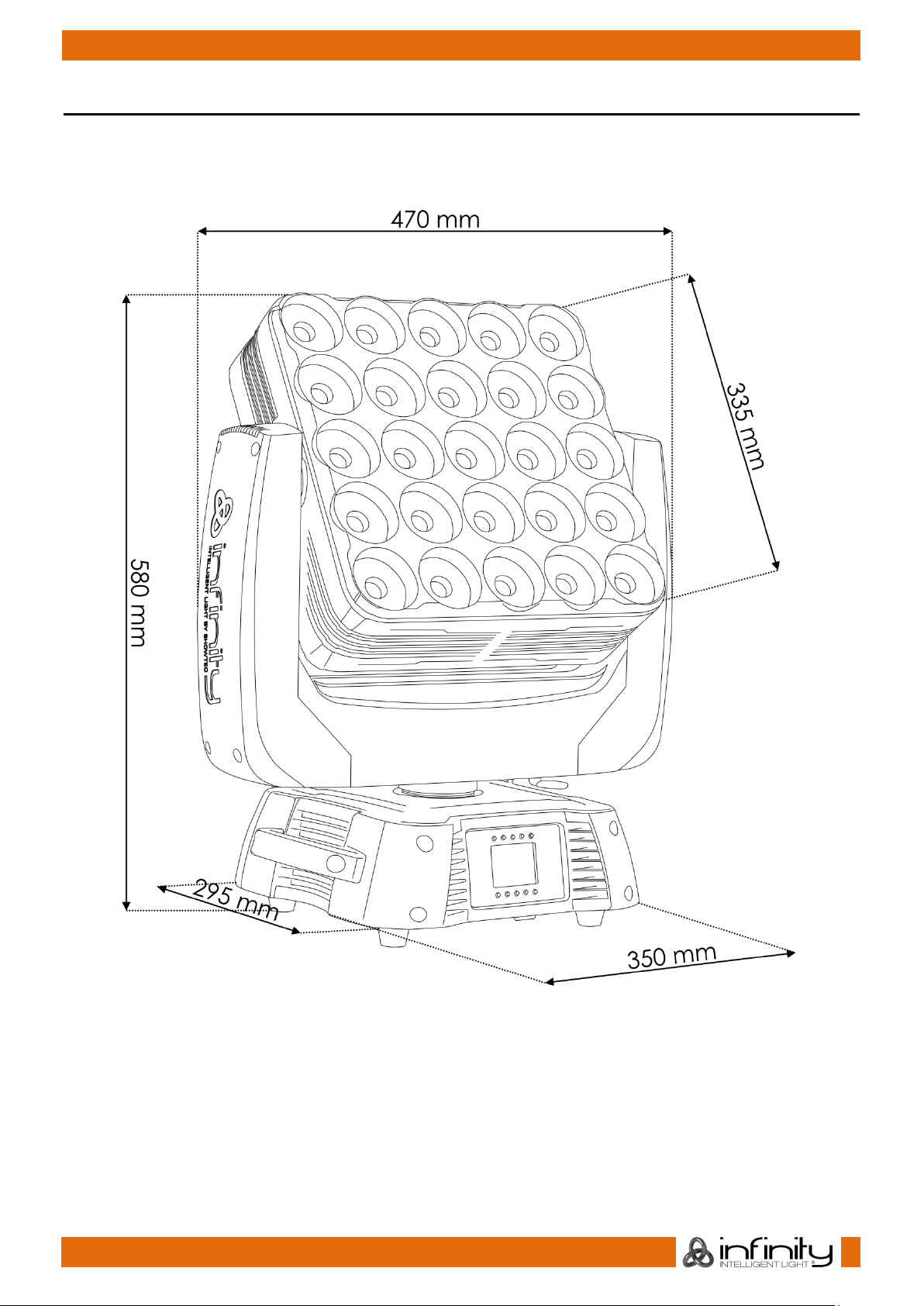

Dimensions: 470 x 295 x 580 mm (LxWxH)
Weight: 22 kg

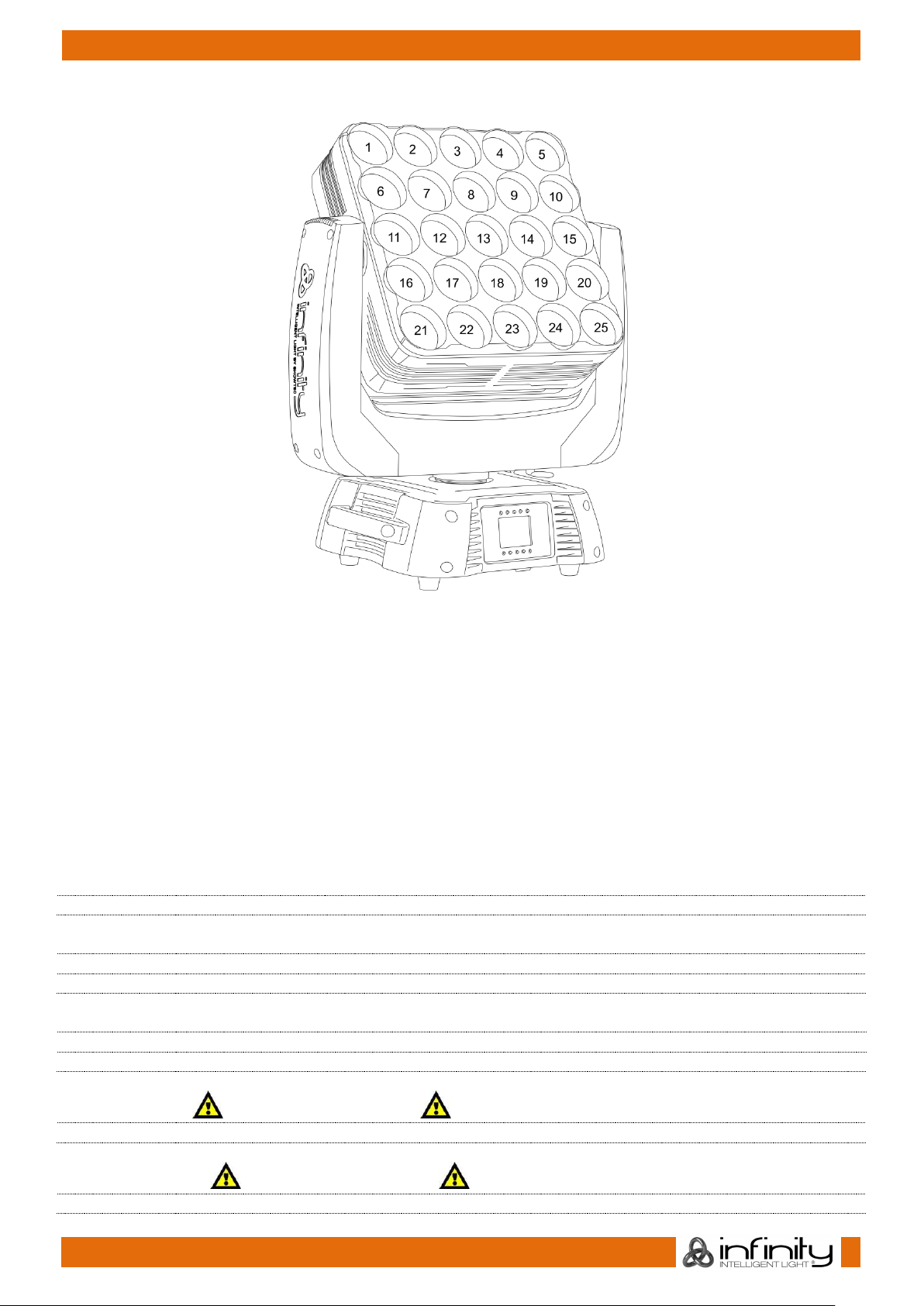

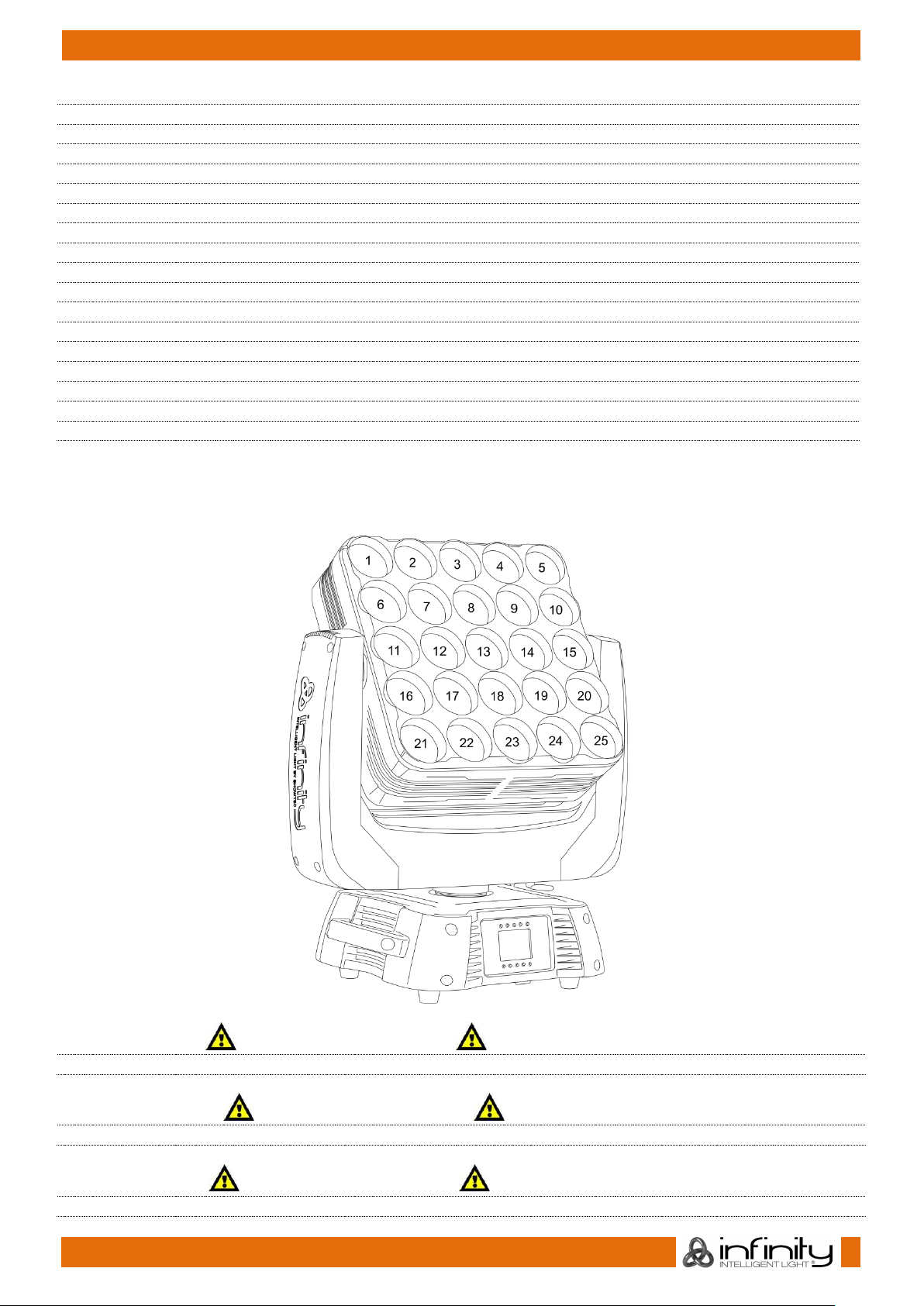

01) 25 x 15W RGBW 4-in-1 Osram Ostar
02) LCD display + menu buttons
7
Page 9
Ordercode: 41560
Infinity iM-2515
Fig. 02
Backside
03) 3-pin DMX signal connector IN
04) 5-pin DMX signal connector IN
05) PowerCON power connector 100-240V IN
06) PowerCON power connector 100-240V OUT
07) RJ45 Ethernet connector OUT
08) RJ45 Ethernet connector IN
09) 5-pin DMX signal connector OUT
10) Fuse F10AL/250V
11) 3-pin DMX signal connector OUT
Installation
Remove all packing materials from the Infinity iM-2515. Check if all foam and plastic padding is removed.
Connect all cables.
Do not supply power before the whole system is set up and connected properly.
Always disconnect from electric mains power supply before cleaning or servicing.
Damages caused by non-observance are not subject to warranty.
Set Up and Operation
Follow the directions below, as they pertain to your preferred operation mode.
Before plugging the unit in, always make sure that the power supply matches the product specification
voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa.
Connect the device to the main power supply.
8
Page 10
Ordercode: 41560
Infinity iM-2515
There are 4 modes:
• Stand-alone
• Master/Slave
• DMX-512 (23CH, 123CH)
• DMX-512+ArtNet (100+15CH)
The pins:
01) Earth
02) Signal -
03) Signal +
Multiple Infinitys (Master/Slave control)
Fig. 03
Control Modes
One Infinity (Stand-alone)
01) Fasten the effect light to a firm trussing. Leave at least 0,5 meter on all sides for air circulation.
02) Plug the end of the electric mains power cord into a proper electric power supply socket.
03) When the Infinity is not connected with a DMX cable, it functions as a stand-alone device.
Please see pages 16-22 for more information about the Stand-alone Mode.
Multiple Infinitys (Master/Slave control)
01) Fasten the effect light onto firm trussing. Leave at least 0,5 meter on all sides for air circulation.
02) Use a 3-pin/5-pin XLR cable to connect the Infinity.
03) Link the units as shown in fig. 03. Connect the first unit's DMX "out" socket with the second unit's "in"
socket, using a DMX-signal cable. Repeat this process to link the second, third, and fourth units.
You can use the same functions on the master device as described on pages 16-22. This means that
you can set your desired operation mode on the master device and all slave devices will react the
same as the master device.
9
Page 11
Ordercode: 41560
Infinity iM-2515
Multiple Infinitys DMX Set Up
Fig. 04
Multiple Infinitys (DMX control)
01) Fasten the effect light to a firm trussing. Leave at least 0,5 meter on all sides for air circulation.
02) Always use a safety cable (ordercode 70140 / 70141).
03) Use a 3-pin/5-pin XLR cable to connect the Infinity and other devices.
04) Link the units as shown in fig. 04. Connect the first unit's DMX "out" socket with the second unit's "in"
socket, using a DMX-signal cable. Repeat this process to link the second, third, and fourth units.
05) Supply electric power: Plug electric mains power cords into each unit's PowerCON socket, then plug
the other end of the mains power cord into proper electric power supply sockets, starting with the
first unit. Do not supply power before the whole system is set up and connected properly.
10
Note : Link all cables before connecting electric power
Page 12
Ordercode: 41560
Infinity iM-2515
Multiple Infinitys ArtNet Set Up
Fig. 05
Multiple Infinitys (ArtNet control)
01) Fasten the effect light to a firm trussing. Leave at least 0,5 meter on all sides for air circulation.
02) Always use a safety cable (ordercode 70140 / 70141).
03) Use a CAT-5/CAT-6 cable to connect your ArtNet controller to the first unit’s Ethernet "in" socket.
04) Link all the Infinitys by connecting the first unit's Ethernet "out" socket with the second unit's "in"
socket, using a CAT-5/CAT-6 cable.
05) Repeat this process to link the second, third, and fourth units (fig. 05).
06) Supply electric power: Plug electric mains power cords into each unit's PowerCON socket, then plug
the other end of the mains power cord into proper electric power supply sockets, starting with the
first unit. Do not supply power before the whole system is set up and connected properly.
11
Note : Link all cables before connecting electric power
Page 13
Ordercode: 41560
Infinity iM-2515
Important:
Fixtures on a serial data link must be daisy-chained in a single line. To comply with the
EIA-485 standard, no more than 30 devices should be connected on one data link.
Connecting more than 30 fixtures on one serial data link without the use of a DMX optically
isolated splitter may result in deterioration of the digital DMX signal.
Maximum recommended DMX data link distance: 100 meters
Maximum recommended number of fixtures on a DMX data link: 30 fixtures
Maximum recommended number of fixtures on a power link: 4 fixtures @ 110V
Maximum recommended number of fixtures on a power link: 7 fixtures @ 240V
Fixture Linking
You will need a serial data link to run light shows of one or more fixtures using a DMX-512 controller or to
run synchronized shows of two or more fixtures set to a master/slave operating mode. The combined
number of channels required by all the fixtures on a serial data link determines the number of fixtures the
data link can support.
Data Cabling
To link fixtures together, you must obtain data cables. You can purchase DAP Audio certified DMX cables
directly from a dealer/distributor or construct your own cable. If you choose to create your own cable,
please use data-grade cables that can carry a high quality signal and are less prone to electromagnetic
interference.
Ordercode FL01150 (1,5 m), FL013 (3 m), FL016 (6 m), FL0110 (10 m), FL0115 (15 m), FL0120 (20 m).
•DAP Audio X-type data cable XLR/M 3-pin > XLR/F 3-pin. Ordercode FLX0175 (0,75 m),
FLX01150 (1,5 m), FLX013 (3 m), FLX016 (6 m), FLX0110 (10 m).
•DAP Audio cable for the demanding user with exceptional audio-qualities and connector made by
Neutrik®. Ordercode FL71150 (1,5 m), FL713 (3 m), FL716 (6 m), FL7110 (10 m).
•DAP Audio cable for the demanding user with exceptional audio-qualities and connector made by
Neutrik®. Ordercode FL7275 (0,75 m), FL72150 (1,5 m), FL723 (3 m), FL726 (6 m), FL7210 (10 m).
•DAP Audio 110 Ohm cable with digital signal transmission. Ordercode FL0975 (0,75 m),
FL09150 (1,5 m), FL093 (3 m), FL096 (6 m), FL0910 (10 m), FL0915 (15 m), FL0920 (20 m).
DAP Audio PC Interface Cables
CAT-5 cable 7,6 mm Matte blue PVC. Ordercode FL55150 (1,5 m), FL553 (3 m), FL556 (6 m),
FL5510 (10 m), FL5515 (15 m), FL5520 (20 m).
CAT-6 cable (recommended for best data transfer). Ordercode FL563 (3 m), FL566 (6 m),
FL5610 (10 m), FL5615 (15 m), FL5640 (40 m).
12
Page 14
Ordercode: 41560
Infinity iM-2515
A)
B)
C)
D)
E)
F)
G)
H)
I)
J)
K)
Home button
Edit Menu button
Settings Mode Button
Address Setting Button
Infinity Logo Button
Up Button
Down Button
OK/ENTER
Left Button
Right Button
LCD Display
Fig. 06
Display Off after 35 seconds
Control Panel
Control Mode
The fixtures are individually addressed on a data-link and connected to the controller.
The fixtures respond to the DMX signal from the controller. (When you select the DMX address and save it,
the controller will display the saved DMX address the next time.)
DMX Addressing
The control panel on the front side of the base allows you to assign the DMX fixture address, which is the
first channel from which the Infinity will respond to the controller.
Please note when you use the controller, the unit has 123 channels.
When using multiple Infinitys, make sure you set the DMX addresses right.
Therefore, the DMX address of the first Infinity should be 1(001); the DMX address of the second Infinity
should be 1+123=124 (124); the DMX address of the third Infinity should be 124+123=247 (247), etc.
Please, be sure that you don’t have any overlapping channels in order to control each Infinity correctly.
If two or more Infinitys are addressed similarly, they will work similarly.
Controlling:
After having addressed all Infinity fixtures, you may now start operating these via your lighting controller.
Note: After switching on, the Infinity will automatically detect whether DMX 512 data is received or not. If
there is no data received at the DMX-input, the “LED“ on the control panel will not flash.
The problem may be:
● The XLR cable from the controller is not connected with the input of the Infinity.
● The controller is switched off or defective, the cable or connector is detective, or the signal wires are
swapped in the input connector.
Note:It’s necessary to insert a XLR termination plug (with 120 Ohm) in the last fixture in order to ensure
proper transmission on the DMX data link.
When no button is pressed for 35 seconds, the display will turn off.
To light up the display, you have to press one of the menu buttons described above.
Once you have pressed the button, the display will light up.
13
Page 15
Ordercode: 41560
Infinity iM-2515
Menu Overview
14
Page 16
Ordercode: 41560
Infinity iM-2515
15
Page 17
Ordercode: 41560
Infinity iM-2515
DMX address
Edit Mode
Settings Menu
Built-in Programs
Test Mode
Info
Home
Up
Edit Menu
Down
Setting Mode
OK
Address Setting
Left
Infinity Logo
Right
Main Menu Options
1. DMX Addressing
With this menu you can set the DMX address.
01) Press the button or press the buttons to select .
02) Now you can adjust either DMX settings or ArtNet settings, depending on the current operating
mode.
1.1. DMX settings
01) Press the button, to confirm. You can choose from 512 different DMX addresses.
02) press the and/or buttons to select the required address from
03) Once you have set the desired DMX address, press the button to store your DMX address.
16
.
Page 18
Ordercode: 41560
Infinity iM-2515

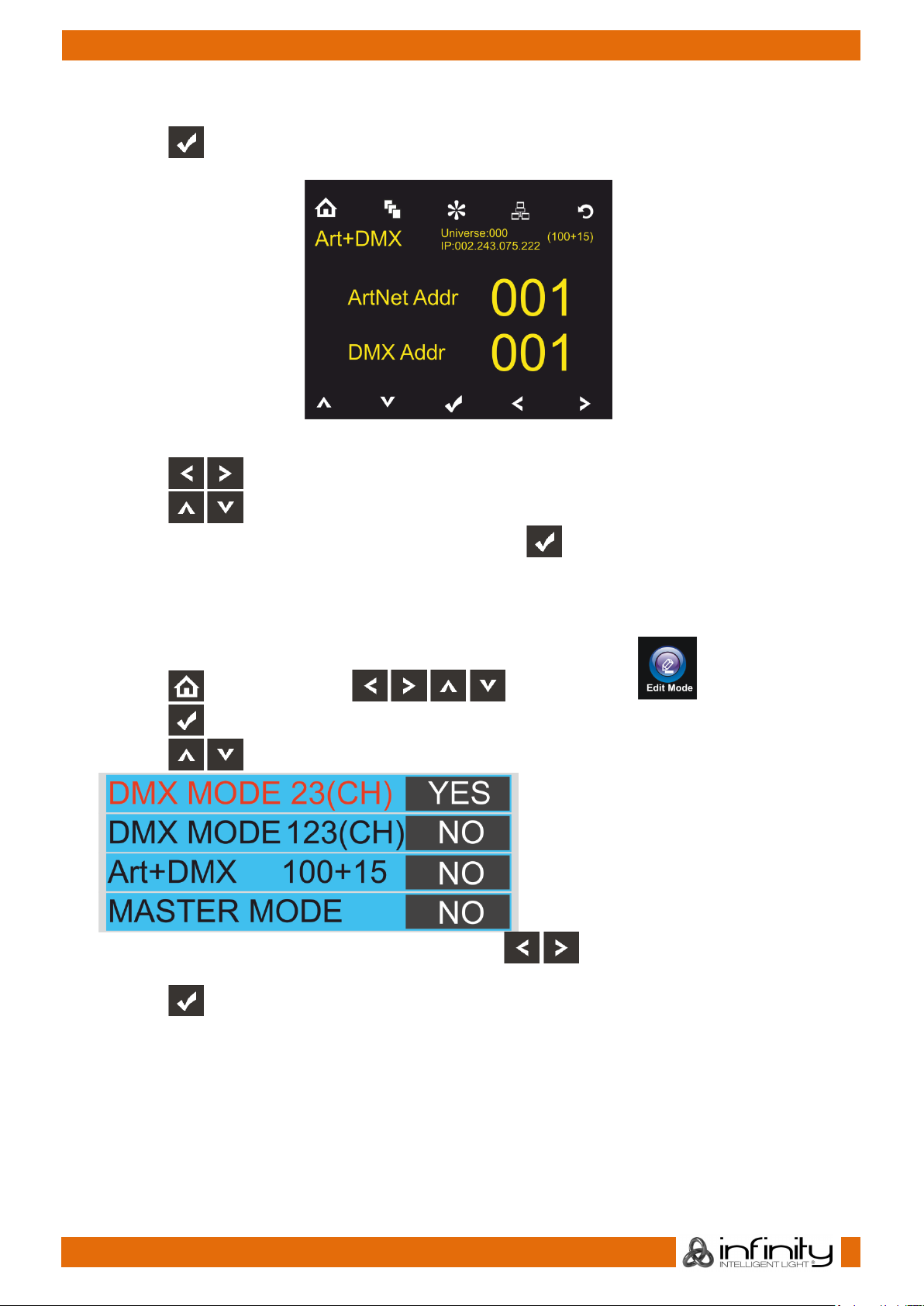

1.2. ArtNet settings (ArtNet + DMX mode)
01) Activate Art + DMX (100+15) mode (see 2. Edit Mode, page 17).
02) Press the button, to confirm. You can now set the DMX starting address and/or the device’s
ArtNet address.
03) Press the buttons to select the digit which you want to adjust.
04) Press the buttons to change the value.
05) Once you have made all the desired changes, press the button to store.
2. Edit Mode
With this menu you can set your desired mode.
01) Press the button or press the buttons to select .
02) Press the button, to confirm. You can choose one of the 4 available modes.
03) Press the buttons to select the required mode:
04) Once you have selected the desired mode, press the buttons to change the value from
NO to YES.
05) Press the button to confirm your choice.
06) If the device has been set to Master mode, all the connected slave devices will act the same as the
master device.
07) If the device has been set to slave, it will react the same as its master device.
17
Page 19
Ordercode: 41560
Infinity iM-2515
3. Settings Menu
With this menu you can set your desired mode.
01) Press the button or press the buttons to select .
02) Press the button, to enter the menu. You can choose from 17 different modes.
03) Press the buttons to select the required mode:
04) Once you have selected the desired mode, press the button to proceed to edition.
05) Press the buttons to change the value from NO to YES.
06) Some of the available menus have different options to the regular, YES or NO function:
Pan Angle: 540°, 360°, 180°
Tilt Angle: 270°, 180°, 90°
P/T Speed: Fast, Slow
Fans: Auto,Silent, Full
C Mixing Mode: RGBW, CMY
Dimmer Curve: Linear, Square, I Squa, Scurve
Dimmer Speed: Smooth, Fast
3.1. Color Balance
With this menu you can set the device’s color brightness.
01) Press the buttons to select Color Balance and press the button to open the menu.
02) You can now adjust 4 colors: Red, Green, Blue, White.
03) Choose the desired color, press the button and then press the buttons to set the
value. The adjustment range is between 0-255, from dark to brightest.
04) You can combine Red, Green, Blue and White to create an infinite range of colors.
05) If you want to use the Infinity in ArtNet+DMX mode, the color balance of all the 4 colors must be set
to 0. Otherwise, the device will not function properly.
18
Page 20
Ordercode: 41560
Infinity iM-2515
3.2. Life Time
With this menu you can reset the device’s counters.
01) Press the buttons to select Life Time and press the button to open the menu.
02) Press the buttons to choose one of the 3 reset options:
Time Counter (the time counter will be reset)
Total Life Time (the device’s operation time counter will be reset)
Set Password
03) If you select Time Counter or Total Life Time, press the button to open the selection menu.
04) Press the buttons to choose either YES or NO. Press the button to confirm.
3.2.1. Set Password
With this menu you can set the new password for the device.
01) Press the buttons to select Set Password and press the button to open the menu.
02) The following screen will pop up:
03) Press the buttons to select the digit which you want to edit.
04) Press the buttons to adjust the values.
3.2.2. Network settings
With this menu you can set the device’s network settings.
01) Press the buttons to select Network Settings and press the button to open the menu.
02) The following screen will pop up:
19
Page 21
Ordercode: 41560
Infinity iM-2515
03) Press the buttons to choose one of the 4 options:
Control mode (ArtNet, DMX, ArtNet + DMX, ArtNet)
ArtNet DHCP (If set to ON, the device receives the IP address from the router. If set to OFF, you
can assign your desired IP address to the device.)
Universe (the device’s universe, 0-255)
ArtNet IP
ArtNet submask
04) If you have chosen the desired option, press the button to proceed to edition mode.
05) Press the buttons to adjust the options.
06) Press the button to confirm your choice.
3.3. Reset
With this menu you can reset the device’s settings.
01) In Settings menu, press the buttons to select Reset Function and press the button to
open the menu.
02) Press the buttons to choose one of the 2 options:
Pan/Tilt (Pan/Tilt reset)
All (complete settings reset)
03) Once you have chosen the desired option, press the button to proceed to edition mode.
04) Press the buttons to choose between YES or NO.
05) Press the button to confirm your choice.

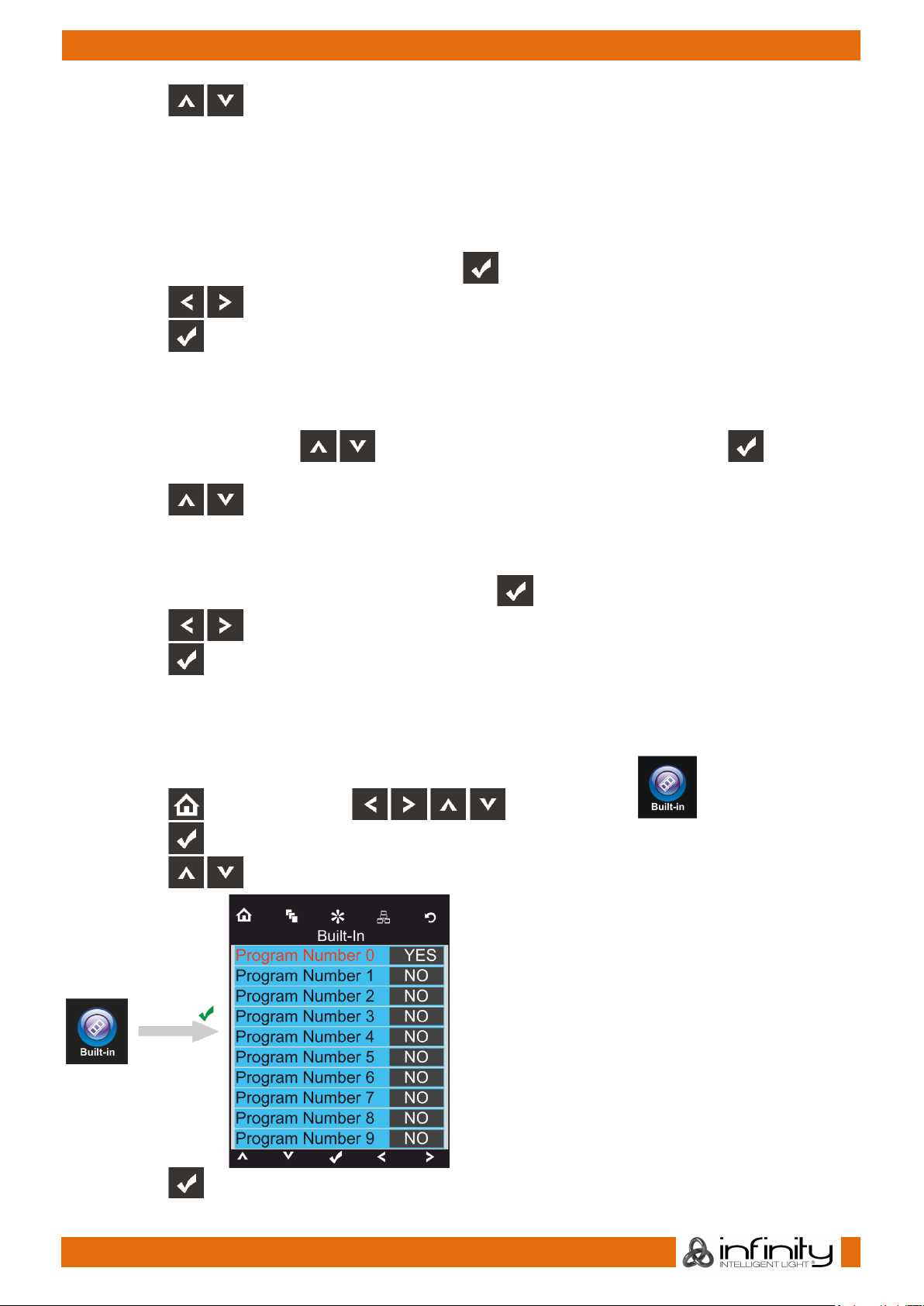

4. Built-in Programs
With this menu you can set your desired built-in program.
01) Press the button or press the buttons to select .
02) Press the button to enter the menu.
03) Press the buttons to select the desired built-in program.
04) Press the button to confirm your choice.
20
Page 22
Ordercode: 41560
Infinity iM-2515
05) Press the buttons to choose either YES or NO and press the button to activate the
desired built-in program.
5. Test Menu
With this menu you can set your desired mode.
01) Press the button or press the buttons to select .
02) Press the button to enter the menu.
03) Press the buttons to choose one of the 2 modes:
Auto Test
Manual Test
04) Press the to confirm your choice.
05) If you have selected Auto Test mode, the device will automatically test all its functions.
06) If you have selected Manual Test mode, press the buttons to select the desired option.
07) Press the buttons to change the values from 0 to 255.
08) Once you have adjusted the desired setting, press the button to store changes.
21
Page 23
Ordercode: 41560
Infinity iM-2515
Channel 5 – PAN/TILT Speed
0-255
From fast to slow
Channel 6 – Continuous horizontal movement (Pan)
0-127
Counterclockwise rotation, from slow to fast
128-255
Clockwise rotation, from slow to fast
Channel 7 – Continuous vertical movement (Tilt)
0-127
Counterclockwise rotation, from slow to fast
128-255
Clockwise rotation, from slow to fast
6. System information
With this menu you can set your desired mode.
01) Press the button or press the buttons to select .
02) Press the button to enter the menu.
03) The following screen will pop up:
04) You can now monitor the device’s current software version, current active mode, current DMX
starting address, current temperature, total operation time counter and time counter.
DMX Channels
23 channels
Channel 1 – Horizontal movement (Pan)
Push the slider up, in order to move head horizontally (PAN).
Gradual head adjustment from one end of the slider to the other (0-255, 128-center).
The head can be turned by 540° and stopped at any position you wish.
Channel 2 – Vertical movement (Tilt)
Push the slider up, in order to move head vertically (TILT).
Gradual head adjustment from one end of the slider to the other (0-255, 128-center).
The head can be turned by 270° and stopped at any position you wish.
Channel 3 – Pan fine 16 bit
Channel 4 – Tilt fine 16 bit
22
Page 24
Ordercode: 41560
Infinity iM-2515
Channel 8 – Red CH20-21 must be open
0-255
Gradual adjustment Red, from dark to brightest
Channel 9 – Green CH20-21 must be open
0-255
Gradual adjustment Green, from dark to brightest
Channel 10 – Blue CH20-21 must be open
0-255
Gradual adjustment Blue, from dark to brightest
Channel 11 – White CH20-21 must be open
0-255
Gradual adjustment White, from dark to brightest
Channel 12 – Color temperature
0
Not functional
1-255
Color temperature, from 19000K to 2700K
Channel 13 – Color temperature
0
Not functional
1-2
White 2700K
3-4
White 3200K
5-6
White 4200K
7-8
White 5600K
9-10
White 8000K
11
Blue (R=0, G=0, B=255, W=0)
12-48
R=0, G=0, B=255, W=0
49
Cyan (R=0, G=255, B=255, W=0)
50-86
R=0, G=255, B-, W=0
87
Green (R=0, G=255, B=0, W=0)
88-124
R+, G=255, B=0, W=0
125
Yellow (R=255, G=255, B=0, W=0)
126-162
R=255, G-, B=0, W=0
163
Red (R=255, G=0, B=0, W=0)
164-200
R=255, G=0, B+, W=0
201
Purple (R=255, G=0, B=255, W=0)
202-238
R-, G=0, B=255, W=0
239
Blue (R=0, G=0, B=255, W=0)
240-247
Color flow, from fast to slow
248-255
Color switch, from fast to slow
Channel 14 – Individual LED control CH13 and CH20-21 must be open
0-9
Not functional
10-29
Digits 0-9
30-81
Letters A-Z
82-153
Patterns
154-203
LEDs 1-25
204-255
Patterns
Channel 15 – Color programs CH8-11 and CH20-21 must be open
0-15
Not functional
16-135
Built-in programs
Channel 15 – Color programs (fixed color) CH20-21 must be open
136-255
Built-in programs
23
Page 25
Ordercode: 41560
Infinity iM-2515
Channel 16 – Program speed CH15 and CH20-21 must be open
0
Static
1-127
Clockwise rotation, from fast to slow
128-255
Counterclockwise rotation, from slow to fast
Channel 17 – LED fade effect
0-255
LED fade effect, from OFF to high
Channel 18 – Color reverse
0
Not functional
1-2
White 2700K
3-4
White 3200K
5-6
White 4200K
7-8
White 5600K
9-10
White 8000K
11
Blue (R=0, G=0, B=255, W=0)
12-48
R=0, G=0, B=255, W=0
49
Cyan (R=0, G=255, B=255, W=0)
50-86
R=0, G=255, B-, W=0
87
Green (R=0, G=255, B=0, W=0)
88-124
R+, G=255, B=0, W=0
125
Yellow (R=255, G=255, B=0, W=0)
126-162
R=255, G-, B=0, W=0
163
Red (R=255, G=0, B=0, W=0)
164-200
R=255, G=0, B+, W=0
201
Purple (R=255, G=0, B=255, W=0)
202-238
R-, G=0, B=255, W=0
239
Blue (R=0, G=0, B=255, W=0)
240-247
Color flow, from fast to slow
248-255
Color switch, from fast to slow
Channel 19 – Color reverse dimmer
0-255
Dimmer intensity, from OFF to full ON
Channel 20 – Master dimmer
0-255
Dimmer intensity, from OFF to full ON
Channel 21 – Shutter / Strobe CH20 must be open
0-19
Close
20-24
Shutter open
25-64
Strobe effect 1, from fast to slow
65-69
Shutter open
70-84
Strobe effect 2 (fast on and slow off), from fast to slow
85-89
Shutter open
90-104
Strobe effect 3 (slow on and fast off), from fast to slow
105-109
Shutter open
110-124
Strobe effect 4 (random strobe), from fast to slow
125-129
Shutter open
130-144
Strobe effect 5 (random strobe fast on and slow off), from fast to slow
145-149
Shutter open
150-164
Strobe effect 6 (random strobe slow on and fast off), from fast to slow
165-169
Shutter open
170-184
Strobe effect 7 (pulse strobe), from fast to slow
185-189
Shutter open
190-204
Strobe effect 8 (random pulse frequency strobe), from fast to slow
205-209
Shutter open
24
Page 26
Ordercode: 41560
Infinity iM-2515
210-224
Strobe effect 9 (strobe light, gradually destroy), from fast to slow
225-229
Shutter open
230-244
Strobe effect 10 (pulse strobe), from fast to slow
245-255
Shutter open
Channel 22 – Functions
0-9
Not functional
10-14
Pan/Tilt blackout
15-19
Not functional
20-24
RGBW color mixing, after 5 seconds
25-29
CMY color mixing, after 5 seconds
30-49
Not functional
50-54
Pan reset, after 5 seconds
55-59
Tilt reset, after 5 seconds
60-69
Not functional
70-74
Pan/Tilt reset, after 5 seconds
75-109
Not functional, after 5 seconds
110-114
Pan/Tilt fast, after 5 seconds
115-119
Pan/Tilt slow, after 5 seconds
120-124
Cooling fan slow, after 5 seconds
125-129
Cooling fan full speed, after 5 seconds
130-134
Cooling fan temperature dependent, after 5 seconds
135-139
Fast dimmer, after 5 seconds
140-144
Slow dimmer, after 5 seconds
145-255
Not functional
Channel 23 – Built-in programs
0-7
Not functional
8-23
Program 1
24-39
Program 2
40-55
Program 3
56-71
Program 4
72-87
Program 5
88-103
Program 6
104-119
Program 7
120-135
Program 8
136-151
Program 9
152-167
Program 10
168-183
Program 11
184-199
Program 12
200-215
Program 13
216-231
Program 14
232-247
Program 15
248-255
Program 16
25
Page 27
Ordercode: 41560
Infinity iM-2515
Channel 5 – PAN/TILT Speed
0-255
From fast to slow
Channel 6 – Continuous horizontal movement (Pan)
0-127
Counterclockwise rotation, from slow to fast
128-255
Clockwise rotation, from slow to fast
Channel 7 – Continuous vertical movement (Tilt)
0-127
Counterclockwise rotation, from slow to fast
128-255
Clockwise rotation, from slow to fast
Channel 8 – Red CH120-121 must be open
0-255
Gradual adjustment Red, from dark to brightest
Channel 9 – Green CH120-121 must be open
0-255
Gradual adjustment Green, from dark to brightest
123 channels
Channel 1 – Horizontal movement (Pan)
Push the slider up, in order to move head horizontally (PAN).
Gradual head adjustment from one end of the slider to the other (0-255, 128-center).
The head can be turned by 540° and stopped at any position you wish.
Channel 2 – Vertical movement (Tilt)
Push the slider up, in order to move head vertically (TILT).
Gradual head adjustment from one end of the slider to the other (0-255, 128-center).
The head can be turned by 270° and stopped at any position you wish.
Channel 3 – Pan fine 16 bit
Channel 4 – Tilt fine 16 bit
26
Page 28
Ordercode: 41560
Infinity iM-2515
Channel 10 – Blue CH120-121 must be open
0-255
Gradual adjustment Blue, from dark to brightest
Channel 11 – White CH120-121 must be open
0-255
Gradual adjustment White, from dark to brightest
Channel 12 – Red 1 CH120-121 must be open
0-255
Gradual adjustment Red, from dark to brightest
Channel 13 – Green 1 CH120-121 must be open
0-255
Gradual adjustment Green, from dark to brightest
Channel 14 – Blue 1 CH120-121 must be open
0-255
Gradual adjustment Blue, from dark to brightest
Channel 15 – White 1 CH120-121 must be open
0-255
Gradual adjustment White, from dark to brightest
Channel 108 – Red 25 CH120-121 must be open
0-255
Gradual adjustment Red, from dark to brightest
Channel 109 – Green 25 CH120-121 must be open
0-255
Gradual adjustment Green, from dark to brightest
Channel 110 – Blue 25 CH120-121 must be open
0-255
Gradual adjustment Blue, from dark to brightest
Channel 111 – White 25 CH120-121 must be open
0-255
Gradual adjustment White, from dark to brightest
Channel 112 – Color temperature
0
Not functional
1-255
Color temperature, from 19000K to 2700K
Channel 113 – Color temperature
0
Not functional
1-2
White 2700K
3-4
White 3200K
5-6
White 4200K
7-8
White 5600K
9-10
White 8000K
11
Blue (R=0, G=0, B=255, W=0)
12-48
R=0, G=0, B=255, W=0
49
Cyan (R=0, G=255, B=255, W=0)
50-86
R=0, G=255, B-, W=0
87
Green (R=0, G=255, B=0, W=0)
88-124
R+, G=255, B=0, W=0
125
Yellow (R=255, G=255, B=0, W=0)
27
Page 29
Ordercode: 41560
Infinity iM-2515
126-162
R=255, G-, B=0, W=0
163
Red (R=255, G=0, B=0, W=0)
164-200
R=255, G=0, B+, W=0
201
Purple (R=255, G=0, B=255, W=0)
202-238
R-, G=0, B=255, W=0
239
Blue (R=0, G=0, B=255, W=0)
240-247
Color flow, from fast to slow
248-255
Color switch, from fast to slow
Channel 114 – Individual LED control CH113 and CH120-121 must be open
0-9
Not functional
10-29
Digits 0-9
30-81
Letters A-Z
82-153
Patterns
154-203
LEDs 1-25
204-255
Patterns
Channel 115 – Color programs CH8-111 and CH120-121 must be open
0-15
Not functional
16-135
Built-in programs
Channel 115 – Color programs (fixed color) CH120-121 must be open
136-255
Built-in programs
Channel 116 – Program speed CH115 and CH120-121 must be open
0
Static
1-127
Clockwise rotation, from fast to slow
128-255
Counterclockwise rotation, from slow to fast
Channel 117 – LED fade effect
0-255
LED fade effect, from OFF to high
Channel 118 – Color reverse
0
Not functional
1-2
White 2700K
3-4
White 3200K
5-6
White 4200K
7-8
White 5600K
9-10
White 8000K
11
Blue (R=0, G=0, B=255, W=0)
12-48
R=0, G=0, B=255, W=0
49
Cyan (R=0, G=255, B=255, W=0)
50-86
R=0, G=255, B-, W=0
87
Green (R=0, G=255, B=0, W=0)
88-124
R+, G=255, B=0, W=0
125
Yellow (R=255, G=255, B=0, W=0)
126-162
R=255, G-, B=0, W=0
163
Red (R=255, G=0, B=0, W=0)
164-200
R=255, G=0, B+, W=0
201
Purple (R=255, G=0, B=255, W=0)
202-238
R-, G=0, B=255, W=0
239
Blue (R=0, G=0, B=255, W=0)
240-247
Color flow, from fast to slow
248-255
Color switch, from fast to slow
28
Page 30
Ordercode: 41560
Infinity iM-2515
Channel 119 – Color reverse dimmer
0-255
Dimmer intensity, from OFF to full ON
Channel 120 – Master dimmer
0-255
Dimmer intensity, from OFF to full ON
Channel 121 – Shutter / Strobe CH120 must be open
0-19
Close
20-24
Shutter open
25-64
Strobe effect 1, from fast to slow
65-69
Shutter open
70-84
Strobe effect 2 (fast on and slow off), from fast to slow
85-89
Shutter open
90-104
Strobe effect 3 (slow on and fast off), from fast to slow
105-109
Shutter open
110-124
Strobe effect 4 (random strobe), from fast to slow
125-129
Shutter open
130-144
Strobe effect 5 (random strobe fast on and slow off), from fast to slow
145-149
Shutter open
150-164
Strobe effect 6 (random strobe slow on and fast off), from fast to slow
165-169
Shutter open
170-184
Strobe effect 7 (pulse strobe), from fast to slow
185-189
Shutter open
190-204
Strobe effect 8 (random pulse frequency strobe), from fast to slow
205-209
Shutter open
210-224
Strobe effect 9 (strobe light, gradually destroy), from fast to slow
225-229
Shutter open
230-244
Strobe effect 10 (pulse strobe), from fast to slow
245-255
Shutter open
Channel 122 – Functions
0-9
Not functional
10-14
Pan/Tilt blackout
15-19
Not functional
20-24
RGBW color mixing, after 5 seconds
25-29
CMY color mixing, after 5 seconds
30-49
Not functional
50-54
Pan reset, after 5 seconds
55-59
Tilt reset, after 5 seconds
60-69
Not functional
70-74
Pan/Tilt reset, after 5 seconds
75-109
Not functional, after 5 seconds
110-114
Pan/Tilt fast, after 5 seconds
115-119
Pan/Tilt slow, after 5 seconds
120-124
Cooling fan slow, after 5 seconds
125-129
Cooling fan full speed, after 5 seconds
130-134
Cooling fan temperature dependent, after 5 seconds
135-139
Fast dimmer, after 5 seconds
140-144
Slow dimmer, after 5 seconds
145-255
Not functional
29
Page 31
Ordercode: 41560
Infinity iM-2515
Channel 123 – Built-in programs
0-7
Not functional
8-23
Program 1
24-39
Program 2
40-55
Program 3
56-71
Program 4
72-87
Program 5
88-103
Program 6
104-119
Program 7
120-135
Program 8
136-151
Program 9
152-167
Program 10
168-183
Program 11
184-199
Program 12
200-215
Program 13
216-231
Program 14
232-247
Program 15
248-255
Program 16
Channel 1 – Red 1 DMX CH12-13 must be open
0-255
Gradual adjustment Red, from dark to brightest
Channel 2 – Green 1 DMX CH12-13 must be open
0-255
Gradual adjustment Green, from dark to brightest
Channel 3 – Blue 1 DMX CH12-13 must be open
0-255
Gradual adjustment Blue, from dark to brightest
100+15 channels (ArtNet + DMX mode)
ArtNet
30
Page 32
Ordercode: 41560
Infinity iM-2515
Channel 4 – White 1 DMX CH12-13 must be open
0-255
Gradual adjustment White, from dark to brightest
Channel 5 – Red 2 DMX CH12-13 must be open
0-255
Gradual adjustment Red, from dark to brightest
Channel 6 – Green 2 DMX CH12-13 must be open
0-255
Gradual adjustment Green, from dark to brightest
Channel 7 – Blue 2 DMX CH12-13 must be open
0-255
Gradual adjustment Blue, from dark to brightest
Channel 8 – White 2 DMX CH12-13 must be open
0-255
Gradual adjustment White, from dark to brightest
Channel 97 – Red 25 DMX CH12-13 must be open
0-255
Gradual adjustment Red, from dark to brightest
Channel 98 – Green 25 DMX CH12-13 must be open
0-255
Gradual adjustment Green, from dark to brightest
Channel 99 – Blue 25 DMX CH12-13 must be open
0-255
Gradual adjustment Blue, from dark to brightest
Channel 100 – White 25 DMX CH12-13 must be open
0-255
Gradual adjustment White, from dark to brightest
Channel 5 – PAN/TILT Speed
0-255
From fast to slow
DMX
Channel 1 – Horizontal movement (Pan)
Push the slider up, in order to move head horizontally (PAN).
Gradual head adjustment from one end of the slider to the other (0-255, 128-center).
The head can be turned by 540° and stopped at any position you wish.
Channel 2 – Vertical movement (Tilt)
Push the slider up, in order to move head vertically (TILT).
Gradual head adjustment from one end of the slider to the other (0-255, 128-center).
The head can be turned by 270° and stopped at any position you wish.
Channel 3 – Pan fine 16 bit
Channel 4 – Tilt fine 16 bit
31
Page 33
Ordercode: 41560
Infinity iM-2515
Channel 6 – Continuous horizontal movement (Pan)
0-127
Counterclockwise rotation, from slow to fast
128-255
Clockwise rotation, from slow to fast
Channel 7 – Continuous vertical movement (Tilt)
0-127
Counterclockwise rotation, from slow to fast
128-255
Clockwise rotation, from slow to fast
Channel 8 – Red DMX CH12-13 must be open
0-255
Gradual adjustment Red, from dark to brightest
Channel 9 – Green DMX CH12-13 must be open
0-255
Gradual adjustment Green, from dark to brightest
Channel 10 – Blue DMX CH12-13 must be open
0-255
Gradual adjustment Blue, from dark to brightest
Channel 11 – White DMX CH12-13 must be open
0-255
Gradual adjustment White, from dark to brightest
Channel 12 – Master dimmer
0-255
Dimmer intensity, from OFF to full ON
Channel 13 – Shutter / Strobe DMX CH12 must be open
0-19
Close
20-24
Shutter open
25-64
Strobe effect 1, from fast to slow
65-69
Shutter open
70-84
Strobe effect 2 (fast on and slow off), from fast to slow
85-89
Shutter open
90-104
Strobe effect 3 (slow on and fast off), from fast to slow
105-109
Shutter open
110-124
Strobe effect 4 (random strobe), from fast to slow
125-129
Shutter open
130-144
Strobe effect 5 (random strobe fast on and slow off), from fast to slow
145-149
Shutter open
150-164
Strobe effect 6 (random strobe slow on and fast off), from fast to slow
165-169
Shutter open
170-184
Strobe effect 7 (pulse strobe), from fast to slow
185-189
Shutter open
190-204
Strobe effect 8 (random pulse frequency strobe), from fast to slow
205-209
Shutter open
210-224
Strobe effect 9 (strobe light, gradually destroy), from fast to slow
225-229
Shutter open
230-244
Strobe effect 10 (pulse strobe), from fast to slow
245-255
Shutter open
32
Page 34
Ordercode: 41560
Infinity iM-2515
Channel 14 – Functions
0-9
Not functional
10-14
Pan/Tilt blackout
15-19
Not functional
20-24
RGBW color mixing, after 5 seconds
25-29
CMY color mixing, after 5 seconds
30-34
Light delay OFF
35-39
Light delay ON
40-49
Not functional
50-54
Pan reset, after 5 seconds
55-59
Tilt reset, after 5 seconds
60-64
Zoom reset
65-69
Not functional
70-74
Pan/Tilt reset, after 5 seconds
75-114
Not functional
115-119
Pan/Tilt fast, after 5 seconds
120-124
Pan/Tilt slow, after 5 seconds
125-129
Cooling fan full speed, after 5 seconds
130-134
Cooling fan temperature dependent, after 5 seconds
135-139
Fast dimmer, after 5 seconds
140-144
Slow dimmer, after 5 seconds
145-255
Not functional
Channel 15 – Moving head built-in programs
0-7
Not functional
8-23
Built-in program 1
24-39
Built-in program 2
40-55
Built-in program 3
56-71
Built-in program 4
72-87
Built-in program 5
88-103
Built-in program 6
104-119
Built-in program 7
120-135
Built-in program 8
136-151
Built-in program 9
152-167
Built-in program 10
168-183
Built-in program 11
184-199
Built-in program 12
200-215
Built-in program 13
216-231
Built-in program 14
232-247
Built-in program 15
248-255
Built-in program 16
33
Page 35
Ordercode: 41560
Infinity iM-2515
Fig. 07
Connecting to a Network
ArtNet settings
01) Install any ArtNet-based software on your PC (Windows, Mac or user console with ArtNet support).
02) Connect the power supply to the Infinity.
03) Connect the device’s Ethernet connector IN (08) to your software/light controller’s Ethernet
connector, using a CAT-5/CAT-6 cable.
04) Set the IP address of your software/light controller to 2.x.x.x or 10.x.x.x, depending on the ArtNet
settings.
05) Set the subnet mask to 255.0.0.0. on both – the Infinity and your software/light controller. Make sure
that all the fixtures in the network have a unique IP address.
06) If you want to connect more than one fixture, follow the example below.
Example:
01) Make sure that each connected Infinity has a unique IP address.
02) Make sure that the subnet mask on each device is set to 255.0.0.0.
03) Set the universe of the first Infinity to 1.
04) Set the first Infinity’s DMX address to 001.
05) If you have reached the DMX limit of 512 channels, while connecting multiple Infinitys, set the
universe of the following Infinity to 2 and its DMX address to 001.
06) Repeat step 5 up to 255 times (as there are 255 universes available).
07) Using your software, map all the connected devices, using the settings described above.
08) The Infinitys are now ready for use.
09) When creating large setups, it is recommended to use a 16-bit, high speed ethernet switch to
distribute the ArtNet data signal.
How to make a data cable
A Standard ETHERNET Cable can be used to replace the Data Cable required to transmit the data for the
iM-2515.
Please follow the instructions below in order to create an extra Net Cable.
Take a standard net cable (CAT-5/ 5E /6) and connect it to the RJ45 connector, as shown in the picture
below (fig. 07). The wires should now be colored as follows:
34
Page 36
Ordercode: 41560
Infinity iM-2515
Maintenance
The operator has to make sure that safety-related and machine-technical installations are to be
inspected by an expert after every year in the course of an acceptance test.
The operator has to make sure that safety-related and machine-technical installations are to be
inspected by a skilled person once a year.
The following points have to be considered during the inspection:
01) All screws used for installing the device or parts of the device have to be tightly connected and
must not be corroded.
02) There may not be any deformations on housings, fixations and installation spots.
03) Mechanically moving parts like axles, eyes and others may not show any traces of wearing.
04) The electric power supply cables must not show any damages or material fatigue.
The iM-2515 requires almost no maintenance. However, you should keep the unit clean.
Otherwise, the fixture’s light output will be significantly reduced. Disconnect the mains power supply, and
then wipe the cover with a damp cloth. Do not immerse in liquid. Wipe lens clean with glass cleaner and
a soft cloth. Do not use alcohol or solvents.
The front lens will require weekly cleaning, as smoke-fluid tends to build up residues, reducing the lightoutput very quickly.
The cooling fans should be cleaned monthly, with a soft brush.
Please clean internal components once a year with a light brush and vacuum cleaner.
Keep connections clean. Disconnect electric power, and then wipe the DMX connections with a damp
cloth. Make sure connections are thoroughly dry before linking equipment or supplying electric power.
Replacing the Fuse
Power surges, short-circuit or inappropriate electrical power supply may cause a fuse to burn out. If the
fuse burns out, the product will not function whatsoever. If this happens, follow the directions below:
01) Unplug the unit from electric power source.
02) Insert a flat-head screwdriver into a slot in the fuse cover. Turn the screwdriver to the left, at the same
time gently push a bit (Turn and Push). The fuse will come out.
03) Remove the used fuse. If brown or unclear, it is burned out.
04) Insert the replacement fuse into the holder where the old fuse was. Reinsert the fuse cover. Be sure to
use a fuse of the same type and specification. See the product specification label for details.
Troubleshooting
This troubleshooting guide is meant to help solve simple problems.
If a problem occurs, carry out the steps below in sequence until a solution is found. Once the unit
operates properly, do not carry out following steps.
No Light
If the light effect does not operate properly, refer servicing to a technician.
Suspect three potential problem areas as: the power supply, the LEDs, the fuse.
01) Power supply. Check if the unit is plugged into an appropriate power supply.
02) The LEDs. Return the Infinity to your Showtec dealer.
03) The fuse. Replace the fuse. See page 35 for replacing the fuse.
04) If all of the above appears to be O.K., plug the unit in again.
05) If you are unable to determine the cause of the problem, do not open the Infinity, as this may
damage the unit and the warranty will become void.
06) Return the device to your Showtec dealer.
35
Page 37
Ordercode: 41560
Infinity iM-2515
Problem
Probable cause(s)
Solution
One or more
fixtures do not
function at all
No power to the fixture
•Check if power is switched on and
cables are plugged in
Primary fuse blown
•Replace fuse
Fixtures reset
correctly, but all
respond
erratically or not
at all to the
controller
The controller is not connected.
•Connect controller.
3-pin/5-pin XLR Out of the
controller does not match XLR Out
of the first fixture on the link (i.e.
signal is reversed)
•Install a phase reversing cable
between the controller and the
first fixture on the link
Fixtures reset
correctly, but
some respond
erratically or not
at all to the
controller
Poor data quality
•Check data quality. If much lower
than 100 percent, the problem
may be a bad data link
connection, poor quality or
broken cables, missing termination
plug, or a defective fixture
disturbing the link
Bad data link connection
•Inspect connections and cables.
Correct poor connections. Repair
or replace damaged cables
Data link not terminated with 120
Ohm termination plug
•Insert termination plug in output
jack of the last fixture on the link
Incorrect addressing of the fixtures
•Check address setting
One of the fixtures is defective and
disturbs data transmission on the
link
•Bypass one fixture at a time until
normal operation is restored:
unplug both connectors and
connect them directly together.
•Have the defective fixture
serviced by a qualified technician
3-pin/5-pin XLR Out on the fixtures
does not match (pins 2 and 3
reversed)
•Install a phase-reversing cable
between the fixtures or swap pin 2
and 3 in the fixture that behaves
erratically
No light or lamp
cuts out
intermittently
Fixture is too hot
• Allow the fixture to cool down
• Clean the fan
• Make sure air vents in control
panel and the front lens are not
blocked
•Turn up the air conditioning
LEDs damaged
•Disconnect the fixture and return it
to your dealer
The power supply settings do not
match local AC voltage and
frequency
•Disconnect fixture. Check settings
and correct if necessary
No Response to DMX
Suspect the DMX cable or connectors, a controller malfunction, a light effect DMX card malfunction.
01) Check the DMX setting. Make sure that DMX addresses are correct.
02) Check the DMX cable: Unplug the unit; change the DMX cable; then reconnect to electrical power.
Try your DMX control again.
03) Determine whether the controller or light effect is at fault. Does the controller operate properly with
other DMX products? If not, take the controller in for repair. If so, take the DMX cable and the light
effect to a qualified technician.
