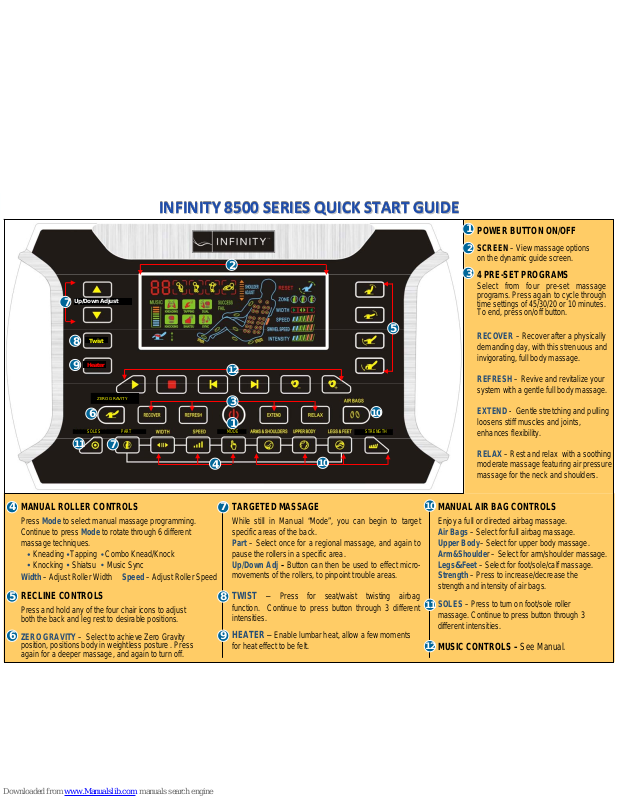

Infinity 8500 Series Quick Start Manual

INFINITY8500SERIESQUICKSTARTGUIDE

INFINITY8500SERIESQUICKSTARTGUIDE

INFINITY8500SERIESQUICKSTARTGUIDE

INFINITY8500SERIESQUICKSTARTGUIDE

INFINITY8500SERIESQUICKSTARTGUIDE

MANUAL ROLLER CONTROLS

Press Mode to select manual massage programming.
Continue to press Mode to rotate through 6 different
massage techniques.

Kneading Tapping Combo Knead/Knock
Knocking Shiatsu Music Sync

TARGETED MASSAGE

While still in Manual “Mode”, you can begin to target
specific areas of the back.

Part – Select once for a regional massage, and again to

pause the rollers in a specific area.

Up/Down Adj – Button can then be used to effect micro-

movements of the rollers, to pinpoint trouble areas.

RECLINE CONTROLS

Width – Adjust Roller Width Speed – Adjust Roller Speed

4

5

7

TWIST – Press for seat/waist twisting airbag

function. Continue to press button through 3 different
intensities.

8

HEATER – Enable lumbar heat, allow a few moments

for heat effect to be felt.

9

MANUAL AIR BAG CONTROLS

Enjoy a full or directed airbag massage.

Air Bags – Select for full airbag massage.
Upper Body– Select for upper body massage.
Arm&Shoulder – Select for arm/shoulder massage.
Legs&Feet – Select for foot/sole/calf massage.
Strength – Press to increase/decrease the

strength and intensity of air bags.

10

MUSIC CONTROLS – See Manual.

12

SOLES – Press to turn on foot/sole roller

massage. Continue to press button through 3
different intensities.

11

Press and hold any of the four chair icons to adjust
both the back and leg rest to desirable positions.

ZERO GRAVITY – Select to achieve Zero Gravity

position, positions body in weightless posture . Press
again for a deeper massage, and again to turn off.

6

ZERO GRAVITY

SOLES PART

1

Heater

Twist

Up/Down Adjust

2

12

5

7

7

8
9

10

3

STRENGTH

MODE

4

6

10

11

POWER BUTTON ON/OFF

4 PRE-SET PROGRAMS

Select from four pre-set massage
programs. Press again to cycle through
time settings of 45/30/20 or 10 minutes.
To end, press on/off button.

3

1

RECOVER – Recover after a physically

demanding day, with this strenuous and
invigorating, full body massage.

EXTEND - Gentle stretching and pulling

loosens stiff muscles and joints,
enhances flexibility.

REFRESH – Revive and revitalize your

system with a gentle full body massage.

RELAX – Rest and relax with a soothing

moderate massage featuring air pressure
massage for the neck and shoulders.

SCREEN – View massage options
on the dynamic guide screen.

2

INFINITY8500SERIES

QUICKSTARTGUIDE

Once your chair is plugged in and the power button on the rear lower panel is in the on
position, you can begin using your massage chair. Start by pressing the purple power
button in the middle of your remote.

Auto Programs - You can choose one of the four auto programs to the left and right of
the power button 1) Recover 2) Refresh 3) Extend 4) Relax. The programs take you
through a fully automated massage each addressing your specific needs. The
massage time can be adjusted by pressing the specific program button
repeatedly. Auto timer options are 45, 30, 20, and 10 minutes.

Custom Massage - After pressing the power button then press the “Mode” button
directly below the power button. This activates the first of the six roller massages 1)
Kneading 2) Tapping 3) Combo –Knead/Tap 4) Knocking 5) Shiatsu 6) Music
Sync. To change to the next massage simply press the “Mode” button again.
While enjoying any custom massage, you can further customize by selecting the
“Speed” and/or “Width” buttons to the left of the “Mode” button, when the icons are lit

up.

The “Part” button, when pressed the first time will focus the rollers in the current region
of massage. If you press the “Part” button again it will maintain the current roller
position and massage that specific area. The “Up/Down Adjust” buttons at the top left
of the remote allow for micro-adjustments to pin point specific areas.

To enjoy a foot massage, activate the foot rollers with the “Soles” button. The three
speeds can be changed by touching the “Soles” button repeatedly.

Additional customization can be enjoyed by pressing the three buttons to the right of
the “Mode” button: 1)“Arms & Shoulder,” 2)“Upper Body,” & 3)“Leg &

Foot.” Airbags will be activated for each specific region. The “Strength” button to the

right of the “Leg & Foot” button increases/decreases airb ag intensity to your personal
preference.

The “Twist” button activates the swivel seat that aids spinal correction. Further adjust
the speed by touching the Twist button repeatedly.

Select “Heater” to activate the Lumbar Heat. A llow a few minutes for the heat benefits
to be felt.

Music – Relax to your own music selection using a USB Flash Drive. Download music
onto any USB Device, plug it into the port on the rear of the chair base next to the
power cord. Music controls are located in the

middle of your remote above the power
button. By selecting “Mode” 6 times, you can sync your entire massage in rhythm with
your music.

INFINITY8500SERIES

QUICKSTARTGUIDE

Infinite Therapeutics 68 Route 125 Kingston, NH 03848 [phone]
