255a 5-Ch Power Amplifier

Owner’s Manual

Installation Guide

DECLARATION OF CONFORMITY

We, Infinity Systems A/S

Kongevejen 194B

DK-3460 Birkerød

DENMARK

declare in own responsibility, that the product described in this

owner’s manual is in compliance with technical standards

EN 55013/A12/8.1994 and EN 55020/12.1994.

Steen Michaelsen
Infinity Systems A/S
Birkerød. DENMARK. 3/97

KAPPA 255A POWER AMPLIFIER

The Kappa 255a is a member of Infinity’s new Kappa series
of mobile power amplifiers. Housed within the sleek,
extruded aluminum frame, you’ll find five channels of
amplification – four for full-range, midrange, or high­frequency reproduction and a 200 watt class-D channel to
efficiently power a subwoofer. This unique “hybrid”
amplifier features a flexible integrated crossover so you can
easily configure the Kappa 255a for a front, rear, and
constant bass system, or for a three-way system with
separate midbass or tweeters.

ABOUT THE WARRANTY...

You’ve selected a premium product that offers superior
performance and advanced materials, resulting from over
25 years of car audio design.This Infinity product is made
with our ongoing dedication to creating the best consumer
audio products possible. As a result, you can expect your
new Kappa Power Amplifier to provide you with many
years of listening enjoyment.

All Infinity Automotive Products carry a limited parts and
labor warranty (see the enclosed warranty card), so retain

KAPPA 255A AMPLIFIER FEATURES...

The Kappa 255a is a 5-channel power amplifier that offers

the bill of sale to protect your purchase and to aid us with
any service-related questions you may have.

full-range stereo and bridged-mono operation on four
analog channels and band-limited mono operation on a
class-D channel for subwoofer applications. The front/rear
amplifiers are rated at 50 watts (rms) per channel into a 4­ohm load, while the subwoofer channel is rated at 200 watts
(rms) into a 4-ohm load. In bridged-mono configurations,
front and rear amplifiers can deliver up to 150 watts (rms)
for the same load. The Kappa 255a also features:

• 2-ohm operation, rated at 75 watts (rms) per channel for
front and rear channels and 300 watts (rms) for the
subwoofer channel

• Bridge/stereo switches for fast system setup

• Built-in 12 dB-per-octave electronic crossovers, variable
from 32 to 320 Hz, with an “x15” front-channel switch (to
increase the frequency range from 480 Hz to 4.8 kHz)

ABOUT THIS MANUAL...

To attain maximum amplifier performance, we encourage
you to read the remaining pages before installing and
operating your new Infinity Kappa Power Amplifier.
Especially review the Applications section (on the next two
pages) for ideas on designing a system. Also, save these
instructions for future reference.

IMPORTANT: Installation of automotive stereo com­ponents can require extensive experience in performing a
variety of electrical, and mechanical procedures. Although
these instructions explain how to install a Kappa Power
Amplifier in a general sense, they do not show the exact
installation methods for your particular vehicle. If you do
not have the experience, do not attempt the installation
yourself; instead ask your Authorized Infinity Car Audio
Dealer about professional installation options.

• Dynamic Bass Optimizer™ (DBO) 12 dB-per-octave
subsonic filter with variable frequency (20 to 80 Hz) and
Q for enhancing subwoofer low frequencies while
conserving amplifier power

• Front and rear channels, individually selectable as high­pass, low-pass, or through-pass

• External switch for subwoofer inputs allows direct
connection to source units with subwoofer outputs

• Amplifier input sensitivity controls to match a wide
range of input signal levels from 250 mV to 9 V

• Five protection levels guard against over-voltage, under­voltage, over-power, over-temperature, and over-current
situations

• 2-color LED array indicates green when power is on and

TABLE OF CONTENTS...

Applications ..................................................3

orange when protection is activated

• Industrial-grade, gold-plated, “pre-wire and plug-in”

System Expansion...........................................4

connectors for an easy-to-install high-quality interface

• Transparent control cover to deter tampering yet provide
a clear view of installation settings

• Built-in automotive type fuses to protect the amplifier

• Unibloc™ chassis provides improved heat-sink capacity
and exceptional RFI shielding characteristics

Precautions And Notes .....................................5

Installation ...................................................6

Troubleshooting..............................................8

2 – Infinity Kappa 255a Power Amplifier

R

– ––

+ ++

L

R

– –

+ +

L

KAPPA 255a

(front panel)

KAPPA 255a

(rear panel)

REM

–

R

+–+

L

SUBWOOFER 1 and 2
are common outputs
and are supplied as
a convenience for
dual-subwoofer
applications

Subwoofer

LR

-

+

+

-

+

-

RRLF

+

-

RF

+

-

ST

BR

HP

FLAT

LP

.25V

9V

G
A

I

N

G
A
I
N

G
A

I

N

M
O
D
E

M
O
D

E

O
U

T
P

U

T

C
R
O
S
S
O
V
E
R

.25V

9V

.25V

9V

80Hz

20Hz

320Hz

32Hz

60
Hz

Q

FREQ

REAR
INPUT

SUB
INPUT

MIN

MAX

320Hz

32Hz

320Hz

32Hz

FRONT LP

EXT

INT
EXT

ST

BR

SUBWOOFER

FRONT REAR

O
U
T
P
U
T

C
R
O
S
S
O
V
E
R

D
B
O

X
O
V
E
R

HP

FLAT

LP

x1

x15

Set Switches As Shown

(set controls for your system plan)

Set to EXT for
source unit with
subwoofer outputs

KAPPA 255a

(top panel)

R

– ––

+ ++

L

R

– –

+ +

L

KAPPA 255a

(front panel)

KAPPA 255a

(rear panel)

REM

–

R

+–+

L

+

-

+

-

LF

Tweeter

+

-

RF

Tweeter

RR
Mid

LR
Mid

+

-

+

-

Subwoofer

(4 Ω min.)

Subwoofer

(4 Ω min.)

+

-

ST

BR

HP

FLAT

LP

.25V

9V

G
A

I

N

G
A
I
N

G
A

I

N

M
O
D
E

M
O
D

E

O
U

T
P

U

T

C
R
O
S
S
O
V
E
R

.25V

9V

.25V

9V

80Hz

20Hz

320Hz

32Hz

60
Hz

Q

FREQ

REAR
INPUT

SUB
INPUT

MIN

MAX

320Hz

32Hz

320Hz

32Hz

FRONT LP

EXT

INT

EXT

ST

BR

SUBWOOFER

FRONT REAR

O
U
T
P
U
T

C
R
O
S
S
O
V
E
R

D
B
O

X
O
V
E
R

HP

FLAT

LP

x1

x15

Set Switches As Shown

(set controls for your system plan)

Set to EXT for
source unit with
subwoofer outputs

FRONT LP creates
bandpass when rear
output is set to HP

KAPPA 255a

(top panel)

APPLICATIONS

Enclosed are several diagrams to help you plan your own
system installation. Figures 1 through 3 (on pages 3 and 4)
show how to configure the Kappa 255a to drive front and
rear speakers and a subwoofer, tweeters and midrange
speakers and a pair of subwoofers, and a tweeter/midrange
component set, midbass speakers, and a subwoofer.

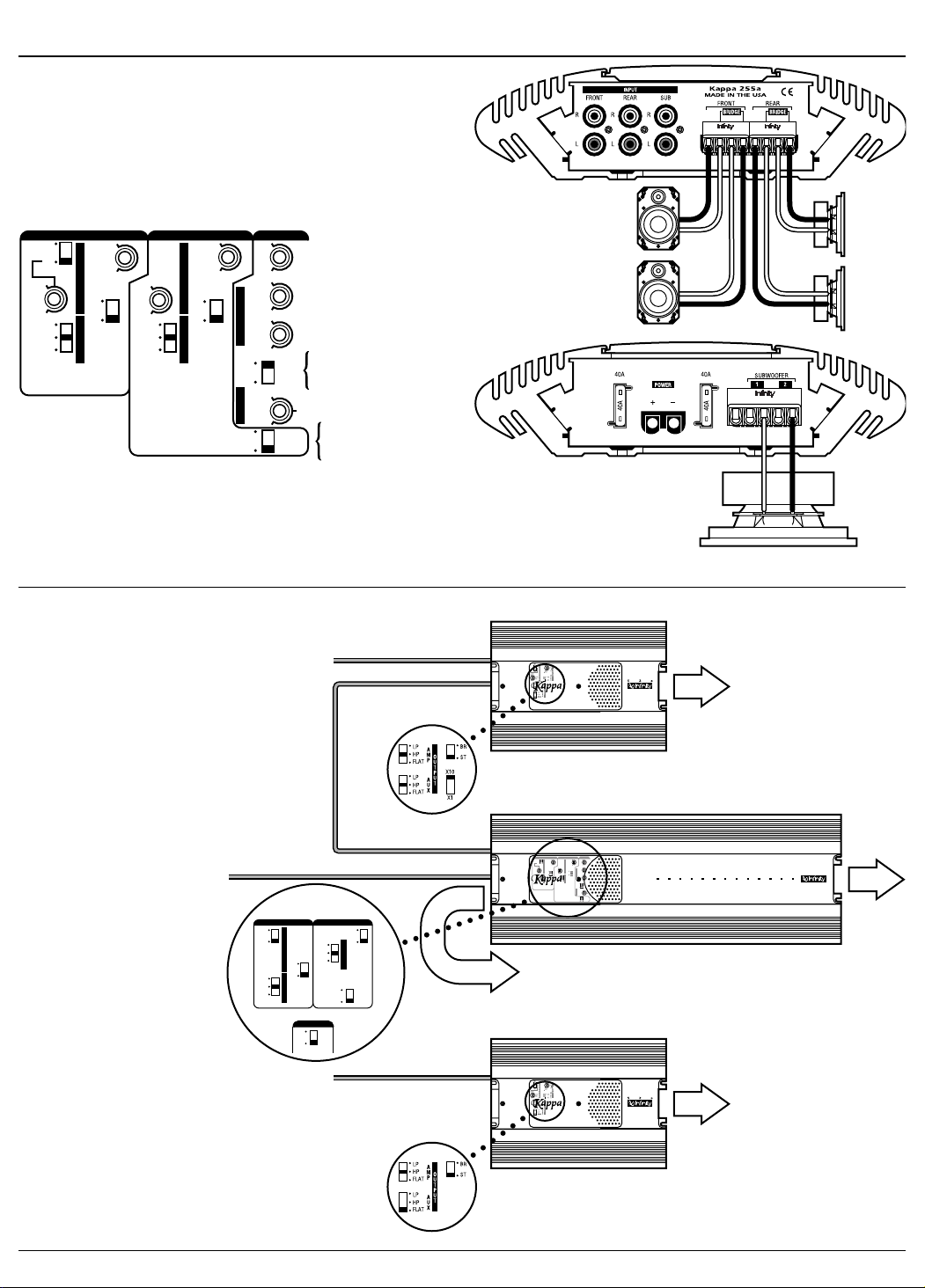

Figure 1. This wiring diagram shows
