For your safety, read carefully and keep in this vehicle.

2016 Inﬁniti Q70 Hybrid

Owner’s Manual

(3,1)

Foreword

GUID-8D14BA72-70E0-4F77-8469-7DEC8F6401D5

Your INFINITI represents a new way of thinking about vehicle design. It integrates advanced engineering and superior craftsmanship with a simple, refined aesthetic sensitivity associated with traditional Japanese culture.

The result is a different notion of luxury and beauty. The car itself is important, but so is the sense of harmony that the vehicle evokes in its driver, and the sense of satisfaction you feel with the INFINITI — from the way it looks and drives to the high level of retailer service.

To ensure that you enjoy your INFINITI to the fullest, we encourage you to read this Owner’s Manual immediately. It explains all of the features, controls and performance characteristics of your INFINITI; it also provides important instructions and safety information.

A separate Warranty Information Booklet is included in your Owner’s literature portfolio. The INFINITI Service and Maintenance Guide explains details about maintaining and servicing your vehicle. Always carry it with you when you take your vehicle to an INFINITI retailer. The Warranty Information Booklet contents provide complete information about all

warranties covering this vehicle, the requirements to keep the warranties in effect as well as the INFINITI Roadside Assistance program.

Additionally, a separate Customer Care and Lemon Law Information Booklet will explain how to resolve any concerns you may have with your vehicle, as well as clarify your rights under your state’s lemon law.

In addition to factory installed options, your vehicle may also be equipped with additional accessories installed by INFINITI or by your INFINITI retailer prior to delivery. It is important that you familiarize yourself with all disclosures, warnings, cautions and instructions concerning proper use of such accessories prior to operating the vehicle and/or accessory. See an INFINITI retailer for details concerning the particular accessories with which your vehicle is equipped.

READ FIRST — THEN DRIVE SAFELY

Before driving your vehicle, read your Owner’s Manual carefully. This will ensure familiarity with controls and maintenance requirements, assisting you in the safe operation of your vehicle.

GUID-AC330383-C773-4EB3-A52F-61102B1D37CD

WARNING

IMPORTANT SAFETY INFORMATION REMINDERS!

Follow these important driving rules to help ensure a safe and comfortable trip for you and your passengers!

. NEVER drive under the influence of

alcohol or drugs.

. ALWAYS observe posted speed limits

and never drive too fast for conditions.

. ALWAYS give your full attention to

driving and avoid using vehicle features or taking other actions that could distract you.

. ALWAYS use your seat belts and appro-

priate child restraint systems. Pre-teen children should be seated in the rear seat.

(4,1)

. ALWAYS provide information about the

proper use of vehicle safety features to all occupants of the vehicle.

. ALWAYS review this Owner’s Manual for

important safety information.

MODIFICATION OF YOUR VEHICLE

This vehicle should not be modified. Modification could affect its performance, safety or durability, and may even violate governmental regulations. In addition, damage or performance problems resulting from modification will not be covered under the INFINITI warranties.

WHEN READING THE MANUAL

This manual includes information for all features and equipment available on this model. Features and equipment in your vehicle may vary depending on model, trim level, options selected, order, date of production, region or availability. Therefore, you may find information about features or equipment that are not included or installed on your vehicle.

All information, specifications and illustrations in this manual are those in effect at

GUID-F1CA4D19-16D5-4A3C-AF71-1A2BB3AD052B

the time of printing. INFINITI reserves the right to change specifications, performance, design or component suppliers without notice and without obligation. From time to time, INFINITI may update or revise this manual to provide owners with the most accurate information currently available. Please carefully read and retain with this manual all revision updates sent to you by INFINITI to ensure you have access to accurate and up-to-date information regarding your vehicle. Current versions of vehicle Owner’s Manuals and any updates can also be found in the Owner section of the INFINITI website at https:// owners.infinitiusa.com/owners/navigation/manualsandGuides. If you have questions concerning any information in your Owner’s Manual, contact INFINITI Consumer Affairs. See the INFINITI CUSTOMER CARE PROGRAM page in this Owner’s Manual for contact information.

IMPORTANT INFORMATION ABOUT THIS MANUAL

You will see various symbols in this manual. They are used in the following ways:

GUID-3956A13C-AC00-461F-A84F-941327A05472

WARNING

This is used to indicate the presence of a hazard that could cause death or serious personal injury. To avoid or reduce the risk, the procedures must be followed precisely.

CAUTION

This is used to indicate the presence of a hazard that could cause minor or moderate personal injury or damage to your vehicle. To avoid or reduce the risk, the procedures must be followed carefully.

(5,1)

SIC0697

If you see the symbol above, it means “Do not do this” or “Do not let this happen”.

NOS1274

If you see a symbol similar to those above in an illustration, it means the arrow points to the front of the vehicle.

NOS1275

Arrows in an illustration that are similar to those above indicate movement or action.

NOS1276

Arrows in an illustration that are similar to

those above call attention to an item in the illustration.

CALIFORNIA PROPOSITION 65 WARNING

GUID-22D8B75D-68F8-4799-AD77-37863EA09A12

WARNING

Engine Exhaust, some of its constituents, and certain vehicle components contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. In addition, certain fluids contained in vehicles and certain products of component wear contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

CALIFORNIA PERCHLORATE ADVISORY

Some vehicle parts, such as lithium batteries, may contain perchlorate material. The following advisory is provided: “Perchlorate Material - special handling may apply, See www.dtsc.ca.gov/ hazardouswaste/perchlorate.”

GUID-E6CD19EB-0ED1-45BF-BAC9-C1A7DD80922F

Bluetooth®is a trademark owned by Bluetooth SIG, Inc. and licensed to Visteon Corporation and Clarion Co., Ltd.

SiriusXM®services require a subscription after trial period and are sold separately or as a package. The satellite service is available only in the 48 contiguous USA and DC. SiriusXM satellite service is also available in Canada: see www.siriusxm.ca.

INFINITI-13P

Manual may be reproduced or stored in a retrieval system, or transmitted in any form, or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written permission of Nissan Motor Co., Ltd.

(6,1)

INFINITI CUSTOMER CARE PROGRAM

GUID-7B10D04C-1C52-4B76-882C-7B9F38514835

INFINITI CARES ... Both INFINITI and your INFINITI retailer are dedicated to serving all your automotive needs. Your satisfaction with your vehicle and your

INFINITI retailer are our primary concerns.Your INFINITI retailer is always available to assist you with all your automobile sales and service needs.

However, if there is something that your INFINITI retailer cannot assist you with or you would like to provide INFINITI directly with comments or questions, please contact our (INFINITI’s) Consumer Affairs Department using our toll-free number:

For U.S. customers

1-800-662-6200

For Canadian customers

1-800-361-4792

The Consumer Affairs Department will ask for the following information:

. Your name, address, and telephone

number

. Vehicle identification number (on dash

panel)

. Date of purchase . Current odometer reading

You can write to INFINITI with the information on the left at:

For U.S. customers

INFINITI Division Nissan North America, Inc. Consumer Affairs Department P.O. Box 685003 Franklin, TN 37068-5003 or via e-mail at: nnaconsumeraffairs@nissan-usa. com

For Canadian customers

INFINITI Division Nissan Canada Inc. 5290 Orbitor Drive Mississauga, Ontario L4W 4Z5 or via e-mail at: information.centre@nissancanada. com

If you prefer, visit us at: www.infinitiUSA.com (for U.S. customer) or www.infiniti.ca (for Canadian customers) We appreciate your interest in INFINITI and

thank you for buying a quality INFINITI vehicle.

. Your INFINITI retailer’s name . Your comments or questions

(1,1)

Hybrid System Overview

Illustrated table of contents

Hybrid System

Safety — Seats, seat belts and supplemental restraint system

Instruments and controls

Pre-driving checks and adjustments

Monitor, climate, audio, phone and voice recognition systems

Starting and driving

In case of emergency

Appearance and care

Maintenance and do-it-yourself

Technical and consumer information

Index

(2,1)

(7,1)

Hybrid System Overview

INFINITI Direct Response

Hybrid

Lithium-ion (Li-ion) battery ................. Hybrid System-2

High voltage cautions ........................ Hybrid System-2

Road accident cautions ...................... Hybrid System-3

Emergency shut-off system ................ Hybrid System-4

Operation of the hybrid system .......... Hybrid System-4

System ................................. Hybrid System-2

Starting and slow

speed driving ................................ Hybrid System-4

Medium or high speed driving ....... Hybrid System-4

Rapid acceleration ......................... Hybrid System-5

Deceleration and braking ............... Hybrid System-5

Stopping ....................................... Hybrid System-5

Energy monitors ................................ Hybrid System-5

Assist charge gauge ..................... Hybrid System-5

Energy Flow (models with

navigation system) ....................... Hybrid System-5

Fuel economy history (models

with navigation system) ............... Hybrid System-7

Regenerative brake ........................... Hybrid System-8

Efficient use of your vehicle .............. Hybrid System-8

Approaching Vehicle Sound for

Pedestrians (VSP) system .................. Hybrid System-9

Hybrid vehicle precautions .............. Hybrid System-10

High voltage components ........... Hybrid System-10

Hybrid

vehicle characteristics ................ Hybrid System-11

(8,1)

INFINITI DIRECT RESPONSE HYBRID

SYSTEM

The INFINITI Direct Response Hybrid System combines the power of a gasoline engine and an electric motor to help minimize fuel consumption and emissions.

Depending on driving conditions, the vehicle runs on a combination of the gasoline engine and the electric motor, whichever is best for those conditions.

Because the gasoline engine charges the Lithium-ion (Li-ion) battery as needed, the battery does not have to be charged from an outside source like an all-electric vehicle.

GUID-95FAC0B0-3423-4FC1-94F7-D71B47AFD60E

LITHIUM-ION (Li-ion) BATTERY HIGH VOLTAGE CAUTIONS

GUID-E35F2EDF-AF65-4808-8D56-AE9DF84C7C73

GUID-45AC26A0-C658-4170-BD81-8A380FB48F9B

WARNING

Your vehicle contains a sealed Lithium ion (Li-ion) high voltage battery. If the Li-ion battery is disposed of improperly, there is a risk of severe burns and electrical shock that may result in serious injury or death and there is also a risk of environmental damage.

CAUTION

. Do not misuse the Li-ion battery. . Do not use the Li-ion battery for any

other purpose.

The Li-ion battery is used to drive the electric motors in the INFINITI Direct Response Hybrid

The Li-ion battery has a limited service life. Contact your INFINITI retailer for information about recycling or disposal of the battery.

System.

. The INFINITI Direct Response Hybrid

System uses high voltage up to approximately 408 volts. The system can be hot during and after starting. Be careful of both the high voltage and the high temperature. Obey the warning labels attached to the vehicle.

. Never disassemble, remove or replace

high-voltage parts and harnesses as well as their connectors. Doing so can cause severe burns or electric shock that may result in serious injury or death. High-voltage harnesses are colored orange. The vehicle high voltage system has no user serviceable parts. Take your vehicle to an INFINITI retailer for any necessary maintenance.

. Never try to remove the service plug

located in the trunk. The service plug is used only when the vehicle is serviced by trained technicians wearing personal protection equipment and is part of the high voltage system. Touching the service plug can cause severe burns or electric shock that may result in serious injury or death.

WARNING

Hybrid System-2 Hybrid System Overview

(9,1)

ROAD ACCIDENT CAUTIONS

GUID-D53FD07C-CA3D-4B0B-AEF5-7B8EA1976A9A

WARNING

In case of a collision:

. If your vehicle is drivable, pull your

vehicle off the road, put the transmission in the P (Park) position, apply the parking brake and turn the INFINITI Direct Response Hybrid

. Check to see if there are exposed high

voltage parts and cables. Never touch the parts and cables. For their locations, see “High voltage components” (P.Hybrid System-10). To avoid personal injury, never touch high-voltage wiring, connectors, and other high-voltage parts, such as electric motor inverter and Lithium ion (Li-ion) battery. An electric shock may occur if exposed electric wires are visible when viewed from inside or outside of your vehicle. Therefore, never touch exposed electric wires.

. If the vehicle receives a strong impact to

the floor while driving, stop the vehicle in a safe location and check the floor.

. Inspect the ground under the vehicle. If

liquid has leaked onto the ground, the

System off.

fuel system may have been damaged. Leave the vehicle as soon as possible.

. Leaks or damage to the Li-ion battery

may result in a fire. If you discover them, contact emergency services immediately. Since the fluid leak may be lithium organic electrolyte from the Li-ion battery, never touch the fluid leak inside or outside the vehicle. If the fluid contacts your skin or eyes, wash it off immediately with a large amount of water and receive immediate medical attention to help avoid serious injury.

. If a fire occurs in the hybrid vehicle,

leave the vehicle as soon as possible. Only use a type ABC, BC or C fire extinguisher that is meant for use on electrical fires. Using water or the incorrect fire extinguisher can result in serious injury or death from electrical shock.

. If you are not able to safely assess the

vehicle due to vehicle damage, do not touch the vehicle. Leave the vehicle and contact emergency services. Advise 1st responders that this is a hybrid vehicle.

. In the event of an accident that requires

body repair and painting, the vehicle

should be delivered to an INFINITI retailer to have the Li-ion battery pack and high voltage parts such as the inverter, including the wiring harness, removed prior to painting. Li-ion battery packs exposed to heat in the paint booth will experience capacity loss. Damaged Li-ion battery packs may also pose safety risks to untrained mechanics and repair personnel.

Hybrid System Overview Hybrid System-3

(10,1)

EMERGENCY SHUT-OFF SYSTEM OPERATION OF THE HYBRID SYSTEM

The emergency shut-off system is activated

GUID-3FD11D3F-CCD6-491E-AAEB-D7ECD1F3342F

and the high-voltage system automatically turns off in the following conditions:

. Front and side collisions in which the air

bags are deployed.

. Certain rear collisions. . Certain INFINITI Direct Response Hy-

brid

System malfunctions

For the above collisions and the certain hybrid system malfunctions, the READY to drive indicator light will turn off. See “Warning lights, indicator lights and audible reminders” (P.2-11).

The emergency shut-off activates for the above collisions to minimize risk of an event that could cause injury or an accident. If the emergency shut-off system activates, the hybrid system may not switched to READY to drive position, contact an INFINITI retailer. Even if the ignition switch is switched to READY to drive position, the system may shut-off suddenly. Therefore, drive cautiously to the nearest INFINITI retailer or contact an INFINITI retailer as soon as possible.

Hybrid System-4 Hybrid System Overview

To start the INFINITI Direct Response Hybrid

1. Depress the brake pedal and place the ignition switch in the ON position when the transmission is in the P (Park) or N (Neutral) position (P is recommended). (For more details, see “Push-button ignition switch” (P.5-10).)

2. The READY to drive indicator light flashes, then turns illuminated. (The hybrid system switched to the READY to drive mode when the indicator light illuminates.)

When the READY to drive indicator light

driven, even if the gasoline engine is not running.

NOTE: The gasoline engine starts and stops

automatically. It may stop during low speed driving, deceleration or when the vehicle is stopped.

The gasoline engine may automatically run in the following conditions: . The level of remaining charge in the

Lithium ion (Li-ion) battery is low. The engine runs to charge the Li-ion battery and to provide power to the drive the

GUID-1924A78A-0B79-4FC7-BF95-FEA9671E4C59

System:

illuminates, the vehicle can be

vehicle.

. The temperature of the engine coolant

is low.

. Based on driving conditions. . The shift lever is shifted to the P (Park)

position, the driver’s seat belt is released and the driver’s side door is then opened.

The hybrid system operates as follows based on driving conditions and the Li-ion battery charge.

STARTING AND SLOW SPEED DRIVING

The vehicle is driven by the electric motor depending on the available Li-ion battery charge.

MEDIUM OR HIGH SPEED DRIVING

The system automatically controls the gasoline engine and electric motor in order to obtain the optimum fuel mileage and performance, depending on the driving situation and available Li-ion battery charge.

When the remaining battery level is low, the Li-ion battery is charged by the electric motor that is driven to generate electric power while the vehicle is driving.

GUID-EBBF510F-D98C-418E-81B3-0110F43D2383

GUID-F57E03AA-1EF1-4B66-9E95-FB8DB40078A6

(11,1)

RAPID ACCELERATION

GUID-F31F8BA9-62F1-49D8-BC53-BB09D95B1589

The vehicle is accelerated using both the gasoline engine and the electric motor depending on the available Li-ion battery charge.

DECELERATION AND BRAKING

GUID-A368CF0A-289C-4234-8E8B-B3D4F43DDF98

The Li-ion battery is charged by the electric motor that changes the energy of the rotating wheels into electric power. See “Regenerative brake” (P.Hybrid System-8).

STOPPING

GUID-CFF479D9-5B56-4BF2-B3B4-298FAAB6FDB6

The gasoline engine may stop running to save fuel depending on the available Li-ion battery charge.

ENERGY MONITORS

GUID-6E0F944D-A734-4396-AB92-927FB9DD009B

The INFINITI Direct Response Hybrid System monitors the status of power being sent to the electric motor and the Lithium ion (Li-ion) battery state of charge. The status is shown on the assist charge gauge in the meter and the energy flow/remaining Li-ion battery charge in the vehicle information display. System status can also be shown on the navigation system display (if so equipped) when the screen is in the energy flow mode or energy/fuel history mode.

ASSIST CHARGE GAUGE

GUID-F41791BA-A76F-4F42-8823-663EEAD43403

This meter displays the actual electric motor power consumption and the charging power to the Li-ion battery.

For additional information, See “Assist charge gauge” (P.2-9).

ENERGY FLOW (models with navigation system)

When you use this system, make sure the hybrid system is in the READY to drive mode. See “Operation of the hybrid system” (P.Hybrid System-4).

GUID-DF77EC0B-422D-4F30-AB06-2E3A20449423

JVO0001X

Hybrid System Overview Hybrid System-5

(12,1)

If you use the system with the hybrid system off (ignition switch placed in the ACC position) for a long time, it will discharge the 12-volt battery power, and the hybrid system will not start.

Energy Flow for various operating modes can be displayed on the navigation system monitor.

Hybrid System-6 Hybrid System Overview

JVO0149X

Push the INFO button on the control panel and highlight the “Energy Flow” key on the display using the INFINITI controller then push the ENTER button.

JVO0008M

This is an example of the Energy Flow display. The Energy Flow display changes, depending on the following operating conditions. The graphic indicates the amount of power in the Li-ion battery.

The following are displayed on the Energy Flow screen.

. When the vehicle is powered only by the

electric motor or gasoline engine.

. When the vehicle is powered by both

the electric motor and the gasoline engine.

. When the vehicle is charging the Li-ion

battery with the regenerative brake and gasoline engine.

(13,1)

. When the vehicle is powered by the

gasoline engine and is charging the Liion battery.

. When there is no Energy Flow in the

vehicle

The Energy Flow and remaining Li-ion battery charge can be also shown on the vehicle information display. See “Trip computer” (P.2-31).

FUEL ECONOMY HISTORY (models with navigation system)

The Fuel Economy History screen appears in the display with the navigation system when the screen is in the Fuel Economy History mode.

GUID-95E6A2B0-0CC5-4F08-B692-FA494F50559F

JVO0149X

1. Push the INFO button on the control panel and highlight the “Energy Flow” key on the display using the INFINITI controller. Then push the ENTER button.

2. Highlight the “History” key, and push the ENTER button.

JVO0148X

The Fuel Economy History can be displayed on the navigation system monitor. This displays the vehicle’s average fuel consumption and regenerative electric power at 2 minute intervals.

The displayed values on the screen indicate general driving conditions. Accuracy varies with driving habits and road conditions.

1. Regenerated energy in the past 12 minutes: The regenerated energy in the past 12 minutes is indicated with symbols. One symbol indicates 30 watt-hour. The energy of 30 watt-hour illuminates a 30 watt bulb for an hour.

Hybrid System Overview Hybrid System-7

(14,1)

2. Fuel consumption in the past 12 minutes: Fuel consumption in the past 12 minutes is displayed.

3. Current fuel consumption (Latest column): The current fuel consumption is calculated and displayed based on distance and fuel consumption.

NOTE: Information shown in the yellow column

means current (within 2 minutes) and information shown in the blue columns means past (more than 2 minutes).

REGENERATIVE BRAKE EFFICIENT USE OF YOUR VEHICLE

When the vehicle decelerates while the

GUID-69E93D3E-D8C3-4281-BF91-20E02FE32D91

vehicle is driven with the shift lever in the D (drive) position or in the manual shift mode, the Lithium ion (Li-ion) battery can be charged by the electric motor. The electric motor converts the energy of the rotating wheels into electric power under the following circumstances:

. When the accelerator pedal is released. . When the brake pedal is depressed . When there is no malfunction in the

brake system or the INFINITI Direct Response Hybrid

System

The regenerative brake may not work properly if the vehicle has tires and road wheels other than the ones specified in this manual.

Drive your vehicle with smooth acceleration and deceleration.

. While driving, energy is recovered

through the regenerative brake as the vehicle decelerates. However, for most efficient use, do not accelerate or decelerate your vehicle more than necessary.

. Avoid abrupt acceleration and decelera-

tion.

. The power of the Lithium ion (Li-ion)

battery can be checked on the Energy Flow in the center display (models with navigation system) or Li-ion battery status meter in the vehicle information display. See “Energy Flow (models with navigation system)” (P.Hybrid System-

5) or “Trip computer” (P.2-31). Gradual or non-abrupt acceleration and deceleration will make more effective use of the electric motor power, using less gasoline engine power.

. When parking, be sure to place the shift

lever in the P (Park) position. While driving, place the shift lever in the D (Drive) position.

GUID-73C6A5CC-367A-43A2-8E50-5D0EA8BC5589

Hybrid System-8 Hybrid System Overview

(15,1)

APPROACHING VEHICLE SOUND FOR PEDESTRIANS (VSP) SYSTEM

The Approaching Vehicle Sound for Pedestrians (VSP) system is a function that uses sound to help alert pedestrians of the presence of the vehicle when it is being driven at a low speed in the electric drive mode under the following conditions:

. The sound starts when the vehicle

starts accelerating.

. The sound stops when the vehicle

speed is more than 19 MPH (30 km/h) while accelerating.

. The sound starts when the vehicle

speed is less than 16 MPH (25 km/h) while decelerating.

. The sound stops when the vehicle

stops.

. The sound does not stop with the

vehicle in the R (Reverse) position even if the vehicle stops.

The VSP system is automatically turned on when the vehicle is in the READY to drive mode.

If there is a malfunction in the VSP system, the VSP OFF indicator light in the meter illuminates. See “Approaching Vehicle Sound for Pedestrians (VSP) OFF indicator light” (P.2-19).

GUID-D95ED0B0-EA84-4F85-BCE7-A082527D2C79

WARNING

. If the sound from the VSP system is not

heard while driving, stop the vehicle in a safe and quiet location. Open a window, and then place the vehicle in the R (Reverse) position with the brake pedal firmly depressed. Check that the operating sound can be heard from the front side of the vehicle.

. If the sound cannot be heard, immedi-

ately contact an INFINITI retailer for inspection.

Hybrid System Overview Hybrid System-9

(16,1)

HYBRID VEHICLE PRECAUTIONS

GUID-072ECCDB-CE14-42A7-B2AB-42AFC69146BC

HIGH VOLTAGE COMPONENTS

GUID-5BC83D73-8D19-4309-ABE4-504C1C606C99

WARNING

. The INFINITI Direct Response Hybrid

System uses high voltage up to approximately 408 volts. The system can be hot while and after starting. Be careful of both the high voltage and the high temperature. Obey the warning labels attached to the vehicle.

. Never touch, disassemble, remove or

replace the high voltage parts, harnesses and their connectors. High voltage harnesses are orange. Touching, disassembling, removing or replacing those parts and harnesses can cause severe burns or electric shock that may result in serious injury or death.

JVO0011X

Hybrid System-10 Hybrid System Overview

1. Electric motor inverter

2. High voltage harnesses (orange)

3. Lithium ion (Li-ion) battery

4. DC/DC converter

5. Service plug

6. Electric compressor

7. Electric motor

8. 12-volt battery The hybrid system uses high voltage up to

approximately 408 volts. High voltage components are indicated in the illustra-

(17,1)

tion. High voltage harnesses are orange. The system can be hot while and after starting. Be careful of both the high voltage and the high temperature.

HYBRID VEHICLE CHARACTERISTICS

GUID-D766F542-0B07-4222-BDBB-B3A9293124E4

WARNING

. When you leave your vehicle, be sure to

place the ignition switch in the OFF position.

. Be sure to put the transmission in the P

(Park) position because the vehicle can move when the READY to drive indicator light is on even if the gasoline engine is not running. When the READY to drive indicator light is on, do not leave your vehicle in a shift position other than the P (Park) position. The vehicle will creep and start abruptly if the accelerator pedal is depressed by mistake. This may cause serious injury or death.

CAUTION

If the vehicle is parked for a long period of time, the battery discharges gradually. To

avoid this occurrence, drive the vehicle for approximately 30 minutes at least once every two to three months. Otherwise, the Lithium ion (Li-ion) battery may be damaged. If the Li-ion battery is completely discharged and the hybrid system cannot be activated, contact an INFINITI retailer.

High voltage parts and harnesses on the hybrid vehicles emit approximately the same amount of electromagnetic waves as the conventional gasoline-powered vehicles or home electronic appliances despite of their electromagnetic shieldings. Unwanted noise may occur in the reception of a mobile two-way radio.

Charging the Li-ion battery while driving is important. The vehicle cannot run if the Liion battery is discharged. When in the N (Neutral), D (Drive) or R (Reverse) position, and while the accelerator pedal or the brake pedal is not depressed, the Li-ion battery does not recharge. Leaving the transmission in the N (Neutral), D (Drive) or R (Reverse) position, and while the accelerator pedal or the brake pedal is not depressed for an extended period of time (for example, when the shift lever is in the D (Drive) position and the vehicle is

stopped only by the parking brake), may discharge the Li-ion battery and the hybrid system may automatically be turned off.

Hybrid System Overview Hybrid System-11

(18,1)

JVO0019X

An air vent shelf to cool the Li-ion battery. If the vent is covered, the battery will overheat resulting in reduced output performance of the hybrid system. See “Lithium-ion (Li-ion) battery air vent” (P.7-5).

is located on the rear parcel

JVO0021X

CAUTION

Do not placeobjects over or into the air vent. The Li-ion battery may overheat and be damaged.

JVO0006X

CAUTION

Do not load large amounts of water in open containers (aquariums or buckets) into the vehicle. If the water spills onto the Li-ion battery, it may cause a short circuit and damage the battery.

Hybrid System-12 Hybrid System Overview

(19,1)

JVO0020X

CAUTION

Do not allow any liquid to get on or in the air vent. It may cause a short circuit and damage the Li-ion battery.

. Noise from the rear of the vehicle when

the hybrid system activates or deactivates

. Noise and vibration when the gasoline

engine starts running or stops

. Operating noise or electric motor noise

when releasing the accelerator pedal or depressing the brake pedal

. Engine noise due to rapid acceleration . Fan noise from the air inlet located on

the rear parcel shelf

. Noise from the climate control system . Noise from the vehicle in order to alert

pedestrians to the presence of an approaching vehicle. See “Approaching Vehicle Sound for Pedestrians (VSP) system” (P.Hybrid System-9).

Noise and vibration

GUID-33CF2869-ADFB-4A9D-AFD0-651AEE3EFEB0

After the hybrid system is activated, the following noises and vibrations that are unique to the hybrid system may occur. This does not indicate a malfunction.

. Electric motor noise from the engine

compartment

Hybrid System Overview Hybrid System-13

(20,1)

MEMO

Hybrid System-14 Hybrid System Overview

(21,1)

0 Illustrated table of contents

Seats, seat belts and Supplemental Restraint

System (SRS) ......................................................... 0-2

Exterior front ......................................................... 0-3

Exterior rear ........................................................... 0-4

Passenger compartment ........................................ 0-5

Cockpit .................................................................. 0-6

Instrument panel ................................................... 0-8

Meters and gauges .............................................. 0-10

Engine compartment ........................................... 0-11

VQ35HR engine .............................................. 0-11

Warning and indicator lights ............................... 0-12

(22,1)

SEATS, SEAT BELTS AND SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

GUID-73C2D8AF-1731-4D5A-B261-B273439C9CA3

1. Supplemental front-impact air bags (Page 1-40)

2. Front seat-mounted side-impact supplemental air bags (P.1-40)

3. Seat belts (P.1-9)

4. Head restraints/headrests (P.1-5)

7. Occupant classification sensor (pattern sensor) (P.1-45)

8. Front seats (P.1-3)

9. Seat belts with pretensioners (P.1-52)

10. Rear seats — Child restraints (P.1-19)

11. LATCH (Lower Anchors and Tethers for CHildren) system (P.1-21)

SSI0715

5. Roof-mounted curtain side-impact supplemental air bags (P.1-40)

6. Child restraint anchor points (for top tether strap child restraint) (P.1-23, P.1-31, P.1-36)

0-2 Illustrated table of contents

(23,1)

EXTERIOR FRONT

GUID-B377F75D-ECCA-4C6D-BBFA-4192086CFBFE

1. Hood (P.3-18)

2. Headlight — Operation (P.2-41) — Bulb replacement (P.8-28) — Adaptive Front lighting System

(AFS) (if so equipped) (P.2-43)

3. Windshield wiper and washer — Operation (P.2-38) — Maintenance (P.8-21)

4. Moonroof (P.2-60)

5. Power windows (P.2-57)

6. Recovery hook (P.6-15)

JVC0710X

7. Front camera (if so equipped) (P.4-33)

8. Turn signal (P.2-41)

9. Fog light (P.2-46)

10. Sonar sensor (if so equipped) — Around View

Monitor (P.4-33)

11. Tires — Wheel and tires (P.8-31, P.9-8) — Flat tire (P.6-3) — Tire pressure monitoring system

(TPMS) (P.2-16, P.5-5)

12. Outside mirrors (P.3-27) — Side turn signal lights (P.2-45) — Side view camera (if so equipped)

(P.4-33)

13. Doors — Keys (P.3-2) — Door locks (P.3-4) — Intelligent Key system (P.3-7) — Remote keyless entry system

(P.3-14) — Welcome light (P.2-63)

Illustrated table of contents 0-3

(24,1)

EXTERIOR REAR

GUID-B4B41058-5FEC-4114-A5B7-EF8D487D6BAD

1. Trunk — Intelligent Key system (P.3-7) — Remote keyless entry system

(P.3-14) — Trunk lid (P.3-18) — 12-volt battery (P.8-18)

JVC0698X

2. High-mounted stop light (P.8-28)

3. Rear combination light (P.8-28)

4. Satellite antenna (P.4-62)

5. Rear window defroster (P.2-41)

6. Sonar sensor (if so equipped) — Around View

Monitor (P.4-33)

7. Rear view camera (P.4-26, P.4-33)

8. Fuel-filler door — Operation (P.3-22) — Fuel information (P.9-4)

9. Child safety rear door locks (P.3-6)

0-4 Illustrated table of contents

(25,1)

PASSENGER COMPARTMENT

GUID-3AA37B5B-1B7B-4B54-962C-B1F504C85062

1. Rear sunshade (if so equipped) (P.2-62)

2. Coat hooks (P.2-56)

3. Rear personal light (P.2-64)

4. Sun visors (P.3-25)

5. Power windows (P.2-57)

6. Moonroof switch (P.2-60)

7. Map light (P.2-64) — Active noise control system

(P.5-132)

SSI0688

— SOS call switch* (Refer to the separate Navigation System Owner’s Manual.)

8. Sunglasses holder (P.2-54)

9. Inside rearview mirror — Operation (P.3-26) — HomeLink

(P.2-66)

10. Rear armrest (P.1-4)

11. Rear cup holders (P.2-53)

12. Console box — Power outlet (P.2-51) — USB input operation (P.4-83) — iPod

player operation (P.4-93)

13. Front cup holders (P.2-53)

Illustrated table of contents 0-5

(26,1)

COCKPIT

GUID-6C0E2194-048C-4AAF-8C07-A2793D31FC40

1. Instrument brightness control switch (P.2-45)

2. Adaptive Front lighting System (AFS) switch (if so equipped) (P.2-43)

3. Headlight, fog light and turn signal switch (P.2-41)

JVC0717X

4. Trip computer switch (P.2-31)

5. TRIP/RESET switch for twin trip odometer (P.2-8)

6. Windshield wiper and washer switch (P.2-38)

7. Shift lever (P.5-15)

8. Vehicle Dynamic Control (VDC) OFF switch (P.5-127)

9. Rear sunshade switch (if so equipped) (P.2-62)

10. Steering heater switch (if so equipped) (P.2-46)

11. Trunk lid release switch (P.3-19)

12. Back-up Collision Intervention (BCI) switch (if so equipped) (P.5-56)

13. Warning systems switch (if so equipped) (P.5-23, P.5-33)

14. Electric tilting/telescopic steering wheel lever (P.3-24)

15. Steering-wheel-mounted controls (left side)

— Menu control switch (models with navigation system)/Audio tuning switch (models without navigation system) (P.4-96)

— Hands-Free Phone System switch (P.4-111, P.4-101)

16. Steering wheel — Horn (P.2-47) — Driver supplemental air bag

(P.1-40) — Heated steering wheel (if so

equipped) (P.2-46)

0-6 Illustrated table of contents

(27,1)

17. Steering-wheel-mounted controls (right side)

— Cruise control switches (P.5-66) — Intelligent Cruise Control (ICC)

switches (if so equipped) (P.5-68) — Dynamic driver assistance switch

(if so equipped) (P.5-23, P.5-43, P.5-91)

Illustrated table of contents 0-7

(28,1)

INSTRUMENT PANEL

GUID-0F64CFC5-D687-4457-83C2-8E0FE16A0B7B

1. Side ventilator (P.4-56)

2. Meters and gauges (P.2-7)

3. Hazard warning flasher switch (P.6-2)

4. Rear window and outside mirror defroster switch (P.2-41)

JVO0132X

5. Center display (P.4-4)/Navigation system* (if so equipped)

6. Clock (P.2-51)

7. Center multi-function control panel — Navigation system* (if so

equipped)

— Vehicle information and setting buttons (P.4-10)

— Bluetooth tem (P.4-99, P.4-109)

— Around View

Hands-Free Phone Sys-

Monitor (if so

equipped) (P.4-33) — Audio system (P.4-62)

8. Automatic climate control system (P.4-56)

9. Center ventilator (P.4-56)

10. Audio system (P.4-62)

11. Front passenger supplemental air bag (P.1-40)

12. Hood release handle (P.3-18)

13. Fuse box cover (P.8-24)

14. Parking brake — Parking (P.5-19)

15. Push-button ignition switch (P.5-10)

16. Front passenger air bag status light (P.1-47)

17. Climate controlled seat switch (if so equipped) (P.2-49)/Seat heater switch (if so equipped) (P.2-47)

18. INFINITI Drive Mode Selector (P.5-20)

19. Storage box (P.2-56) — Power outlet (P.2-51)

20. Glove box lid release handle (P.2-54)

0-8 Illustrated table of contents

(29,1)

21. Trunk release power cancel switch (P.3-20)

*: Refer to the separate Navigation

System Owner’s Manual.

Illustrated table of contents 0-9

(30,1)

METERS AND GAUGES

GUID-6D97ACA8-4DE2-4073-AC01-3AC6DD69386F

1. Tachometer (P.2-9)

2. Warning and indicator lights (P.2-11)

3. Speedometer (P.2-8)

4. Assist charge gauge (P.2-9)

5. Vehicle information display/Odometer/twin trip odometer (P.2-22)

JVI0200X

6. Fuel gauge (P.2-9)

0-10 Illustrated table of contents

(31,1)

ENGINE COMPARTMENT

GUID-25E83879-DE0B-4395-B935-F7008F1C97DD

JVM0034X

VQ35HR ENGINE

1. Engine oil filler cap (P.8-12)

GUID-821047FA-A0EC-404B-B135-1A36C3256584

2. Brake fluid reservoir (P.8-16)

3. Fuse/fusible link holder (P.8-24)

4. Window washer fluid reservoir (P.8-17)

5. Power steering fluid reservoir (P.8-15)

6. Inverter coolant reservoir (P.8-11)

7. Air cleaner (P.8-20)

8. Radiator filler cap (P.8-9)

9. Engine oil dipstick (P.8-12)

10. Engine coolant reservoir (P.8-9)

Illustrated table of contents 0-11

(32,1)

WARNING AND INDICATOR LIGHTS

GUID-AE45F736-D98A-4CF8-9862-081B0785133E

Warning

light

12-volt battery charge warning light

Anti-lock Braking System (ABS) warning light

Automatic Transmission check warning light

Blind Spot Warning (BSW)/ Blind Spot Intervention (BSI) system warning light (orange) (if so equipped)

Brake system warning light (yellow)

Brake warning light (red)

Direct Response Hybrid®System warning light

Distance Control Assist (DCA) system warning light (orange) (if so equipped)

Engine oil pressure warning light

Forward Emergency Braking (FEB) system warning light (if so equipped)

High temperature warning light

Name

Page

2-12

2-13

2-14

2-15

5-105

2-15

Warning

light

Indicator

light

Name

Hybrid EPS (Electrical Power Steering) warning light

Intelligent Cruise Control (ICC) system warning light (orange) (if so equipped)

Lane Departure Warning (LDW) indicator light (orange) (if so equipped)

Low tire pressure warning light

Master warning light

Seat belt warning light and chime

Supplemental air bag warning light

Vehicle Dynamic Control (VDC) warning light

Name

Adaptive Front lighting System (AFS) off indicator light (if so equipped)

Approaching Vehicle Sound for Pedestrians (VSP) OFF indicator light

Automatic Transmission (AT) position indicator light

Page

2-15

2-16

2-18

2-19

Page

2-19

Indicator

light

Name

Blind Spot Intervention (BSI) ON indicator light (green) (if so equipped)

ECO drive indicator light

EV indicator light

Exterior light indicator

Front fog light indicator light

Front passenger air bag status light

High beam indicator light

Lane Departure Prevention (LDP) ON indicator light (green) (if so equipped)

Malfunction Indicator Light (MIL)

READY to drive indicator light

Security indicator light

Turn signal/hazard indicator lights

Vehicle Dynamic Control (VDC) off indicator light

Page

2-20

2-21

2-22

0-12 Illustrated table of contents

(33,1)

1 Safety — Seats, seat belts and supplemental

restraint system

Seats ..................................................................... 1-2

Front seats ........................................................ 1-3

Armrest ............................................................. 1-4

Head restraints/headrests ..................................... 1-5

Adjustable head

restraint/headrest components .......................... 1-6

Non-adjustable head

restraint/headrest components .......................... 1-6

Remove ............................................................. 1-6

Install ................................................................ 1-7

Adjust ............................................................... 1-7

Front-seat Active Head Restraints ...................... 1-8

Seat belts .............................................................. 1-9

Precautions on seat belt usage .......................... 1-9

Pregnant women ............................................. 1-12

Injured persons ............................................... 1-12

Pre-crash seat belts with comfort function

(front seats) (if so equipped) ........................... 1-12

Three-point type seat belt ................................ 1-12

Seat belt extenders ......................................... 1-16

Seat belt maintenance ..................................... 1-16

Child safety ......................................................... 1-17

Infants ............................................................. 1-17

Small children ................................................. 1-18

Larger children ................................................ 1-18

Child restraints ................................................... 1-19

Precautions on child restraints ....................... 1-20

Lower Anchors and Tethers for CHildren

System (LATCH) .............................................. 1-21

Rear-facing child restraint installation

using LATCH ................................................... 1-24

Rear-facing child restraint installation using

the seat belts ................................................ 1-26

Forward-facing child restraint installation

using LATCH ................................................... 1-29

Forward-facing child restraint installation

using the seat belts ....................................... 1-32

Booster seats ................................................. 1-36

Supplemental restraint system ............................ 1-40

Precautions on supplemental

restraint system ............................................. 1-40

INFINITI Advanced Air Bag System

(front seats) ................................................... 1-45

Front seat-mounted side-impact supplemental air bag and roof-mounted curtain side-impact

supplemental air bag systems ....................... 1-50

Seat belts with pretensioners (front seats) ....... 1-52

Supplemental air bag warning labels ............. 1-53

Supplemental air bag warning light ............... 1-53

Repair and replacement procedure ................. 1-54

(34,1)

SEATS

GUID-F6C5647E-51C1-45DD-A527-B12A30FCBE2A

WARNING

. Do not ride in a moving vehicle when the

seatback is reclined. This can be dangerous. The shoulder belt will not be against your body. In an accident, you could be thrown into it and receive neck or other serious injuries. You could also slide under the lap belt and receive serious internal injuries.

. For the most effective protection when

the vehicle is in motion, the seat should be upright. Always sit well back and

1-2 Safety — Seats, seat belts and supplemental restraint system

upright in the seat with both feet on the floor and adjust the seat belt properly. See “Precautions on seat belt usage” (P.1-9).

. Do not leave children unattended inside

the vehicle. They could unknowingly activate switches or controls. Unattended children could become involved in serious accidents.

. To help avoid risk of injury or death

through unintended operation of the vehicle and/or its systems, do not leave children, people who require the assistance of others or pets unattended in

your vehicle. Additionally, the temperature inside a closed vehicle on a warm day can quickly become high enough to cause a significant risk of injury or death to people and pets.

. The seatback should not be reclined

further than necessary for comfort. Seat belts are most effective when the passenger sits well back and straight up in the seat. If the seatback is reclined, the risk of sliding under the lap belt and being injured is increased.

SSS0133

CAUTION

When adjusting the seat positions, be sure not to contact any moving parts to avoid possible injuries and/or damages.

(35,1)

FRONT SEATS

Front power seat adjustment

Operating tips:

GUID-B05814F9-B0D6-4237-8C0F-FFC8B717E1A4

GUID-152CA959-546B-4E86-887B-45E9AF10E014

GUID-1FA5934D-050B-4CFB-BCFE-3D663EAB6AFF

. The power seat motor has an auto-reset

overload protection circuit. If the motor stops during operation, wait 30 seconds, then reactivate the switch.

. Do not operate the power seat switch

for a long period of time when the INFINITI Direct Response Hybrid

System is not running. This will discharge the 12-volt battery.

See “Automatic drive positioner” (P.3-29) for the seat position memory function.

Forward and backward:

Moving the switch

GUID-955B4ED6-F06C-4C42-A93D-050910FABF52

forward or backward

will slide the seat forward or backward to the desired position.

Reclining:

Move the recline switch

GUID-167BD54F-A6FE-4C9B-A894-BBB222609EA3

backward until

the desired angle is obtained. To bring the seatback forward again, move the switch

forward.

The reclining feature allows adjustment of the seatback for occupants of different sizes for added comfort and to help obtain proper seat belt fit. (See “Precautions on seat belt usage” (P.1-9).) Also, the seat-

SSS1051

back can be reclined to allow occupants to rest when the vehicle is parked.

Safety — Seats, seat belts and supplemental restraint system 1-3

(36,1)

SSS1052

SSS1053

SSS1061

Seat lifter:

GUID-4F80E44B-861D-4A46-BB27-AA76D11A212A

Push the front or rear end of the switch up or down to adjust the angle of the front portion or height of the seat.

Lumbar support (if so equipped):

The lumbar support feature provides lower back support to the occupants.

Push the front or back end of the switch to adjust the seatback lumbar area.

1-4 Safety — Seats, seat belts and supplemental restraint system

GUID-71E9B087-ED60-49CC-A73A-DF294052D0C0

ARMREST

Rear armrest

GUID-B67CC69D-E0E2-4C69-AED0-DD1B63B8B5F4

GUID-68D9BA12-7A81-42C1-9CD0-E4249D591424

Pull the armrest forward until it is horizontal.

(37,1)

HEAD RESTRAINTS/HEADRESTS

GUID-FC284699-D495-49A3-89A2-0699DC970523

WARNING

Head restraint/headrest supplement the other vehicle safety systems. They may provide additional protection against injury in certain rear end collisions. Adjustable head restraints/headrests must be adjusted properly, as specified in this section. Check the adjustment after someone else uses the seat. Do not attach anything to the head restraint/headrest stalks or remove the head restraint/headrest. Do not use the seat if the head restraint/headrest has been removed. If the head restraint/headrest was removed, reinstall and properly adjust the head restraint/headrest before an occupant uses the seating position. Failure to follow these instructions can reduce the effectiveness of the head restraint/headrest. This may increase the risk of serious injury or death in a collision.

JVR0089X

The illustration shows the seating positions equipped with head restraint/headrest.

Indicates the seating position is

equipped with a head restraint.

Indicates the seating position is

equipped with a headrest. + Indicates the seating position is not

equipped with a head restraint or headrest.

. Your vehicle is equipped with a head

restraint/headrest that may be integrated, adjustable or non-adjustable.

. Adjustable head restraints/headrests

have multiple notches along the stalk to lock them in a desired adjustment position.

. The non-adjustable head restraints/

headrests have a single locking notch to secure them to the seat frame.

. Proper Adjustment:

— For the adjustable type, align the

head restraint/headrest so the center of your ear is approximately level with the center of the head restraint/headrest.

— If your ear position is still higher

than the recommended alignment, place the head restraint/headrest at the highest position.

. If the head restraint/headrest has been

removed, ensure that it is reinstalled and locked in place before riding in that designated seating position.

Safety — Seats, seat belts and supplemental restraint system 1-5

(38,1)

SSS0992

JVR0203X

SSS1037

ADJUSTABLE HEAD RESTRAINT/ HEADREST COMPONENTS

1. Removable head restraint/headrest

2. Multiple notches

3. Lock knob

4. Stalks

1-6 Safety — Seats, seat belts and supplemental restraint system

GUID-2780F7AE-312C-43E5-AF01-4126FC7A6A94

NON-ADJUSTABLE HEAD RESTRAINT/HEADREST COMPONENTS

1. Removable head restraint/headrest

2. Single notch

3. Lock knob

4. Stalks

GUID-0164EA90-CBB8-4652-8D80-FD9EFFFBA109

REMOVE

GUID-D21DF91F-83B2-453A-9EBD-F3AD8FB187F7

Use the following procedure to remove the head restraint/headrest.

1. Pull the head restraint/headrest up to the highest position.

2. Push and hold the lock knob.

3. Remove the head restraint/headrest from the seat.

4. Store the head restraint/headrest properly in a secure place so it is not loose in the vehicle.

5. Reinstall and properly adjust the head restraint/headrest before an occupant uses the seating position.

(39,1)

SSS0996

INSTALL

GUID-13998155-E1A8-4A01-8233-71A170E9AFD5

1. Align the head restraint/headrest stalks with the holes in the seat. Make sure that the head restraint/headrest is facing the correct direction. The stalk with the adjustment notch

must be

installed in the hole with the lock knob

2. Push and hold the lock knob and push the head restraint/headrest down.

3. Properly adjust the head restraint/ headrest before an occupant uses the seating position.

SSS0997

ADJUST

GUID-15FAC2F7-19E9-42D2-BBB8-27C642986FBC

For adjustable head restraint/headrest

Adjust the head restraint/headrest so the center is level with the center of your ears. If your ear position is still higher than the recommended alignment, place the head restraint/headrest at the highest position.

JVR0259X

For non-adjustable head restraint/headrest

Make sure the head restraint/headrest is positioned so the lock knob is engaged in the notch before riding in that designated seating position.

Safety — Seats, seat belts and supplemental restraint system 1-7

(40,1)

SSS1035

SSS1036

SSS0508

Raise

GUID-D0F0AFFB-B72F-4957-8ABC-88E9CE000764

To raise the head restraint/headrest, pull it up.

Make sure the head restraint/headrest is positioned so the lock knob is engaged in the notch before riding in that designated seating position.

1-8 Safety — Seats, seat belts and supplemental restraint system

Lower

To lower, push and hold the lock knob and push the head restraint/headrest down.

Make sure the head restraint/headrest is positioned so the lock knob is engaged in the notch before riding in that designated seating position.

GUID-F4519AF4-DBAE-4757-A4AA-EF8A5D81310F

FRONT-SEAT ACTIVE HEAD RESTRAINTS

The Active Head Restraint moves forward utilizing the force that the seatback receives from the occupant in a rear-end collision. The movement of the head restraint helps support the occupant’s head by reducing its backward movement and helping absorb some of the forces that may lead to whiplash-type injuries.

Active Head Restraints are effective for collisions at low to medium speeds in which it is said that whiplash-type injury occurs most.

GUID-A1626E2D-B3B2-4F9A-93C8-09BB1DD74A81

(41,1)

Active Head Restraints operate only in certain rear-end collisions. After the collision, the head restraints return to their original positions.

Adjust the Active Head Restraints properly as described earlier in this section.

SEAT BELTS

GUID-29FE26F0-CB52-4F95-85F6-5CC6F3EA4754

PRECAUTIONS ON SEAT BELT USAGE

If you are wearing your seat belt properly adjusted, and you are sitting upright and well back in your seat with both feet on the floor, your chances of being injured or killed in an accident and/or the severity of injury may be greatly reduced. INFINITI strongly encourages you and all of your passengers to buckle up every time you drive, even if your seating position includes a supplemental air bag.

Most U.S. states and Canadian provinces or territories specify that seat belts be worn at all times when a vehicle is being driven.

GUID-0A678CD3-4A52-4D86-8AB5-75E62AB34DD6

Safety — Seats, seat belts and supplemental restraint system 1-9

(42,1)

SSS0136A

SSS0134A

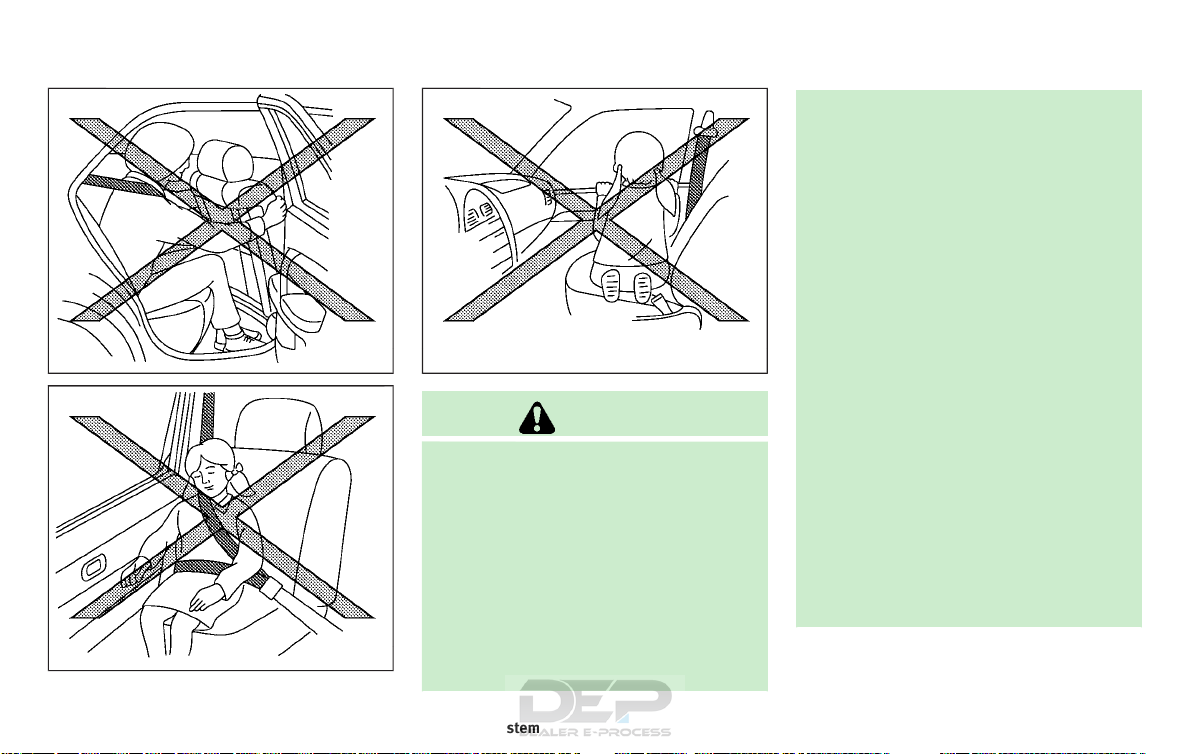

WARNING

. Every person who drives or rides in this

vehicle should use a seat belt at all times. Children should be properly restrained in the rear seat and, if appropriate, in a child restraint.

. The seat belt should be properly ad-

justed to a snug fit. Failure to do so may reduce the effectiveness of the entire restraint system and increase the chance or severity of injury in an accident. Serious injury or death can occur if the seat belt is not worn properly.

. Always route the shoulder belt over your

shoulder and across your chest. Never run the belt behind your back, under your arm or across your neck. The belt should be away from your face and neck, but not falling off your shoulder.

. Position the lap belt as low and snug as

possible AROUND THE HIPS, NOT THE WAIST. A lap belt worn too high could increase the risk of internal injuries in an accident.

. Be sure the seat belt tongue is securely

fastened to the proper buckle.

1-10 Safety — Seats, seat belts and supplemental restraint system

(43,1)

. Do not wear the seat belt inside out or

twisted. Doing so may reduce its effectiveness.

. Do not allow more than one person to

use the same seat belt.

. Never carry more people in the vehicle

than there are seat belts.

. If the seat belt warning light glows

continuously while the ignition switch is in the ON position with all doors closed and all seat belts fastened, it may indicate a malfunction in the system. Have the system checked. It is recommended you visit an INFINITI retailer for this service.

. No changes should be made to the seat

belt system. For example, do not modify the seat belt, add material or install devices that may change the seat belt routing or tension. Doing so may affect the operation of the seat belt system. Modifying or tampering with the seat belt system may result in serious personal injury.

. Once a seat belt pretensioner has

activated, it cannot be reused and must be replaced together with the retractor. It is recommended you visit an INFINITI

retailer for this service.

. All seat belt assemblies, including re-

tractors and attaching hardware, should be inspected after any collision. It is recommended you visit an INFINITI retailer for this service. INFINITI recommends that all seat belt assemblies in use during a collision be replaced unless the collision was minor and the belts show no damage and continue to operate properly. Seat belt assemblies not in use during a collision should also be inspected and replaced if either damage or improper operation is noted.

. All child restraints and attaching hard-

ware should be inspected after any collision. Always follow the restraint manufacturer’s inspection instructions and replacement recommendations. The child restraints should be replaced if they are damaged.

SSS0016

SSS0014

Safety — Seats, seat belts and supplemental restraint system 1-11

(44,1)

PREGNANT WOMEN

INFINITI recommends that pregnant women use seat belts. The seat belt should be worn snug, and always position the lap belt as low as possible around the hips, not the waist, and place the shoulder belt over your shoulder and across your chest. Never run the lap/shoulder belt over your abdominal area. Contact your doctor for specific recommendations.

INJURED PERSONS

INFINITI recommends that injured persons use seat belts. Check with your doctor for specific recommendations.

GUID-68785179-C63E-48C7-846C-4DEDBC5E5B77

GUID-7CEE9D29-DBCF-47A1-AD75-CAF60886623F

PRE-CRASH SEAT BELTS WITH COMFORT FUNCTION (front seats) (if so equipped)

The pre-crash seat belt tightens the seat belt with a motor to help restrain front seat occupants. This helps reduce the risk of injury in a collision.

The motor retracts the seat belt under the following emergency conditions:

. During emergency braking. . During sudden steering maneuvers. . Activation of the Forward Emergency

GUID-8017E748-E53E-4E9A-925C-A78E351F9CDC

Braking (FEB) system. (See “Forward Emergency Braking (FEB) system” (P.5-

105).)

The pre-crash seat belt will not be active when:

. The seat belt is not fastened. . The vehicle speed is under 10 MPH (15

km/h) during emergency braking.

. The vehicle speed is under 19 MPH (30

km/h) during sudden steering maneuvers.

The pre-crash seat belt will not be active when the brake pedal is not depressed except when sudden steering maneuvers occur or the FEB system activates.

The motor also retracts the seat belt when the seat belt is fastened or unfastened. When the seat belt is fastened, the motor tightens the seat belt for a snug fit. When the seat belt is unfastened, the motor retracts the seat belt. If the seat belt is not fully retracted, the motor retracts the seat belt when the door is opened.

Always wear your seat belt correctly and sit upright and well back.

If the motor cannot retract the seat belt when the seat belt is fastened or unfastened, it may indicate the pre-crash seat

belt system has a malfunction. Have the system checked and repaired. It is recommended you visit an INFINITI retailer for this service.

When the seat belt is retracted repeatedly in a short period of time, the motor may not be able to retract the seat belt. After a few minutes, the motor normally reactivates and retracts the seat belt. If the seat belt still cannot be retracted by the motor, the pre-crash seat belt system has a malfunction. Have the system checked and repaired. It is recommended you visit an INFINITI retailer for this service.

THREE-POINT TYPE SEAT BELT

GUID-18E2371D-E3E1-4A90-845A-3B3AAE7D3142

WARNING

. Every person who drives or rides in this

vehicle should use a seat belt at all times.

. Do not ride in a moving vehicle when the

1-12 Safety — Seats, seat belts and supplemental restraint system

(45,1)

internal injuries.

. For the most effective protection when

the vehicle is in motion, the seat should be upright. Always sit well back and upright in the seat with both feet on the floor and adjust the seat belt properly.

. Do not allow children to play with the

seat belts. Most seating positions are equipped with Automatic Locking Retractor (ALR) mode seat belts. If the seat belt becomes wrapped around a child’s neck with the ALR mode activated, the child can be seriously injured or killed if the seat belt retracts and becomes tight. This can occur even if the vehicle is parked. Unbuckle the seat belt to release the child. If the seat belt can not be unbuckled or is already unbuckled, release the child by cutting the seat belt with a suitable tool (such as a knife or scissors) to release the seat belt.

SSS0292

Fastening the seat belts

GUID-4BE7D8BF-2851-459F-8264-6FA0DD410C73

1. Adjust the seat. (See “Seats” (P.1-2).)

2. Slowly pull the seat belt out of the retractor and insert the tongue into the buckle until you hear and feel the latch engage.

The retractor is designed to lock during a sudden stop or on impact. A slow pulling motion permits the belt to move, and allows you some freedom of movement in the seat.

If the seat belt cannot be pulled from its fully retracted position, firmly pull the belt and release it. Then

smoothly pull the belt out of the retractor.

Safety — Seats, seat belts and supplemental restraint system 1-13

(46,1)

SSS0290

3. Position the lap belt portion low and snug on the hips as shown.

4. Pull the shoulder belt portion toward the retractor to take up extra slack. Be sure the shoulder belt is routed over your shoulder and across your chest.

The three-point type seat belts have two modes of operation:

. Emergency Locking Retractor (ELR) . Automatic Locking Retractor (ALR)

The Emergency Locking Retractor (ELR) mode allows the seat belt to extend and retract to allow the driver and passengers some freedom of movement in the seat.

The ELR locks the seat belt when the vehicle slows down rapidly or during impacts.

The Automatic Locking Retractor (ALR) mode (child restraint mode) locks the seat belt for child restraint installation.

When the ALR mode is activated the seat belt cannot be extended again until the seat belt tongue is detached from the buckle and fully retracted. The seat belt returns to the ELR mode after the seat belt fully retracts. For additional information, see “Child restraints” (P.1-19).

The ALR mode should be used only for child restraint installation. During normal seat belt use by an occupant, the ALR mode should not be activated. If it is activated, it may cause uncomfortable seat belt tension.

WARNING

When fastening the seat belts, be certain that seatbacks are completely secured in the latched position. If they are not completely secured, passengers may be injured in an accident or sudden stop.

SSS0326

Unfastening the seat belts

GUID-6490E030-A1F5-4AC0-937F-FB64F07A2249

To unfasten the seat belt, push the button on the buckle. The seat belt automatically retracts.

Checking seat belt operation

GUID-99ACE93E-BEA0-4237-B86D-15B33277D9A9

Seat belt retractors are designed to lock seat belt movement by two separate methods:

. When the belt is pulled quickly from the

retractor.

. When the vehicle slows down rapidly.

1-14 Safety — Seats, seat belts and supplemental restraint system

(47,1)

To increase your confidence in the seat belts, check the operation as follows:

. Grasp the shoulder belt and pull for-

ward quickly. The retractor should lock and restrict further belt movement.

If the retractor does not lock during this check, get the system checked. It is recommended you visit an INFINITI retailer for this service, or to learn more about seat belt operation.

SSS1084

Center of rear seat

Selecting correct set of seat belts:

GUID-B4DE94B2-FD53-45CC-856D-D5F760F22257

GUID-BB0C3A60-F200-4D3A-A13B-CDA20D22EE1A

The center seat belt buckle is identified by the CENTER mark

. The center seat belt

tongue can be fastened only into the center seat belt buckle.

Safety — Seats, seat belts and supplemental restraint system 1-15

SSS0294A

Shoulder belt height adjustment (front seats)

The shoulder belt anchor height should be adjusted to the position best for you. (See “Precautions on seat belt usage” (P.1-9).)

To adjust, push the button move the shoulder belt anchor to the desired position, so that the belt passes over the center of the shoulder. The belt should be away from your face and neck, but not falling off of your shoulder. Release the adjustment button to lock the shoulder belt anchor into position.

GUID-AF255FCF-2B6B-4866-BEAE-C1535E310571

, and then

(48,1)

WARNING

. After adjustment, release the adjust-

ment button and try to move the shoulder belt anchor up and down to make sure it is securely fixed in position.

. The shoulder belt anchor height should

be adjusted to the position best for you. Failure to do so may reduce the effectiveness of the entire restraint system and increase the chance or severity of injury in an accident.

SEAT BELT EXTENDERS

If, because of body size or driving position, it is not possible to properly fit the lapshoulder belt and fasten it, an extender that is compatible with the installed seat belts is available that can be purchased. The extender adds approximately 8 in (200 mm) of length and may be used for either the driver or front passenger seating position. It is recommended you visit an INFINITI retailer for assistance with purchasing an extender if an extender is required.

GUID-EA87CE63-37A2-4716-9559-F5AB89630915

WARNING

. Only INFINITI seat belt extenders, made

by the same company which made the original equipment seat belts, should be used with the INFINITI seat belts.

. Adults and children who can use the

standard seat belt should not use an extender. Such unnecessary use could result in serious personal injury in the event of an accident.

. Never use seat belt extenders to install

child restraints. If the child restraint is not secured properly, the child could be seriously injured in a collision or a sudden stop.

SEAT BELT MAINTENANCE

. To clean the seat belt webbing, apply a

mild soap solution or any solution recommended for cleaning upholstery or carpets. Then, wipe with a cloth and allow the seat belts to dry in the shade. Do not allow the seat belts to retract until they are completely dry.

. If dirt builds up in the shoulder belt

guide of the seat belt anchors, the seat

GUID-724E27C2-8A16-4DAB-AC4C-60727D8C9395

belts may retract slowly. Wipe the shoulder belt guide with a clean, dry cloth.

. Periodically check to see that the seat

belt and the metal components such as

buckles, tongues, retractors, flexible wires and anchors work properly. If loose parts, deterioration, cuts or other damage on the webbing is found, the entire seat belt assembly should be replaced.

1-16 Safety — Seats, seat belts and supplemental restraint system

(49,1)

CHILD SAFETY

GUID-4EE25869-D4A8-4688-93AE-F4B2B0465998

WARNING

Do not allow children to play with the seat belts. Most seating positions are equipped with Automatic Locking Retractor (ALR) mode seat belts. If the seat belt becomes wrapped around a child’s neck with the ALR mode activated, the child can be seriously injured or killed if the seat belt retracts and becomes tight. This can occur even if the vehicle is parked. Unbuckle the seat belt to release the child. If the seat belt can not be unbuckled or is already unbuckled, release the child by cutting the seat belt with a suitable tool (such as a knife or scissors) to release the seat belt.

Children need adults to help protect them. They need to be properly restrained.

In addition to the general information in this manual, child safety information is available from many other sources, including doctors, teachers, government traffic safety offices, and community organizations. Every child is different, so be sure to learn the best way to transport your child.

There are three basic types of child restraint systems:

. Rear-facing child restraint . Forward-facing child restraint . Booster seat

The proper restraint depends on the child’s size. Generally, infants up to about 1 year and less than 20 lbs (9 kg) should be placed in rear-facing child restraints. Forward-facing child restraints are available for children who outgrow rear-facing child restraints and are at least 1 year old. Booster seats are used to help position a vehicle lap/shoulder belt on a child who can no longer use a forward-facing child restraint.

WARNING

Infants and children need special protection. The vehicle’s seat belts may not fit them properly. The shoulder belt may come too close to the face or neck. The lap belt may not fit over their small hip bones. In an accident, an improperly fitting seat belt could cause serious or fatal injury. Always use appropriate child restraints.

All U.S. states and Canadian provinces or territories require the use of approved child restraints for infants and small children. See “Child restraints” (P.1-19).

A child restraint may be secured in the vehicle by using either the LATCH (Lower Anchor and Tethers for CHildren) system or with the vehicle seat belt. See “Child restraints” (P.1-19) for more information.

INFINITI recommends that all pre-teens and children be restrained in the rear seat. Studies show that children are safer when properly restrained in the rear seat than in the front seat.

This is especially important because your vehicle has a supplemental restraint system (Air bag system) for the front passenger. See “Supplemental restraint system” (P.1-40).

INFANTS

Infants up to at least 1 year old should be placed in a rear-facing child restraint. INFINITI recommends that infants be placed in child restraints that comply with Federal Motor Vehicle Safety Standards or Canadian Motor Vehicle Safety Standards. You should choose a child restraint that fits your vehicle and always follow the manu-

GUID-0DC2B248-D00D-4159-9D0A-861233779965

Safety — Seats, seat belts and supplemental restraint system 1-17

(50,1)

facturer’s instructions for installation and use.

SMALL CHILDREN

GUID-C9C54803-16A9-4E13-B935-F06D6F606BF4

Children that are over 1 year old and weigh at least 20 lbs (9 kg) should remain in a rear-facing child restraint as long as possible up to the height or weight limit of the child restraint. Children who outgrow the height or weight limit of the rear-facing child restraint and are at least 1 year old should be secured in a forward-facing child restraint with a harness. Refer to the manufacturer’s instructions for minimum and maximum weight and height recommendations. INFINITI recommends that small children be placed in child restraints that comply with Federal Motor Vehicle Safety Standards or Canadian Motor Vehicle Safety Standards. You should choose a child restraint that fits your vehicle and always follow the manufacturer’s instructions for installation and use.

LARGER CHILDREN

GUID-4359DFEB-B409-4DE8-BEF0-9BE3771E94B2

Children should remain in a forward-facing child restraint with a harness until they reach the maximum height or weight limit allowed by the child restraint manufacturer.

Once a child outgrows the height or weight limit of the harness-equipped forwardfacing child restraint, INFINITI recommends that the child be placed in a commercially available booster seat to obtain proper seat belt fit. For a seat belt to fit properly, the booster seat should raise the child so that the shoulder belt is properly positioned across the chest and the top, middle portion of the shoulder. The shoulder belt should not cross the neck or face and should not fall off the shoulder.The lap belt should lie snugly across the lower hips or upper thighs, not the abdomen.

A booster seat can only be used in seating positions that have a three-point type seat belt. The booster seat should fit the vehicle seat and have a label certifying that it complies with Federal Motor Vehicle Safety Standards or Canadian Motor Vehicle Safety Standards.

A booster seat should be used until the child can pass the seat belt fit test below:

. Are the child’s back and hips against

the vehicle seatback?

. Is the child able to sit without slouch-

ing?

. Do the child’s knees bend easily over

the front edge of the seat with feet flat on the floor?

. Can the child safely wear the seat belt

(lap belt low and snug across the hips and shoulder belt across mid-chest and shoulder)?

. Is the child able to use the properly

adjusted head restraint/headrest?

. Will the child be able to stay in position

for the entire ride?

1-18 Safety — Seats, seat belts and supplemental restraint system

(51,1)

WARNING

Never let a child stand or kneel on any seat and do not allow a child in the cargo area. The child could be seriously injured or killed in a sudden stop or collision.

CHILD RESTRAINTS

GUID-1CF0D645-E792-4703-B560-9F7D2F020F51

JVR0473X

If you answered no to any of these questions, the child should remain in a booster seat using a three-point type seat belt.

NOTE: Laws in some communities may follow

different guidelines. Check local and state regulations to confirm your child is using the correct restraint system before traveling.

SSS0099

SSS0100

Safety — Seats, seat belts and supplemental restraint system 1-19

(52,1)

PRECAUTIONS ON CHILD RESTRAINTS

GUID-DF1C88B0-F8FE-4B02-B9A6-BB94E83BDF16

WARNING

. Failure to follow the warnings and

instructions for proper use and installation of child restraints could result in serious injury or death of a child or other passengers in a sudden stop or collision:

—

The child restraint must be used and

installed properly. Always follow all of the child restraint manufacturer’s instructions for installation and use.

—

Infants and children should never be

held on anyone’s lap. Even the strongest adult cannot resist the forces of a collision.

—

Do not put a seat belt around both a

child and another passenger.

—

INFINITI recommends that all child

restraints be installed in the rear seat. Studies show that children are safer when properly restrained in the rear seat than in the front seat. If you must install a forward-facing child restraint in the front seat, see “For-

1-20 Safety — Seats, seat belts and supplemental restraint system

ward-facing child restraint installation using the seat belts” (P.1-32).

—

Even with the INFINITI Advanced Air

Bag System, never install a rearfacing child restraint in the front seat. An inflating air bag could seriously injure or kill a child. A rear-facing child restraint must only be used in the rear seat.

—

Be sure to purchase a child restraint

that will fit the child and vehicle. Some child restraints may not fit properly in your vehicle.

—

Child restraint anchor points are

designed to withstand loads from child restraints that are properly fitted.

—

Never use the anchor points for

adult seat belts or harnesses.

—

A child restraint with a top tether

strap should not be used in the front passenger seat.

—

Keep seatbacks as upright as pos-

sible after fitting the child restraint.

—

Infants and children should always

be placed in an appropriate child restraint while in the vehicle.

. When the child restraint is not in use,

keep it secured with the LATCH system or a seat belt. In a sudden stop or collision, loose objects can injure occupants or damage the vehicle.

CAUTION

A child restraint in a closed vehicle can become very hot. Check the seating surface and buckles before placing a child in the child restraint.

This vehicle is equipped with a universal child restraint anchor system, referred to as the LATCH (Lower Anchors and Tethers for CHildren) system. Some child restraints include rigid or webbing-mounted attachments that can be connected to these anchors.

For details, see “Lower Anchors and Tethers for CHildren System (LATCH)” (P.1-

21). If you do not have a LATCH compatible child

restraint, the vehicle seat belts can be used.

(53,1)

Several manufacturers offer child restraints for infants and small children of various sizes. When selecting any child restraint, keep the following points in mind:

. Choose only a restraint with a label

certifying that it complies with Federal Motor Vehicle Safety Standard 213 or Canadian Motor Vehicle Safety Standard 213.

. Check the child restraint in your vehicle

to be sure it is compatible with the vehicle’s seat and seat belt system.

. If the child restraint is compatible with

your vehicle, place your child in the child restraint and check the various adjustments to be sure the child restraint is compatible with your child. Choose a child restraint that is designed for your child’s height and weight. Always follow all recommended procedures.

. If the combined weight of the child and

child restraint is less than 65 lbs (29.5 kg), you may use either the LATCH anchors or the seat belt to install the child restraint (not both at the same time).

. If the combined weight of the child and

child restraint is greater than 65 lbs (29.5 kg), use the vehicle’s seat belt (not the lower anchors) to install the child restraint.

. Be sure to follow the child restraint

manufacturer’s instructions for installation.

All U.S. states and Canadian provinces or territories require that infants and small children be restrained in an approved child restraint at all times while the vehicle is being operated. Canadian law requires the top tether strap on forward-facing child restraints be secured to the designated anchor point on the vehicle.

SSS0567

LATCH label location

Lower Anchors and Tethers for CHildren System (LATCH)

Your vehicle is equipped with special anchor points that are used with the LATCH (Lower Anchors and Tethers for CHildren) system compatible child restraints. This system may also be referred to as the ISOFIX or ISOFIX compatible system. With this system, you do not have to use a vehicle seat belt to secure the child restraint unless the combined weight of the child and child restraint exceeds 65 lbs (29.5 kg). If the combined weight of the child and child restraint is greater than 65

GUID-C1C3934D-3833-4842-8D2B-271D02CB116E

Safety — Seats, seat belts and supplemental restraint system 1-21

(54,1)

lbs (29.5 kg), use the vehicle’s seat belt (not the lower anchors) to install the child restraint. Be sure to follow the child restraint manufacturer’s instructions for installation.

LATCH lower anchor

GUID-B84B41F2-A135-43AA-8D8C-8F7221F099C9

WARNING

Failure to follow the warnings and instructions for proper use and installation of child

structed.

Child restraint anchorages are designed to withstand only those loads imposed by correctly fitted child restraints. Under no circumstances are they to be used to attach adult seat belts, or other items orequipment to the vehicle. Doing so could damage the child restraint anchorages. The child restraint will not be properly installed using the damaged anchorage, and a child could be seriously injured or killed in a collision.

restraints could result in serious injury or death of a child or other passengers in a sudden stop or collision:

. Attach LATCH system compatible child

restraints only at the locations shown in the illustration.

. Do not secure a child restraint in the

center rear seating position using the LATCH lower anchors. The child restraint will not be secured properly.

. Inspect the lower anchors by inserting

your fingers into the lower anchor area. Feel to make sure there are no obstructions over the anchors such as seat belt webbing or seat cushion material. The child restraint will not be secured properly if the lower anchors are ob-

1-22 Safety — Seats, seat belts and supplemental restraint system

SSS0637

LATCH lower anchor location

GUID-2FAC51AF-2AEC-4C36-8B30-B7B0B690220C

The LATCH lower anchors are located at the rear of the seat cushion near the seatback. A label is attached to the seatback to help you locate the LATCH lower anchors.

(55,1)

SSS0643

LATCH webbing-mounted attachment

Installing child restraint LATCH lower anchor attachments

LATCH compatible child restraints include two rigid or webbing-mounted attachments that can be connected to two anchors located at certain seating positions in your vehicle. With this system, you do not have to use a vehicle seat belt to secure the child restraint. Check your child restraint for a label stating that it is compatible with LATCH. This information may also be in the instructions provided by the child restraint manufacturer.

GUID-D4B7854F-048F-46C5-A943-0021B55726A9

SSS0644

LATCH rigid-mounted attachment

When installing a child restraint, carefully read and follow the instructions in this manual and those supplied with the child restraint.

SSS0791

Top tether anchor point locations

GUID-20CEF92A-45FA-4665-B712-6606D52BC917

Anchor points are located on the rear parcel shelf.

If you have any questions when installing a top tether strap child restraint on the rear seat, it is recommended you visit an INFINITI retailer for this service.

WARNING

Child restraint anchorages are designed to withstand only those loads imposed by correctly fitted child restraints. Under no circumstances are they to be used to attach

Safety — Seats, seat belts and supplemental restraint system 1-23

(56,1)

adult seat belts, or other items orequipment to the vehicle. Doing so could damage the child restraint anchorages. The child restraint will not be properly installed using the damaged anchorage, and a child could be seriously injured or killed in a collision.

REAR-FACING CHILD RESTRAINT INSTALLATION USING LATCH

Refer to all Warnings and Cautions in the “Child safety” and “Child restraints” sections before installing a child restraint.

Do not use the lower anchors if the combined weight of the child and the child restraint exceeds 65 lbs (29.5 kg). If the combined weight of the child and the child restraint is greater than 65 lbs (29.5 kg), use the vehicle’s seat belt (not the lower anchors) to install the child restraint. Be sure to follow the child restraint manufacturer’s instructions for installation.

Follow these steps to install a rear-facing child restraint using the LATCH system:

1. Position the child restraint on the seat. Always follow the child restraint manufacturer’s instructions.

GUID-3EA280BC-E6EA-46BE-8A56-C11EBE28B4A0

SSS0648

Rear-facing web-mounted — step 2

2. Secure the child restraint anchor attachments to the LATCH lower anchors. Check to make sure the LATCH attachment is properly attached to the lower anchors.

SSS0649

Rear-facing rigid-mounted — step 2

1-24 Safety — Seats, seat belts and supplemental restraint system

(57,1)

all child restraints fit in all types of vehicles.

5. Check to make sure the child restraint is properly secured prior to each use. If the child restraint is loose, repeat steps 1 through 4.

SSS0639

Rear-facing — step 3

3. For child restraints that are equipped with webbing-mounted attachments, remove any additional slack from the anchor attachments. Press downward and rearward firmly in the center of the child restraint with your hand to compress the vehicle seat cushion and seatback while tightening the webbing of the anchor attachments.

SSS0650

Rear-facing — step 4

4. After attaching the child restraint, test it before you place the child in it. Push it from side to side while holding the child restraint near the LATCH attachment path. The child restraint should not move more than 1 inch (25 mm), from side to side. Try to tug it forward and check to see if the LATCH attachment holds the restraint in place. If the restraint is not secure, tighten the LATCH attachment as necessary, or put the restraint in another seat and test it again. You may need to try a different child restraint or try installing by using the vehicle seat belt (if applicable). Not

Safety — Seats, seat belts and supplemental restraint system 1-25

(58,1)

air bag and status light” (P.1-47).

SSS0100

REAR-FACING CHILD RESTRAINT INSTALLATION USING THE SEAT BELTS

GUID-55A7D551-E2FF-40B2-BEB9-31544F376FC0

WARNING

The three-point seat belt with Automatic Locking Retractor (ALR) must be used when installing a child restraint. Failure to use the ALR mode will result in the child restraint not being properly secured. The restraint could tip over or be loose and cause injury to a child in a sudden stop or collision. Also, it can change the operation of the front passenger air bag. See “Front passenger

1-26 Safety — Seats, seat belts and supplemental restraint system

SSS0100

Rear-facing — step 1

Refer to all Warnings and Cautions in the “Child safety” (P.1-17) and “Child restraints” (P.1-19) before installing a child restraint.

(59,1)

Follow these steps to install a rear-facing child restraint using the vehicle seat belts in the rear seats:

1. Child restraints for infants must be

used in the rear-facing direction and therefore must not be used in the front seat. Position the child restraint on the

seat. Always follow the restraint manufacturer’s instructions.

SSS0654

Rear-facing — step 2

2. Route the seat belt tongue through the child restraint and insert it into the buckle until you hear and feel the latch engage. Be sure to follow the child restraint manufacturer’s instructions for belt routing.

Safety — Seats, seat belts and supplemental restraint system 1-27

SSS0655

Rear-facing — step 3

3. Pull the shoulder belt until the belt is fully extended. At this time, the seat belt retractor is in the Automatic Locking Retractor (ALR) mode (child restraint mode). It reverts to the Emergency Locking Retractor (ELR) mode when the seat belt is fully retracted.

(60,1)

SSS0656

Rear-facing — step 4

4. Allow the seat belt to retract. Pull up on the shoulder belt to remove any slack in the belt.

SSS0657

Rear-facing — step 5

5. Remove any additional slack from the seat belt; press downward and rearward firmly in the center of the child restraint to compress the vehicle seat cushion and seatback while pulling up on the seat belt.

SSS0658

Rear-facing — step 6

6. After attaching the child restraint, test it before you place the child in it. Push it from side to side while holding the child restraint near the seat belt path. The child restraint should not move more than 1 inch (25 mm), from side to side. Try to tug it forward and check to see if the belt holds the restraint in place. If the restraint is not secure, tighten the seat belt as necessary, or put the restraint in another seat and test it again. You may need to try a different child restraint. Not all child restraints fit in all types of vehicles.

1-28 Safety — Seats, seat belts and supplemental restraint system

(61,1)

7. Check to make sure that the child restraint is properly secured prior to each use. If the seat belt is not locked, repeat steps 1 through 6.

After the child restraint is removed and the seat belt fully retracted, the ALR mode (child restraint mode) is canceled.

FORWARD-FACING CHILD RESTRAINT INSTALLATION USING LATCH

Refer to all Warnings and Cautions in the “Child safety” and “Child restraints” sections before installing a child restraint.

Follow these steps to install a forwardfacing child restraint using the LATCH system:

1. Position the child restraint on the seat. Always follow the child restraint manufacturer’s instructions.

GUID-D9ED4467-51A0-45CD-B0F6-DFDE679BDEAC

SSS0645

Forward-facing web-mounted — step 2

2. Secure the child restraint anchor attachments to the LATCH lower anchors. Check to make sure the LATCH attachment is properly attached to the lower anchors.

If the child restraint is equipped with a top tether strap, route the top tether strap and secure the tether strap to the tether anchor point. See “Installing top tether strap” (P.1-31). Do not install child restraints that require the use of a top tether strap in seating positions that do not have a top tether anchor.

Safety — Seats, seat belts and supplemental restraint system 1-29

(62,1)

the proper child restraint fit, try another seating position or a different child restraint.

SSS0646

Forward-facing rigid-mounted — step 2

3. The back of the child restraint should be secured against the vehicle seatback.

If necessary, adjust or remove the head restraint to obtain the correct child restraint fit. If the head restraint is removed, store it in a secure place. Be

sure to reinstall the head restraint when the child restraint is removed.

See “Head restraints/headrests” (P.1-

5) for head restraint adjustment information.

If the seating position does not have an head restraint and it is interfering with

1-30 Safety — Seats, seat belts and supplemental restraint system

SSS0647

Forward-facing — step 4

4. For child restraints that are equipped with webbing-mounted attachments, remove any additional slack from the anchor attachments. Press downward and rearward firmly in the center of the child restraint with your knee to compress the vehicle seat cushion and seatback while tightening the webbing of the anchor attachments.

5. Tighten the tether strap according to the manufacturer’s instructions to remove any slack.

(63,1)

7. Check to make sure the child restraint is properly secured prior to each use. If the child restraint is loose, repeat steps 1 through 6.

SSS0638

Forward-facing — step 6

6. After attaching the child restraint, test it before you place the child in it. Push it from side to side while holding the child restraint near the LATCH attachment path. The child restraint should not move more than 1 inch (25 mm), from side to side. Try to tug it forward and check to see if the LATCH attachment holds the restraint in place. If the restraint is not secure, tighten the LATCH attachment as necessary, or put the restraint in another seat and test it again. You may need to try a different child restraint. Not all child restraints fit in all types of vehicles.

SSS0791

Installing top tether strap

GUID-6BD34F26-B07B-4063-9C77-39E900C9B005

The child restraint top tether strap must be used when installing the child restraint with the LATCH lower anchor attachments.

First, secure the child restraint with the LATCH lower anchors (rear outboard seating positions only).

1. Flip up the anchor cover from the anchor point which is located directly behind the child restraint.

2. If necessary, raise or remove the head restraint or headrest to position the top tether strap over the top of the seatback. If the head restraint or headrest

Safety — Seats, seat belts and supplemental restraint system 1-31

(64,1)

is removed, store it in a secure place. Be sure to reinstall the head restraint or headrest when the child restraint is removed.

See “Head restraints/headrests” (P.1-

5) for head restraint or headrest adjustment, removal and installation information.

Position the top tether strap over the top of the seatback.

3. Secure the tether strap to the tether anchor point on the rear parcel shelf.

4. Refer to the appropriate child restraint installation procedure steps in this section before tightening the tether strap.

If you have any questions when installing a top tether strap, it is recommended you visit an INFINITI retailer for this service.

FORWARD-FACING CHILD RESTRAINT INSTALLATION USING THE SEAT BELTS

GUID-4DB798E7-E9AF-4F3F-8757-7FA8B7D2601A

WARNING

SSS0640

Forward-facing (front passenger seat) —

step 1

Refer to all Warnings and Cautions in the “Child safety” and “Child restraints” sections before installing a child restraint.

1-32 Safety — Seats, seat belts and supplemental restraint system

(65,1)

Follow these steps to install a forwardfacing child restraint using the vehicle seat belt in the rear seats or in the front passenger seat:

1. If you must install a child restraint in

the front seat, it should be placed in a forward-facing direction only. Move the seat to the rearmost position. Child restraints for infants must be used in the rear-facing direction and, therefore, must not be used in the front seat.

2. Position the child restraint on the seat. Always follow the child restraint manufacturer’s instructions.

The back of the child restraint should be secured against the vehicle seatback.

If necessary, adjust or remove the head restraint or headrest to obtain the correct child restraint fit. If the head restraint or headrest is removed, store it in a secure place. Be sure to reinstall

the head restraint or headrest when the child restraint is removed. See

“Head restraints/headrests” (P.1-5) for head restraint or headrest adjustment, removal and installation information.

If the seating position does not have an adjustable head restraint or headrest and it is interfering with the proper child restraint fit, try another seating position or a different child restraint.

SSS0360B

Forward-facing — step 3

3. Route the seat belt tongue through the child restraint and insert it into the buckle until you hear and feel the latch engage. Be sure to follow the child restraint manufacturer’s instructions for belt routing.

If the child restraint is equipped with a top tether strap, route the top tether strap and secure the tether strap to the tether anchor point (rear seat installation only). See “Installing top tether strap” (P.1-36). Do not install child restraints that require the use of a top tether strap in seating positions that do not have a top tether anchor.

Safety — Seats, seat belts and supplemental restraint system 1-33

(66,1)

SSS0651

Forward-facing — step 4

4. Pull the shoulder belt until the belt is fully extended. At this time, the seat belt retractor is in the Automatic Locking Retractor (ALR) mode (child restraint mode). It reverts to Emergency Locking Retractor (ELR) mode when the seat belt is fully retracted.

SSS0652

Forward-facing — step 5

5. Allow the seat belt to retract. Pull up on the shoulder belt to remove any slack in the belt.

SSS0653

Forward-facing — step 6

6. Remove any additional slack from the seat belt; press downward and rearward firmly in the center of the child restraint with your knee to compress the vehicle seat cushion and seatback while pulling up on the seat belt.

7. Tighten the tether strap according to the manufacturer’s instructions to remove any slack.

1-34 Safety — Seats, seat belts and supplemental restraint system

(67,1)

9. Check to make sure the child restraint is properly secured prior to each use. If the seat belt is not locked, repeat steps 2 through 8.

SSS0641

Forward-facing — step 8

8. After attaching the child restraint, test it before you place the child in it. Push it from side to side while holding the child restraint near the seat belt path. The child restraint should not move more than 1 inch (25 mm), from side to side. Try to tug it forward and check to see if the belt holds the restraint in place. If the restraint is not secure, tighten the seat belt as necessary, or put the restraint in another seat and test it again. You may need to try a different child restraint. Not all child restraints fit in all types of vehicles.

SSS1085

Forward-facing — step 10

10.If the child restraint is installed in the front passenger seat, place the ignition switch in the ON position. The front passenger air bag status light should illuminate. If this light is not illuminated, see “Front passenger air bag and status light” (P.1-47). Move the

child restraint to another seating position. Have the system checked. It is

recommended you visit an INFINITI retailer for this service.

After the child restraint is removed and the seat belt is fully retracted, the ALR mode (child restraint mode) is canceled.

Safety — Seats, seat belts and supplemental restraint system 1-35

(68,1)

SSS0791

Installing top tether strap

GUID-C501F3B2-B525-4F0E-A619-D50D32F95904

The child restraint top tether strap must be used when installing the child restraints with the seat belts.

First, secure the child restraint with the seat belt.

1. Flip up the anchor cover from the anchor point which is located directly behind the child restraint.

2. If necessary, raise or remove the head restraint or headrest to position the top tether strap over the top of the seatback. If the head restraint or headrest is removed, store it in a secure place.

Be sure to reinstall the head restraint or headrest when the child restraint is removed.

See “Head restraints/headrests” (P.1-

5) for head restraint or headrest adjustment, removal and installation information.

Position the top tether strap over the top of the seatback.

3. Secure the tether strap to the tether anchor point on the rear parcel shelf.

4. Refer to the appropriate child restraint installation procedure steps in this section before tightening the tether strap.

If you have any questions when installing a top tether strap, it is recommended you visit an INFINITI retailer for this service.

BOOSTER SEATS

Precautions on booster seats

GUID-8603BE0C-5AB5-422E-8F8B-F15C086912E5

GUID-EEB07257-7590-4249-8F66-9FD497B4B441

WARNING

If a booster seat and seat belt are not used properly, the risk of a child being injured in a sudden stop or collision greatly increases:

. Make sure the shoulder portion of the

belt is away from the child’s face and neck and the lap portion of the belt does not cross the stomach.

. Make sure the shoulder belt is not

behind the child or under the child’s arm.

. A booster seat must only be installed in

a seating position that has a lap/ shoulder belt.

1-36 Safety — Seats, seat belts and supplemental restraint system

(69,1)

is compatible with your child. Always follow all recommended procedures.

LRS0455

Booster seats of various sizes are offered by several manufacturers. When selecting any booster seat, keep the following points in mind:

. Choose only a booster seat with a label

certifying that it complies with Federal Motor Vehicle Safety Standard 213 or Canadian Motor Vehicle Safety Standard 213.

. Check the booster seat in your vehicle

to be sure it is compatible with the vehicle’s seat and seat belt system.

LRS0453

. Make sure the child’s head will be

properly supported by the booster seat or vehicle seat.The seatback must be at or above the center of the child’s ears. For example, if a low back booster seat

is chosen, the vehicle seatback

must be at or above the center of the child’s ears. If the seatback is lower than the center of the child’s ears, a high back booster seat

should be

used.

. If the booster seat is compatible with

your vehicle, place your child in the booster seat and check the various adjustments to be sure the booster seat

Safety — Seats, seat belts and supplemental restraint system 1-37

(70,1)

LRS0464

All U.S. states and Canadian provinces or territories require that infants and small children be restrained in an approved child restraint at all times while the vehicle is being operated.

The instructions in this section apply to booster seat installation in the rear seats or the front passenger seat.

Booster seat installation

GUID-DDD94AC0-6287-4721-8872-2368FD1B503C

CAUTION

Do not use the lap/shoulder belt Automatic Locking Retractor (ALR) mode when using a booster seat with the seat belts.

Refer to all Warnings and Cautions in the “Child safety”, “Child restraints” and “Booster seats” sections earlier in this section before installing a child restraint.

Follow these steps to install a booster seat in the rear seat or in the front passenger seat:

SSS0640

1. If you must install a booster seat in the

front seat, move the seat to the rearmost position.

2. Position the booster seat on the seat. Only place it in a forward-facing direction. Always follow the booster seat manufacturer’s instructions.

1-38 Safety — Seats, seat belts and supplemental restraint system

(71,1)

LRS0454

Front passenger position

3. The booster seat should be positioned on the vehicle seat so that it is stable.

If necessary, adjust or remove the head restraint or headrest to obtain the correct booster seat fit. If the head restraint or headrest is removed, store it in a secure place. Be sure to reinstall

the head restraint or headrest when the booster seat is removed. See “Head

restraints/headrests” (P.1-5) for head restraint or headrest adjustment, removal and installation information.

If the seating position does not have an adjustable head restraint or headrest

and it is interfering with the proper booster seat fit, try another seating position or a different booster seat.

4. Position the lap portion of the seat belt low and snug on the child’s hips. Be sure to follow the booster seat manufacturer’s instructions for adjusting the seat belt routing.

5. Pull the shoulder belt portion of the seat belt toward the retractor to take up extra slack. Be sure the shoulder belt is positioned across the top, middle portion of the child’s shoulder. Be sure to follow the booster seat manufacturer’s instructions for adjusting the seat belt routing.

6. Follow the warnings, cautions and instructions for properly fastening a seat belt shown in “Seat belts” (P.1-9).

SSS1085

7. If the booster seat is installed in the front passenger seat, push the ignition switch to the ON position. The front passenger air bag status light

may or may not illuminate depending on the size of the child and the type of booster seat used. See “Front passenger air bag and status light” (P.1-47).

Safety — Seats, seat belts and supplemental restraint system 1-39

(72,1)

SUPPLEMENTAL RESTRAINT SYSTEM

GUID-FA8250CE-0174-4FD9-90BA-5B43C650911A

PRECAUTIONS ON SUPPLEMENTAL RESTRAINT SYSTEM

This Supplemental Restraint System (SRS) section contains important information concerning the following systems:

. Driver and passenger supplemental

front-impact air bag (INFINITI Advanced Air Bag System)

. Front seat-mounted side-impact supple-

mental air bag

. Roof-mounted curtain side-impact sup-

plemental air bag

. Seat belt with pretensioner

Supplemental front-impact air bag system:

The INFINITI Advanced Air Bag System can help cushion the impact force to the head and chest of the driver and front passenger in certain frontal collisions.

Front seat-mounted side-impact supplemental air bag system: This system can

help cushion the impact force to the chest and pelvis area of the driver and front passenger in certain side impact collisions. The side air bag is designed to inflate on the side where the vehicle is impacted.

Roof-mounted curtain side-impact supplemental air bag system: This system can

help cushion the impact force to the head

1-40 Safety — Seats, seat belts and supplemental restraint system

GUID-33B797EF-5B18-4EA6-A1F0-A150B541B8DC

of occupants in front and rear outboard seating positions in certain side impact collisions. The curtain air bags are designed to inflate on the side where the vehicle is impacted.

These supplemental restraint systems are designed to supplement the crash protection provided by the driver and passenger seat belts and are not a substitute for them. Seat belts should always be correctly worn and the occupant seated a suitable distance away from the steering wheel, instrument panel and door finishers. (See “Seat belts” (P.1-9) for instructions and precautions on seat belt usage.)

The supplemental air bags operate only when the ingition switch is in the ON position.

After pushing the ingition switch to the ON position, the supplemental air bag warning light illuminates. The supplemental air bag warning light will turn off after about 7 seconds if the systems are operational.

(73,1)

SSS0131B

SSS0132B

WARNING

. The supplemental front air bags ordina-

rily will not inflate in the event of a side impact, rear impact, rollover, or lower severity frontal collision. Always wear your seat belts to help reduce the risk or severity of injury in various kinds of accidents.

. The front passenger air bag will not

inflate if the passenger air bag status light is lit or if the front passenger seat is unoccupied. See “Front passenger air bag and status light” (P.1-47).

. The seat belts and the supplemental

front air bags are most effective when you are sitting well back and upright in the seat with both feet on the floor. The front air bags inflate with great force. Even with the INFINITI advanced air bag system, if you are unrestrained, leaning forward, sitting sideways or out of position in any way, you are at greater risk of injury or death in a crash.You may also receive serious or fatal injuries from the supplemental front air bag if you are up against it when it inflates. Always sit back against the seatback and as far-

Safety — Seats, seat belts and supplemental restraint system 1-41

(74,1)

away as practical from the steering wheel or instrument panel. Always use the seat belts.

. The driver and front passenger seat belt

buckles are equipped with sensors that detect if the seat belts are fastened. The Advanced Air Bag System monitors the severity of a collision and seat belt usage then inflates the air bags as needed. Failure to properly wear seat belts can increase the risk or severity of injury in an accident.

. The front passenger seat is equipped

with an occupant classification sensor (pattern sensor) that turns the front passenger air bag OFF under some conditions. This sensor is only used in this seat. Failure to be properly seated and wearing the seat belt can increase the risk or severity of injury in an accident. See “Front passenger air bag and status light” (P.1-47).

. Keep hands on the outside of the

steering wheel. Placing them inside the steering wheel rim could increase the risk of injury if the front air bag inflates.

SSS0007

SSS0006

SSS0008

SSS0009

1-42 Safety — Seats, seat belts and supplemental restraint system

(75,1)

SSS0099

WARNING

. Never let children ride unrestrained or

extend their hands or face out of the window. Do not attempt to hold them in your lap or arms. Some examples of dangerous riding positions are shown in the illustrations.

. Children may be severely injured or

killed when the front air bags, side air bags or curtain air bags inflate if they are not properly restrained. Pre-teens and children should be properly restrained in the rear seat, if possible.

. Even with the INFINITI Advanced Air Bag

System, never install a rear-facing child restraint in the front seat. An inflating front air bag could seriously injure or kill your child. See “Child restraints” (P.1-

19) for details.

SSS0059A

SSS0100

SSS0188A

Safety — Seats, seat belts and supplemental restraint system 1-43

(76,1)

SSS0140

SSS0162

SSS0159

WARNING

Front seat-mounted side-impact supplemental air bags and roof-mounted curtain sideimpact supplemental air bags:

. The front seat-mounted side-impact air

bags and roof-mounted curtain air bags ordinarily will not inflate in the event of a frontal impact, rear impact, rollover or lower severity side collision. Always wear your seat belts to help reduce the risk or severity of injury in various kinds of accidents.

. The seat belts, side air bags and curtain

air bags are most effective when you are sitting well back and upright in the seat. The side air bag and curtain air bag inflate with great force. Do not allow anyone to place their hand, leg or face near the side air bag on the side of the seatback of the front seat or near the side roof rails. Do not allow anyone sitting in the front seats or rear outboard seats to extend their hand out of the window or lean against the door. Some examples of dangerous riding positions are shown in the previous illustrations.

. When sitting in the rear seat, do not hold

onto the seatback of the front seat. If the supplemental side air bag inflates, you may be seriously injured. Be especially careful with children, who should always be properly restrained. Some examples of dangerous riding positions are shown in the illustrations.

. Do not use seat covers on the front

seatbacks. They may interfere with supplemental side air bag inflation.

1-44 Safety — Seats, seat belts and supplemental restraint system

(77,1)

1. Crash zone sensor

2. Supplemental front air bag modules (INFINITI Advanced Air Bags)

3. Front seat-mounted side-impact supplemental air bags

4. Occupant classification sensor (pattern sensor)

JVR0479X

5. Occupant classification system control unit

6. Roof-mounted curtain side-impact supplemental air bags

7. Roof-mounted curtain side-impact supplemental air bag inflators

Safety — Seats, seat belts and supplemental restraint system 1-45

8. Air bag Control Unit (ACU)

9. Lap outer pretensioners (if so equipped)

10. Satellite sensors

11. Seat belts with pretensioners

INFINITI ADVANCED AIR BAG SYSTEM (front seats)

This vehicle is equipped with the INFINITI Advanced Air Bag System for the driver and front passenger seats. This system is designed to meet certification requirements under U.S. regulations. It is also permitted in Canada. All of the informa-

tion, cautions and warnings in this manual apply and must be followed.

The driver supplemental front-impact air bag is located in the center of the steering wheel. The front passenger supplemental front-impact air bag is mounted in the instrument panel above the glove box. The front air bags are designed to inflate in higher severity frontal collisions, although they may inflate if the forces in another type of collision are similar to those of a higher severity frontal impact. They may not inflate in certain frontal collisions. Vehicle damage (or lack of it) is not always an indication of proper front air bag

GUID-F3E1E0CD-4853-4DEE-8BF7-FDF8511DF69C

(78,1)

operation. The INFINITI Advanced Air Bag System has

dual stage air bag inflators. The system monitors information from the crash zone sensor, the Air bag Control Unit (ACU), seat belt buckle switches and the occupant classification sensor (pattern sensor). Inflator operation is based on the severity of a collision and seat belt usage for the driver. For the front passenger, the occupant classification sensor is also monitored. Based on information from the sensors, only one front air bag may inflate in a crash, depending on the crash severity and whether the front occupants are belted or unbelted. Additionally, the front passenger air bag may be automatically turned OFF under some conditions, depending on the information provided by the occupant classification sensor. If the front passenger air bag is OFF, the passenger air bag status light will be illuminated (if the seat is unoccupied, the light will not be illuminated, but the air bag will be off). (See “Front passenger air bag and status light” (P.1-47) for further details.) One front air bag inflating does not indicate improper performance of the system.

If you have any questions about your air

bag system, it is recommended you visit an INFINITI retailer for this service. If you are considering modification of your vehicle due to a disability, you may also contact an INFINITI retailer. Contact information is contained in the front of this Owner’s Manual.

When a front air bag inflates, a fairly loud noise may be heard, followed by release of smoke. This smoke is not harmful and does not indicate a fire. Care should be taken not to inhale it, as it may cause irritation and choking. Those with a history of a breathing condition should get fresh air promptly.

Front air bags, along with the use of seat belts, help to cushion the impact force on the head and chest of the front occupants. They can help save lives and reduce serious injuries. However, an inflating front air bag may cause facial abrasions or other injuries. Front air bags do not provide restraint to the lower body.

Even with INFINITI advanced air bags, seat belts should be correctly worn and the driver and passenger seated upright as far as practical away from the steering wheel or instrument panel. The front air bags inflate quickly in order to help protect the

front occupants. Because of this, the force of the front air bag inflating can increase the risk of injury if the occupant is too close to, or is against, the air bag module during inflation.

The front air bags deflate quickly after a collision.

The supplemental front air bags operate only when the ignition switch is in the ON position.

After pushing the ignition switch to the ON position, the supplemental air bag warning light illuminates. The supplemental air bag warning light will turn off after about 7 seconds if the system is operational.

1-46 Safety — Seats, seat belts and supplemental restraint system

(79,1)

SSS1085

Front passenger air bag status light

Front passenger air bag and status light

GUID-251B11C4-1A1B-4A64-9371-B0EC203F33CE

WARNING

The front passenger air bag is designed to automatically turn OFF under some conditions. Read this section carefully to learn how it operates. Proper use of the seat, seat belt and child restraints is necessary for most effective protection. Failure to follow all instructions in this manual concerning the use of seats, seat belts and child restraints can increase the risk or severity

of injury in an accident.

Status light:

GUID-2C107CFC-C909-4AB5-A6B8-9C47EAC579BA

The front passenger air bag status light

is located on the instrument panel. After the ignition switch is placed in the ON position, the front passenger air bag status light illuminates for about 7 seconds and then turns off or illuminates depending on the front passenger seat occupied status. The light operates as follows:

. Unoccupied passenger seat: The

light is OFF and the front passenger air bag is OFF and will not inflate in a crash.

. Passenger seat occupied by a small

adult, child or child restraint as outlined in this section: The

light illuminates to indicate that the front passenger air bag is OFF and will not inflate in a crash.

. Occupied passenger seat and the pas-

senger meets the conditions outlined in this section: The

light is OFF to indicate that the front passenger air bag is operational.

Safety — Seats, seat belts and supplemental restraint system 1-47

Front passenger air bag:

GUID-C6271740-9F33-47C5-9A49-855A85AE074E

The front passenger air bag is designed to automatically turn OFF when the vehicle is operated under some conditions as described below as permitted by U.S. regulations. If the front passenger air bag is OFF, it will not inflate in a crash. The driver air bag and other air bags in your vehicle are not part of this system.

The purpose of the regulation is to help reduce the risk of injury or death from an inflating air bag to certain front passenger seat occupants, such as children, by requiring the air bag to be automatically turned OFF.

The occupant classification sensor (pattern sensor) is in the front passenger seat cushion and is designed to detect an occupant and objects on the seat. For example, if a child is in the front passenger seat, the Advanced Air Bag System is designed to turn the passenger air bag OFF in accordance with the regulations. Also, if a child restraint of the type specified in the regulations is on the seat, the occupant classification sensor can detect it and cause the air bag to turn OFF.

Front passenger seat adult occupants who are properly seated and using the seat belt

(80,1)

as outlined in this manual should not cause the passenger air bag to be automatically turned OFF. For small adults it may be turned OFF, however, if the occupant does not sit in the seat properly (for example, by not sitting upright, by sitting on an edge of the seat, or by otherwise being out of position), this could cause the sensor to turn the air bag OFF. Always be sure to be seated and wearing the seat belt properly for the most effective protection by the seat belt and supplemental air bag.

INFINITI recommends that pre-teens and children be properly restrained in a rear seat. INFINITI also recommends that appropriate child restraints and booster seats be properly installed in a rear seat. If this is not possible, the occupant classification sensor is designed to operate as described above to turn the front passenger air bag OFF for specified child restraints. Failing to properly secure child restraints and to use the ALR mode (child restraint mode) may allow the restraint to tip or move in an accident or sudden stop. This can also result in the passenger air bag inflating in a crash instead of being OFF. (See “Child restraints” (P.1-19) for proper use and

1-48 Safety — Seats, seat belts and supplemental restraint system

installation.) If the front passenger seat is not occupied,

the passenger air bag is designed not to inflate in a crash. However, heavy objects placed on the seat could result in air bag inflation, because of the object being detected by the occupant classification sensor. Other conditions could also result in air bag inflation, such as if a child is standing on the seat, or if two children are on the seat, contrary to the instructions in this manual. Always be sure that you and all vehicle occupants are seated and restrained properly.

Using the passenger air bag status light, you can monitor when the front passenger air bag is automatically turned OFF with the seat occupied. The light will not illuminate when the front passenger seat is unoccupied.

If an adult occupant is in the seat but the passenger air bag status light is illuminated (indicating that the air bag is OFF), it could be that the person is a small adult, or is not sitting on the seat properly.

If a child restraint must be used in the front seat, the passenger air bag status light may or may not be illuminated, depending on the size of the child and the type of child

restraint being used. If the passenger air bag status light is not illuminated (indicating that the air bag might inflate in a crash), it could be that the child restraint or seat belt is not being used properly. Make sure that the child restraint is installed properly, the seat belt is used properly and the occupant is positioned properly. If the passenger air bag status light is still not illuminated, reposition the occupant or child restraint in a rear seat.

If the passenger air bag status light will not illuminate even though you believe that the child restraint, the seat belts and the occupant are properly positioned, the system may be sensing an unoccupied seat (in which case the air bag is OFF). Your INFINITI retailer can check that the system is OFF by using a special tool. However, until you have confirmed with your retailer that your air bag is working properly, reposition the occupant or child restraint in a rear seat.

The INFINITI Advanced Air Bag System and passenger air bag status light will take a few seconds to register a change in the passenger seat status. However, if the seat becomes unoccupied, the air bag status light will remain off.

(81,1)

If a malfunction occurs in the front passenger air bag system, the supplemental air bag warning light

meter and gauges area will blink. Have the system checked. It is recommended you visit an INFINITI retailer for this service.

, located in the

Other supplemental front-impact air bag precautions

GUID-BA9AC028-4097-4FF6-B42B-E2048C452E5F

WARNING

. Do not place any objects on the steering

wheel pad or on the instrument panel. Also, do not place any objects between any occupant and the steering wheel or instrument panel. Such objects may become dangerous projectiles and cause injury if the front air bags inflate.

. Do not place objects with sharp edges on

the seat. Also, do not place heavy objects on the seat that will leave permanent impressions in the seat. Such objects can damage the seat or occupant classification sensor (pattern sensor). This can affect the operation of the air bag system and result in serious personal injury.

. Do not use water or acidic cleaners (hot

steam cleaners) on the seat. This can damage the seat or occupant classification sensor. This can also affect the operation of the air bag system and result in serious personal injury.

. Immediately after inflation, several front

air bag system components will be hot. Do not touch them; you may severely burn yourself.

. No unauthorized changes should be

made to any components or wiring of the air bag system. This is to prevent accidental inflation of the supplemental air bag or damage to the supplemental air bag system.

. Do not make unauthorized changes to

your vehicle’s electrical system, suspension system or front end structure. This could affect proper operation of the front air bag system.

. Tampering with the air bag system may

result in serious personal injury. Tampering includes changes to the steering wheel and the instrument panel assembly by placing material over the steering wheel pad and above the instrument panel or by installing additional trim

Safety — Seats, seat belts and supplemental restraint system 1-49

material around the air bag system.

. Modifying or tampering with the front

passenger seat may result in serious personal injury. For example, do not change the front seats by placing material on the seat cushion or by installing additional trim material, such as seat covers, on the seat that is not specifically designed to assure proper air bag operation. Additionally, do not stow any objects under the front passenger seat or the seat cushion and seatback. Such objects may interfere with the proper operation of the occupant classification sensor.

. No unauthorized changes should be

made to any components or wiring of the seat belt system. This may affect the front air bag system. Tampering with the seat belt system may result in serious personal injury.

. It is recommended you visit an INFINITI

retailer for work on and around the front air bag. It is also recommended you visit an INFINITI retailer for installation of electrical equipment. The Supplemental Restraint System (SRS) wiring harnesses* should not be modified or disconnected. Unauthorized electrical

(82,1)

test equipment and probing devices should not be used on the air bag system.

. A cracked windshield should be replaced

immediately by a qualified repair facility. A cracked windshield could affect the function of the supplemental air bag system.

* The SRS wiring harness connectors

are yellow and orange for easy identification.

When selling your vehicle, we request that you inform the buyer about the front air bag system and guide the buyer to the appropriate sections in this Owner’s Manual.

SSS0521

FRONT SEAT-MOUNTED SIDE-IMPACT SUPPLEMENTAL AIR BAG AND ROOF-MOUNTED CURTAIN SIDE-IMPACT SUPPLEMENTAL AIR BAG SYSTEMS

The side air bags are located in the outside of the seatback of the front seats. The curtain air bags are located in the side roof rails. All of the information, cautions and

warnings in this manual apply and must be followed. The side air bags and curtain air

bags are designed to inflate in higher severity side collisions, although they may inflate if the forces in another type of

GUID-6DEEA2BB-CA37-4862-BE7D-9A1C86F723D1

collision are similar to those of a higher severity side impact. They are designed to inflate on the side where the vehicle is impacted. They may not inflate in certain side collisions on the side where the vehicle is impacted.

Vehicle damage (or lack of it) is not always an indication of proper supplemental side air bag and curtain side-impact air bag operation.

When side air bags and curtain air bags inflate, a fairly loud noise may be heard, followed by release of smoke. This smoke is not harmful and does not indicate a fire. Care should be taken not to inhale it, as it may cause irritation and choking. Those with a history of a breathing condition should get fresh air promptly.

Side air bags, along with the use of seat belts, help to cushion the impact force on the chest and pelvis of the front occupants. Curtain air bags help to cushion the impact force to the head of occupants in the front and rear outboard seating positions. They can help save lives and reduce serious injuries. However, an inflating side air bags and curtain air bags may cause abrasions or other injuries. Side air bags and curtain air bags do not provide restraint to the

1-50 Safety — Seats, seat belts and supplemental restraint system

(83,1)

lower body. The seat belts should be correctly worn and

the driver and passenger seated upright as far as practical away from the side air bag. Rear seat passengers should be seated as far away as practical from the door finishers and side roof rails. The side air bags and curtain air bags inflate quickly in order to help protect the occupants. Because of this, the force of the side air bags and curtain air bags inflating can increase the risk of injury if the occupant is too close to, or is against, these air bag modules during inflation. The side air bags and curtain air bags will deflate quickly after the collision is over.

The side air bags and curtain air bags operate only when the ignition switch is in the ON position.

After pushing the ignition switch to the ON position, the supplemental air bag warning light illuminates. The air bag warning light will turn off after about 7 seconds if the systems are operational.

WARNING

. Do not place any objects near the seat-

back of the front seats. Also, do not place any objects (an umbrella, bag, etc.) between the front door finisher and the front seat. Such objects may become dangerous projectiles and cause injury if side air bag inflates.

. Right after inflation, several side air

bags and curtain air bag system components will be hot. Do not touch them; you may severely burn yourself.

. No unauthorized changes should be

made to any components or wiring of side air bag and curtain air bags. This is to prevent damage to or accidental inflation of the side air bag and curtain air bag systems.

. Do not make unauthorized changes to

your vehicle’s electrical system, suspension system or side panel. This could affect proper operation of the side air bag and curtain air bag systems.

. Tampering with the air bag system may

result in serious personal injury. For example, do not change the front seats by placing material near the seatback or

Safety — Seats, seat belts and supplemental restraint system 1-51

by installing additional trim material, such as seat covers, around the side air bags.

. It is recommended you visit an INFINITI

retailer for work on and around the front air bag. It is also recommended you visit an INFINITI retailer for installation of electrical equipment. Installation of electrical equipment should also be done by an INFINITI retailer. The Supplemental Restraint System (SRS) wiring harnesses* should not be modified or disconnected. Unauthorized electrical test equipment and probing devices should not be used on the side-impact air bag system.

* The SRS wiring harness connectors

are yellow and orange for easy identification.

When selling your vehicle, we request that you inform the buyer about the side air bag and curtain air bag systems and guide the buyer to the appropriate sections in this Owner’s Manual.

(84,1)

SEAT BELTS WITH PRETENSIONERS (front seats)

GUID-FB5B531B-B3DD-4760-AA66-A1D2A79F9F19

WARNING

. The pretensioners cannot be reused after

activation. They must be replaced together with the retractor and buckle as a unit.

. If the vehicle becomes involved in a

collision but a pretensioner is not activated, be sure to have the pretensioner system checked and, if necessary, replaced. It is recommended you visit an INFINITI retailer for this service.

. No unauthorized changes should be

made to any components or wiring of the pretensioners. This is to prevent damage to or accidental activation of the pretensioner system.Tampering with the pretensioner system may result in serious personal injury.

. It is recommended you visit an INFINITI

retailer for work on and around the front air bag, It is also recommended you visit an INFINITI retailer for installation of electrical equipment. Unauthorized electrical test equipment and probing de-

1-52 Safety — Seats, seat belts and supplemental restraint system

vices should not be used on the pretensioner system.

. If you need to dispose of the preten-

sioner or scrap the vehicle, it is recommended you visit an INFINITI retailer for this service. Correct pretensioner disposal procedures are set forth in the appropriate INFINITI Service Manual. Incorrect disposal procedures could cause personal injury.

The pretensioner system may activate with the supplemental air bag system in certain types of collisions. Working with the seat belt retractor, it helps tighten the seat belt when the vehicle becomes involved in certain types of collisions, helping to restrain front seat occupants.

The pretensioner is encased with the seat belt retractor. These seat belts are used the same way as conventional seat belts.

When a pretensioner seat belt activates, smoke is released and a loud noise may be heard. The smoke is not harmful, and it does not indicate a fire. Care should be taken not to inhale it as it may cause irritation and choking. Those with a history of a breathing condition should get fresh air promptly.

After pretensioner activation, load limiters allow the seat belt to release webbing (if necessary) to reduce forces against the chest.

The supplemental air bag warning light is used to indicate malfunctions in the pretensioner system. See “Supplemental air bag warning light” (P.1-53). If the operation of the supplemental air bag warning light illuminates, have the system checked. It is recommended you visit an INFINITI retailer for this service.

When selling your vehicle, we request that you inform the buyer about the seat belt pretensioners and guide the buyer to the appropriate sections in this Owner’s Manual.

(85,1)

SSS1016

SPA1097

servicing: . The supplemental air bag warning light

remains on after approximately 7 seconds.

. The supplemental air bag warning light

flashes intermittently.

. The supplemental air bag warning light

does not come on at all.

Under these conditions, the air bags and/ or pretensioner systems may not operate properly. They must be checked and repaired. It is recommended you visit an INFINITI retailer for this service.

SUPPLEMENTAL AIR BAG WARNING LABELS

Warning labels about the supplemental front-impact air bag systems are placed in the vehicle as shown in the illustration.

SRS air bag

The warning labels surface of the sun visors.

GUID-80933CBA-9442-4834-8771-28C9CCEF9D69

GUID-A46E243E-0A07-44FE-83A1-CC6B393625E9

are located on the

SUPPLEMENTAL AIR BAG WARNING LIGHT

The supplemental air bag warning light, displaying monitors the circuits for the air bag systems, pretensioners and all related wiring.

When the ignition switch is in the ON position, the supplemental air bag warning light illuminates for about 7 seconds and then turns off. This means the SRS air bag systems are operational.

If any of the following conditions occur, the air bags and/or pretensioner systems need

GUID-B56BABA8-6680-4AC1-806E-CE3B559CB31A

in the instrument panel,

Safety — Seats, seat belts and supplemental restraint system 1-53

WARNING

If the supplemental air bag warning light is on, it could mean that the air bags and/or pretensioner systems will not operate in an accident. To help avoid injury to yourself or others, have your vehicle checked. It is recommended you visit an INFINITI retailer for this service as soon as possible.

(86,1)

REPAIR AND REPLACEMENT PROCEDURE

The front air bags, side air bags, curtain air bags and pretensioners are designed to activate on a one-time-only basis. As a reminder, unless it is damaged, the supplemental air bag warning light will remain illuminated after inflation has occurred. These systems should be repaired and/or replaced as soon as possible. It is recommended you visit an INFINITI retailer for this service.

When maintenance work is required on the vehicle, the front air bags, side air bags, curtain air bags, pretensioners and related parts should be pointed out to the person conducting the maintenance. The ignition switch should always be in the LOCK position when working under the hood or inside the vehicle.

GUID-6F17C37B-9666-4639-BFD5-AF1EBFBE5694

WARNING

. Once a front air bag, side air bag, or

curtain air bag has inflated, the air bag module will not function again and must be replaced. Additionally, the activated pretensioner must also be replaced. The

air bag module and pretensioner should be replaced. It is recommended you visit an INFINITI retailer for this service. However the air bag module and pretensioner system cannot be repaired.

. The front air bag, side air bag, curtain air

bag and the pretensioner system should be inspected. It is recommended you visit an INFINITI retailer for this service. If there is any damage to the front end or side portion of the vehicle.

. If you need to dispose of the supple-

mental air bag or pretensioner or scrap the vehicle, it is recommended you visit an INFINITI retailer for this service. Correct supplemental air bag and seat belt pretensioner system disposal procedures are set forth in the appropriate INFINITI Service Manual. Incorrect disposal procedures could cause personal injury.

1-54 Safety — Seats, seat belts and supplemental restraint system

(87,1)

2 Instruments and controls

Cockpit .................................................................. 2-3

Instrument panel ................................................... 2-5

Meters and gauges ................................................ 2-7

Speedometer and odometer .............................. 2-8

Tachometer ........................................................ 2-9

Assist charge gauge .......................................... 2-9

Fuel gauge ........................................................ 2-9

Warning lights, indicator lights and

audible reminders ................................................ 2-11

Checking lights ................................................ 2-12

Warning lights ................................................. 2-12

Indicator lights ................................................ 2-19

Audible reminders ........................................... 2-22

Vehicle information display .................................. 2-22

Operational indicators ..................................... 2-25

Maintenance indicators ................................... 2-29

Trip computer .................................................. 2-31

Security systems ................................................. 2-35

Vehicle Security System ................................... 2-36

INFINITI Vehicle Immobilizer System ................ 2-37

Wiper and washer switch ..................................... 2-38

Rain-sensing auto wiper system ...................... 2-40

Rear window and outside mirror

defroster switch ................................................... 2-41

Headlight and turn signal switch ......................... 2-41

Headlight switch ............................................ 2-41

Turn signal switch .......................................... 2-45

Fog light switch ............................................. 2-46

Heated steering wheel (if so equipped) ............... 2-46

Horn .................................................................... 2-47

Heated seats (if so equipped) .............................. 2-47

Climate controlled seats (if so equipped) ............. 2-49

Warning systems switch (if so equipped) ............. 2-50

Vehicle Dynamic Control (VDC) OFF switch ........... 2-50

Clock ................................................................... 2-51

Adjusting the time ......................................... 2-51

Power outlet ........................................................ 2-51

Ashtrays .............................................................. 2-52

Rear ............................................................... 2-52

Storage ............................................................... 2-53

Cup holders ................................................... 2-53

Sunglasses holder ........................................ 2-54

Glove box ...................................................... 2-54

Console box ................................................... 2-55

Card holder .................................................... 2-55

Storage box ................................................... 2-56

Rear pocket ................................................... 2-56

Coat hooks .................................................... 2-56

Trunk hooks ................................................... 2-57

(88,1)

Windows .............................................................. 2-57

Power windows ............................................... 2-57

Moonroof ............................................................. 2-60

Power moonroof .............................................. 2-60

Rear sunshade (if so equipped) ........................... 2-62

Welcome light ...................................................... 2-63

Battery saver system ....................................... 2-63

Interior lights ....................................................... 2-64

Map lights ....................................................... 2-64

Personal lights ................................................ 2-64

Interior light control switch .............................. 2-65

Vanity mirror lights .............................................. 2-66

Trunk light .......................................................... 2-66

HomeLink

Universal Transceiver ........................ 2-66

Programming HomeLink Programming HomeLink

customers and gate openers .......................... 2-69

Operating the HomeLink

............................... 2-67

for Canadian

Universal Transceiver ..................................... 2-69

Programming troubleshooting ........................ 2-69

Clearing the programmed information ............ 2-70

Reprogramming a single HomeLink

button ......................................... 2-70

If your vehicle is stolen .................................. 2-70

(89,1)

COCKPIT

GUID-83D46913-7F0C-4CB0-A756-275B43D9E03A

1. Instrument brightness control switch (P.2-45)

2. Adaptive Front lighting System (AFS) switch (if so equipped) (P.2-43)

3. Headlight, fog light and turn signal switch (P.2-41)

JVC0717X

4. Trip computer switch (P.2-31)

5. TRIP/RESET switch for twin trip odometer (P.2-8)

6. Windshield wiper and washer switch (P.2-38)

7. Shift lever (P.5-15)

8. Vehicle Dynamic Control (VDC) OFF switch (P.5-127)

9. Rear sunshade switch (if so equipped) (P.2-62)

10. Steering heater switch (if so equipped) (P.2-46)

11. Trunk lid release switch (P.3-19)

12. Back-up Collision Intervention (BCI) switch (if so equipped) (P.5-56)

13. Warning systems switch (if so equipped) (P.5-23, P.5-33)

14. Electric tilting/telescopic steering wheel lever (P.3-24)

15. Steering-wheel-mounted controls (left side)

— Menu control switch (models with navigation system)/Audio tuning switch (models without navigation system) (P.4-96)

— Hands-Free Phone System switch (P.4-111, P.4-101)

16. Steering wheel — Horn (P.2-47) — Driver supplemental air bag

(P.1-40) — Heated steering wheel (if so

equipped) (P.2-46)

Instruments and controls 2-3

(90,1)

17. Steering-wheel-mounted controls (right side)

— Cruise control switches (P.5-66) — Intelligent Cruise Control (ICC)

switches (if so equipped) (P.5-68) — Dynamic driver assistance switch

(if so equipped) (P.5-23, P.5-43, P.5-91)

2-4 Instruments and controls

(91,1)

INSTRUMENT PANEL

GUID-139F898F-EF61-4933-9424-E1767A8A4A89

1. Side ventilator (P.4-56)

2. Meters and gauges (P.2-7)

3. Hazard warning flasher switch (P.6-2)

4. Rear window and outside mirror defroster switch (P.2-41)

JVO0132X

5. Center display (P.4-4)/Navigation system* (if so equipped)

6. Clock (P.2-51)

7. Center multi-function control panel — Navigation system* (if so

equipped)

— Vehicle information and setting buttons (P.4-10)

— Bluetooth tem (P.4-99, P.4-109)

— Around View

Hands-Free Phone Sys-

Monitor (if so

equipped) (P.4-33) — Audio system (P.4-62)

8. Automatic climate control system (P.4-56)

9. Center ventilator (P.4-56)

10. Audio system (P.4-62)

11. Front passenger supplemental air bag (P.1-40)

12. Hood release handle (P.3-18)

13. Fuse box cover (P.8-24)

14. Parking brake — Parking (P.5-19)

15. Push-button ignition switch (P.5-10)

16. Front passenger air bag status light (P.1-47)

17. Climate controlled seat switch (if so equipped) (P.2-49)/Seat heater switch (if so equipped) (P.2-47)

18. INFINITI Drive Mode Selector (P.5-20)

19. Storage box (P.2-56) — Power outlet (P.2-51)

20. Glove box lid release handle (P.2-54)

Instruments and controls 2-5

(92,1)

21. Trunk release power cancel switch (P.3-20)

*: Refer to the separate Navigation

System Owner’s Manual.

2-6 Instruments and controls

(93,1)

METERS AND GAUGES

GUID-691FA2D1-00DE-4C62-B62C-FE0C7AA320F1

1. Tachometer (P.2-9)

2. Warning and indicator lights (P.2-11)

3. Speedometer (P.2-8)

4. Assist charge gauge (P.2-9)

5. Vehicle information display/Odometer/twin trip odometer (P.2-22)

CAUTION

. For cleaning, use a soft cloth, dampened

with water. Never use a rough cloth, alcohol, benzine, thinner or any kind of solvent or paper towel with a chemical cleaning agent. They will scratch or cause discoloration to the lens.

. Do not spray any liquid such as water on

the meter lens. Spraying liquid may cause the system to malfunction.

JVI0200X

6. Fuel gauge (P.2-9)

*: The needle indicators in the speedometer, tachometer, assist charge gauge and fuel gauge may move slightly after the ignition switch is pushed to the LOCK position. This is not a malfunction.

Instruments and controls 2-7

(94,1)

SIC4318

Speedometer

SPEEDOMETER AND ODOMETER

Speedometer

GUID-CD0DE725-3134-48E8-A8F7-FE79D9F509C5

GUID-6C1D5CB1-6492-445B-825B-135C5B283C5C

The speedometer indicates vehicle speed in miles per hour (MPH) and kilometers per hour (km/h).

JVI1126X

Odometer/twin trip odometer

The odometer

are displayed on the vehicle informa-

GUID-3F65DB18-06BA-46B4-BF90-A423A80A9340

and twin trip odometer

tion display when the ignition switch is in the ON position.

The odometer records the total distance the vehicle has been driven.

The twin trip odometer records the distance of individual trips.

Changing the display:

Pushing the TRIP RESET switch

GUID-5223072E-4C09-45EF-8F2F-B1C5679FE4D2

on the right of the combination meter panel changes the display as follows:

TRIP A ? TRIP B ? TRIP A

Resetting the trip odometer:

Pushing the TRIP RESET switch

GUID-1784BFF5-79F7-43F1-9885-3A5D19636CE8

for more than 1 second resets the trip odometer to zero.

Average fuel economy and distance to empty information is also available. (See “Vehicle information display” (P.2-22) and “How to use STATUS button” (P.4-10).)

2-8 Instruments and controls

(95,1)

JVI0196X

JVI0197X

JVI0846X

TACHOMETER

GUID-ED042B9F-86CF-48B5-969C-C2981187A825

The tachometer indicates engine speed in revolutions per minute (RPM). Do not rev

the engine into the red zone

The scale length and the red zone vary with the engine model.

CAUTION

When engine speed approaches the red zone, shift to a higher gear or reduce engine speed. Operating the engine in the red zone may cause serious engine damage.

ASSIST CHARGE GAUGE

GUID-13D848B3-2950-4327-AD51-669B41A8003E

The gauge indicates the condition of the electric motor.

When the needle is between the center and the PWR

side, this indicates that the

electric motor is powering the drive wheels and the Lithium-ion (Li-ion) battery is discharging.

When the needle is between the center and

CHG

side, this indicates that the

electric motor is generating power to recharge the Li-ion battery.

FUEL GAUGE

GUID-B25CB842-078C-46AD-A9EB-B2F8CBAD9467

The gauge indicates the approximate fuel level in the tank.

The gauge may move slightly during braking, turning, acceleration, or going up or down hills.

The gauge needle returns to “0” (Empty) after the ignition switch is pushed to the OFF position.

Refill the fuel tank before the gauge registers “0” (Empty).

The low fuel warning

appears on the vehicle information display when the fuel level is getting low. Refuel as soon as it is

Instruments and controls 2-9

(96,1)

convenient, preferably before the gauge reaches “0”. There will be a small reserve of fuel in the tank when the fuel gauge needle reaches “0”.

The

located on the right side of the vehicle.

indicates that the fuel-filler door is

CAUTION

. When the fuel gauge reads “0”, put a

minimum of 4 US gallons (15 liters) of gasoline in the fuel tank. If there is less than 4 US gallons (15 liters) in the tunk, the hybrid system may not start.

. If the vehicle runs out of fuel, the

malfunction indicator light (MIL) may come on. Refuel as soon as possible. After a few driving trips, the should turn off. If the light remains on after a few driving trips, have the vehicle inspected. It is recommended you visit an INFINITI retailer for this service.

—

For additional information, see

“Malfunction Indicator Light (MIL)” (P.2-20).

light

2-10 Instruments and controls

(97,1)

WARNING LIGHTS, INDICATOR LIGHTS AND AUDIBLE REMINDERS

GUID-27260C9A-9A53-466E-ACF0-E491D66BB7DC

12-volt battery charge warning light

Anti-lock Braking System (ABS) warning light

Automatic transmission check warning light Seat belt warning light and chime

Blind Spot Warning (BSW)/Blind Spot Intervention (BSI) system warning light (orange) (if so equipped)

Brake system warning light (yellow) Vehicle Dynamic Control (VDC) warning light

Brake warning light (red)

Direct Response Hybrid®System warning light

Distance Control Assist (DCA) system warning light (orange) (if so equipped)

Engine oil pressure warning light ECO drive indicator light

Forward Emergency Braking (FEB) system warning light (if so equipped)

High temperature warning light Exterior light indicator

Hybrid EPS (Electrical Power Steering) warning light

Intelligent Cruise Control (ICC) system warning light (orange) (if so equipped)

Lane Departure Warning (LDW) indicator light (orange) (if so equipped)

Low tire pressure warning light

Master warning light

Supplemental air bag warning light

Adaptive Front lighting System (AFS) off indicator light (if so equipped)

Approaching Vehicle Sound for Pedestrians (VSP) OFF indicator light

Automatic transmission (AT) position indicator light

Blind Spot Intervention (BSI) ON indicator light (green) (if so equipped)

EV indicator light

Front fog light indicator light

Front passenger air bag status light

High beam indicator light

Lane Departure Prevention (LDP) ON indicator light (green) (if so equipped)

Malfunction Indicator Light (MIL)

READY to drive indicator light

Security indicator light

Turn signal/hazard indicator lights

Vehicle Dynamic Control (VDC) off indicator light

Instruments and controls 2-11

(98,1)

CHECKING LIGHTS

With all doors closed, apply the parking brake, fasten the seat belts and place the ignition switch in the ON position without starting the INFINITI Direct Response Hy-

brid equipped) will come on:

, or (red), , , , , ,

The following lights (if so equipped) come on briefly and then go off:

, , or , , , , , , , , , (yellow)

If any light does not come on or operate in a way other than described, it may indicate a burned-out bulb and/or a system malfunction. Have the system checked by an INFINITI retailer.

Some indicators and warnings are also displayed on the vehicle information display between the speedometer and tachometer. (See “Vehicle information display” (P.2-22).)

GUID-AAEEDCA0-B409-469E-9994-4005AFDC3266

System. The following lights (if so

WARNING LIGHTS

GUID-E4342973-71E9-450C-94D9-9EA3FA5505E2

12-volt battery charge warning

light

If the light comes on when the ignition switch is in the ON position, it may indicate the charging system is not functioning properly. It is recommended you visit an INFINITI retailer for this service.

GUID-A5B9ED28-A24E-4CB5-BB67-5A604838E05A

CAUTION

The charging system may not be functioning properly if the 12-volt battery charge warning light comes on while the hybrid system is running. The hybrid system will stop operating when the 12-volt battery becomes discharged. Immediately stop the vehicle in a safe place and contact your INFINITI retailer.

or Anti-lock Braking

System (ABS) warning light

When the ignition switch is in the ON position, the Anti-lock Braking System (ABS) warning light illuminates and then turns off. This indicates the ABS is opera-

GUID-BEE15A76-E254-45AA-8D27-5170CF592A69

tional. If the ABS warning light illuminates while

the hybrid system is running, or while driving, it may indicate the ABS is not functioning properly. Have the system checked. It is recommended you visit an INFINITI retailer for this service.

If an ABS malfunction occurs, the anti-lock function is turned off. The brake system then operates normally, but without antilock assistance. (See “Brake system” (P.5-

125).)

Automatic transmission check

warning light

When the ignition switch is pushed to the ON position, the light comes on for 2 seconds. If the light comes on at any other time, it may indicate the transmission is not functioning properly. It is recommended you visit an INFINITI retailer to check and repair the transmission.

GUID-2EACF6F2-82B3-44A2-BC1E-313DDCE5EAD7

2-12 Instruments and controls

(99,1)

Blind Spot Warning (BSW)/

Blind Spot Intervention

(BSI) system warning light (orange; if so equipped)

When the ignition switch is placed in the ON position, the indicator light will first illuminate in orange and turn green before turning off. This indicates that the Blind Spot Warning (BSW) and Blind Spot Intervention

If the light comes on in orange and remains on, it may indicate that the BSW and BSI systems are not functioning properly. Although the vehicle is still driveable, have the systems checked. It is recommended you visit an INFINITI retailer for this service. See “Blind Spot Warning (BSW) system” (P.5-33) and “Blind Spot Intervention (BSI) system” (P.5-43).

GUID-9068CB1D-5021-4E81-9D4E-BD508B33B490

(BSI) systems are operational.

Brake system warning light

(yellow)

This light will illuminate after the hybrid system is started and then turns off after a few seconds.

GUID-734535FD-D8E3-4590-9B87-1CAD4F975765

WARNING

If both the brake system warning light (yellow) and the brake warning light (red) illuminate when the parking brake is released and the hybrid system is on, do not drive the vehicle. More brake pedal effort than normal will be required and there will be a significant reduction in brake performance, which could result in an accident. Immediately stop the vehicle in a safe location and contact an INFINITI retailer.

If the brake system warning light (yellow) illuminates when the ignition switch is in the ON position, it may indicate a malfunction in the brake system or one of the

following other functions.

. Regenerative brake system . Hill start assist system . Rise-up and build-up function

See an INFINITI retailer for an inspection as soon as possible.

A chime sounds if a malfunction occurs in the brake system power supply.

or Brake warning light

(red)

This light functions for both the parking brake and the foot brake systems.

Parking brake indicator:

When the ignition switch is in the ON position, the light comes on when the parking brake is applied.

Low brake fluid warning:

When the ignition switch is in the ON position, the light warns of a low brake fluid level. If the light comes on with the parking brake not applied, stop the vehicle and perform the following:

1. Check the brake fluid level. If brake fluid is low, add fluid and have the system checked by your INFINITI retailer. (See “Brake fluid” (P.8-16).)

2. If the brake fluid level is correct, have the warning system checked by an INFINITI retailer.

Brake system malfunction warning:

If the brake warning light (red) and the following warning light illuminate at the same time when the parking brake is released and the brake fluid level is

GUID-27E62D81-74AA-402A-ADDC-A48DD1FF9DA9

GUID-25E41371-4A50-4503-A31C-DF021B7E2A39

GUID-6E218BA5-E24F-466F-9F46-8C7394A6545D

GUID-EB90D2F8-B0CF-46F5-A537-FC5CF88A2EEA

Instruments and controls 2-13

Infiniti Q70 Hybrid 2016 Owner's Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Table of Contents
