For your safety, read carefully and keep in this vehicle.

2016 Infiniti Q70 Owner’s Manual

(3,1)

Foreword

Y51D-V-E01-8D14BA72-70E0-4F77-8469-7DEC8F6401D 5

Your INFINITI represents a new way of thinking about vehicle design. It integrates advanced engineering and superior craftsmanship with a simple, refined aesthetic sensitivity associated with traditional Japanese culture.

The result is a different notion of luxury and beauty. The car itself is important, but so is the sense of harmony that the vehicle evokes in its driver, and the sense of satisfaction you feel with the INFINITI — from the way it looks and drives to the high level of retailer service.

To ensure that you enjoy your INFINITI to the fullest, we encourage you to read this Owner’s Manual immediately. It explains all of the features, controls and performance characteristics of your INFINITI; it also provides important instructions and safety information.

A separate Warranty Information Booklet is included in your Owner’s literature portfolio. The INFINITI Service and Maintenance Guide explains details about maintaining and servicing your vehicle. Always carry it with you when you take your vehicle to an INFINITI retailer. The Warranty Information Booklet contents provide complete information about all

warranties covering this vehicle, the requirements to keep the warranties in effect as well as the INFINITI Roadside Assistance program.

Additionally, a separate Customer Care and Lemon Law Information Booklet will explain how to resolve any concerns you may have with your vehicle, as well as clarify your rights under your state’s lemon law.

In addition to factory installed options, your vehicle may also be equipped with additional accessories installed by INFINITI or by your INFINITI retailer prior to delivery. It is important that you familiarize yourself with all disclosures, warnings, cautions and instructions concerning proper use of such accessories prior to operating the vehicle and/or accessory. See an INFINITI retailer for details concerning the particular accessories with which your vehicle is equipped.

READ FIRST — THEN DRIVE SAFELY

Before driving your vehicle, read your Owner’s Manual carefully. This will ensure familiarity with controls and maintenance requirements, assisting you in the safe operation of your vehicle.

Y51D-V-E01-AC330383-C773-4EB3-A52F-61102B1D37CD

WARNING

IMPORTANT SAFETY INFORMATION REMINDERS!

Follow these important driving rules to help ensure a safe and comfortable trip for you and your passengers!

. NEVER drive under the influence of

alcohol or drugs.

. ALWAYS observe posted speed limits

and never drive too fast for conditions.

. ALWAYS give your full attention to

driving and avoid using vehicle features or taking other actions that could distract you.

. ALWAYS use your seat belts and appro-

priate child restraint systems. Pre-teen children should be seated in the rear seat.

(4,1)

. ALWAYS provide information about the

proper use of vehicle safety features to all occupants of the vehicle.

. ALWAYS review this Owner’s Manual for

important safety information.

MODIFICATION OF YOUR VEHICLE

This vehicle should not be modified. Modification could affect its performance, safety or durability, and may even violate governmental regulations. In addition, damage or performance problems resulting from modification will not be covered under the INFINITI warranties.

WHEN READING THE MANUAL

This manual includes information for all features and equipment available on this model. Features and equipment in your vehicle may vary depending on model, trim level, options selected, order, date of production, region or availability. Therefore, you may find information about features or equipment that are not included or installed on your vehicle.

All information, specifications and illustrations in this manual are those in effect at

Y51D-V-E01-F1CA4D19-16D5-4A3C-AF71-1A2BB3AD05 2B

the time of printing. INFINITI reserves the right to change specifications, performance, design or component suppliers without notice and without obligation. From time to time, INFINITI may update or revise this manual to provide owners with the most accurate information currently available. Please carefully read and retain with this manual all revision updates sent to you by INFINITI to ensure you have access to accurate and up-to-date information regarding your vehicle. Current versions of vehicle Owner’s Manuals and any updates can also be found in the Owner section of the INFINITI website at https:// owners.infinitiusa.com/owners/navigation/manualsandGuides. If you have questions concerning any information in your Owner’s Manual, contact INFINITI Consumer Affairs. See the INFINITI CUSTOMER CARE PROGRAM page in this Owner’s Manual for contact information.

IMPORTANT INFORMATION ABOUT THIS MANUAL

You will see various symbols in this manual. They are used in the following ways:

Y51D-V-E01-3956A13C-AC00-461F-A84F-941327A0547 2

WARNING

This is used to indicate the presence of a hazard that could cause death or serious personal injury. To avoid or reduce the risk, the procedures must be followed precisely.

CAUTION

This is used to indicate the presence of a hazard that could cause minor or moderate personal injury or damage to your vehicle. To avoid or reduce the risk, the procedures must be followed carefully.

(5,1)

SIC0697

If you see the symbol above, it means “Do not do this” or “Do not let this happen”.

NOS1274

If you see a symbol similar to those above in an illustration, it means the arrow points to the front of the vehicle.

NOS1275

Arrows in an illustration that are similar to those above indicate movement or action.

NOS1276

Arrows in an illustration that are similar to

those above call attention to an item in the illustration.

CALIFORNIA PROPOSITION 65 WARNING

Y51D-V-E01-22D8B75D-68F8-4799-AD77-37863EA09A12

WARNING

Engine Exhaust, some of its constituents, and certain vehicle components contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. In addition, certain fluids contained in vehicles and certain products of component wear contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

CALIFORNIA PERCHLORATE ADVISORY

Some vehicle parts, such as lithium batteries, may contain perchlorate material. The following advisory is provided: “Perchlorate Material - special handling may apply, See www.dtsc.ca.gov/ hazardouswaste/perchlorate.”

Y51D-V-E01-E6CD19EB-0ED1-45BF-BAC9-C1A7DD80922F

Bluetooth®is a trademark owned by Bluetooth SIG, Inc. and licensed to Visteon Corporation and Clarion Co., Ltd.

SiriusXM®services require a subscription after trial period and are sold separately or as a package. The satellite service is available only in the 48 contiguous USA and DC. SiriusXM satellite service is also available in Canada: see www.siriusxm.ca.

INFINITI-13P

Manual may be reproduced or stored in a retrieval system, or transmitted in any form, or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written permission of Nissan Motor Co., Ltd.

(6,1)

INFINITI CUSTOMER CARE PROGRAM

Y51D-V-E01-7B10D04C-1C52-4B76-882C-7B9F38514835

INFINITI CARES ... Both INFINITI and your INFINITI retailer are dedicated to serving all your automotive needs. Your satisfaction with your vehicle and your

INFINITI retailer are our primary concerns. Your INFINITI retailer is always available to assist you with all your automobile sales and service needs.

However, if there is something that your INFINITI retailer cannot assist you with or you would like to provide INFINITI directly with comments or questions, please contact our (INFINITI’s) Consumer Affairs Department using our toll-free number:

For U.S. customers

1-800-662-6200

For Canadian customers

1-800-361-4792

The Consumer Affairs Department will ask for the following information:

. Your name, address, and telephone

number

. Vehicle identification number (on dash

panel)

. Date of purchase . Current odometer reading

You can write to INFINITI with the information on the left at:

For U.S. customers

INFINITI Division Nissan North America, Inc. Consumer Affairs Department P.O. Box 685003 Franklin, TN 37068-5003 or via e-mail at: nnaconsumeraffairs@nissan-usa. com

For Canadian customers

INFINITI Division Nissan Canada Inc. 5290 Orbitor Drive Mississauga, Ontario L4W 4Z5 or via e-mail at: information.centre@nissancanada. com

If you prefer, visit us at: www.infinitiUSA.com (for U.S. customer) or www.infiniti.ca (for Canadian customers) We appreciate your interest in INFINITI and

thank you for buying a quality INFINITI vehicle.

. Your INFINITI retailer’s name . Your comments or questions

(1,1)

Table of

Illustrated table of contents

Contents

Safety — Seats, seat belts and supplemental restraint system

Instruments and controls

Pre-driving checks and adjustments

Monitor, climate, audio, phone and voice recognition systems

Starting and driving

In case of emergency

Appearance and care

Maintenance and do-it-yourself

Technical and consumer information

Index

(2,1)

(7,1)

0 Illustrated table of contents

Seats, seat belts and Supplemental Restraint

System (SRS) ......................................................... 0-2

Exterior front ......................................................... 0-3

Exterior rear ........................................................... 0-4

Passenger compartment ........................................ 0-5

Cockpit .................................................................. 0-6

Instrument panel ................................................... 0-8

Meters and gauges .............................................. 0-10

Engine compartment ........................................... 0-11

VK56VD engine .............................................. 0-11

VQ37VHR engine ............................................ 0-12

Warning and indicator lights ............................... 0-14

(8,1)

SEATS, SEAT BELTS AND SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

Y51D-V-E01-73C2D8AF-1731-4D5A-B261-B273439C9CA 3

1. Supplemental front-impact air bags (Page 1-40)

2. Front seat-mounted side-impact supplemental air bags (P.1-40)

3. Seat belts (P.1-10)

4. Head restraints (P.1-5)

7. Occupant classification sensor (pattern sensor) (P.1-45)

8. Front seats (P.1-3)

9. Seat belts with pretensioners (P.1-52)

10. Rear seats — Child restraints (P.1-20)

11. LATCH (Lower Anchors and Tethers for CHildren) system (P.1-22)

SSI0715

5. Roof-mounted curtain side-impact supplemental air bags (P.1-40)

6. Child restraint anchor points (for top tether strap child restraint) (P.1-24, P.1-32, P.1-36)

0-2 Illustrated table of contents

(9,1)

EXTERIOR FRONT

Y51D-V-E01-B377F75D-ECCA-4C6D-BBFA-4192086CFBFE

1. Hood (P.3-18)

2. Headlight — Operation (P.2-36) — Adaptive Front lighting System

(AFS) (if so equipped) (P.2-38)

3. Windshield wiper and washer — Operation (P.2-33) — Maintenance (P.8-25)

4. Moonroof (P.2-56)

5. Power windows (P.2-53)

6. Recovery hook (P.6-16)

JVC0710X

7. Front view camera (if so equipped) (P.4-33)

8. Turn signal — Operation (P.2-36)

9. Fog light (P.2-41)

10. Sonar sensor (if so equipped) — Around View

Monitor (P.4-33)

11. Tires — Wheel and tires (P.8-35, P.9-9) — Flat tire (P.6-3) — Tire Pressure Monitoring System

(TPMS) (P.2-15, P.5-5)

12. Outside mirrors (P.3-27) — Side turn signal light (P.2-40) — Side view camera (if so equipped)

(P.4-33)

13. Doors — Keys (P.3-2) — Door locks (P.3-4) — Intelligent Key system (P.3-7) — Remote keyless entry system

(P.3-14) — Welcome light (P.2-58)

Illustrated table of contents 0-3

(10,1)

EXTERIOR REAR

Y51D-V-E01-B4B41058-5FEC-4114-A5B7-EF8D487D6BAD

1. Trunk — Intelligent Key system (P.3-7) — Remote keyless entry system

(P.3-14) — Trunk lid (P.3-18)

2. High-mounted stop light (P.8-32)

JVC0698X

3. Rear combination light (P.8-32)

4. Satellite antenna (P.4-62)

5. Rear window defroster (P.2-36)

6. Sonar sensor (if so equipped) — Around View

Monitor (P.4-33)

7. Rear view camera (P.4-26, P.4-33)

8. Fuel-filler door — Operation (P.3-23) — Fuel information (P.9-4)

9. Child safety rear door locks (P.3-6)

0-4 Illustrated table of contents

(11,1)

PASSENGER COMPARTMENT

Y51D-V-E01-3AA37B5B-1B7B-4B54-962C-B1F504C8506 2

1. Rear sunshade (if so equipped) (P.2-57)

2. Rear spot light (if so equipped) (P.2-60)

3. Coat hooks (P.2-52)

JVC0715X

4. Rear personal light (if so equipped) (P.2-60)

5. Sun visors (P.3-26)

6. Power windows (P.2-53)

7. Moonroof switch (P.2-56)

8. Map light (P.2-59) — Active noise control system

(P.5-134) — SOS call switch* (If so equipped)

9. Sunglasses holder (P.2-49)

10. Inside rearview mirror — Operation (P.3-27) — HomeLink

(P.2-62)

11. Trunk pass-through/Rear armrest (P.1-4)

12. Rear cup holders (P.2-48)/Seat heater switch (if so equipped) (P.2-42)

13. Rear pocket (if so equipped) (P.2-52) or power outlet (if so equipped) (P.2-47)

14. Console box — Power outlet (P.2-47) — USB connection port (P.4-83) — iPod

player operation (P.4-93)

15. Front cup holders (P.2-48)

*: Refer to the separate Navigation

System Owner’s Manual.

Illustrated table of contents 0-5

(12,1)

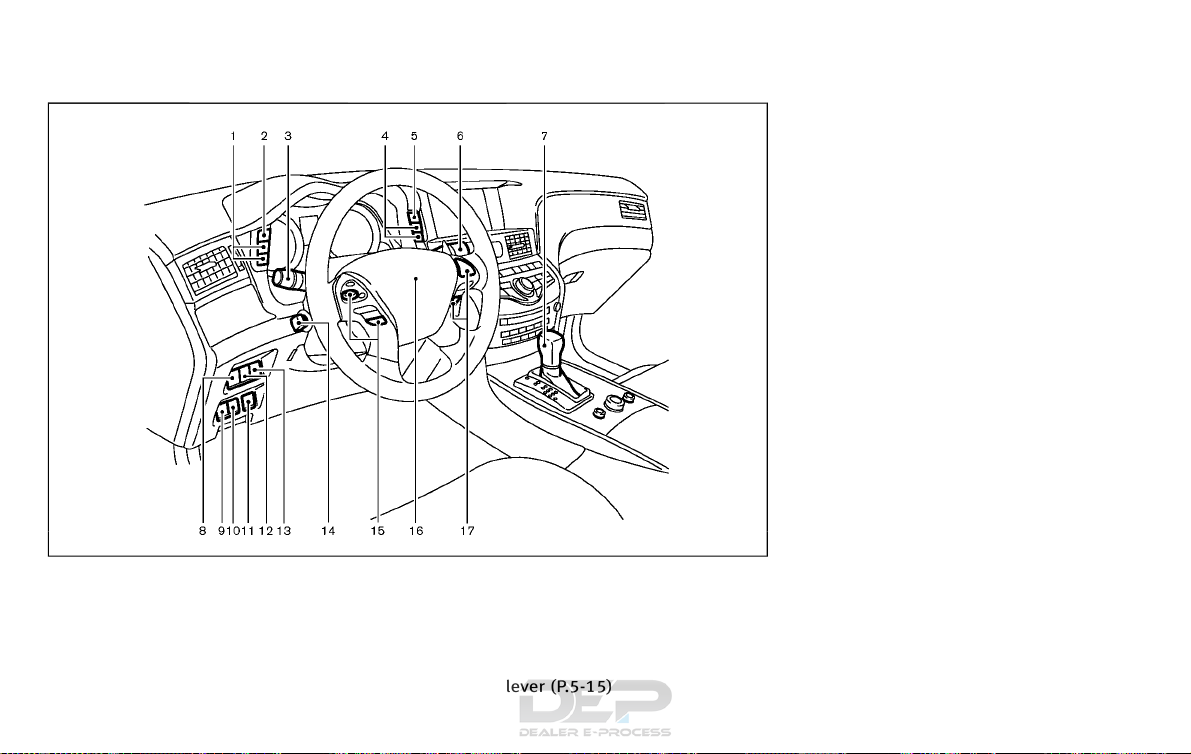

COCKPIT

Y51D-V-E01-6C0E2194-048C-4AAF-8C07-A2793D31FC4 0

1. Instrument brightness control switch (P.2-40)

2. Adaptive Front lighting System (AFS) switch (if so equipped) (P.2-38)

3. Headlight, fog light and turn signal switch (P.2-36)

JVC0717X

4. Trip computer switch (P.2-28)

5. TRIP/RESET switch for twin trip odometer (P.2-8)

6. Windshield wiper and washer switch (P.2-33)

7. Shift lever (P.5-15)

8. Vehicle Dynamic Control (VDC) OFF switch (P.5-129)

9. Rear sunshade switch (if so equipped) (P.2-57)

10. Steering heater switch (if so equipped) (P.2-41)

11. Trunk lid release switch (P.3-19)

12. Back-up Collision Intervention (BCI) switch (if so equipped) (P.5-57)

13. Warning systems switch (if so equipped) (P.5-24, P.5-34)

14. Electric tilting/telescopic steering wheel lever (P.3-25)

15. Steering-wheel-mounted controls (left side)

— Menu control switch (models with navigation system)/Audio tuning switch (models without navigation system) (P.4-96)

— BACK switch (models with navigation system) (P.4-96)

— TALK switch (P.4-124) — Bluetooth

Hands-Free Phone System (models with navigation system) (P.4-99)

— Bluetooth

Hands-Free Phone System (models without navigation system) (P.4-110)

0-6 Illustrated table of contents

(13,1)

— Volume control switch (P.4-96) — Audio source switch (P.4-62)

16. Steering wheel — Horn (P.2-42) — Driver supplemental air bag

(P.1-40) — Heated steering wheel (if so

equipped) (P.2-41)

17. Steering-wheel-mounted controls (right side)

— Cruise control switches (P.5-67) — Intelligent Cruise Control (ICC)

switches (if so equipped) (P.5-69) — Dynamic driver assistance switch

(if so equipped) (P.5-24, P.5-43, P.5-91)

Illustrated table of contents 0-7

(14,1)

INSTRUMENT PANEL

Y51D-V-E01-0F64CFC5-D687-4457-83C2-8E0FE16A0B 7B

1. Side ventilator (P.4-56)

2. Paddle shifter (if so equipped) (P.5-17)

3. Meters and gauges (P.2-7)

4. Hazard warning flasher switch (P.6-2)

JVO0130X

5. Rear window and outside mirror defroster switch (P.2-36)

6. Center display (P.4-4)/Navigation system* (if so equipped)

7. Clock (P.2-47)

8. Center multi-function control panel — Navigation system* (if so

equipped) — Vehicle information and setting

buttons (P.4-10) — Around View

Monitor (if so

equipped) (P.4-33) — Audio system (P.4-62)

9. Automatic climate control system (P.4-56)

10. Center ventilator (P.4-56)

11. Audio system (P.4-62)

12. Front passenger supplemental air bag (P.1-40)

13. Hood release handle (P.3-18)

14. Fuse box cover (P.8-28)

15. Parking brake — Parking (P.5-20)

16. Push-button ignition switch (P.5-10)

17. Front passenger air bag status light (P.1-47)

18. Climate controlled seat switch (if so equipped) (P.2-44) or Seat heater switch (if so equipped) (P.2-42)

19. INFINITI Drive Mode Selector (P.5-21)

20. Storage box (P.2-51) — Power outlet (P.2-47)

0-8 Illustrated table of contents

(15,1)

21. Glove box lid release handle (P.2-50)

22. Trunk release power cancel switch (P.3-21)

*: Refer to the separate Navigation

System Owner’s Manual.

Illustrated table of contents 0-9

(16,1)

METERS AND GAUGES

Y51D-V-E01-6D97ACA8-4DE2-4073-AC01-3AC6DD69386F

1. Tachometer (P.2-9)

2. Warning/Indicator lights (P.2-11)

3. Speedometer (P.2-8)

4. Engine coolant temperature gauge (P.2-9)

SIC4317

5. Vehicle information display (P.2-21)/ Odometer/twin trip odometer (P.2-8)

6. Fuel gauge (P.2-10)

0-10 Illustrated table of contents

(17,1)

ENGINE COMPARTMENT

Y51D-V-E01-25E83879-DE0B-4395-B935-F7008F1C97DD

SDI2538

VK56VD ENGINE

1. Battery (P.8-20)

Y51D-V-E01-47CF0E5E-E8A6-49A8-BC1F-1252F879C41 0

2. Fuse/fusible link holder (P.8-28)

3. Engine oil filler cap (P.8-14)

4. Brake fluid reservoir (P.8-19)

5. Window washer fluid reservoir (P.8-19)

6. Power steering fluid reservoir (P.8-18)

7. Air cleaner (P.8-24)

8. Radiator filler cap (P.8-12)

9. Engine coolant reservoir (P.8-12)

10. Engine oil dipstick (P.8-14)

11. Drive belts (P.8-22)

12. Fuse/fusible link holder (P.8-28)

Illustrated table of contents 0-11

(18,1)

JVC0538X

VQ37VHR ENGINE

Type A

1. Fuse/fusible link holder (P.8-28)

Y51D-V-E01-821047FA-A0EC-404B-B135-1A36C3256584

GUID-3A8246F5-3BC5-442F-A514-AF5E30D90C48

2. Battery (P.8-20)

3. Engine oil filler cap (P.8-14)

4. Brake fluid reservoir (P.8-19)

5. Window washer fluid reservoir (P.8-19)

6. Power steering fluid reservoir (P.8-18)

7. Air cleaner (P.8-24)

8. Radiator filler cap (P.8-12)

9. Engine coolant reservoir (P.8-12)

10. Engine oil dipstick (P.8-14)

11. Drive belts (P.8-22)

0-12 Illustrated table of contents

(19,1)

JVC0539X

Type B

1. Fuse/fusible link holder (P.8-28)

GUID-CA441E56-2FD0-4540-A74C-DB510E9F7AE0

2. Battery (P.8-20)

3. Engine oil filler cap (P.8-14)

4. Brake fluid reservoir (P.8-19)

5. Window washer fluid reservoir (P.8-19)

6. Power steering fluid reservoir (P.8-18)

7. Air cleaner (P.8-24)

8. Radiator filler cap (P.8-12)

9. Engine coolant reservoir (P.8-12)

10. Engine oil dipstick (P.8-14)

11. Drive belts (P.8-22)

Illustrated table of contents 0-13

(20,1)

WARNING AND INDICATOR LIGHTS

Y51D-V-E01-AE45F736-D98A-4CF8-9862-081B0785133E

Warning

light

All-Wheel Drive (AWD) warning light (if so equipped)

Anti-lock Braking System (ABS) warning light

Automatic Transmission check warning light

Blind Spot Warning (BSW)/ Blind Spot Intervention (BSI) system warning light (orange) (if so equipped)

Brake warning light

Charge warning light

Distance Control Assist (DCA) system warning light (orange) (if so equipped)

Engine oil pressure warning light

Forward Emergency Braking (FEB) system warning light (if so equipped)

Intelligent Cruise Control (ICC) system warning light (orange) (if so equipped)

Lane Departure Warning (LDW) indicator light (orange) (if so equipped)

0-14 Illustrated table of contents

Name

Page

2-12

2-13

2-12

2-13

2-14

5-105

2-14

2-15

Warning

light

Name

Low tire pressure warning light

Master warning light

Seat belt warning light and chime

Supplemental air bag warning light

Vehicle Dynamic Control (VDC) warning light

Page

2-15

2-16

2-17

Indicator

light

Name

Adaptive Front lighting System (AFS) off indicator light (if so equipped)

Automatic Transmission (AT) position indicator light

Blind Spot Intervention (BSI) ON indicator light (green) (if so equipped)

ECO drive indicator light

Exterior light indicator

Front fog light indicator light

Front passenger air bag status light

High beam indicator light

Lane Departure Prevention (LDP) ON indicator light (green) (if so equipped)

Malfunction Indicator Light (MIL)

Security indicator light

Turn signal/hazard indicator lights

Vehicle Dynamic Control (VDC) off indicator light

Page

2-18

2-19

2-20

(21,1)

1 Safety — Seats, seat belts and supplemental

restraint system

Seats ..................................................................... 1-2

Front seats ........................................................ 1-3

Armrest ............................................................. 1-4

Head restraints/headrests ..................................... 1-5

Adjustable head

restraint/headrest components .......................... 1-6

Non-adjustable head

restraint/headrest components .......................... 1-7

Remove ............................................................. 1-7

Install ................................................................ 1-7

Adjust ............................................................... 1-8

Front-seat Active Head Restraints ...................... 1-9

Seat belts ............................................................ 1-10

Precautions on seat belt usage ........................ 1-10

Pregnant women ............................................. 1-12

Injured persons ............................................... 1-12

Pre-crash seat belts with comfort function

(front seats) (if so equipped) ........................... 1-12

Three-point type seat belt ................................ 1-13

Seat belt extenders ......................................... 1-16

Seat belt maintenance ..................................... 1-16

Child safety ......................................................... 1-17

Infants ............................................................. 1-18

Small children ................................................. 1-18

Larger children ................................................ 1-18

Child restraints ................................................... 1-20

Precautions on child restraints ....................... 1-20

Lower Anchors and Tethers for CHildren

System (LATCH) .............................................. 1-22

Rear-facing child restraint installation

using LATCH ................................................... 1-24

Rear-facing child restraint installation using

the seat belts ................................................ 1-26

Forward-facing child restraint installation

using LATCH ................................................... 1-29

Forward-facing child restraint installation

using the seat belts ....................................... 1-32

Booster seats ................................................. 1-37

Supplemental restraint system ............................ 1-40

Precautions on supplemental

restraint system ............................................. 1-40

INFINITI Advanced Air Bag System

(front seats) ................................................... 1-45

Front seat-mounted side-impact supplemental air bag and roof-mounted curtain side-impact

supplemental air bag systems ....................... 1-50

Seat belts with pretensioners (front seats) ....... 1-52

Supplemental air bag warning labels ............. 1-53

Supplemental air bag warning light ............... 1-53

Repair and replacement procedure ................. 1-54

(22,1)

SEATS

Y51D-V-E01-F6C5647E-51C1-45DD-A527-B12A30FCBE2A

WARNING

. Do not ride in a moving vehicle when the

seatback is reclined. This can be dangerous. The shoulder belt will not be against your body. In an accident, you could be thrown into it and receive neck or other serious injuries. You could also slide under the lap belt and receive serious internal injuries.

. For the most effective protection when

the vehicle is in motion, the seat should be upright. Always sit well back and

1-2 Safety — Seats, seat belts and supplemental restraint system

upright in the seat with both feet on the floor and adjust the seat belt properly. See “Precautions on seat belt usage” (P.1-10).

. Do not leave children unattended inside

the vehicle. They could unknowingly activate switches or controls. Unattended children could become involved in serious accidents.

. To help avoid risk of injury or death

through unintended operation of the vehicle and/or its systems, do not leave children, people who require the assistance of others or pets unattended in

your vehicle. Additionally, the temperature inside a closed vehicle on a warm day can quickly become high enough to cause a significant risk of injury or death to people and pets.

. The seatback should not be reclined

further than necessary for comfort. Seat belts are most effective when the passenger sits well back and straight up in the seat. If the seatback is reclined, the risk of sliding under the lap belt and being injured is increased.

SSS0133

CAUTION

When adjusting the seat positions, be sure not to contact any moving parts to avoid possible injuries and/or damages.

(23,1)

FRONT SEATS

Front power seat adjustment

Operating tips:

Y51D-V-E01-B05814F9-B0D6-4237-8C0F-FFC8B717E1A 4

Y51D-V-E01-152CA959-546B-4E86-887B-45E9AF10E01 4

GUID-D73A39BF-43C8-459F-9C24-47B7F579C407

. The power seat motor has an auto-reset

overload protection circuit. If the motor stops during operation, wait 30 seconds, then reactivate the switch.

. Do not operate the power seat switch

for a long period of time when the engine is off. This will discharge the battery.

See “Automatic drive positioner” (P.3-29) for the seat position memory function.

Forward and backward:

Moving the switch

GUID-D73A39BF-43C8-459F-9C24-47B7F579C407

forward or backward

will slide the seat forward or backward to the desired position.

Reclining:

Move the recline switch

GUID-D73A39BF-43C8-459F-9C24-47B7F579C407

backward until

the desired angle is obtained. To bring the seatback forward again, move the switch

forward.

The reclining feature allows adjustment of the seatback for occupants of different sizes for added comfort and to help obtain proper seat belt fit. (See “Precautions on seat belt usage” (P.1-10).) Also, the seat-

SSS1051

back can be reclined to allow occupants to rest when the vehicle is parked.

Safety — Seats, seat belts and supplemental restraint system 1-3

(24,1)

SSS1052

SSS1053

SSS1061

Seat lifter:

GUID-D73A39BF-43C8-459F-9C24-47B7F579C407

Push the front or rear end of the switch up or down to adjust the angle of the front portion or height of the seat.

Lumbar support (if so equipped):

The lumbar support feature provides lower back support to the driver.

Push the front or back end of the switch to adjust the seatback lumbar area.

1-4 Safety — Seats, seat belts and supplemental restraint system

GUID-D73A39BF-43C8-459F-9C24-47B7F579C407

ARMREST

Rear armrest

Y51D-V-E01-B67CC69D-E0E2-4C69-AED0-DD1B63B8B5 F4

Y51D-V-E01-68D9BA12-7A81-42C1-9CD0-E4249D59142 4

Pull the armrest forward until it is horizontal.

(25,1)

SSS0479

Trunk pass-through

The rear center seatback can be folded to allow trunk access from inside of the vehicle.

To access the trunk, pull down the rear center armrest and pull out the trunk passthrough lid

To lock the lid, use the mechanical key and turn it to the LOCK position turn the mechanical key to the UNLOCK position see “Keys” (P.3-2).

Make sure that the mechanical key is removed from the trunk pass-through lid

Y51D-V-E01-872F8DB3-DEF6-476E-B2DE-8902080F124 1

. To unlock,

. For the mechanical key usage,

key cylinder before opening or closing the lid. Otherwise the lid and the rear armrest may be damaged.

HEAD RESTRAINTS/HEADRESTS

Y51D-V-E01-FC284699-D495-49A3-89A2-0699DC970 523

WARNING

Head restraint/headrest supplement the other vehicle safety systems. They may provide additional protection against injury in certain rear end collisions. Adjustable head restraints/headrests must be adjusted properly, as specified in this section. Check the adjustment after someone else uses the seat. Do not attach anything to the head restraint/headrest stalks or remove the head restraint/headrest. Do not use the seat if the head restraint/headrest has been removed. If the head restraint/headrest was removed, reinstall and properly adjust the head restraint/headrest before an occupant uses the seating position. Failure to follow these instructions can reduce the effectiveness of the head restraint/headrest. This may increase the risk of serious injury or death in a collision.

Safety — Seats, seat belts and supplemental restraint system 1-5

(26,1)

JVR0089X

The illustration shows the seating positions equipped with head restraint/headrest.

Indicates the seating position is

equipped with a head restraint.

Indicates the seating position is

equipped with a headrest. + Indicates the seating position is not

equipped with a head restraint or headrest.

. Your vehicle is equipped with a head

restraint/headrest that may be integrated, adjustable or non-adjustable.

. Adjustable head restraints/headrests

have multiple notches along the stalk to lock them in a desired adjustment position.

. The non-adjustable head restraints/

headrests have a single locking notch to secure them to the seat frame.

. Proper Adjustment:

— For the adjustable type, align the

head restraint/headrest so the center of your ear is approximately level with the center of the head restraint/headrest.

— If your ear position is still higher

than the recommended alignment, place the head restraint/headrest at the highest position.

. If the head restraint/headrest has been

removed, ensure that it is reinstalled and locked in place before riding in that designated seating position.

SSS0992

ADJUSTABLE HEAD RESTRAINT/ HEADREST COMPONENTS

1. Removable head restraint/headrest

2. Multiple notches

3. Lock knob

4. Stalks

Y51D-V-E01-0164EA90-CBB8-4652-8D80-FD9EFFFBA10 9

1-6 Safety — Seats, seat belts and supplemental restraint system

(27,1)

JVR0203X

SSS1037

SSS0996

NON-ADJUSTABLE HEAD RESTRAINT/HEADREST COMPONENTS

1. Removable head restraint/headrest

2. Single notch

3. Lock knob

4. Stalks

Y51D-V-E01-15FAC2F7-19E9-42D2-BBB8-27C642986FBC

REMOVE

Y51D-V-E01-D21DF91F-83B2-453A-9EBD-F3AD8FB187F 7

Use the following procedure to remove the head restraint/headrest.

1. Pull the head restraint/headrest up to the highest position.

2. Push and hold the lock knob.

3. Remove the head restraint/headrest from the seat.

4. Store the head restraint/headrest properly in a secure place so it is not loose in the vehicle.

5. Reinstall and properly adjust the head restraint/headrest before an occupant uses the seating position.

Safety — Seats, seat belts and supplemental restraint system 1-7

INSTALL

Y51D-V-E01-13998155-E1A8-4A01-8233-71A170E9AFD 5

1. Align the head restraint/headrest stalks with the holes in the seat. Make sure that the head restraint/headrest is facing the correct direction. The stalk with the adjustment notch

must be

installed in the hole with the lock knob

2. Push and hold the lock knob and push the head restraint/headrest down.

3. Properly adjust the head restraint/ headrest before an occupant uses the seating position.

(28,1)

SSS0997

ADJUST

GUID-1D8DABFE-EC7D-431E-B6B7-C941433CC04D

For adjustable head restraint/headrest

Adjust the head restraint/headrest so the center is level with the center of your ears. If your ear position is still higher than the recommended alignment, place the head restraint/headrest at the highest position.

JVR0259X

For non-adjustable head restraint/headrest

Make sure the head restraint/headrest is positioned so the lock knob is engaged in the notch before riding in that designated seating position.

SSS1035

Raise

GUID-6FB3D8E2-2E96-4CBA-8BDA-7D24D61ADE89

To raise the head restraint/headrest, pull it up.

Make sure the head restraint/headrest is positioned so the lock knob is engaged in the notch before riding in that designated seating position.

1-8 Safety — Seats, seat belts and supplemental restraint system

(29,1)

Active Head Restraints operate only in certain rear-end collisions. After the collision, the head restraints return to their original positions.

Adjust the Active Head Restraints properly as described earlier in this section.

SSS1036

Lower

GUID-71751A8A-6A79-4201-8EF1-0E3E9DC1B818

To lower, push and hold the lock knob and push the head restraint/headrest down.

Make sure the head restraint/headrest is positioned so the lock knob is engaged in the notch before riding in that designated seating position.

SSS0508

FRONT-SEAT ACTIVE HEAD RESTRAINTS

The Active Head Restraint moves forward utilizing the force that the seatback receives from the occupant in a rear-end collision. The movement of the head restraint helps support the occupant’s head by reducing its backward movement and helping absorb some of the forces that may lead to whiplash-type injuries.

Active Head Restraints are effective for collisions at low to medium speeds in which it is said that whiplash-type injury occurs most.

Y51D-V-E01-A1626E2D-B3B2-4F9A-93C8-09BB1DD74A8 1

Safety — Seats, seat belts and supplemental restraint system 1-9

(30,1)

SEAT BELTS

Y51D-V-E01-29FE26F0-CB52-4F95-85F6-5CC6F3EA4754

PRECAUTIONS ON SEAT BELT USAGE

If you are wearing your seat belt properly adjusted, and you are sitting upright and well back in your seat with both feet on the floor, your chances of being injured or killed in an accident and/or the severity of injury may be greatly reduced. INFINITI strongly encourages you and all of your passengers to buckle up every time you drive, even if your seating position includes a supplemental air bag.

Most U.S. states and Canadian provinces or territories specify that seat belts be worn at all times when a vehicle is being driven.

Y51D-V-E01-0A678CD3-4A52-4D86-8AB5-75E62AB34DD 6

SSS0136A

1-10 Safety — Seats, seat belts and supplemental restraint system

SSS0134A

(31,1)

WARNING

. Every person who drives or rides in this

vehicle should use a seat belt at all times. Children should be properly restrained in the rear seat and, if appropriate, in a child restraint.

. The seat belt should be properly ad-

justed to a snug fit. Failure to do so may reduce the effectiveness of the entire restraint system and increase the chance or severity of injury in an accident. Serious injury or death can occur if the seat belt is not worn properly.

. Always route the shoulder belt over your

shoulder and across your chest. Never run the belt behind your back, under your arm or across your neck. The belt should be away from your face and neck, but not falling off your shoulder.

. Position the lap belt as low and snug as

possible AROUND THE HIPS, NOT THE WAIST. A lap belt worn too high could increase the risk of internal injuries in an accident.

. Be sure the seat belt tongue is securely

fastened to the proper buckle.

. Do not wear the seat belt inside out or

twisted. Doing so may reduce its effectiveness.

. Do not allow more than one person to

use the same seat belt.

. Never carry more people in the vehicle

than there are seat belts.

. If the seat belt warning light glows

continuously while the ignition is turned ON with all doors closed and all seat belts fastened, it may indicate a malfunction in the system. Have the system checked. It is recommended you visit an INFINITI retailer for this service.

. No changes should be made to the seat

belt system. For example, do not modify the seat belt, add material or install devices that may change the seat belt routing or tension. Doing so may affect the operation of the seat belt system. Modifying or tampering with the seat belt system may result in serious personal injury.

. Once a seat belt pretensioner has

activated, it cannot be reused and must be replaced together with the retractor. It is recommended you visit an INFINITI retailer for this service.

. All seat belt assemblies, including re-

tractors and attaching hardware, should be inspected after any collision. It is recommended you visit an INFINITI retailer for this service. INFINITI recommends that all seat belt assemblies in use during a collision be replaced unless the collision was minor and the belts show no damage and continue to operate properly. Seat belt assemblies not in use during a collision should also be inspected and replaced if either damage or improper operation is noted.

. All child restraints and attaching hard-

ware should be inspected after any collision. Always follow the restraint manufacturer’s inspection instructions and replacement recommendations. The child restraints should be replaced if they are damaged.

Safety — Seats, seat belts and supplemental restraint system 1-11

(32,1)

SSS0016

SSS0014

PREGNANT WOMEN

Y51D-V-E01-68785179-C63E-48C7-846C-4DEDBC5E5B 77

INFINITI recommends that pregnant women use seat belts. The seat belt should be worn snug, and always position the lap belt as low as possible around the hips, not the waist, and place the shoulder belt over your shoulder and across your chest. Never run the lap/shoulder belt over your abdominal area. Contact your doctor for specific recommendations.

INJURED PERSONS

Y51D-V-E01-7CEE9D29-DBCF-47A1-AD75-CAF6088662 3F

INFINITI recommends that injured persons use seat belts, depending on the injury. Check with your doctor for specific recommendations.

PRE-CRASH SEAT BELTS WITH COMFORT FUNCTION (front seats) (if so equipped)

The pre-crash seat belt tightens the seat belt with a motor to help restrain front seat occupants. This helps reduce the risk of injury in a collision.

The motor retracts the seat belt under the following emergency conditions:

. During emergency braking . During sudden steering maneuvers

Y51D-V-E01-8017E748-E53E-4E9A-925C-A78E351F9CD C

. Activation of the Forward Emergency

Braking (FEB) system. (See “Forward Emergency Braking (FEB) system” (P.5-

105).)

The pre-crash seat belt will not be active when:

. the seat belt is not fastened . the vehicle speed is under 10 MPH (15

km/h) during emergency braking

. the vehicle speed is under 16 MPH (30

km/h) during sudden steering maneuvers.

The pre-crash seat belt will not be active when the brake pedal is not depressed except when sudden steering maneuvers occur or the FEB system activates.

The motor also retracts the seat belt when the seat belt is fastened or unfastened. When the seat belt is fastened, the motor tightens the seat belt for a snug fit. When the seat belt is unfastened, the motor retracts the seat belt. If the seat belt is not fully retracted, the motor retracts the seat belt when the door is opened.

Always wear your seat belt correctly and sit upright and well back.

If the motor cannot retract the seat belt when the seat belt is fastened or unfas-

1-12 Safety — Seats, seat belts and supplemental restraint system

(33,1)

tened, it may indicate the pre-crash seat belt system has a malfunction. Have the system checked and repaired. It is recommended you visit an INFINITI retailer for this service.

When the seat belt is retracted repeatedly in a short period of time, the motor may not be able to retract the seat belt. After 30 seconds, the motor reactivates and retracts the seat belt. If the seat belt still cannot be retracted by the motor, the pre-crash seat belt system has a malfunction. Have the system checked and repaired. It is recommended you visit an INFINITI retailer for this service.

THREE-POINT TYPE SEAT BELT

Y51D-V-E01-18E2371D-E3E1-4A90-845A-3B3AAE7D314 2

WARNING

. Every person who drives or rides in this

vehicle should use a seat belt at all times.

. Do not ride in a moving vehicle when the

under the lap belt and receive serious internal injuries.

. For the most effective protection when

the vehicle is in motion, the seat should be upright. Always sit well back and upright in the seat with both feet on the floor and adjust the seat belt properly.

. Do not allow children to play with the

seat belts. Most seating positions are equipped with Automatic Locking Retractor (ALR) mode seat belts. If the seat belt becomes wrapped around a child’s neck with the ALR mode activated, the child can be seriously injured or killed if the seat belt retracts and becomes tight. This can occur even if the vehicle is parked. Unbuckle the seat belt to release the child. If the seat belt can not be unbuckled or is already unbuckled, release the child by cutting the seat belt with a suitable tool (such as a knife or scissors) to release the seat belt.

SSS0292

Fastening the seat belts

Y51D-V-E01-4BE7D8BF-2851-459F-8264-6FA0DD410C73

1. Adjust the seat. (See “Seats” (P.1-2).)

2. Slowly pull the seat belt out of the retractor and insert the tongue into the buckle until you hear and feel the latch engage.

The retractor is designed to lock during a sudden stop or on impact. A slow pulling motion permits the belt to move, and allows you some freedom of movement in the seat.

If the seat belt cannot be pulled from its fully retracted position, firmly pull the belt and release it. Then

Safety — Seats, seat belts and supplemental restraint system 1-13

(34,1)

smoothly pull the belt out of the retractor.

SSS0290

3. Position the lap belt portion low and snug on the hips as shown.

4. Pull the shoulder belt portion toward the retractor to take up extra slack. Be sure the shoulder belt is routed over your shoulder and across your chest.

The three-point type seat belts have two modes of operation:

. Emergency Locking Retractor (ELR) . Automatic Locking Retractor (ALR)

The Emergency Locking Retractor (ELR) mode allows the seat belt to extend and retract to allow the driver and passengers some freedom of movement in the seat.

The ELR locks the seat belt when the vehicle slows down rapidly or during impacts.

The Automatic Locking Retractor (ALR) mode (child restraint mode) locks the seat belt for child restraint installation.

When the ALR mode is activated the seat belt cannot be extended again until the seat belt tongue is detached from the buckle and fully retracted. The seat belt returns to the ELR mode after the seat belt fully retracts. For additional information, see “Child restraints” (P.1-20).

The ALR mode should be used only for child restraint installation. During normal seat belt use by an occupant, the ALR mode should not be activated. If it is activated, it may cause uncomfortable seat belt tension.

WARNING

When fastening the seat belts, be certain that seatbacks are completely secured in the latched position. If they are not completely secured, passengers may be injured in an accident or sudden stop.

1-14 Safety — Seats, seat belts and supplemental restraint system

(35,1)

. Grasp the shoulder belt and pull for-

ward quickly. The retractor should lock and restrict further belt movement.

If the retractor does not lock during this check, get the system checked. It is recommended you visit an INFINITI retailer for this service, or to learn more about seat belt operation.

SSS0326

Unfastening the seat belts

Y51D-V-E01-6490E030-A1F5-4AC0-937F-FB64F07A224 9

To unfasten the seat belt, push the button on the buckle. The seat belt automatically retracts.

Checking seat belt operation

Y51D-V-E01-99ACE93E-BEA0-4237-B86D-15B33277D9A 9

Seat belt retractors are designed to lock seat belt movement by two separate methods:

. When the belt is pulled quickly from the

retractor.

. When the vehicle slows down rapidly. To increase your confidence in the seat

belts, check the operation as follows:

SSS1084

Center of rear seat

Selecting correct set of seat belts:

Y51D-V-E01-B4DE94B2-FD53-45CC-856D-D5F760F22 257

GUID-D73A39BF-43C8-459F-9C24-47B7F579C407

The center seat belt buckle is identified by the CENTER mark

. The center seat belt

tongue can be fastened only into the center seat belt buckle.

Safety — Seats, seat belts and supplemental restraint system 1-15

(36,1)

WARNING

. After adjustment, release the adjust-

ment button and try to move the shoulder belt anchor up and down to make sure it is securely fixed in position.

. The shoulder belt anchor height should

be adjusted to the position best for you. Failure to do so may reduce the effectiveness of the entire restraint system and increase the chance or severity of

SSS0294A

Shoulder belt height adjustment (front seats)

The shoulder belt anchor height should be adjusted to the position best for you. (See “Precautions on seat belt usage” (P.1-10).)

To adjust, push the button move the shoulder belt anchor to the desired position, so that the belt passes over the center of the shoulder. The belt should be away from your face and neck, but not falling off of your shoulder. Release the adjustment button to lock the shoulder belt anchor into position.

1-16 Safety — Seats, seat belts and supplemental restraint system

Y51D-V-E01-AF255FCF-2B6B-4866-BEAE-C1535E31057 1

, and then

injury in an accident.

SEAT BELT EXTENDERS

If, because of body size or driving position, it is not possible to properly fit the lapshoulder belt and fasten it, an extender that is compatible with the installed seat belts is available that can be purchased. The extender adds approximately 8 in (200 mm) of length and may be used for either the driver or front passenger seating position. It is recommended you visit an INFINITI retailer for assistance with purchasing an extender if an extender is required.

Y51D-V-E01-EA87CE63-37A2-4716-9559-F5AB8963091 5

. Only INFINITI seat belt extenders, made

by the same company which made the original equipment seat belts, should be used with the INFINITI seat belts.

. Adults and children who can use the

standard seat belt should not use an extender. Such unnecessary use could result in serious personal injury in the event of an accident.

. Never use seat belt extenders to install

child restraints. If the child restraint is not secured properly, the child could be seriously injured in a collision or a sudden stop.

SEAT BELT MAINTENANCE

. To clean the seat belt webbing, apply a

. If dirt builds up in the shoulder belt

Y51D-V-E01-724E27C2-8A16-4DAB-AC4C-60727D8C939 5

mild soap solution or any solution recommended for cleaning upholstery or carpets. Then, wipe with a cloth and allow the seat belts to dry in the shade. Do not allow the seat belts to retract until they are completely dry.

guide of the seat belt anchors, the seat

(37,1)

belts may retract slowly. Wipe the shoulder belt guide with a clean, dry cloth.

. Periodically check to see that the seat

belt and the metal components such as

buckles, tongues, retractors, flexible wires and anchors work properly. If loose parts, deterioration, cuts or other damage on the webbing is found, the entire seat belt assembly should be replaced.

CHILD SAFETY

Y51D-V-E01-4EE25869-D4A8-4688-93AE-F4B2B046599 8

WARNING

Do not allow children to play with the seat belts. Most seating positions are equipped with Automatic Locking Retractor (ALR) mode seat belts. If the seat belt becomes wrapped around a child’s neck with the ALR mode activated, the child can be seriously injured or killed if the seat belt retracts and becomes tight. This can occur even if the vehicle is parked. Unbuckle the seat belt to release the child. If the seat belt can not be unbuckled or is already unbuckled, release the child by cutting the seat belt with a suitable tool (such as a knife or scissors) to release the seat belt.

There are three basic types of child restraint systems:

. Rear-facing child restraint . Forward-facing child restraint . Booster seat

The proper restraint depends on the child’s size. Generally, infants up to about 1 year and less than 20 lbs (9 kg) should be placed in rear-facing child restraints. Forward-facing child restraints are available for children who outgrow rear-facing child restraints and are at least 1 year old. Booster seats are used to help position a vehicle lap/shoulder belt on a child who can no longer use a forward-facing child restraint.

Children need adults to help protect them. They need to be properly restrained.

In addition to the general information in this manual, child safety information is available from many other sources, including doctors, teachers, government traffic safety offices, and community organizations. Every child is different, so be sure to learn the best way to transport your child.

Safety — Seats, seat belts and supplemental restraint system 1-17

WARNING

Infants and children need special protection. The vehicle’s seat belts may not fit them properly. The shoulder belt may come too close to the face or neck. The lap belt may not fit over their small hip bones. In an accident, an improperly fitting seat belt could cause serious or fatal injury. Always use appropriate child restraints.

(38,1)

All U.S. states and Canadian provinces or territories require the use of approved child restraints for infants and small children. See “Child restraints” (P.1-20).

A child restraint may be secured in the vehicle by using either the LATCH (Lower Anchor and Tethers for CHildren) system or with the vehicle seat belt. See “Child restraints” (P.1-20) for more information.

INFINITI recommends that all pre-teens and children be restrained in the rear seat. Studies show that children are safer when properly restrained in the rear seat than in the front seat.

This is especially important because your vehicle has a supplemental restraint system (Air bag system) for the front passenger. See “Supplemental restraint system” (P.1-40).

INFANTS

Y51D-V-E01-0DC2B248-D00D-4159-9D0A-86123377996 5

Infants up to at least 1 year old should be placed in a rear-facing child restraint. INFINITI recommends that infants be placed in child restraints that comply with Federal Motor Vehicle Safety Standards or Canadian Motor Vehicle Safety Standards. You should choose a child restraint that fits your vehicle and always follow the manu-

facturer’s instructions for installation and use.

SMALL CHILDREN

Y51D-V-E01-C9C54803-16A9-4E13-B935-F06D6F606BF4

Children that are over 1 year old and weigh at least 20 lbs (9 kg) should remain in a rear-facing child restraint as long as possible up to the height or weight limit of the child restraint. Children who outgrow the height or weight limit of the rear-facing child restraint and are at least 1 year old should be secured in a forward-facing child restraint with a harness. Refer to the manufacturer’s instructions for minimum and maximum weight and height recommendations. INFINITI recommends that small children be placed in child restraints that comply with Federal Motor Vehicle Safety Standards or Canadian Motor Vehicle Safety Standards. You should choose a child restraint that fits your vehicle and always follow the manufacturer’s instructions for installation and use.

LARGER CHILDREN

Y51D-V-E01-4359DFEB-B409-4DE8-BEF0-9BE3771E94B2

Children should remain in a forward-facing child restraint with a harness until they reach the maximum height or weight limit allowed by the child restraint manufacturer.

Once a child outgrows the height or weight limit of the harness-equipped forwardfacing child restraint, INFINITI recommends that the child be placed in a commercially available booster seat to obtain proper seat belt fit. For a seat belt to fit properly, the booster seat should raise the child so that the shoulder belt is properly positioned across the chest and the top, middle portion of the shoulder. The shoulder belt should not cross the neck or face and should not fall off the shoulder.The lap belt should lie snugly across the lower hips or upper thighs, not the abdomen.

A booster seat can only be used in seating positions that have a three-point type seat belt. The booster seat should fit the vehicle seat and have a label certifying that it complies with Federal Motor Vehicle Safety Standards or Canadian Motor Vehicle Safety Standards.

1-18 Safety — Seats, seat belts and supplemental restraint system

(39,1)

A booster seat should be used until the child can pass the seat belt fit test below:

. Are the child’s back and hips against

the vehicle seatback?

. Is the child able to sit without slouch-

ing?

. Do the child’s knees bend easily over

the front edge of the seat with feet flat on the floor?

. Can the child safely wear the seat belt

(lap belt low and snug across the hips and shoulder belt across mid-chest and shoulder)?

. Is the child able to use the properly

adjusted head restraint/headrest?

. Will the child be able to stay in position

for the entire ride?

WARNING

Never let a child stand or kneel on any seat and do not allow a child in the cargo area. The child could be seriously injured or killed in a sudden stop or collision.

JVR0473X

If you answered no to any of these questions, the child should remain in a booster seat using a three-point type seat belt.

NOTE: Laws in some communities may follow

different guidelines. Check local and state regulations to confirm your child is using the correct restraint system before traveling.

Safety — Seats, seat belts and supplemental restraint system 1-19

(40,1)

CHILD RESTRAINTS

Y51D-V-E01-1CF0D645-E792-4703-B560-9F7D2F020F5 1

PRECAUTIONS ON CHILD RESTRAINTS

. Failure to follow the warnings and

SSS0099

SSS0100

1-20 Safety — Seats, seat belts and supplemental restraint system

Y51D-V-E01-DF1C88B0-F8FE-4B02-B9A6-BB94E83BDF16

instructions for proper use and installation of child restraints could result in serious injury or death of a child or other passengers in a sudden stop or collision:

—

The child restraint must be used and

installed properly. Always follow all of the child restraint manufacturer’s instructions for installation and use.

—

Infants and children should never be

held on anyone’s lap. Even the strongest adult cannot resist the forces of a collision.

—

Do not put a seat belt around both a

child and another passenger.

—

INFINITI recommends that all child

restraints be installed in the rear seat. Studies show that children are safer when properly restrained in the rear seat than in the front seat. If you must install a forward-facing child restraint in the front seat, see “For-

WARNING

ward-facing child restraint installation using the seat belts” (P.1-32).

—

Even with the INFINITI Advanced Air

Bag System, never install a rearfacing child restraint in the front seat. An inflating air bag could seriously injure or kill a child. A rear-facing child restraint must only be used in the rear seat.

—

Be sure to purchase a child restraint

that will fit the child and vehicle. Some child restraints may not fit properly in your vehicle.

—

Child restraint anchor points are

designed to withstand loads from child restraints that are properly fitted.

—

Never use the anchor points for

adult seat belts or harnesses.

—

A child restraint with a top tether

strap should not be used in the front passenger seat.

—

Keep seatbacks as upright as pos-

sible after fitting the child restraint.

—

Infants and children should always

be placed in an appropriate child restraint while in the vehicle.

(41,1)

. When the child restraint is not in use,

keep it secured with the LATCH system or a seat belt. In a sudden stop or collision, loose objects can injure occupants or damage the vehicle.

CAUTION

A child restraint in a closed vehicle can become very hot. Check the seating surface and buckles before placing a child in the child restraint.

This vehicle is equipped with a universal child restraint anchor system, referred to as the LATCH (Lower Anchors and Tethers for CHildren) system. Some child restraints include rigid or webbing-mounted attachments that can be connected to these anchors.

For details, see “Lower Anchors and Tethers for CHildren System (LATCH)” (P.1-

22). If you do not have a LATCH compatible child

restraint, the vehicle seat belts can be used.

Several manufacturers offer child re-

straints for infants and small children of various sizes. When selecting any child restraint, keep the following points in mind:

. Choose only a restraint with a label

certifying that it complies with Federal Motor Vehicle Safety Standard 213 or Canadian Motor Vehicle Safety Standard 213.

. Check the child restraint in your vehicle

to be sure it is compatible with the vehicle’s seat and seat belt system.

. If the child restraint is compatible with

your vehicle, place your child in the child restraint and check the various adjustments to be sure the child restraint is compatible with your child. Choose a child restraint that is designed for your child’s height and weight. Always follow all recommended procedures.

. If the combined weight of the child and

child restraint is less than 65 lbs (29.5 kg), you may use either the LATCH anchors or the seat belt to install the child restraint (not both at the same time).

. If the combined weight of the child and

child restraint is greater than 65 lbs

(29.5 kg), use the vehicle’s seat belt (not the lower anchors) to install the child restraint.

. Be sure to follow the child restraint

manufacturer’s instructions for installation.

All U.S. states and Canadian provinces or territories require that infants and small children be restrained in an approved child restraint at all times while the vehicle is being operated. Canadian law requires the top tether strap on forward-facing child restraints be secured to the designated anchor point on the vehicle.

Safety — Seats, seat belts and supplemental restraint system 1-21

(42,1)

lbs (29.5 kg), use the vehicle’s seat belt (not the lower anchors) to install the child restraint. Be sure to follow the child restraint manufacturer’s instructions for installation.

LATCH lower anchor

Failure to follow the warnings and instructions for proper use and installation of child

SSS0567

LATCH label location

Lower Anchors and Tethers for CHildren System (LATCH)

Your vehicle is equipped with special anchor points that are used with the LATCH (Lower Anchors and Tethers for CHildren) system compatible child restraints. This system may also be referred to as the ISOFIX or ISOFIX compatible system. With this system, you do not have to use a vehicle seat belt to secure the child restraint unless the combined weight of the child and child restraint exceeds 65 lbs (29.5 kg). If the combined weight of the child and child restraint is greater than 65

1-22 Safety — Seats, seat belts and supplemental restraint system

Y51D-V-E01-C1C3934D-3833-4842-8D2B-271D02CB116 E

restraints could result in serious injury or death of a child or other passengers in a sudden stop or collision:

. Attach LATCH system compatible child

. Do not secure a child restraint in the

. Inspect the lower anchors by inserting

Y51D-V-E01-B84B41F2-A135-43AA-8D8C-8F7221F099C9

restraints only at the locations shown in the illustration.

center rear seating position using the LATCH lower anchors. The child restraint will not be secured properly.

your fingers into the lower anchor area. Feel to make sure there are no obstructions over the anchors such as seat belt webbing or seat cushion material. The child restraint will not be secured properly if the lower anchors are ob-

WARNING

structed.

Child restraint anchorages are designed to withstand only those loads imposed by correctly fitted child restraints. Under no circumstances are they to be used to attach adult seat belts, or other items orequipment to the vehicle. Doing so could damage the child restraint anchorages. The child restraint will not be properly installed using the damaged anchorage, and a child could be seriously injured or killed in a collision.

(43,1)

SSS0637

LATCH lower anchor location

Y51D-V-E01-2FAC51AF-2AEC-4C36-8B30-B7B0B690220C

The LATCH lower anchors are located at the rear of the seat cushion near the seatback. A label is attached to the seatback to help you locate the LATCH lower anchors.

SSS0643

LATCH webbing-mounted attachment

Installing child restraint LATCH lower anchor attachments

LATCH compatible child restraints include two rigid or webbing-mounted attachments that can be connected to two anchors located at certain seating positions in your vehicle. With this system, you do not have to use a vehicle seat belt to secure the child restraint. Check your child restraint for a label stating that it is compatible with LATCH. This information may also be in the instructions provided by the child restraint manufacturer.

Y51D-V-E01-D4B7854F-048F-46C5-A943-0021B557 26A9

SSS0644

LATCH rigid-mounted attachment

When installing a child restraint, carefully read and follow the instructions in this manual and those supplied with the child restraint.

Safety — Seats, seat belts and supplemental restraint system 1-23

(44,1)

SSS0791

Top tether anchor point locations

Anchor points are located on the rear parcel shelf.

If you have any questions when installing a top tether strap child restraint on the rear seat, it is recommended you visit an INFINITI retailer for this service.

Y51D-V-E01-20CEF92A-45FA-4665-B712-6606D52BC917

WARNING

Child restraint anchorages are designed to withstand only those loads imposed by correctly fitted child restraints. Under no circumstances are they to be used to attach

adult seat belts, or other items orequipment to the vehicle. Doing so could damage the child restraint anchorages. The child restraint will not be properly installed using the damaged anchorage, and a child could be seriously injured or killed in a collision.

REAR-FACING CHILD RESTRAINT INSTALLATION USING LATCH

Refer to all Warnings and Cautions in the “Child safety” and “Child restraints” sections before installing a child restraint.

Do not use the lower anchors if the combined weight of the child and the child restraint exceeds 65 lbs (29.5 kg). If the combined weight of the child and the child restraint is greater than 65 lbs (29.5 kg), use the vehicle’s seat belt (not the lower anchors) to install the child restraint. Be sure to follow the child restraint manufacturer’s instructions for installation.

Follow these steps to install a rear-facing child restraint using the LATCH system:

1. Position the child restraint on the seat.

Y51D-V-E01-3EA280BC-E6EA-46BE-8A56-C11EBE28B4A 0

Always follow the child restraint manufacturer’s instructions.

SSS0648

Rear-facing web-mounted — step 2

2. Secure the child restraint anchor attachments to the LATCH lower anchors. Check to make sure the LATCH attachment is properly attached to the lower anchors.

1-24 Safety — Seats, seat belts and supplemental restraint system

(45,1)

3. For child restraints that are equipped with webbing-mounted attachments, remove any additional slack from the anchor attachments. Press downward and rearward firmly in the center of the child restraint with your hand to compress the vehicle seat cushion and seatback while tightening the webbing of the anchor attachments.

SSS0649

Rear-facing rigid-mounted — step 2

SSS0639

Rear-facing — step 3

SSS0650

Rear-facing — step 4

4. After attaching the child restraint, test it before you place the child in it. Push it from side to side while holding the child restraint near the LATCH attachment path. The child restraint should not move more than 1 inch (25 mm), from side to side. Try to tug it forward and check to see if the LATCH attachment holds the restraint in place. If the restraint is not secure, tighten the LATCH attachment as necessary, or put the restraint in another seat and test it again. You may need to try a different child restraint or try installing by using the vehicle seat belt (if applicable).. Not

Safety — Seats, seat belts and supplemental restraint system 1-25

(46,1)

all child restraints fit in all types of vehicles.

5. Check to make sure the child restraint is properly secured prior to each use. If the child restraint is loose, repeat steps 1 through 4.

SSS0100

REAR-FACING CHILD RESTRAINT INSTALLATION USING THE SEAT BELTS

Y51D-V-E01-55A7D551-E2FF-40B2-BEB9-31544F376FC 0

WARNING

The three-point seat belt with Automatic Locking Retractor (ALR) must be used when installing a child restraint. Failure to use the ALR mode will result in the child restraint not being properly secured. The restraint could tip over or be loose and cause injury to a child in a sudden stop or collision. Also, it can change the operation of the front passenger air bag. See “Front passenger

air bag and status light” (P.1-47).

1-26 Safety — Seats, seat belts and supplemental restraint system

(47,1)

Follow these steps to install a rear-facing child restraint using the vehicle seat belts in the rear seats:

1. Child restraints for infants must be

used in the rear-facing direction and therefore must not be used in the front seat. Position the child restraint on the

seat. Always follow the restraint manufacturer’s instructions.

SSS0100

Rear-facing — step 1

Refer to all Warnings and Cautions in the “Child safety” (P.1-17) and “Child restraints” (P.1-20) before installing a child restraint.

SSS0654

Rear-facing — step 2

2. Route the seat belt tongue through the child restraint and insert it into the buckle until you hear and feel the latch engage. Be sure to follow the child restraint manufacturer’s instructions for belt routing.

Safety — Seats, seat belts and supplemental restraint system 1-27

(48,1)

SSS0655

Rear-facing — step 3

3. Pull the shoulder belt until the belt is fully extended. At this time, the seat belt retractor is in the Automatic Locking Retractor (ALR) mode (child restraint mode). It reverts to the Emergency Locking Retractor (ELR) mode when the seat belt is fully retracted.

SSS0656

Rear-facing — step 4

4. Allow the seat belt to retract. Pull up on the shoulder belt to remove any slack in the belt.

SSS0657

Rear-facing — step 5

5. Remove any additional slack from the seat belt; press downward and rearward firmly in the center of the child restraint with your hand to compress the vehicle seat cushion and seatback while pulling up on the seat belt.

1-28 Safety — Seats, seat belts and supplemental restraint system

(49,1)

SSS0658

Rear-facing — step 6

6. After attaching the child restraint, test it before you place the child in it. Push it from side to side while holding the child restraint near the seat belt path. The child restraint should not move more than 1 inch (25 mm), from side to side. Try to tug it forward and check to see if the belt holds the restraint in place. If the restraint is not secure, tighten the seat belt as necessary, or put the restraint in another seat and test it again. You may need to try a different child restraint. Not all child restraints fit in all types of vehicles.

7. Check to make sure that the child restraint is properly secured prior to each use. If the seat belt is not locked, repeat steps 1 through 6.

After the child restraint is removed and the seat belt fully retracted, the ALR mode (child restraint mode) is canceled.

FORWARD-FACING CHILD RESTRAINT INSTALLATION USING LATCH

Refer to all Warnings and Cautions in the “Child safety” and “Child restraints” sections before installing a child restraint.

Follow these steps to install a forwardfacing child restraint using the LATCH system:

1. Position the child restraint on the seat.

Y51D-V-E01-D9ED4467-51A0-45CD-B0F6-DFDE679BDE AC

Always follow the child restraint man-

ufacturer’s instructions.

Safety — Seats, seat belts and supplemental restraint system 1-29

(50,1)

fering with the proper child restraint fit, try another seating position or a different child restraint.

SSS0645

Forward-facing web-mounted — step 2

2. Secure the child restraint anchor attachments to the LATCH lower anchors. Check to make sure the LATCH attachment is properly attached to the lower anchors.

If the child restraint is equipped with a top tether strap, route the top tether strap and secure the tether strap to the tether anchor point. See “Installing top tether strap” (P.1-32). Do not install child restraints that require the use of a top tether strap in seating positions that do not have a top tether anchor.

Forward-facing rigid-mounted — step 2

3. The back of the child restraint should be secured against the vehicle seatback.

If necessary, adjust or remove the head restraint to obtain the correct child restraint fit. If the head restraint is removed, store it in a secure place. Be

sure to reinstall the head restraint when the child restraint is removed.

See “Head restraints/headrests” (P.1-

5) for head restraints/headrests adjustment information.

If the seating position does not have a head restraint/headrest and it is inter-

1-30 Safety — Seats, seat belts and supplemental restraint system

SSS0646

(51,1)

7. Check to make sure the child restraint is properly secured prior to each use. If the child restraint is loose, repeat steps 1 through 6.

SSS0647

Forward-facing — step 4

4. For child restraints that are equipped with webbing-mounted attachments, remove any additional slack from the anchor attachments. Press downward and rearward firmly in the center of the child restraint with your knee to compress the vehicle seat cushion and seatback while tightening the webbing of the anchor attachments.

5. Tighten the tether strap according to the manufacturer’s instructions to remove any slack.

SSS0638

Forward-facing — step 6

6. After attaching the child restraint, test it before you place the child in it. Push it from side to side while holding the child restraint near the LATCH attachment path. The child restraint should not move more than 1 inch (25 mm), from side to side. Try to tug it forward and check to see if the LATCH attachment holds the restraint in place. If the restraint is not secure, tighten the LATCH attachment as necessary, or put the restraint in another seat and test it again. You may need to try a different child restraint. Not all child restraints fit in all types of vehicles.

Safety — Seats, seat belts and supplemental restraint system 1-31

(52,1)

SSS0791

Installing top tether strap

The child restraint top tether strap must be used when installing the child restraint with the LATCH lower anchor attachments.

First, secure the child restraint with the LATCH lower anchors (rear outboard seating positions only).

1. Flip up the anchor cover from the anchor point which is located directly behind the child restraint.

2. If necessary, raise or remove the head restraint or headrest to position the top tether strap over the top of the seatback. If the head restraint or headrest

GUID-E52C2A30-C8BB-47E4-8F3C-3E3F8073A684

is removed, store it in a secure place. Be sure to reinstall the head restraint or headrest when the child restraint is removed.

See “Head restraints/headrests” (P.1-

5) for head restraint or headrest adjustment, removal and installation information.

Position the top tether strap over the top of the seatback.

3. Secure the tether strap to the tether anchor point on the rear parcel shelf.

4. Refer to the appropriate child restraint installation procedure steps in this section before tightening the tether strap.

If you have any questions when installing a top tether strap, it is recommended you visit an INFINITI retailer for this service.

FORWARD-FACING CHILD RESTRAINT INSTALLATION USING THE SEAT BELTS

Y51D-V-E01-4DB798E7-E9AF-4F3F-8757-7FA8B7D2601A

WARNING

1-32 Safety — Seats, seat belts and supplemental restraint system

(53,1)

SSS0640

Forward-facing (front passenger seat) —

step 1

Refer to all Warnings and Cautions in the “Child safety” and “Child restraints” sections before installing a child restraint.

Follow these steps to install a forwardfacing child restraint using the vehicle seat

belt in the rear seats or in the front passenger seat:

1. If you must install a child restraint in

the front seat, it should be placed in a forward-facing direction only. Move the seat to the rearmost position. Child restraints for infants must be used in the rear-facing direction and, therefore, must not be used in the front seat.

2. Position the child restraint on the seat. Always follow the child restraint manufacturer’s instructions.

The back of the child restraint should be secured against the vehicle seatback.

If necessary, adjust or remove the head restraint or headrest to obtain the correct child restraint fit. If the head restraint or headrest is removed, store it in a secure place. Be sure to reinstall

the head restraint or headrest when the child restraint is removed. See

“Head restraints/headrests” (P.1-5) for head restraint or headrest adjustment, removal and installation information.

If the seating position does not have an adjustable head restraint or headrest and it is interfering with the proper

Safety — Seats, seat belts and supplemental restraint system 1-33

child restraint fit, try another seating position or a different child restraint.

(54,1)

SSS0360B

3. Route the seat belt tongue through the

Forward-facing — step 3

child restraint and insert it into the buckle until you hear and feel the latch engage. Be sure to follow the child restraint manufacturer’s instructions for belt routing.

If the child restraint is equipped with a

4. Pull the shoulder belt until the belt is

Forward-facing — step 4

fully extended. At this time, the seat belt retractor is in the Automatic Locking Retractor (ALR) mode (child restraint mode). It reverts to Emergency Locking Retractor (ELR) mode when the seat belt is fully retracted.

top tether strap, route the top tether strap and secure the tether strap to the tether anchor point (rear seat installation only). See “Installing top tether strap” (P.1-36). Do not install child restraints that require the use of a top tether strap in seating positions that do not have a top tether anchor.

1-34 Safety — Seats, seat belts and supplemental restraint system

SSS0651

SSS0652

Forward-facing — step 5

5. Allow the seat belt to retract. Pull up on the shoulder belt to remove any slack in the belt.

(55,1)

9. Check to make sure the child restraint is properly secured prior to each use. If the seat belt is not locked, repeat steps 2 through 8.

SSS0653

Forward-facing — step 6

6. Remove any additional slack from the seat belt; press downward and rearward firmly in the center of the child restraint with your knee to compress the vehicle seat cushion and seatback while pulling up on the seat belt.

7. Tighten the tether strap according to the manufacturer’s instructions to remove any slack.

SSS0641

Forward-facing — step 8

8. After attaching the child restraint, test it before you place the child in it. Push it from side to side while holding the child restraint near the seat belt path. The child restraint should not move more than 1 inch (25 mm), from side to side. Try to tug it forward and check to see if the belt holds the restraint in place. If the restraint is not secure, tighten the seat belt as necessary, or put the restraint in another seat and test it again. You may need to try a different child restraint. Not all child restraints fit in all types of vehicles.

Safety — Seats, seat belts and supplemental restraint system 1-35

(56,1)

SSS1085

Forward-facing — step 10

10.If the child restraint is installed in the front passenger seat, place the ignition switch in the ON position. The front passenger air bag status light should illuminate. If this light is not illuminated, see “Front passenger air bag and status light” (P.1-47). Move the

child restraint to another seating position. Have the system checked. It is

recommended you visit an INFINITI retailer for this service.

After the child restraint is removed and the seat belt is fully retracted, the ALR mode (child restraint mode) is canceled.

SSS0791

Installing top tether strap

Y51D-V-E01-C501F3B2-B525-4F0E-A619-D50D32F95904

The child restraint top tether strap must be used when installing the child restraints with the seat belts.

First, secure the child restraint with the seat belt.

1. Flip up the anchor cover from the anchor point which is located directly behind the child restraint.

2. If necessary, raise or remove the head restraint or headrest to position the top tether strap over the top of the seatback. If the head restraint or headrest is removed, store it in a secure place.

Be sure to reinstall the head restraint or headrest when the child restraint is removed.

See “Head restraints/headrests” (P.1-

5) for head restraint or headrest adjustment, removal and installation information.

Position the top tether strap over the top of the seatback.

3. Secure the tether strap to the tether anchor point on the rear parcel shelf.

4. Refer to the appropriate child restraint installation procedure steps in this section before tightening the tether strap.

If you have any questions when installing a top tether strap, it is recommended you visit an INFINITI retailer for this service.

1-36 Safety — Seats, seat belts and supplemental restraint system

(57,1)

BOOSTER SEATS

Precautions on booster seats

Y51D-V-E01-8603BE0C-5AB5-422E-8F8B-F15C08691 2E5

Y51D-V-E01-EEB07257-7590-4249-8F66-9FD497B4B44 1

WARNING

If a booster seat and seat belt are not used properly, the risk of a child being injuredin a sudden stop or collision greatly increases:

. Make sure the shoulder portion of the

belt is away from the child’s face and neck and the lap portion of the belt does not cross the stomach.

. Make sure the shoulder belt is not

behind the child or under the child’s arm.

. A booster seat must only be installed in

a seating position that has a lap/ shoulder belt.

LRS0455

Booster seats of various sizes are offered by several manufacturers. When selecting any booster seat, keep the following points in mind:

. Choose only a booster seat with a label

certifying that it complies with Federal Motor Vehicle Safety Standard 213 or Canadian Motor Vehicle Safety Standard 213.

. Check the booster seat in your vehicle

to be sure it is compatible with the vehicle’s seat and seat belt system.

LRS0453

. Make sure the child’s head will be

properly supported by the booster seat or vehicle seat.The seatback must be at or above the center of the child’s ears. For example, if a low back booster seat

is chosen, the vehicle seatback

must be at or above the center of the child’s ears. If the seatback is lower than the center of the child’s ears, a high back booster seat

should be

used.

. If the booster seat is compatible with

your vehicle, place your child in the booster seat and check the various adjustments to be sure the booster seat

Safety — Seats, seat belts and supplemental restraint system 1-37

(58,1)

is compatible with your child. Always follow all recommended procedures.

LRS0464

All U.S. states and Canadian provinces or territories require that infants and small children be restrained in an approved child restraint at all times while the vehicle is being operated.

The instructions in this section apply to booster seat installation in the rear seats or the front passenger seat.

Booster seat installation

Y51D-V-E01-DDD94AC0-6287-4721-8872-2368FD1B5 03C

CAUTION

Do not use the lap/shoulder belt Automatic Locking Retractor (ALR) mode when using a booster seat with the seat belts.

Refer to all Warnings and Cautions in the “Child safety”, “Child restraints” and “Booster seats” sections earlier in this section before installing a child restraint.

Follow these steps to install a booster seat in the rear seat or in the front passenger seat:

1-38 Safety — Seats, seat belts and supplemental restraint system

(59,1)

SSS0640

1. If you must install a booster seat in the

front seat, move the seat to the rearmost position.

2. Position the booster seat on the seat. Only place it in a forward-facing direction. Always follow the booster seat manufacturer’s instructions.

LRS0454

Front passenger position

3. The booster seat should be positioned on the vehicle seat so that it is stable.

If necessary, adjust or remove the head restraint or headrest to obtain the correct booster seat fit. If the head restraint or headrest is removed, store it in a secure place. Be sure to reinstall

the head restraint or headrest when the booster seat is removed. See “Head

restraints/headrests” (P.1-5) for head restraint or headrest adjustment, removal and installation information.

If the seating position does not have an adjustable head restraint or headrest

and it is interfering with the proper booster seat fit, try another seating position or a different booster seat.

4. Position the lap portion of the seat belt low and snug on the child’s hips. Be sure to follow the booster seat manufacturer’s instructions for adjusting the seat belt routing.

5. Pull the shoulder belt portion of the seat belt toward the retractor to take up extra slack. Be sure the shoulder belt is positioned across the top, middle portion of the child’s shoulder. Be sure to follow the booster seat manufacturer’s instructions for adjusting the seat belt routing.

6. Follow the warnings, cautions and instructions for properly fastening a seat belt shown in “Seat belts” (P.1-

10).

Safety — Seats, seat belts and supplemental restraint system 1-39

(60,1)

SUPPLEMENTAL RESTRAINT SYSTEM

Y51D-V-E01-FA8250CE-0174-4FD9-90BA-5B43C650911A

PRECAUTIONS ON SUPPLEMENTAL RESTRAINT SYSTEM

This Supplemental Restraint System (SRS) section contains important information concerning the following systems:

. Driver and passenger supplemental

. Front seat-mounted side-impact supple-

. Roof-mounted curtain side-impact sup-

SSS1085

7. If the booster seat is installed in the front passenger seat, push the ignition switch to the ON position. The front passenger air bag status light

may or may not illuminate depending on the size of the child and the type of booster seat used. See “Front passenger air bag and status light” (P.1-47).

1-40 Safety — Seats, seat belts and supplemental restraint system

. Seat belt with pretensioner

Supplemental front-impact air bag system:

The INFINITI Advanced Air Bag System can help cushion the impact force to the head and chest of the driver and front passenger in certain frontal collisions.

Front seat-mounted side-impact supplemental air bag system: This system can

help cushion the impact force to the chest and pelvis area of the driver and front passenger in certain side impact collisions. The side air bag is designed to inflate on the side where the vehicle is impacted.

Roof-mounted curtain side-impact supplemental air bag system: This system can

help cushion the impact force to the head

Y51D-V-E01-33B797EF-5B18-4EA6-A1F0-A150B541B8DC

front-impact air bag (INFINITI Advanced Air Bag System)

mental air bag

plemental air bag

of occupants in front and rear outboard seating positions in certain side impact collisions. The curtain air bags are designed to inflate on the side where the vehicle is impacted.

These supplemental restraint systems are designed to supplement the crash protection provided by the driver and passenger seat belts and are not a substitute for them. Seat belts should always be correctly worn and the occupant seated a suitable distance away from the steering wheel, instrument panel and door finishers. (See “Seat belts” (P.1-10) for instructions and precautions on seat belt usage.)

The supplemental air bags operate only when the ignition switch is in the ON position.

After pushing the ignition switch to the ON position, the supplemental air bag warning light illuminates. The supplemental air bag warning light will turn off after about 7 seconds if the systems are operational.

(61,1)

SSS0131B

SSS0132B

WARNING

. The supplemental front air bags ordina-

rily will not inflate in the event of a side impact, rear impact, rollover, or lower severity frontal collision. Always wear your seat belts to help reduce the risk or severity of injury in various kinds of accidents.

. The front passenger air bag will not

inflate if the passenger air bag status light is lit or if the front passenger seat is unoccupied. See “Front passenger air bag and status light” (P.1-47).

. The seat belts and the supplemental

front air bags are most effective when you are sitting well back and upright in the seat with both feet on the floor. The front air bags inflate with great force. Even with the INFINITI advanced air bag system, if you are unrestrained, leaning forward, sitting sideways or out of position in any way, you are at greater risk of injury or death in a crash.You may also receive serious or fatal injuries from the supplemental front air bag if you are up against it when it inflates. Always sit back against the seatback and as far-

Safety — Seats, seat belts and supplemental restraint system 1-41

(62,1)

away as practical from the steering wheel or instrument panel. Always use the seat belts.

. The driver and front passenger seat belt

buckles are equipped with sensors that detect if the seat belts are fastened. The Advanced Air Bag System monitors the severity of a collision and seat belt usage then inflates the air bags as needed. Failure to properly wear seat belts can increase the risk or severity of injury in an accident.

. The front passenger seat is equipped

with an occupant classification sensor (pattern sensor) that turns the front passenger air bag OFF under some conditions. This sensor is only used in this seat. Failure to be properly seated and wearing the seat belt can increase the risk or severity of injury in an accident. See “Front passenger air bag and status light” (P.1-47).

. Keep hands on the outside of the

steering wheel. Placing them inside the steering wheel rim could increase the risk of injury if the front air bag inflates.

SSS0007

SSS0006

SSS0008

SSS0009

1-42 Safety — Seats, seat belts and supplemental restraint system

(63,1)

SSS0099

WARNING

. Never let children ride unrestrained or

extend their hands or face out of the window. Do not attempt to hold them in your lap or arms. Some examples of dangerous riding positions are shown in the illustrations.

. Children may be severely injured or

killed when the front air bags, side air bags or curtain air bags inflate if they are not properly restrained. Pre-teens and children should be properly restrained in the rear seat, if possible.

. Even with the INFINITI Advanced Air Bag

System, never install a rear-facing child restraint in the front seat. An inflating front air bag could seriously injure or kill your child. See “Child restraints” (P.1-

20) for details.

SSS0059A

SSS0100

SSS0188A

Safety — Seats, seat belts and supplemental restraint system 1-43

(64,1)

SSS0140

SSS0162

SSS0159

WARNING

Front seat-mounted side-impact supplemental air bags and roof-mounted curtain sideimpact supplemental air bags:

. The front seat-mounted side-impact air

bags and roof-mounted curtain air bags ordinarily will not inflate in the event of a frontal impact, rear impact, rollover or lower severity side collision. Always wear your seat belts to help reduce the risk or severity of injury in various kinds of accidents.

. The seat belts, side air bags and curtain

air bags are most effective when you are sitting well back and upright in the seat. The side air bag and curtain air bag inflate with great force. Do not allow anyone to place their hand, leg or face near the side air bag on the side of the seatback of the front seat or near the side roof rails. Do not allow anyone sitting in the front seats or rear outboard seats to extend their hand out of the window or lean against the door. Some examples of dangerous riding positions are shown in the previous illustrations.

. When sitting in the rear seat, do not hold

onto the seatback of the front seat. If the supplemental side air bag inflates, you may be seriously injured. Be especially careful with children, who should always be properly restrained. Some examples of dangerous riding positions are shown in the illustrations.

. Do not use seat covers on the front

seatbacks. They may interfere with supplemental side air bag inflation.

1-44 Safety — Seats, seat belts and supplemental restraint system

(65,1)

1. Crash zone sensor

2. Supplemental front air bag modules (INFINITI Advanced Air Bags)

3. Front seat-mounted side-impact supplemental air bags

4. Occupant classification sensor (pattern sensor)

JVR0479X

5. Occupant classification system control unit

6. Roof-mounted curtain side-impact supplemental air bags

7. Roof-mounted curtain side-impact supplemental air bag inflators

Safety — Seats, seat belts and supplemental restraint system 1-45

8. Air bag Control Unit (ACU)

9. Lap outer pretensioners (if so equipped)

10. Satellite sensors

11. Seat belts with pretensioners

INFINITI ADVANCED AIR BAG SYSTEM (front seats)

This vehicle is equipped with the INFINITI Advanced Air Bag System for the driver and front passenger seats. This system is designed to meet certification requirements under U.S. regulations. It is also permitted in Canada. All of the informa-

tion, cautions and warnings in this manual apply and must be followed.

The driver supplemental front-impact air bag is located in the center of the steering wheel. The front passenger supplemental front-impact air bag is mounted in the instrument panel above the glove box. The front air bags are designed to inflate in higher severity frontal collisions, although they may inflate if the forces in another type of collision are similar to those of a higher severity frontal impact. They may not inflate in certain frontal collisions. Vehicle damage (or lack of it) is not always an indication of proper front air bag

Y51D-V-E01-F3E1E0CD-4853-4DEE-8BF7-FDF8511DF69 C

(66,1)

operation. The INFINITI Advanced Air Bag System has

dual stage air bag inflators. The system monitors information from the crash zone sensor, the Air bag Control Unit (ACU), seat belt buckle switches and the occupant classification sensor (pattern sensor). Inflator operation is based on the severity of a collision and seat belt usage for the driver. For the front passenger, the occupant classification sensor is also monitored. Based on information from the sensors, only one front air bag may inflate in a crash, depending on the crash severity and whether the front occupants are belted or unbelted. Additionally, the front passenger air bag may be automatically turned OFF under some conditions, depending on the information provided by the occupant classification sensor. If the front passenger air bag is OFF, the passenger air bag status light will be illuminated (if the seat is unoccupied, the light will not be illuminated, but the air bag will be off). (See “Front passenger air bag and status light” (P.1-47) for further details.) One front air bag inflating does not indicate improper performance of the system.

If you have any questions about your air

bag system, it is recommended you visit an INFINITI retailer to obtain information about the system. If you are considering modification of your vehicle due to a disability, you may also contact an INFINITI retailer. Contact information is contained in the front of this Owner’s Manual.

When a front air bag inflates, a fairly loud noise may be heard, followed by release of smoke. This smoke is not harmful and does not indicate a fire. Care should be taken not to inhale it, as it may cause irritation and choking. Those with a history of a breathing condition should get fresh air promptly.

Front air bags, along with the use of seat belts, help to cushion the impact force on the head and chest of the front occupants. They can help save lives and reduce serious injuries. However, an inflating front air bag may cause facial abrasions or other injuries. Front air bags do not provide restraint to the lower body.

Even with INFINITI advanced air bags, seat belts should be correctly worn and the driver and passenger seated upright as far as practical away from the steering wheel or instrument panel. The front air bags inflate quickly in order to help protect the

front occupants. Because of this, the force of the front air bag inflating can increase the risk of injury if the occupant is too close to, or is against, the air bag module during inflation.

The front air bags deflate quickly after a collision.

The supplemental front air bags operate only when the ignition switch is in the ON position.

1-46 Safety — Seats, seat belts and supplemental restraint system

(67,1)

SSS1085

Front passenger air bag status light

Front passenger air bag and status light

Y51D-V-E01-251B11C4-1A1B-4A64-9371-B0EC203F3 3CE

WARNING

The front passenger air bag is designed to automatically turn OFF under some conditions. Read this section carefully to learn how it operates. Proper use of the seat, seat belt and child restraints is necessary for most effective protection. Failure to follow all instructions in this manual concerning the use of seats, seat belts and child restraints can increase the risk or severity

of injury in an accident.

Status light:

GUID-D73A39BF-43C8-459F-9C24-47B7F579C407

The front passenger air bag status light

is located on the instrument panel. After the ignition switch is placed in the ON position, the front passenger air bag status light illuminates for about 7 seconds and then turns off or illuminates depending on the front passenger seat occupied status. The light operates as follows:

. Unoccupied passenger seat: The

light is OFF and the front passenger air bag is OFF and will not inflate in a crash.

. Passenger seat occupied by a small

adult, child or child restraint as outlined in this section: The

light illuminates to indicate that the front passenger air bag is OFF and will not inflate in a crash.

. Occupied passenger seat and the pas-

senger meets the conditions outlined in this section: The

light is OFF to indicate that the front passenger air bag is operational.

Safety — Seats, seat belts and supplemental restraint system 1-47

Front passenger air bag:

GUID-D73A39BF-43C8-459F-9C24-47B7F579C407

The front passenger air bag is designed to automatically turn OFF when the vehicle is operated under some conditions as described below as permitted by U.S. regulations. If the front passenger air bag is OFF, it will not inflate in a crash. The driver air bag and other air bags in your vehicle are not part of this system.

The purpose of the regulation is to help reduce the risk of injury or death from an inflating air bag to certain front passenger seat occupants, such as children, by requiring the air bag to be automatically turned OFF.

The occupant classification sensor (pattern sensor) is in the front passenger seat cushion and is designed to detect an occupant and objects on the seat. For example, if a child is in the front passenger seat, the Advanced Air Bag System is designed to turn the passenger air bag OFF in accordance with the regulations. Also, if a child restraint of the type specified in the regulations is on the seat, the occupant classification sensor can detect it and cause the air bag to turn OFF.

Front passenger seat adult occupants who are properly seated and using the seat belt

(68,1)

as outlined in this manual should not cause the passenger air bag to be automatically turned OFF. For small adults it may be turned OFF, however, if the occupant does not sit in the seat properly (for example, by not sitting upright, by sitting on an edge of the seat, or by otherwise being out of position), this could cause the sensor to turn the air bag OFF. Always be sure to be seated and wearing the seat belt properly for the most effective protection by the seat belt and supplemental air bag.

INFINITI recommends that pre-teens and children be properly restrained in a rear seat. INFINITI also recommends that appropriate child restraints and booster seats be properly installed in a rear seat. If this is not possible, the occupant classification sensor is designed to operate as described above to turn the front passenger air bag OFF for specified child restraints. Failing to properly secure child restraints and to use the ALR mode (child restraint mode) may allow the restraint to tip or move in an accident or sudden stop. This can also result in the passenger air bag inflating in a crash instead of being OFF. (See “Child restraints” (P.1-20) for proper use and

1-48 Safety — Seats, seat belts and supplemental restraint system

installation.) If the front passenger seat is not occupied,

the passenger air bag is designed not to inflate in a crash. However, heavy objects placed on the seat could result in air bag inflation, because of the object being detected by the occupant classification sensor. Other conditions could also result in air bag inflation, such as if a child is standing on the seat, or if two children are on the seat, contrary to the instructions in this manual. Always be sure that you and all vehicle occupants are seated and restrained properly.

Using the passenger air bag status light, you can monitor when the front passenger air bag is automatically turned OFF with the seat occupied. The light will not illuminate when the front passenger seat is unoccupied.

If an adult occupant is in the seat but the passenger air bag status light is illuminated (indicating that the air bag is OFF), it could be that the person is a small adult, or is not sitting on the seat properly.

If a child restraint must be used in the front seat, the passenger air bag status light may or may not be illuminated, depending on the size of the child and the type of child

restraint being used. If the passenger air bag status light is not illuminated (indicating that the air bag might inflate in a crash), it could be that the child restraint or seat belt is not being used properly. Make sure that the child restraint is installed properly, the seat belt is used properly and the occupant is positioned properly. If the passenger air bag status light is still not illuminated, reposition the occupant or child restraint in a rear seat.

If the passenger air bag status light will not illuminate even though you believe that the child restraint, the seat belts and the occupant are properly positioned, the system may be sensing an unoccupied seat (in which case the air bag is OFF). Your INFINITI retailer can check that the system is OFF by using a special tool. However, until you have confirmed with your retailer that your air bag is working properly, reposition the occupant or child restraint in a rear seat.

The INFINITI Advanced Air Bag System and passenger air bag status light will take a few seconds to register a change in the passenger seat status. However, if the seat becomes unoccupied, the air bag status light will remain off.

(69,1)

If a malfunction occurs in the front passenger air bag system, the supplemental air bag warning light

meter and gauges area will blink. Have the system checked. It is recommended you visit an INFINITI retailer for this service.

, located in the

Other supplemental front-impact air bag precautions

Y51D-V-E01-BA9AC028-4097-4FF6-B42B-E2048C452E 5F

WARNING

. Do not place any objects on the steering

wheel pad or on the instrument panel. Also, do not place any objects between any occupant and the steering wheel or instrument panel. Such objects may become dangerous projectiles and cause injury if the front air bags inflate.

. Do not place objects with sharp edges on

the seat. Also, do not place heavy objects on the seat that will leave permanent impressions in the seat. Such objects can damage the seat or occupant classification sensor (pattern sensor). This can affect the operation of the air bag system and result in serious personal injury.

. Do not use water or acidic cleaners (hot

steam cleaners) on the seat. This can damage the seat or occupant classification sensor. This can also affect the operation of the air bag system and result in serious personal injury.

. Immediately after inflation, several front

air bag system components will be hot. Do not touch them; you may severely burn yourself.

. No unauthorized changes should be

made to any components or wiring of the air bag system. This is to prevent accidental inflation of the supplemental air bag or damage to the supplemental air bag system.

. Do not make unauthorized changes to

your vehicle’s electrical system, suspension system or front end structure. This could affect proper operation of the front air bag system.

. Tampering with the air bag system may

result in serious personal injury. Tampering includes changes to the steering wheel and the instrument panel assembly by placing material over the steering wheel pad and above the instrument panel or by installing additional trim

Safety — Seats, seat belts and supplemental restraint system 1-49

material around the air bag system.

. Modifying or tampering with the front

passenger seat may result in serious personal injury. For example, do not change the front seats by placing material on the seat cushion or by installing additional trim material, such as seat covers, on the seat that is not specifically designed to assure proper air bag operation. Additionally, do not stow any objects under the front passenger seat or the seat cushion and seatback. Such objects may interfere with the proper operation of the occupant classification sensor.

. No unauthorized changes should be

made to any components or wiring of the seat belt system. This may affect the front air bag system. Tampering with the seat belt system may result in serious personal injury.

. It is recommended you visit an INFINITI

retailer for work on and around the front air bag. It is also recommended you visit an INFINITI retailer for installation of electrical equipment. The Supplemental Restraint System (SRS) wiring harnesses* should not be modified or disconnected. Unauthorized electrical

(70,1)

test equipment and probing devices should not be used on the air bag system.

. A cracked windshield should be replaced

immediately by a qualified repair facility. A cracked windshield could affect the function of the supplemental air bag system.

* The SRS wiring harness connectors

are yellow and orange for easy identification.

When selling your vehicle, we request that you inform the buyer about the front air bag system and guide the buyer to the appropriate sections in this Owner’s Manual.

SSS0521

FRONT SEAT-MOUNTED SIDE-IMPACT SUPPLEMENTAL AIR BAG AND ROOF-MOUNTED CURTAIN SIDE-IMPACT SUPPLEMENTAL AIR BAG SYSTEMS

The side air bags are located in the outside of the seatback of the front seats. The curtain air bags are located in the side roof rails. All of the information, cautions and

warnings in this manual apply and must be followed. The side air bags and curtain air

bags are designed to inflate in higher severity side collisions, although they may inflate if the forces in another type of

Y51D-V-E01-6DEEA2BB-CA37-4862-BE7D-9A1C86F723D1

collision are similar to those of a higher severity side impact. They are designed to inflate on the side where the vehicle is impacted. They may not inflate in certain side collisions on the side where the vehicle is impacted.

Vehicle damage (or lack of it) is not always an indication of proper supplemental side air bag and curtain side-impact air bag operation.

When side air bags and curtain air bags inflate, a fairly loud noise may be heard, followed by release of smoke. This smoke is not harmful and does not indicate a fire. Care should be taken not to inhale it, as it may cause irritation and choking. Those with a history of a breathing condition should get fresh air promptly.

Side air bags, along with the use of seat belts, help to cushion the impact force on the chest and pelvis of the front occupants. Curtain air bags help to cushion the impact force to the head of occupants in the front and rear outboard seating positions. They can help save lives and reduce serious injuries. However, an inflating side air bags and curtain air bags may cause abrasions or other injuries. Side air bags and curtain air bags do not provide restraint to the

1-50 Safety — Seats, seat belts and supplemental restraint system

(71,1)

lower body. The seat belts should be correctly worn and

the driver and passenger seated upright as far as practical away from the side air bag. Rear seat passengers should be seated as far away as practical from the door finishers and side roof rails. The side air bags and curtain air bags inflate quickly in order to help protect the occupants. Because of this, the force of the side air bags and curtain air bags inflating can increase the risk of injury if the occupant is too close to, or is against, these air bag modules during inflation. The side air bags and curtain air bags will deflate quickly after the collision is over.

The side air bags and curtain air bags operate only when the ignition switch is in the ON position.

After pushing the ignition switch to the ON position, the supplemental air bag warning light illuminates. The air bag warning light will turn off after about 7 seconds if the systems are operational.

WARNING

. Do not place any objects near the seat-

back of the front seats. Also, do not place any objects (an umbrella, bag, etc.) between the front door finisher and the front seat. Such objects may become dangerous projectiles and cause injury if side air bag inflates.

. Right after inflation, several side air

bags and curtain air bag system components will be hot. Do not touch them; you may severely burn yourself.

. No unauthorized changes should be

made to any components or wiring of side air bag and curtain air bags. This is to prevent damage to or accidental inflation of the side air bag and curtain air bag systems.

. Do not make unauthorized changes to

your vehicle’s electrical system, suspension system or side panel. This could affect proper operation of the side air bag and curtain air bag systems.

. Tampering with the air bag system may

result in serious personal injury. For example, do not change the front seats by placing material near the seatback or

Safety — Seats, seat belts and supplemental restraint system 1-51

by installing additional trim material, such as seat covers, around the side air bags.

. It is recommended you visit an INFINITI

retailer for work on and around the side air bag and curtain air bag. It is also recommended you visit an INFINITI retailer for installation of electrical equipment. The Supplemental Restraint System (SRS) wiring harnesses* should not be modified or disconnected. Unauthorized electrical test equipment and probing devices should not be used on the side-impact air bag system.

* The SRS wiring harness connectors

are yellow and orange for easy identification.

When selling your vehicle, we request that you inform the buyer about the side air bag and curtain air bag systems and guide the buyer to the appropriate sections in this Owner’s Manual.

(72,1)

SEAT BELTS WITH PRETENSIONERS (front seats)

Y51D-V-E01-FB5B531B-B3DD-4760-AA66-A1D2A79F9F1 9

WARNING

. The pretensioners cannot be reused after

activation. They must be replaced together with the retractor and buckle as a unit.

. If the vehicle becomes involved in a

collision but a pretensioner is not activated, be sure to have the pretensioner system checked and, if necessary, replaced. It is recommended you visit an INFINITI retailer for this service.

. No unauthorized changes should be

made to any components or wiring of the pretensioners. This is to prevent damage to or accidental activation of the pretensioner system.Tampering with the pretensioner system may result in serious personal injury.

. It is recommended you visit an INFINITI

retailer for work on and around the pretensioner system. It is also recommended you visit an INFINITI retailer for installation of electrical equipment. Unauthorized electrical test equipment and

1-52 Safety — Seats, seat belts and supplemental restraint system

probing devices should not be used on the pretensioner system.

. If you need to dispose of the preten-

sioner or scrap the vehicle, it is recommended you visit an INFINITI retailer for this service. Correct pretensioner disposal procedures are set forth in the appropriate INFINITI Service Manual. Incorrect disposal procedures could cause personal injury.

The pretensioner system may activate with the supplemental air bag system in certain types of collisions. Working with the seat belt retractor, it helps tighten the seat belt when the vehicle becomes involved in certain types of collisions, helping to restrain front seat occupants.

The pretensioner is encased with the seat belt retractor. These seat belts are used the same way as conventional seat belts.

When a pretensioner seat belt activates, smoke is released and a loud noise may be heard. The smoke is not harmful, and it does not indicate a fire. Care should be taken not to inhale it as it may cause irritation and choking. Those with a history of a breathing condition should get fresh air promptly.

After pretensioner activation, load limiters allow the seat belt to release webbing (if necessary) to reduce forces against the chest.

The supplemental air bag warning light is used to indicate malfunctions in the pretensioner system. (See “Supplemental air bag warning light” (P.1-53). in this section for more details.) If the operation of the supplemental air bag warning light indicates there is a malfunction, have the system checked. It is recommended you visit an INFINITI retailer for this service.

When selling your vehicle, we request that you inform the buyer about the seat belt pretensioners and guide the buyer to the appropriate sections in this Owner’s Manual.

(73,1)

SSS1016

SPA1097

servicing: . The supplemental air bag warning light

remains on after approximately 7 seconds.

. The supplemental air bag warning light

flashes intermittently.

. The supplemental air bag warning light

does not come on at all.

Under these conditions, the air bag and/or pretensioner systems may not operate properly. They must be checked and repaired. It is recommended you visit an INFINITI retailer for this service.

SUPPLEMENTAL AIR BAG WARNING LABELS

Warning labels about the supplemental front-impact air bag systems are placed in the vehicle as shown in the illustration.

SRS air bag

The warning labels surface of the sun visors.

Y51D-V-E01-80933CBA-9442-4834-8771-28C9CCEF9D6 9

Y51D-V-E01-A46E243E-0A07-44FE-83A1-CC6B393625E9

are located on the

SUPPLEMENTAL AIR BAG WARNING LIGHT

The supplemental air bag warning light, displaying monitors the circuits for the air bag systems, pretensioners and all related wiring.

When the ignition switch is in the ON position, the supplemental air bag warning light illuminates for about 7 seconds and then turns off. This means the SRS air bag systems are operational.

If any of the following conditions occur, the air bag and/or pretensioner systems need

Y51D-V-E01-B56BABA8-6680-4AC1-806E-CE3B559CB 31A

in the instrument panel,

Safety — Seats, seat belts and supplemental restraint system 1-53

WARNING

If the supplemental air bag warning light is on, it could mean that the front air bag, side air bag, curtain air bag and/or pretensioner systems will not operate in an accident. To help avoid injury to yourself or others, have your vehicle checked as soon as possible. It is recommended you visit an INFINITI retailer for this service.

(74,1)

REPAIR AND REPLACEMENT PROCEDURE

The front air bags, side air bags, curtain air bags and pretensioners are designed to activate on a one-time-only basis. As a reminder, unless it is damaged, the supplemental air bag warning light will remain illuminated after inflation has occurred. These systems should be repaired and/or replaced as soon as possible. It is recommended you visit an INFINITI retailer for this service.

When maintenance work is required on the vehicle, the front air bags, side air bags, curtain air bags, pretensioners and related parts should be pointed out to the person conducting the maintenance. The ignition switch should always be in the LOCK position when working under the hood or inside the vehicle.

Y51D-V-E01-6F17C37B-9666-4639-BFD5-AF1EBFBE5 694

WARNING

. Once a front air bag, side air bag, or

curtain air bag has inflated, the air bag module will not function again and must be replaced. Additionally, the activated pretensioner must also be replaced. The

air bag module and pretensioner should be replaced. It is recommended you visit an INFINITI retailer for this service. However, the air bag module and pretensioner system cannot be repaired.

. The front air bag, side air bag, curtain air

bag and the pretensioner system should be inspected if there is any damage to the front end or side portion of the vehicle. It is recommended you visit an INFINITI retailer for this service.

. If you need to dispose of the supple-

mental air bag or pretensioner or scrap the vehicle, It is recommended you visit an INFINITI retailer. Correct supplemental air bag and seat belt pretensioner system disposal procedures are set forth in the appropriate INFINITI Service Manual. Incorrect disposal procedures could cause personal injury.

1-54 Safety — Seats, seat belts and supplemental restraint system

(75,1)

2 Instruments and controls

Cockpit .................................................................. 2-3

Instrument panel ................................................... 2-5

Meters and gauges ................................................ 2-7

Speedometer and odometer .............................. 2-8

Tachometer ........................................................ 2-9

Engine coolant temperature gauge .................... 2-9

Fuel gauge ...................................................... 2-10

Warning lights, indicator lights and

audible reminders ................................................ 2-11

Checking lights ................................................ 2-11

Warning lights ................................................. 2-12

Indicator lights ................................................ 2-18

Audible reminders ........................................... 2-20

Vehicle information display .................................. 2-21

Indicators for operation ................................... 2-23

Indicators for maintenance .............................. 2-26

Trip computer .................................................. 2-28

Security systems ................................................. 2-30

Vehicle Security System ................................... 2-31

INFINITI Vehicle Immobilizer System ................ 2-32

Wiper and washer switch ..................................... 2-33

Rain-sensing auto wiper system ...................... 2-35

Rear window and outside mirror

defroster switch ................................................... 2-36

Headlight and turn signal switch ......................... 2-36

Headlight switch ............................................ 2-36

Turn signal switch .......................................... 2-40

Fog light switch ............................................. 2-41

Heated steering wheel (if so equipped) ............... 2-41

Horn .................................................................... 2-42

Heated seats (if so equipped) .............................. 2-42

Front seats (if so equipped) ........................... 2-43

Rear outboard seats (if so equipped) ............. 2-44

Climate controlled seats (if so equipped) ............. 2-44

Warning systems switch (if so equipped) ............. 2-45

Vehicle Dynamic Control (VDC) OFF switch ........... 2-46

Clock ................................................................... 2-47

Adjusting the time ......................................... 2-47

Power outlet ........................................................ 2-47

Ashtrays .............................................................. 2-48

Rear ............................................................... 2-48

Storage ............................................................... 2-48

Cup holders ................................................... 2-48

Sunglasses holder ......................................... 2-49

Glove box ...................................................... 2-50

Console box ................................................... 2-50

Card holder .................................................... 2-51

Storage box ................................................... 2-51

(76,1)

Rear pocket (if so equipped) ............................ 2-52

Coat hooks ...................................................... 2-52

Trunk hooks .................................................... 2-52

Windows .............................................................. 2-53

Power windows ............................................... 2-53

Moonroof ............................................................. 2-56

Power moonroof .............................................. 2-56

Rear sunshade (if so equipped) ........................... 2-57

Welcome light ...................................................... 2-58

Battery saver system ....................................... 2-59

Interior lights ....................................................... 2-59

Map lights ....................................................... 2-59

Personal lights (if so equipped) ....................... 2-60

Rear spot lights (if so equipped) ...................... 2-60

Interior light control switch .............................. 2-60

Vanity mirror lights ............................................. 2-61

Trunk light .......................................................... 2-62

HomeLink

Universal Transceiver ........................ 2-62

Programming HomeLink Programming HomeLink

customers and gate openers .......................... 2-64

Operating the HomeLink

............................... 2-63

for Canadian

Universal Transceiver ..................................... 2-65

Programming troubleshooting ........................ 2-65

Clearing the programmed information ............ 2-65

Reprogramming a single HomeLink

button ......................................... 2-65

If your vehicle is stolen .................................. 2-66

(77,1)

COCKPIT

Y51D-V-E01-83D46913-7F0C-4CB0-A756-275B43D9E03A

1. Instrument brightness control switch (P.2-40)

2. Adaptive Front lighting System (AFS) switch (if so equipped) (P.2-38)

3. Headlight, fog light and turn signal switch (P.2-36)

JVC0717X

4. Trip computer switch (P.2-28)

5. TRIP/RESET switch for twin trip odometer (P.2-8)

6. Windshield wiper and washer switch (P.2-33)

7. Shift lever (P.5-15)

8. Vehicle Dynamic Control (VDC) OFF switch (P.5-129)

9. Rear sunshade switch (if so equipped) (P.2-57)

10. Steering heater switch (if so equipped) (P.2-41)

11. Trunk lid release switch (P.3-19)

12. Back-up Collision Intervention (BCI) switch (if so equipped) (P.5-57)

13. Warning systems switch (if so equipped) (P.5-24, P.5-34)

14. Electric tilting/telescopic steering wheel lever (P.3-25)

15. Steering-wheel-mounted controls (left side)

— Menu control switch (models with navigation system)/Audio tuning switch (models without navigation system) (P.4-96)

— BACK switch (models with navigation system) (P.4-96)

— TALK switch (P.4-124) — Bluetooth

Hands-Free Phone System (models with navigation system) (P.4-99)

— Bluetooth

Hands-Free Phone System (models without navigation system) (P.4-110)

Instruments and controls 2-3

(78,1)

— Volume control switch (P.4-96) — Audio source switch (P.4-62)

16. Steering wheel — Horn (P.2-42) — Driver supplemental air bag

(P.1-40) — Heated steering wheel (if so

equipped) (P.2-41)

17. Steering-wheel-mounted controls (right side)

— Cruise control switches (P.5-67) — Intelligent Cruise Control (ICC)

switches (if so equipped) (P.5-69) — Dynamic driver assistance switch

(if so equipped) (P.5-24, P.5-43, P.5-91)

2-4 Instruments and controls

(79,1)

INSTRUMENT PANEL

Y51D-V-E01-139F898F-EF61-4933-9424-E1767A8A4A8 9

1. Side ventilator (P.4-56)

2. Paddle shifter (if so equipped) (P.5-17)

3. Meters and gauges (P.2-7)

4. Hazard warning flasher switch (P.6-2)

JVO0130X

5. Rear window and outside mirror defroster switch (P.2-36)

6. Center display (P.4-4)/Navigation system* (if so equipped)

7. Clock (P.2-47)

8. Center multi-function control panel — Navigation system* (if so

equipped) — Vehicle information and setting

buttons (P.4-10) — Around View

Monitor (if so

equipped) (P.4-33) — Audio system (P.4-62)

9. Automatic climate control system (P.4-56)

10. Center ventilator (P.4-56)

11. Audio system (P.4-62)

12. Front passenger supplemental air bag (P.1-40)

13. Hood release handle (P.3-18)

14. Fuse box cover (P.8-28)

15. Parking brake — Parking (P.5-20)

16. Push-button ignition switch (P.5-10)

17. Front passenger air bag status light (P.1-47)

18. Climate controlled seat switch (if so equipped) (P.2-44) or Seat heater switch (if so equipped) (P.2-42)

19. INFINITI Drive Mode Selector (P.5-21)

20. Storage box (P.2-51) — Power outlet (P.2-47)

Instruments and controls 2-5

(80,1)

21. Glove box lid release handle (P.2-50)

22. Trunk release power cancel switch (P.3-21)

*: Refer to the separate Navigation

System Owner’s Manual.

2-6 Instruments and controls

(81,1)

METERS AND GAUGES

Y51D-V-E01-691FA2D1-00DE-4C62-B62C-FE0C7AA320F1

1. Tachometer (P.2-9)

2. Warning/Indicator lights (P.2-11)

3. Speedometer (P.2-8)

4. Engine coolant temperature gauge (P.2-9)

*: The needle indicators in the speedometer, tachometer, engine coolant temperature gauge and fuel gauge may move slightly after the ignition switch is pushed to the LOCK position. This is not a malfunction.

CAUTION

. For cleaning, use a soft cloth, dampened

with water. Never use a rough cloth, alcohol, benzine, thinner or any kind of solvent or paper towel with a chemical cleaning agent. They will scratch or cause discoloration to the lens.

. Do not spray any liquid such as water on

the meter lens. Spraying liquid may cause the system to malfunction.

SIC4317

5. Vehicle information display (P.2-21)/ Odometer/twin trip odometer (P.2-8)

6. Fuel gauge (P.2-10)

Instruments and controls 2-7

(82,1)

SIC4318

Speedometer

SPEEDOMETER AND ODOMETER

Speedometer

Y51D-V-E01-CD0DE725-3134-48E8-A8F7-FE79D9F509C 5

Y51D-V-E01-6C1D5CB1-6492-445B-825B-135C5B283C5 C

The speedometer indicates vehicle speed in miles per hour (MPH) and kilometers per hour (km/h).

JVI1126X

Odometer/twin trip odometer

The odometer

Y51D-V-E01-3F65DB18-06BA-46B4-BF90-A423A80A9340

and twin trip odometer

are displayed on the vehicle information display when the ignition switch is in the ON position.

The odometer records the total distance the vehicle has been driven.

The twin trip odometer records the distance of individual trips.

Changing the display:

Pushing the TRIP RESET switch

GUID-D73A39BF-43C8-459F-9C24-47B7F579C407

on the right of the combination meter panel changes the display as follows:

TRIP A ? TRIP B ? TRIP A

Resetting the trip odometer:

Pushing the TRIP RESET switch

GUID-D73A39BF-43C8-459F-9C24-47B7F579C407

for more than 1 second resets the trip odometer to zero.

Average fuel economy and distance to empty information is also available. (See “Vehicle information display” (P.2-21) and “How to use STATUS button” (P.4-10).)

2-8 Instruments and controls

(83,1)

SIC4320

TACHOMETER

The tachometer indicates engine speed in revolutions per minute (RPM). Do not rev

the engine into the red zone

The scale length and the red zone vary with the engine model.

Y51D-V-E01-ED042B9F-86CF-48B5-969C-C2981187A82 5

CAUTION

When engine speed approaches the red zone, shift to a higher gear or reduce engine speed. Operating the engine in the red zone may cause serious engine damage.

SIC4321

ENGINE COOLANT TEMPERATURE GAUGE

The gauge indicates the engine coolant temperature.

The engine coolant temperature is within the normal range when the gauge needle points within the zone illustration.

The engine coolant temperature varies with the outside air temperature and driving conditions.

Y51D-V-E01-0B4133D2-A999-449F-81B0-E064C24AD12C

shown in the

CAUTION

If the gauge indicates the engine coolant temperature is near the hot (H) end of the normal range, reduce vehicle speed to decrease the temperature. If the gauge is over the normal range, stop the vehicle as soon as safely possible and let the engine idle. If the engine is overheated, continued operation of the vehicle may seriously damage the engine. See “If your vehicle overheats” (P.6-12) for immediate action required.

Instruments and controls 2-9

(84,1)

JVI0846X

FUEL GAUGE

The gauge indicates the approximate fuel level in the tank.

The gauge may move slightly during braking, turning, acceleration, or going up or down hills.

The gauge needle returns to “0” (Empty) after the ignition switch is pushed to the OFF position.

Refill the fuel tank before the gauge registers “0” (Empty).

The low fuel warning vehicle information display when the fuel level is getting low. Refuel as soon as it is

Y51D-V-E01-B25CB842-078C-46AD-A9EB-B2F8CBAD9 467

appears on the

convenient, preferably before the gauge reaches “0”. There will be a small reserve of fuel in the tank when the fuel gauge needle reaches “0”.

The located on the right side of the vehicle.

indicates that the fuel-filler door is

CAUTION

. If the vehicle runs out of fuel, the

malfunction indicator light (MIL) may come on. Refuel as soon as possible. After a few driving trips, the should turn off. If the light remains on after a few driving trips, have the vehicle inspected. It is recommended you visit an INFINITI retailer for this service.

. For additional information, see “Mal-

function Indicator Light (MIL)” (P.2-19).

light

2-10 Instruments and controls

(85,1)

WARNING LIGHTS, INDICATOR LIGHTS AND AUDIBLE REMINDERS

Y51D-V-E01-27260C9A-9A53-466E-ACF0-E491D66BB7D C

All-Wheel Drive (AWD) warning light (if so equipped)

Anti-lock Braking System (ABS) warning light

Automatic transmission check warning light Master warning light

Brake warning light

Blind Spot Warning (BSW)/Blind Spot Intervention (BSI) system warning light (orange) (if so equipped)

Charge warning light

Distance Control Assist (DCA) system warning light (orange) (if so equipped)

Engine oil pressure warning light

Forward Emergency Braking (FEB) system warning light (if so equipped)

Intelligent Cruise Control (ICC) system warning light (orange) (if so equipped)

Lane Departure Warning (LDW) indicator light (orange) (if so equipped)

Low tire pressure warning light

Seat belt warning light and chime

Supplemental air bag warning light

Vehicle Dynamic Control (VDC) warning light

Adaptive Front lighting System (AFS) off indicator light (if so equipped)

Automatic transmission (AT) position indicator light

Blind Spot Intervention (BSI) ON indicator light (green) (if so equipped)

ECO drive indicator light

Exterior light indicator

Front fog light indicator light

Front passenger air bag status light

High beam indicator light

Lane Departure Prevention (LDP) ON indicator light (green) (if so equipped)

Malfunction Indicator Light (MIL)

Security indicator light

Turn signal/hazard indicator lights

Vehicle Dynamic Control (VDC) off indicator light

CHECKING LIGHTS

Y51D-V-E01-AAEEDCA0-B409-469E-9994-4005AFDC3 266

With all doors closed, apply the parking brake, fasten the seat belts and place the ignition switch in the ON position without starting the engine. The following lights (if so equipped) will come on:

, or , , , , ,

The following lights (if so equipped) come on briefly and then go off:

, or , , , , , , , ,

If any light does not come on or operate in a way other than described, it may indicate a burned-out bulb and/or a system malfunction. Have the system checked by an

INFINITI retailer. Some indicators and warnings are also

displayed on the vehicle information display between the speedometer and tachometer. (See “Vehicle information display” (P.2-21).)

Instruments and controls 2-11

(86,1)

WARNING LIGHTS

Y51D-V-E01-E4342973-71E9-450C-94D9-9EA3FA5505E2

All-Wheel Drive (AWD) warning

light (if so equipped)

The warning light comes on when the ignition switch is pushed to ON. It turns off soon after the engine is started.

If the Intelligent AWD system malfunctions, or the diameter of the front and the rear wheels are different, the warning light will either remain illuminated or blink. (See “Intelligent All-Wheel Drive (AWD)” (P.5-

123).)

Y51D-V-E01-753690F1-01C5-46AF-A68E-329F2E1AAB 37

CAUTION

. If the warning light comes on while

driving, there may be a malfunction in the Intelligent AWD system. Reduce the vehicle speed and have your vehicle checked as soon as possible. It is recommended you visit an INFINITI retailer for this service.

. If the AWD warning light blinks on when

you are driving:

—

blinks rapidly (about twice a sec-

ond):

Pull off the road in a safe area, and idle the engine.The driving mode will change to 2WD to prevent the AWD system from malfunctioning. If the warning light turns off, you can drive again.

—

blinks slowly (about once every 2

seconds): Pull off the road in a safe area, and

idle the engine. Check that all tire sizes are the same, tire pressure is correct and tires are not worn.

. If the warning light is still on after the

above operations, have your vehicle checked as soon as possible. It is recommended you visit an INFINITI retailer for this service.

or Anti-lock Braking

System (ABS) warning light

When the ignition switch is in the ON position, the Anti-lock Braking System (ABS) warning light illuminates and then turns off. This indicates the ABS is operational.

If the ABS warning light illuminates while

Y51D-V-E01-BEE15A76-E254-45AA-8D27-5170CF592A6 9

the engine is running, or while driving, it may indicate the ABS is not functioning properly. Have the system checked. It is recommended you visit an INFINITI retailer for this service.

If an ABS malfunction occurs, the anti-lock function is turned off. The brake system then operates normally, but without antilock assistance. (See “Brake system” (P.5-

126).)

Automatic transmission check

warning light

When the ignition switch is pushed to the ON position, the light comes on for 2 seconds. If the light comes on at any other time, it may indicate the transmission is not functioning properly. It is recommended you visit an INFINITI retailer to check and repair the transmission.

This light functions for both the parking brake and the foot brake systems.

Parking brake indicator:

When the ignition switch is in the ON position, the light comes on when the parking brake is applied.

Y51D-V-E01-079F889E-A850-497A-9531-8C17CCCB810 E

or Brake warning light

Y51D-V-E01-27E62D81-74AA-402A-ADDC-A48DD1FF9DA 9

GUID-D73A39BF-43C8-459F-9C24-47B7F579C407

2-12 Instruments and controls

(87,1)

Low brake fluid warning light:

GUID-D73A39BF-43C8-459F-9C24-47B7F579C407

When the ignition switch is in the ON position, the light warns of a low brake fluid level. If the light comes on while the engine is running with the parking brake not applied, stop the vehicle and perform the following:

1. Check the brake fluid level. If brake fluid is necessary, add fluid and have the system checked by your INFINITI retailer. (See “Brake fluid” (P.8-19).)

2. If the brake fluid level is correct, have the warning system checked by an INFINITI retailer.

Anti-lock Braking System (ABS) warning indicator:

GUID-D73A39BF-43C8-459F-9C24-47B7F579C407

When the parking brake is released and the brake fluid level is sufficient, if both the brake warning light and the Anti-lock Braking System (ABS) warning light illuminate, it may indicate the ABS is not functioning properly. Have the brake system checked, and if necessary repaired. It is recommended you visit an INFINITI retailer for this service. (See “Anti-lock Braking System (ABS) warning light” (P.2-

12).)

WARNING

. Your brake system may not be working

properly if the warning light is on. Driving could be dangerous. If you judge it to be safe, drive carefully to the nearest service station for repairs. Otherwise, have your vehicle towed because driving it could be dangerous.

. Pressing the brake pedal with the engine

stopped and/or low brake fluid level may increase your stopping distance and braking will require greater pedal effort as well as pedal travel.

. If the brake fluid level is below the

minimum or MIN mark on the brake fluid reservoir, do not drive until the brake system has been checked. It is recommended you visit an INFINITI retailer for this service.

Blind Spot Warning (BSW)/

Blind Spot Intervention

(BSI) system warning light (orange; if so equipped)

When the ignition switch is placed in the ON position, the indicator light will first illuminate in orange and turn green before turning off. This indicates that the Blind Spot Warning (BSW) and Blind Spot Intervention

If the light comes on in orange and remains on, it may indicate that the BSW and BSI systems are not functioning properly. Although the vehicle is still driveable, have the systems checked. It is recommended you visit an INFINITI retailer for this service. See “Blind Spot Warning (BSW) system” (P.5-34).

If the light comes on while the engine is running, it may indicate the charging system is not functioning properly. Turn the engine off and check the alternator belt. If the belt is loose, broken, missing or if the light remains on, have your vehicle serviced immediately. It is recommended you visit an INFINITI retailer for this service.

Y51D-V-E01-9068CB1D-5021-4E81-9D4E-BD508B33B49 0

(BSI) systems are operational.

Charge warning light

Y51D-V-E01-DEE104B8-D716-40F8-9978-636495B1465A

Instruments and controls 2-13

(88,1)

CAUTION

Do not continue driving if the alternator belt is loose, broken or missing.

Distance Control Assist (DCA) system warning light (orange; if so equipped)

This light comeson if there is a malfunction in the Distance Control Assist (DCA) system.

If the warning light illuminates, park the vehicle in a safe place. Turn the engine off, restart the engine, resume driving and turn on the DCA system again.

If it is not possible to turn on the system or the warning light stays on, it may indicate that the system is malfunctioning. Although the vehicle is still driveable under normal conditions, have the vehicle checked. It is recommended you visit an INFINITI retailer for this service.

Y51D-V-E01-65405F0A-16BD-46D0-B9C8-DCE3E18D662 6

Engine oil pressure warning

light

This light warns of low engine oil pressure. If the light flickers or comes on during normal driving, pull off the road in a safe area, stop the engine immediately and call an INFINITI retailer or other authorized repair shop.

The engine oil pressure warning light is not designed to indicate a low oil level. Use the dipstick to check the oil level. (See

“Engine oil” (P.8-14).)

Y51D-V-E01-C8325BDF-F56B-4147-8D84-B2E40B07E00A

CAUTION

Running the engine with the engine oil pressure warning light on could cause serious damage to the engine almost immediately. Such damage is not covered by warranty. Turn off the engine as soon as it is safe to do so.

Forward Emergency Braking (FEB) system warning light (if so equipped)

This warning light comes on when the ignition switch is placed in the ON position. It turns off after the engine is started.

This light illuminates when the Forward Emergency Braking (FEB) system is set to OFF on the center display.

If the light illuminates when the FEB system is ON, it may indicate that the system is unavailable. See “Forward Emergency Braking (FEB) system” (P.5-105) for more details.

This light will also illuminates if the Active Trace Control is malfunctioning. Although the vehicle is still driveable under normal conditions, have the vehicle checked. It is recommended you visit an INFINITI retailer for this service. (See “Vehicle Dynamic Control (VDC) system” (P.5-129).)

GUID-6D7A8520-E030-471B-B2E3-8656BA394A41

Intelligent Cruise Control (ICC) system warning light (orange; if so equipped)

This light comeson if there is a malfunction in the Intelligent Cruise Control (ICC)

Y51D-V-E01-6CC09C18-AFF4-4535-828C-69A014717E F9

2-14 Instruments and controls

(89,1)

system. If the warning light comes on, park the

vehicle in a safe place. Turn the engine off, restart the engine, resume driving and set the ICC system again.

If it is not possible to set the system or the indicator stays on, it may indicate that the system is malfunctioning. Although the vehicle is still driveable under normal conditions, have the vehicle checked. It is recommended you visit an INFINITI retailer for this service.

Lane Departure Warning (LDW) indicator light (orange; if so equipped)

When the ignition switch is placed in the ON position, the light will come on in orange, turn green, and then turn off. This indicates that the Lane Departure Warning (LDW) and Lane Departure Prevention (LDP) systems are operational.

While the LDW and/or LDP system is on, the light will blink in orange and a warning chime will sound if the vehicle is traveling close to either the left or the right of a traveling lane with detectable lane markers.

Y51D-V-E01-7ACCE53D-5E85-4E1D-8723-9E8502D9DE9 4

If the light comes on in orange and remains on, it may indicate that the LDW and LDP systems are not functioning properly. Have the systems checked. It is recommended you visit an INFINITI retailer for this service.

See “Lane Departure Warning (LDW) system/Lane Departure Prevention (LDP) system” (P.5-24).

Low tire pressure warning

light

Your vehicle is equipped with a Tire Pressure Monitoring System (TPMS) that monitors the tire pressure of all tires except the spare.

The low tire pressure warning light warns of low tire pressure or indicates that the TPMS is not functioning properly.

After the ignition switch is pushed ON, this light illuminates for about 1 second and turns off.

Low tire pressure warning:

If the vehicle is being driven with low tire pressure, the warning light will illuminate. A CHECK TIRE PRESSURE warning also appears in the vehicle information display.

If you select tire pressure information in

Y51D-V-E01-30DE359F-7311-407E-AF3E-5C53309F6AED

GUID-D73A39BF-43C8-459F-9C24-47B7F579C407

the display, the LOW PRESSURE warning message will be displayed. The tire pressure for each tire will also be displayed.

When the low tire pressure warning light illuminates, you should stop and adjust the tire pressure to the recommended COLD tire pressure shown on the Tire and Loading Information label. The low tire pressure warning light does not automatically turn off when the tire pressure is adjusted. After the tire is inflated to the recommended pressure, the vehicle must be driven at speeds above 16 MPH (25 km/h) to activate the TPMS and turn off the low tire pressure warning light. Use a tire pressure gauge to check the tire pressure.

The CHECK TIRE PRESSURE warning is active as long as the low tire pressure warning light remains illuminated.

For additional information, see “Vehicle information display” (P.2-21), “Tire Pressure Monitoring System (TPMS)” (P.5-5) and “Tire Pressure Monitoring System (TPMS)” (P.6-3).

TPMS malfunction:

GUID-D73A39BF-43C8-459F-9C24-47B7F579C407

If the TPMS is not functioning properly, the low tire pressure warning light will flash for approximately 1 minute when the ignition

Instruments and controls 2-15

(90,1)

switch is pushed ON. The light will remain on after the 1 minute. Have the system checked. It is recommended you visit an INFINITI retailer for this service. The CHECK TIRE PRESSURE warning does not appear if the low tire pressure warning light illuminates to indicate a TPMS malfunction.

For additional information, see “Tire Pressure Monitoring System (TPMS)” (P.5-5).

WARNING

. If the light does not illuminate with the

ignition switch pushed ON, have the vehicle checked as soon as possible. It is recommended you visit an INFINITI retailer for this service.

. If the light illuminates while driving,

avoid sudden steering maneuvers or abrupt braking, reduce vehicle speed, pull off the road to a safe location and stop the vehicle as soon as possible. Driving with under-inflated tires may permanently damage the tires and increase the likelihood of tire failure. Serious vehicle damage could occur and may lead to an accident and could result in serious personal injury. Check the tire pressure for all four tires. Adjust

2-16 Instruments and controls

the tire pressure to the recommended COLD tire pressure shown on the Tire and Loading Information label to turn the low tire pressure warning light OFF. If the light still illuminates while driving after adjusting the tire pressure, a tire may be flat or the TPMS may be malfunctioning. If you have a flat tire, replace it with a spare tire as soon as possible. If no tire is flat and all tires are properly inflated, it is recommended you consult an INFINITI retailer.

. Since the spare tire is not equipped with

the TPMS, when a spare tire is mounted or a wheel is replaced, the TPMS will not function and the low tire pressure warning light will flash for approximately 1 minute. The light will remain on after the 1 minute. Have your tires replaced and/ or TPMS system reset as soon as possible. It is recommended you visit an INFINITI retailer for these services.

. Replacing tires with those not originally

specified by INFINITI could affect the proper operation of the TPMS.

CAUTION

. The TPMS is not a substitute for the

regular tire pressure check. Be sure to check the tire pressure regularly.

. If the vehicle is being driven at speeds of

less than 16 MPH (25 km/h), the TPMS may not operate correctly.

. Be sure to install the specified size of

tires to the four wheels correctly.

Master warning light

When the ignition switch is in the ON position, the master warning light illuminates if any of the following are displayed on the vehicle information display:

. No key warning . Low fuel warning . Low washer fluid warning . Parking brake release warning . Door/trunk open warning . Loose fuel cap warning . Check tire pressure warning . Intelligent Key system warning

Y51D-V-E01-78BF4531-FAEA-4D07-AD58-77A28662DD7C

(91,1)

. Headlight warning . Front radar obstruction warning (if so

equipped)

. Back-up Collision Intervention (BCI) not

available warning (if so equipped)

. Back-up Collision Intervention (BCI)

malfunction warning (if so equipped)

See “Vehicle information display” (P.2-21).

Seat belt warning light and

chime

The light and chime remind you to fasten seat belts. The light illuminates whenever the ignition switch is pushed to the ON position, and will remain illuminated until the driver’s seat belt is fastened. At the same time, the chime will sound for about 6 seconds unless the driver’s seat belt is securely fastened.

The seat belt warning light for the front passenger will illuminate if the seat belt is not fastened when the front passenger’s seat is occupied.

See “Seat belts” (P.1-10) for precautions on seat belt usage.

Y51D-V-E01-B1CC9C1B-BD83-487A-A7F6-3428ECEC0 077

Supplemental air bag warning

light

After pushing the ignition switch to the ON position, the supplemental air bag warning light will illuminate. The supplemental air bag warning light will turn off after about 7 seconds if the supplemental front air bag and supplemental side air bag, curtain side-impact air bag systems and/or pretensioner seat belt are operational.

If any of the following conditions occur, the supplemental front air bag, supplemental side air bag, supplemental curtain sideimpact air bag and pretensioner seat belt needs servicing.

. The supplemental air bag warning light

It is recommended you visit an INFINITI retailer for these services.

Unless checked and repaired, the Supplemental Restraint Systems and/or the pretensioner seat belt may not function

Y51D-V-E01-028E75F0-7F8E-46E3-B980-53F7C9164FBD

remains on after approximately 7 seconds.

flashes intermittently.

does not come on at all.

properly. For additional information, see “Supple-

mental restraint system” (P.1-40).

WARNING

If the supplemental air bag warning light is on, it could mean that the supplemental front air bag, supplemental side air bag, curtain side-impact air bag systems and/or pretensioner seat belt will not operate in an accident. To help avoid injury to yourself or others, have your vehicle checked by a retailer as soon as possible.

Vehicle Dynamic Control (VDC)

warning light

When the ignition switch is in the ON position, the Vehicle Dynamic Control (VDC) warning light illuminates and then turns off.

The light will blink when the VDC system or the traction control system is operating, thus alerting the driver that the vehicle is nearing its traction limits. The road surface may be slippery.

When the vehicle dynamic control warning

Y51D-V-E01-C0AA7A1A-7629-49A7-89B8-6292243BC6FA

Instruments and controls 2-17

(92,1)

light illuminates when the vehicle dynamic control system is turned on, this light alerts the driver to the fact that the vehicle dynamic control system’s fail-safe mode is operating, for example the vehicle dynamic control, active trace control (if so equipped), Rise-up & Build-up function, Brake Force Distribution or hill start assist system may not be functioning properly. Have the system checked. It is recommended you visit an INFINITI retailer for this service. If a malfunction occurs in the system, the vehicle dynamic control system function will be canceled but the vehicle is still driveable. For additional information, see “Vehicle Dynamic Control (VDC) system” (P.5-129).

INDICATOR LIGHTS

Y51D-V-E01-756E256E-AAC8-4DFC-B523-5734358B5B 43

Adaptive Front lighting System (AFS) off indicator light (if so equipped)

When the ignition switch is pushed to the ON position, the Adaptive Front lighting System (AFS) off indicator light will illuminate. The light will turn off in about 1 second if the AFS is operational.

This light also illuminates when the AFS is

Y51D-V-E01-D4A08820-0AEE-43A9-BED0-34FC0794EE2D

turned off using the AFS switch. If the AFS off indicator light blinks, it may

indicate the AFS is not functioning properly. Have the system checked. It is recommended you visit an INFINITI retailer for this service.

See “Adaptive Front lighting System (AFS)” (P.2-38).

Automatic Transmission (AT)

position indicator light

When the ignition switch is pushed to the ON position, the indicator shows the automatic shift position.

In the manual shift mode, when the transmission does not shift to the selected gear due to a transmission protection mode, the AT position indicator light will blink and a chime will sound.

See “Automatic transmission” (P.5-15) for further details.

Y51D-V-E01-96FE5B8E-78D9-4CE6-88E5-B9EAA6A7165B

Blind Spot Intervention®(BSI) ON indicator light (green; if so equipped)

The light comes on in green when the Blind Spot Intervention

Y51D-V-E01-2B1D6011-3808-48B3-A1F3-1BA427253F4C

(BSI) system is turned

on. The light turns off when the system is turned off.

NOTE: This light is common with the Blind Spot

Warning (BSW)/Blind Spot Intervention (BSI) system warning light (orange). (See “Blind Spot Warning (BSW)/Blind Spot Intervention

(BSI) system warning light”

(P.2-13).)

For more details, see “Blind Spot Warning (BSW) system” (P.5-34).

ECO drive indicator light

Y51D-V-E01-AC745CB7-7DA9-4BDF-B68A-C7496057B8CD

When the ignition switch is pushed to the ON position, the light will come on in orange, turn green, and then turn off.

When the INFINITI Drive Mode Selector is turned to the ECO mode, the ECO drive indicator light will illuminate or change its color depending on the accelerator pedal operation to help assist the driver to drive economically. For more details, see “Eco mode” (P.5-21).

Exterior light indicator

Y51D-V-E01-007EC214-0CA9-4F5C-9C0E-66B22D543F4A

This indicator illuminates when the headlight switch is turned to the AUTO,

2-18 Instruments and controls

(93,1)

position and the front parking lights, instrument panel lights, rear combination lights, license plate lights or headlights are on. The indicator turns off when these lights are turned off.

Front fog light indicator light

Y51D-V-E01-F44E86A5-3DE4-4396-AE5B-7D3D962F82 B0

The front fog light indicator light illuminates when the front fog lights are on. (See “Fog light switch” (P.2-41).)

Front passenger air bag status

light

The front passenger air bag status light ( bag will be OFF depending on how the front passenger seat is being used.

For front passenger air bag status light operation, see “INFINITI Advanced Air Bag System (front seats)” (P.1-45).

This light comes on when the headlight high beam is on and goes out when the low beam is selected.

Y51D-V-E01-B5550EDA-03BC-41BA-8B43-3CDDA9789C EA

) will be lit and the passenger front air

High beam indicator light

Y51D-V-E01-CFCB3FB3-DC4F-4572-AFDF-7DC4BD932 014

Lane Departure Prevention (LDP) ON indicator light (green; if so equipped)

The light comes on in green when the Lane Departure Prevention (LDP) system is turned on. The light turns off when the system is turned off.

NOTE: This light is common with the Lane

Departure Warning (LDW) indicator light (orange). (See “Lane Departure Warning (LDW) indicator light” (P.2-15).)

For more details, see “Lane Departure Warning (LDW) system/Lane Departure Prevention (LDP) system” (P.5-24).

Y51D-V-E01-10016286-EB84-47C7-AB0D-46A19C20BCE0

Malfunction Indicator Light (MIL)

If the malfunction indicator light comes on steady or blinks while the engine is running, it may indicate a potential emission control malfunction.

The malfunction indicator light may also come on steady if the fuel-filler cap is loose or missing, or if the vehicle runs out of fuel. Check to make sure the fuel-filler cap is installed and closed tightly, and that the

Y51D-V-E01-5EB179EE-ACAB-4F8B-B435-E99A0A72924 E

vehicle has at least 3 US gallons (11.4 liters) of fuel in the fuel tank.

After a few driving trips, the

light should turn off if no other potential emission control system malfunction exists.

If this indicator light remains on for 20 seconds and then blinks for 10 seconds when the engine is not running, it indicates that the vehicle is not ready for an emission control system inspection/ maintenance test. (See “Readiness for Inspection/Maintenance (I/M) test (US only)” (P.9-

22).)

Operation:

GUID-D73A39BF-43C8-459F-9C24-47B7F579C407

The malfunction indicator light will come on in one of two ways:

. Malfunction indicator light on steady —

An emission control system malfunction has been detected. Check the fuelfiller cap if the LOOSE FUEL CAP warning appears on the vehicle information display. If the fuel-filler cap is loose or missing, tighten or install the cap and continue to drive the vehicle. The light should turn off after a few driving trips. If the

light does not turn off

after a few driving trips, have the

Instruments and controls 2-19

(94,1)

vehicle inspected. It is recommended you visit an INFINITI retailer for this service. You do not need to have your vehicle towed to the retailer.

. Malfunction indicator light blinking —

An engine misfire has been detected which may damage the emission control system.

To reduce or avoid emission control system damage:

1) Do not drive at speeds above 45 MPH (72 km/h).

2) Avoid hard acceleration or deceleration.

3) Avoid steep uphill grades.

4) If possible, reduce the amount of cargo being hauled or towed.

The malfunction indicator light may stop blinking and remain on.

Have the vehicle inspected. It is recommended you visit an INFINITI retailer for this service. You do not need to have your vehicle towed to the retailer.

CAUTION

Continued vehicle operation without having the emission control system checked and

2-20 Instruments and controls

repaired as necessary could lead to poor driveability, reduced fuel economy, and possible damage to the emission control system.

Security indicator light

Y51D-V-E01-8635F0ED-0D0D-4E28-95C0-B27FBF6F6EDB

The light blinks when the ignition switch is in the ACC, OFF or LOCK position. This function indicates the security system equipped on the vehicle is operational.

If the security system is malfunctioning, this light will remain on while the ignition switch is in the ON position. For additional information, see “Security systems” (P.2-

30).

Turn signal/hazard indicator

lights

The light flashes when the turn signal switch lever or hazard switch is turned on.

Y51D-V-E01-10692ED4-BF78-4A36-BB9C-69C6F64C78C 4

Vehicle Dynamic Control (VDC)

off indicator light

When the ignition switch is in the ON position, the Vehicle Dynamic Control (VDC) off indicator light illuminates and then turns off. The VDC off indicator light

Y51D-V-E01-8CC0C384-2200-42D1-96F4-B39EB909E790

comes on when the VDC off switch is pushed to OFF. This indicates that the vehicle dynamic control system and traction control system are not operating.

AUDIBLE REMINDERS

Key reminder chime

Y51D-V-E01-3AA97528-2B0C-424D-9825-53B4E0DF87E C

Y51D-V-E01-3432BABC-6F40-4EB7-AF2E-546928B39 7CB

A chime will sound if the driver side door is opened while the ignition switch is pushed to the ACC position. Make sure the ignition switch is pushed to the OFF position, and take the Intelligent Key with you when leaving the vehicle.

Light reminder chime

Y51D-V-E01-C5A86822-A3C4-4AAE-BD1F-AF8A1BC2039 6

A chime will sound when the driver side door is opened with the light switch in the

or position and the ignition switch

in the ACC, OFF or LOCK position. Turn the light switch off when you leave the

vehicle.

Parking brake reminder chime

Y51D-V-E01-08F79576-EAC7-4A14-A43E-BBC2FF17FDE 3

The parking brake reminder chime will sound if the vehicle is driven at more than 4 MPH (7 km/h) with the parking brake applied. Stop the vehicle and release the parking brake.

(95,1)

Brake pad wear warning

Y51D-V-E01-5BF946D6-6498-47D2-8825-4B103B685 194

The disc brake pads have audible wear warnings. When a brake pad requires replacement, it will make a high pitched scraping sound when the vehicle is in motion. This scraping sound will first occur only when the brake pedal is depressed. After more wear of the brake pad, the sound will always be heard even if the brake pedal is not depressed. Have the brakes checked as soon as possible if the warning sound is heard.

VEHICLE INFORMATION DISPLAY

Y51D-V-E01-1CE230A5-CF30-4B3A-A402-45EE3BF84811

SIC4323

The vehicle information display located between the tachometer and the speedometer, and it displays the indicators for the driving systems, Intelligent Key operation and various warnings and information:

For details about each system information, see the following sections:

. Automatic Transmission (AT)

— “Driving the vehicle” (P.5-15)

. Intelligent Key system

— “Intelligent Key system” (P.3-7)

. INFINITI Drive Mode Selector

— “INFINITI Drive Mode Selector” (P.5-

21)

. Back-up Collision Intervention (BCI)

system (if so equipped) — “Back-up Collision Intervention (BCI)

system” (P.5-57)

. Cruise control (if so equipped)

— “Cruise control” (P.5-67)

. Intelligent Cruise Control (ICC) (if so

equipped) — “Intelligent Cruise Control (ICC) sys-

tem” (P.5-69)

. Distance Control Assist (DCA) system (if

so equipped) — “Distance Control Assist (DCA) sys-

tem” (P.5-91)

. Forward Emergency Braking (FEB) sys-

tem (if so equipped) — “Forward Emergency Braking (FEB)

system” (P.5-105)

. Predictive Forward Collision Warning

(PFCW) system (if so equipped) — “Predictive Forward Collision Warn-

ing (PFCW) system” (P.5-112)

Instruments and controls 2-21

(96,1)

JVI1160X

2-22 Instruments and controls

(97,1)

INDICATORS FOR OPERATION

1. Engine start operation indicator

Y51D-V-E01-64909E7F-8C96-4E67-B3E1-6588D21079FB

Y51D-V-E01-A88CA30F-9D2B-44F6-9328-D7C4F5F6F61 E

This indicator appears when the shift lever is in the P (Park) position.

This indicator means that the engine will start by pushing the ignition switch with the brake pedal depressed. You can start the engine directly in any position of the ignition switch.

2. Steering lock release malfunction indicator (if so equipped)

This indicator appears when the steering wheel cannot be released from the LOCK position.

If this indicator appears, push the pushbutton ignition switch while lightly turning the steering wheel right and left.

3. NO KEY warning

This warning appears in either of the following conditions.

No key inside the vehicle:

The warning appears when the door is closed with the Intelligent Key left outside the vehicle and the ignition switch in the ACC or ON position. Make sure that the Intelligent Key is inside the vehicle.

Y51D-V-E01-6BD0F440-CDEA-4278-AD0C-F1151637226A

Y51D-V-E01-796E92CE-2B32-4D77-9DD6-0EE555C64AB 0

GUID-D73A39BF-43C8-459F-9C24-47B7F579C407

Unregistered Intelligent Key:

GUID-D73A39BF-43C8-459F-9C24-47B7F579C407

The warning appears when the ignition switch is pushed from the LOCK position and the Intelligent Key cannot be recognized by the system. You cannot start the engine with an unregistered key. Use the registered Intelligent Key.

See “Intelligent Key system” (P.3-7) for more details.

4. SHIFT “P” warning

Y51D-V-E01-A781E6D3-618F-498F-BC4D-3983287D1D0 1

This warning appears when the ignition switch is pushed to stop the engine with the shift lever in any position except the P (Park) position.

If this warning appears, move the shift lever to the P (Park) position or push the ignition switch to the ON position.

An inside warning chime will also sound. (See “Intelligent Key system” (P.3-7).)

5. “PUSH” warning

Y51D-V-E01-3341FC08-E770-4537-B5E3-AB7ACF1A086E

This warning appears when the shift lever is moved to the P (Park) position with the ignition switch in the ACC position after the SHIFT “P” warning appears.

To push the ignition switch to the OFF position, perform the following procedure:

. SHIFT “P” warning ? (Move the shift

lever to “P”) ? PUSH warning ? (Push the ignition switch ? ignition switch position is turned to ON) ? PUSH

warning ? (Push the ignition switch ? ignition switch position is turned to

OFF)

6. Intelligent Key battery discharge indicator

This indicator appears when the Intelligent Key battery is running out of power.

If this indicator appears, replace the battery with a new one. (See “Intelligent Key battery replacement” (P.8-30).)

Y51D-V-E01-10DAEEAD-9FC3-4942-82E3-9B4A53F13AE 8

7. Engine start operation for Intelligent Key system indicator

This indicator appears when the Intelligent Key battery is running out of power and when the Intelligent Key System and vehicle are not communicating normally.

If this indicator appears, touch the ignition switch with the Intelligent Key while depressing the brake pedal. (See “Intelligent Key battery discharge” (P.5-13).)

Y51D-V-E01-F558F0B2-E1D4-41C4-9263-962DF1A50AF4

Instruments and controls 2-23

(98,1)

8. Parking brake release warning

Y51D-V-E01-D0E7A2F3-E58C-4AB1-956B-CF6828D72988

This warning appears when the vehicle speed is above 4 MPH (7 km/h) and the parking brake is applied.

9. Low fuel warning

Y51D-V-E01-6D57E440-020D-40C9-9287-22A41A142DF 4

This warning appears when the fuel level in the tank is getting low. Refuel as soon as it is convenient, preferably before the fuel gauge reaches the empty (0) position.

There is a small reserve of fuel remaining in the tank when the fuel gauge reaches the empty (0) position.

10. Low washer fluid warning

Y51D-V-E01-DAF8A34C-EC8E-48A9-AECD-07C6E8A313A 0

This warning appears when the washer tank fluid is at a low level. Add washer fluid as necessary. (See “Window washer fluid” (P.8-19).)

11. Door/trunk open warning (ignition switch is in the ON position)

This warning appears if any of the doors and/or the trunk lid are open or not closed securely. The vehicle icon indicates which door or the trunk lid is open on the display.

Y51D-V-E01-BF6F8B2B-DDFF-4626-ADE2-1576DA433AD A

12. Intelligent Key system warning

Y51D-V-E01-79D8FCFE-AC5D-4549-B87A-A9130816EC7A

This warning appears if there is a malfunction in the steering lock system (if so equipped) or Intelligent Key system.

If this warning appears while the engine is stopped, the steering lock (if so equipped) cannot be released or the engine cannot be started. If this warning appears while the engine is running, the vehicle can be driven. However, contact an INFINITI retailer for repair as soon as possible.

13. Loose fuel cap warning

GUID-B3E2FCE0-A8B6-40C3-88CC-48178F73936C

This warning appears when the fuel-filler cap is not tightened correctly after the vehicle has been refueled. (See “Fuel-filler cap” (P.3-23).)

14. Check tire pressure warning

GUID-4C26253E-7E93-4751-9C8A-98247F5BCF66

This warning appears when the low tire pressure warning light in the meter illuminates and low tire pressure is detected. If this warning appears, stop the vehicle and adjust the pressure to the recommended COLD tire pressure shown on the recommended COLD tire pressure shown on the Tire and Loading Information label. (See “Low tire pressure warning light” (P.2-15) and “Tire Pressure Monitoring System

(TPMS)” (P.5-5).)

15. “TIMER” indicator

Y51D-V-E01-7DEBFF56-E102-4EAA-903C-9E6B1C5D84E 4

This indicator appears when the set “TIMER” indicator activates. You can set the time for up to 6 hours. (See “Trip computer” (P.2-28).)

16. Low outside temperature warning

This warning appears if the outside temperature is below 378F (38C). The warning can be set not to be displayed. (See “Trip computer” (P.2-28).)

17. Headlight warning

This warning appears if the LED headlights are malfunctioning. Have the system checked by an INFINITI retailer.

Y51D-V-E01-BF2E7BC6-70A6-4A07-B5D8-1C5551EE8C7B

GUID-ED165F45-D352-45CF-A1B1-81F46F2C0540

18. Front radar obstruction warning (if so equipped)

This warning appears when the sensor area of the front bumper is covered with dirt or is obstructed, making it impossible to detect a vehicle ahead.

The following systems will be automatically canceled.

. Intelligent Cruise Control (ICC) system

GUID-F34909AC-C5E7-4AD6-9A0E-F238026CB039

2-24 Instruments and controls

(99,1)

(if so equipped)

. Distance Control Assist (DCA) system (if

so equipped)

. Forward Emergency Braking (FEB) sys-

tem (if so equipped)

. Predictive Forward Collision Warning

(PFCW) system (if so equipped)

For more details, see “Intelligent Cruise Control (ICC) system” (P.5-69), “Distance Control Assist (DCA) system” (P.5-91), “Forward Emergency Braking (FEB) system” (P.5-105) or “Predictive Forward Collision Warning (PFCW) system” (P.5-112).

19. Back-up Collision Intervention (BCI) not available warning (if so equipped)

This warning appears when the Back-up Collision Intervention (BCI) system is temporarily not available.

For more details, see “Back-up Collision Intervention (BCI) system” (P.5-57).

GUID-EA193285-8C15-40D2-A7C4-DAD0A93546EC

20. Back-up Collision Intervention (BCI) malfunction warning (if so equipped)

This warning appears when the Back-up Collision Intervention (BCI) system is not functioning properly.

GUID-86DB5C85-A1F3-4427-A2BD-4EC9F3DF904D

For more details, see “Back-up Collision Intervention (BCI) system” (P.5-57).

21. Cruise indicator (if so equipped)

Cruise main switch indicator:

The indicator is displayed when the cruise control main switch is pushed. When the main switch is pushed again, the indicator disappears. When the cruise control main switch indicator is displayed, the cruise control system is operational.

Cruise set switch indicator:

The indicator is displayed while the vehicle speed is controlled by the cruise control system. If the indicator blinks while the engine is running, it may indicate that the cruise control system is not functioning properly. Have the system checked. It is recommended you visit an INFINITI retailer for this service.

See “Cruise control” (P.5-67) for details.

Y51D-V-E01-A8FF4CA5-9F3E-4DA0-B756-B293036E1D5 8

GUID-D73A39BF-43C8-459F-9C24-47B7F579C407

22. Intelligent Cruise Control (ICC) system MAIN switch indicator (if so equipped)

The indicator is displayed when the Intelligent Cruise Control (ICC) system main switch is pushed. When the main switch is

Y51D-V-E01-C2F7FE0A-7E25-4149-BCD3-F440AD0BB7AA

pushed again, the indicator disappears. While the main switch indicator is displayed, the ICC system is operational. (See “Intelligent Cruise Control (ICC) system” (P.5-69).)

23. Distance Control Assist (DCA) system switch indicator (if so equipped)

The indicator is displayed when the dynamic driver assistance switch is pushed on. When the switch is pushed again, the indicator disappears. While the indicator is displayed, the DCA system is operational. (See “Distance Control Assist (DCA) system” (P.5-91).)

Y51D-V-E01-00CF0397-8891-414F-91A7-1850B3579BDA

24. INFINITI Drive Mode Selector indicator

When a driving mode is selected, the selected mode indicator is displayed for approximately 2 seconds.

. STANDARD . SPORT . ECO . SNOW

(See “INFINITI Drive Mode Selector” (P.5-

21).)

Y51D-V-E01-708B65D5-BF9B-4CC6-974F-860B039A7695

Instruments and controls 2-25

Infiniti Q70 2016 Owner's Manual
