Instructions for use
WASHER-DRYER
GB
English,1
PWDC 8125 W
This symbol reminds you to read this instruction manual.
Contents
Installation, 2-3-4-5
Unpacking and levelling
Connecting the electricity and water supplies
The first wash cycle
Technical data
Description of the washer-dryer and
starting a wash cycle, 6-7
Control panel
Indicator lights
Starting a wash cycle
Wash cycles, 8
Table of wash cycles
Personalisation, 9
Setting the temperature
Setting the drying cycle
Functions
GB
Detergents and laundry, 10
Detergent dispenser drawer
Preparing the laundry
Garments requiring special care
Load balancing system
Precautions and tips, 11
General safety
Disposal
Care and maintenance, 12
Cutting off the water or electricity supply
Cleaning the washer-dryer
Cleaning the detergent dispenser drawer
Cleaning the pump
Checking the water inlet hose
Troubleshooting, 13
Service and Guarantee, 14-15-16
Before calling for Assistance
Guarantee
1
Installation
GB
This instruction manual should be kept in a safe place
for future reference. If the washer-dryer is sold,
transferred or moved, make sure that the instruction
manual remains with the machine so that the new
owner is able to familiarise himself/herself with its
operation and features.
Read these instructions carefully: they contain vital
information relating to the safe installation and operation
of the appliance.
Unpacking and levelling
Unpacking
1. Remove the washer-dryer from its packaging.
2. Make sure that the washer-dryer has not been
damaged during the transportation process. If it has
been damaged, contact the retailer and do not proceed
any further with the installation process.
3. Remove the 4
protective screws (used
during transportation) and
the rubber washer with
the corresponding spacer,
located on the rear part of
the appliance (see figure).
correctly will provide it with stability, help to avoid
vibrations and excessive noise and prevent it from
shifting while it is operating. If it is placed on carpet or a
rug, adjust the feet in such a way as to allow a sufficient
ventilation space underneath the washer-dryer.
Connecting the electricity and water
supplies
Connecting the water inlet hose
1. Connect the inlet hose
by screwing it to a cold
water tab using a 3/4 gas
threaded connection (see
figure).
Before performing the
connection, allow the
water to run freely until it is
perfectly clear.
2. Connect the inlet hose
to the washer-dryer by
screwing it onto the
corresponding water inlet
of the appliance, which is
situated on the top righthand side of the rear part
of the appliance (see
figure).
4. Close off the holes using the plastic plugs provided.
5. Keep all the parts in a safe place: you will need them
again if the washer-dryer needs to be moved to another
location.
Packaging materials should not be used as toys for
children.
Levelling
1. Install the washer-dryer on a flat sturdy floor, without
resting it up against walls, furniture cabinets or anything
else.
2. If the floor is not
perfectly level, compensate for any unevenness by
tightening or loosening the
adjustable front feet (see
figure); the angle of
inclination, measured in
relation to the worktop,
must not exceed 2°.
Levelling the machine
3. Make sure that the hose is not folded over or bent.
The water pressure at the tap must fall within the
range of values indicated in the Technical data table (see
next page).
If the inlet hose is not long enough, contact a
specialised shop or an authorised technician.
Never use second-hand hoses.
Use the ones supplied with the machine.
2
Connecting the drain hose
65 - 100 cm
Connect the drain hose,
without bending it, to a
draining duct or a wall
drain situated between
65 and 100 cm from
the floor;
the supply voltage is included within the values i
ndicated on the Technical details table
(see page 5);
the socket is compatible with the washing
machine's plug. If this is not the case, replace
the socket or the plug.
Your appliance is now supplied with a 13 amp fused
plug it can be plugged into a 13 amp socket for
immediate use. Before using the appliance please
read the instructions below.
GB
The drain hose may be
connected to an
under-sink trap. Before
connecting the drain
hose from the machine
ensure that any blanks
Where it connects to
the waste water pipe
cut end off spigot or
remove the blanking cap
or removable ends
have been taken off
the spigot.
If it is place over the
edge of a basin or sink
be sure the free end of
the hose should not be
underwater.
We advise against the use of hose extensions; in
case of absolute need, the extension must have the
same diameter as the original hose and must not
exceed 150 cm in length.
Ensure that if the drain hose is pushed into a
standpipe, that the end does not go down more
than 15cms (6 inches). If the hose is pushed down
too far, this may cause the machine to self -syphon
ie. continuously empty as it is filling.
Electric connection
Before plugging the appliance into the mains
socket, make sure that:
the socket is earthed and in compliance with the
applicable law;
the socket is able to sustain the appliance's
maximum power load indicated in the Technical
details table (see page 5);
WARNING - THIS APPLIANCE MUST BE EARTHED.
THE FOLLOWING OPERATIONS SHOULD BE
CARRIED OUT BY A QUALIFIED ELECTRICIAN.
Replacing the fuse:
When replacing a faulty fuse, a 13 amp ASTA
approved fuse to BS 1362 should always be used,
and the fuse cover re-fitted. If the fuse cover is lost,
the plug must not be used until a replacement is
obtained.
Replacement fuse covers:
If a replacement fuse cover is fitted, it must be of the
correct colour as indicated by the coloured marking
or the colour that is embossed in words on the base
of the plug. Replacements can be obtained directly
from your nearest Service Depot.
Removing the plug:
If your appliance has a non-rewireable moulded plug
and you should wish to re-route the mains cable
through partitions, units etc., please ensure that
either:
the plug is replaced by a fused 13 ampere rewearable plug bearing the BSI mark of approval.
or:
the mains cable is wired directly into a 13 amp cable
outlet, controlled by a switch, (in compliance with BS
5733) which is accessible without moving the
appliance.
Disposing of the plug:
Ensure that before disposing of the plug itself, you
make the pins unusable so that it cannot be
accidentally inserted into a socket.
Instructions for connecting cable to an alternative plug:
Important: the wires in the mains lead are coloured in
accordance with the following code:
Green & Yellow Earth
Blue Neutral
Brown Live
3
GB
As the colours of the wires in the lead may not
correspond with the coloured markings identifyng the
terminals in your plug, proceed as follows:
Connect Green & Yellow wire to terminal marked E or
or coloured Green or Green & Yellow.
Connect Brown wire to terminal marked L or
coloured Red.
Connect Blue wire to terminal marked N or coloured
Black.
If a 13 amp plug (BS 1363) is used it must be fitted
with a
13 amp fuse, either in the plug or adaptor or at the
distribution board.
If you are in any doubt the electrical supply to your
machine, consult a qualified electrician before use.
How to connect an alternative plug:
The wires in this mains lead are coloured in
accordance with the following code:
BLUE NEUTRAL (N)
BROWN LIVE (L)
GREEN & YELLOW EARTH (E)
Disposing of the appliance:
When disposing of the appliance please remove the
plug by cutting the mains cable as close as possible
to the plug body and dispose of it as described above.
Warning! The company denies all liability if and when
these norms are not respected.
The first wash cycle
Once the appliance has been installed, and before
you use it for the first time, run a wash cycle with
detergent and no laundry, setting the 90°C
programme without a pre-wash cycle.
GREEN &
YELLOW
BROWN
BLUE
13 ampere fuse
CROSS-BAR
CORD GRIP
The washing machine should not be installed in an
outdoor environment, not even when the area is
sheltered, because it may be very dangerous to leave
it exposed to rain and thunderstorms.
When the washing machine is installed, the mains
socket must be within easy reach.
Do not use extensions or multiple sockets.
The power supply cable must never be bent or
dangerously compressed.
The power supply cable must only be replaced by
an authorised serviceman.
4
Technical data
GB
Model
Dimensions
Capacity
Electrical
connections
Water connections
Spin speed
Energy rated
programmes
according to
regulation
EN 50229
PWDC 8125 W
width 59,5 cm
height 85 cm
depth 62 cm
from 1to 8 kg for wash programme
from 1 to 6 kg for the drying programme
please refer to the technical data
plate fixed to the machine
maximum pressure 1 MPa (10 bar)
minimum pressure 0.05 MPa (0.5 bar)
drum capacity 62 litres
up to 1200 rotations per minute
Wash: programme 1; temperature
60°C; using a load of 8 kg.
Drying:first drying cycle performed
with a 2 kg load, by selecting the
drying level ;
Second drying cycle performed with a
6 kg load, selecting the maximum
drying level .
This appliance conforms to the
following EC Directives:
- 89/336/EEC dated 03/05/89
(Electromagnetic Compatibility) and
subsequent modifications
- 2006/95/EC (Low Voltage)
- 2002/96/EC
5
Description of the waher-dryer and
starting a wash cycle
GB
Control panel
Detergent dispenser drawer
ON/OFF
button
WASH CYCLE
INDICATOR
LIGHTS
knob
TEMPERATURE
button
DRY
button
WASH CYCLE PROGRESS
indicator lights
FUNCTION
buttons with
indicator lights
START/
PAUSE
button with
indicator light
DELAY TIMER
button
DOOR LOCKED
indicator light
Detergent dispenser drawer: used to dispense
detergents and washing additives (see Detergents
and laundry).
ON/OFF button: switches the waher-dryer on and
off.
WASH CYCLE knob: programmes the wash cycles.
During the wash cycle, the knob does not move.
FUNCTION buttons with indicator light: used to
select the available functions. The indicator light
corresponding to the selected function will remain lit.
TEMPERATURE button: sets the temperature or the
cold wash cycle (see Personalisation).
DRY button: used to set the desired drying
programme (see Personalisation).
DELAY TIMER button: delays the start of the wash
cycle by up to 9 hours.
Press the button repeatedly until the indicator light
corresponding to the desired delay time turns on.
When the button is pressed for the fourth time, the
option will be deactivated.
N.B.: once the START/PAUSE button has been
pressed, the delay time can only be modified by
decreasing it until the set programme is launched.
This option is available on all programmes.
WASH CYCLE PROGRESS
monitor the progress of the wash cycle.
The illuminated indicator light shows which phase is in
progress.
DOOR LOCKED indicator light: indicates whether
the door may be opened or not (see next page).
START/PAUSE button with indicator light: starts or
temporarily interrupts the wash cycles.
N.B. To pause the wash cycle in progress, press this
button; the corresponding indicator light will flash
orange, while the indicator light for the current wash
cycle phase will remain lit in a fixed manner. If the
DOOR LOCKED
door may be opened.
To start the wash cycle from the point at which it was
interrupted, press this button again.
Standby mode
This waher-dryer, in compliance with new energy
saving regulations, is fitted with an automatic standby
system which is enabled after about 30 minutes if no
activity is detected. Press the ON-OFF button briefly
and wait for the machine to start up again.
indicator light is switched off, the
indicator light
s: used to
6
Indicator lights
The indicator lights provide important information.
This is what they can tell you:

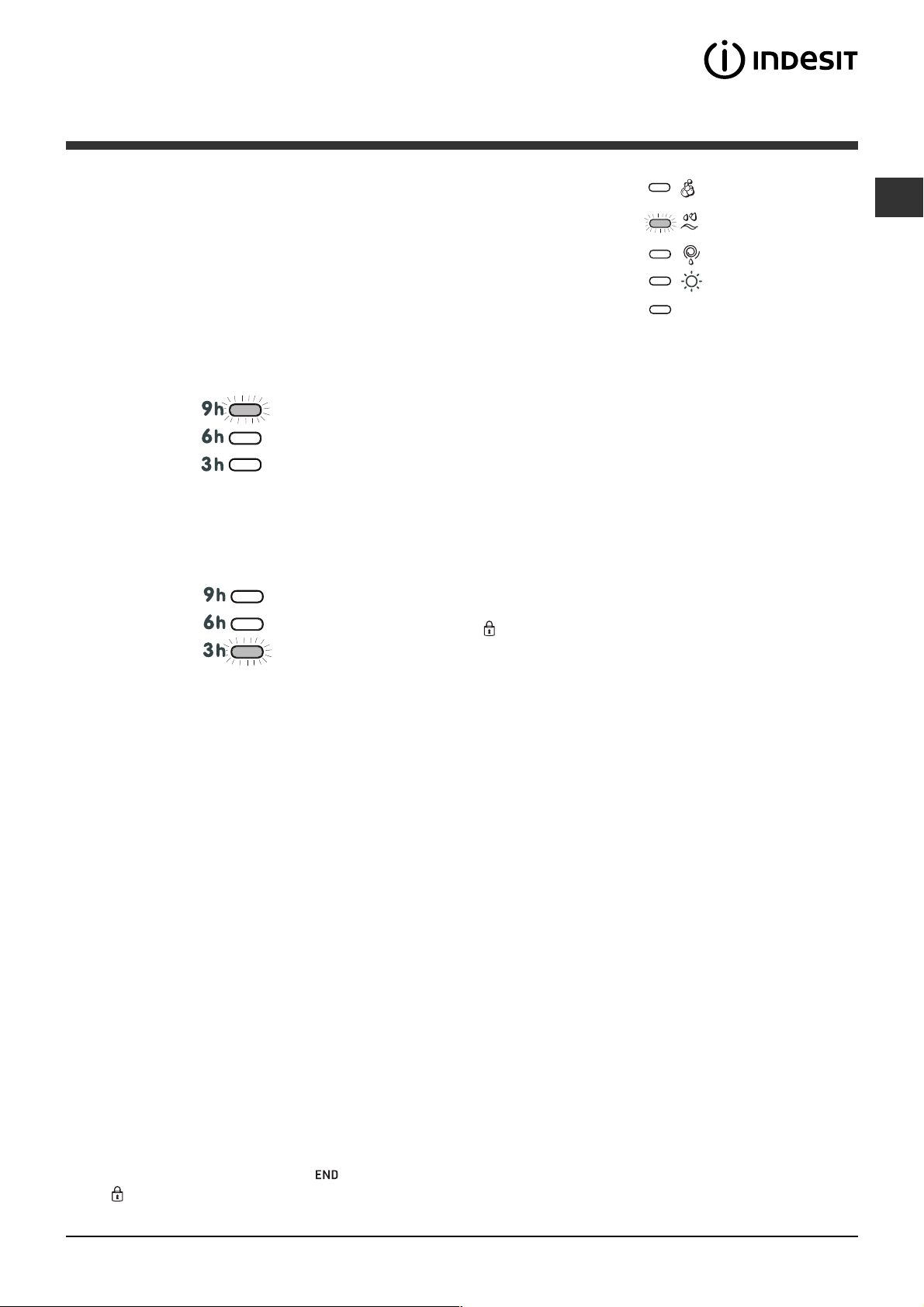

Delayed start
If the DELAY TIMER function has been activated (see
Personalisation), after the wash cycle has been
started the indicator light corresponding to the
selected delay period will begin to flash:
As time passes, the remaining delay will be displayed
and the corresponding indicator light will flash:
The set programme will start once the selected time
delay has expired.
Wash cycle phase indicator lights
Once the desired wash cycle has been selected and has
begun, the indicator lights switch on one by one to
indicate which phase of the cycle is currently in progress.
Wash
Rinse
Spin/Drain
Drying
End of wash cycle
Function buttons and corresponding indicator lights
When a function is selected, the corresponding
indicator light will illuminate.
If the selected function is not compatible with the
programmed wash cycle, the corresponding indicator
light will flash and the function will not be activated.
If the selected function is not compatible with another
function which has been selected previously, the
indicator light corresponding to the first function
selected will flash and only the second function will be
activated; the indicator light corresponding to the
enabled option will remain lit.
Note: if the SMART function is active, all other noncompatible functions cannot be activated.
Door locked indicator light
When the indicator light is on, the porthole door is
locked to prevent it from being opened; make sure
the indicator light is off before opening the door.
To open the door during a running wash cycle, press
the START/PAUSE button; the door may be opened
once the DOOR LOCKED indicator light turns off.
END
If the "functions" and START/PAUSE indicator lights
flash fast and the "current phase" and DOOR
LOCKED indicator lights turn on, there is an anomaly
(see "Troubleshooting").
GB
Starting a wash cycle
1. Turn the waher-dryer on by pressing the ON/OFF button. All the indicator lights will turn on for a few seconds,
then only the indicator lights relative to the selected programme settings will remain lit and the START/PAUSE
indicator light will flash.
2. Load the laundry and close the door.
3. Set the WASH CYCLE knob to the desired programme.
4. Set the washing temperature (see Personalisation).
5. Set the drying cycle if necessary (see Personalisation).
6. Measure out the detergent and washing additives (see Detergents and laundry).
7. Select the desired functions.
8. Start the wash cycle by pressing the START/PAUSE button and the corresponding indicator light will remain lit
in a fixed manner, in blu.
To cancel the set wash cycle, pause the machine by pressing the START/PAUSE button and select a new cycle.
9. At the end of the wash cycle the
LOCK
dries completely. Switch the waher-dryer off by pressing the ON/OFF button.
indicator light turns off. Take out your laundry and leave the appliance door ajar to make sure the drum
indicator light will switch on. The door can be opened once the DOOR
7
Wash cycles
GB
Table of wash cycles
Description of the wash cycle
Wash
cycles
Smart cycles
White Cotton
1
1

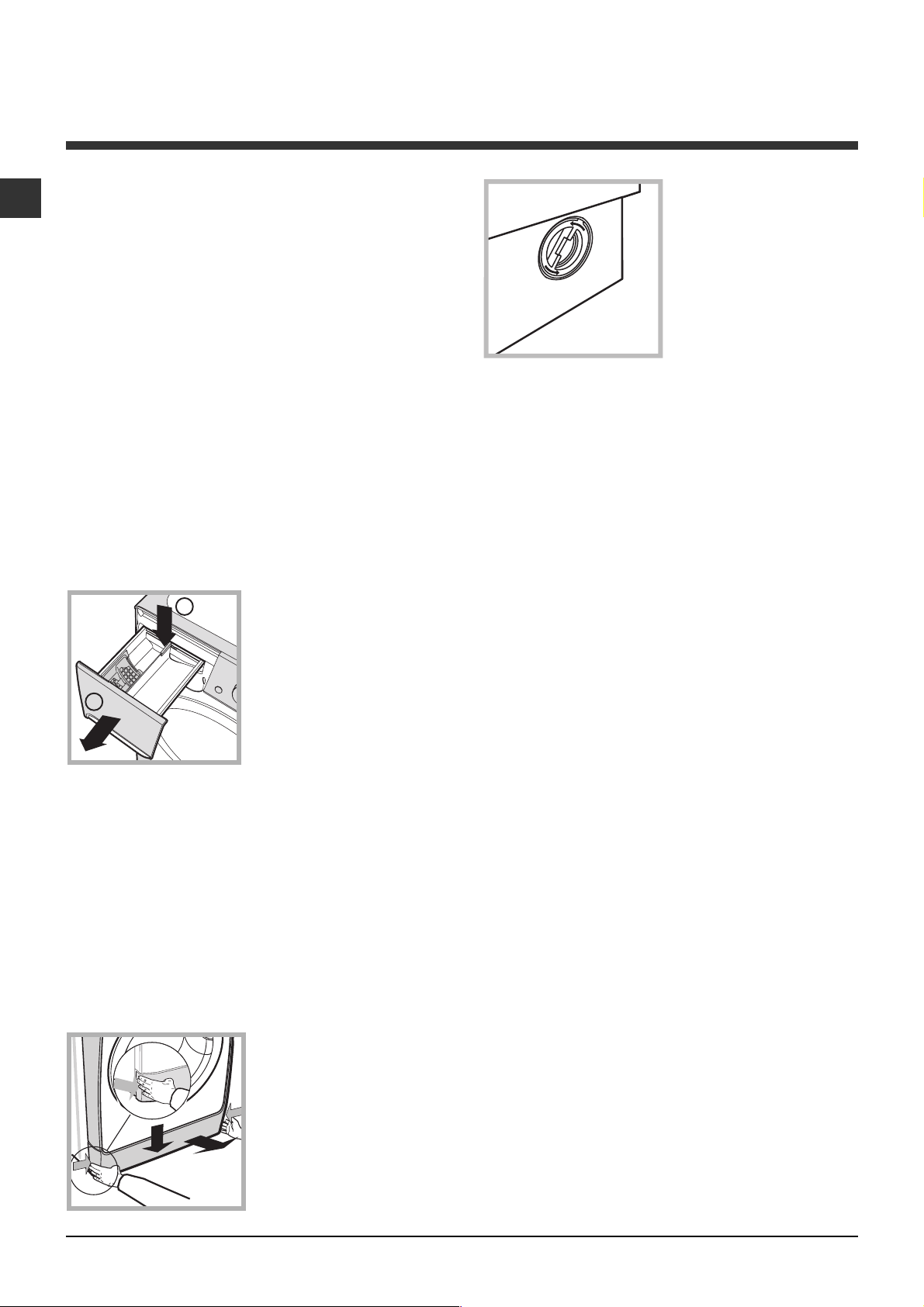

1
2
3
4
5 Jeans
6 Shirts
7 Wool
Spe cia l cycles
8
9 Duvet
10 Sport Shoes
Dry cycles
11 Cotton
12 Synthetics
13 Wool
Partial cycles
whites .
White Cotton (1)
whites and resistant colours.
White Cotton (2)
whites and delicate colours.
Cotton
: heavily soiled whites and
resistant colours.
Coloured Cotton (3)
whites and delicate colours.
Synthetics
colours.
: for wool, cashmere, etc.
Delicates
viscose, lingerie.
: for down-stuffed garments
Rinse
Spin
Drain
: extremely soiled
: heavily soiled
: heavily soiled
: lightly soiled
: heavily soiled resistant
: for garments in silk and
•
•
•
•
•
•
•
•
•
•
•
•
Detergents
Max.
temp.
(°C)
90°
60°
40°
60°
40°
40°
40°
40°
40°
30°
30° 1000 -
30°
Max.
speed
(rpm)
1200
1200
1200
1200
1200
800
800
600
800
600 -
- -
- -
- -
- 1200
- 1200
- 0 - - - 8 2
Drying
•
•
•
•
•
•
•
•
•
0 -
•
•
•
•
•
Main wash
- - 6 -
- - 3,5 -
- - 2 -
-
- - 8 16
Fabric
softener
•
•
•
•
•
•
•
•
•
•
•
•
•
Max.
load
(kg)
8 164
8 160
8 147
8 144
8 96
3,5 75
4 60
2 69
2 55
2 55
3 90
Max.
2 pairs
8 36
Cycle
duration
50
The information contained in the table is intended as a guide only.
For all Test Institutes:
1) Test wash cycle in compliance with regulation EN 50229: set wash cycle 1 with a temperature of 60°C.
2) Long wash cycle for cottons: set wash cycle 1 with a temperature of 40°C.
3) Short wash cycle for cottons: set wash cycle 3 with a temperature of 40°C.
8
Personalisation
Setting the temperature
Press the TEMPERATURE button to set the wash temperature (see Table of wash cycles).
The temperature may be lowered, or even set to a cold wash
The waher-dryer will automatically prevent you from selecting a temperature which is higher than the maximum.
Setting the drying cycle
Note: if all the drying indicator lights remain unlit, the
machine will not perform the drying cycle.
Press the DRYING knob to select the desired drying
option. There are two options:
A - Based on time: 60 and 180 (Max. 4 kg).
B - Based on the desired laundry dryness level:
Iron dry
afterwards. the remaining dampness softens creases,
making them easier to remove.
Hanger dry
be dried fully.
Cupboard dry
a cupboard without being ironed.
If your laundry load to be washed and dried is much greater than the maximum stated load (see adjacent table),
perform the wash cycle, and when the cycle is complete, divide the garments into groups and put some of them
back in the drum. At this point, follow the instructions provided for a "Drying only" cycle. Repeat this procedure
for the remainder of the load.
Drying only
Use the cycle selector knob to select a drying cycle (11-12-13) in accordance with the type of fabric. The desired
drying level or time may also be set using the DRYING button.
: suitable for clothes which will need ironing
: ideal for clothes which do not need to
: suitable for laundry which can be put back in
Table of Drying times (guideline values)
Fabr ic
type
Cotton Clothing of different
Synthetics Sheets, Shirts, Pyjamas,
Wool Knitwear, Pullovers, etc.
.
Load type Max.
sizes, Terry towels
socks, etc.
Cupboard
load
dry
(kg)
6 200 180 145
3,5 155 145 115
2 145 135 120
Hanger
dry
Iron
dry
Functions
The various wash functions available with this waher-dryer will help to achieve the desired results, every time.
To activate the functions:
1. Press the button corresponding to the desired function;
2. the function is enabled when the corresponding indicator light is illuminated.
Note: If the indicator light flashes rapidly, this signals that this particular function may not be selected in
conjunction with the selected wash cycle.
GB
The option optimises washing to suit the quantity of laundry loaded into the machine, thereby reducing the
overall wash cycle duration while minimising water and energy consumption. Press the
the type of wash cycle desired:
Intense: vigorous wash cycle for garments with a heavy soil level.
Perform: standard wash cycle for garments with a normal soil level.
Fast: quick wash cycle for garments with a light soil level.
button to select
This may only be used in conjunction with wash cycles 1, 2, 3, 4 (all three levels) and 5, 6 (Perform and Fast levels).
Easy iron
By selecting this function, the wash and spin cycles will be modified in order to reduce the formation of creases. At
the end of the cycle the waher-dryer will perform slow rotations of the drum, while the EASY IRON and START/
PAUSE indicator lights will flash (blue and orange respectively) and the
the cycle, press the START/PAUSE button or the EASY IRON button. For wash cycle number 8, the machine will
end the cycle while the laundry is soaking; the EASY IRON and START/PAUSE indicator lights will flash. To drain the
water so that the laundry may be removed, press the START/PAUSE button or the EASY IRON button.
It cannot be used in conjunction with wash cycles 7, 10, 11, 12, 13, , .
Note: If you also want to run the drying cycle, this option is enabled only if combined with level
Cool Wash
The Cool Wash function saves energy by not heating the water used to wash your laundry an advantage both to
the environment and to your energy bill. Instead, intensified wash action and water optimisation ensure great wash
results in the same average time of a standard cycle.
For the best washing results we recommend the usage of a liquid detergent.
It cannot be used in conjunction with wash cycles 6, 7, 8, 9, 10, 11, 12, 13, , , .
Spin (1200-600)
By selecting this function, reduces the spin speed.
This function may not be used in conjunction with wash cycles 8, 11, 12, 13, .
led will remain lit in a fixed manner. To end
.
9
Detergents and laundry
GB

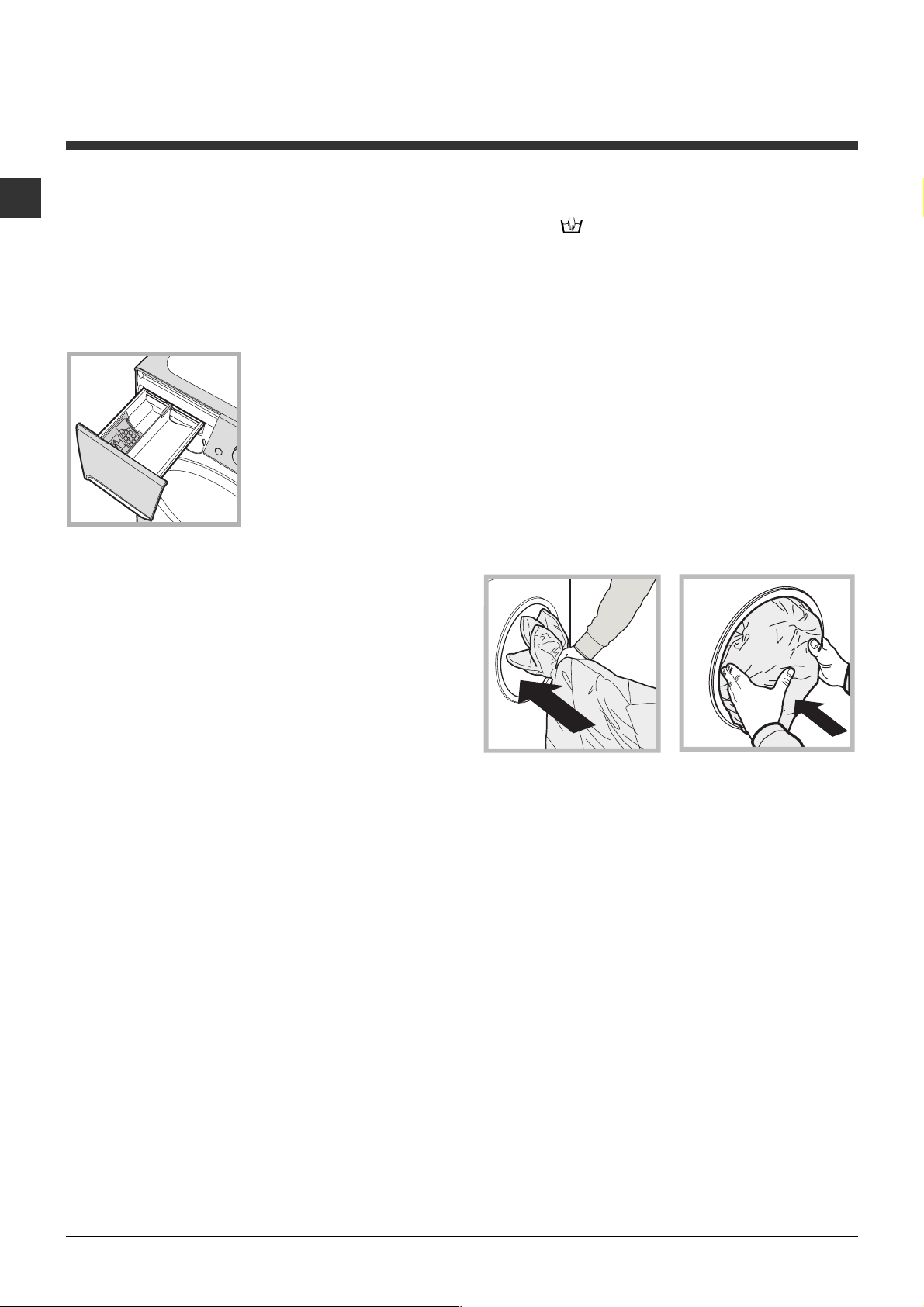

Detergent dispenser drawer
Good washing results also depend on the correct dose
of detergent: adding too much detergent will not
necessarily result in a more efficient wash, and may in
fact cause build up on the inside of your appliance and
contribute to environmental pollution.
Do not use hand washing detergents because these
create too much foam.
Open the detergent
dispenser drawer and pour
in the detergent or washing
B
A
Detergent should only be poured into the
compartment A.
compartment A: Detergent for the wash cycle
(powder or liquid)
Liquid detergent should only be poured in immediately
prior to the start of the wash cycle.
compartment B: Additives (fabric softeners, etc.)
The fabric softener should not overflow the grid.
additive, as follows.
Wool: wash cycle 7 can be used to wash all woollen
garments in the machine, even those carrying the hand
wash only
special detergent and do not exceed the maximum load
of 2 kg.
Delicates: use special wash cycle 8 to wash all silk
garments. We recommend the use of special detergent
which has been designed to wash delicate clothes.
Curtains: we recommend you fold the curtains and
place them in a pillow case or mesh bag. Use wash
cycle 8.
Duvet: to wash double or single duvets (the weight of
which should not exceed 3 kg), cushions or clothes
padded with goose down such as puffa jackets, use the
special wash cycle number 9 Duvet. We recommend
that duvets are placed in the drum with their edges
folded inwards (see figure) and that no more than ¾ of
the total volume of the drum is used.
To achieve the best results, we recommend that a liquid
detergent is used and placed inside the detergent
dispenser drawer.
label. To achieve the best results, use a
Preparing the laundry
Divide the laundry according to:
- the type of fabric/the symbol on the label
- the colours: separate coloured garments from whites.
Empty all garment pockets and check the buttons.
Do not exceed the listed values, which refer to the
weight of the laundry when dry:
Durable fabrics: max. 8 kg
Synthetic fabrics: max. 3,5 kg
Delicate fabrics: max. 2 kg
Wool: max. 2 kg
Silk: max. 2 kg
How much does your laundry weigh?
1 sheet 400-500 g
1 pillow case 150-200 g
1 tablecloth 400-500 g
1 bathrobe 900-1200 g
1 towel 150-250 g
Garments requiring special care
Jeans: turn the garments inside out before washing
and use liquid detergent. Use wash cycle 5.
Shirts: use special wash cycle 6 to wash shirts in
various fabrics and colours.
It guarantees maximum care is taken of the garments
and minimises the formation of creases.
Sport Shoes (
shoes; for best results, do not wash more than 2 pairs
simultaneously.
wash cycle
10): is for washing sports
Load balancing system
Before every spin cycle, to avoid excessive vibrations
and to distribute the load in a uniform manner, the drum
rotates continuously at a speed which is slightly greater
than the washing rotation speed. If, after several
attempts, the load is not balanced correctly, the machine spins at a reduced spin speed. If the load is
excessively unbalanced, the waher-dryer performs the
distribution process instead of spinning. To encourage
improved load distribution and balance, we recommend
small and large garments are mixed in the load.
10
Precautions and tips
This washer-dryer was designed and constructed in
accordance with international safety regulations. The
following information is provided for safety reasons and
must therefore be read carefully.
General safety
This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given
supervision or instruction concerning use of the
appliance by a person responsible for their safety.
Children should be supervised to ensure that they
do not play with the appliance.
Do not dry unwashed items in the tumble dryer.
Items that have been soiled with substances such as
cooking oil, acetone, alcohol, petrol, kerosene, spot
removers, turpentine, waxes and wax removers
should be washed in hot water with an extra amount
of detergent before being dried in the tumble dryer.
Items such as foam rubber (latex foam), shower
caps, waterproof textiles, rubber backed articles
and clothes or pillows fitted with foam rubber pads
should not be dried in the tumble dryer.
Fabric softeners, or similar products, should be
used as specified by the fabric softener instructions.
The final part of a tumble dryer cycle occurs without
heat (cool down cycle) to ensure that the items are
left at a temperature that ensures that the items will
not be damaged.
WARNING: Never stop a tumble dryer before the end
of the drying cycle unless all items are quickly removed
and spread out so that the heat is dissipated.
This appliance was designed for domestic use only.
Do not touch the machine when barefoot or with wet
or damp hands or feet.
Do not pull on the power supply cable when
unplugging the appliance from the electricity socket.
Hold the plug and pull.
Do not open the detergent dispenser drawer while the
machine is in operation.
Do not touch the drained water as it may reach
extremely high temperatures.
Never force the porthole door. This could damage the safety
lock mechanism designed to prevent accidental opening.
If the appliance breaks down, do not under any
circumstances access the internal mechanisms in an
attempt to repair it yourself.
Always keep children well away from the appliance
while it is operating.
The door can become quite hot during the wash cycle.
If the appliance has to be moved, work in a group of
two or three people and handle it with the utmost
care. Never try to do this alone, because the
appliance is very heavy.
Before loading laundry into the washer-dryer, make
sure the drum is empty.
During the drying phase, the door tends to get quite hot.
Do not use the appliance to dry clothes that have
been washed with flammable solvents (e.g.
trichlorethylene).
Do not use the appliance to dry foam rubber or
similar elastomers.
Make sure that the water tap is turned on during
the drying cycles.
Disposal
Disposing of the packaging materials:
observe local regulations so that the packaging may
be re-used.
The European Directive 2002/96/EC relating to Waste
Electrical and Electronic Equipment (WEEE) states
that household appliances should not be disposed of
using the normal solid urban waste cycle. Exhausted
appliances should be collected separately in order to
optimise the cost of re-using and recycling the
materials inside the machine, while preventing
potential damage to the atmosphere and to public
health. The crossed-out dustbin is marked on all
products to remind the owner of their obligations
regarding separated waste collection.
For more information relating to the correct disposal of
household appliances, owners should contact their
local authorities or appliance dealer.
Opening the porthole door manually
In the event that it is not possible to open the porthole
door due to a powercut, and if you wish to remove the
laundry, proceed as follows:
1. Remove the plug from the
electrical socket..
2. Make sure the water level
inside the machine is lower
than the door opening; if it is
not, remove excess water
using the drain hose,
collecting it in a bucket as
indicated in the figure.
3. Remove the cover panel on the lower front part of the
washer-dryer (see overleaf).
4. Pull outwards using the tab as indicated in the figure,
until the plastic tie-rod is freed from its stop position; pull
downwards and open the door at the same time.
5. Reposition the panel, making sure the hooks are
securely in place before you push it onto the appliance.
GB
11
Care and maintenance
GB
Cutting off the water and electricity
supplies
Turn off the water tap after every wash cycle. This
will limit wear on the hydraulic system inside the
waher-dryer and help to prevent leaks.
Unplug the waher-dryer when cleaning it and
during all maintenance work.
Cleaning the waher-dryer
The outer parts and rubber components of the
appliance can be cleaned using a soft cloth soaked
in lukewarm soapy water. Do not use solvents or
abrasives.
Cleaning the detergent dispenser
drawer
1
2
To remove the drawer,
press lever (1) and pull
the drawer outwards (2)
(see figure).
Wash it under running
water; this procedure
should be repeated
frequently.
2. unscrew the lid by
rotating it anti-clockwise
(see figure): a little water
may trickle out. This is
perfectly normal;
3. clean the inside thoroughly;
4. screw the lid back on;
5. reposition the panel, making sure the hooks are
securely in place before you push it onto the
appliance.
Checking the water inlet hose
Check the inlet hose at least once a year. If there are
any cracks, it should be replaced immediately: during
the wash cycles, water pressure is very strong and a
cracked hose could easily split open.
Never use second-hand hoses.
Cleaning the pump
The waher-dryer is fitted with a self-cleaning pump
which does not require any maintenance.
Sometimes, small items (such as coins or buttons)
may fall into the pre-chamber which protects the
pump, situated in its bottom part.
Make sure the wash cycle has finished and
unplug the appliance.
To access the pre-chamber:
1. take off the cover
panel on the front of
1
2
3
the machine by first
pressing it in the centre
and then pushing
downwards on both
sides until you can
remove it (see figures);
12
Troubleshooting
Your waher-dryer could fail to work. Before contacting the Technical Assistance Centre (see Assistance), make
sure that the problem cannot be not solved easily using the following list.
Problem:
The waher-dryer does not switch on.
Possible causes / Solutions:
The appliance is not plugged into the socket fully, or is not making contact.
There is no power in the house.
GB
The wash cycle does not start.
The waher-dryer does not take in
water (the indicator light for the
first wash cycle stage flashes
rapidly).
The waher-dryer continuously
takes in and drains water.
The waher-dryer does not drain
or spin.
The waher-dryer door is not closed properly.
The ON/OFF button has not been pressed.
The START/PAUSE button has not been pressed.
The water tap has not been opened.
A delayed start has been set (see Personalisation).
The water inlet hose is not connected to the tap.
The hose is bent.
The water tap has not been opened.
There is no water supply in the house.
The pressure is too low.
The START/PAUSE button has not been pressed.
The drain hose is not fitted at a height between 65 and 100 cm from
the floor (see Installation).
The free end of the hose is under water (see Installation).
The wall drainage system is not fitted with a breather pipe.
If the problem persists even after these checks, turn off the water tap, switch
the appliance off and contact the Assistance Service. If the dwelling is on one of
the upper floors of a building, there may be problems relating to water drainage,
causing the waher-dryer to fill with water and drain continuously. Special antidraining valves are available in shops and help to avoid this inconvenience.
The wash cycle does not include draining: some wash cycles require
the drain phase to be started manually.
The Easy iron function is enabled: to complete the wash cycle, press
the START/PAUSE button (Personalisation).
The drain hose is bent (see Installation).
The drainage duct is clogged.
The waher-dryer vibrates a lot
during the spin cycle.
The waher-dryer leaks.
The "Functions" indicator lights
and the "start/pause" indicator
light flash, while one of the "phase
in progress" indicator lights and
the "door locked" indicator light
will remain lit in a fixed manner.
There is too much foam.
The washer-dryer does not dry.
The drum was not unlocked correctly during installation (see Installation).
The waher-dryer is not level (see Installation).
The waher-dryer is trapped between cabinets and walls (see Installation).
The water inlet hose is not screwed on properly (see Installation).
The detergent dispenser drawer is blocked (for cleaning instructions (see
Care and maintenance).
The drain hose is not fixed properly (see Installation).
Switch off the machine and unplug it, wait for approximately 1 minute
and then switch it back on again.
If the problem persists, contact the Technical Assistance Service.
The detergent is not suitable for machine washing (it should display the
text for waher-dryers or hand and machine wash, or the like).
Too much detergent was used.
The appliance is not plugged into the socket, or not enough to make contact.
There has been a power failure.
The appliance door is not shut properly.
A delayed start has been set.
All the drying indicator lights are switched off.
13
Service
GB
Before calling for Assistance:
Check whether you can solve the problem alone (see Troubleshooting);
Restart the programme to check whether the problem has been solved;
If this is not the case, contact an authorised Technical Assistance Centre using the telephone number
provided on the guarantee certificate.
Always request the assistance of authorised technicians.
Have the following information to hand:
the type of problem;
the appliance model (Mod.);
the serial number (S/N).
This information can be found on the data plate applied to the rear of the waher-dryer, and can also be
found on the front of the appliance by opening the door.
14
Guarantee
12 Months Parts and Labour Guarantee
Your appliance has the benefit of our manufacturers guarantee, which covers the cost of breakdown repairs for twelve
months from the date of purchase.
This gives you the reassurance that if, within that time, your appliance is proven to be defective because of either
workmanship or materials, we will, at our discretion, either repair or replace the appliance at no cost to you.
This guarantee is subject to the following conditions:
- The appliance has been installed and operated correctly and in accordance with our operating and
maintenance instructions.
- The appliance is used only on the electricity or gas supply printed on the rating plate.
- The appliance has been used for normal domestic purposes only.
- The appliance has not been altered, serviced, maintained, dismantled, or otherwise interfered with by any
person not authorised by us.
- Any repair work must be undertaken by us or our appointed agent.
- Any parts removed during repair work or any appliance that is replaced become our property.
- The appliance is used in the United Kingdom or Republic of Ireland.
The guarantee does not cover:
- Damage resulting from transportation, improper use, neglect or interference or as a result of improper
installation.
- Replacement of any consumable item or accessory . These include but are not limited to:
plugs, cables, batteries, light bulbs, fluorescent tubes and starters, covers and filters.
- Replacement of any removable parts made of glass or plastic.
GB
THIS GUARANTEE WILL NOT APPLY IF THE APPLIANCE HAS BEEN USED IN COMMERCIAL OR
NON-DOMESTIC PREMISES.
5 Year Parts Guarantee
Indesit also offers you a free 5 year parts guarantee. This additional guarantee is conditional on you registering your
appliance with us and the parts being fitted by one of our authorised engineers. There will be a charge for our engineer's
time. To activate the extra parts warranty on your appliance, simply call our registration line on 08448 24 24 24
(Republic of Ireland 01 230 0800).
Extended Guarantees
We offer a selection of repair protection plans that enable you to fully cover yourself against the expense of repair bills for
the life of your policy. To find the ideal plan for you please call our advice line on
08448 226 226 (Republic of Ireland 01 230 0233).
Free Helpdesk Service
We have a dedicated team who can provide free advice and assistance with your appliance if you experience any technical
difficulties within the first 90 days of ownership. Simply call our Indesit Service Hotline on 08448 224 224 (Republic of
Ireland 0818 313 413)for telephone assistance, or, where necessary, to arrange for an engineer to call.
15
195081645.00
10/2009 - Xerox Fabriano
GB
After Sales Service
No one is better placed to care for your Indesit appliance during the course of its working life than us - the manufacturer.
Essential Contact Information
Indesit Service
We are the largest service team in Europe offering you access to 400 skilled telephone advisors and 1100 fully qualified
engineers on call to ensure you receive fast, reliable, local service.
UK: 08448 224 224
Republic of Ireland: 0818 313 413
www.indesitservice.co.uk
Please note: Our advisors will require the following information:
Model number:
Serial number:
Parts and Accessories
We supply a full range of genuine replacement parts as well as accessory products that protect and hygienically clean
your appliance to keep it looking good and functioning efficiently throughout its life.
UK: 08448 225 225
Republic of Ireland: 0818 313 413
www.indesitservice.co.uk
Appliance Registration
We want to give you additional benefits of Indesit ownership. To activate your free 5 year parts guarantee you must
register your appliance with us.
UK: 08448 24 24 24
Republic of Ireland: 01 230 0800
www.indesitservice.co.uk
Indesit Company UK Ltd. Morley Way, Peterborough, PE2 9JB
Indesit Company Unit 49 Airways Industrial Estate, Dublin 17
Recycling & Disposal Information
As part of Indesit's continued commitment to helping the environment, Indesit reserves the right to use quality, recycled
components to keep down customer costs and minimise material wastage.
Please dispose of packaging and old appliances carefully. To minimise the risk of injury to children, remove the door, plug
and cut the mains cable off flush with the appliance. Dispose of these parts separately to ensure that the appliance can
no longer be plugged into a mains socket, and the door cannot be locked shut.
16
Loading...
