Installation
GB
Before operating your new appliance please read this
instruction booklet carefully. It contains important
information for safe use, installation and care of the
appliance.
Please keep these operating instructions for future
reference. Pass them on to possible new owners of the
appliance.
Positioning
Keep packaging material out of the reach of children. It
can become a choking or suffocation hazard (see
Precautions and tips).
The appliance must be installed by a qualified person
according to the instructions provided. Incorrect
installation may damage property or cause harm to
people or animals.
This unit may be installed and used only in
permanently ventilated rooms according to the British
Stancards Codes Of Practice: B.S.6172 / B.S.5440,
Par. 2 and B.S. 6891 Current Editions. The following
requirements must be observed:
The hob should not be installed in a bed sitting
room with
installed in a room of volume less than 5m
vent of effective area of 110cm
installed in a room of volume between 5m
10m
required, while if the volume exceeds 11m
airvent is required. However, if the room has a door
or a window which opens directly to the outside no
air vent is required even with the volume is between
3
5m
Intensive or prolonged use of the appliance could
mean that extra aeration is needed, such as the
opening of a window or a more powerful fan.
If there are other fuel burning appliances in the
same room, B.S. 5440 Part 2 Current Edition,
should be consulted to determine
vent requirements.
a volume of less than 20m3. If it is
3
2
is required, if it is
3
an air vent of effective airvent of 50cm2 is
3
3
and 11m3.
the requisite air
an air
and
no
The hob may be located in a kitchen, a kitonen/diner
or bed sitting room, but not in a bathroom or shower
room.
The furniture standing next to the unit, that is higher
than the working boards,
must be placed at least
600 mm from the edge of the board.
The minimum distance combustible material can be
fitted above the hob in line with the edges of the
hob is 420mm. If is fitted below 420mm a space of
50mm must be allowed from the edges of the hob.
The minimum distance combustible material
kitchen units can be fitted directly above the hob is
700mm.
min. 50
LESS THAN 420
HOOD
min. 50
LESS THAN 420
min. 650 with hood
min. 700 without hood
mm.
Min. 420
HOOD
Min. 600
mm.
mm.
min. 650 mm. with hood
Min. 420
min. 700 mm. without hood
The dimensions of the room for the furniture must
be those indicated in the figures. Fixing hooks are
provided which allow to place the hob plate on
work tops that measure from 20 to 40 mm in
thickness. To obtain a good fixing of the hob plate it
is advisable to use all the hooks supplied.
555 mm
55 mm
475 mm
Fastening Clamps - Assembly Diagram
Fitting the appliance
The appliance can be installed next to furniture units
which are no taller than the top of the cooker hob. The
wall in direct contact with the back panel of the cooker
must be made of non-flammable material. During
operation the back panel of the cooker could reach a
temperature of 50°C above room temperature. For
proper installation of the cooker, the following
precautions must be taken:
2
30
Clamp Position for Clamp Position for
H=20mm top H=30mm top
Front
40
Clamp Position for Back
H=40mm top
Electrical Connection for Gas Cooktop
GB
Fit the supply cord with a standard plug for the
demand rate indicated on the rating plate or connect it
directly to the electrical mains. In the latter case, a
single pole switch must be placed between the
appliance and the mains, with a minimum opening
between the contacts of 3 mm in compliance with
current safety codes (the earthing wire must not be
interrupted by the switch). The power supply cord
must be positioned so that it does not reach a
temperature in excess of 50°C above room
temperature at any point.
Use the clamps contained in the "accessory kit."
In the event the cooktop is not installed above a
built-in oven, a wood panel must be inserted as
insulation. This panel must be placed at least 20
mm from the bottom of the cooktop itself.
Ventilation
When installing the cooktop above a built-in oven, the
oven should be placed on two wooden strips; in the
case of a joining cabinet surface, remember to leave a
space of at least 45 x 560 mm at the back (see
picture).
45 mm.
560 mm.
The hob can only be installed above built-in
ovens provided with cooling ventilation.
Electrical connection
The cooktops fitted with a tripolar electrical supply
cord are designed to be be used with alternating
current according to the indications on the rating plate
located under the cooktop. The earthing wire can be
identified by its yellow-green colour.
In the case of installation over a built-in electric oven,
the electrical connections for the cooktop and oven
should be independent, not only for safety purposes,
but also to facilitate removal of one or both in the
future.
The installer must ensure that the correct electrical
connection has been made and that it is compliant
with safety regulations.
Before making the actual connection, make sure that:
The fuse and electrical system can withstand the
load required by the appliance;
That the electrical supply system is equiped with an
efficient earth hook-up according to the norms and
regulations prescribed by law;
That the plug or switch is easily accessible.
The wires in the mains lead are coloured in
accordance with the following code:
Green & Yellow - Earth
Blue - Neutral
Brown - Live
As the colours of the wires in the mains lead may not
correspond with the coloured markings identifying the
terminals in your plug, proceed as follows:
Connect the Green & Yellow wire to the terminal
marked E or
or coloured Green or Green &
Yellow.
Connect the Brown wire to the terminal marked L or
coloured Red.
Connect the Blue wire to the terminal marked N or
coloured Black.
The cable must not be bent or compressed.
The cable must be checked regularly and replaced
by authorised technicians only (see Assistance).
The manufacturer declines any liability should
these safety measures not be observed.
3
GB
Gas Connection
The cooktop should be connected to the gas supply
by an authorized installer. During installation of this
product it is essential to fit an approved gas tap to
isolate the supply from the appliance for the
convenience of any subsequent removal or servicing.
Connection of the appliance to the gas mains or liquid
gas tanks must be carried out according to the safety
standards currently in force, and only after it is
ascertained that it is suitable for the type of gas to be
used. If not, follow the instructions indicated in the
section entitled, Adapting the Cooktop for Different
Types of Gas. If the cooktop is to be connected to
tanks containing liquid gas, use pressure regulators
that comply with current safety standards.
To insure that the appliance operates safety, the gas
is regulated correctly and your appliance lasts over
time, make sure that gas pressure levels comply with
the indications given in Table 1, Nozzle and Burner
Specifications.
Adapting the Cooktop for Different Types of Gas
To adapt the cooktop to a different type of gas than
that for which it was designed, (see the sticker under
the hob or on the packaging), the burner nozzles must
be changed, as follows:
1. Remove the pan supports and slide the burners out
of the cooktop.
2. Unscrew the nozzles using a 7mm socket wrench
and replace them with those for the new type of
gas. (See table 1, Burner and Nozzle
Specifications).
3. Reassemble the parts following the instructions in
reverse order.
4. On completing the operation, replace the old rating
label with the one showing the new type of gas; the
sticker is available from our Service Centres.
Gas Connection to Non-flexible
(copper or steel)
Connection to the gas source must be done in such
a way as to not create any stress points at any part of
the appliance.
The appliance is fitted with an adjustable, "L" shaped
connector and a gasket for the attachment to the gas
supply. Should this connector have to be turned, the
gasket must be replaced (supplied with the
appliance).
The gas feed connector to the appliance is a
threaded, male 1/2" connector for round gas pipe.
Gas Connection to Flexible Steel Pipe
The gas feed connector to the appliance is a
threaded, male 1/2" connector for round gas pipe.
Only use pipes, tubes and gaskets that comply with
current safety codes. The maximum length of the
flexible pipes m
connection has been made, ensure that the flexible
metal tube does not touch any moving parts and is not
crushed.
Check the Seal
Once the appliance has been installed, make sure
all the connections are properly sealed, using a soapy
water solution. Never use a flame.
ust not exceed 2000 mm. Once the
Pipe
Regulation of Air Supply to the Burner
The burners do not need a primary air regulator.
Minimum Regulation
1. Turn the gas valve to minimum.
2. Remove the knob
and turn the regulator
screw (positioned either
on the side of the top or
inside the shaft)
clockwise until the flame
becomes small but
regular.
3. Make sure that, when the knob is turned rapidly
high to low, the flame does not go out.
4. In the event of a malfunction on appliances with the
security device (thermocouple) when the gas
supply is set at minimum, increase the minimum
supply levels using the regulator screw.
In the case of liquid gas, the regulation screw must
be fully screwed in (clockwise).
Once the adjustment has been made, apply sealing
wax, or a suitable substitute, to the old seals on the
by-pass.
4
If the gas pressure is different than that prescribed, a
g
pressure regulator must be installed at the source, in
compliance with national standards governing the use
of piped gas regulators.
DATA PLATE
Gas section
GB
Class: II2H3+
Rated power kW (1):
8,05 (585 g/h - G30)
(575 g/h - G31)
Electrical section
(1): The values in g/h refer to the capacities with liquid
as (Butane, Propane).
voltage: 220-240V ~ 50/60Hz
This appliance conforms to the
following European Economic
Community directives:
- 2006/95/EEC of 12/12/06 (Low
Voltage) and subsequent
amendments;
- 89/336/EEC of 03/05/89
(Electromagnetic Compatibility) and
subsequent amendments;
- 90/396/EEC of 29/06/90 (Gas)
and subsequent modifications;
- 93/68/EEC of 22/07/93 and
subsequent amendments.
- 2002/96/EC
5
GB
Characteristic of the burners and nozzles
Table 1 Liquid Gas Natural Gas
Burner Diameter
(mm)
Fast (R)
100 3,00 0,70 41 86 218 214 116 286
Thermal power
kW (p.c.s.*)
Nomin. Ridot.
By-Pass
1/100
Nozzle
1/100
Flow*
g/h
Nozzle
1/100
(mm) (mm) *** ** (mm)
Flow*
l/h
Semi Fast (S) 75 1,90 0,40 30 70 138 136 106 181
Auxiliary (A) 55 1,00 0,40 30 50 73 71 79 95
Triple Crown (TC) 130 3,25 1,30 57 91 236 232 133 309
Supply
Pressures
** At 15°C and 1013 mbar-dry gas
** Propane P.C.S. = 50.37 MJ/kg.
*** Butane P.C.S. = 49.47 MJ/kg.
Natural P.C.S. = 37.78 MJ/m3
SS
AR
Nominal (mbar)
Minimum (mbar)
Maximum (mbar)
28-30
20
35
SS
ATC
37
25
45
20
17
25
PI 640 A GB PI 640 TC GB
6

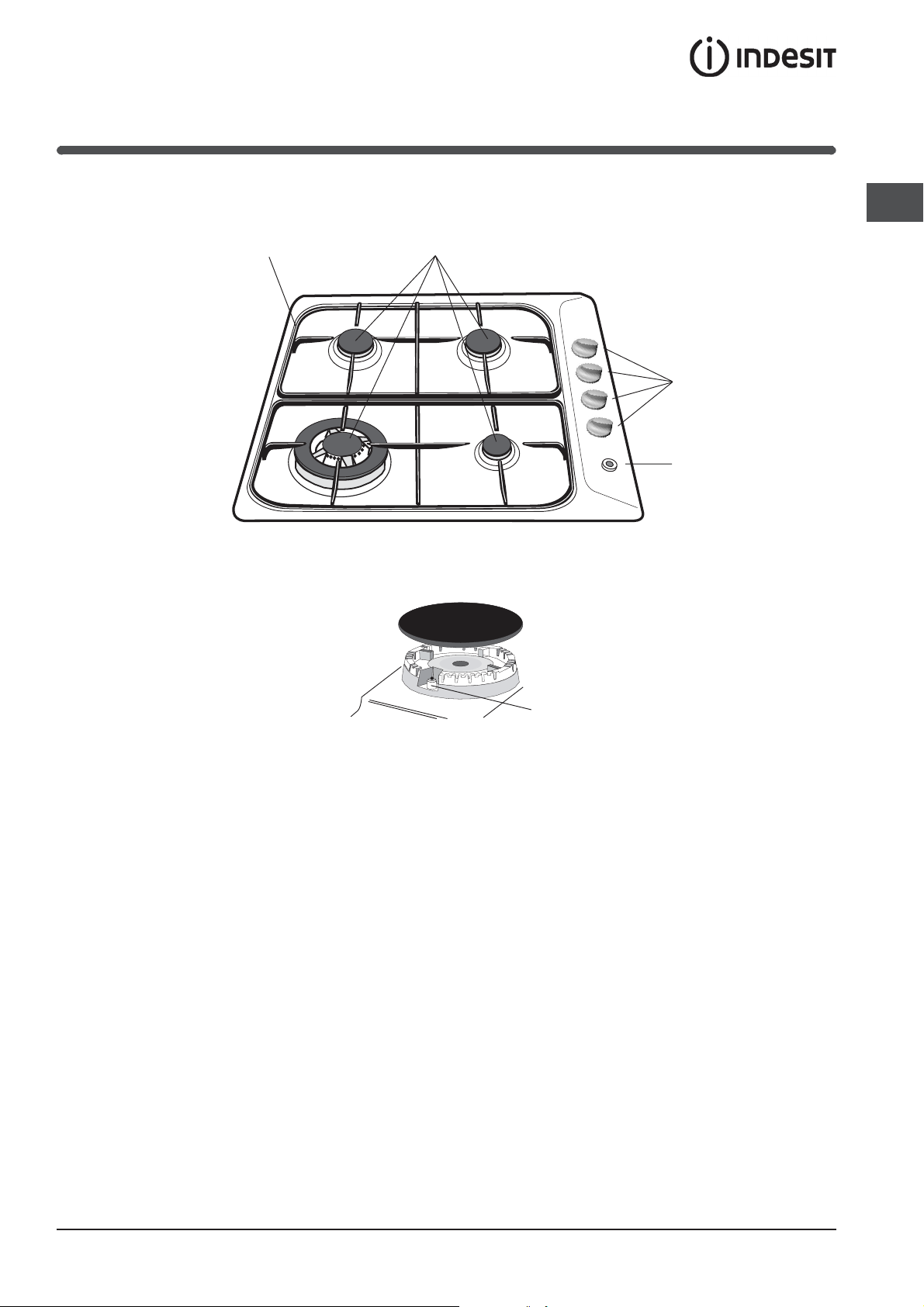

Description of the appliance
Overall view
Support Grid for
Cookware
GB
Gas Burners
Control Knobs for Gas
Burners
Ignition Button for Gas
Burners
Ignitor for Gas Burners
7
Start-up and use
GB
The position of the corresponding gas burner is
indicated on each control knob.
Gas Burners
The burners differ in size and power. Choose the most
appropriate one for the diameter of the cookware
being used.
The burner can be regulated with the corresonding
control knob by using one of the following settings:
Off
High
Low
To turn on one of the burners, place a lighted match
or lighter near the burner, press the knob all the way in
and turn in the counter-clockwise direction to the
"High" setting.
On those models fitted with an ignitor, the ignition
button, identified by the
pressed and then the corresponding knob pushed all
the way in and turned in the counter-clockwise
direction to the "High" setting.
If the burner accidently goes out, turn off the gas
with the control knob and try to light it again after
waiting at least 1 minute.
symbol, must first be
Practical Advise on Using the Burners
For best performance, follow these general guidelines:
Use the appropriate cookware for each burner (see
table) in order to prevent the flame from reaching
the sides of the pot or pan;
Alwasy use cookware with a flat bottom and keep
the lid on;
When the contents come to a boil, turn the knob to
"Low".
Burner ø Cookware Diameter (cm)
Fast (R) 24 - 26
Semi Fast (S) 16 - 20
Auxiliary (A) 10 - 14
Triple Crown (TC) 24 - 26
To turn off a burner, turn the knob in the clockwise
direction until it stops (it should be on the setting).
8
Precautions and tips
This appliance has been designed and
manufactured in compliance with international safety
standards. The following warnings are provided for
safety reasons and must be read carefully.
General safety
This manual is for a class 3 built-in cooktop.
Gas appliances require regular air exchange to
ensure trouble-free performance
installing the cooker, follow the instructions
provided in the paragraph on Positioning the
appliance.
These instructions ar e onl
countries the symbols for which appear on the
manual and the serial plate.
This appliance was designed for domestic use
inside the home and is not intended for commercial
or industrial use.
The appliance must not be installed outdoors, even
in covered areas. It is extremely dangerous to leave
the appliance exposed to rain and storms
Do not touch the appliance with bare feet or with
wet or damp hands and feet.
. When
y valid for the
.
Always make sure pan handles are turned towards
the centre of the hob in order to avoid accidental
burns.
Avoid closing the cover (if present) while the gas
burners and electric plates are still warm.
Do not use cookware with uneven or deformed
bottoms.
Do not let children play with the appliance.
The appliance should not be operated by people
(including children) with reduced physical,
sensory or mental capacities, by inexperienced
individuals or by anyone who is not familiar with
the product. These individuals should, at the very
least, be supervised by someone who assumes
responsibility for their safety or receive
preliminary instructions relating to the operation of
the appliance.
IMPORTANT SAFETY INFORMATION: Please
note that this product is not fitted with a flame
s
upervision device. It is NOT suitable for fitting
or use in high rise flats or multiple dwellings.
If you are in any doubt please conta
registered gas engineer for advice.
ct a CORGI
Disposal
GB
The appliance must be used by adults only, to cook
food according to the instructions in this manual.
Do not use the hob as a worktop or chopping
board.
Ensure that power supply cables of other electrical
appliances do not come into contact with the hot
parts of the hob.
The openings and slots used for ventilation and
heat dispersion must never be covered.
Make sure the knobs are in the •/
the appliance is not in use.
When unplugging the appliance always pull the plug
from the mains socket, do not pull on the cable.
Never carry out any cleaning or maintenance work
without having unplugged the plug from the mains.
¡ position when
When disposing of packaging material: observe
local legislation so that the packaging may be
reused.
The European Directive 2002/96/EC on Waste
Electrical and Electronic Equipment (WEEE),
requires that old household electrical appliances
must not be disposed of in the normal unsorted
municipal waste stream. Old appliances must be
collected separately in order to optimise the
recovery and recycling of the materials they contain
and reduce the impact on human health and the
environment. The crossed out wheeled bin
symbol on the product reminds you of your
obligation, that when you dispose of the appliance
it must be separately collected.
Consumers should contact their local authority or
retailer for information concerning the correct
disposal of their old appliance.
9
Maintenance and care
GB
Switching the appliance off
Disconnect your appliance from the electricity supply
before carrying out any work on it.
Cleaning the appliance
Do not use abrasive or corrosive detergents, stain
removers, anti-rust products, powder detergents or
sponges with abrasive surfaces: these may scratch
the surface.
Never use steam cleaners or pressure cleaners on
the appliance.
It is usually enough to wash the hob with a damp
sponge and dry it with absorbent kitchen roll.
The flame spreaders should be washed frequently
with hot water and detergent, taking care to
eliminate any scale.
In the hob equipped with automatic lighting, the
terminal part of the electronic instant lighting
devices should be cleaned frequently and the gas
outlet holes on the flame spreaders should be
checked to make sure they are free of any
obstructions.
Greasing the Taps
The taps may jam in time or they may become difficult
to turn. If so, the tap itself must be replaced.
This operation must be performed by a technician
authorised by the manufacturer.
Stainless steel may become marked if it comes into
contact with very hard water or harsh detergents
(containing phosphorous) for long periods of time.
After cleaning, it is advisable to rinse thoroughly
and dry. I
be dried.
t is also recommended that drops of water
10
Assistance
It may occur that the cooktop does not function or does not function properly. Before calling customer service for
assistance, lets see what can be done.
First of all, check to see that there are no interruptions in the gas and electrical supplies, and, in particular, that the
gas valves for the mains are open.
The burner does not light or the flame is not uniform around the burner.
Check to make sure that:
The gas holes on the burner are not clogged;
All of the movable parts that make up the burner are
There are no draughts around the cooking surface.
The flame does not stay lighted on the model with the safety device.
Check to make sure that:
You press the knob all the way in;
You keep the knob pressed in long enough to activate the safety device.
The gas holes are not clogged in the area corresponding to the safety device.
mounted correctly;
GB
The burner does not
Check to make sure that:
The gas holes are not clogged.
There are no draughts near the cooking surface.
The minimum has been adjusted correctly (see the section entitled, "Minimum Regulation").
The cookware is not stable.
Check to make sure that:
The bottom of the cook
The cookware is centered correctly on the burner .
The support grids have not been inverted.
If, despite all of these checks, the cooktop does not function properly and problem persists, call the nearest Merloni
Elettrodomestici Customer Service Centre, Communicating:
appliance model (Mod.)
serial number (S/N)
This information is found on the data plate located on the appliance and/or on the packaging.
Never call upon technicians not authorized by the manufacturer, and refuse to accept spare parts that are not
original.
remain on when set to "Low".
ware is perfectly flat.
11
GB
04/2008 - 195045863.02
XEROX BUSINESS SERVICES
12
Loading...
