INDESIT PAA 642 IX/I EE User Manual

PAA 642 IX/I EE

Українська

Інструкція по використанню

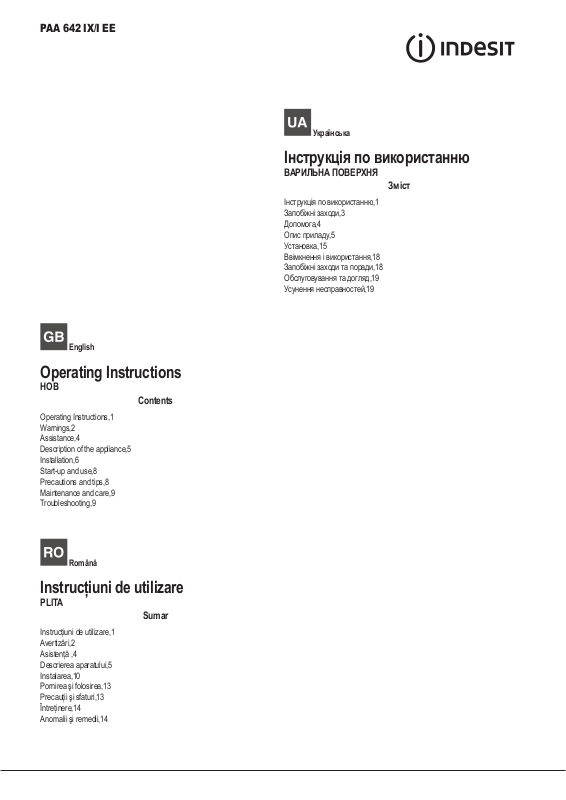

ВАРИЛЬНА ПОВЕРХНЯ

Зміст

Інструкція по використанню,1
Запобіжні заходи,3
Допомога,4
Опис приладу,5
Установка,15
Ввімкнення і використання,18
Запобіжні заходи та поради,18
Обслуговування та догляд,19
Усунення несправностей,19

English

Operating Instructions

HOB

Contents

Operating Instructions,1
Warnings,2
Assistance,4
Description of the appliance,5
Installation,6
Start-up and use,8
Precautions and tips,8
Maintenance and care,9
Troubleshooting,9

Română

Instrucţiuni de utilizare

PLITA

Sumar

Instrucţiuni de utilizare,1
Avertizări,2
Asistenţă ,4
Descrierea aparatului,5
Instalarea,10
Pornirea şi folosirea,13
Precauţii şi sfaturi,13
Întreţinere,14
Anomalii şi remedii,14

Warnings

Avertizări

WARNING: The appliance and its accessible parts
become hot during use. Care should be taken to
avoid touching heating elements. Children less than 8
years of age shall be kept away unless continuously
supervised. This appliance can be used by children
aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or
lack of experience and knowledge if they have been
given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards
involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made
by children without supervision.

WARNING: Unattended cooking on a hob with fat or
oil can be dangerous and may result in re. NEVER
try to extinguish a re with water, but switch off the
appliance and then cover ame e.g. with a lid or a
re blanket.

WARNING: Danger of re: do not store items on the
cooking surfaces.

Never use steam cleaners or pressure cleaners on
the appliance.

Remove any liquid from the lid before opening it. Do
not close the glass cover (if present) when the gas
burners or electric hotplates are still hot.

The appliance is not intended to be operated by
means of an external timer or separate remote
control system.

CAUTION: the use of inappropriate hob guards can
cause accidents.

ATENŢIE: Acest aparat şi părţile sale accesibile devin
foarte calde în timpul folosirii. Trebuie să ţi atenţi şi
să nu atingeţi elementele de încălzire. Îndepărtaţi
copiii sub 8 ani dacă nu sunt supravegheaţi continuu.
Acest aparat poate  utilizat de copiii de peste 8 ani
şi de persoane cu capacităţi zice, senzoriale sau
mentale reduse sau fără experienţă şi cunoştinţe
dacă se aă sub o supraveghere corespunzătoare
sau dacă au fost instruiţi cu privire la folosirea
aparatului în mod sigur şi dacă îşi dau seama de
pericolele corelate. Copiii nu trebuie să se joace cu
aparatul. Operaţiunile de curăţare şi de întreţinere nu
trebuie să e efectuate de copii fără supraveghere.

ATENŢIE: Lăsarea unui aragaz nesupravegheat cu
grăsimi şi uleiuri poate  periculoasă şi poate provoca
un incendiu. Nu trebuie NICIODATĂ să încercaţi
să stingeţi o acără/incendiu cu apă, ci trebuie să
stingeţi aparatul şi să acoperiţi acăra, de exemplu
cu un capac sau cu o pătură ignifugă.

ATENŢIE: Risc de incendiu: nu lăsaţi obiecte pe
suprafeţele de gătit.

Nu folosiţi niciodată aparate cu aburi sau sub
presiune pentru a curăţa aparatul.

Eliminaţi eventualele reziduuri de lichid de pe capac,
înainte de a-l deschide. Nu închideţi capacul din sticlă
(dacă este prezent) cu arzătoarele de gaz sau plita
electrică încă calde.

Aparatul nu trebuie pus în funcţiune prin intermediul
unui temporizator extern sau al unui sistem separat
de comandă la distanţă.

ATENŢIE: folosirea unor protecţii necorespunzătoare
ale plitei poate provoca accidente.

2

Запобіжні заходи

УВАГА: Під час роботи цей прилад, а також
його доступні частини нагріваються до високих
температур. Слід бути особливо обережними,
щоб не торкатися нагрівальних елементів. Діти
віком до 8 років мають знаходитися на небезпечній
відстані від приладу, якщо неможливо забезпечити
постійний контроль над ними. Дозволяється
користування цим приладом дітьми віком від 8
років, а також особами з обмеженими фізичними,
сенсорними або розумовими можливостями або
особами без належного досвіду і знань, якщо
вони перебувають під постійним контролем або
проінструктовані щодо правил з небезпечного
користування приладу і усвідомлюють ступені
ризику. Не дозволяйте дітям гратися з приладом.
Операції з очищення і догляду не повинні
виконуватися дітьми без належного контролю.

УВАГА: Небезпечно залишати без нагляду плити
з жиром або олією, тому що це може призвести
до пожежі. НІ В ЯКОМУ РАЗІ не слід намагатися
погасити полум’я/пожежу водою. Необхідно
вимкнути прилад і накрити полум’я, наприклад,
кришкою або вогнетривким покривалом.

УВАГА: Небезпека пожежі: не залишайте речі на
варильних поверхнях.

Забороняється використання апаратів для
очищення парою або високим тиском.

Витріть насухо всі наявні на кришці рідини, перш
ніж відкрити її. Не закривайте скляну кришку
(якщо вона наявна), якщо газові пальники або
електричні конфорки залишаються нагрітими.

Не передбачено увімкнення приладу за допомогою
зовнішнього таймеру або окремої системи
дистанційного керування.

УВАГА: використання невідповідних захисних
пристроїв варильної поверхні може призвести до
нещасних випадків.

3

Assistance

Communicating:

• Type of trouble

• Appliance model (Mod.)

• Serial number (S/N)
This information is found on the data plate located on the appliance and/or
on the packaging.

Asistenţă

Comunicaţi:

• tipul de anomalie;

• modelul maşinii (Mod.);

• numărul de serie (S/N).
Aceste informaţii se găsesc pe plăcuţa de caracteristici din frigider, în partea
de jos, în stânga.

Допомога

Повідомити:

• тип несправності;

• модель приладу (Mod.)

• cерійний номер (S/N)
Ці дані знаходяться на табличці з даними на самому приладі.

4

Description of the appliance

1

2

6

Опис приладу

Overall view

1. Support Grid for COOKWARE

2. GAS BURNERS

3. Control Knobs for GAS BURNERS

4. GAS BURNERS button

5. Ignition for GAS BURNERS

6. SAFETY DEVICES

• GAS BURNERS differ in size and power. Use the diameter of the cookware
to choose the most appropriate burner to cook with.

• Control Knobs for GAS BURNERS for ame adjustment.

• GAS BURNER IGNITION enables a specic burner to be lit automatically.

• SAFETY DEVICE stops the gas flow if the flame is accidentally
extinguished.

Descrierea aparatului

Vedere de ansamblu

1. Grătare de sprijin pentru RECIPIENTELE DE COACERE

2. ARZĂTOARE PE GAZ

3. Selectoare de comandă ale ARZĂTOARELOR PE GAZ

4. Buton de aprindere al ARZĂTOARELOR PE GAZ

5. Dispozitiv de aprindere al ARZĂTOARELOR PE GAZ

6. DISPOZITIV DE SIGURANŢĂ

Загальний вигляд

1. Підтримуюча Решітка для ПОСУДУ

2. ГАЗОВІ ПАЛЬНИКИ

3. Ручки управління ГАЗОВИХ ПАЛЬНИКІВ

4. Кнопкa запалювання ГАЗОВИХ ПАЛЬНИКІВ

5. Запалювання для ГАЗОВИХ ПАЛЬНИКІВ

6. ПРИСТРОЇ БЕЗПЕКИ

• ГАЗОВІ ПАЛЬНИКИ відрізняються за розмірами тапотужністю.

Використовуйте для приготування їжі посудз діаметром у відповідності
до розміру найбільшпідходящого пальника.

•   ГАЗОВИMИ ПАЛЬНИКAMИ  

   полум’я

• Запалювання для ГАЗОВИХ ПАЛЬНИКІВ дозволяють, привключенні,

запалювати конкретні пальники автоматично.

• ПРИСТРІЙ БЕЗПЕКИ зупиняє потік газу, якщо полум’явипадково

гасне.

• ARZĂTOARELE PE GAZ sunt de diferite dimensiunişi puteri. Alegeţi-le
pe cele adecvate diametruluirecipientului utilizat.

• Selectoarele de comandă ale ARZĂTOARELOR PEGAZ şi sunt folosite
pentrureglarea ăcării.

• Dispozitivul de aprindere al ARZĂTOARELOR PEGAZ permite aprinderea
automată a arzătoaruluiprestabilit.

• DISPOZITIVUL DE SIGURANŢĂ este utilizat încazul stingerii accidentale
a ăcării, împiedicândscurgerile de gaz.

3

4

5

5

Installation

750mm

100mm

400mm

400mm

50mm

Top 20 mm

Top 30-60 mm

L

Earth
(yellow/green)

N

GB

! Before operating your new appliance please read this instruction booklet
carefully. It contains important information for safe use, installation and care
of the appliance.

distance of 150 mm below the upper surface of the work surface
but, in no case less than 20 mm from the bottom of the hob. In the
case that you intend to install an oven beneath the hob, make sure
that it is manufactured by Whirlpool and equipped with a cooling
system. The manufacturer declines all liability if another brand oven
is installed beneath the hob.

! Please keep these operating instructions for future reference. Pass them on
to possible new owners of the appliance.

! After unpacking the hob, make sure that it has not been damaged during
transport. In the event of problems, contact the dealer or your nearest After­sales Service.

! Keep packaging material out of the reach of children . Disposed it according
to the rules for separate waste collection (see Precautions and tips).

! The appliance must be installed by a qualied professional according to the
instructions provided. Incorrect installation may cause harm to people and
animals or may damage property.

! The appliance must be disconnected from the power supply before carrying
out any installation work.

! These instructions are only valid for the countries whose symbols is given
on the data plate (under the hob).

• Before installation, make sure that:

- The local gas delivery conditions (nature and pressure) are

compatible with the settings of the hob (see the rating plate and
injector table).

- The outer surfaces of the furniture or appliances adjacent to the hob are

heat resistant according to local regulations.

- This appliance is not connected to a fume exhaust device. It shall be

installed in accordance with current installation regulations. Particular
attention shall be given to the relevant requirements regarding ventilation.

- Combustion products are discharged outdoors through specic hoods or

wall and/or window mounted electrical fans.

• Intensive and prolonged use of the appliance may necessitate

supplemental ventilation, e.g. opening a window or increasing the power
of the air intake system (if present).

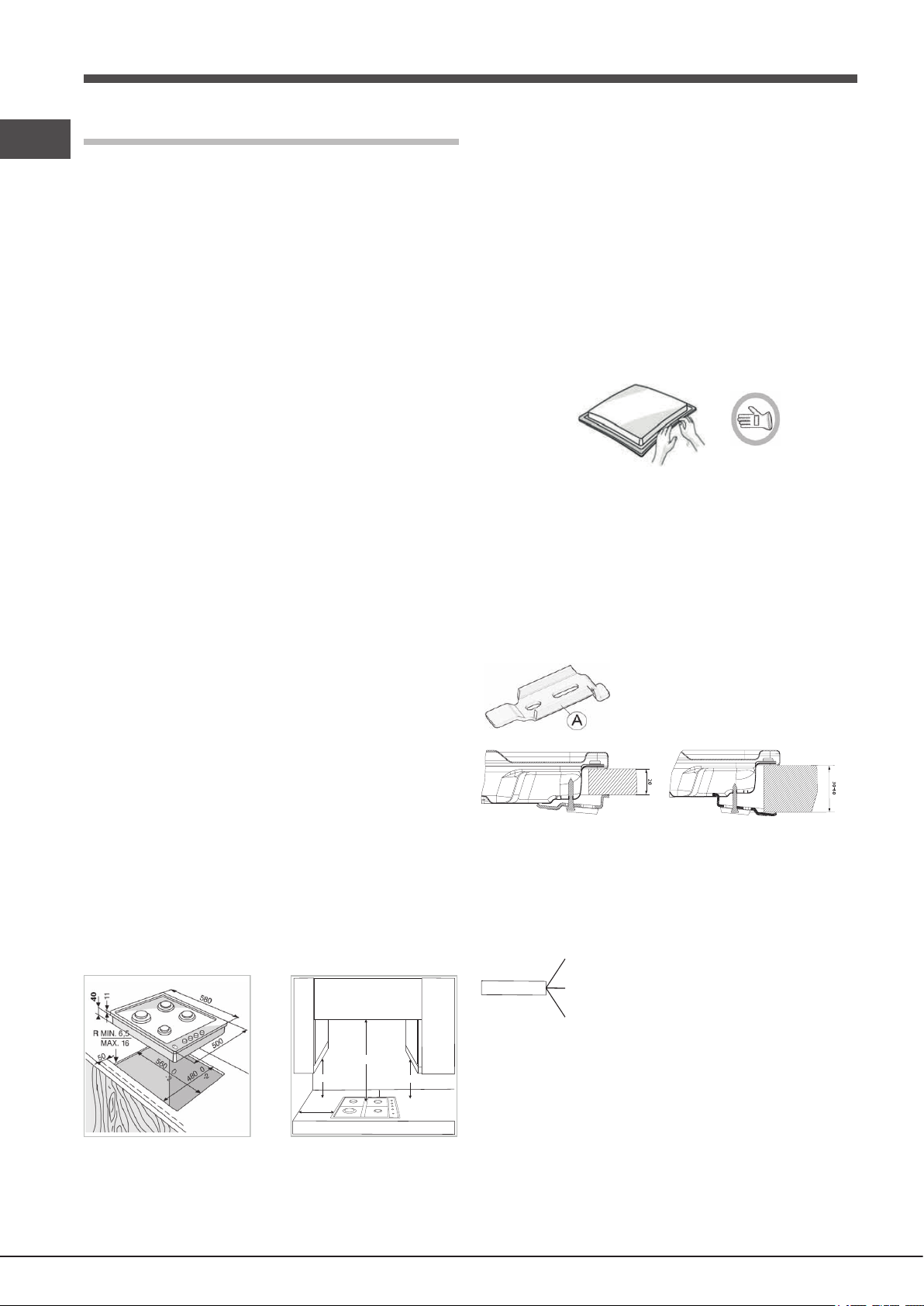

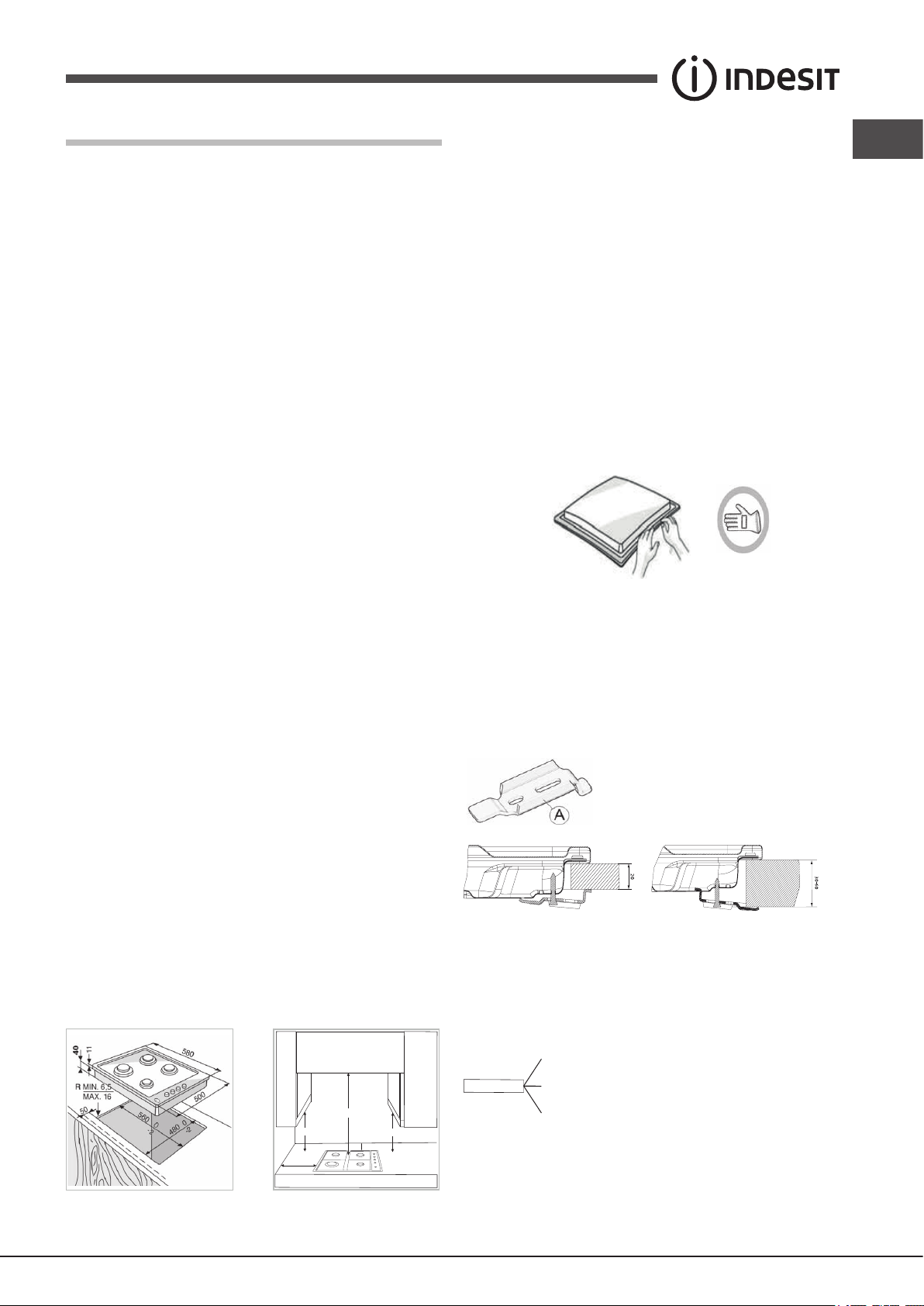

Fitting the appliance

The following precautions must be taken when installing the hob:

• After having cleaned the perimeter surface, apply the supplied gasket to

the hob as shown in the gure.

Position the hob in the worktop opening made respecting the dimensions
indicated in the Instruction.

NOTE: the power supply cable must be long enough to permit its upward
extraction.

To secure the hob, use the brackets (A) provided with it. Fit the brackets into the
relevant bores shown by the arrow and fasten them by means of their screws
in accordance with the thickness of the worktop (see the following gures).

Electrical connection

! This operation must be performed by a qualied technician.

Hobs equipped with a three-pole power supply cable are designed to operate
with alternating current at the voltage and frequency indicated on the data
plate (this is located on the lower part of the appliance).

The earth wire in the cable has a green and
yellow cover. If the appliance is to be installed
above a built-in electric oven, the electrical
connection of the hob and the oven must be
carried out separately, both for electrical safety

purposes and to make extracting the oven easier.

NOTE: In case of installation of a hood above the hob, please refer to the
hood instructions for the correct distance.

• This product can be embedded in a worktop 20 to 60 mm thick.

• If there is no oven beneath the hob, insert a separator panel that has a

surface at least equal to the opening in the work surface. This panel,
that has to close completely the cutout in order to avoid any contact
with the bottom part of the hob, must be positioned at a maximum

6

Connecting the supply cable to the mains

Install a standardised plug corresponding to the load indicated on the data
plate.
The appliance must be directly connected to the mains using an omnipolar
circuit-breaker with a minimum contact opening of 3 mm installed between
the appliance and the mains.
The circuit-breaker must be suitable for the charge indicated and must comply
with current electrical regulations (the earthing wire must not be interrupted
by the circuit-breaker). The supply cable must not come into contact with
surfaces with temperatures higher than 50°C.

! The installer must ensure that the correct electrical connection has been
made and that it is compliant with safety regulations.
