DAILY REFERENCE
WWW
GUIDE
EN
THANK YOU FOR PURCHASING A INDESIT
PRODUCT
To receive more comprehensive help and
support, please register your product at
http://www.indesit.com/register/indesit.html
Before using the appliance carefully read the Health and Safety guide.

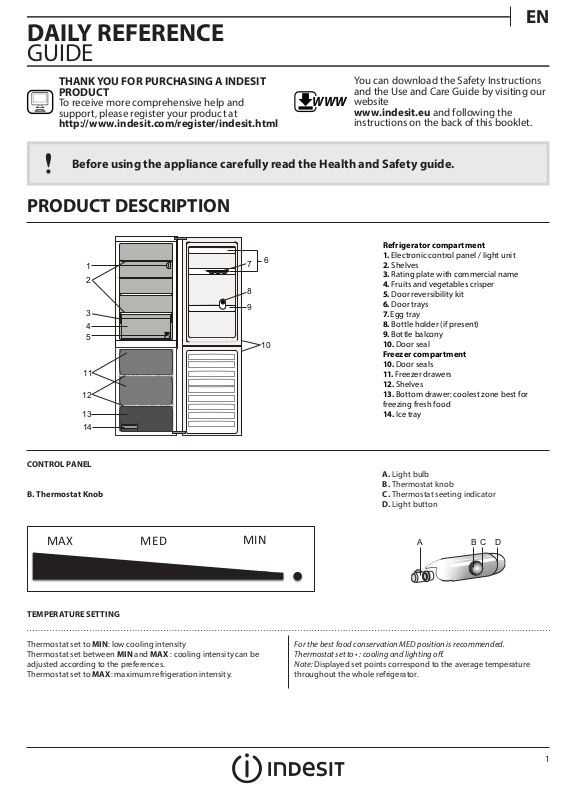

PRODUCT DESCRIPTION
1
2
3
4
5
11
12
13
14
You can download the Safety Instructions
and the Use and Care Guide by visiting our
website
www.indesit.eu and following the
instructions on the back of this booklet.
Refrigerator compartment
6
7
8
9
10
1. Electronic control panel / light unit
2. Shelves
3. Rating plate with commercial name
4. Fruits and vegetables crisper
5. Door reversibility kit
6. Door trays
7. Egg tray
8. Bottle holder (if present)
9. Bottle balcony
10. Door seal
Freezer compartment
10. Door seals
11. Freezer drawers
12. Shelves
13. Bottom drawer: coolest zone best for
freezing fresh food
14. Ice tray
CONTROL PANEL
B. Thermostat Knob
MAX
TEMPERATURE SETTING
Thermostat set to MIN: low cooling intensity
Thermostat set between MIN and MAX : cooling intensity can be
adjusted according to the preferences.
Thermostat set to MAX: maximum refrigeration intensity.
MED
-
MIN
A. Light bulb
B. Thermostat knob
C. Thermostat seeting indicator
D. Light button
A
For the best food conservation MED position is recommended.
Thermostat set to • : cooling and lighting o.
Note: Displayed set points correspond to the average temperature
throughout the whole refrigerator.
BC
D
1
ACCESSORIES
EG G TRAY BOTTLE HOLDER ICE TRAY
FIRST TIME USE
HOW TO START THE APPLIANCE
After plugging the appliance to the mains, turn the thermostat knob to
switch on the appliance: cooling and light will switch on; set the knob
on the desired power (see: “Control panel”, at page1).
REFRIGERATOR LIGHT
To remove the light bulb turn anticlockwise as shown in the picture:
Check the bulb. If necessary unscrew the broken bulb and replace it
with a LED bulb of the same type available only at our After-sales
Service Centers or authorized dealers.
The refrigerator compartment light switches on when the refrigerator
door is opened.
SOME OF THE FUNCTIONAL SOUNDS
YOU MIGHT HEAR
A hissing sound when switching on the
appliance for the rst time or after a long
pause.
A gurgling sound when refrigerant uid
enters into the pipes.
After starting the appliance, wait at least 4-6 hours before placing food
into the fridge and into the freezer compartment.
BRRR sound is from the compressor running.
Buzzing sound when water valve or fan start
working.
2
A cracking sound when compressor starts. The CLICK is from the thermostat which
adjusts how often the compressor is running.
TROUBLESHOOTING GUIDE
Problem Possible Cause Solution
EN
THE APPLIANCE IS NOT WORKING There may be an appliance power supply
problem.
THERE IS WATER IN THE DEFROST PAN This is normal in hot, damp weather. The pan
can even be half full.
THE EDGES OF THE APPLIANCE CABINET,
WHICH COME IN CONTACT WITH THE DOOR
SEAL, ARE WARM TO THE TOUCH
THE LIGHT DOES NOT WORK The light may need replacing. › Make sure if the protection devices and fuses
THE MOTOR SEEMS TO RUN TOO MUCH Motor running time depends on dierent
This is not a defect.
This is normal in hot weather and when the
compressor is running.
The appliance may be in On/Stand-by model › Check if the power cable is plugged into a
things: number of door openings, amount of
food stored, temperature of the room, setting
of the temperature controls.
› Check if power cable plugged into a live
socket with the proper voltage.
› Check if the protection devices and fuses of
the electrical system in your home
› Make sure the appliance is level so that the
water does not overow.
of the electrical system in your home work
well.
live socket with the proper voltage
› In case the LEDs are broken the user must
call the Service for exchange of the same type
available only at our After-sales Service
Centers or authorized dealers.
› Make sure that the appliance controls are
correctly set.
› Check if there is not a large amount of food
been added to the appliance.
› Check that the door is not opened too often.
› Check that the door close properly.
THE APPLIANCE TEMPERATURE IS TOO
HIGH
THE DOORS DO NOT OPEN AND CLOSE
PROPERLY
There could be various causes (see
“Solutions”)
There could be various causes (see
“Solutions”)
› Make sure that the condenser (back the
appliance) is free of dust and u.
› Make sure that the door properly closed.
› Make sure that the door seals properly tted.
› On hot days or if the room is warm, the motor
naturally runs longer.
› If the appliance door has been left open for a
while or if large amounts of food have been
stored, the motor will run longer in order to cool
down the interior of the appliance.
› Check that food packages are not blocking
the door.
› Check that the internal parts or automatic
ice maker are not out of position.
› Check that the door seals are not dirty or
sticky.
› Ensure the appliance is level.
3
HOW TO STORE FOOD
AND BEVERAGE
Legend
TEMPERATE ZONE
Suggested for the storage of tropical fruit,
cans, drinks, eggs, sauces, pickles, butter, jam
COOL ZONE
Suggested for storage of cheese, milk, daily
food, delicatessen, yogurt, cold cuts, desserts
FRUIT & VEGETABLE DRAWER
NORMAL FREEZER DRAWERS
FREEZING ZONE DRAWER
(MAX COOL ZONE) Suggested to freeze fresh/
cooked food.
FRIDGE COMPARTMENT
Use recyclable plastic, metal, aluminum and
glass containers and cling lm to wrap foods.
Always use closed containers for liquids and
for food that may give o or be tainted by
odor or avor transfer or cover them.
If you have a little quantity of food to store in
the refrigerator, we recommend to use the
shelves above the crisper for fruits and
vegetables since this is the coolest area of the
compartment.
Foods which give o a large amount ethylene
gas and those that are sensitive to this gas,
such as fruit, vegetables and salad, should
always be separated or wrapped so as not to
reduce the storage life; for example do not
store tomatoes together with kiwi fruits or
cabbage.
To avoid bottles falling over, you can use the
bottle holder (available on selected models).
Do not store food too close together to
enable sucient air circulation.
PRODUCT FICHE
WWW
The product che with energy data of this appliance can
be downloaded from Indesit Website
www.indesit.eu
HOW TO OBTAIN THE USE AND CARE GUIDE
WWW
>
our website www.indesit.eu (you can use this QR
code), specifying the product’s commercial code.
> Alternatively, contact our Client After-sales
Service
Download the Use and Care Guide from
Note: The Grey tone of the legend doesn’t
match with the color of drawers
FREEZER COMPARTMENT
The freezer is the ideal storage location for
store frozen food, make ice cubes and freeze
fresh food in the freezer compartment.
The maximum number of kilograms of fresh
food that can be frozen within a 24-hour
period is indicated on the rating plate (…
kg/24h).
If you have a little quantity of food to store in
the freezer, we recommend to use the coldest
areas of your freezer compartment,
corresponding to the bottom area.
CONTACTING OUR AFTER‑SALES SERVICE
You can nd our contact details in the warranty
manual. When contacting our Client After-sales
Service, please state the codes provided on your
product’s identication plate.
011
400010847717
Printed in Italy
4
