Page 1
Free Standing Electric Cooker
Instructions for installation and use
KD6E35
Page 2
Contents
Introduction 3
Installation 4
Safety Information 6
Features 8
Control Panel 9
Clock/Minute Minder Operation 10
Temperature Conversion Chart 12
Sealed Hob 13
Grill Pan and Handle 15
Grill 16
Guide to Grilling 17
Top Oven Cookery Notes 18
Main Oven Cookery Notes 19
Oven Temperature charts 20
Care and Cleaning 22
Cooking Results Not Satisfactory? 26
Something Wrong With Your Cooker? 27
If it Still Won’t Work... 31
Key Contacts Back Cover
You must read these instructions prior to using your appliance and
retain them for future use.
2
Page 3
Introduction
Your new appliance is guaranteed* and will give lasting service. This guarantee is only applicable
if the appliance has been installed in accordance with the installation instructions detailed in
this booklet.
To help make best use of your cooking equipment,please read this booklet carefully.
The cooker is designed specifically for domestic use and responsibility will not be accepted for
use in any other installation.
When the cooker is first used an odour may be emitted,
When first using the cooker ensure that the room is well ventilated (e.g. open a window or use
an extractor fan) and that persons who may be sensitive to the odour avoid any fumes.
It is suggested that any pets be removed from the room until the smell has ceased. This odour is
due to temporary finish on oven liners and elements and also any moisture absorbed by the
insulation.
* The guarantee is subject to the provisions that the appliance:
(a) Has been used solely in accordance with the Users Instruction Book.
(b) Has been properly connected to a suitable supply voltage as stated on the
rating plate attached to this equipment.
(c) Has not been subjected to misuse or accident or been modified or repaired
by any person other than the authorised employee or agent.
(d) Has been correctly installed.
this will cease after a period of use
This appliance conforms to the following EEC Directives:
Electromagnetic Compatibility Low Voltage Equipment
89/336/EEC 73/23/EEC
92/31/EEC 93/68/EEC
93/68/EEC
3
Page 4
Installation
WARNING – THIS APPLIANCE MUST BE EARTHED.
MAINS CONNECTION
UK Household:
Your cooker should have been checked to ensure
volt
age,
this is stated on the rating plate,which is situated
and the serial number are located on the front of the cooker, as shown on the Features page.
The cooker must be connected by a competent person such as one who is a, NICEIC registered
contractor to a suitable double-pole control unit with a minimum rating of 32A and a minimum
contact clearance of 3mm (applicable to newer properties, older properties where a 30A double
pole control unit and a minimum contact clearance of 3mm is acceptable).
The double pole control unit should be fitted adjacent to the cooker, in accordance with IEE
regulations.The control unit must be within 2 metres of but not directly above the appliance and
should be easily accessible in the event of an emergency.
The power supply cable should conform to B.S.6004 with a conductor size of 6mm2, minimum.
Access to the mains terminals is gained by removing the rear access cover.The mains cable must
pass through the cable clamp adjacent to the terminal block. Sufficient cable should be used to
allow the cooker to be pulled out for servicing.
Ensure that the mains cable is routed away from any brackets affixed to the rear panel and
is not trapped to the rear wall when pushing the cooker into position between cabinets.
E
uropean 3 phase Household:
Your cooker can be converted to be suitable for 3 phase European households.
Note:The conversion and connection must be done in accordance with local and national
installation requirements.
that the voltage corresponds with your supply
on the outer rear panel.The model number
To install this appliance to 3 phase, the ‘L’link pins
of the MTB need to be removed.
- Remove the 2 link pins from L1/L2 and L2/L3
- Then wire the 3 phase L1, L2 and L3 into
terminals L1, L2 and L3,as shown in the
diagram.
4
THE ‘N’ LINK PIN TO
REMAIN ON THE MTB
Page 5
Installation
NOTE: The rear of your cooker needs to be a required distance away from the wall.The two buffers at
the rear of the Hob determine this distance.
Splashback
A splashback is also supplied, to prevent food from falling down the back of your cooker.
To fit:
- Remove the two buffers from the rear of the hob - retain to one side.
- Position the splashback, as shown below.
- Replace the two buffers to hold the splashback in position.
Siting the Cooker
The cooker is designed to fit between kitchen cabinets spaced 600mm apart. The space either
side need only be sufficient to allow withdrawal of the cooker for servicing and cleaning.It can
be used with cabinets one side or both as well as in an angled corner setting.It can also be used
freestanding.
Adjacent side walls which project above hob level,must not be nearer to the cooker than
150mm and should be
hood should not be nearer than 650mm.
Note:This appliance must NOT be fitted on a platform.
Moving the Cooker
Before moving your cooker, switch off at the cooker control unit,ensure that it is cool.
Open the grill door sufficiently to allow a comfortable grip on the underside front edge of the
oven roof,avoiding any grill elements.
Note:Take care in moving the cooker as it is heavy.Take care to ensure that any floor
covering is not damaged.
protected by heat resistant material.Any overhanging
surface or cooker
Levelling
Four feet are fitted which can be adjusted up or down to set the height (900mm - 930mm) and level
the cooker.
The feet can be simply screwed in or out to lower or raise the cooker.
After the correct height is achieved,lock the feet into position by tightening the locking nut using an
open ended spanner.
CAUTION: Some soft floor coverings may get damaged if the cooker is not moved carefully.
NOTE: Ensure oven shelves are level by using a spirit level on the rod shelves.
Radio Interference
This appliance conforms to EN 55014 regarding suppression of radio and television interference.
5
Page 6
Safety Information
When used properly your appliance is completely safe but as with any electrical product
PLEASE READ THE PRECAUTIONS BELOW BEFORE USING YOUR APPLIANCE.
there are certain precautions that must be observed.
Always
● Remove all packing from the appliance before switching on for the first time.
● Understand the controls prior to using the appliance.
● Keep children away from the appliance when cooking as the surfaces will get extremely hot
during and after use.
● Turn controls off when not in use.
● Stand back when opening an oven door to allow any build up of steam or heat to disperse.
●
Always use dry good quality oven gloves when removing items from the oven/grill.
● Always place pans centrally over the hotplate making sure handles are kept away from the
edge of the hob and cannot become heated by other hotplates or pans.
●
Always take care to avoid heat or steam burns when operating the controls.
● Always turn off the electricity supply at the wall switch and allow the appliance to cool before
cleaning (or changing an oven lamp if fitted).
●
Always make sure the shelves are in the correct position before switching on the oven or grill.
● Always keep the oven/grill door closed when the appliance is not in use.
● Always keep the appliance clean as a build up of grease or fat from cooking can cause a fire.
●
Always follow the basic principles of food handling and hygiene to prevent the possibility of
bacterial growth.
● Always keep ventilation slots clear of obstructions.
● Always refer servicing to a qualified appliance service engineer.
● Always take care when removing items from the grill compartment when the lower oven is in
use as the contents will be hot
● Always turn off the electricity supply to the appliance at the wall switch should any glass panel
(if fitted) crack or shatter and then DO NOT USE THE APPLIANCE until repaired.
● During use, the oven becomes hot. Care should be taken to avoid touching heating elements
inside the oven.
6
Page 7
Safety Information
Never
● Never stare at Halogen heating units
● Never leave children unsupervised where a cooking appliance is installed as all surfaces will be
hot during and after its use.
● Never allow anyone to sit or stand on any part of the appliance.
●
Never store items above the appliance that children may attempt to reach.
● Never leave anything on the hob surface when unattended and not in use.
● Never remove the oven shelves whilst the oven is hot.
● Never heat up unopened food containers as pressure can build up causing the container to
burst.
● Never store chemicals/food stuffs or pressurised containers in or on the appliance, or in
cabinets immediately above or next to the appliance.
● Never place flammable or plastic items on or near the hob.
● Never fill a deep fat frying pan more than 1/3 full of oil. Never use a lid.
DO NOT LEAVE DEEP FAT FRYING PANS UNATTENDED WHILE COOKING.
● Never use the appliance as a room heater.
● Never use the grill to warm plates.
● Never dry any items on either the hob or oven doors.
● Never install the appliance next to curtains or other soft furnishings.
● Never operate the grill with the grill door closed as this will cause the appliance to over heat.
● Never use ‘steam cleaners’.
SAFETY ADVICE IN CASE OF A CHIP-PAN FIRE
In the event of a chip pan fire or any other pan fire.
1. TURN OFF THE COOKER APPLIANCE AT THE WALL SWITCH.
2. COVER THE PAN WITH A FIRE BLANKET OR DAMP CLOTH, this will smother the flames and
extinguish the fire.
3.
LEAVE THE PAN TO COOL FOR AT LEAST 60 MINUTES BEFORE
caused by picking up a hot pan and rushing outside with it.
MOVING IT. Injuries are often
NEVER USE A FIRE EXTINGUISHER TO PUT OUT A PAN FIREas the force
of the extinguisher is likely to tip the pan over.
Never use water to extinguish oil or fat fires.
7
Page 8
Features
2000W Red Spot
Clock/Minute Minder
Conventional
Grill
Grill pan with
fixed/detachable
handle
Top oven
wirework
shelf supports
2000W Red Spot
2000W Sealed
Splash Back
1500W Red Spot
Control panel
Grill pan food support
Top oven/grill
rod shelf
Main oven
wirework
shelf supports
Model number
and Serial number
label
Inner glass panel
Fan blade
Main oven
rod shelves
8
Page 9
Control Panel
Main oven
neon
Top oven
neon
❍❍
Main
oven
Operating
controls when the
grill is in use
Cooling fan
Oven light
Hob ON
neon
❍
Clock / Minute Minder
Top
oven
In common with all cookers having controls sited above the grill
compartment, care must be taken when setting the controls, due
to the hot air expelled from the grill compartment.
Note: After use, it is advisable to check that all cooker controls have been
switched Off.
A gentle flow of air will be blown below the control panel when the grill is
in use.When the oven/s are in use the cooling fan will operate after a short
period of time and may run on, after all controls are switched off.
The oven light will illuminate when the main oven thermostat is operated.
The light will remain on during the cook period.
❍❍❍
Grill
Left
front
Left
rear
Right
rear
❍
Right
front
Hob ON Neon
This light will be on when hob controls are operated and will go out when
all the hob controls have been switched off.
9
Page 10
Clock/Minute Minder
CLOCK OPERATION
To set the Time of Day:
00.00
+
12.00
+
Step 1 Check that the electricity
-
Step 2 When switched on, the
Step 3 Press the “ “ button
-
THE TIME OF DAY IS NOW SET.
supply to the cooker is
turned on.
display will show 0.00
flashing intermittently.
and release...
then press either the ‘+’
or the ‘-’ button to set the
correct time of day.
Note: If the electricity
supply has been off,the
‘+’ button must be
pressed once before the
‘-’ button, if it is required
to reduce the time of
day.
10
Page 11
Clock/Minute Minder
MINUTE MINDER OPERATION
To set the Minute Minder:
Bleeper sound
00.20
Step 1 Press the ‘+’ button until
-
+
13.23
-
+
The minute minder can be cancelled before the bleeper sounds by pressing
the ‘+’ and ‘-’ buttons together until 0.00 appears in the display window.
To adjust the pitch of the bleeper, press the ‘-’ button while the bleeper is
sounding. For example:
(a) Press the ‘+’button and set 10 seconds.
(b) When the bleeper sounds, press and release the ‘-’button,until the
preferred pitch is set.
(c) Press and release the ‘+’ button to cancel the bleeper.
the required time is set.
A “Bell” symbol will light up.
Each press adjusts the
time in 10 second intervals,
up to a maximum of
99 minutes 50 seconds.
It can also be adjusted by
pressing the ‘-’ button.
At the end of the set
time, a bleeping sound
will be heard and the
“Bell” will disappear.
The bleeper can be
cancelled by pressing the
‘+’ button.
NOTE:
If the sound of the bleeper appears to be different,it is most likely that the
pitch of the bleeper has inadvertently adjusted.
11
Page 12
Temperature Conversion Chart
Gas
Mark
1
2
/
1
2
3
4
5
6
7
8
9
˚F
Conventional
Oven
Main
250 100
275
300
325
350
375
400
425
450
475
120
140
150
160
180
190
200
220
–
–
Main
Fan
Oven
120
130
140
160
170
180
200
210
220
Temperatures
Condensation
12
The recommended temperatures given are for conventional and fan
ovens. When using a fan oven it will be necessary to reduce the cooking
time by 10 minutes per hour and lower the temperature by up to 20˚C.
Also, in the majority of cases, it is not necessary to pre-heat the oven.
However, pre-heating is recommended when cooking items such as
Yorkshire puddings, whisked sponges and bread.Your experience with the
cooker will enable you to select the cooking time and temperature best
suited for your recipe.
Condensation may become evident on the inner door and water may drip
through the vent.This is normal when heat and moisture are present and
may be the result of any of the following:
1. Kitchen temperature and ventilation.
2. The moisture content of the food:
eg. meat, roast potatoes, Yorkshire pudding,roasting meat, etc.
3. The quantity of the food being cooked at any one time.
Page 13
Sealed Hob
USE OF HOTPLATES
Under no circumstances should the hob be used with aluminium foil in contact with the hob
surface.
Turn the control to 6 for fast cooking. To cook more slowly or simmer, turn the control to a lower
setting according to the size of the saucepan and the amount of liquid.The small Hotplate is specially
for smaller pans, low temperature cooking and simmering.
Do Not leave a hotplate switched on without a pan as this wastes energy and may shorten the life of
the hotplate.
Ratings of Cooking Zones
Front Left Front Right Back Left Back Right
2000W 1500W 2000W 2000W
Red Spot Red Spot Red Spot Sealed
SAFETY REQUIREMENTS FOR DEEP FAT FRYING
1. Use a deep pan, large enough to completely cover the appropriate heating area.
2. Never fill the pan more than one-third full of oil.
3. Never leave oil or fat unattended during the heating or cooking period.
4. Never try to fry too much food at a time, especially frozen food.This only lowers the
temperature of the oil or fat too much,resulting in greasy food.
5. Always dry food thoroughly before frying,and lower it slowly into the hot oil or fat.
Frozen foods, in particular,will cause frothing and spitting,if added to quickly.
6. Never heat fat, or fry, with a lid on the pan.
7. Keep the outside of the pan clean and free from streaks of oil or fat.
13
Page 14
Sealed Hob General Information

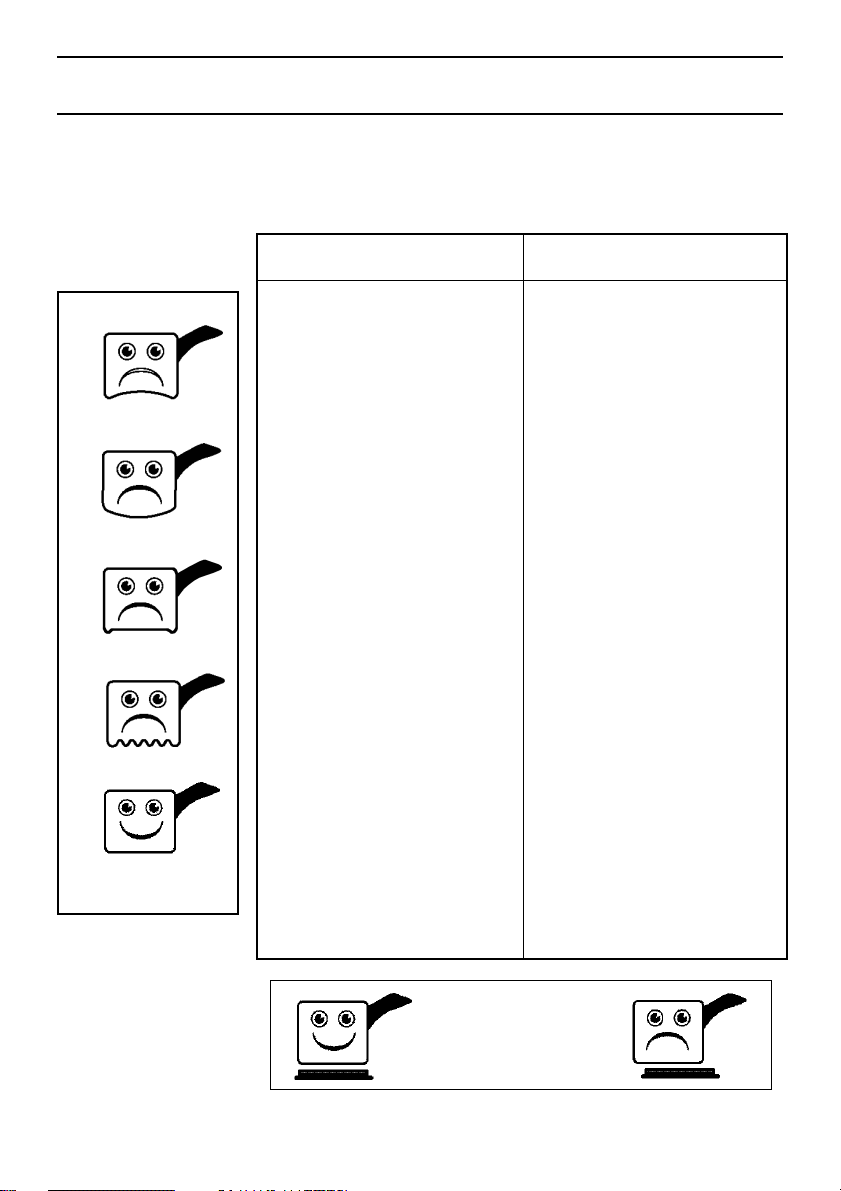

CHOICE OF UTENSILS
Every Electric Hob deserves the right choice of utensils. We recommend for optimum
performance the use of good quality utensils.
PANS SHOULD NOT
Be concave
(bowed in)
Be convex
(bowed out)
Be rimmed
Be deeply ridged
But essentially Flat
Always ✓
● Use good quality flat-based
cookware on all electric heat
sources.
● Ensure pans have clean, dry
bases before use.
● Ensure pans match size of
heating area.
● Remember good quality pans
retain heat well, so generally
only a low or medium heat is
necessary.
● Ensure pan handles are
positioned safely and away
from heat sources.
● Lift pans, do not drag.
● Use pan lids except when
frying.
● Deal with spillage
immediately but with care.
Never ✗
● Use gauze, metal pan
diffusers, asbestos mats and
stands e.g.Wok stands –
they can cause overheating.
● Use utensils with skirts or
rims e.g.buckets and some
kettles.
● Use badly dented or
distorted pans.
● Leave an element switched
on when not cooking.
● Cook food directly on the
hotplate.
● Drag or slide utensils across
the hob surface.
● Place large preserving pans
or fish kettles across two
hotplates.
● Place plastic vessels or
utensils on a hot hob.
● Use the hob as an area for
storage
14
Always place pans
centrally on the
hotplate
Page 15
Grill Pan and Handle
Grill pan handle The grill pan handle is detachable from the pan, to facilitate cleaning and
storage.
The handle can be either detachable from or fixed to the pan.
For a fixed handle remove the screw and washers from the grill pan
bracket, tilt the handle over the recess adjacent to the bracket (A), slide it
towards the centre of the pan (B) and let the handle locate over the
bracket (C). Replace screw and washers and ensure that they are fully
tightened up.For a detachable handle remove screw and washers from
the grill pan and keep safe.
Please note that if a fixed handle is required,the grill pan cannot be kept
in the Main Fan Oven compartment with the door closed but may be
stored in the Top compartment when the appliance is not in use.
Warning: Ensure when using grill pan handle in the detachable
manner it is centralised and secure.
AB
C
15
Page 16
Grill
Setting the Grill
Door in
grilling
position
CAUTION - ACCESSIBLE PARTS MAY BECOME HOT WHEN THE
GRILL IS IN USE. CHILDREN SHOULD BE KEPT AWAY.
GRILLING SHOULD NEVER BE UNDERTAKEN WITH THE DOOR
CLOSED.
The grill control is designed to provide variable heat control of either
the twin grill elements on together or the single left hand grill
element only, depending upon which direction the control knob is
rotated.
- With the control rotated clockwise 1 through to 4 the twin elements
will come on together.
- With the control turned anti-clockwise 1 through to 4 and the single
left hand element will come on only.
The control is Off at O.
Note: The grill will not operate unless the top oven control is in
the OFF position.
Food which requires browning only should be placed under the hot
grill, directly on the shelf on the first or second position from the
bottom of the oven, according to the depth of the dish.
Open the Grill door to the grilling position. i.e. fully.
With the grill door in the grilling position, heating the grill is achieved
by turning the control clockwise to the desired ‘grill setting’ on the
control panel.
Never:
line the grill pan with aluminium foil.
Note:
Preheat the grill at maximum setting for approximately 5 minutes.
The grill pan is placed on the shelf or grill pan support/runner and
should be correctly positioned under the grill element. Leave the
control at maximum for toast, sealing and fast cooking of foods.
For thicker foods requiring longer cooking,turn the switch to a lower
setting after the initial sealing on both sides at maximum. The thicker
the food the lower the control should be set.
16
Page 17
Guide To Grilling
Pre - heat the grill for 5 minutes on maximum control setting before grilling
GRILL CHART
Food
Toasting of Bread
products
Small cuts of meat,
sausages, bacon,etc.
Chops etc.
Gammon steaks
Chicken pieces
Fish: fingers
Whole
Fillets
Fish in breadcrumbs
Pre - Cooked potato
products
Pizzas
Grill Setting
4 / Max
4 / Max for 4 mins.
reduce to lower
setting.
4 / Max for 6-8 mins.
reduce to lower
setting.
4 / Max
3 / 5
3 / 5
3 / 5
Approximate Cooking time
3 - 10 mins.
10 - 20 mins.
20 - 30 mins.
10 - 20 mins.Whole fish and fillets placed in the
base of the grill pan.
15 - 20 mins.
15 - 20 mins.
12 - 15 mins. in the base of the grill pan.
Browning of food
The settings in the above guide have been developed to cook food successfully without
4 / Max
excessive fat spitting and splashing.
8 - 10 mins. Dish placed directly on shelf.
17
Page 18
Top Oven Cookery Notes
The top oven should be used to cook small quantities of food. The oven
is designed so that the grill element operates at a reduced heat output,
this is combined with a heating element situated underneath the floor of
the oven.
To ensure even cooking of the food it is important that cooking utensils
are positioned correctly on the oven shelf so that the element is directly
above.
There are two cooking positions, the shelf placed on runner 1 or 2 (from
the base), do not use shelves upside down.
Food/utensils must not be placed directly on the oven floor.
There should always be at least 25mm (1in) between the top of the food
and the grill element.
Warning: Items stored in top oven will get hot when main oven is in use.
Operation
Cooking meat/
poultry
Top oven as
a warming
compartment
for plates
To heat the oven, turn the control knob clockwise.The top oven pilot
light will come on and remain on until the oven reaches the required
temperature. The pilot light will automatically go on and off during
cooking as the thermostat maintains the correct temperature.
Small joints of meat up to 1.5kg (3 lbs), or poultry, up to 3.6kg (8 lbs)
(60cm cookers) in weight can be roasted in a small meat pan in the top
oven. Larger joints of meat/poultry weighing more than 3.6kg (8 lbs)
(60cm cookers) should be roasted in the main oven.
Do not use the grill pan as a meat pan in the top oven as air
circulation will be seriously restricted.
Place the plates/dishes on the shelf,positioned on runner 1, turn top
oven control to 100˚C for 10-15 minutes.Never use grill control.
18
Page 19
Main Oven Cookery Notes
The oven is fitted with wirework shelf supports and two rod shelves.
To heat the oven turn the knob clockwise, selecting the require
temperature between 80°C (176°F) and 230°C (450°F) as recommended in
the temperature chart. The pilot light will immediately come on and
remain on until the oven reaches the required temperature. This light will
then automatically go off and on during cooking as the oven thermostat
maintains the correct temperature.
It should be noted that at the end of the cooking period there may be a
momentary puff of steam when the oven door is opened. This will
disperse in a few seconds and is a perfectly normal characteristic of an
oven with a good door seal.
Since a circulaire fan oven heats up more quickly, and generally cooks food
at a lower temperature than a conventional oven, pre-heating is often
unnecessary.However, foods such as bread, scones,Yorkshire pudding, do
benefit from being placed in a pre-heated oven.
The ‘oven temperature charts’ are a guide only, giving approximate
cooking temperatures and times.To suit personal taste and requirements,
it may be necessary to increase or decrease temperatures by 10°C.
Unless otherwise indicated in the charts food should be placed in a cold
oven, i.e. without pre-heating.If food is placed in an already hot oven, the
suggested cooking time should be reduced, depending on the type and
quantity of food being cooked.
Oven positions
Temperature
and time
Frozen meat
and poultry
Since the distribution of heat in the circulaire fan oven is very even, most
foods will cook satisfactorily on any shelf position, but the shelves should
be evenly spaced.
The top oven rod shelf can be used in the main oven when cooking large
quantities of food. Additional shelves can be purchased through your
oven supplier or our Parts Department (see Key Contacts, back page).
Food or utensils should Never be placed directly an the floor of the
oven for cooking.
Never use more than 3 shelves in the oven as air circulation will be
seriously restricted.To ensure oven circulation do not use meat pans larger
than 390 x 300mm (15”x12”) and baking trays no larger than 330 x 255mm
(13”x 10”), these should be positioned centrally on the oven shelf. Food
should not be placed directly on the floor of the oven.To avoid unnecessary
cleaning, rod shelves which are not in use, should be removed from the
oven.
When all three shelves are used to cook large quantities of food for home
freezing or parties, it may be necessary to increase the cooking times given in
the temperature charts by a few minutes, to allow for the loss of heat due to
extra time taken to load the oven, and the larger mass of food. Baking trays
should have an equal gap at either side of the oven.
Joints of meat and whole birds should be defrosted slowly, preferably in a
domestic refrigerator (allowing 5-6 hours per 450g (1 lb), or at room
temperature (allowing 2-3 hours per 450g (1 lb).
19
Page 20
Time (approx.)
25 mins per 450g
25 mins per 450g
(1lb) + 25 mins extra
(1lb) + 20 mins extra
20-25 mins per 450g
(1lb) + 25 mins extra
(1lb) + 25 mins extra
25-30 mins per 450g
(1lb) + 20 mins extra
18-20 mins per 450g
12 mins per 450g (1lb)
13-15 mins per 450g (1lb)
e.g.10kg (22lb) = 264 mins
e.g.5kg (11lb) = 143-165 mins
- 2 hrs
2
/
1
1
˚C
160/180
160/180
160/180
160/170
160/180
150/160
150
140-150
Temperature
No
Beef
Fan Oven Cooking
Pre-
heat
Meat
Oven
Position in
(1lb)
Oven Temperature Charts – Meat
Time (approx.)
+ 35 mins over.
35-40 mins per 450g
35 mins per 450g (1lb)
No
No
Lamb
Pork
No
Veal
from
Runner 1
bottom of
Chicken/
oven.
+ 40 mins over
(1lb) + 40 mins over
40-45 mins per 450g
40 mins per 450g (1lb)
40 mins per 450g (1lb)
40-45 mins per 450g
No
Tur key
(1lb)
No
up to 4kg (8lb)
Tur key
up to 5.5kg (12lb)
over 5.5kg (12lb)
(1lb)
(1lb) + 25 mins over
25-30 mins per 450g
25-30 mins per 450g
1
No
Casserole Stews
hrs
2
/
2-2
20
Top Oven Cooking
Temperature
Pre-
˚C
heat
Meat
170/180
Yes
Beef/ Lamb
(slow roasting)
Beef/ Lamb
190/200
Yes
(foil covered)
Pork
170/180
Yes
(slow roasting)
Pork
190/200
170/180
Yes
Yes
Veal
(foil covered)
190/200
Yes
(slow roasting)
Veal
(foil covered)
170/180
Yes
Poultry/Game
(slow roasting)
190/200
Yes
Poultry/Game
(foil covered)
Casserole
150
Yes
Cooking
If using aluminium foil, never: 1. Allow foil to touch sides of oven. 2.Cover oven interior with foil. 3. Cover shelves with foil.
The most accurate method of testing the readiness of joints of meat or whole poultry is to insert a meat thermometer into the thickest part of
a joint, or the thickest part of poultry thighs, during the cooking period. The meat thermometer will indicate when the required internal temp
has been reached.
Medium: 70˚C Pork: 90˚C
Beef - Rare: 60˚C Lamb: 80˚C Poultry: 90˚C
Well Done: 75˚C Veal: 75˚C
Page 21
8-10
15-20
20-25
15-20
10-15
60-75
on size.
Depending
45-50
on use.
Depending
40-45
20-25
40-50
105-135
40-50
180-240
Time in mins.
Oven Temperature Charts – Baking
Fan Oven Cooking
Top Oven Cooking
˚C
Temperature
Pre-
heat
In Oven
Position
Time in mins.
˚C
Temperature
Pre-
heat
210/220
Yes
Runner 2 from
Runner 2 from
bottom of oven
10-15
210/220
Yes
170/180
160/170
Runner 2 from
bottom of oven
bottom of oven
20-25
20-30
180/190
170/180
Yes
Yes
170/190
Yes
Runner 2 from
bottom of oven
20-25
180/190
Yes
180/190
Yes
Runner 2 from
bottom of oven
10-15
200/210
Yes
Runner 2 from
190/200
130/140
140/150
Runner 2 from
bottom of oven
bottom of oven
bottom of oven
Runner 1 or 2 from
60-75 7 inch
Depending on size
Depending on recipe
150/160
Yes
190/200
140/150
Yes
Yes
190/200
Runner 2 from
bottom of oven
Depending on recipe
200/210
Yes
180/190
Yes
Runner 2 from
bottom of oven
30-40
190/200
Yes
190/200
Yes
Runner 2 from
bottom of oven
20-30
200/210
Yes
130/140
Runner 2 from
bottom of oven
90-120
140/150
Yes
140/150
Runner 2 from
bottom of oven
40-50
150/160
Yes
200/210
Yes
Runner 1 from
Runner 2 from
bottom of oven
30-45
200/210
Yes
80-90
bottom of oven
150-180
100
Yes
Baking
Food
Scones
Small Cakes
Sponge Sandwich
Swiss Roll
Semi-rich Fruit
Rich Fruit Cakes
Shortcrust Pastry
Puff Pastry
cakes
Yorkshire Pudding
Individual Yorkshire
Puddings
Milk Pudding
Baked Custard
Bread
Victoria Sandwich
Note: If soft margarine is used for cake making, temperatures recommended by the
manufacturers should be followed.Temperatures recommended in this chart refer to cakes
made with block margarines or butter only.
Meringues
21
Page 22
Care and Cleaning
TURN OFF THE MAIN SWITCH AND ENSURE THE COOKER IS COLD BEFORE CLEANING.
BEFORE SWITCHING ON AGAIN,ENSURE THAT ALL CONTROLS ARE IN THE OFF POSITION.
NEVER USE BIOLOGICAL WASHING POWDER, HARSH ABRASIVES,SCOURING PADS,
AEROSOL CLEANERS OR OVEN CHEMICAL CLEANERS OF ANY KIND,
UNLESS SPECIFIED BELOW.
Cleaning materials to avoid:
1. Plastic or nylon pads
2. Household abrasive powders and scourers.These may scratch the surface.
3. Oven chemical cleaners, aerosols and oven pads.
Caustic cleaners such as these will etch the surface and attack the metal frame.
4. Bath and sink cleaners may mark the surface.
ALWAYS SWITCH OFF AT THE MAINS SWITCH BEFORE CLEANING.
Electric sealed hotplates:
The cleaning of sealed hotplates should be done when they are cold,using a soap filled Brillo
pad, following the grain of the hotplate.This will ensure that any stubborn, burnt on spillages
are removed.Wipe over with a damp clean cloth, making sure that all the cleaner has been
removed.Finally,turn on hotplate to warm for a few minutes,then smear a little cooking oil to
provide a protective coating,or the restorative agent Homecare Four Hob, available from our
Parts Department or leading supermarkets. The bezels will mellow with use to a burnished gold
colour,a soap filled Brillo pad will help to keep them bright, care should be taken not to damage
the vitreous enamel hob surface.
Note:We DO NOT recommend the use of decorative covers over the hotplates as these can hold
condensation and cause corrosion.Accidental operation with a cover in place can cause intense
heat. Never place saucepan lids on the hotplates,as this may cause corrosion.
22
Page 23
Care and Cleaning
Oven shelf supports
The shelf supports are removable and dishwasher safe.
To remove hold the support at the front and pull away from the oven side,this can then be cleaned
in a sink or a dishwasher.
When removed it allows access to the oven side, which can be cleaned with warm soapy water.
To refit the support, insert the longer leg into the rear fixing hole and push in the front leg.
Decorative trims
It is advisable to clean the decorative trims regularly to prevent any build up of soiling which may
detract from the appearance of the cooker.The recommended method of cleaning is to wipe over the
trims with a soft cloth wrung out in warm water or mild non-abrasive cleaner. (If in doubt try the
cleaner on a small area of trim which is not noticeable in normal use).Then,after wiping with a cloth
wrung out in clear water,dry with a soft clean cloth.
Never use scouring pads or abrasive cleaners/powders which may scratch the surface.
Take care during cleaning not to damage or distort the door seals. Do not lift the door seal from the
oven chassis,if necessary remove the seal by carefully unhooking the corner clips.
Take care that the rating label edges are not lifted during cleaning, and furthermore that the
lettering is not blurred or removed.
Control Panel:
Wipe with a damp cloth and polish with a dry cloth.
Grill Door:
Wipe over the grill door decorative outer panel; with a cloth wrung out in warm soapy water, then
after wiping with a cloth wrung out in clear water,dry with a soft clean cloth.
Do not use scouring pads or abrasive powder which may scratch the surface.
Ensure that the glass panel (where fitted) is not subjected to any sharp mechanical blows.
23
Page 24
Care and Cleaning
Grill:
Remove the grill pan and the wire grid food support,it is best to wash these items immediately after
each use to prevent stains from being burnt on when used again.
Wipe out the Grill compartment, use a fine steel wool soap pad to remove stubborn stains from the
compartment.
Main oven:
1. Glass Door – open the oven door fully.The glass panel may now be cleaned.
Stubborn stains can be removed by using a fine steel wool soap pad.Do not use scouring pads,
or abrasive powder, which will scratch the glass. Ensure that the glass panel is not
subjected to any sharp mechanical blows.
For slight soiling the inner glass panel may be cleaned,while still warm. For removing stubborn
stains see ‘Cleaning the Doors’, next page.
2. Remove the rod shelves and meat pan.
Use a fine steel wool soap pad to remove stubborn stains from the rod shelves, meat pan and the
floor of the oven. Refer to the instructions on previous page for cleaning the shelf supports.
Do not use aerosol cleaners on this oven as they could adversely affect the fan motor unit, and
cannot be wiped off the fan blade.
Replacement oven lamp:
WARNING:To avoid electric shocks - please ensure that the electricity supply to the appliance is
switched off and the appliance is fully cold,before removing the lamp lens.
Open the oven door and remove the rod shelves.Using a suitable cloth to protect the fingers grip
the light glass dome,unscrew anti-clockwise and lift. Reach into the aperture and unscrew the lamp
anti-clockwise. Fit replacement lamp (25W 300°C rated SES), refit dome.
24
Page 25
Care and Cleaning
Take particular care not to damage the inner surface of the door inner glass that is coated
with a heat reflective layer. Do not use scouring pads,or abrasive powder, which will
scratch the glass.Ensure that the glass panel is not subjected to any sharp mechanical
blows.
Stubborn stains can be removed by using a fine steel wool pad.
panel may be cleaned,while still warm, without removing it from the door. After cleaning, rinse
and dry with a soft cloth.
CLEANING THE DOORS
SIDE OPENING DOORS
Cleaning the door glass is the same as the drop down doors,except take care to support the
weight of the inner glass when removing and refitting.
DROP DOWN DOORS
Remove the door inner glass as follows.
For slight soiling the inner glass
1. Open the door fully and unscrew the two screws securing the glass panel so that the
2. Turn the brackets so that the glass can be removed and cleaned at the sink (Fig. 1.)
3. The inside of the outer door glass can now be cleaned while still
securing brackets can be turned.There is no need to remove the screws completely.
Fig. 1.
fitted to the cooker.
NEVER OPERATE THE COOKER WITHOUT THE INNER DOOR GLASS IN
POSITION.
Refit the door inner glass as follows.
1. NOTE: The inner door glass has a special reflective coating on one side. Replace the
2. Turn the two securing brackets back to their
door inner glass so that the statement: “IMPORTANT THIS FACE TOWARDS THE
OVEN” can be read from the inner side of the door.
original position to retain the glass and tighten the
screws (Fig.2.)
Fig. 2.
25
Page 26
Cooking Results Not Satisfactory?
Problem
Grilling
Uneven cooking front
to back
Fat splattering Ensure that the grill is not set to too high a setting.
Baking (General)
Uneven rising of cakes
Sinking of cakes
Over/Under cooking
Fast/Slow cooking
Uneven cooking of
cakes
Oven does not cook
evenly
Top Oven Baking
Uneven cooking front
to back
Check
Ensure that the grill pan is positioned centrally below
the grill element.
Ensure that the oven shelves are level by using a spirit level on the
rod shelf and adjusting the wheels/feet.
The oven should be checked both left to right and front to back.
The following may cause cakes to sink:
1. Preheating of fan ovens.
2. Cooking at too high a temperature.
3. Using normal creaming method with soft margarine.
(use the all-in-one method).
4. If using soft margarine use the all-in-one method.
Refer to the cooking times and temperatures given in the oven
temperature charts, however,it may be necessary to increase or
decrease temperatures by 10˚C to suit personal taste.
Do not use utensils greater than 56mm (2
1. Too large baking sheet used.
(See 'Cookery Notes', for correct sizes).
2. Over loading of oven, always ensure even air gaps around
baking tins.
3. Placed into pre-heated oven.(See oven temperature charts)
Check:
(a) Temperature and shelf positions are as recommended in the
Oven Temperature Charts.
(b) Oven utensils being used allow sufficient air flow around
them.
Ensure the cooking utensil is positioned centrally under the grill
element.
1
/4ins) in height.
Uneven rising of
cakes
Overcooking
Food is taking too long to
cook
26
Ensure that the shelf is level (see above) and that the food is
positioned centrally in the oven.
Remember to reduce cooking temperatures by 10˚C from
standard recipes when using the top oven.
Ensure that the cooking utensil used in the top oven is not larger
than 300x225mm (12ins x 9ins).
Only cook one item at a time to avoid overloading the oven.
Page 27
Something Wrong with your Cooker?
Before contacting your nearest Service Centre/Installer, check the problem guide
below; there may be nothing wrong with your cooker.
Problem
Slight odour or small amount of
smoke when grill / oven used for
first time
Nothing works
Grill / Top Oven do not work Main oven works
Oven temperatures too high or
low
Oven lamp does not work
This is normal and should cease after a short period.
If you find that the timer display is blank, then it is likely that there is no
electricity supply to your oven. Check:
(i) That the main cooker wall is switched on
(ii) Other appliances, to see if you have had a power cut
(iii) The main circuit breaker for the property
Operating the cooker under the following conditions may cause a safety
device to operate:
(a) Grilling with the door closed - Always grill with the door fully open
(b) Grilling for an excessively long period at maximum setting - see
Grilling guide.
Switch off appliance and allow to cool for approx 30 mins.Switch the
cooker back on and check that the Grill / Top oven (as applicable) is
now operating.
Check temperature and shelf positions are as recommended in the
Oven Temperature Charts.
It may be necessary to increase or decrease the recommended
temperature slightly to suit your taste.
The oven lamp is not covered by the guarantee. The part is easily
changed (see the section on oven lamp replacement). A new lamp may
be obtained from our Parts department, see Key Contacts,back page.
Grill does not work
Grill keeps turning on and off
Timer is showing ‘0.00’
Timer bleeper operates
continually
Draught from beneath
control panel
Condensation on the wall at the
rear of the cooker
Steam / Condensation in the
oven after use
Ensure that the top oven control is turned fully off.
When the Grill control is operating at less than its maximum setting,
the Grill will cycle on and off, this is normal and not
The power supply to your oven has possibly been interrupted, but has
now come back on again. Reset the timer to the correct time of day
using the instructions given in the timer section of the book.
To cancel the bleeper sound: press the ‘+’ button once.
A gentle flow of air will be blown from beneath the control panel when
the appliance is used.If the appliance is still warm, this cooling fan may
run on, or restart itself when all controls have been turned off.
The fan will stop once the appliance has been cooled.This is normal and
a fault.
not
Steam and / or condensation may appear from the vent at the rear of
the appliance when using an oven particularly for foods with a high
water content e.g.frozen chips,roast chicken etc.This is normal,and any
excess should be wiped off.
Steam is a by - product of cooking any food with a high water contact.
To help minimise always:
a) Try to avoid leaving food in the oven to cool after being cooked.
b) Use a covered container, wherever possible.
a fault.
27
Page 28
Notes
28
Page 29
Notes
29
Page 30
Notes
30
Page 31
If It Still Won’t Work...
Contact the Service Office (UK: 08709 066 066)
If something is still wrong with your appliance after you have been through the
‘Something Wrong’list:
1. Switch off and unplug the appliance from the mains.
2. Call your nearest Service Office or local importer.
When you contact us we will want to know the following:
1. Your name,address and postcode.
2. Your telephone number.
3. Clear and concise details of the fault.
4. The Model number and the Serial number of your appliance.
5. The date of purchase (please keep the receipt as evidence will be required when
an engineer calls) enter the date here:
.............................................................................
Please make sure you have all these details ready when you call.
Spare Parts
Please remember your new appliance is a complex piece of equipment.
‘DIY’ repairs or unqualified and untrained service people may put you in danger, could
damage the appliance and might mean you lose cover under the Parts Guarantee.
If you do experience a problem with the appliance don’t take risks,call in our Service
Engineer.Our Parts are designed exclusively to fit your appliance.Do not use them for
any other purpose as you may create a safety hazard.
Disposal of your product
To minimise the risk of injury to children please dispose of your product carefully and
safely. Remove all doors and lids. Remove the mains cable (where fitted) by cutting off
flush with the appliance and always ensure that no plug is left in a condition where it
could be connected to the electricity supply.
To help the environment, Local Authority instructions should be followed for the
disposal of your product.
Disposal of old electrical appliances
The European Directive 2002/96/EC on Waste Electrical and Electronic Equipment
(WEEE), requires that old household electrical appliances must not be disposed of in the
normal unsorted municipal waste stream. Old appliances must be collected separately in
order to optimise the recovery and recycling of the materials they contain and reduce
the impact on human health and the environment.
The crossed out “wheeled bin” symbol on the product reminds you of your obligation,
that when you dispose of the appliance it must be separately collected.
Consumers should contact their local authority or retailer for information concerning the
correct disposal of their old appliance.
31
Page 32
Key Contacts
After Sales Service
Over 1100 trained specialists, directly employed by us, ensure that you can have
complete confidence in both the appliances and services we offer.
Repair Service and Information Help Desk
UK: 08709 066 066
Monday to Friday, 8am to 7.30pm
Saturday, 8.30am to 5.30pm
Sunday, 9.30am to 3.30pm
www
.indesitservice.co.uk
Republic of Ireland: 0818 313413
Note: Our operators will require the following information:
Model number
Serial number
Extended Warranties
UK: 08709 088 088
Monday to Sunday, 8am to 8pm
www
.indesitservice.co.uk
Republic of Ireland: 0123 002 333
Genuine Parts and Accessories
UK: 08709 077 077
Monday to Friday, 8.30am to 5pm
Saturday, 8.30am to 12noon
www
.indesitservice.co.uk
Republic of Ireland: 0818 313413
.indesitcompany.co.uk
www
Indesit Company UK Limited, Morley Way, Peterborough, PE2 9JB
PRINTED BY SIMLEX .FOUR ASHES,WOLVERHAMPTON. 10/2006 195059771.00
Loading...
