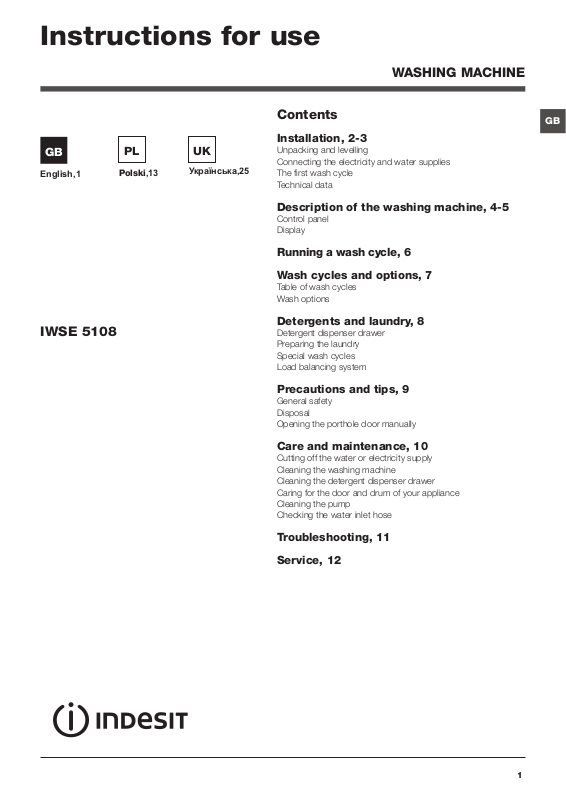

Indesit IWSE 5108 B Operating Instructions

Instructions for use

WASHING MACHINE

English,1

IWSE 5108

Polski,13

Українська,25

Contents

Installation, 2-3

Unpacking and levelling Connecting the electricity and water supplies The first wash cycle Technical data

Description of the washing machine, 4-5

Control panel Display

Running a wash cycle, 6

Wash cycles and options, 7

Table of wash cycles Wash options

Detergents and laundry, 8

Detergent dispenser drawer Preparing the laundry Special wash cycles Load balancing system

Precautions and tips, 9

General safety Disposal Opening the porthole door manually

Care and maintenance, 10

Cutting off the water or electricity supply Cleaning the washing machine Cleaning the detergent dispenser drawer Caring for the door and drum of your appliance Cleaning the pump Checking the water inlet hose

Troubleshooting, 11

Service, 12

Installation

! This instruction manual should be kept in a safe place for

future reference. If the washing machine is sold, transferred or moved, make sure that the instruction manual remains with the machine so that the new owner is able to familiarise himself/herself with its operation and features.

! Read these instructions carefully: they contain vital infor-

mation relating to the safe installation and operation of the appliance.

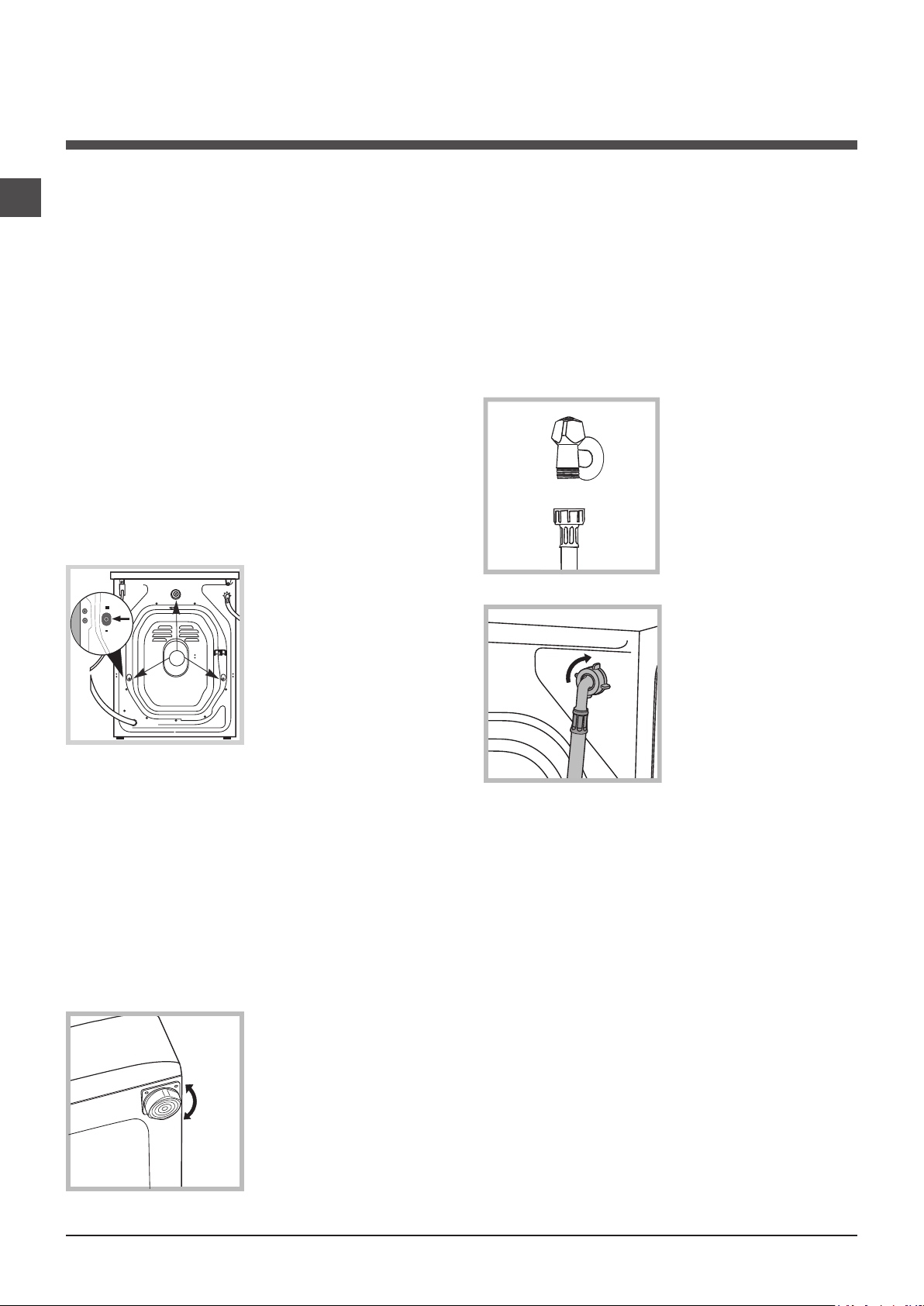

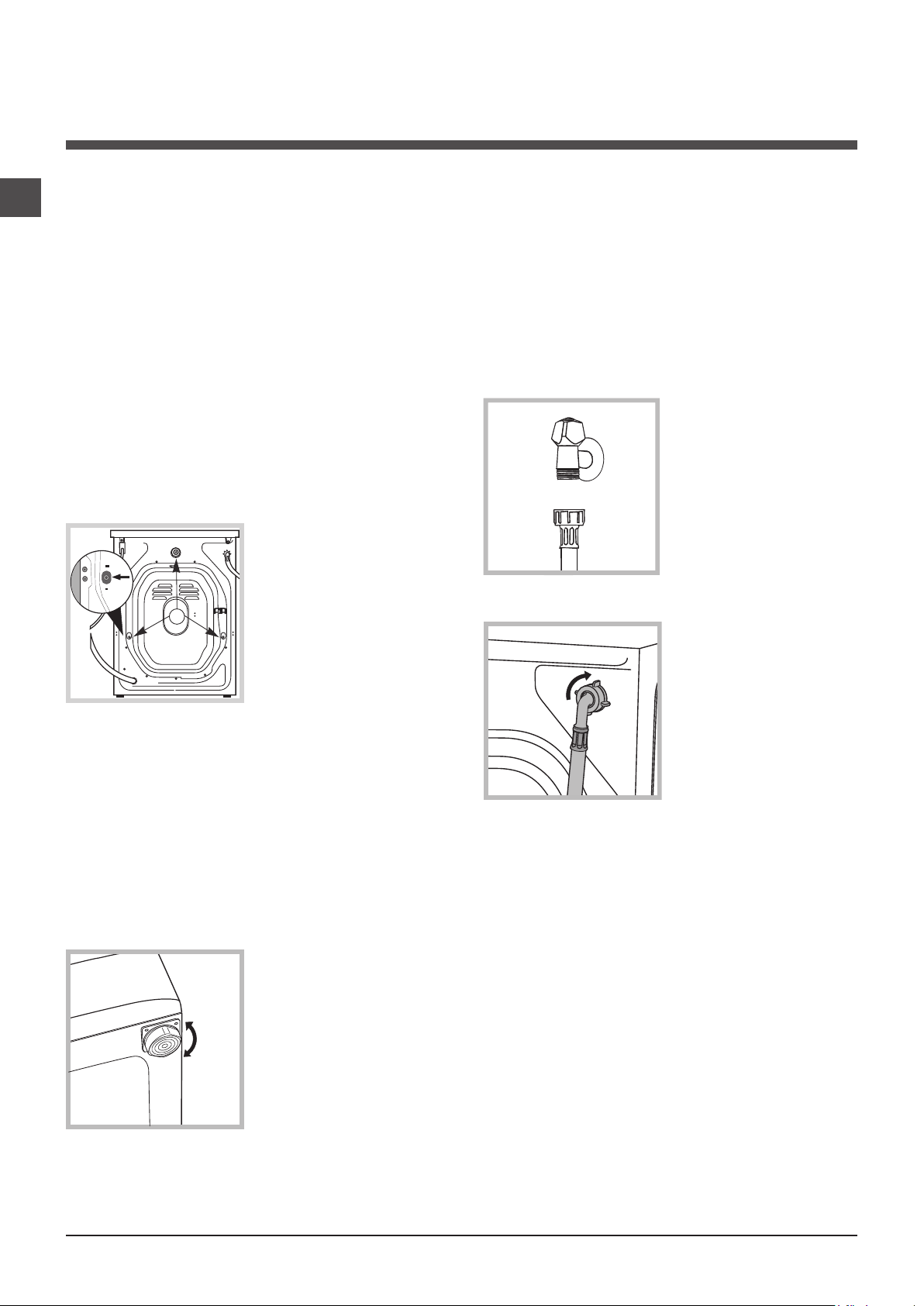

Unpacking and levelling

Unpacking

1. Remove the washing machine from its packaging.

2. Make sure that the washing machine has not been damaged during the transportation process. If it has been damaged, contact the retailer and do not proceed any further with the installation process.

3. Remove the 3 protective screws (used during transportation) and the rubber washer with the corresponding spacer, located on the rear part of the appliance (see figure).

4. Close off the holes using the plastic plugs provided.

5. Keep all the parts in a safe place: you will need them again if the washing machine needs to be moved to another location.

Levelling the machine correctly will provide it with stability, help to avoid vibrations and excessive noise and prevent it from shifting while it is operating. If it is placed on carpet or a rug, adjust the feet in such a way as to allow a sufficient ventilation space underneath the washing machine.

Connecting the electricity and water supplies

Connecting the water inlet hose

1. Connect the supply pipe by screwing it to a cold water tab using a ¾ gas threaded connection (see

figure).

Before performing the connection, allow the water to run freely until it is perfectly clear.

2. Connect the inlet hose to the washing machine by screwing it onto the corresponding water inlet of the appliance, which is situated on the top right-hand side of the rear part of the appliance (see figure).

3. Make sure that the hose is not folded over or bent.

! Packaging materials should not be used as toys for

children.

Levelling

1. Install the washing machine on a flat sturdy floor, without resting it up against walls, furniture cabinets or anything else.

2. If the floor is not perfectly level, compensate for any unevenness by tightening or loosening the adjustable front feet (see figure); the an- gle of inclination, measured in relation to the worktop, must not exceed 2°.

! The water pressure at the tap must fall within the values

indicated in the Technical details table (see next page).

! If the inlet hose is not long enough, contact a specialised

shop or an authorised technician.

! Never use second-hand hoses.

! Use the ones supplied with the machine.

65 - 100 cm

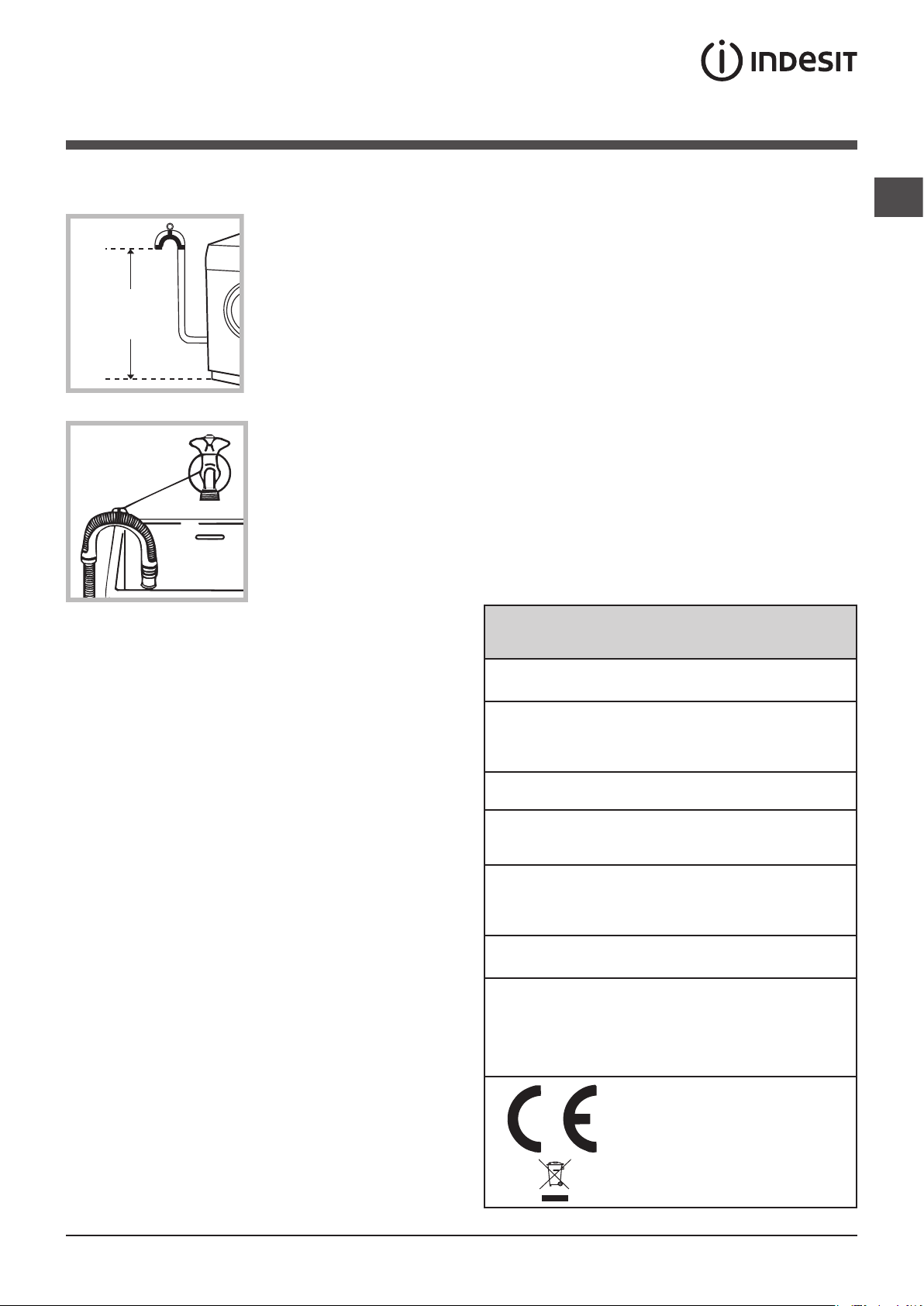

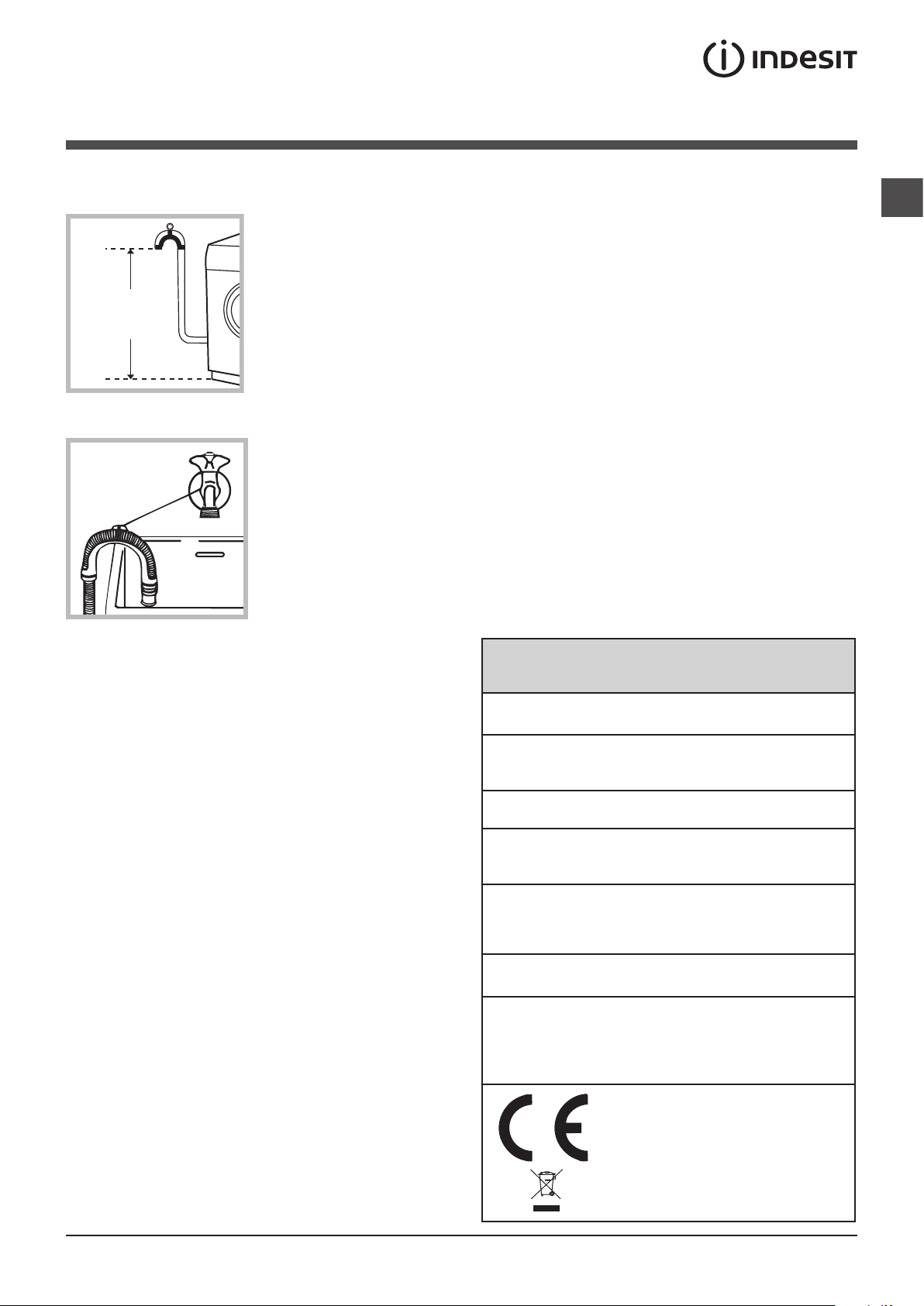

Connecting the drain hose

Connect the drain hose, without bending it, to a drainage duct or a wall drain located at a height between 65 and 100 cm from the floor;

! Do not use extension cords or multiple sockets.

! The cable should not be bent or compressed.

! The power supply cable must only be replaced by autho-

rised technicians.

Warning! The company shall not be held responsible in the event that these regulations are not respected.

The first wash cycle

alternatively, rest it on the side of a washbasin or bathtub, fastening the duct supplied to the tap (see figure). The free end of the hose should not be underwater.

! We advise against the use of hose extensions; if it is

absolutely necessary, the extension must have the same diameter as the original hose and must not exceed 150 cm in length.

Electrical connections

Before plugging the appliance into the electricity socket, make sure that:

• thesocketisearthedandcomplieswithallapplicable

laws;

• thesocketisabletowithstandthemaximumpowerload

of the appliance as indicated in the Technical data table (see opposite);

Once the appliance has been installed, and before you use it for the first time, run a wash cycle with detergent and no laundry, using the wash cycle 2.

Technical data

Model

Dimensions

Capacity

Electrical

connections

Water connection

IWSE 5108

width 59.5 cm height 85 cm depth 44 cm

from 1 to 5 kg

please refer to the technical data plate fixed to the machine

maximum pressure 1 MPa (10 bar) minimum pressure 0.05 MPa (0.5 bar) drum capacity 40 litres

• thepowersupplyvoltagefallswithinthevaluesindicated

in the Technical data table (see opposite);

• thesocketiscompatiblewiththeplugofthewashing

machine. If this is not the case, replace the socket or the plug.

! The washing machine must not be installed outdoors,

even in covered areas. It is extremely dangerous to leave the appliance exposed to rain, storms and other weather conditions.

! When the washing machine has been installed, the elec-

tricity socket must be within easy reach.

Spin speed

Energy rated pro-

grammes accor-

ding to regulation

EN 60456

up to 1000 rotations per minute

programme 2; temperature 60°C; using a load of 5 kg.

This appliance conforms to the following EC Directives:

- 2004/108/EC (Electromagnetic Compatibility)

- 2002/96/EC

- 2006/95/EC Low Voltage)

Description of the washing machine

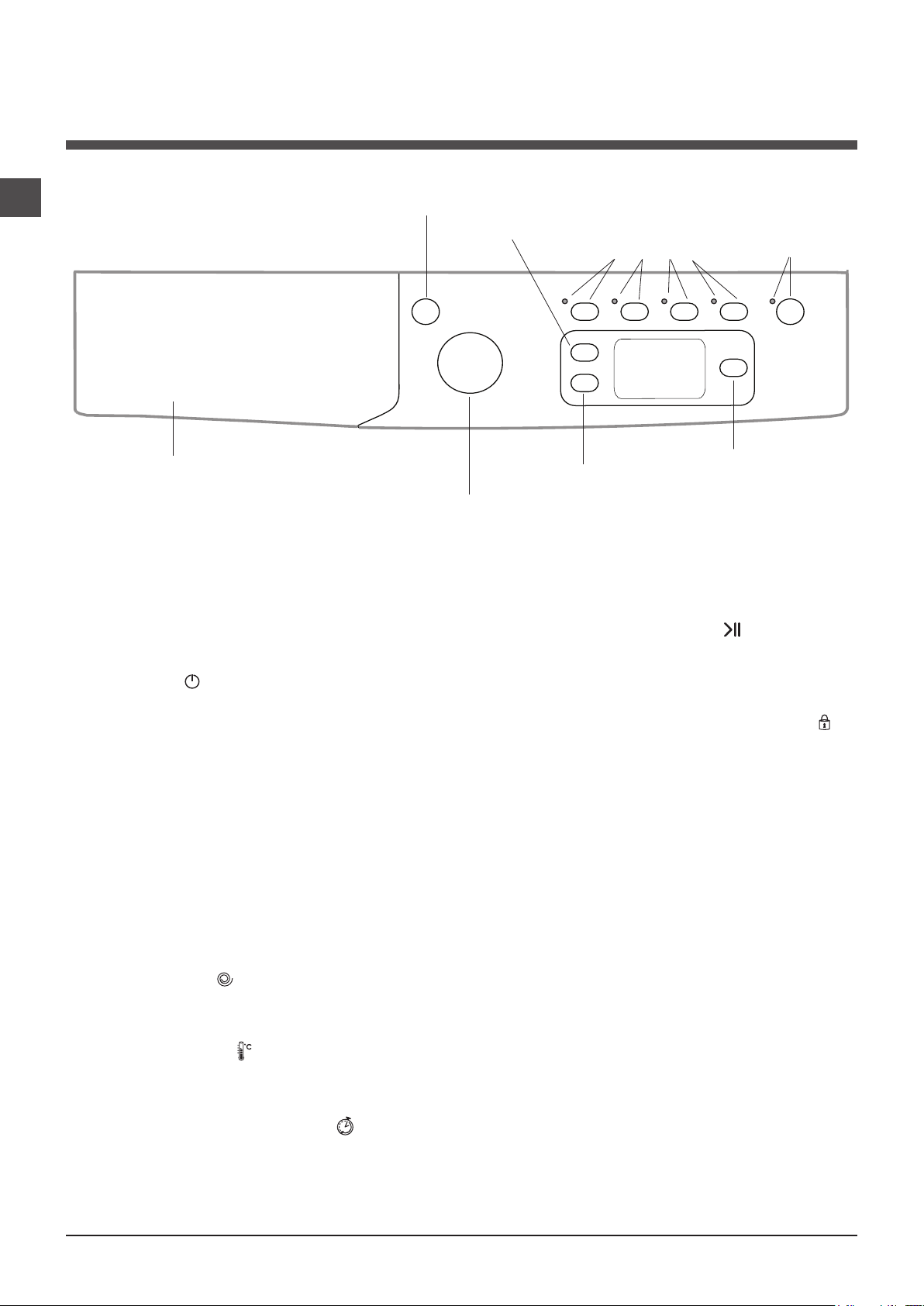

Control panel

Detergent dispenser drawer

ON/OFF

button

WASH CYCLE

knob

TEMPERATURE

Button

SPIN SPEED

Button

OPTION

buttons with indicator lights

DISPLAY

START/PAUSE

button with indicator light

DELAYED START

Button

Detergent dispenser drawer: used to dispense detergents and washing additives (see “Detergents and laundry”).

ON/OFF button chine on or off. The START/PAUSE indicator light, which flashes slowly in a green colour shows that the machine is switched on. To switch off the washing machine during the wash cycle, press and hold the button for approximately 2 seconds; if the button is pressed briefly or accidentally the machine will not switch off. If the machine is switched off during a wash cycle, this wash cycle will be cancelled.

WASH CYCLE knob: used to set the desired wash cycle

(see “Table of wash cycles”).

OPTION buttons with indicator light: used to select the available options. The indicator light corresponding to the selected option will remain lit.

SPIN button the spin cycle - the value is indicated on the display.

TEMPERATURE button tely exclude the temperature: the value will be shown on the display.

: press this briefly to switch the ma-

: press to reduce or completely exclude

: press to decrease or comple-

START/PAUSE button

green indicator light flashes slowly, press the button to start a wash cycle. Once the cycle has begun the indicator light will remain lit in a fixed manner. To pause the wash cycle, press the button again; the indicator light will flash in an orange colour. If the symbol door may be opened. To start the wash cycle from the point at which it was interrupted, press the button again.

Standby mode

This washing machine, in compliance with new energy saving regulations, is fitted with an automatic standby system which is enabled after about 30 minutes if no activity is detected. Press the ON-OFF button briefly and wait for the machine to start up again.

with indicator light: when the

is not illuminated, the

DELAYED START button time for the selected wash cycle. The delay time will be shown on the display.

: press to set a delayed start

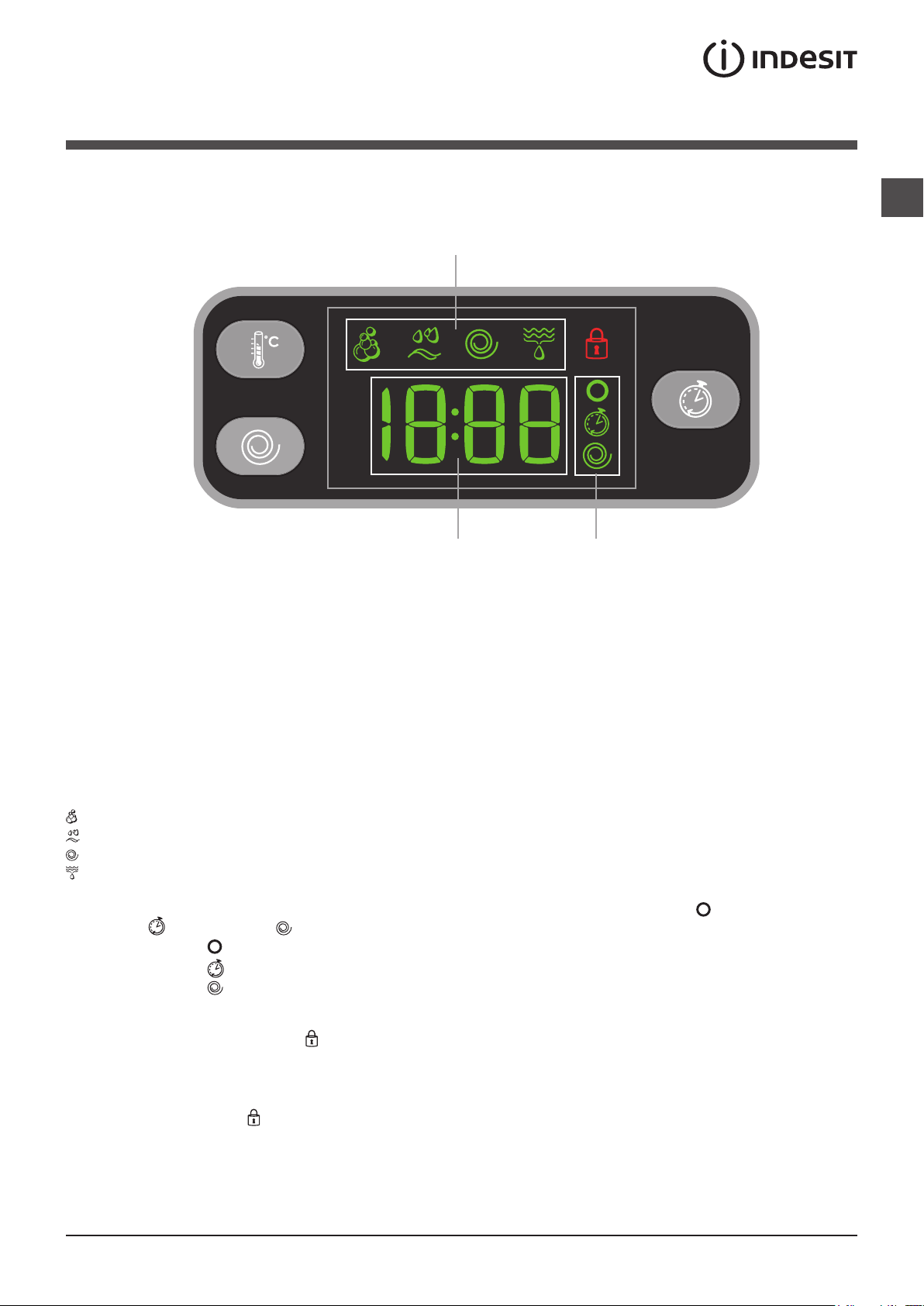

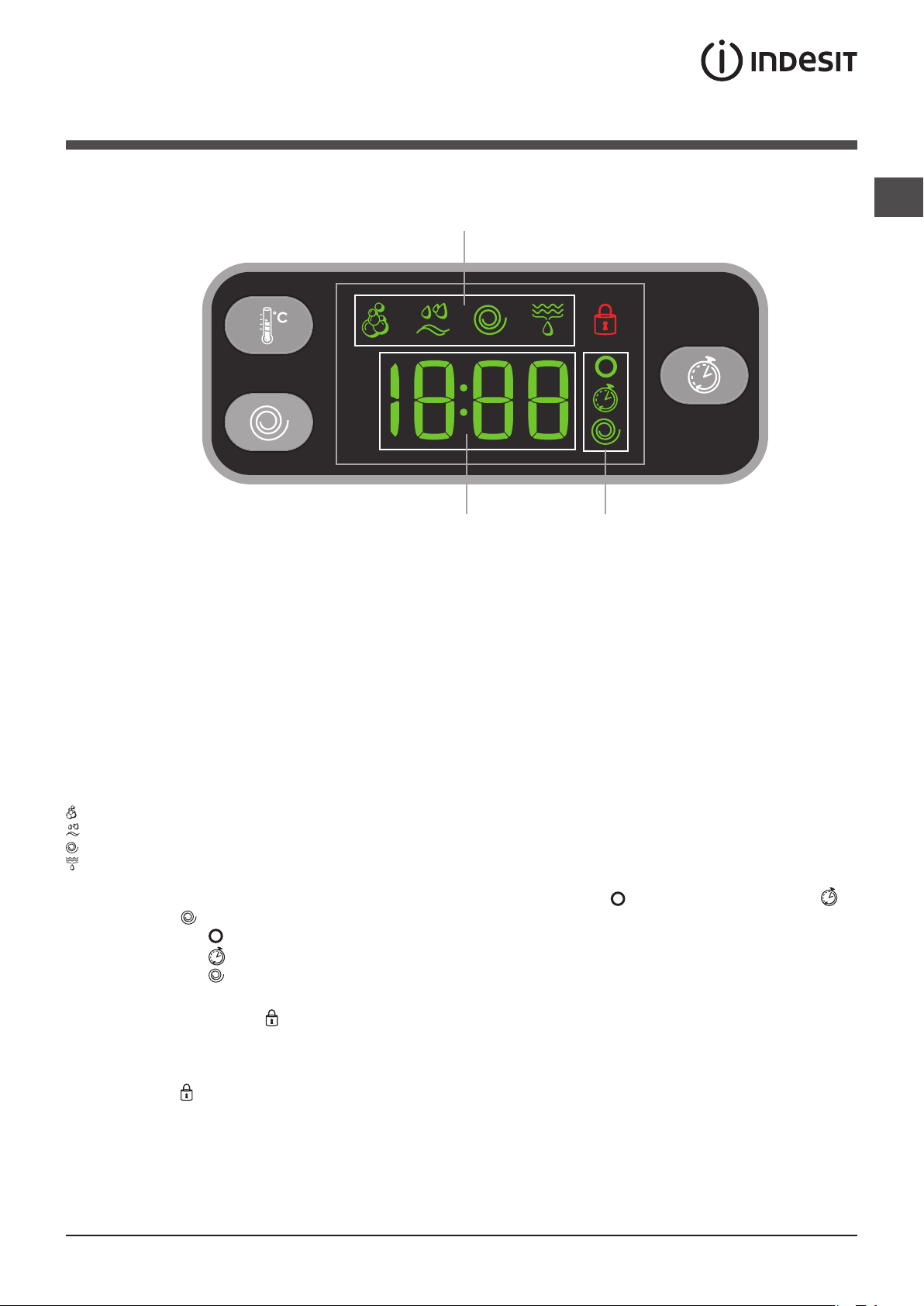

Display

The display is useful when programming the machine and provides a great deal of information.

The duration of the available programmes and the remaining time of a running cycle appear in section A; if the DELAY START option has been set, the countdown to the start of the selected programme will appear. Pressing the relative button, the machine automatically displays the maximum temperature and spin speed values set for the selected cycle, or the most recently-used settings if they are compatible with the selected cycle.

The “programme phases” relative to the selected programme and the “programme phase” of the running programme appear in section B:

Wash

Rinse Spin

Drain

The icons corresponding to “temperature” If the When a “delayed start” has been set, the If the

Door locked symbol The lit symbol indicates that the door is locked. To prevent any damage, wait until the symbol turns off before opening the door.

To open the door while a cycle is in progress, press the START/PAUSE button; if the DOOR LOCKED off the door may be opened.

symbol lights up, the display will visualise the set “temperature” value.

symbol lights up, the display will visualise the set “spin” value.

, “Programmed start” and “spin” appear in section C from top to bottom:

symbol lights up.

symbol is switched

Running a wash cycle

1. SWITCH THE MACHINE ON. Press the button;

the START/PAUSE indicator light will flash slowly in a green colour.

2. LOAD THE LAUNDRY. Open the porthole door. Load the laundry, making sure you do not exceed the maximum load value indicated in the table of programmes on the following page.

3. MEASURE OUT THE DETERGENT. Pull out the detergent dispenser drawer and pour the detergent into the relevant compartments as described in “Detergents

and laundry”.

4. CLOSE THE DOOR.

5. SELECT THE WASH CYCLE. Set the WASH CYCLE knob to the desired programme; a temperature and spin speed is set for each wash cycle; these may be adjusted. The duration of the cycle will appear on the display.

6. CUSTOMISE THE WASH CYCLE. Use the relevant buttons:

Modifying the temperature and/or spin speed. The machine automatically displays the maximum temperature and spin speed values set for the selected cycle, or the most recently-used settings if they are compatible with the selected cycle. The temperature can be decreased by pressing the button, until the cold wash “OFF” setting is reached. The spin speed may be progressively reduced by pressing the (the “OFF” setting). If these buttons are pressed again, the maximum values are restored.

button, until it is completely excluded

! The options may affect the recommended load value

and/or the duration of the cycle.

7. START THE PROGRAMME. Press the START/ PAUSE button. The corresponding indicator light will become green, remaining lit in a fixed manner, and the door will be locked (the DOOR LOCKED symbol be on). To change a wash cycle while it is in progress, pause the washing machine using the START/PAUSE button (the START/PAUSE indicator light will flash slowly in an orange colour); then select the desired cycle and press the START/PAUSE button again.

To open the door while a cycle is in progress, press the

START/PAUSE button; if the DOOR LOCKED is switched off the door may be opened. Press the START/PAUSE button again to restart the wash cycle from the point at which it was interrupted.

8. THE END OF THE WASH CYCLE. This will be indicated by the text “END” on the display; when the DOOR LOCKED opened. Open the door, unload the laundry and switch off the machine.

symbol switches off the door may be

will

symbol

! If you wish to cancel a cycle which has already begun,

press and hold the and the machine will switch off.

button. The cycle will be stopped

Setting a delayed start.

To set a delayed start for the selected programme, press the corresponding button repeatedly until the required delay period has been reached. When this option is enabled, the display. To remove the delayed start option press the

button until the text “OFF” appears on the display.

Modifying the cycle settings.

• Press the button to enable the option; the indicator light corresponding to the button will switch on.

• Press the button again to disable the option; the indicator light will switch off.

symbol lights up on the

! If the selected option is not compatible with the

programmed wash cycle, the indicator light will flash and the option will not be activated.

! If the selected option is not compatible with another

option which has been selected previously, the indicator light corresponding to the first option selected will flash and only the second option will be activated; the indicator light corresponding to the enabled option will

remain lit.

Wash cycles and options

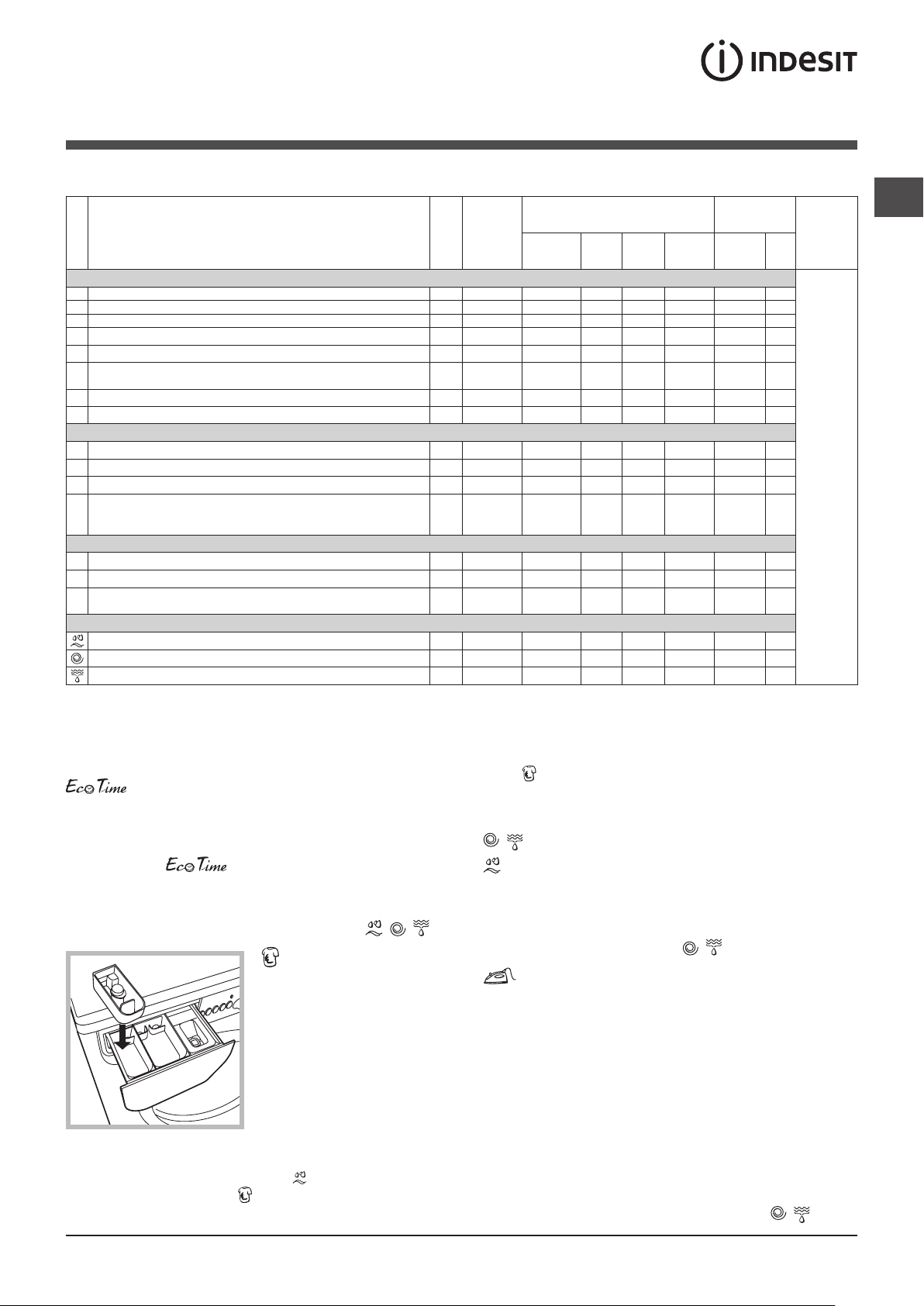

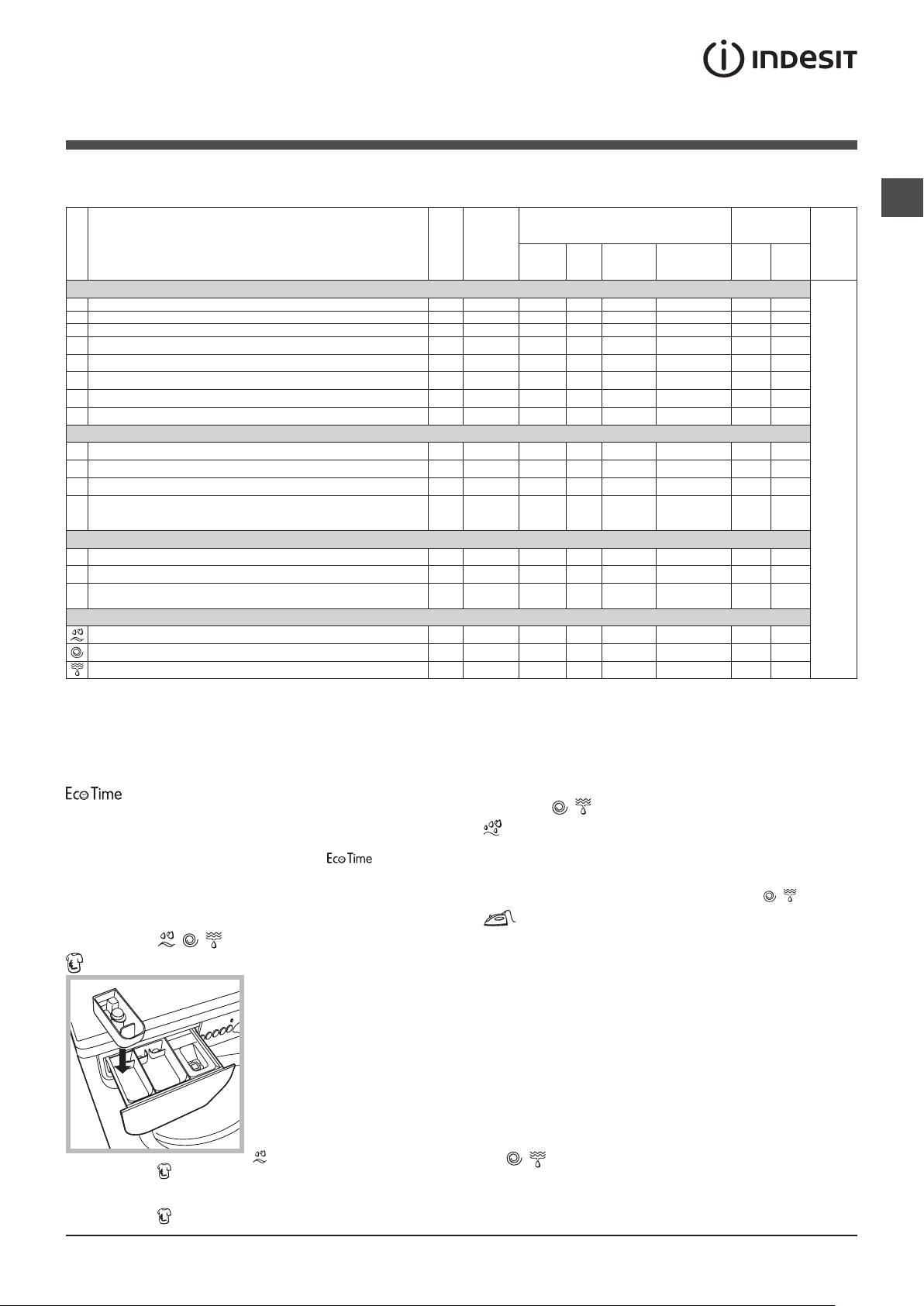

Table of wash cycles

Max.

Description of the wash cycle

Wash cycles

Daily

Cotton with prewash: extremely soiled whites. 90°

Cotton: extremely soiled whites. 90°

Cotton (1): heavily soiled whites and resistant colours. 60°

Cotton (2): heavily soiled whites and delicate colours. 40°

Cotton: heavily soiled whites and resistant colours. 60°

Coloured Cottons (3): lightly soiled whites and delicate colours. 40°

Synthetics: heavily soiled resistant colours. 60°

Synthetics: lightly soiled delicate colours. 40° Special

Wool: for wool, cashmere, etc. 40°

Silk/Curtains: for garments in silk and viscose, lingerie. 30°

9 Jeans

Express: to refresh lightly soiled garments quickly (not suitable

for wool, silk and clothes which require washing by hand).

Sport 11 Sport Intensive 12 Sport Light

13 Sport Shoes

Partial wash cycles

Rinse -

Spin -

Drain -

For all Test Institutes:

1) Test wash cycle in compliance with regulation EN 60456: set wash cycle 2 with a temperature of 60°C.

2) Long wash cycle for cottons: set wash cycle 2 with a temperature of 40°C.

3) Short wash cycle for cottons: set wash cycle 4 with a temperature of 40°C.

temp.

Wash options

Max.

speed

(rpm)

1000 1000 1000

1000

800

600

800

600

1000

Prewa-

(°C)

40°

30°

30° 30°

30°

The use of extra compartment 4 excludes the “Pre-wash” option.

Selecting this option enables you to suitably adjust drum rotation, temperature and water to a reduced load of lightly soiled cotton and synthetic fabrics (refer to the “Table of wash cycles”). “

” enables you to wash in less time thereby saving water and electricity. We suggest using a liquid detergent suitably measured out to the load quantity.

! It cannot be used with the 1, 2, 7, 8, 9, 10, 11, 12, 13,

, programmes.

Stain removal

This option is particularly useful for the removal of stubborn stains. Place extra compartment 4 (supplied) into compartment 1. When pouring in the bleach, be careful not to exceed the “max” level marked on the central pivot (see figure). To run the bleach cycle on its own, pour the bleach into extra compartment 4, set the “Rinse”

programme and activate the “Stain removal” option. To bleach during a wash cycle, pour in the detergent and any fabric softener you wish to use, set the desired wash cycle and enable the “Stain removal”

option.

! It cannot be used with the 1, 7, 8, 9, 10, 11, 12, 13, programmes.

Extra rinse

By selecting this option, the efficiency of the rinse is increased and optimal detergent removal is guaranteed. It is particularly useful for sensitive skin.

! It cannot be used in conjunction with the 10, programmes.

Easy iron

By selecting this function, the wash and spin cycles will be modified in order to reduce the formation of creases. At the end of the cycle the washing machine will perform slow rotations of the drum; the indicator lights for the EASY IRON and START/PAUSE options will flash (the first one green, the second orange). To end the cycle, press the START/PAUSE button or the EASY IRON button. For the 8 wash cycle, the machine will end the cycle while the laundry is soaking and the EASY IRON and START/PAUSE indicator lights will flash. To drain the water so that the laundry may be removed, press the START/PAUSE button or the EASY IRON button.

! This function may not be used in conjunction with wash

cycles 7, 10, 11, 12, 13,

Detergents Max. load (kg)

Wash

 

  



- -

- - - -

The information contained in the table is intended as a guide only.

Ble-

ach

 

Fabric

softe-

ner



  



 



, .

Normal

Max. 2 pairs -

Eco

Time

5 5 5 -

5 -

5 2,5

2,5 1,5

1,5 -

1 -

2,5 -

1,5 -

2,5 -

5 -

Cycle

duration

The duration of the wash cycles can be checked on the display.

Detergents and laundry

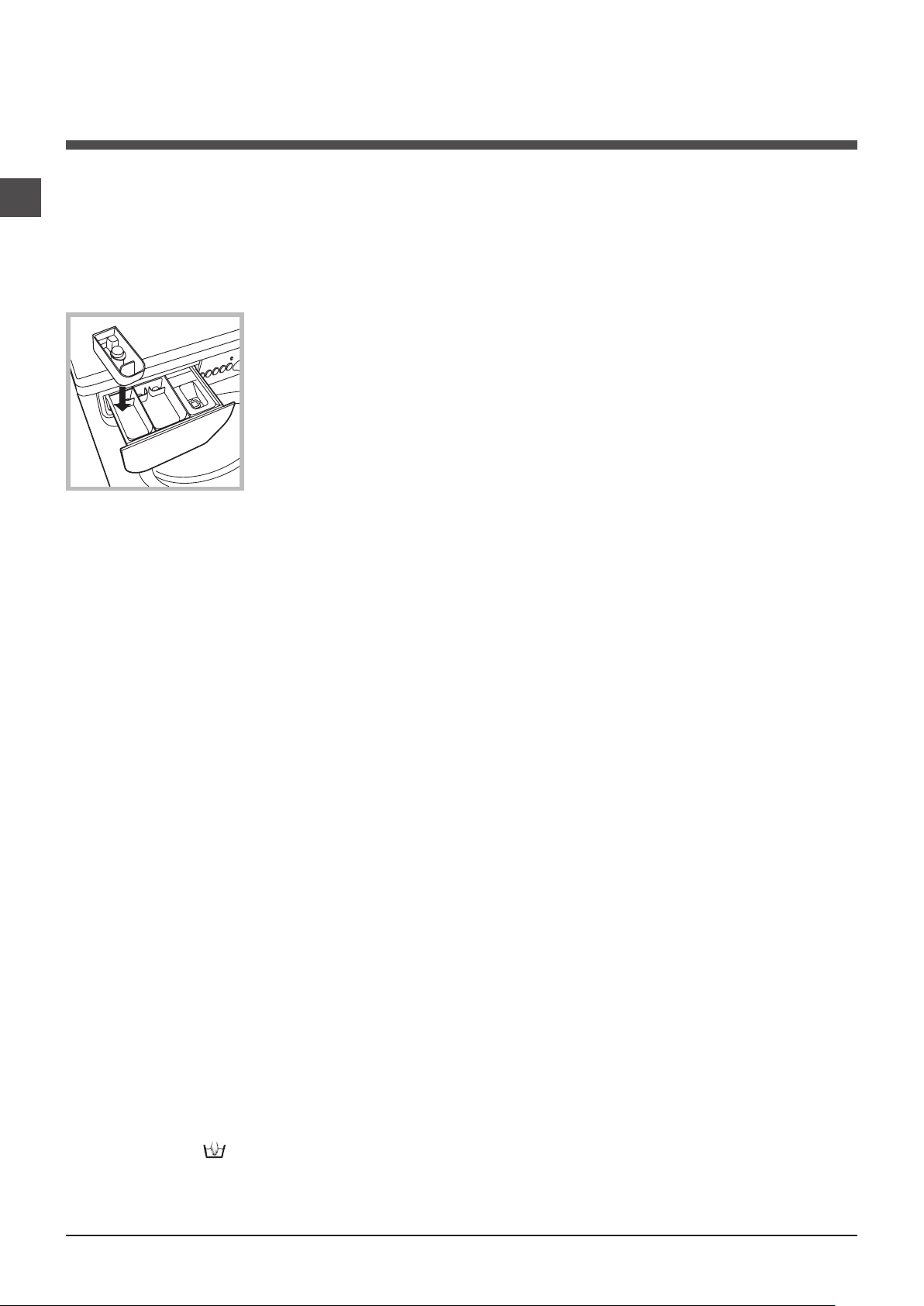

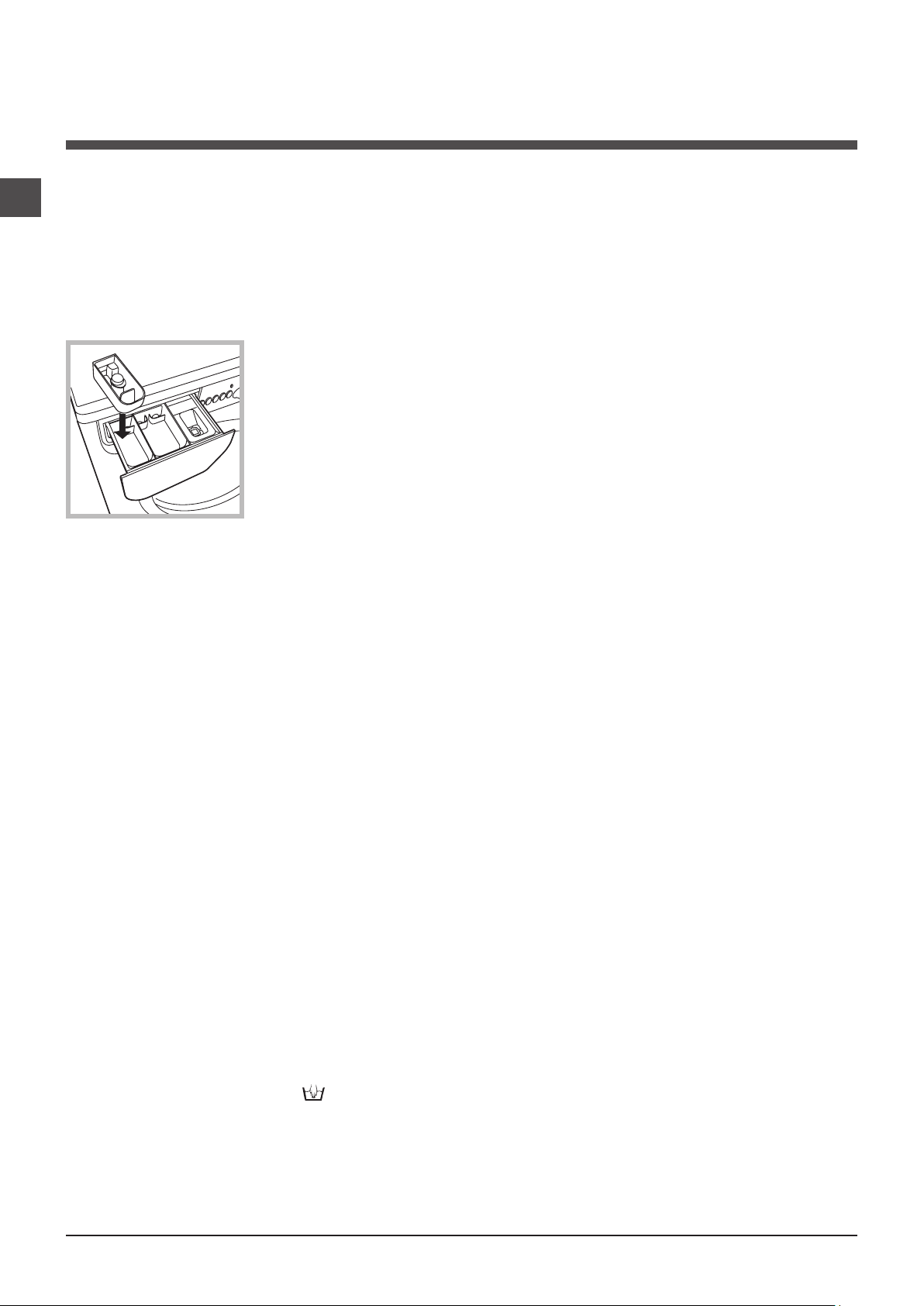

Detergent dispenser drawer

Good washing results also depend on the correct dose of detergent: adding too much detergent will not necessarily result in a more efficient wash, and may in fact cause build up on the inside of your appliance and contribute to environmental pollution.

! Do not use hand washing detergents because these

create too much foam.

Open the detergent dispenser drawer and pour in the detergent or washing additive, as follows.

compartment 1: Pre-wash detergent (powder)

Before pouring in the detergent, make sure that extra compartment 4 has been removed.

compartment 2: Detergent for the wash cycle (powder or liquid)

Liquid detergent should only be poured in immediately prior to the start of the wash cycle.

compartment 3: Additives (fabric softeners, etc.)

The fabric softener should not overflow the grid.

extra compartment 4: Bleach

Preparing the laundry

•Dividethelaundryaccordingto:

- the type of fabric/the symbol on the label

- the colours: separate coloured garments from whites.

•Emptyallgarmentpocketsandcheckthebuttons.

•Donotexceedthelistedvalues,whichrefertotheweight

of the laundry when dry: Durable fabrics: max. 5 kg Synthetic fabrics: max. 2,5 kg Delicate fabrics: max. 2 kg Wool: max. 1 kg

Silk: max. 1 kg

How much does your laundry weigh?

1 sheet 400-500 g 1 pillow case 150-200 g 1 tablecloth 400-500 g 1 bathrobe 900-1200 g 1 towel 150-250 g

Silk: use special wash cycle 8 to wash all silk garments. We recommend the use of special detergent which has been designed to wash delicate clothes. Curtains: fold curtains and place them in a pillow case or mesh bag. Use wash cycle 8. Jeans: Turn garments inside-out before washing and use a liquid detergent. Use programme 9. Express: this wash cycle was designed to wash lightly soiled garments quickly: it lasts just 15 minutes and therefore saves both energy and time. By selecting this wash cycle (

at 30°C), it is possible to wash different fabrics together (except for wool and silk items), with a maximum load of 1,5 kg. Sport Intensive ( soiled sports clothing fabrics (tracksuits, shorts, etc.); for best results, we recommend not exceeding the maximum load indicated in the “Table of wash cycles”. Sport Light ( sports clothing fabrics (tracksuits, shorts, etc.); for best results, we recommend not exceeding the maximum load indicated in the “Table of wash cycles”. We recom- mend using a liquid detergent and dosage suitable for a half-load. Sport Shoes ( shoes; for best results, do not wash more than 2 pairs simultaneously.

wash cycle

11): is for washing heavily

12): is for washing lightly soiled

13): is for washing sports

Load balancing system

Before every spin cycle, to avoid excessive vibrations and to distribute the load in a uniform manner, the drum rotates continuously at a speed which is slightly greater than the washing rotation speed. If, after several attempts, the load is not balanced correctly, the machine spins at a reduced spin speed. If the load is excessively unbalanced, the washing machine performs the distribution process instead of spinning. To encourage improved load distribution and balance, we recommend small and large garments are mixed in the load.

Special wash cycles

Wool: all wool garments can be washed using programme

7, even those carrying the “hand-wash only” best results, use special detergents and do not exceed 1 kg of laundry.

label. For

Precautions and tips

! This washing machine was designed and constructed in

accordance with international safety regulations. The following information is provided for safety reasons and must therefore be read carefully.

General safety

• Thisapplianceisnotintendedforusebypersons(including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

• Thisappliancewasdesignedfordomesticuseonly.

• Donottouchthemachinewhenbarefootorwithwetor

damp hands or feet.

• Donotpullonthepowersupplycablewhenunplugging

the appliance from the electricity socket. Hold the plug and pull.

• Donotopenthedetergentdispenserdrawerwhilethe

machine is in operation.

• Donottouchthedrainedwaterasitmayreachextremely high temperatures.

• Neverforcetheportholedoor.Thiscoulddamagethe

safety lock mechanism designed to prevent accidental opening.

• Iftheappliancebreaksdown,donotunderanycircumstances access the internal mechanisms in an attempt to repair it yourself.

• Alwayskeepchildrenwellawayfromtheappliancewhile

it is operating.

• Thedoorcanbecomequitehotduringthewashcycle.

• Iftheappliancehastobemoved,workinagroupoftwo

or three people and handle it with the utmost care. Never try to do this alone, because the appliance is very heavy.

• Beforeloadinglaundryintothewashingmachine,make

sure the drum is empty.

Disposal

• Disposingofthepackagingmaterials:observelocal

regulations so that the packaging may be re-used.

• TheEuropeanDirective2002/96/EConWaste 

Electrical and Electronic Equipment, requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected.

Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

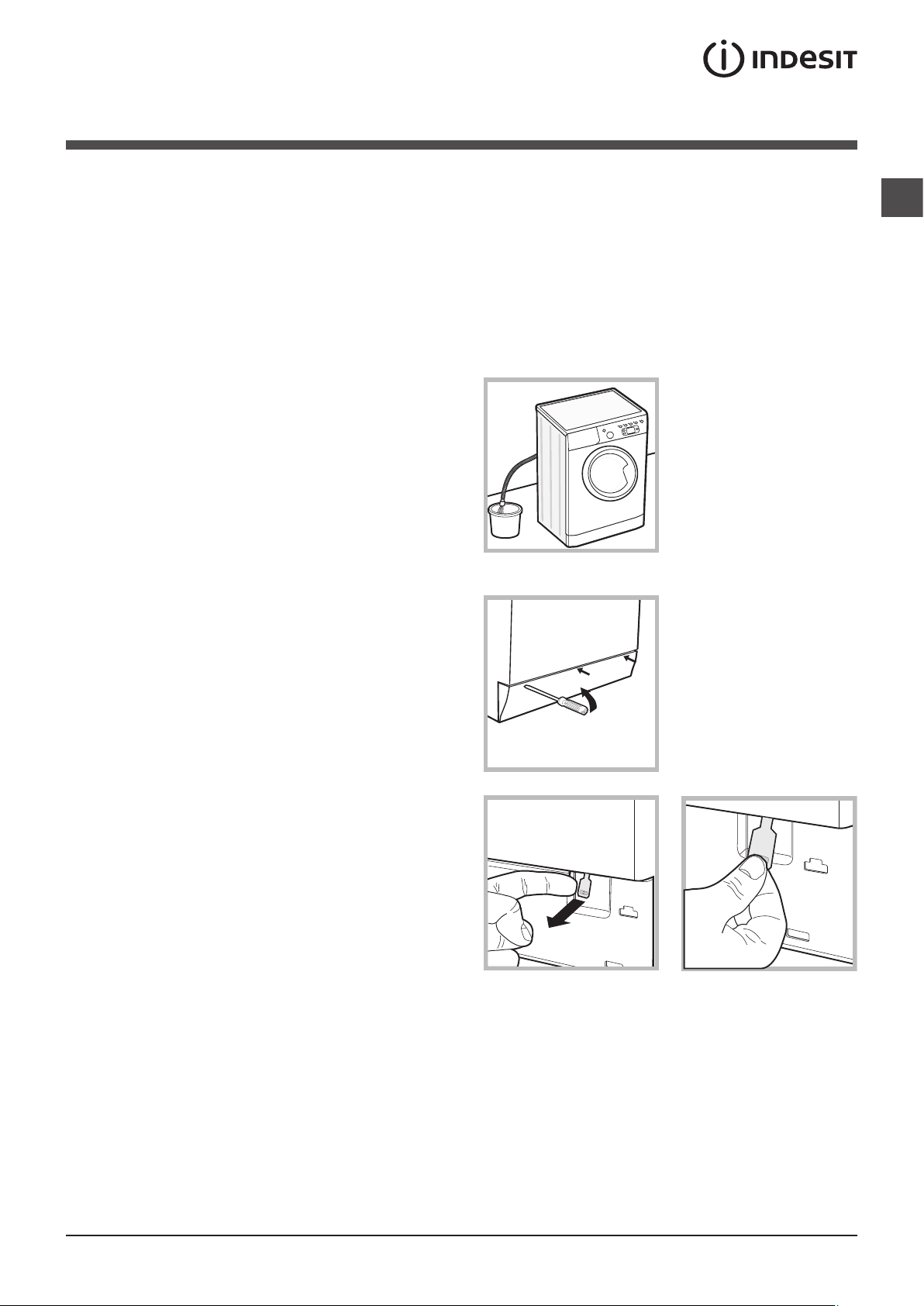

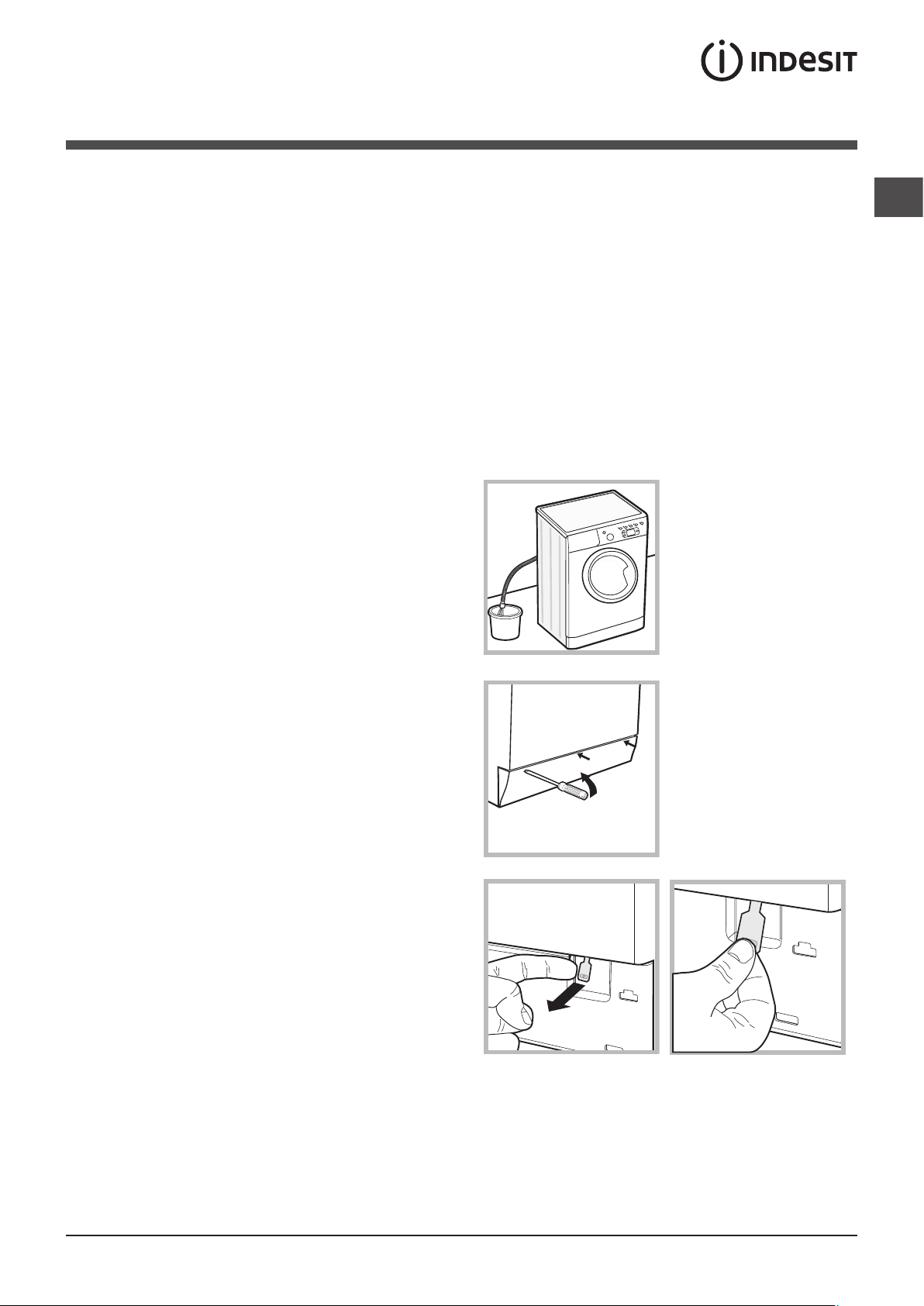

Opening the porthole door manually

In the event that it is not possible to open the porthole door due to a powercut, and if you wish to remove the laundry, proceed as follows:

1. remove the plug from the electrical socket.

2. make sure the water level inside the machine is lower than the door opening; if it is not, remove excess water using the drain hose, collecting it in a bucket as indicated in the figure.

3. using a screwdriver, remove the cover panel on the lower front part of the washing machine (see figure).

4. pull outwards using the tab as indicated in the figure, until the plastic tie-rod is freed from its stop position; pull downwards and open the door at the same time.

5. reposition the panel, making sure the hooks are securely in place before you push it onto the appliance.

Care and maintenance

Cutting off the water and electricity supplies

• Turnoffthewatertapaftereverywashcycle.Thiswill

limit wear on the hydraulic system inside the washing machine and help to prevent leaks.

• Unplugthewashingmachinewhencleaningitandduring all maintenance work.

Cleaning the washing machine

The outer parts and rubber components of the appliance can be cleaned using a soft cloth soaked in lukewarm soapy water. Do not use solvents or abrasives.

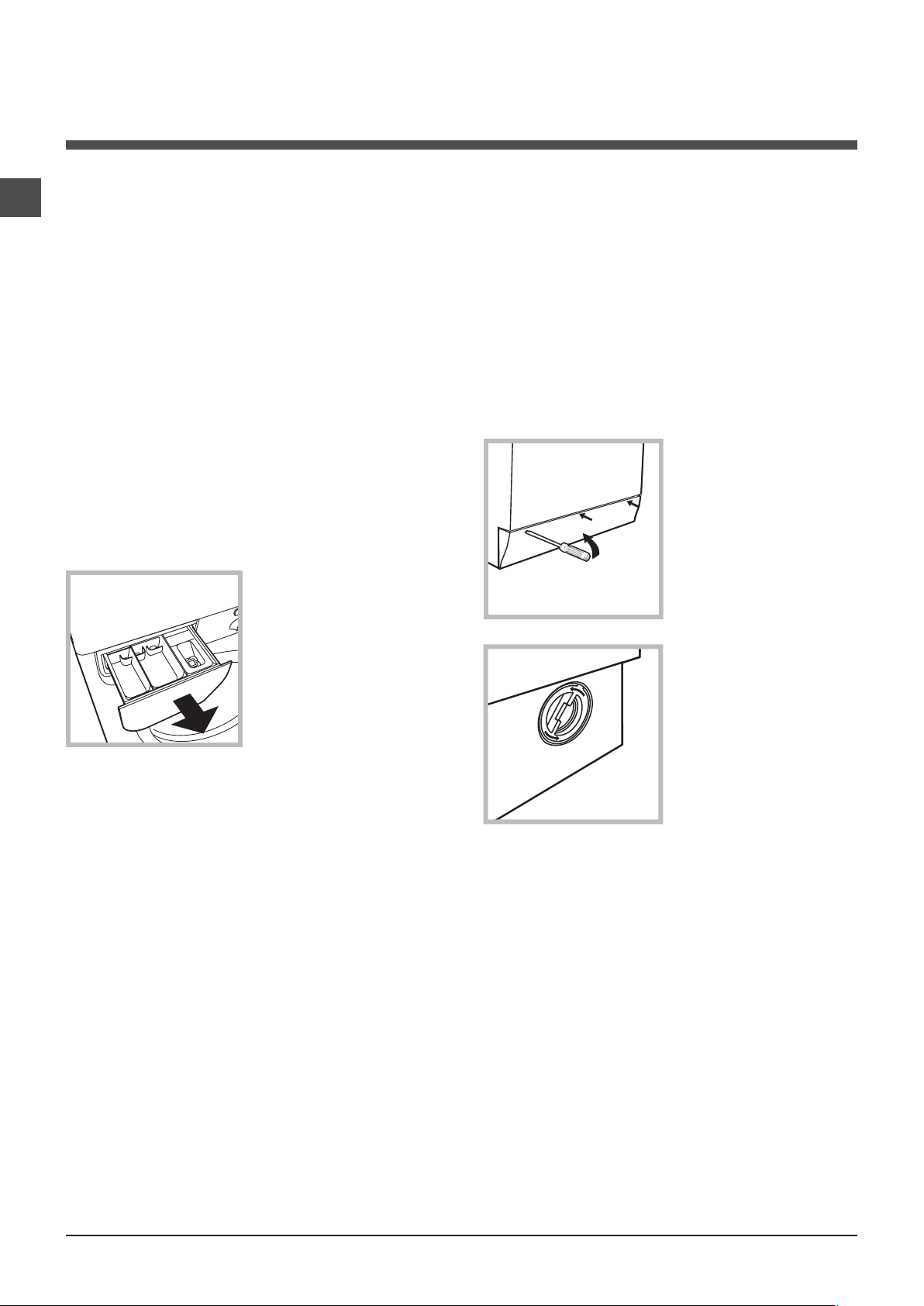

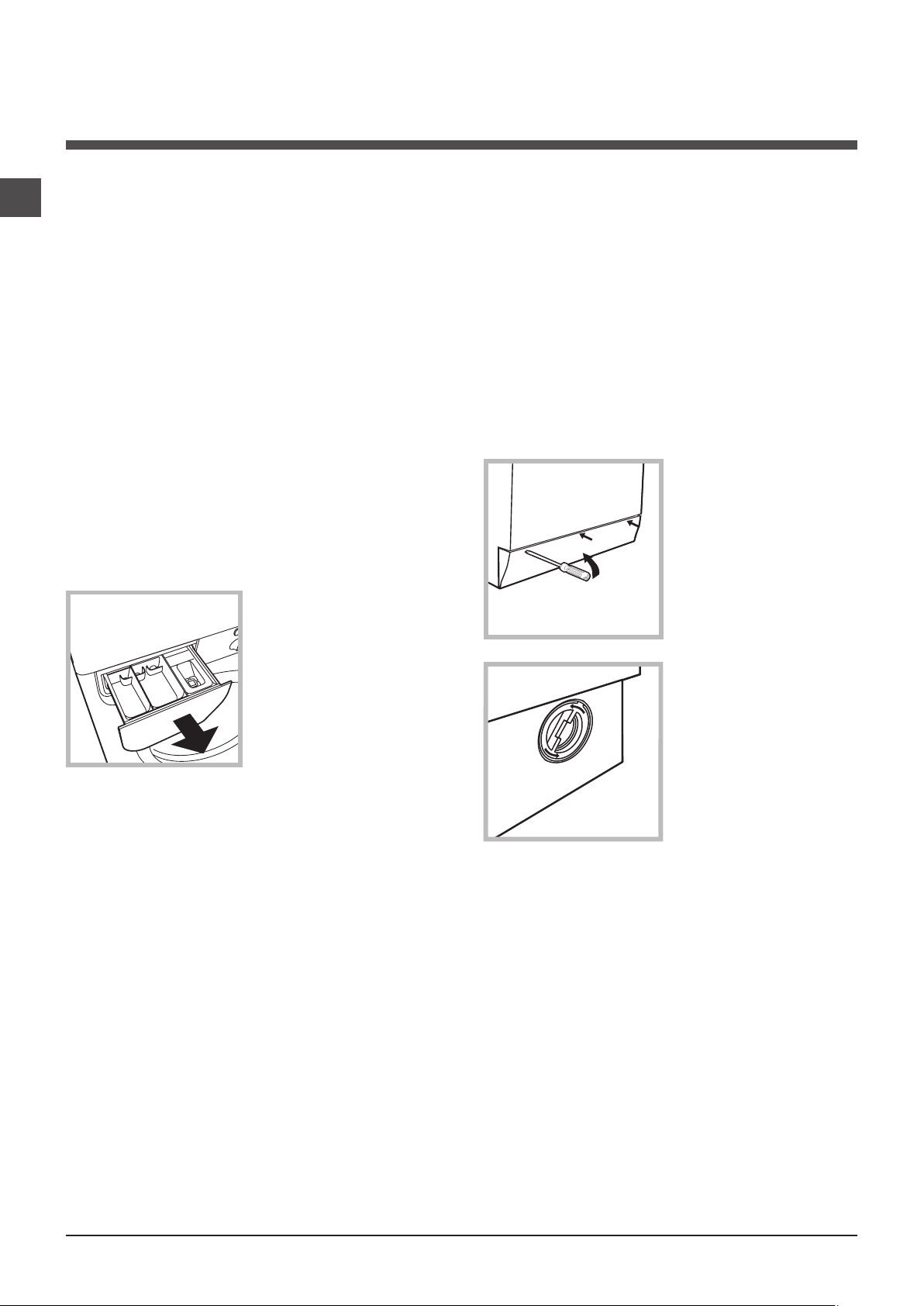

Cleaning the detergent dispenser drawer

Remove the dispenser by raising it and pulling it out (see figure). Wash it under running water; this operation should be repeated frequently.

Cleaning the pump

The washing machine is fitted with a self-cleaning pump which does not require any maintenance. Sometimes, small items (such as coins or buttons) may fall into the prechamber which protects the pump, situated in its bottom part.

! Make sure the wash cycle has finished and unplug the

appliance.

To access the pre-chamber:

1. using a screwdriver, remove the cover panel on the lower front part of the washing machine (see figure);

2. unscrew the lid by rotating it anti-clockwise (see figure): a little water may trickle out. This is perfectly normal;

Caring for the door and drum of your appliance

• Alwaysleavetheportholedoorajarinordertoprevent

unpleasant odours from forming.

3. clean the inside thoroughly;

4. screw the lid back on;

5. reposition the panel, making sure the hooks are securely in place before you push it onto the appliance.

Checking the water inlet hose

Check the inlet hose at least once a year. If there are any cracks, it should be replaced immediately: during the wash cycles, water pressure is very strong and a cracked hose could easily split open.

! Never use second-hand hoses.

Troubleshooting

Your washing machine could fail to work. Before contacting the Technical Assistance Centre (see “Assistance”), make sure that the problem cannot be not solved easily using the following list.

Problem:

The washing machine does not switch on.

The wash cycle does not start.

The washing machine does not take in water (“H2O” will flash on the display).

The washing machine continuously takes in and drains water.

Possible causes / Solutions:

• Theapplianceisnotpluggedintothesocketfully,orisnotmakingcontact.

• Thereisnopowerinthehouse.

• Thewashingmachinedoorisnotclosedproperly.

• TheON/OFFbuttonhasnotbeenpressed.

• TheSTART/PAUSEbuttonhasnotbeenpressed.

• Thewatertaphasnotbeenopened.

• Adelayedstarthasbeenset(see “Running a wash cycle”).

• Thewaterinlethoseisnotconnectedtothetap.

• Thehoseisbent.

• Thewatertaphasnotbeenopened.

• Thereisnowatersupplyinthehouse.

• Thepressureistoolow.

• TheSTART/PAUSEbuttonhasnotbeenpressed.

• Thedrainhoseisnotfittedataheightbetween65and100cmfromthefloor

(see “Installation”).

• Thefreeendofthehoseisunderwater(see “Installation”).

• Thewalldrainagesystemisnotfittedwithabreatherpipe.

If the problem persists even after these checks, turn off the water tap, switch the appliance off and contact the Assistance Service. If the dwelling is on one of the upper floors of a building, there may be problems relating to water drainage, causing the washing machine to fill with water and drain continuously. Special anti-draining valves are available in shops and help to avoid this inconvenience.

The washing machine does not drain or spin.

The washing machine vibrates a lot during the spin cycle.

The washing machine leaks.

The “option” indicator lights and the “start/pause” indicator light flash and an error code appears on the display (e.g.: F-01, F-..).

There is too much foam.

• Thewashcycledoesnotincludedraining:somewashcyclesrequirethedrain

phase to be started manually.

• The“Easyiron”optionhasbeenactivated:Tocompletethewashcycle,press

the START/PAUSE button (see “Wash cycles and options”).

• Thedrainhoseisbent(see “Installation”).

• Thedrainageductisclogged.

• Thedrumwasnotunlockedcorrectlyduringinstallation(see “Installation”).

• Thewashingmachineisnotlevel(see “Installation”).

• Thewashingmachineistrappedbetweencabinetsandwalls(see “Installation”).

• Thewaterinlethoseisnotscrewedonproperly(see “Installation”).

• Thedetergentdispenserdrawerisblocked(forcleaninginstructions,see

“Care and maintenance”).

• Thedrainhoseisnotfixedproperly(see “Installation”).

• Switchoffthemachineandunplugit,waitforapproximately1minuteand

then switch it back on again.

If the problem persists, contact the Technical Assistance Service.

• Thedetergentisnotsuitableformachinewashing(itshoulddisplaythetext

“for washing machines” or “hand and machine wash”, or the like).

• Toomuchdetergentwasused.

+ 25 hidden pages
