INDESIT IWDE 7145 S User Manual

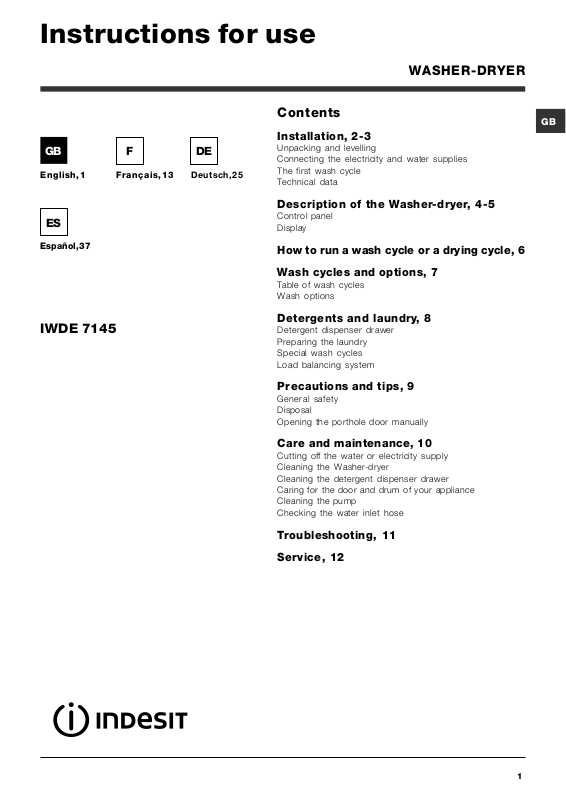

Instructions for use

WASHER-DRYER

English,1

Español,37

IWDE 7145

Français,13FDeutsch,25

Contents

Installation, 2-3

Unpacking and levelling Connecting the electricity and water supplies The first wash cycle Technical data

Description of the Washer-dryer, 4-5

Control panel Display

How to run a wash cycle or a drying cycle, 6

Wash cycles and options, 7

Table of wash cycles Wash options

Detergents and laundry, 8

Detergent dispenser drawer Preparing the laundry Special wash cycles Load balancing system

Precautions and tips, 9

General safety Disposal Opening the porthole door manually

Care and maintenance, 10

Cutting off the water or electricity supply Cleaning the Washer-dryer Cleaning the detergent dispenser drawer Caring for the door and drum of your appliance Cleaning the pump Checking the water inlet hose

Troubleshooting, 11

Service, 12

Installation

 This instruction manual should be kept in a safe

place for future reference. If the Washer-dryer is sold, transferred or moved, make sure that the instruction manual remains with the machine so that the new owner is able to familiarise himself/herself with its operation and features.

 Read these instructions carefully: they contain vital

information relating to the safe installation and operation of the appliance.

Unpacking and levelling

Unpacking

1. Remove the Washer-dryer from its packaging.

2. Make sure that the Washer-dryer has not been damaged during the transportation process. If it has been damaged, contact the retailer and do not proceed any further with the installation process.

3. Remove the 4 protective screws (used during transportation) and the rubber washer with the corresponding spacer, located on the rear part of the appliance (see figure).

4. Close off the holes using the plastic plugs provided.

5. Keep all the parts in a safe place: you will need them again if the Washer-dryer needs to be moved to another location.

Levelling the machine correctly will provide it with stability, help to avoid vibrations and excessive noise and prevent it from shifting while it is operating. If it is placed on carpet or a rug, adjust the feet in such a way as to allow a sufficient ventilation space underneath the Washer-dryer.

Connecting the electricity and water supplies

Connecting the water inlet hose

1. Connect the supply pipe by screwing it to a cold water tab using a ¾ gas threaded connection

(see figure).

Before performing the connection, allow the water to run freely until it is perfectly clear.

2. Connect the inlet hose to the Washer-dryer by screwing it onto the corresponding water inlet of the appliance, which is situated on the top righthand side of the rear part of the appliance (see figure).

3. Make sure that the hose is not folded over or bent.

 Packaging materials should not be used as toys for

children.

Levelling

1. Install the Washer-dryer on a flat sturdy floor, without resting it up against walls, furniture cabinets or anything else.

2. If the floor is not perfectly level, compensate for any unevenness by tightening or loosening the adjustable front feet (see figure); the angle of inclination, measured in relation to the worktop, must not exceed 2°.

 The water pressure at the tap must fall within the

values indicated in the Technical details table (see next page).

 If the inlet hose is not long enough, contact a

specialised shop or an authorised technician.

 Never use second-hand hoses.

 Use the ones supplied with the machine.

Connecting the drain hose

65 - 100 cm

Connect the drain hose, without bending it, to a drainage duct or a wall drain located at a height between 65 and 100 cm from the floor;

 Do not use extension cords or multiple sockets.

 The cable should not be bent or compressed.

 The power supply cable must only be replaced by

authorised technicians.

Warning! The company shall not be held responsible in the event that these regulations are not respected.

The first wash cycle

alternatively, rest it on the side of a washbasin or bathtub, fastening the duct supplied to the tap (see figure). The free end of the hose should not be underwater.

 We advise against the use of hose extensions; if it is

absolutely necessary, the extension must have the same diameter as the original hose and must not exceed 150 cm in length.

Electrical connections

Before plugging the appliance into the electricity socket, make sure that:

 the socket is earthed and complies with all

applicable laws;

 the socket is able to withstand the maximum power

load of the appliance as indicated in the Technical data table (see opposite);

Once the appliance has been installed, and before you use it for the first time, run a wash cycle with detergent and no laundry, using the wash cycle 2.

Technical data

Model

Dimensions

Capacity

Electrical

connections

Wat er connections

IWDE 7145

width 59.5 cm height 85 cm depth 53,5 cm

from 1 to 7 kg for the wash programme; from 1 to 5 kg for the drying programme

please refer to the technical data plate fixed to the machine

maximum pressure 1 MPa (10 bar) minimum pressure 0.05 MPa (0.5 bar) drum capacity 52 litres

 the power supply voltage falls within the values

indicated in the Technical data table (see opposite);

 the socket is compatible with the plug of the

Washer-dryer. If this is not the case, replace the socket or the plug.

 The Washer-dryer must not be installed outdoors,

even in covered areas. It is extremely dangerous to leave the appliance exposed to rain, storms and other weather conditions.

 When the Washer-dryer has been installed, the

electricity socket must be within easy reach.

Spin speed

Energy rated programmes

according to regulation EN 50229

up to 1400 rotations per minute

Wash: programme 2; temperature 60°C; using a load of 7 kg. Drying: first drying cycle performed with a 2 kg load, selecting drying level "A1" (IRON DRY); second drying cycle performed with a 5 kg load, selecting drying level "A4" (EXTRA DRY).

This appliance conforms to the following EC Directives:

- 89/336/EEC dated 03/05/89 (Electromagnetic Compatibility) and subsequent modifications

- 2002/96/EC

- 2006/95/EC (Low Voltage)

Description of the Washer-dryer

Control panel

Detergent dispenser drawer

ON/OFF

button

WASH CYCLE

knob

TEMPERATURE

Button

SPIN SPEED

Button

OPTION

buttons with indicator lights

DISPLAY

START/PAUSE

button with indicator light

DRYING

Button

Detergent dispenser drawer: used to dispense detergents and washing additives (see Detergents and laundry).

ON/OFF button machine on or off. The START/PAUSE indicator light, which flashes slowly in a green colour shows that the machine is switched on. To switch off the Washerdryer during the wash cycle, press and hold the button for approximately 2 seconds; if the button is pressed briefly or accidentally the machine will not switch off. If the machine is switched off during a wash cycle, this wash cycle will be cancelled.

WASH CYCLE knob: used to set the desired wash cycle (see "Table of wash cycles").

OPTION buttons with indicator light: used to select the available options. The indicator light corresponding to the selected option will remain lit.

SPIN button exclude the spin cycle - the value is indicated on the display.

: press this briefly to switch the

: press to reduce or completely

DRYING button

drying; the selected drying level or time will appear on the display (see "How to run a wash cycle or a drying

cycle").

START/PAUSE button the green indicator light flashes slowly, press the button to start a wash cycle. Once the cycle has begun the indicator light will remain lit in a fixed manner. To pause the wash cycle, press the button again; the indicator light will flash in an orange colour. If the symbol opened. To start the wash cycle from the point at which it was interrupted, press the button again.

Standby mode

This washing machine, in compliance with new energy saving regulations, is fitted with an automatic standby system which is enabled after a few minutes if no activity is detected. Press the ON-OFF button briefly and wait for the machine to start up again.

: press to decrease or exclude

with indicator light: when

is not illuminated, the door may be

TEMPERATURE button completely exclude the temperature: the value will be shown on the display.

: press to decrease or

Display

The display is useful when programming the machine and provides a great deal of information.

The duration of the available programmes and the remaining time of a running cycle appear in section A; if the DELAY START option has been set, the countdown to the start of the selected programme will appear. Furthermore, pressing the corresponding button allows you to view the maximum temperature, spin speed and drying level or time values attained by the machine during the selected cycle.

The phases scheduled for the selected cycle and, once the cycle has begun, the current phase of the wash cycle (and drying cycle, if applicable) appear in section B.

Wash

Rinse Spin / Drain Drying

The icons corresponding to "temperature" If the The If the

symbol lights up, the display will visualise the set "temperature" value.

symbol lights up while the drying settings are being adjusted.

symbol lights up, the display will visualise the set "spin" value.

, "Drying" and "spin" appear in section C from top to bottom:

Door locked symbol

The lit symbol indicates that the door is locked. To prevent any damage, wait until the symbol turns off before opening the door. To open the door while a cycle is in progress, press the START/PAUSE button; if the DOOR LOCKED switched off the door may be opened.

symbol is

How to run a wash cycle or a drying cycle

1. SWITCH THE MACHINE ON. Press the

button; the START/PAUSE indicator light will flash slowly in a green colour.

2. LOAD THE LAUNDRY. Open the porthole door. Load the laundry, making sure you do not exceed the maximum load value indicated in the table of programmes on the following page.

3. MEASURE OUT THE DETERGENT. Pull out the detergent dispenser drawer and pour the detergent into the relevant compartments as described in

"Detergents and laundry".

4. CLOSE THE DOOR.

5. SELECT THE WASH CYCLE. Set the WASH CYCLE knob to the desired programme; a temperature and spin speed is set for each wash cycle; these may be adjusted. The duration of the cycle will appear on the display.

6. CUSTOMISE THE WASH CYCLE. Use the relevant buttons:

Modifying the temperature and/or spin speed. The machine automatically displays the maximum temperature and spin speed values set for the selected cycle, or the most recently-used settings if they are compatible with the selected cycle. The temperature can be decreased by pressing the setting is reached. The spin speed may be progressively reduced by pressing the until it is completely excluded (the "OFF" setting). If these buttons are pressed again, the maximum values are restored.

 Setting the drying cycle

The first time the button is pressed, the machine will automatically select the maximum drying cycle which is compatible with the selected wash cycle. Subsequent presses will decrease the drying level and then the drying time, until the cycle is excluded completely ("OFF"). Drying may be set as follows: A- Based on the desired laundry dryness level: Iron dry: suitable for clothes which will need ironing afterwards. the remaining dampness softens creases, making them easier to remove; "A1" appears on the display. Hanger dry: ideal for clothes which do not need to be dried fully; "A2" appears on the display. Cupboard dry: suitable for laundry which can be put back in a cupboard without being ironed; "A3" appears on the display. Extra dry: suitable for garments which need to be dried completely, such as sponges and bathrobes; "A4" appears on the display.

B - Based on a set time period: between 30 and 180 minutes.

button, until the cold wash "OFF"

button,

If your laundry load to be washed and dried is much greater than the maximum stated load (see adjacent table), perform the wash cycle, and when the cycle is complete, divide the garments into groups and put some of them back in the drum. At this point, follow the instructions provided for a "Drying only" cycle. Repeat this procedure for the remainder of the load. N.B: a cooling-down period is always added to the end of each drying cycle.

Drying only

Use the cycle selector knob to select a drying cycle (11-12) in accordance with the type of fabric. The desired drying level or time may also be set using the DRYING button

Modifying the cycle settings.

 Press the button to enable the option; the

indicator light corresponding to the button will switch on.

 Press the button again to disable the option; the

indicator light will switch off.

 If the selected option is not compatible with the

programmed wash cycle, the indicator light will flash and the option will not be activated.

 If the selected option is not compatible with

another option which has been selected previously, the indicator light corresponding to the first option selected will flash and only the second option will be activated; the indicator light corresponding to the enabled option will remain lit.

 The options may affect the recommended load

value and/or the duration of the cycle.

7. START THE PROGRAMME. Press the START/ PAUSE button. The corresponding indicator light will become green, remaining lit in a fixed manner, and the door will be locked (the DOOR LOCKED symbol it is in progress, pause the Washer-dryer using the START/PAUSE button (the START/PAUSE indicator light will flash slowly in an orange colour); then select the desired cycle and press the START/ PAUSE button again. To open the door while a cycle is in progress, press the START/PAUSE button; if the DOOR LOCKED off the door may be opened. Press the START/ PAUSE button again to restart the wash cycle from the point at which it was interrupted.

8. THE END OF THE WASH CYCLE. This will be indicated by the text "End" on the display; when the DOOR LOCKED may be opened. Open the door, unload the laundry and switch off the machine.

will be on). To change a wash cycle while

symbol is switched

symbol switches off the door

 If you wish to cancel a cycle which has already

begun, press and hold the stopped and the machine will switch off.

button. The cycle will be

Wash cycles and options

Table of wash cycles

Descrip tion of the wash cycle

Wash cycles

Daily

Cotton with prewash:

Cotton:

extremely soiled whites.

Cotton (1):

Cotton (2):

Cotton:

Coloured Cottons (3):

Synthetics:

Special

Wool:

Silk/Curtains:

Jeans

Sport Light

Sport Shoes

Drying

Cotton dry

Synthetics dry

Express Wash & Dry

Partial wash cycles

Rinse Spin Drain

heavily soiled whites and resistant colours. heavily soiled whites and delicate colours.

heavily soiled whites and resistant colours.

lightly soiled resistant colours.

for wool, cashmere, etc.

for garments in silk and viscose, lingerie.

extremely soiled whites.

lightly soiled whites and delicate colours.

Max

Max.

temp.

speed

(°C)

(rpm )

90° 1400 90° 1400 60° 1400 40° 1400 60° 1400 40° 1400 60° 800

40° 600 30° 0 40° 800 30° 600

30° 600

- -

30° 1400

1400

Detergents Max. load (kg)

Drying

Prewash Wash

llll l l l l l l

- -

l l

- - - -

- - -

- -

- - -

Fabric

softener

ll ll ll ll ll ll

ll ll ll ll

Normal

Max. 2

Eco

Time

7 7 7 7 73,5 73,5

1,5

1 3 3

pairs

5 3

0,5

7 7 7

Cycle

duration

The duration of the wash cycles can be checked

on the display.

For all Test Institutes:

1) Test wash cycle in compliance with regulation EN 50229: set wash cycle 2 with a temperature of 60°C.

2) Long wash cycle for cottons: set wash cycle 2 with a temperature of 40°C.

3) Short wash cycle for cottons: set wash cycle 4 with a temperature of 40°C.

Wash options

The information contained in the table is intended as a guide only.

To drain the water so that the laundry may be removed, press the START/PAUSE button or the

Selecting this option enables you to suitably adjust drum rotation, temperature and water to a reduced load of lightly soiled cotton and synthetic fabrics (refer to the

"Table of wash cycles"

).   enables you

to wash in less time thereby saving water and

EASY IRON button.  This function may not be used in conjunction with

cycles 6, 9, 10, 11, 12, 13, Note: If you also want to run the drying cycle, this option

is enabled only if combined with level A1 (Iron dry). electricity. We suggest using a liquid detergent suitably measured out to the load quantity.

 This function may not be used in conjunction with cycles 1, 2, 6, 7, 8, 9, 10, 11, 12, 13,

, , .

Easy iron

By selecting this function, the wash and spin cycles

Extra rinse

By selecting this option, the efficiency of the rinse is

increased and optimal detergent removal is

guaranteed. It is particularly useful for sensitive skin.

 This function may not be used in conjunction with

cycles 11,12, 13, will be modified in order to reduce the formation of

creases. At the end of the cycle the Washer-dryer will perform slow rotations of the drum; the indicator lights for the EASY IRON and START/PAUSE options will flash (the first one green, the second orange). To end the cycle, press the START/PAUSE button or the EASY IRON button. For the 7 wash cycle, the machine will end the cycle while the laundry is soaking and the EASY IRON and START/PAUSE indicator lights will flash.

Delay start

To set a delayed start for the selected cycle, press

the corresponding button repeatedly until the required

delay period has been reached. When this option is

enabled, the corresponding indicator light will remain

lit. To remove the delayed start setting, press the

button until the text "OFF" appears on the display.

 This option can be used in conjunction with all

cycles.

, .

Detergents and laundry

Detergent dispenser drawer

Good washing results also depend on the correct dose of detergent: adding too much detergent will not necessarily result in a more efficient wash, and may in fact cause build up on the inside of your appliance and contribute to environmental pollution.

 Do not use hand washing detergents because these

create too much foam.

Open the detergent dispenser drawer and pour in the detergent or washing additive, as

follows.

compartment 1: Pre-wash detergent (powder) compartment 2: Detergent for the wash cycle (powder or liquid)

Liquid detergent should only be poured in immediately prior to the start of the wash cycle.

compartment 3: Additives (fabric softeners, etc.)

The fabric softener should not overflow the grid.

Preparing the laundry

 Divide the laundry according to:

- the type of fabric/the symbol on the label

- the colours: separate coloured garments from whites.  Empty all garment pockets and check the buttons.  Do not exceed the listed values, which refer to the

weight of the laundry when dry: Durable fabrics: max. 7 kg Synthetic fabrics: max. 3 kg Delicate fabrics: max. 2 kg Wool: max. 1,5 kg Silk: max. 1 kg

How much does your laundry weigh?

1 sheet 400-500 g 1 pillow case 150-200 g 1 tablecloth 400-500 g 1 bathrobe 900-1200 g 1 towel 150-250 g

Curtains: fold curtains and place them in a pillow case or mesh bag. Use wash cycle 7. Jeans: Turn garments inside-out before washing and use a liquid detergent. Use programme 8. Sport Light (wash cycle 9): is for washing lightly soiled sports clothing fabrics (tracksuits, shorts, etc.); for best results, we recommend not exceeding the maximum load indicated in the "Table of wash cycles". We recommend using a liquid detergent and dosage suitable for a half-load. Sport Shoes (wash cycle 10): is for washing sports shoes; for best results, do not wash more than 2 pairs simultaneously. Express Wash & Dry (wash cycle 13) was designed to wash and dry lightly soiled garments quickly. This cycle may be used to wash and dry a laundry load of up to 0.5 kg in just 35 minutes. To achieve optimum results, use liquid detergent and pre-treat cuffs, collars and stains.

Load balancing system

Before every spin cycle, to avoid excessive vibrations and to distribute the load in a uniform manner, the drum rotates continuously at a speed which is slightly greater than the washing rotation speed. If, after several attempts, the load is not balanced correctly, the machine spins at a reduced spin speed. If the load is excessively unbalanced, the Washer-dryer performs the distribution process instead of spinning. To encourage improved load distribution and balance, we recommend small and large garments are mixed in the load.

Special wash cycles

Wool: all wool garments can be washed using

programme 6, even those carrying the "hand-wash only" detergents and do not exceed 1,5 kg of laundry. Silk: use special wash cycle 7 to wash all silk garments. We recommend the use of special detergent which has been designed to wash delicate clothes.

label. For best results, use special

Precautions and tips

 This Washer-dryer was designed and constructed in

accordance with international safety regulations. The following information is provided for safety reasons and must therefore be read carefully.

General safety

 This appliance was designed for domestic use only.  The Washer-dryer must only be used by adults, in

accordance with the instructions provided in this manual.

 Do not touch the machine when barefoot or with

wet or damp hands or feet.

 Do not pull on the power supply cable when

unplugging the appliance from the electricity socket. Hold the plug and pull.

 Do not open the detergent dispenser drawer while

the machine is in operation.

 Do not touch the drained water as it may reach

extremely high temperatures.

 Never force the porthole door. This could damage

the safety lock mechanism designed to prevent accidental opening.

 If the appliance breaks down, do not under any

circumstances access the internal mechanisms in an attempt to repair it yourself.

 Always keep children well away from the appliance

while it is operating.  The door can become quite hot during the wash cycle.  If the appliance has to be moved, work in a group

of two or three people and handle it with the utmost

care. Never try to do this alone, because the

appliance is very heavy.  Before loading laundry into the Washer-dryer, make

sure the drum is empty.

separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

Opening the porthole door manually

In the event that it is not possible to open the porthole door due to a powercut, and if you wish to remove the laundry, proceed as follows:

1. remove the plug from the electrical socket.

2. make sure the water level inside the machine is

lower than the door opening; if it is not, remove excess water using the drain hose, collecting it in a bucket as indicated in the figure.

3. using a screwdriver, remove the cover panel on the lower front part of the Washer-dryer (see figure).

 During the drying phase, the door tends to get

quite hot.

 Do not use the appliance to dry clothes that have

been washed with flammable solvents (e.g. trichlorethylene).

 Do not use the appliance to dry foam rubber or

similar elastomers.

 Make sure that the water tap is turned on during

the drying cycles.

Disposal

 Disposing of the packaging materials: observe local

regulations so that the packaging may be re-used.  The European Directive 2002/96/EC on Waste

Electrical and Electronic Equipment, requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected

4. pull outwards using the tab as indicated in the figure, until the plastic tie-rod is freed from its stop

position; pull downwards and open the door at the same time.

5. reposition the panel, making sure the hooks are securely in place before you push it onto the appliance.

Care and maintenance

Cutting off the water and electricity supplies

 Turn off the water tap after every wash cycle. This

will limit wear on the hydraulic system inside the

Washer-dryer and help to prevent leaks.

 Unplug the Washer-dryer when cleaning it and

during all maintenance work.

Cleaning the Washer-dryer

The outer parts and rubber components of the appliance can be cleaned using a soft cloth soaked in lukewarm soapy water. Do not use solvents or abrasives.

Cleaning the detergent dispenser drawer

Remove the dispenser by raising it and pulling it out (see figure). Wash it under running water; this operation should be repeated frequently.

Cleaning the pump

The Washer-dryer is fitted with a self-cleaning pump which does not require any maintenance. Sometimes, small items (such as coins or buttons) may fall into the pre-chamber which protects the pump, situated in its bottom part.

 Make sure the wash cycle has finished and unplug

the appliance.

To access the pre-chamber:

1. using a screwdriver, remove the cover panel on the lower front part of the Washer-dryer (see figure);

2. unscrew the lid by rotating it anti-clockwise (see figure): a little water may trickle out. This is perfectly normal;

Caring for the door and drum of your appliance

 Always leave the porthole door ajar in order to

prevent unpleasant odours from forming.

3. clean the inside thoroughly;

4. screw the lid back on;

5. reposition the panel, making sure the hooks are securely in place before you push it onto the appliance.

Checking the water inlet hose

Check the inlet hose at least once a year. If there are any cracks, it should be replaced immediately: during the wash cycles, water pressure is very strong and a cracked hose could easily split open.

 Never use second-hand hoses.

Troubleshooting

Your Washer-dryer could fail to work. Before contacting the Technical Assistance Centre (see Assistance), make sure that the problem cannot be not solved easily using the following list.

Problem:

The Washer-dryer does not switch on.

The wash cycle does not start.

The Washer-dryer does not take in water ("H2O" will flash on the display).

The Washer-dryer continuously takes in and drains water.

Possible causes / Solutions:

 The appliance is not plugged into the socket fully, or is not making contact.  There is no power in the house.

 The Washer-dryer door is not closed properly.  The ON/OFF button has not been pressed.  The START/PAUSE button has not been pressed.  The water tap has not been opened.  A delayed start has been set.

 The water inlet hose is not connected to the tap.  The hose is bent.  The water tap has not been opened.  There is no water supply in the house.  The pressure is too low.  The START/PAUSE button has not been pressed.

 The drain hose is not fitted at a height between 65 and 100 cm from

the floor (see Installation).  The free end of the hose is under water (see Installation).  The wall drainage system is not fitted with a breather pipe. If the problem persists even after these checks, turn off the water tap, switch the appliance off and contact the Assistance Service. If the dwelling is on one of the upper floors of a building, there may be problems relating to water drainage, causing the Washer-dryer to fill with water and drain continuously. Special anti-draining valves are available in shops and help to avoid this inconvenience.

The Washer-dryer does not drain or spin.

The Washer-dryer vibrates a lot during the spin cycle.

The Washer-dryer leaks.

The "option" indicator lights and the "start/pause" indicator light flash and an error code appears on the display (e.g.: F-01, F-..).

There is too much foam.

The washer-dryer does not dry.

 The wash cycle does not include draining: some wash cycles require the

drain phase to be started manually.  The Easy iron option has been activated: To complete the wash cycle,

press the START/PAUSE button (see Wash cycles and options).  The drain hose is bent (see Installation).  The drainage duct is clogged.

 The drum was not unlocked correctly during installation (see Installation).  The Washer-dryer is not level (see Installation).  The Washer-dryer is trapped between cabinets and walls (see Installation).

 The water inlet hose is not screwed on properly (see Installation).  The detergent dispenser drawer is blocked (for cleaning instructions, see Care

and maintenance).  The drain hose is not fixed properly (see Installation).

 Switch off the machine and unplug it, wait for approximately 1 minute

and then switch it back on again.

If the problem persists, contact the Technical Assistance Service.

 The detergent is not suitable for machine washing (it should display the

text for Washer-dryers or hand and machine wash, or the like).  Too much detergent was used.

 The appliance is not plugged into the socket, or not enough to make contact.  There has been a power failure.  The appliance door is not shut properly.  A delayed start has been set.  DRYING is in the OFF position.

Service

Before calling for Assistance:

 Check whether you can solve the problem alone (see Troubleshooting);  Restart the programme to check whether the problem has been solved;  If this is not the case, contact an authorised Technical Assistance Centre using the telephone number

provided on the guarantee certificate.

 Always request the assistance of authorised technicians.

Have the following information to hand:

 the type of problem;  the appliance model (Mod.);  the serial number (S/N). This information can be found on the data plate applied to the rear of the Washer-dryer, and can also be found on the front of the appliance by opening the door.

Mode demploi

LAVANTE-SÉCHANTE

Français

IWDE 7145

Sommaire

Installation, 14-15

Déballage et mise à niveau Raccordements eau et électricité Premier cycle de lavage Caractéristiques techniques

Description du lavante-séchante, 16-17

Bandeau de commandes Écran

Comment effectuer un cycle de lavage ou un séchage, 18

Programmes et fonctions, 19

Tableau des programmes Fonctions de lavage

Produits lessiviels et linge, 20

Tiroir à produits lessiviels Triage du linge Programmes spéciaux Système déquilibrage de la charge

Précautions et conseils, 21

Sécurité générale Mise au rebut Ouverture manuelle de la porte hublot

Entretien et soin, 22

Coupure de larrivée deau et du courant Nettoyage du lavante-séchante Nettoyage du tiroir à produits lessiviels. Entretien du hublot et du tambour Nettoyage de la pompe Contrôle du tuyau darrivée de leau

Anomalies et remèdes, 23

Assistance, 24

Installation

 Conserver ce mode demploi pour pouvoir le

consulter à tout moment. En cas de vente, de cession ou de déménagement, veiller à ce quil suive toujours le lavante-séchante pour que son nouveau propriétaire soit informé sur son mode de fonctionnement et puisse profiter des conseils correspondants.

 Lire attentivement les instructions: elles fournissent

des conseils importants sur linstallation, lutilisation et la sécurité de lappareil.

Déballage et mise à niveau

Déballage

1. Déballer le lavante-séchante.

2. Contrôler que le lavante-séchante na pas été endommagé pendant le transport. Sil est abîmé, ne pas le raccorder et contacter le vendeur.

3. Enlever les 4 vis de protection servant au transport, le caoutchouc et la cale, placés dans la partie arrière (voir figure).

Une bonne mise à niveau garantit la stabilité de lappareil et évite quil y ait des vibrations, du bruit et des déplacements en cours de fonctionnement. Si la machine est posée sur de la moquette ou un tapis, régler les pieds de manière à ce quil y ait suffisamment despace pour assurer une bonne ventilation.

Raccordements eau et électricité

Raccordement du tuyau darrivée de leau

1. Reliez le tuyau d'alimentation en le vissant à un robinet d'eau froide à embout fileté 3/4 gaz (voir figure). Faire couler leau jusquà ce quelle soit limpide et sans impuretés avant de raccorder.

2. Raccorder le tuyau darrivée de leau au lavante-séchante en le vissant à la prise deau prévue, dans la partie arrière en haut à droite (voir figure).

4. Boucher les trous à laide des bouchons plastique fournis.

5. Conserver toutes ces pièces: il faudra les remonter en cas de transport du lavante-séchante.

 Les pièces demballage ne sont pas des jouets pour

enfants.

Mise à niveau

1. Installer le lavante-séchante sur un sol plat et rigide, sans lappuyer contre des murs, des meubles ou autre.

2. Si le sol nest pas parfaitement horizontal, visser ou dévisser les pieds de réglage avant (voir figure) pour niveler lappareil; son angle dinclinaison, mesuré sur le plan de travail, ne doit pas dépasser 2°.

3. Attention à ce que le tuyau ne soit pas plié ou écrasé.

 La pression de leau doit être comprise entre les

valeurs indiquées dans le tableau des Caractéristiques techniques (voir page ci-contre).

 Si la longueur du tuyau dalimentation ne suffit pas,

sadresser à un magasin spécialisé ou à un technicien agréé.

 Nutiliser que des tuyaux neufs.

 Utiliser ceux qui sont fournis avec lappareil.

Raccordement du tuyau de vidange

Raccorder le tuyau dévacuation, sans le plier, à un conduit dévacuation ou à une évacuation murale placés

65 - 100 cm

à une distance du sol comprise entre 65 et 100 cm;

 Après installation du lavante-séchante, la prise de

courant doit être facilement accessible.

 Nutiliser ni rallonges ni prises multiples.

 Le câble ne doit être ni plié ni trop écrasé.

 Le câble dalimentation ne doit être remplacé que

par des techniciens agréés.

Attention! Nous déclinons toute responsabilité en cas de non-respect des normes énumérées ci-dessus.

ou bien laccrocher à un évier ou à une baignoire, dans ce cas, fixer le support en plastique fourni avec lappareil au robinet (voir figure). Lextrémité libre du tuyau dévacuation ne doit pas être plongée dans leau.

 Lutilisation dun tuyau de rallonge est absolument

déconseillée mais si on ne peut faire autrement, il faut absolument quil ait le même diamètre que le tuyau original et sa longueur ne doit pas dépasser 150 cm.

Branchement électrique

Avant de brancher la fiche dans la prise de courant, sassurer que:

 la prise est bien reliée à la terre et est conforme aux

réglementations en vigueur;

 la prise est bien apte à supporter la puissance

maximale de lappareil indiquée dans le tableau des Caractéristiques techniques (voir ci-contre);

 la tension dalimentation est bien comprise entre les

valeurs figurant dans le tableau des Caractéristiques techniques (voir ci-contre);

 la prise est bien compatible avec la fiche du lavan-

te-séchante. Autrement, remplacer la prise ou la fiche.

 Le lavante-séchante ne doit pas être installé dehors,

même à labri, car il est très dangereux de le laisser exposé à la pluie et aux orages.

Premier cycle de lavage

Avant la première mise en service de lappareil, effectuer un cycle de lavage avec un produit lessiviel mais sans linge et sélectionner le programme 2.

Caractéristiques techniques

Modèle

Dimensions

Capacité

Raccordements

électriques

Raccordements hydrauliques

Vitesse d'essorage

Programmes de

contrôle selon la

norme EN 50229

IWDE 7145

largeur 59,5 cm hauteur 85 cm profondeur 53,5 cm

de 1 à 7 kg pour le lavage de 1 à 5 kg pour le séchage

Voir la plaque signalétique appliquée sur la machine

pression maximale 1 MPa (10 bar) pression minimale 0,05 MPa (0,5 bar) capacité du tambour 52 litres

jusqu'à 1400 tours minute

programme 2; température

lavage:

60°C; effectué avec une charge de 7 kg.

séchage:

2 kg de linge avec sélection du niveau de séchage "A1" (Prêt a repasser); deuxième séchage effectué pour 5 kg de linge avec sélection du niveau de séchage "A4" (Intensif).

Cet appareil est conforme aux Directives Communautaires suivantes:

- 89/336/CEE du 03/05/89 (Compatibilité électromagnétique) et modifications suivantes

- 2006/95/CE (Basse Tension)

- 2002/96/CE

premier séchage effectué pour

+ 33 hidden pages
