INDESIT IN TSZ 1612 UK User Manual

Instructions for use

ENGLISH Instructions for use Page 3

2

PRODUCT DESCRIPTION

A. Refrigerator Compartment

1. Crisper drawer

2. Shelves / Shelf area

3. Thermostat control knob/light

4. Door trays

5. Bottle rack

6. Removable bottle restraint

7. Rating plate (at the side of crisper drawer)

8. Ice cube tray

9. Low Temperature compartment door

B. Low temperature compartment if present

Coldest zone
Least cold zone

Note: The number of shelves and type of
accessories may vary, depending on the model.
All shelves, door trays and racks are removable.

Important: Refrigerator accessories must not
be washed in a dishwasher.

CONTROLS

A. Thermostat knob
B. Light switch
D. Thermostat control reference

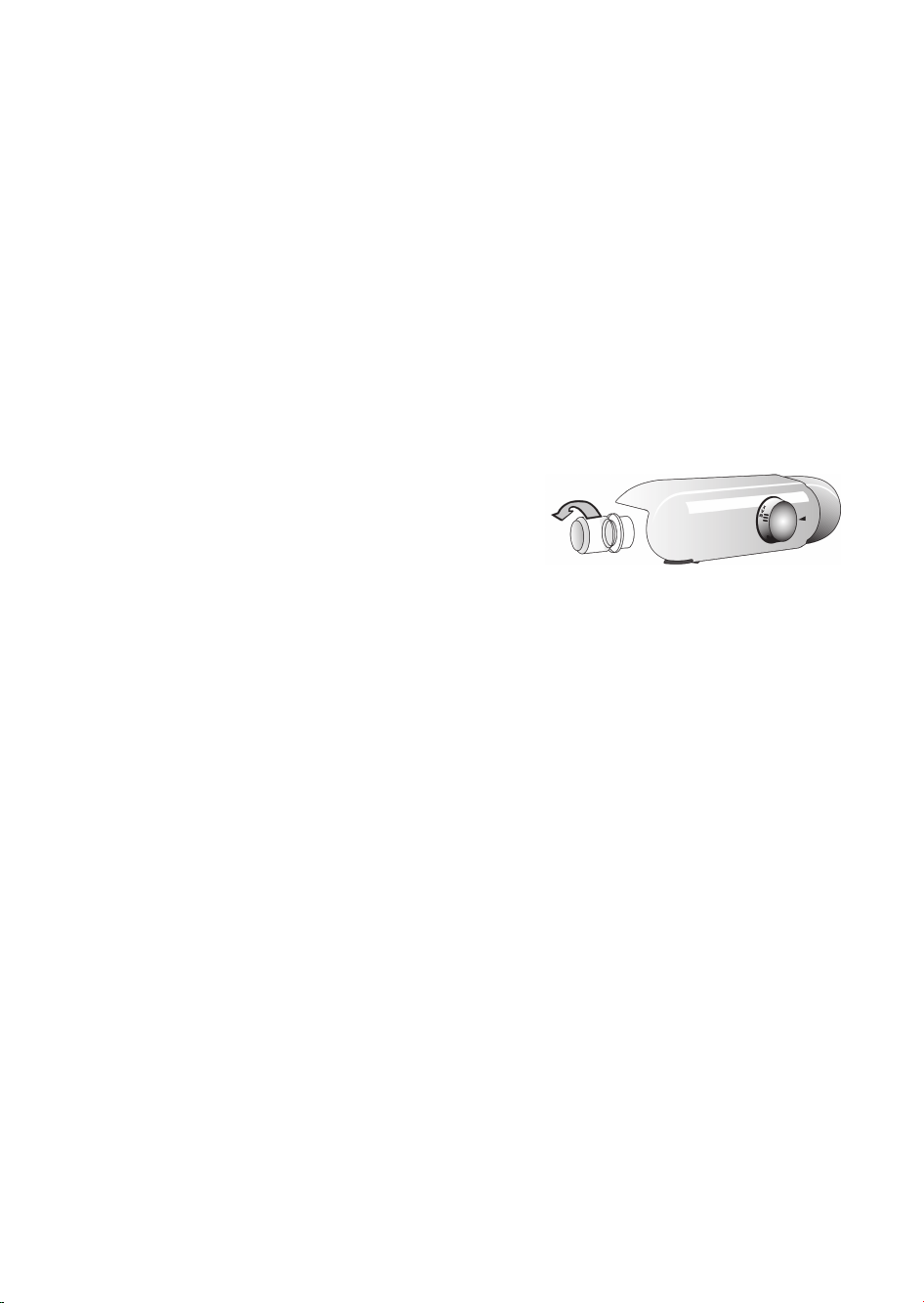

E. Light bulb

Important: Close the appliance door!

3

HOW TO OPERATE THE REFRIGERATOR COMPARTMENT

This appliance is an automatic refrigerator or a refrigerator with a

star low temperature compartment.

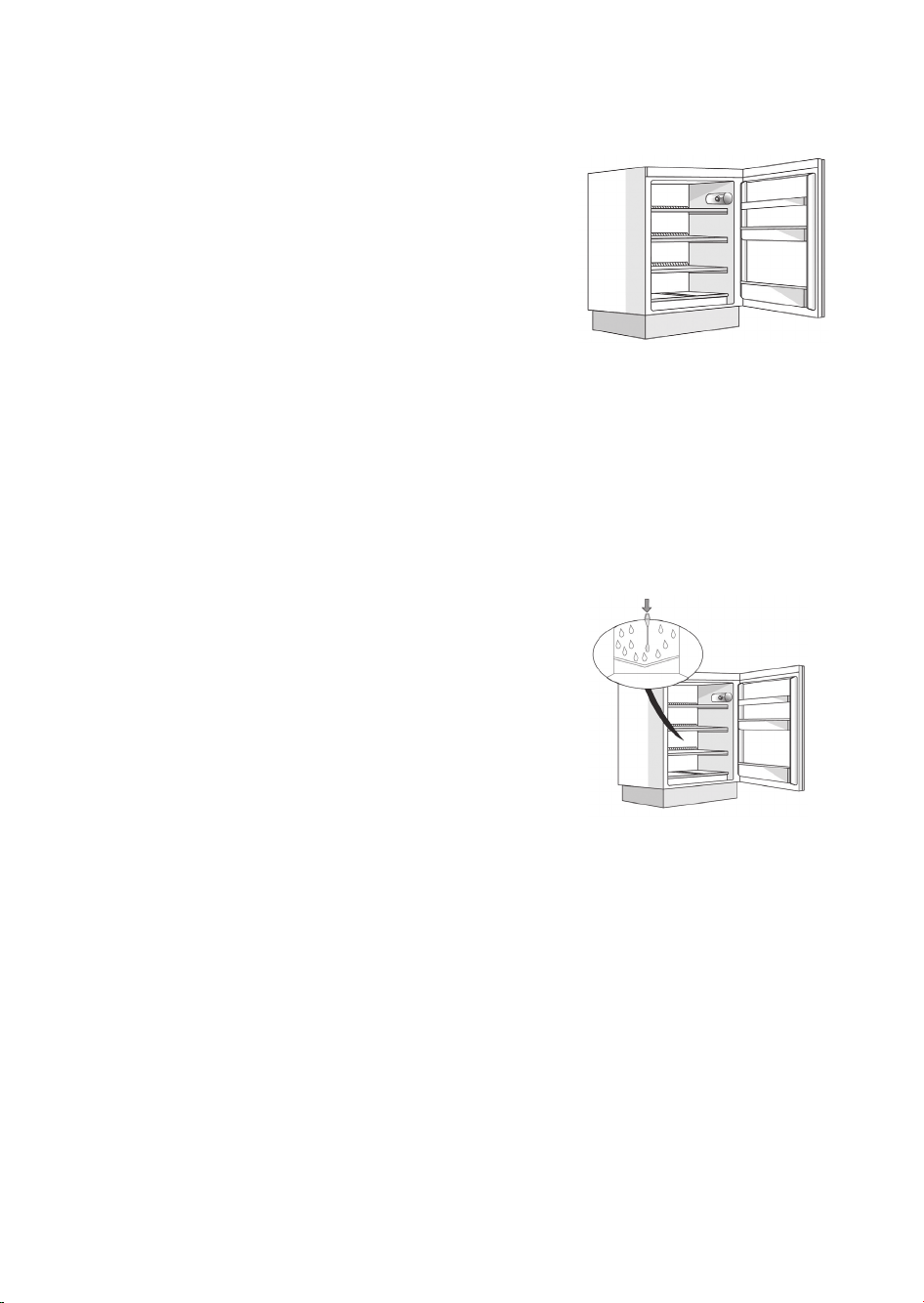

Defrosting of the refrigerator compartment is completely
automatic.

The refrigerator can operate at ambient temperatures between +16°C
and +32°C.

Switching on the refrigerator for the first time

Insert the plug into the mains socket.
The thermostat knob is used to adjust the temperature of the
refrigerator compartment, maintaining the temperature inside the low
temperature compartment.

Adjusting temperature

To adjust the temperature in the compartment, turn the thermostat
control knob:

• to lower numbers 1-2/MIN for the LEAST COLD internal
temperatures;

• to 3-4/MED for a MEDIUM temperature;

• to 5-7/MAX for the COLDEST temperature.
Thermostat set to •: no operation, no light.

Note:

The ambient temperature, frequency of door opening and position of the appliance can affect the temperatures
inside the two compartments.
Take these factors into consideration when setting the thermostat knob.

How to use the refrigerator compartment

Position the food as illustrated in the figure

A. Cooked food
B. Fish, meat
C. Fruit and vegetables
D.Bottles
E. Eggs
F. Butter, cheese and dairy products
Note:

• The space between the shelves and the rear wall of the
refrigerator compartment must be unobstructed to allow
circulation of air.

• Do not place food in direct contact with the rear wall of the
compartment.

• Store liquids in closed containers.

• Even under normal conditions, storing vegetables with a high
water content (e.g.: lettuce) can cause condensation to form in the
lower drawers and/or on the middle shelves; this will not affect the
correct operation of the appliance. However, we recommend vegetables are wrapped in order to avoid formation of
condensation.
