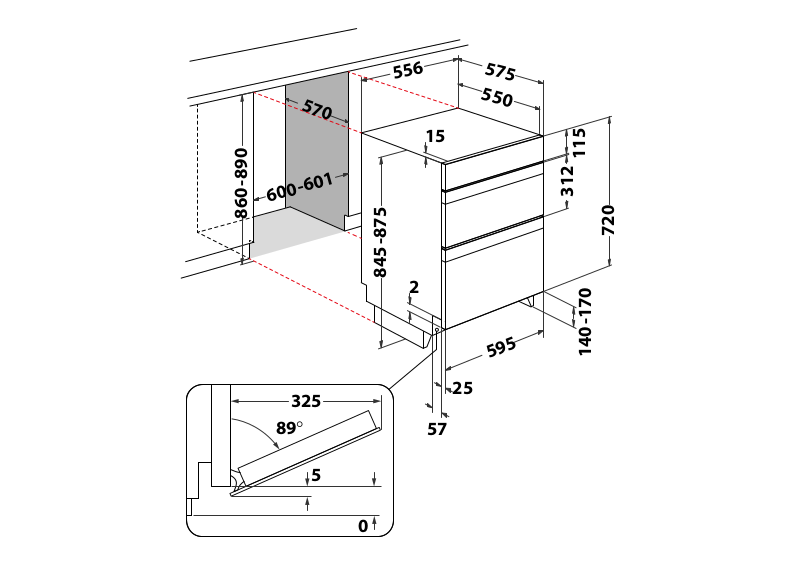

INDESIT IDU 6340 WH Extended Technical Drawing

595

556

115

312

720

575

550

-890860

601

600

-170140

570

875

845

325

89°

IDU 6340 WH

12NC/Fx: F102943 GTIN (EAN) code:

8050147029435

DIMENSION MEASURE

OVERALL CABINET

MIN Height of the wall cabinet niche, including all required space for installation or ventilation 860 mm

MIN Height of the tall cabinet niche, including all required space for installation or ventilation 0 mm

MIN Height of the base cabinet niche, including all required space for installation or ventilation 860 mm

MAX Height of the wall cabinet niche, including all required space for installation or ventilation 890 mm

MAX Height of the tall cabinet niche, including all required space for installation or ventilation 0 mm

MAX Height of the base cabinet niche, including all required space for installation or ventilation 890 mm

MIN Width of the wall cabinet niche, including all required space for installation or ventilation 600 mm

MIN Width of the tall cabinet niche, including all required space for installation or ventilation 0 mm

MIN Width of the base cabinet niche, including all required space for installation or ventilation 600 mm

MAX Width of the wall cabinet niche, including all required space for installation or ventilation 600 mm

MAX Width of the tall cabinet niche, including all required space for installation or ventilation 0 mm

MAX Width of the base cabinet niche, including all required space for installation or ventilation 601 mm

MIN Depth of the wall cabinet niche, including all required space for installation or ventilation 570 mm

MIN Depth of the tall cabinet niche, including all required space for installation or ventilation 0 mm

MIN Depth of the base cabinet niche, including all required space for installation or ventilation 570 mm

Space in front, which is required to install bottom trim 0 mm

Indicates whether a ventilation opening is needed or not. Default is "N" No

WALL CABINET (vent-shaft incoming)

Indicates the position of the freespace for the inbound airflow (wall cabinet) Rear

Minimum space or inbound ventilation (wall cabinet) 0 mm

Minimum area for inbound ventilation cavity (wall cabinet) 0 cm²

WALL CABINET (vent-shaft outgoing)

Indicates the position of the freespace for the outbound airflow (wall cabinet) Rear

Minimum space or outbound ventilation (wall cabinet) 0 mm

Minimum area for outbound ventilation cavity (wall cabinet) 0 cm²

TALL CABINET (vent-shaft incoming)

Indicates the position of the freespace for the inbound airflow (tall cabinet) Rear

Minimum space for inbound ventilation (tall cabinet) 0 mm

Minimum area for inbound ventilation cavity (tall cabinet) 0 cm²

TALL CABINET (vent-shaft outgoing)

Indicates the position of the freespace for the outbound airflow (tall cabinet) Rear

Minimum space for outbound ventilation (tall cabinet) 0 mm

Minimum area for outbound ventilation cavity (tall cabinet) 0 cm²

BASE CABINET (vent-shaft incoming)

Indicates the position of the freespace for the inbound airflow (base cabinet) Rear

Minimum space for inbound ventilation (base cabinet) 0 mm

Minimum area for inbound ventilation cavity (base cabinet) 0 cm²

BASE CABINET (vent-shaft outgoing)

Indicates the position of the freespace for the outbound airflow (base cabinet) Rear

Minimum space for outbound ventilation (base cabinet) 0 mm

Minimum area for outbound ventilation cavity (base cabinet) 0 cm²

DIMENSION MEASURE

APPLIANCE

Height of the front 720 mm

Width of the front 595 mm

Depth of the front 25 mm

Maximum depth all protruding elements, e.g. handles, controls 39 mm

Lateral clearance between front edge and most protruding elements which avoid to open a neighbour front more than 90 degrees

Projection of front in relation to housing of appliance 15 mm

Projection of front in relation to bearing area of the appliance. Taken at minimum height of appliance, if height is adjustable

When product panel is missing, set to 0 115 mm

Space in front, which is required to guarantee full operability. The most protruding part gives this dimension

Height from bearing area of appliances and lower handle 312 mm

Frontal handle thickness 21 mm

Frontal handle width 474 mm

MIN Height of the product body 845 mm

MAX Height of the product body 875 mm

Width of the product body 556 mm

Depth of the product body 550 mm

Full depth of product excluding protruding interface elements 575 mm

- - mm

MIN depth between plinth return and front 57 mm

MAX depth between plinth return and front 57 mm

Height MIN Plinth return. This dimension is taken by minimum appliance height 140 mm

Height MAX Plinth return. This dimension is taken at maximum appliance height 170 mm

Appliance can be used as base for other appliances from the same manufacturer. Default is "No" No

Appliance Flap door

Projection of the opened flap in relation to bearing area 5 mm

Maximum angle when flap door is opened totally 89 mm

Appliance Side swing door

Lateral projection of front incl. controls when door is opened totaly. At the side where the hinge is mounted

Lateral projection of opened front at the side where the hinge is fixed 0 mm

Maximum angle when door is opened totally 0 mm

Appliance other

Depth from front end of the niche to the front end of the freespace of the retrace 65 mm

Height from niche to bottom end of freespace for the retrace 685 mm

61 mm

2 mm

325 mm

0 mm
