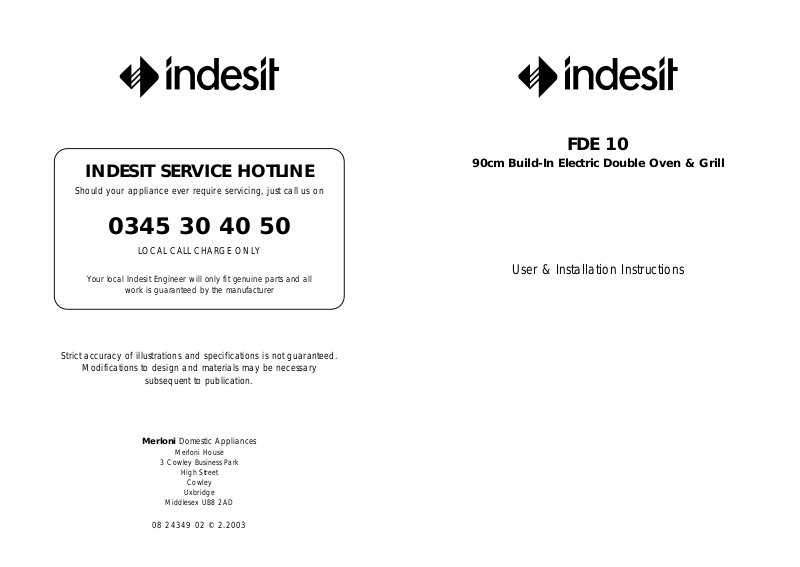

Indesit FDE 10 User Manual

Merloni Domestic Appliances

Merloni House

3 Cowley Business Park

High Street

Cowley

Uxbridge

Middlesex UB8 2AD

08 24349 02 © 2.2003

INDESIT SERVICE HOTLINE

Should your appliance ever require servicing, just call us on

0345 30 40 50

LOCAL CALL CHARGE ONLY

Your local Indesit Engineer will only fit genuine parts and all

work is guaranteed by the manufacturer

Strict accuracy of illustrations and specifications is not guaranteed.

Modifications to design and materials may be necessary

subsequent to publication.

FDE 10

90cm Build-In Electric Double Oven & Grill

User & Installation Instructions

TECHNICAL DATA

Electrical supply

230 - 240V ~ 50Hz

Element ratings

Dual Grill 1725 / 2685W Top Oven (Base) 670W Top Oven (Grill) 615W Main Oven 2400W Lights each 25W Cooling fan 19W

Maximum load 5.18kW

INSTALLATION INSTRUCTIONS

Step 2: Connect to the electricity supply

Warning: This appliance must be earthed.

The appliance must be installed by a competent electrician using a double pole control unit of 30 ampere minimum capacity with 3mm minimum contact separation at all poles.

We recommend that the appliance is connected by a qualified electrician who is a member of the N.I.C.E.I.C. and who will comply with the I.E.E. and local regulation.

1. Access to the mains terminal is gained by opening the terminal block cover at the rear of the appliance (use a small flat-bladed screwdriver).

2. Connection should be made with suitable twin and earth heat resistant flexible cable, minimum 4mm

which is suitable for use up

to 25 amps.

3. First strip the wires, then push the cable through the cable clamp in the terminal block cover.

4. Connect the cable to the terminal block and tighten the cable clamp cover.

5. Close the terminal box, ensuring that the cover is engaged on the locking tabs.

Step 3: Insert the appliance and secure into position

Note: The unit housing the appliance must be appropriately fixed.

Open the top oven / grill door and secure appliance into position, using the 2 No 8 x 25mm (black) chipboard screws through the front frame, ensuring that the appliance is centrally located. Take care not to damage the outer trim or cabinet.

User’s Section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 21

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Be Safe - Not Sorry. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Using the Grill . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Using the Top Oven - Conventional . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Top heat and base heat. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Top oven baking guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Using the Main Oven - Fanned. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Slow cooking. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Cooking with a fan oven . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Defrosting and cooling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Main oven baking guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Traditional fruit cakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Roast turkey . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Roasting guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Automatic cooking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Programmer / Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 - 24

Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Please keep this handbook for future reference, or for anyone else

who may use the appliance.

CONTENTS

We hope that the following information will help you to familiarise yourself with the features of the appliance, and to use it successfully and safely.

Our policy is one of constant development and improvement. Strict accuracy of illustrations and specifications is not guaranteed. Modification to design and materials may be necessary subsequent to publication.

Please read the instructions in this handbook before using or installing this appliance.

Your 1st Year Guarantee

To fulfil the conditions of your guarantee, this appliance must be correctly installed and operated, in accordance with these instructions, and only be used for normal domestic purposes.

Please note that the guarantee, and Service availability, only apply to the UK and Republic of Ireland.

Electrical connection

Please refer to installation instructions for electrical connection.

In your own interest, and that of safety, make sure that the installation is carried out by a competent person.

Disconnection of electric appliances should always be carried out by a competent person.

Warning: This appliance must be earthed.

In the event of a power cut:

Switch off the electricity supply to the appliance at the socket. When the power returns, see the Programmer / Clock section to ‘Set the time of day’.

Using the programmer

The main oven is fully programmable refer to “Programmer / Clock” and “Automatic Cooking” sections.

Cooling fan

When the appliance is switched on you will hear the cooling fan come on. This keeps the fascia and control knobs cool during cooking, and will continue to operate for a period of time after the last control has been switched off, until the fascia has cooled.

INTRODUCTION

INSTALLATION INSTRUCTIONS

3. The appliance is designed to fit into a standard 600mm wide housing unit, with minimum internal dimensions as shown.

Please note that all sizes are nominal some variation is to be expected.

869

min 560 mm

17 mm

min

880

min

888

min 7 mm

6 mm

550 mm min

595 mm

550 mm

892

547 mm

30 - 80 mm

INSTALLATION INSTRUCTIONS

Step 1: Prepare installation Do not lift the oven by the door

handle.

Whilst every care is taken to eliminate burrs and raw edges from this product, please take care when handling - we recommend the use of protective gloves during installation.

Please note that all dimensions and sizes given are nominal - some variation is to be expected.

If the appliance is to be installed near to a corner where the adjacent cabinets run at right angles forward of the appliance, there must be a gap of at least 90mm between the appliance and the cabinets, to prevent overheating of the cabinets.

1. Remove the fixing screws from the polythene bag on the top of the appliance, but leave the appliance in the base tray packaging until you are ready to install it.

Note: When removing the appliance from the base tray packaging care should be taken to ensure the outer frame trim is not damaged.

2. (i) When installed in a typical

600mm deep built in housing unit, the false back should be removed from the housing unit, to provide the necessary depth for installation.

(ii) When the false back is

removed, it is normally the case that the support shelf for the appliance leaves a gap between the back edge and the wall of approximately 80mm.

(iii) If no gap occurs between the

back edge of the shelf and the wall behind the unit, we recommend that a gap of at least 30mm is made by shortening the shelf.

Front of oven

Back edge of support shelf

Rear Wall

30 - 80

To replace an oven light bulb

Caution: Switch off the electricity supply to the appliance at the socket, to avoid the risk of electric shock. Wait until the oven is cool, then remove the oven shelves.

Main oven only - remove the loose oven back - unscrew the 4 securing screws (one at each corner).

Unscrew the lens cover (turn anticlockwise). Unscrew the bulb and replace.

Replace lens cover. Main oven only - replace oven back. Please note that the oven light bulb is

not covered by the guarantee.

Before using the appliance for the first time, remove any protective polythene film and wash the oven shelves and furniture in hot soapy water to remove their protective covering of oil. Even so, when you first switch on the oven or grill you may notice a smell and some smoke.

Glass door panels

To meet the relevant standards of Domestic cooking appliances, all the glass panels on this appliance are toughened to meet the fragmentation requirements of BS 3193. This ensures that, in the unlikely event that a panel breaks, it does so into small fragments to minimise the risk of injury.

Please take care when handling, using or cleaning all glass panels as any damage to the surfaces or edges may result in the glass breaking without warning or apparent cause at a later date. Should any glass panel be damaged, we strongly recommend that it is replaced immediately.

Disposal of packaging

• All our packaging materials are recyclable and environmentally friendly.

• Please help us to protect our environment by disposing of all packaging in an environmentally friendly manner.

• Please contact your local authority for the nearest recycling centre.

Caution: Packaging materials can pose a risk of suffocation - keep away from children.

INTRODUCTION
